Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#78902) — 159 parça

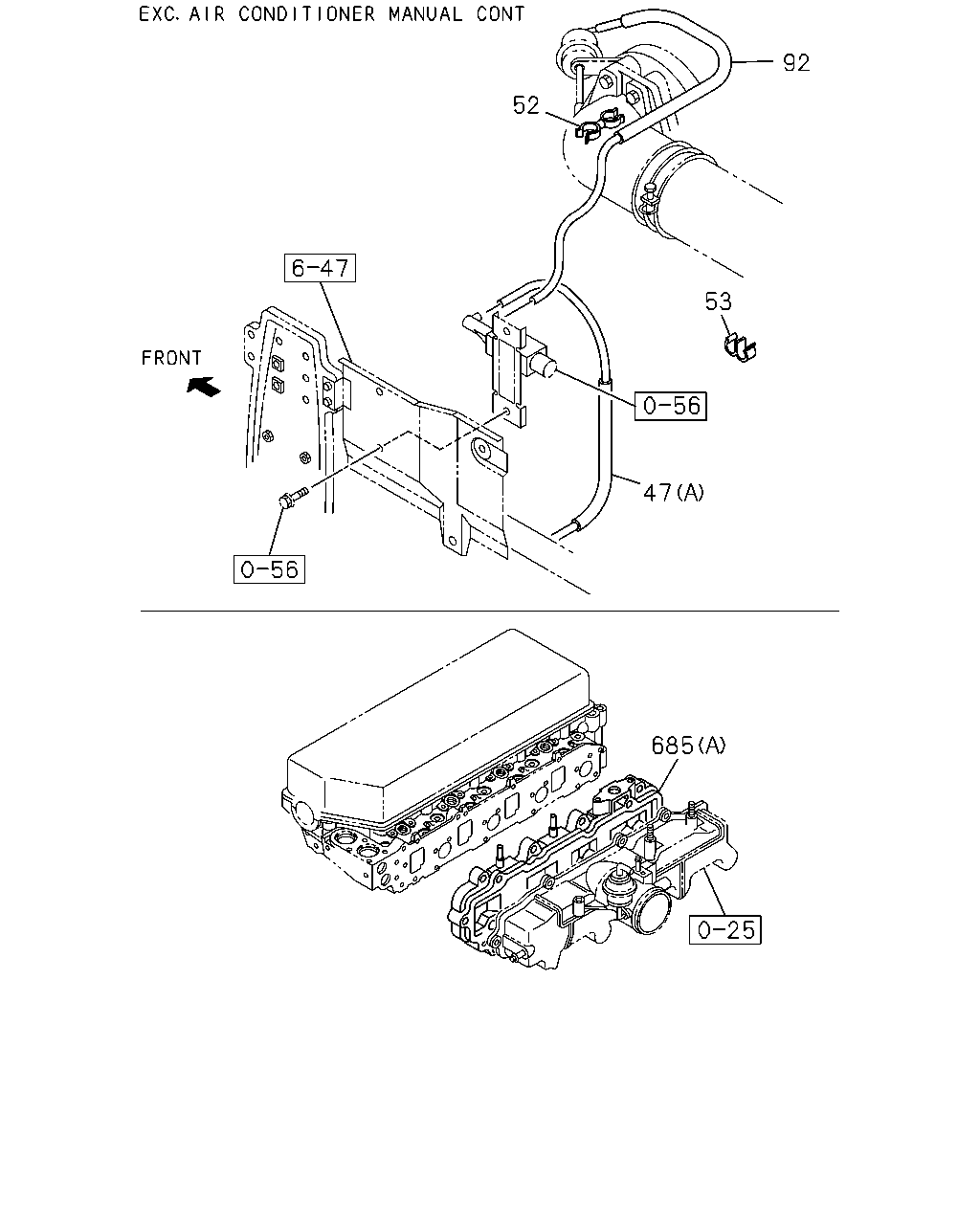

92 52 53 47 685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=200 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	0211-0507	●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (B) L=260	8-97037-964-1	01	1	0508-		●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> (A) L=200 IDN	8-97119-311-0	01	1	0211-0507	●		●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> (A) L=200 IDN	8-97119-311-0	01	1	0508-		●	●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=200 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	0508-			●
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8> ID=7.5 & 7.5 IDN	8-97019-084-0	01	1	0211-0507	●		●
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8> ID=7.5 & 7.5 IDN	8-97019-084-0	01	1	0508-		●	●
53	03.675 CLIP; 2 HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 ID=6.8X2 IDN	8-94126-636-0	01	1	0211-0507			●
53	03.675 CLIP; 2 HOSE EXHAUST BRAKE<NF8> 03.162 ID=6.8X2 IDN	8-94126-636-0	01	1	0211-0507	●
53	03.675 CLIP; 2 HOSE EXHAUST BRAKE<NF8> 03.162 ID=6.8X2 IDN	8-94126-636-0	01	1	0508-			●
53	03.675 CLIP; 2 HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 ID=6.8X2 IDN	8-94126-636-0	01	1	0508-		●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> L=520 IDN	8-97089-490-2	01	1	0211-0507	●		●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> L=520 IDN	8-97089-490-2	01	1	0508-		●	●
685	03.680 CASE; INLET,EGR GLOW SYSTEM DELETE<7RK> (C)	8-98210-151-0	01	1	1210-1404				●
685	03.680 CASE; INLET,EGR GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2014(VZE) (C)	8-98210-151-0	01	1	1405-1405				●
685	03.680 CASE; INLET,EGR GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015(VZF) (C)	8-98210-151-0	01	1	1406-				●
685	03.680 CASE; INLET,EGR (A)	8-97146-873-1	01	1	0211-0507	●		●
685	03.680 CASE; INLET,EGR (A)	8-97146-873-1	01	1	0508-1404		●	●
685	03.680 CASE; INLET,EGR (A)	8-97146-873-1	01	1	1405-		●	●	●
685	03.680 CASE; INLET,EGR (B)	8-97146-872-1	01	1	0610-				●

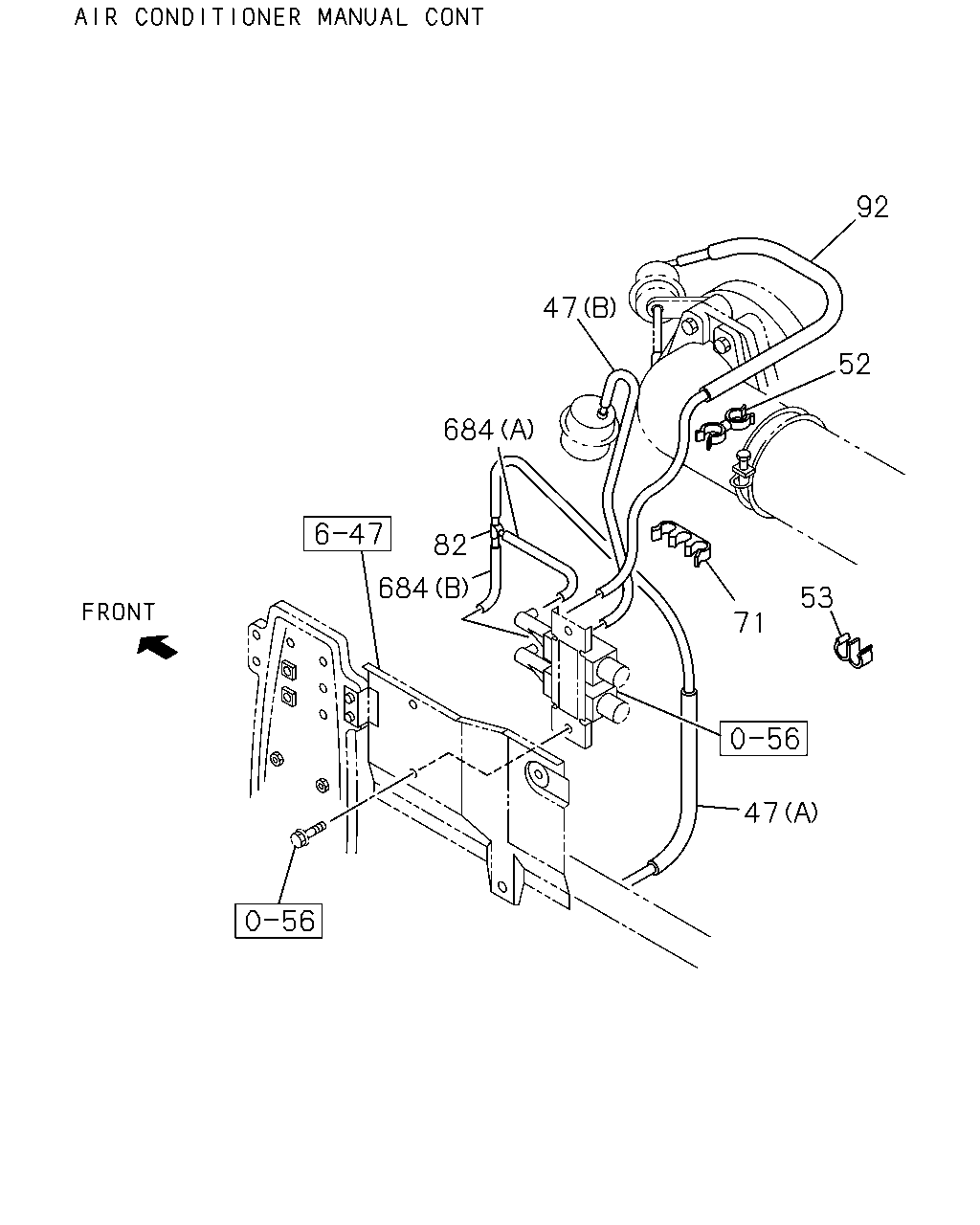

92 47 52 684 82 684 53 71 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=200 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	0211-0507	●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (B) L=260	8-97037-964-1	01	1	0508-		●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> (A) L=200 IDN	8-97119-311-0	01	1	0211-0507	●		●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> (A) L=200 IDN	8-97119-311-0	01	1	0508-		●	●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=200 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	0508-			●
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8> ID=7.5 & 7.5 IDN	8-97019-084-0	01	1	0211-0507	●		●
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8> ID=7.5 & 7.5 IDN	8-97019-084-0	01	1	0508-		●	●
53	03.675 CLIP; 2 HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 ID=6.8X2 IDN	8-94126-636-0	01	1	0211-0507			●
53	03.675 CLIP; 2 HOSE EXHAUST BRAKE<NF8> 03.162 ID=6.8X2 IDN	8-94126-636-0	01	1	0211-0507	●
53	03.675 CLIP; 2 HOSE EXHAUST BRAKE<NF8> 03.162 ID=6.8X2 IDN	8-94126-636-0	01	1	0508-			●
53	03.675 CLIP; 2 HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 ID=6.8X2 IDN	8-94126-636-0	01	1	0508-		●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	0211-0507	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	0508-		●	●
82	03.680 JOINT; 3 WAY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY IDN	8-94208-695-0	01	1	0211-0507	●
82	03.680 JOINT; 3 WAY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY IDN	8-94208-695-0	01	1	0508-		●	●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> L=520 IDN	8-97089-490-2	01	1	0211-0507	●		●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> L=520 IDN	8-97089-490-2	01	1	0508-		●	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=30 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	0211-0507	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=30 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	0508-1006		●	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=30 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	1007-		●	●	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=50 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	0211-0507	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=50 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	0508-1006		●	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=50 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	1007-		●	●	●

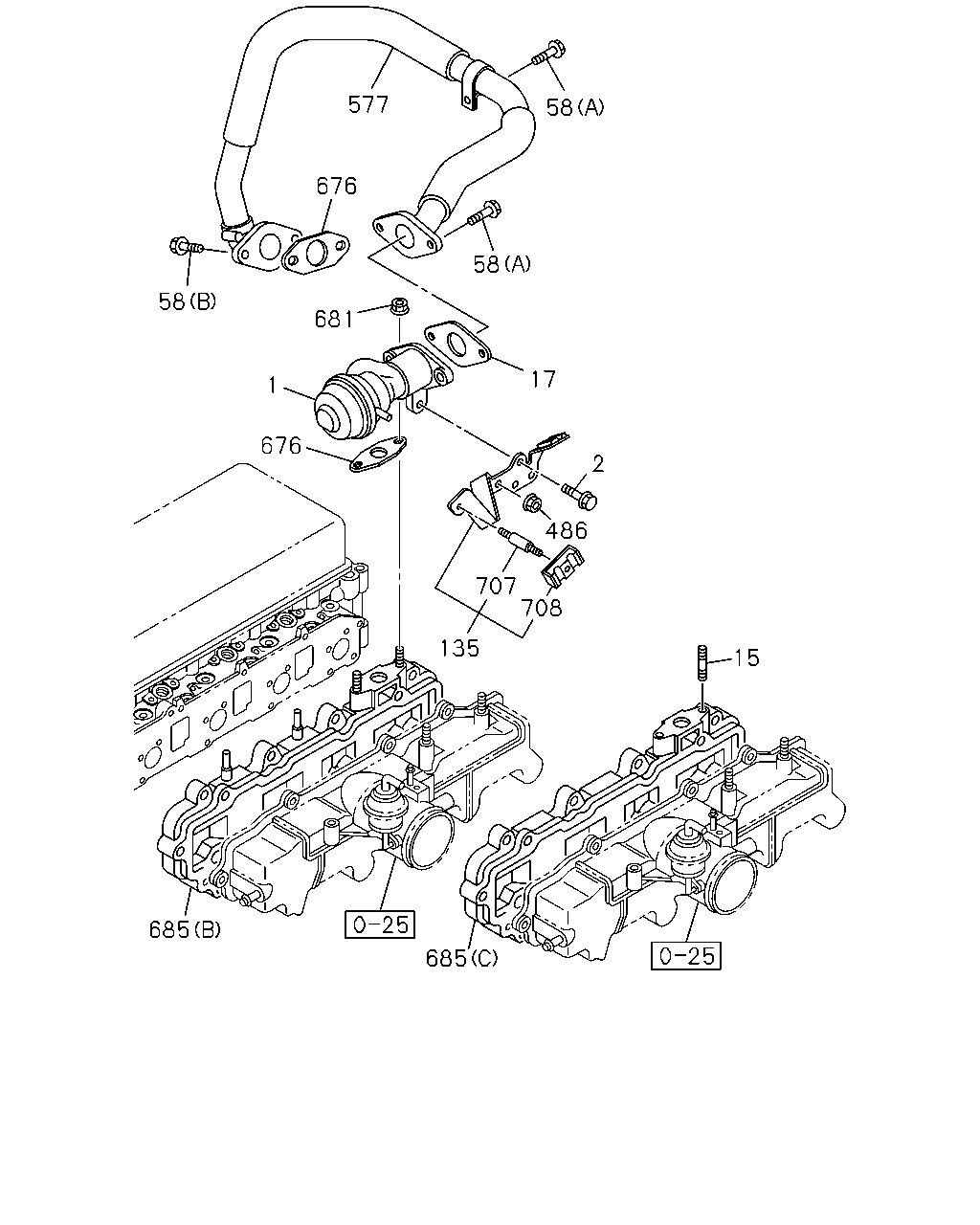

58 577 676 58 681 1 676 58 17 2 486 707 708 135 15 685 685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.670 VALVE; EGR	8-97208-656-4	01	1	0610-					●
1	03.670 VALVE; EGR	8-97115-533-3	01	1	0610-1404				●
1	03.670 VALVE; EGR EXC. VIN MODEL YEAR 2014(VZE)	8-97115-533-3	01	1	1405-1405				●
1	03.670 VALVE; EGR EXC. VIN MODEL YEAR 2015(VZF)	8-97115-533-3	01	1	1406-				●
2	03.670 BOLT; EGR VLV 01.531 M8X20 FLANGE IDN	0-28650-820-0	01	1	0610-1404				●
2	03.670 BOLT; EGR VLV EXC. VIN MODEL YEAR 2014(VZE) 01.531 M8X20 FLANGE IDN	0-28650-820-0	01	1	1405-1405				●
2	03.670 BOLT; EGR VLV EXC. VIN MODEL YEAR 2015(VZF) 01.531 M8X20 FLANGE IDN	0-28650-820-0	01	1	1406-				●
15	03.670 STUD; EGR PIPE GLOW SYSTEM DELETE<7RK> 01.073 M8X22 L=34 IDN	0-41010-822-0	02	1	1210-				●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0610-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK>	8-98210-153-0	01	1	1212-1404				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2014(VZE)	8-98210-153-0	01	1	1405-1405				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015(VZF)	8-98210-153-0	01	1	1406-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97192-765-0	03	1	0610-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97113-023-0	01	1	0610-1211				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FAST GLOW SYSTEM<KM6>	8-97113-023-0	01	1	1212-				●
58	03.417 BOLT; PIPE 01.531 (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	0610-1404				●
58	03.417 BOLT; PIPE EXC. VIN MODEL YEAR 2014(VZE) 01.531 (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1405-1405				●
58	03.417 BOLT; PIPE EXC. VIN MODEL YEAR 2015(VZF) 01.531 (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1406-				●
58	03.417 BOLT; PIPE (B) M8X23 FLANGE	8-97378-077-0	02	1	0610-1404				●
58	03.417 BOLT; PIPE EXC. VIN MODEL YEAR 2014(VZE) (B) M8X23 FLANGE	8-97378-077-0	02	1	1405-1405				●
58	03.417 BOLT; PIPE EXC. VIN MODEL YEAR 2015(VZF) (B) M8X23 FLANGE	8-97378-077-0	02	1	1406-				●
135	03.680 BRACKET; EGR	8-97221-358-1	01	1	0610-				●
486	03.671 NUT; BRKT 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-				●
577	03.675 PIPE; AIR,EGR	8-97200-643-2	01	1	0610-1404				●
577	03.675 PIPE; AIR,EGR EXC. VIN MODEL YEAR 2014(VZE)	8-97200-643-2	01	1	1405-1405				●
577	03.675 PIPE; AIR,EGR EXC. VIN MODEL YEAR 2015(VZF)	8-97200-643-2	01	1	1406-				●
676	03.417 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK>	8-98210-154-0	02	1	1212-1404				●
676	03.417 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2014(VZE)	8-98210-154-0	02	1	1405-1405				●
676	03.417 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015(VZF)	8-98210-154-0	02	1	1406-				●
676	03.417 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-683-0	02	1	0610-1211				●
676	03.417 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FAST GLOW SYSTEM<KM6>	8-97146-683-0	02	1	1212-				●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE IDN	0-91180-208-0	02	1	0610-					●
681	03.671 NUT; EGR PIPE 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-1404				●
681	03.671 NUT; EGR PIPE EXC. VIN MODEL YEAR 2014(VZE) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1405-1405				●
681	03.671 NUT; EGR PIPE EXC. VIN MODEL YEAR 2015(VZF) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1406-				●
685	03.680 CASE; INLET,EGR GLOW SYSTEM DELETE<7RK> (C)	8-98210-151-0	01	1	1210-1404				●
685	03.680 CASE; INLET,EGR GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2014(VZE) (C)	8-98210-151-0	01	1	1405-1405				●
685	03.680 CASE; INLET,EGR GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015(VZF) (C)	8-98210-151-0	01	1	1406-				●
685	03.680 CASE; INLET,EGR (A)	8-97146-873-1	01	1	0211-0507	●		●
685	03.680 CASE; INLET,EGR (A)	8-97146-873-1	01	1	0508-1404		●	●
685	03.680 CASE; INLET,EGR (A)	8-97146-873-1	01	1	1405-		●	●	●
685	03.680 CASE; INLET,EGR (B)	8-97146-872-1	01	1	0610-				●
707	03.162 STUD; CLIP,INJ PIPE M6X25 L=36	8-97214-234-1	01	1	0610-				●
708	03.162 CLIP; PIPE,INJ	8-97213-481-0	01	1	0610-				●

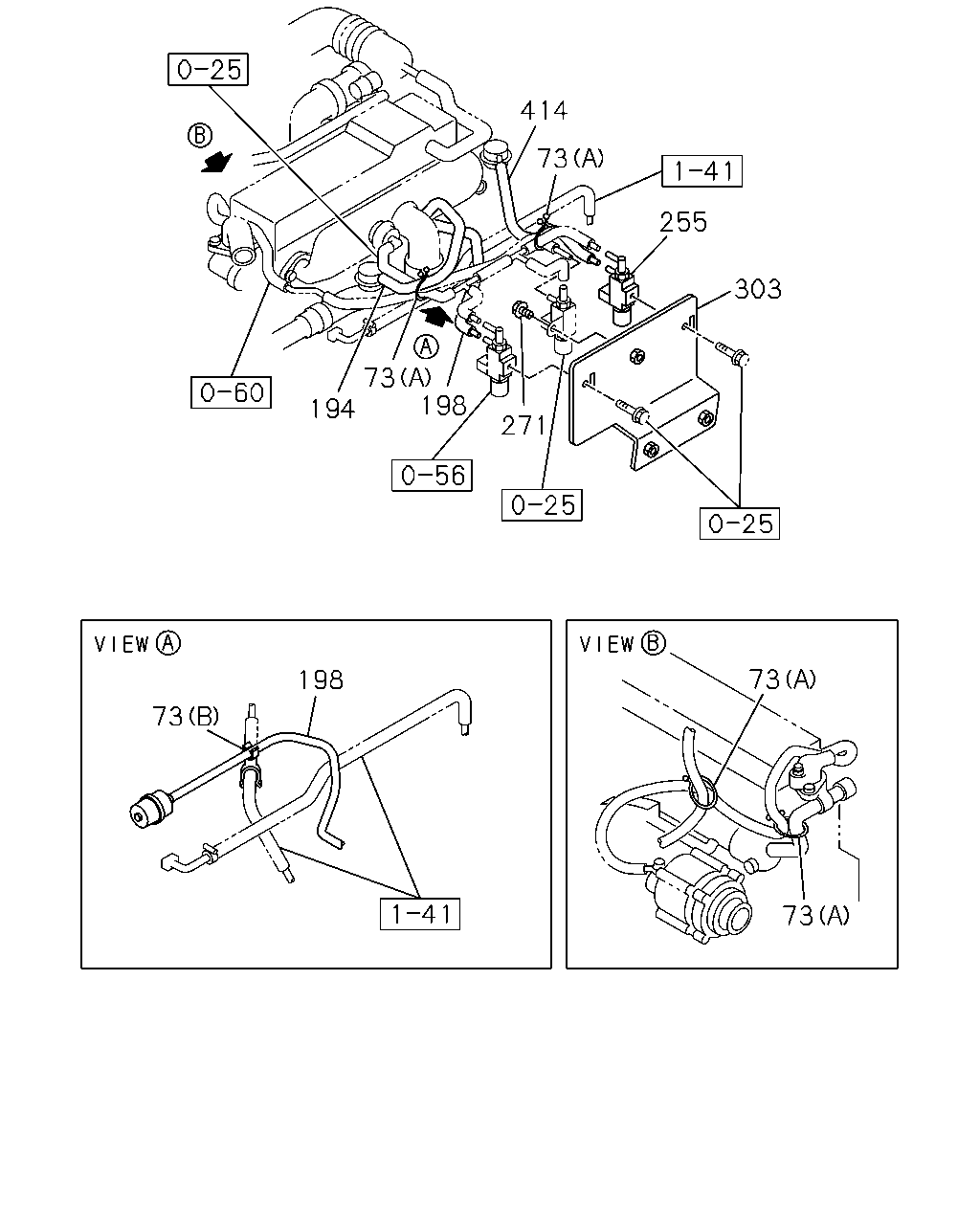

414 73 255 303 194 73 198 271 73 198 73 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	E
73	03.680 CLIP; VAC HOSE 01.540 (A) ID=30	8-94315-423-0	03	1	0610-	●
73	03.680 CLIP; VAC HOSE 03.162 (B) ID=13.2 & 7.5 IDN	8-94315-426-0	01	1	0610-	●
73	03.680 CLIP; VAC HOSE 03.278 (A) ID=37	8-94481-468-0	01	1	0610-	●
73	03.680 CLIP; VAC HOSE (B) ID=16.5 & 7 IDN	8-97226-171-0	01	1	0610-	●
194	03.675 HOSE; VAC	8-97208-495-0	01	1	0610-	●
198	03.675 HOSE; VAC,VSV L=300 SERVICED BY L=3000	0-04930-300-0	01	1	0610-	●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	0610-	●
271	03.675 BOLT; BRKT 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0610-	●
303	03.671 BRACKET; VAC SW	8-97225-561-0	01	1	0610-	●
414	03.675 HOSE; RUBBER,EGR VLV TO VSV	8-97259-489-0	01	1	0610-	●

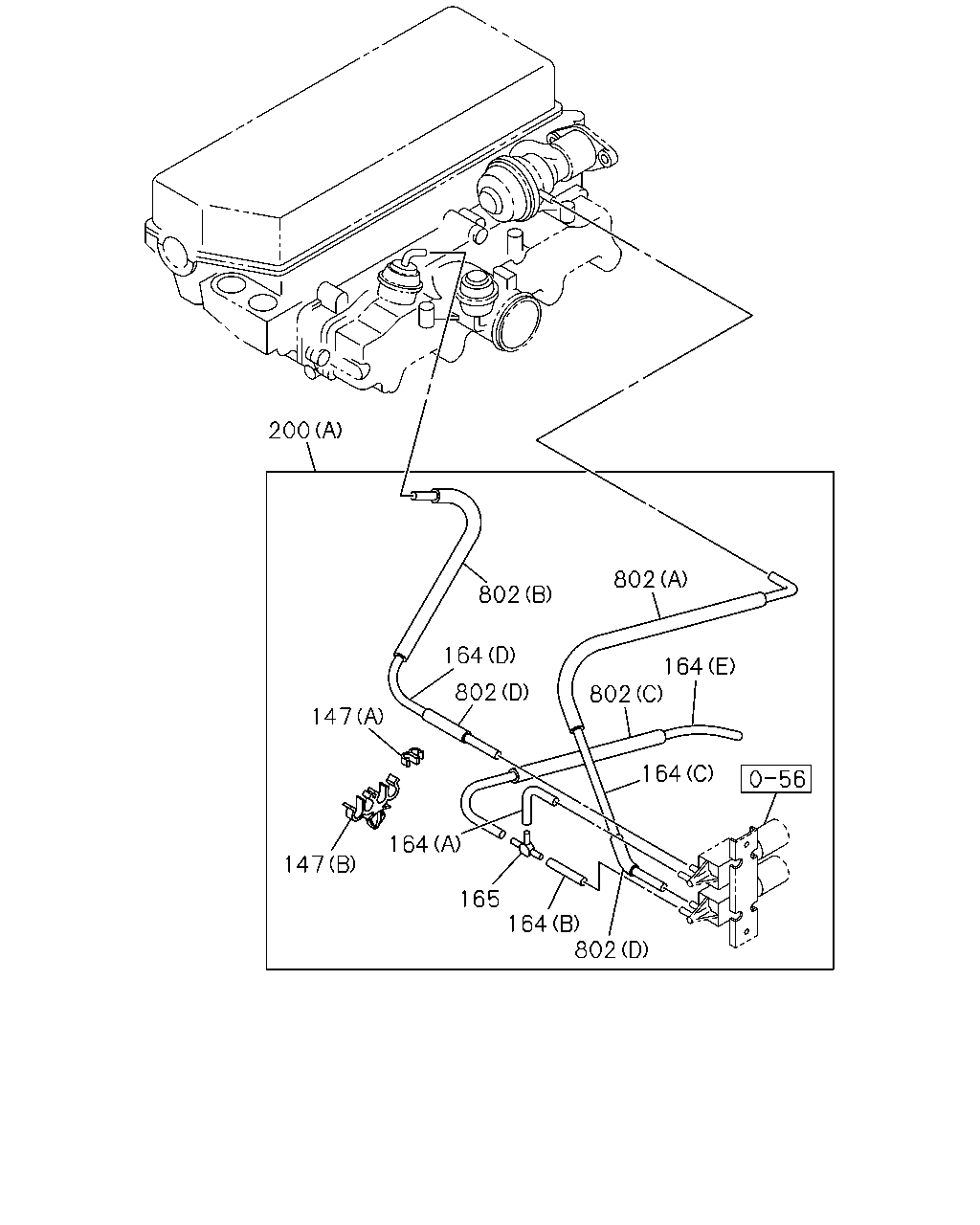

200 802 802 164 802 147 164 147 165 164 802 164 802 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
147	03.680 CLIP; RUBBER HOSE EXC. VIN MODEL YEAR 2014(VZE) 03.162 (A) ID=6.8X2 IDN	8-94126-636-0	03	1	1405-1405	●
147	03.680 CLIP; RUBBER HOSE EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 03.162 (A) ID=6.8X2 IDN	8-94126-636-0	03	1	1406-1406	●
147	03.680 CLIP; RUBBER HOSE EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2015(VZF) 03.162 (A) ID=6.8X2 IDN	8-94126-636-0	03	1	1407-	●
147	03.680 CLIP; RUBBER HOSE EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2 IDN	8-94126-636-0	03	1	0610-1404	●
147	03.680 CLIP; RUBBER HOSE VIN MODEL YEAR 2014(VZE) 03.162 (A) ID=6.8X2 IDN	8-94126-636-0	01	1	1405-1405	●
147	03.680 CLIP; RUBBER HOSE EXHAUST BRAKE<NF8> VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 03.162 (A) ID=6.8X2 IDN	8-94126-636-0	01	1	1406-1406	●
147	03.680 CLIP; RUBBER HOSE EXHAUST BRAKE<NF8> VIN MODEL YEAR 2015(VZF) 03.162 (A) ID=6.8X2 IDN	8-94126-636-0	01	1	1407-	●
147	03.680 CLIP; RUBBER HOSE EXHAUST BRAKE<NF8> 02.251 (B) 4XID=6.8 IDN	8-94132-799-0	01	1	0610-1404	●
147	03.680 CLIP; RUBBER HOSE EXC. VIN MODEL YEAR 2014(VZE) 02.251 (B) 4XID=6.8 IDN	8-94132-799-0	01	1	1405-1405	●
147	03.680 CLIP; RUBBER HOSE EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 02.251 (B) 4XID=6.8 IDN	8-94132-799-0	01	1	1406-1406	●
147	03.680 CLIP; RUBBER HOSE EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2015(VZF) 02.251 (B) 4XID=6.8 IDN	8-94132-799-0	01	1	1407-	●
164	03.675 HOSE; RUBBER EXHAUST BRAKE<NF8> 08.962 (A) L=65 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	0610-1404	●
164	03.675 HOSE; RUBBER EXC. VIN MODEL YEAR 2014(VZE) 08.962 (A) L=65 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	1405-1405	●
164	03.675 HOSE; RUBBER EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 08.962 (A) L=65 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	1406-1406	●
164	03.675 HOSE; RUBBER EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2015(VZF) 08.962 (A) L=65 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	1407-	●
164	03.675 HOSE; RUBBER EXHAUST BRAKE<NF8> 08.962 (B) L=40 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	0610-1404	●
164	03.675 HOSE; RUBBER EXC. VIN MODEL YEAR 2014(VZE) 08.962 (B) L=40 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	1405-1405	●
164	03.675 HOSE; RUBBER EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 08.962 (B) L=40 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	1406-1406	●
164	03.675 HOSE; RUBBER EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2015(VZF) 08.962 (B) L=40 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	1407-	●
164	03.675 HOSE; RUBBER EXHAUST BRAKE<NF8> (C)	5-87411-828-0	01	1	0610-	●
164	03.675 HOSE; RUBBER EXHAUST BRAKE<NF8> (D)	5-87411-829-0	01	1	0610-	●
164	03.675 HOSE; RUBBER EXHAUST BRAKE<NF8> (E)	5-87411-832-0	01	1	0610-	●
165	03.680 JOINT; HOSE EXHAUST BRAKE<NF8> 3WAY IDN	8-94208-695-0	01	1	0610-1404	●
165	03.680 JOINT; HOSE EXC. VIN MODEL YEAR 2014(VZE) 3WAY IDN	8-94208-695-0	01	1	1405-1405	●
165	03.680 JOINT; HOSE EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 3WAY IDN	8-94208-695-0	01	1	1406-1406	●
165	03.680 JOINT; HOSE EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2015(VZF) 3WAY IDN	8-94208-695-0	01	1	1407-	●
200	03.675 HOSE; VAC VIN MODEL YEAR 2014(VZE) (B) IDN	8-98268-306-0	01	1	1405-1405	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (B) IDN	8-98268-306-0	01	1	1406-1406	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> VIN MODEL YEAR 2015(VZF) (B) IDN	8-98268-306-0	01	1	1407-	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> (A) IDN	8-97207-664-2	01	1	0610-1404	●
200	03.675 HOSE; VAC EXC. VIN MODEL YEAR 2014(VZE) (A) IDN	8-97207-664-2	01	1	1405-1405	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (A) IDN	8-97207-664-2	01	1	1406-1406	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2015(VZF) (A) IDN	8-97207-664-2	01	1	1407-	●
802	03.675 PROTECTOR; HOSE EXHAUST BRAKE<NF8> (A)	5-87411-833-0	01	1	0610-	●
802	03.675 PROTECTOR; HOSE EXHAUST BRAKE<NF8> (B)	5-87411-834-0	01	1	0610-	●
802	03.675 PROTECTOR; HOSE EXHAUST BRAKE<NF8> (C)	5-87411-835-0	01	1	0610-	●
802	03.675 PROTECTOR; HOSE EXHAUST BRAKE<NF8> (D)	5-87411-836-0	02	1	0610-	●

200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
200	03.675 HOSE; VAC VIN MODEL YEAR 2014(VZE) (B) IDN	8-98268-306-0	01	1	1405-1405	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (B) IDN	8-98268-306-0	01	1	1406-1406	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> VIN MODEL YEAR 2015(VZF) (B) IDN	8-98268-306-0	01	1	1407-	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> (A) IDN	8-97207-664-2	01	1	0610-1404	●
200	03.675 HOSE; VAC EXC. VIN MODEL YEAR 2014(VZE) (A) IDN	8-97207-664-2	01	1	1405-1405	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (A) IDN	8-97207-664-2	01	1	1406-1406	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2015(VZF) (A) IDN	8-97207-664-2	01	1	1407-	●

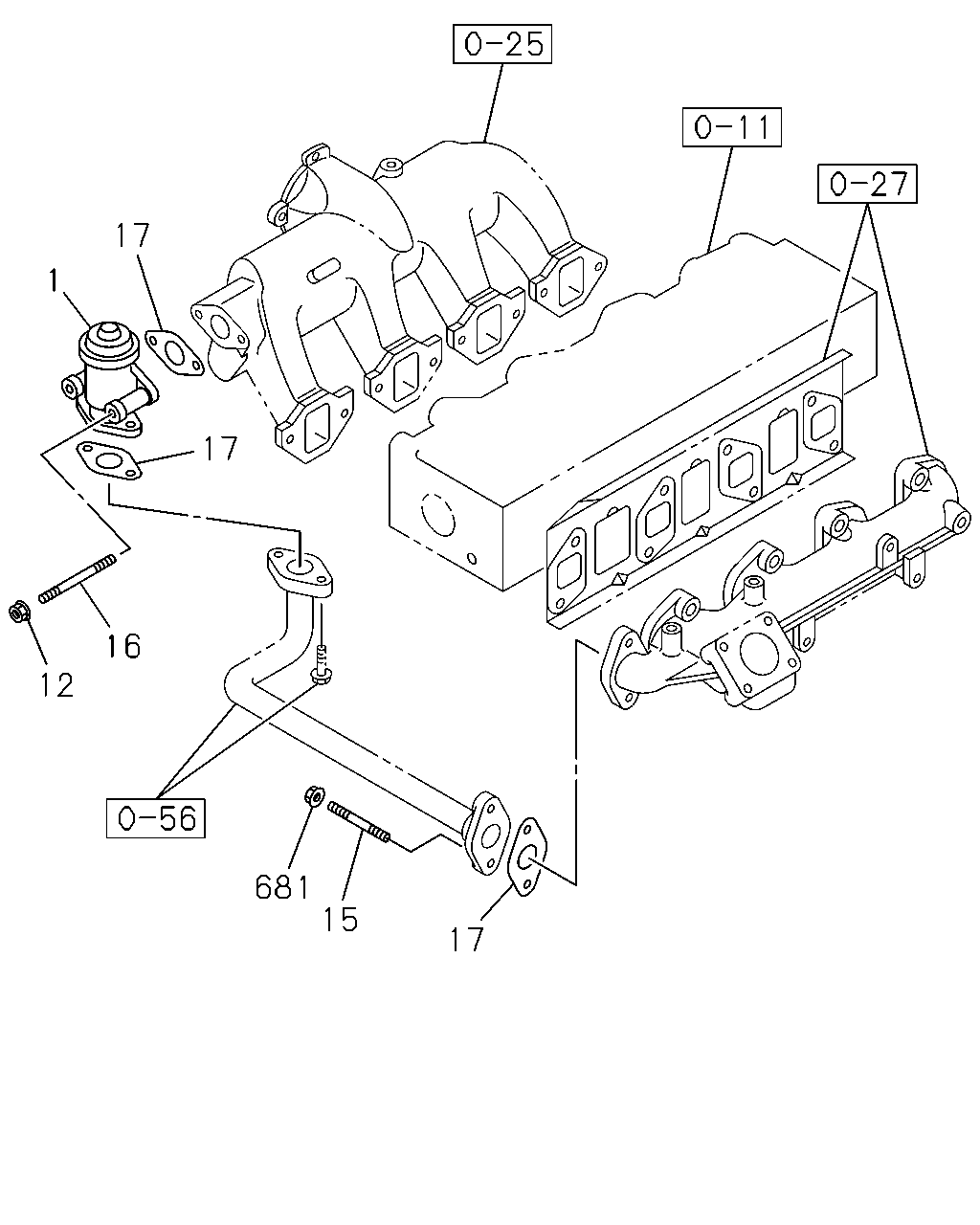

1 17 17 16 12 681 15 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D	E
1	03.670 VALVE; EGR	8-97208-656-4	01	1	0610-		●
1	03.670 VALVE; EGR	8-97115-533-3	01	1	0610-1404	●
1	03.670 VALVE; EGR EXC. VIN MODEL YEAR 2014(VZE)	8-97115-533-3	01	1	1405-1405	●
1	03.670 VALVE; EGR EXC. VIN MODEL YEAR 2015(VZF)	8-97115-533-3	01	1	1406-	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE IDN	0-91180-208-0	02	1	0610-		●
15	03.670 STUD; EGR PIPE GLOW SYSTEM DELETE<7RK> 01.073 M8X22 L=34 IDN	0-41010-822-0	02	1	1210-	●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0610-		●
16	03.275 STUD; EGR VLV 01.097 M8X55 L=67	0-41010-855-0	02	1	0610-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK>	8-98210-153-0	01	1	1212-1404	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2014(VZE)	8-98210-153-0	01	1	1405-1405	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015(VZF)	8-98210-153-0	01	1	1406-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97192-765-0	03	1	0610-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97113-023-0	01	1	0610-1211	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FAST GLOW SYSTEM<KM6>	8-97113-023-0	01	1	1212-	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE IDN	0-91180-208-0	02	1	0610-		●
681	03.671 NUT; EGR PIPE 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-1404	●
681	03.671 NUT; EGR PIPE EXC. VIN MODEL YEAR 2014(VZE) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1405-1405	●
681	03.671 NUT; EGR PIPE EXC. VIN MODEL YEAR 2015(VZF) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1406-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
