Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#78900) — 188 parça

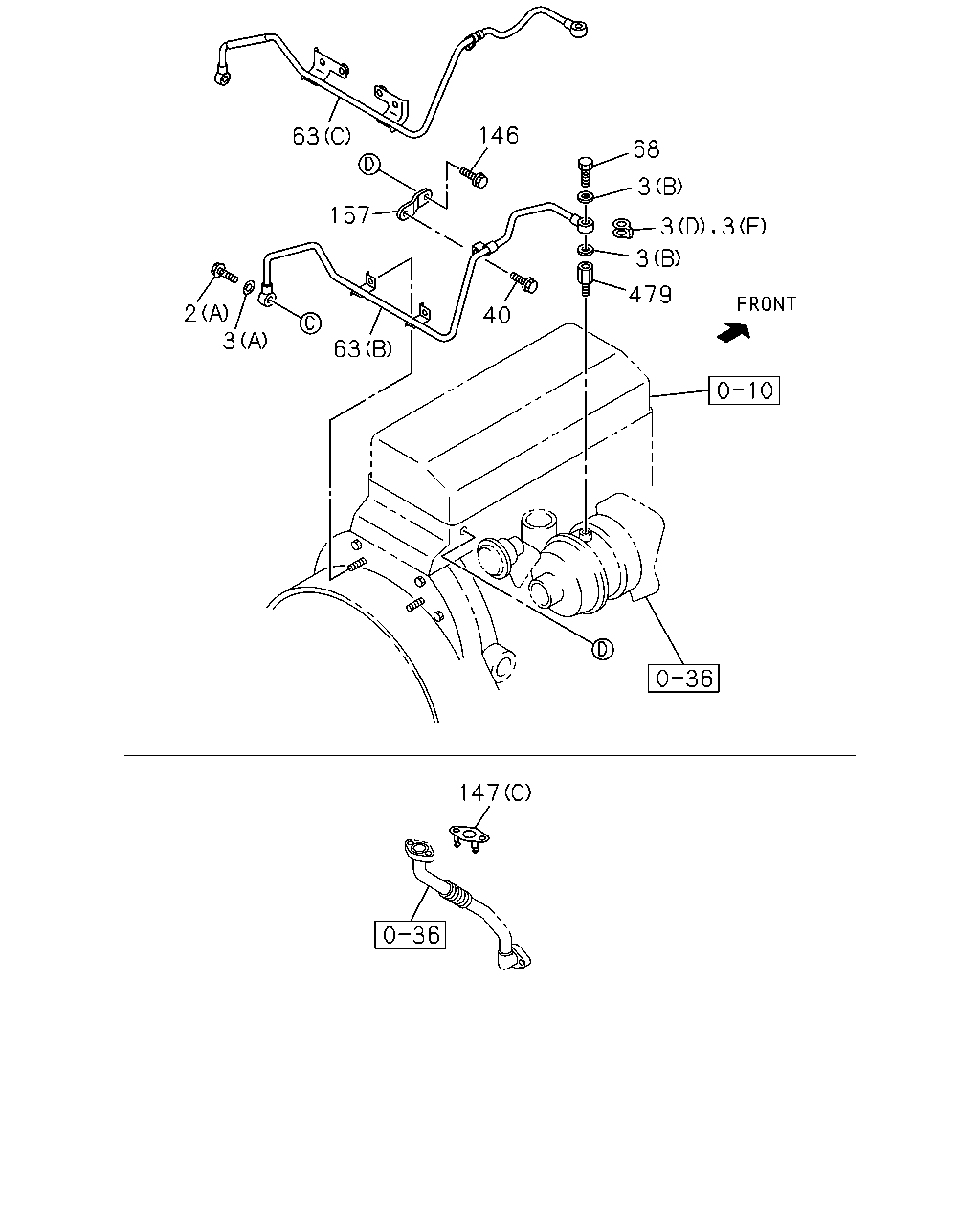

3 3 3 3 3 2 2 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.519 PIPE; OIL,INJ PUMP TO C/BL EXC. ENGINE POWER N-SPEC(7QV)	8-97093-547-1	01	1	0211-0507	●	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-1	01	1	0508-	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97200-615-4	01	1	0610-			●
2	01.531 BOLT; EYE,OIL PIPE EXC. ENGINE POWER N-SPEC(7QV) (C) M10X21 FLANGE	1-09675-077-0	02	1	0211-0507	●	●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	1-09675-077-0	02	1	0508-0805	●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (C) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●
2	01.531 BOLT; EYE,OIL PIPE 03.358 (D) M10X23 FLANGE	8-94332-831-1	01	1	0610-				●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X40 FLANGE	8-97182-847-0	01	1	0610-			●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (B) M10X24	9-09906-205-1	01	1	0610-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015(VZF) (A) ID=10.2 OD=15.2	1-09630-083-0	03	1	1410-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2014(VZE) (E) ID=10.2	8-98158-135-0	04	1	1405-1405			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015(VZF) (E) ID=10.2	8-98158-135-0	04	1	1406-1409			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015(VZF) (E) ID=10.2	8-98158-135-0	02	1	1410-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0507	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0508-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	0610-				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0610-1404			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2014(VZE) (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	1405-1405			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015(VZF) (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	1406-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0610-1101			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6	8-97331-137-1	01	1	1102-1404			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2014(VZE) (D) ID=12.6	8-97331-137-1	01	1	1405-1405			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015(VZF) (D) ID=12.6	8-97331-137-1	01	1	1406-			●

63 157 146 68 3 3 3 479 3 40 63 3 2 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.531 BOLT; EYE,OIL PIPE EXC. ENGINE POWER N-SPEC(7QV) (C) M10X21 FLANGE	1-09675-077-0	02	1	0211-0507	●	●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	1-09675-077-0	02	1	0508-0805	●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (C) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●
2	01.531 BOLT; EYE,OIL PIPE 03.358 (D) M10X23 FLANGE	8-94332-831-1	01	1	0610-				●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X40 FLANGE	8-97182-847-0	01	1	0610-			●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (B) M10X24	9-09906-205-1	01	1	0610-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015(VZF) (A) ID=10.2 OD=15.2	1-09630-083-0	03	1	1410-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2014(VZE) (E) ID=10.2	8-98158-135-0	04	1	1405-1405			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015(VZF) (E) ID=10.2	8-98158-135-0	04	1	1406-1409			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015(VZF) (E) ID=10.2	8-98158-135-0	02	1	1410-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0507	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0508-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	0610-				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0610-1404			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2014(VZE) (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	1405-1405			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015(VZF) (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	1406-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0610-1101			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6	8-97331-137-1	01	1	1102-1404			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2014(VZE) (D) ID=12.6	8-97331-137-1	01	1	1405-1405			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015(VZF) (D) ID=12.6	8-97331-137-1	01	1	1406-			●
40	01.531 BOLT; OIL PIPE VIN MODEL YEAR 2014(VZE) M10X26	8-98037-825-0	01	1	1405-1405			●
40	01.531 BOLT; OIL PIPE VIN MODEL YEAR 2015(VZF) M10X26	8-98037-825-0	01	1	1406-1409			●
40	01.531 BOLT; OIL PIPE 03.671 M6X10 FLANGE IDN	0-28050-610-0	01	1	0610-				●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0610-1404			●
40	01.531 BOLT; OIL PIPE EXC. VIN MODEL YEAR 2014(VZE) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1405-1405			●
40	01.531 BOLT; OIL PIPE EXC. VIN MODEL YEAR 2015(VZF) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1406-1409			●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1410-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED VIN MODEL YEAR 2014(VZE) (C)	8-98261-644-0	01	1	1405-1405			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED VIN MODEL YEAR 2015(VZF) (C)	8-98261-644-0	01	1	1406-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED GLOW SYSTEM DELETE<7RK> (B)	8-98209-790-0	01	1	1212-1404			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2014(VZE) (B)	8-98209-790-0	01	1	1405-1405			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015(VZF) (B)	8-98209-790-0	01	1	1406-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-97224-297-0	01	1	0610-				●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-97372-936-2	01	1	0610-1211			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED FAST GLOW SYSTEM<KM6> (B)	8-97372-936-2	01	1	1212-			●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER VIN MODEL YEAR 2014(VZE) M10X26	8-98037-825-0	01	1	1405-1405			●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER VIN MODEL YEAR 2015(VZF) M10X26	8-98037-825-0	01	1	1406-			●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-1	01	1	0610-1404			●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EXC. VIN MODEL YEAR 2014(VZE) M12X28 FLANGE	8-97166-518-1	01	1	1405-1405			●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EXC. VIN MODEL YEAR 2015(VZF) M12X28 FLANGE	8-97166-518-1	01	1	1406-			●
146	01.531 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0610-			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2014(VZE) (C) ID=16	8-98029-475-0	01	1	1405-1405			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015(VZF) (C) ID=16	8-98029-475-0	01	1	1406-			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A)	8-94362-672-1	01	1	0610-				●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0610-				●
157	01.519 BRACKET; OIL PIPE GLOW SYSTEM DELETE<7RK>	8-98209-676-0	01	1	1212-			●
157	01.519 BRACKET; OIL PIPE	8-97181-586-0	01	1	0610-1211			●
157	01.519 BRACKET; OIL PIPE FAST GLOW SYSTEM<KM6>	8-97181-586-0	01	1	1212-			●
479	01.531 ADAPTER GLOW SYSTEM DELETE<7RK>	8-98209-788-0	01	1	1212-1404			●
479	01.531 ADAPTER GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2014(VZE)	8-98209-788-0	01	1	1405-1405			●
479	01.531 ADAPTER GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015(VZF)	8-98209-788-0	01	1	1406-			●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	0610-1211			●
479	01.531 ADAPTER FAST GLOW SYSTEM<KM6> 01.800	8-94436-891-0	01	1	1212-			●

202 89 65 86 202 89 202 83 202 65 27 340 480 472

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	E
27	01.531 BOLT; OIL PIPE FIX 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0507	●	●
27	01.531 BOLT; OIL PIPE FIX 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0508-0512	●			●
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-0609	●			●
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0610-	●		●	●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0211-0507	●	●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0508-0609	●			●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0610-0805	●		●	●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	8-97372-239-0	01	1	0806-	●		●	●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	0211-0507	●	●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	0508-0609	●			●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	0610-	●		●	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-670-0	01	1	0211-0306	●	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0307-0507	●	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0508-0609	●			●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0610-	●		●	●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	0211-0507	●	●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	0508-0609	●			●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	0610-	●		●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0211-0507	●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0211-0507	●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0508-0609	●			●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0508-0609	●			●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0610-	●		●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0610-	●		●	●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0211-0507	●	●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0508-0609	●			●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0610-	●		●	●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0507	●	●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0508-0609	●			●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0610-1312	●		●	●
202	01.531 GASKET; OIL PIPE (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●	●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	0211-0507	●	●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	0508-0609	●			●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	0610-	●		●	●
472	01.519 GASKET; PLUG ENGINE POWER N-SPEC(7QV) 01.531 ID=10.2 OD=15.2	1-09630-083-0	02	1	0211-0507		●
472	01.519 GASKET; PLUG 01.531 ID=10.2 OD=15.2	1-09630-083-0	02	1	0508-				●
480	01.519 PLUG; OIL FILTER ENGINE POWER N-SPEC(7QV) 04.640 M10X12 FLANGE	0-28081-012-0	02	1	0211-0507		●
480	01.519 PLUG; OIL FILTER 04.640 M10X12 FLANGE	0-28081-012-0	02	1	0508-0512				●
480	01.519 PLUG; OIL FILTER 06.225 M10X12 FLANGE	0-28051-012-0	02	1	0601-				●

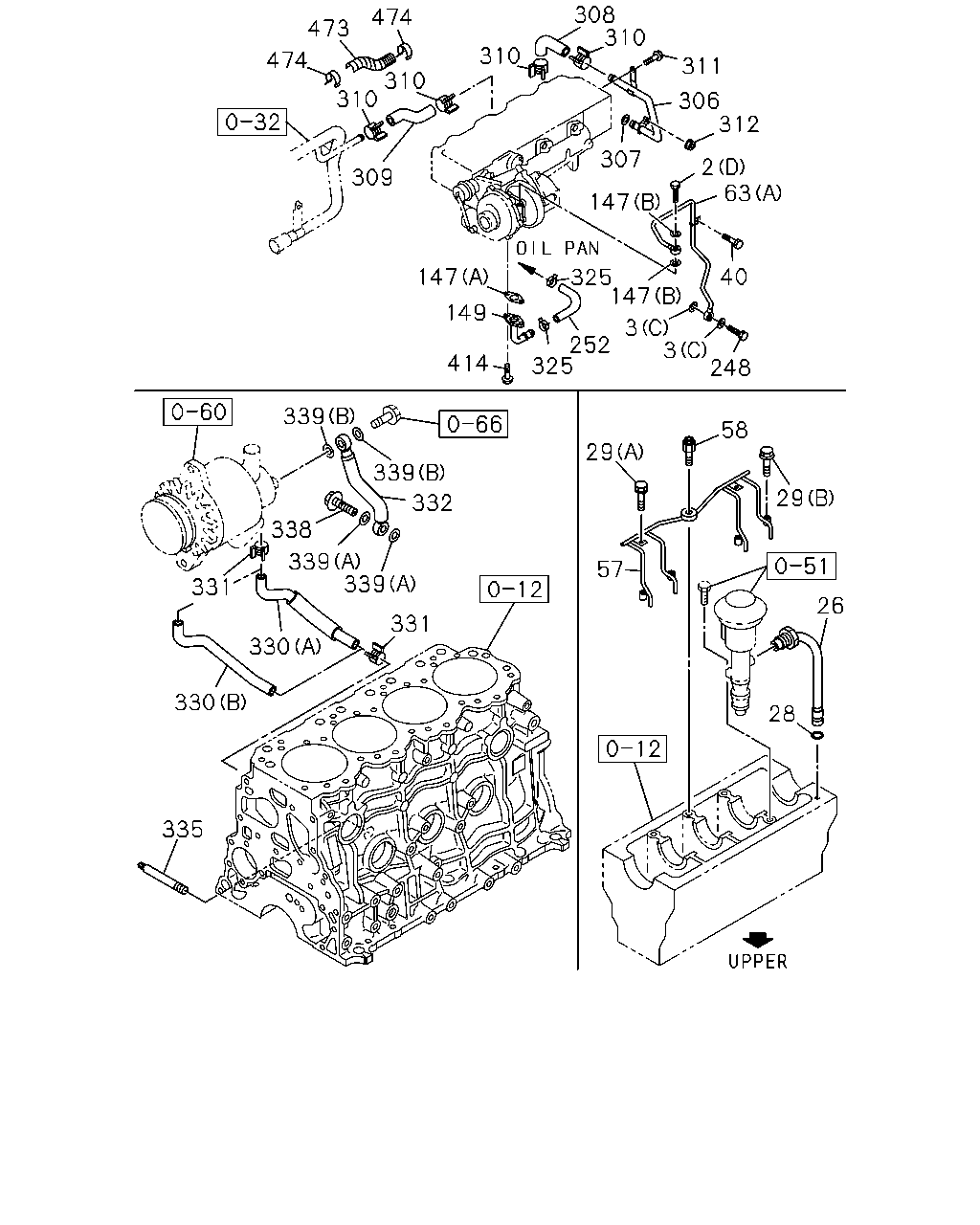

248 3 3 147 252 325 414 149 147 325 40 63 2 147 312 306 307 311 310 308 310 309 310 310 474 473 474 339 331 339 339 338 339 332 29 58 29 26 57 28 330 331 330 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.531 BOLT; EYE,OIL PIPE EXC. ENGINE POWER N-SPEC(7QV) (C) M10X21 FLANGE	1-09675-077-0	02	1	0211-0507	●	●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	1-09675-077-0	02	1	0508-0805	●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (C) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●
2	01.531 BOLT; EYE,OIL PIPE 03.358 (D) M10X23 FLANGE	8-94332-831-1	01	1	0610-				●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X40 FLANGE	8-97182-847-0	01	1	0610-			●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (B) M10X24	9-09906-205-1	01	1	0610-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015(VZF) (A) ID=10.2 OD=15.2	1-09630-083-0	03	1	1410-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2014(VZE) (E) ID=10.2	8-98158-135-0	04	1	1405-1405			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015(VZF) (E) ID=10.2	8-98158-135-0	04	1	1406-1409			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015(VZF) (E) ID=10.2	8-98158-135-0	02	1	1410-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0507	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0508-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	0610-				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0610-1404			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2014(VZE) (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	1405-1405			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015(VZF) (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	1406-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0610-1101			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6	8-97331-137-1	01	1	1102-1404			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2014(VZE) (D) ID=12.6	8-97331-137-1	01	1	1405-1405			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015(VZF) (D) ID=12.6	8-97331-137-1	01	1	1406-			●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97920-470-0	01	1	0610-0801				●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97923-928-0	01	1	0802-				●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	02	1	0610-				●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0610-				●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	0610-				●
40	01.531 BOLT; OIL PIPE VIN MODEL YEAR 2014(VZE) M10X26	8-98037-825-0	01	1	1405-1405			●
40	01.531 BOLT; OIL PIPE VIN MODEL YEAR 2015(VZF) M10X26	8-98037-825-0	01	1	1406-1409			●
40	01.531 BOLT; OIL PIPE 03.671 M6X10 FLANGE IDN	0-28050-610-0	01	1	0610-				●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0610-1404			●
40	01.531 BOLT; OIL PIPE EXC. VIN MODEL YEAR 2014(VZE) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1405-1405			●
40	01.531 BOLT; OIL PIPE EXC. VIN MODEL YEAR 2015(VZF) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1406-1409			●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1410-			●
57	01.519 PIPE; OIL,OIL JET	8-94469-709-3	01	1	0610-				●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO 01.639	8-97311-976-1	01	1	0610-				●
63	01.519 PIPE; OIL,TURBOCHARGER FEED VIN MODEL YEAR 2014(VZE) (C)	8-98261-644-0	01	1	1405-1405			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED VIN MODEL YEAR 2015(VZF) (C)	8-98261-644-0	01	1	1406-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED GLOW SYSTEM DELETE<7RK> (B)	8-98209-790-0	01	1	1212-1404			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2014(VZE) (B)	8-98209-790-0	01	1	1405-1405			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015(VZF) (B)	8-98209-790-0	01	1	1406-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-97224-297-0	01	1	0610-				●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-97372-936-2	01	1	0610-1211			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED FAST GLOW SYSTEM<KM6> (B)	8-97372-936-2	01	1	1212-			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2014(VZE) (C) ID=16	8-98029-475-0	01	1	1405-1405			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015(VZF) (C) ID=16	8-98029-475-0	01	1	1406-			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A)	8-94362-672-1	01	1	0610-				●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0610-				●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97192-313-0	01	1	0610-				●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 03.162 M14X27 FLANGE	1-09675-086-0	01	1	0610-				●
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN INJ PUMP Q SET SPECIAL +5%Q<T1A> IDN	8-98269-695-0	01	1	1401-				●
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN	8-97176-141-0	01	1	0610-1312				●
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97176-141-0	01	1	1401-				●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER	8-97225-604-1	01	1	0610-				●
307	01.531 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97264-168-0	01	1	0610-				●
308	01.540 HOSE; OIL COOLER FEED	8-94174-464-1	01	1	0610-				●
309	01.540 HOSE; OIL COOLER RETURN	8-97224-318-1	01	1	0610-				●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	04	1	0610-				●
311	01.531 BOLT; PIPE FIX 00.662 M8X14 FLANGE	0-28080-814-0	01	1	0610-				●
312	01.531 NUT; PIPE FIX 00.854 M8 FLANGE	5-09440-005-0	01	1	0610-0805				●
312	01.531 NUT; PIPE FIX 04.634 M8 FLANGE	8-97581-233-0	01	1	0806-				●
325	01.519 CLIP; RUBBER HOSE,OIL RETURN 01.166 ID=20.8	8-94125-862-1	02	1	0610-				●
330	03.278 HOSE; VAC PUMP,RETURN INJ PUMP Q SET SPECIAL +5%Q<T1A> (B) IDN	8-98269-691-0	01	1	1401-				●
330	03.278 HOSE; VAC PUMP,RETURN (A)	8-97073-920-2	01	1	0610-1111				●
330	03.278 HOSE; VAC PUMP,RETURN (B)	8-98204-694-0	01	1	1112-1312				●
330	03.278 HOSE; VAC PUMP,RETURN EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> (B)	8-98204-694-0	01	1	1401-				●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	0610-				●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	0610-				●
335	01.531 STOPPER; OIL PIPE	8-97203-568-0	01	1	0610-				●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	0610-				●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0610-				●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0610-				●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE IDN	0-28050-616-0	02	1	0610-				●
473	01.540 INSULATOR; HOSE	8-97101-331-0	02	1	0610-				●
474	01.540 CLIP; INSULATOR	8-97101-337-0	04	1	0610-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
