Isuzu WW
▶
TRUCKS
▶
FVM
▶
10632 - FVM-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-32 - FRONT DOOR LOCK AND HANDLE
▶

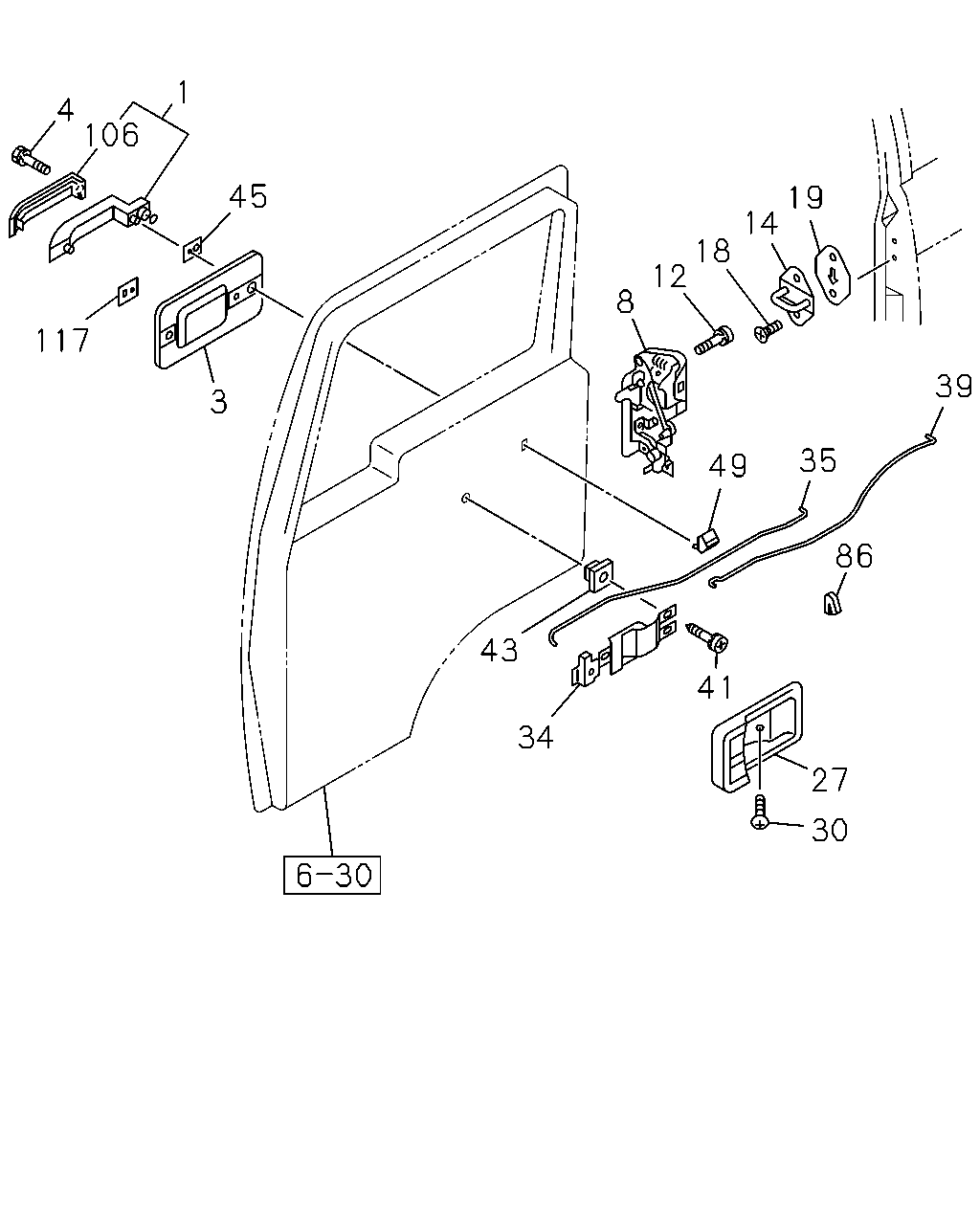

6-32 — FRONT DOOR LOCK AND HANDLE
(#789) — 33 parça
◀
[632A] N0.1 (27 parça)
[632A] N0.2 (6 parça)
▶
4
1
106
45
117
3
8
12
18
14
19
39
35
49
86
41
34
43
27
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANDLE; OUTSIDE,FRT DOOR
1-74617-038-2
02
1
9204-
3
BASE; HANDLE,DOOR OUTSIDE
AUSTRALIA EQUIPMENT(RR3)
1-74617-024-5
02
1
9204-
4
SCREW; OUTSIDE HANDLE,DOOR
M6X16 W/LK&PL WASHER
1-09981-439-0
04
1
9204-
8
LOCK; DOOR,FRT DOOR
1-74517-162-0
01
1
9204-
8
LOCK; DOOR,FRT DOOR
1-74517-158-0
01
1
9204-
12
SCREW; DOOR LK
M6X12 W/LK&PL WASHER
1-09981-430-0
02
1
9204-
12
SCREW; DOOR LK
M6X16
1-09981-447-1
06
1
9204-
12
SCREW; DOOR LK
M6X14
1-09981-512-1
04
1
9204-
14
STRIKER; FRT DOOR
1-74527-001-1
02
1
9204-
18
SCREW; DOOR STRIKER
M8X20
1-09981-450-3
04
1
9204-
19
SHEET; ADJ,DOOR STRIKER
T=1.4
8-94282-546-0
AR
1
9204-
27
ESCUTCHEON; INSIDE HANDLE,FRT DOOR
BLACK
8-94201-500-1
01
1
9204-
27
ESCUTCHEON; INSIDE HANDLE,FRT DOOR
BLACK
8-94201-499-1
01
1
9204-
30
SCREW; ESCUTCHEON
M4X10 TAPPING OVAL-HEAD
0-70580-410-0
02
1
9204-
34
HANDLE; INSIDE,FRT DOOR
1-74717-019-4
01
1
9204-
34
HANDLE; INSIDE,FRT DOOR
1-74717-018-4
01
1
9204-
35
LINK; DOOR LOCK,INSIDE
1-74517-115-4
01
1
9204-
35
LINK; DOOR LOCK,INSIDE
1-74517-114-4
01
1
9204-
39
LINK; INSIDE HANDLE,FRT DOOR
1-74517-121-1
01
1
9204-
39
LINK; INSIDE HANDLE,FRT DOOR
1-74517-120-1
01
1
9204-
41
SCREW; INSIDE HANDLE
M6X16 TAPPING W/PL WASHER
0-74110-616-0
04
1
9204-
43
GROMMET; SCREW,INSIDE LEVER,DOOR
1-09983-061-0
04
1
9204-
45
SEAT; DOOR OUTSIDE HANDLE,RR
EXC. AUSTRALIA EQUIPMENT(RR3)
1-74618-011-1
02
1
9204-
49
CLAMP; DOOR LOCK LINK ROD
1-74517-116-0
02
1
9204-
86
SEAL; DOOR LOCK LINK
1-76777-101-2
02
1
9204-
106
COVER; DOOR,OUTSIDE HANDLE
1-74617-033-1
02
1
9204-
117
SEAT; DOOR OUTSIDE HANDLE,FRT
EXC. AUSTRALIA EQUIPMENT(RR3)
1-74618-010-0
02
1
9204-
132
102
56
131
133
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
56
ESCUTCHEON; LOCK KNOB
1-73337-195-2
02
1
9204-
102
GROMMET; SCREW,ESCUTCHEON,DOOR PULL
1-09983-061-0
04
1
9204-
131
SCREW; ESCUTCHEON,DOOR PULL
M6X16 TAPPING W/PL WASHER
0-74110-616-0
04
1
9204-
132
STAY; DOOR PULL
1-73337-196-6
02
1
9204-
133
SCREW; DOOR PULL STAY
M6X12 W/LK&PL WASHER
1-09981-430-0
04
1
9204-
134
RUBBER; CUSHION,DOOR PULL STAY
1-73337-197-2
02
1
9204-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
