◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#78899) — 91 parça

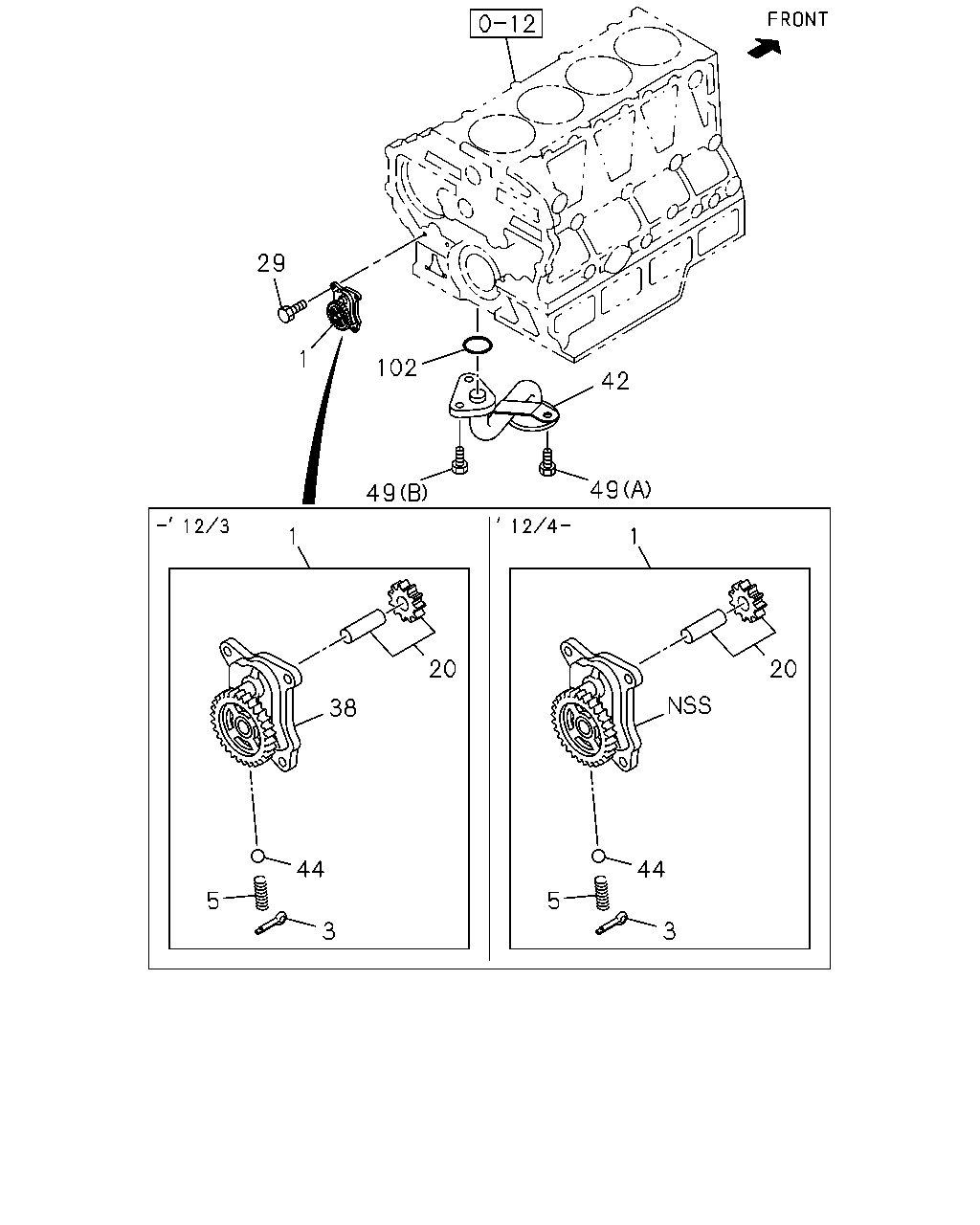

çizim 64165
29 1 102 49 42 49 1 20 44 3 5 3 44 5 38 20 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.652 PUMP ASM; OIL 8-97147-338-2 01 1 0211-0507 ● ●
1 01.652 PUMP ASM; OIL 8-97147-338-2 01 1 0508-0609 ● ●
1 01.652 PUMP ASM; OIL 8-97147-338-4 01 1 0610-1203 ● ● ●
1 01.652 PUMP ASM; OIL 8-98017-585-1 01 1 1204- ● ● ●
1 01.652 PUMP ASM; OIL 8-97385-984-0 01 1 0610- ●
3 01.639 PIN; SPLIT
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 0211-0507 ● ●
3 01.639 PIN; SPLIT
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 0508-0606 ● ●
3 01.639 PIN; SPLIT
05.812 OD=3.7 L=30 		0-81124-030-0 01 1 0607-0609 ● ●
3 01.639 PIN; SPLIT
05.812 OD=3.7 L=30 		0-81124-030-0 01 1 0610-0906 ● ● ●
3 01.639 PIN; SPLIT
06.022 L=30 		9-08104-030-0 01 1 0907- ● ● ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 0211-0507 ● ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 0508-0609 ● ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 0610- ● ● ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 0610- ●
20 01.639 GEAR; DRIVE,OIL PUMP
Z=9 		8-97078-736-0 01 1 0211-0507 ● ●
20 01.639 GEAR; DRIVE,OIL PUMP
Z=9 		8-97078-736-0 01 1 0508-0609 ● ●
20 01.639 GEAR; DRIVE,OIL PUMP
Z=9 		8-97078-736-0 01 1 0610-1203 ● ● ●
20 01.639 GEAR; DRIVE,OIL PUMP 8-98059-192-0 01 1 1204- ● ● ●
29 01.652 BOLT; OIL PUMP
08.155 M8X25 FLANGE 		0-28090-825-0 02 1 0211-0507 ● ●
29 01.652 BOLT; OIL PUMP
08.155 M8X25 FLANGE 		0-28090-825-0 02 1 0508-0512 ● ●
29 01.652 BOLT; OIL PUMP
06.174 M8X25 FLANGE 		0-28060-825-0 02 1 0601-0609 ● ●
29 01.652 BOLT; OIL PUMP
06.174 M8X25 FLANGE 		0-28060-825-0 02 1 0610- ● ● ●
29 01.652 BOLT; OIL PUMP
07.632 M8X30 FLANGE 		0-28090-830-0 02 1 0211-0507 ● ●
29 01.652 BOLT; OIL PUMP
07.632 M8X30 FLANGE 		0-28090-830-0 02 1 0508-0512 ● ●
29 01.652 BOLT; OIL PUMP
M8X30 FLANGE 		0-28060-830-0 02 1 0601-0609 ● ●
29 01.652 BOLT; OIL PUMP
M8X30 FLANGE 		0-28060-830-0 02 1 0610- ● ● ●
29 01.652 BOLT; OIL PUMP
03.275 M8X25 FLANGE 		0-28050-825-0 02 1 0610- ●
38 01.657 CASE; OIL STRAINER 8-97147-505-2 01 1 0211-0507 ● ●
38 01.657 CASE; OIL STRAINER 8-97147-505-2 01 1 0508-0609 ● ●
38 01.657 CASE; OIL STRAINER 8-97147-505-3 01 1 0610-1203 ● ● ●
38 01.657 CASE; OIL STRAINER 8-97036-832-0 01 1 0610- ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97230-894-0 01 1 0211-0507 ● ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97230-894-0 01 1 0508-0609 ● ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97230-894-0 01 1 0610-1203 ● ● ●
42 01.656 STRAINER; OIL,OIL PUMP 8-98213-867-0 01 1 1204- ● ● ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97038-379-0 01 1 0610- ●
44 01.609 BALL; RELIEF VLV 5-09843-003-0 01 1 0211-0507 ● ●
44 01.609 BALL; RELIEF VLV 5-09843-003-0 01 1 0508-0609 ● ●
44 01.609 BALL; RELIEF VLV 5-09843-003-0 01 1 0610- ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
(A) M10X80 		8-97071-956-0 01 1 0211-0507 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
(A) M10X80 		8-97071-956-0 01 1 0508-0609 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
(A) M10X80 		8-97071-956-0 01 1 0610- ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
00.724 (B) M8X14 		8-97073-782-0 01 1 0211-0311 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
00.724 (B) M8X16 FLANGE 		0-28090-816-0 01 1 0312-0503 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
00.724 (B) M8X16 FLANGE 		0-28090-816-0 02 1 0504-0507 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
00.724 (B) M8X16 FLANGE 		0-28090-816-0 02 1 0508-0512 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
00.724 (B) M8X16 FLANGE 		0-28060-816-0 02 1 0601-0609 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
00.724 (B) M8X16 FLANGE 		0-28060-816-0 02 1 0610- ● ● ●
102 01.656 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.2 		8-97137-501-0 01 1 0211-0211 ● ●
102 01.656 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=24.5 		8-94399-398-0 01 1 0212-0507 ● ●
102 01.656 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=24.5 		8-94399-398-0 01 1 0508-0609 ● ●
102 01.656 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=24.5 		8-94399-398-0 01 1 0610- ● ● ●

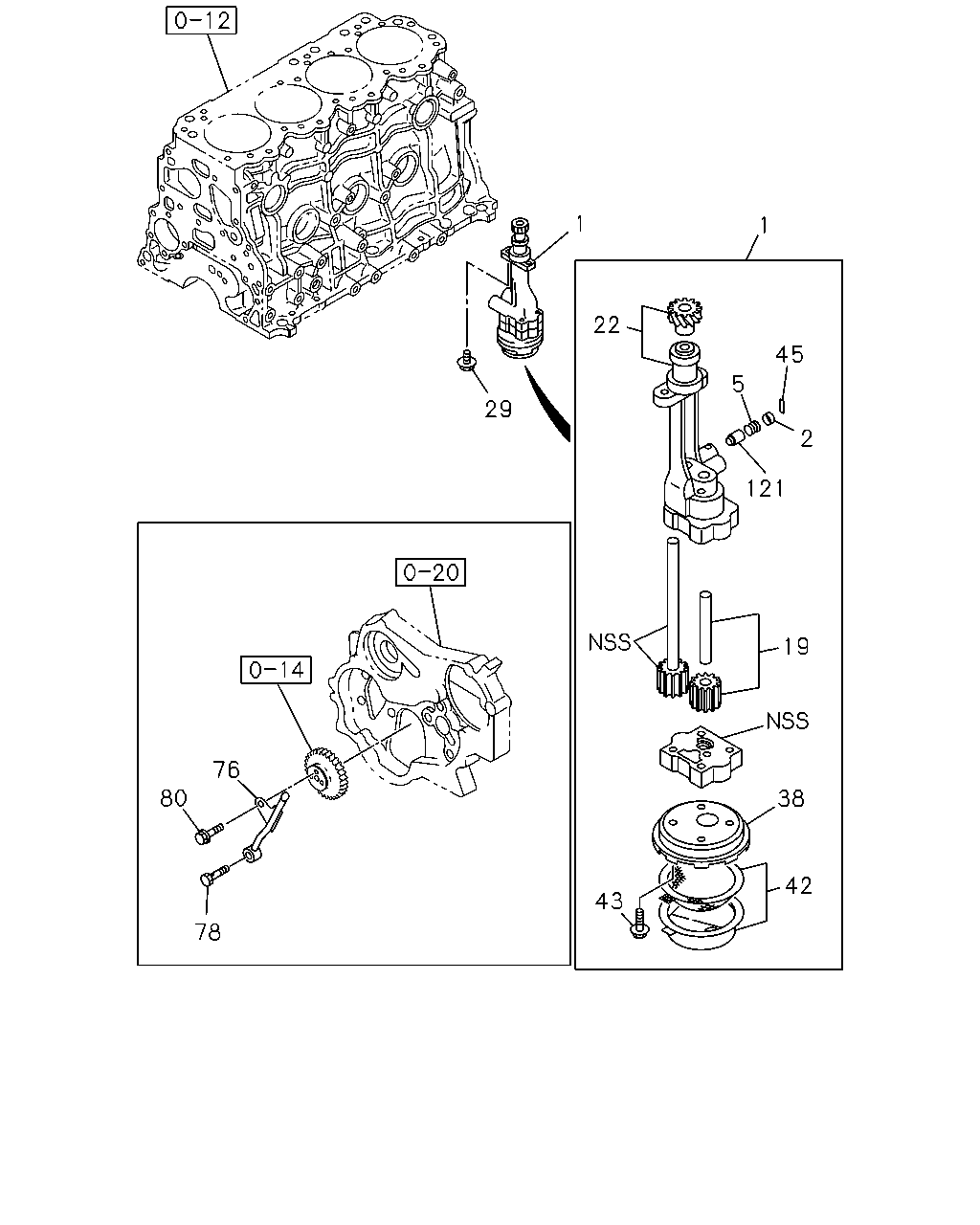

çizim 64539
1 1 22 45 5 29 2 121 19 76 80 38 42 43 78
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.652 PUMP ASM; OIL 8-97147-338-2 01 1 0211-0507 ● ●
1 01.652 PUMP ASM; OIL 8-97147-338-2 01 1 0508-0609 ● ●
1 01.652 PUMP ASM; OIL 8-97147-338-4 01 1 0610-1203 ● ● ●
1 01.652 PUMP ASM; OIL 8-98017-585-1 01 1 1204- ● ● ●
1 01.652 PUMP ASM; OIL 8-97385-984-0 01 1 0610- ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 0610- ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 0211-0507 ● ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 0508-0609 ● ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 0610- ● ● ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 0610- ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 0610- ●
19 01.639 GEAR SET; OIL PUMP 8-97023-086-1 01 1 0211- ●
22 01.653 BODY ASM; OIL PUMP 8-97386-387-0 01 1 0610- ●
22 01.653 BODY ASM; OIL PUMP 8-97203-866-0 01 1 0211- ●
29 01.652 BOLT; OIL PUMP
08.155 M8X25 FLANGE 		0-28090-825-0 02 1 0211-0507 ● ●
29 01.652 BOLT; OIL PUMP
08.155 M8X25 FLANGE 		0-28090-825-0 02 1 0508-0512 ● ●
29 01.652 BOLT; OIL PUMP
06.174 M8X25 FLANGE 		0-28060-825-0 02 1 0601-0609 ● ●
29 01.652 BOLT; OIL PUMP
06.174 M8X25 FLANGE 		0-28060-825-0 02 1 0610- ● ● ●
29 01.652 BOLT; OIL PUMP
07.632 M8X30 FLANGE 		0-28090-830-0 02 1 0211-0507 ● ●
29 01.652 BOLT; OIL PUMP
07.632 M8X30 FLANGE 		0-28090-830-0 02 1 0508-0512 ● ●
29 01.652 BOLT; OIL PUMP
M8X30 FLANGE 		0-28060-830-0 02 1 0601-0609 ● ●
29 01.652 BOLT; OIL PUMP
M8X30 FLANGE 		0-28060-830-0 02 1 0610- ● ● ●
29 01.652 BOLT; OIL PUMP
03.275 M8X25 FLANGE 		0-28050-825-0 02 1 0610- ●
38 01.657 CASE; OIL STRAINER 8-97147-505-2 01 1 0211-0507 ● ●
38 01.657 CASE; OIL STRAINER 8-97147-505-2 01 1 0508-0609 ● ●
38 01.657 CASE; OIL STRAINER 8-97147-505-3 01 1 0610-1203 ● ● ●
38 01.657 CASE; OIL STRAINER 8-97036-832-0 01 1 0610- ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97230-894-0 01 1 0211-0507 ● ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97230-894-0 01 1 0508-0609 ● ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97230-894-0 01 1 0610-1203 ● ● ●
42 01.656 STRAINER; OIL,OIL PUMP 8-98213-867-0 01 1 1204- ● ● ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97038-379-0 01 1 0610- ●
43 01.656 BOLT; CASE
04.866 M8X30 FLANGE 		0-28010-830-0 04 1 0610- ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 0610- ●
76 01.519 PIPE ASM; OIL 8-97160-706-0 01 1 0610- ●
78 01.531 BOLT; EYE JOINT,OIL PIPE
M8X23 FLANGE 		8-94454-199-0 01 1 0610- ●
80 01.531 BOLT; OIL PIPE FIX
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 0610-0909 ●
80 01.531 BOLT; OIL PIPE FIX
01.153 M8X22 W/LK WASHER 		0-50540-822-0 01 1 0910- ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 0610- ●
