Sayfa 0-50 - Isuzu EPC

0-50 — OIL COOLER AND OIL FILTER (#78898) — 175 parça

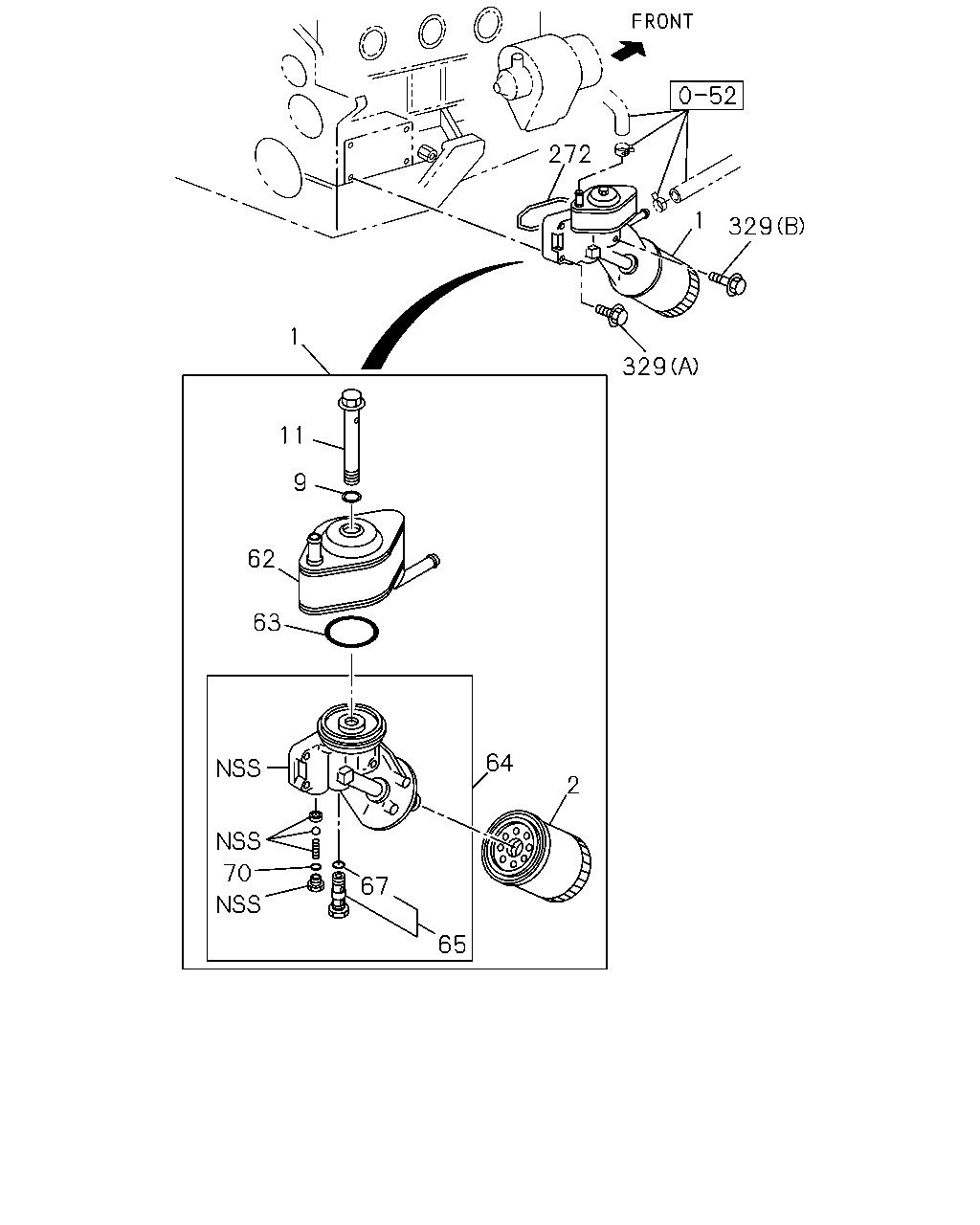

272 1 329 1 329 11 9 62 63 64 2 70 67 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.540 FILTER & COOLER ASM; OIL	8-97224-298-2	01	1	0610-	●
2	01.836 ELEMENT; OIL FILTER FAST GLOW SYSTEM<KM6>	8-97148-270-1	01	1	1004-1509		●
2	01.836 ELEMENT; OIL FILTER EXHAUST BRAKE<NF8> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97148-270-1	01	1	0304-0507			●
2	01.836 ELEMENT; OIL FILTER INDONESIA EQUIPMENT(S4S)	8-97247-514-0	01	1	0211-0507			●	●
2	01.836 ELEMENT; OIL FILTER	8-97247-514-0	01	1	0508-0609				●	●
2	01.836 ELEMENT; OIL FILTER	8-97247-514-0	01	1	0610-0712		●		●	●
2	01.836 ELEMENT; OIL FILTER	8-97247-514-0	01	1	0801-				●	●
2	01.836 ELEMENT; OIL FILTER GLOW SYSTEM DELETE<7RK>	8-97247-514-0	01	1	0801-		●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0610-	●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-021-0	01	1	0610-	●
2	01.836 ELEMENT; OIL FILTER EXHAUST BRAKE<NF8> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-117-0	01	1	0304-0507			●
2	01.836 ELEMENT; OIL FILTER FAST GLOW SYSTEM<KM6> BEST VALUE PARTS	5-87610-117-0	01	1	1004-1509		●
2	01.836 ELEMENT; OIL FILTER FAST GLOW SYSTEM<KM6>	8-98328-207-0	01	1	1510-		●
9	01.840 GASKET; CENTER BOLT	8-97047-000-0	01	1	0610-	●
11	01.840 BOLT; CENTER	8-97144-713-0	01	1	0610-	●
62	01.540 COOLER ASM; OIL	8-97226-391-0	01	1	0610-	●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	0610-	●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97166-497-2	01	1	0610-	●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	0610-	●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	0610-	●
70	01.844 GASKET; PLUG,OIL FILTER	9-09921-193-0	01	1	0610-	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	0211-0211			●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0212-0507			●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0508-0609				●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0610-		●		●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-1	01	1	0610-0706	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550	8-98087-965-0	01	1	0707-	●
329	01.840 BOLT; OIL FILTER 04.686 (B) M8X60 FLANGE	0-28050-860-0	02	1	0610-	●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	0610-	●

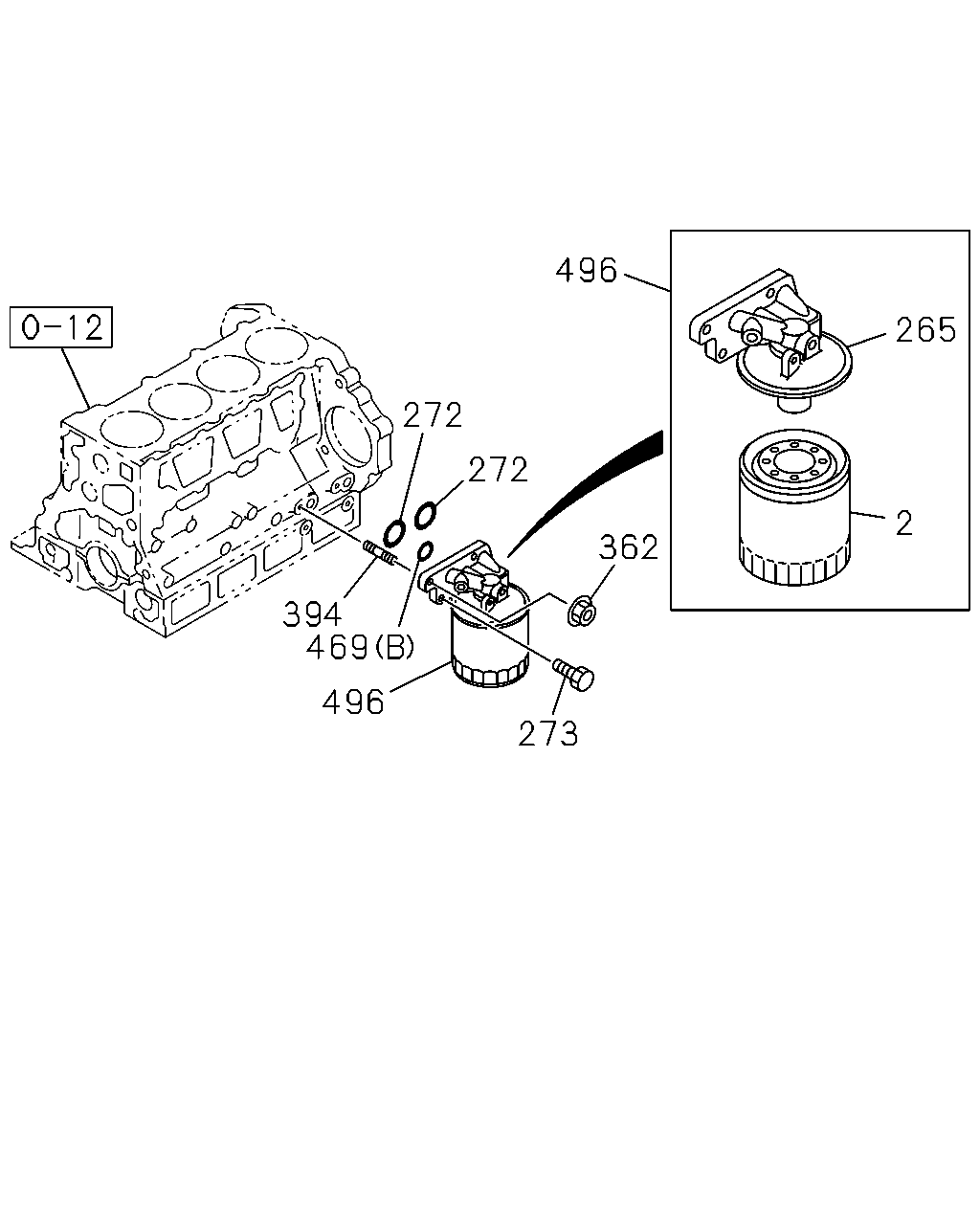

496 12 265 272 272 2 362 394 469 496 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	01.836 ELEMENT; OIL FILTER FAST GLOW SYSTEM<KM6>	8-97148-270-1	01	1	1004-1509		●
2	01.836 ELEMENT; OIL FILTER EXHAUST BRAKE<NF8> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97148-270-1	01	1	0304-0507			●
2	01.836 ELEMENT; OIL FILTER INDONESIA EQUIPMENT(S4S)	8-97247-514-0	01	1	0211-0507			●	●
2	01.836 ELEMENT; OIL FILTER	8-97247-514-0	01	1	0508-0609				●	●
2	01.836 ELEMENT; OIL FILTER	8-97247-514-0	01	1	0610-0712		●		●	●
2	01.836 ELEMENT; OIL FILTER	8-97247-514-0	01	1	0801-				●	●
2	01.836 ELEMENT; OIL FILTER GLOW SYSTEM DELETE<7RK>	8-97247-514-0	01	1	0801-		●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0610-	●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-021-0	01	1	0610-	●
2	01.836 ELEMENT; OIL FILTER EXHAUST BRAKE<NF8> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-117-0	01	1	0304-0507			●
2	01.836 ELEMENT; OIL FILTER FAST GLOW SYSTEM<KM6> BEST VALUE PARTS	5-87610-117-0	01	1	1004-1509		●
2	01.836 ELEMENT; OIL FILTER FAST GLOW SYSTEM<KM6>	8-98328-207-0	01	1	1510-		●
12	01.540 VALVE ASM; BYPASS EXHAUST BRAKE<NF8> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97013-566-2	01	1	0304-0507			●
12	01.540 VALVE ASM; BYPASS FAST GLOW SYSTEM<KM6>	8-97013-566-2	01	1	1004-		●
265	01.837 BODY; OIL FILTER	8-98210-397-0	01	1	1302-				●	●
265	01.837 BODY; OIL FILTER GLOW SYSTEM DELETE<7RK>	8-98210-397-0	01	1	1302-		●
265	01.837 BODY; OIL FILTER	8-97096-677-2	01	1	0211-0303			●	●
265	01.837 BODY; OIL FILTER	8-97096-677-3	01	1	0304-0507				●
265	01.837 BODY; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC(7QV)	8-97096-677-3	01	1	0304-0507			●
265	01.837 BODY; OIL FILTER INDONESIA EQUIPMENT(S4S)	8-97096-677-3	01	1	0304-0507			●
265	01.837 BODY; OIL FILTER	8-97096-677-2	01	1	0508-0609				●	●
265	01.837 BODY; OIL FILTER	8-97096-677-4	01	1	0610-1301		●		●	●
265	01.837 BODY; OIL FILTER FAST GLOW SYSTEM<KM6>	8-97096-677-4	01	1	1302-		●
265	01.837 BODY; OIL FILTER ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S)	8-97247-088-1	01	1	0304-0507			●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	0211-0211			●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0212-0507			●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0508-0609				●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0610-		●		●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-1	01	1	0610-0706	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550	8-98087-965-0	01	1	0707-	●
273	01.840 BOLT; OIL FILTER 08.900 M10X30 FLANGE	0-28781-030-0	02	1	0211-0507			●	●
273	01.840 BOLT; OIL FILTER 08.900 M10X30 FLANGE	0-28781-030-0	02	1	0508-0512				●	●
273	01.840 BOLT; OIL FILTER 00.780 M10X30 FLANGE	0-28751-030-0	02	1	0601-0609				●	●
273	01.840 BOLT; OIL FILTER 00.780 M10X30 FLANGE	0-28751-030-0	02	1	0610-		●		●	●
362	01.837 NUT; OIL FILTER 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0507			●	●
362	01.837 NUT; OIL FILTER 04.785 M10 FLANGE	0-91150-110-0	02	1	0508-0602				●	●
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0603-0609				●	●
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0610-		●		●	●
394	01.837 STUD; OIL FILTER 03.275 M10X25 L=40	0-49841-025-0	02	1	0211-0507			●	●
394	01.837 STUD; OIL FILTER 03.275 M10X25 L=40	0-49841-025-0	02	1	0508-0512				●	●
394	01.837 STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	02	1	0601-0609				●	●
394	01.837 STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	02	1	0610-		●		●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98207-974-0	01	1	1207-				●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK> (A)	8-98207-974-0	01	1	1207-		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98207-975-0	01	1	1207-				●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK> (C)	8-98207-975-0	01	1	1207-		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	0211-0211			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0212-0507			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0508-0609				●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0610-		●		●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	0211-0211			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	9-09566-226-0	01	1	0212-0507			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	9-09566-226-0	01	1	0508-0606				●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0607-0609				●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0610-1206		●		●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1207-		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0211-0507			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0508-0609				●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0610-1206		●		●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	1207-		●
496	01.835 FILTER ASM; OIL ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S)	8-97247-082-1	01	1	0304-0507			●
496	01.835 FILTER ASM; OIL EXC. INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC(7QV)	8-97148-268-2	01	1	0304-0507			●
496	01.835 FILTER ASM; OIL INDONESIA EQUIPMENT(S4S)	8-97247-515-0	01	1	0211-0507			●	●
496	01.835 FILTER ASM; OIL	8-97247-515-0	01	1	0508-0609				●	●
496	01.835 FILTER ASM; OIL	8-97247-515-0	01	1	0610-0712		●		●	●
496	01.835 FILTER ASM; OIL	8-97247-515-0	01	1	0801-1301				●	●
496	01.835 FILTER ASM; OIL GLOW SYSTEM DELETE<7RK>	8-97247-515-0	01	1	0801-1301		●
496	01.835 FILTER ASM; OIL IDN	8-98210-093-0	01	1	1302-				●	●
496	01.835 FILTER ASM; OIL GLOW SYSTEM DELETE<7RK> IDN	8-98210-093-0	01	1	1302-		●
496	01.835 FILTER ASM; OIL FAST GLOW SYSTEM<KM6>	8-97148-268-4	01	1	1004-1509		●
496	01.835 FILTER ASM; OIL FAST GLOW SYSTEM<KM6>	8-98328-202-0	01	1	1510-		●

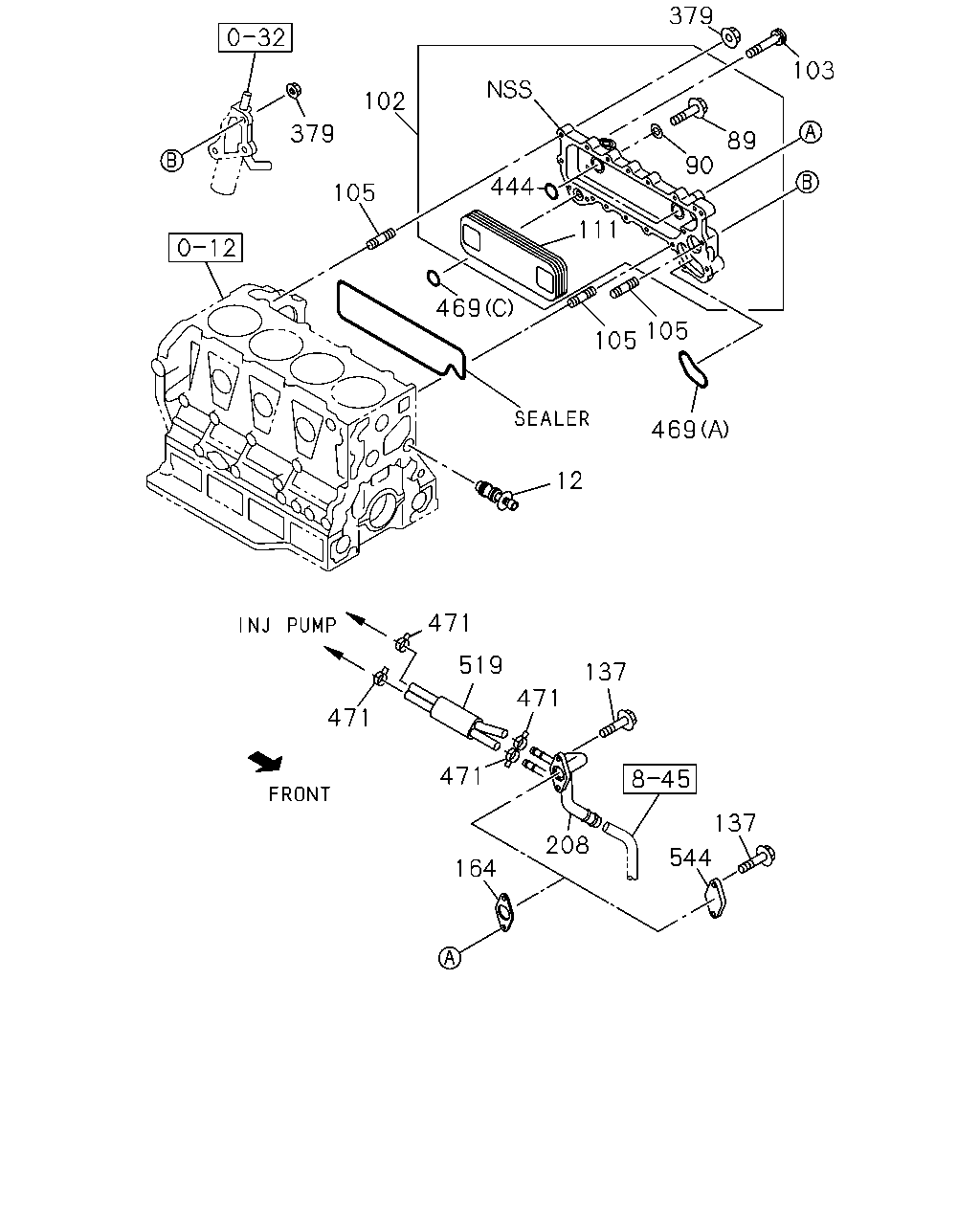

379 103 102 379 89 90 444 105 111 469 105 105 469 12 471 519 137 471 471 471 137 208 544 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
12	01.540 VALVE ASM; BYPASS EXHAUST BRAKE<NF8> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97013-566-2	01	1	0304-0507		●
12	01.540 VALVE ASM; BYPASS FAST GLOW SYSTEM<KM6>	8-97013-566-2	01	1	1004-	●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0211-0507		●	●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0508-0609			●	●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0610-1211	●		●	●
89	01.540 BOLT; ELEMENT TO CASE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1212-	●		●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550 IDN	1-21729-043-0	04	1	0211-0507		●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550 IDN	1-21729-043-0	04	1	0508-0609			●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550 IDN	1-21729-043-0	04	1	0610-	●		●	●
102	01.540 COOLER ASM; OIL	8-98212-599-0	01	1	1212-			●	●
102	01.540 COOLER ASM; OIL GLOW SYSTEM DELETE<7RK>	8-98212-599-0	01	1	1212-	●
102	01.540 COOLER ASM; OIL	8-97333-783-0	01	1	0211-0406		●	●
102	01.540 COOLER ASM; OIL	8-97385-200-0	01	1	0407-0507		●	●
102	01.540 COOLER ASM; OIL	8-97385-200-0	01	1	0508-0609			●	●
102	01.540 COOLER ASM; OIL	8-97385-200-5	01	1	0610-1211	●		●	●
102	01.540 COOLER ASM; OIL FAST GLOW SYSTEM<KM6>	8-97385-200-6	01	1	1212-	●
103	01.540 BOLT; OIL COOLER 07.010 M8X20 FLANGE	0-28080-820-0	07	1	0211-0507		●	●
103	01.540 BOLT; OIL COOLER 07.010 M8X20 FLANGE	0-28080-820-0	07	1	0508-0512			●	●
103	01.540 BOLT; OIL COOLER 04.338 M8X20 FLANGE	0-28050-820-0	07	1	0601-0609			●	●
103	01.540 BOLT; OIL COOLER 04.338 M8X20 FLANGE	0-28050-820-0	07	1	0610-	●		●	●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	07	1	0211-0507		●	●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	07	1	0508-0512			●	●
103	01.540 BOLT; OIL COOLER 03.162 M8X35 FLANGE	0-28050-835-0	07	1	0601-0609			●	●
103	01.540 BOLT; OIL COOLER 03.162 M8X35 FLANGE	0-28050-835-0	07	1	0610-	●		●	●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0211-0507		●	●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0508-0609			●	●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0610-	●		●	●
111	01.540 CORE; OIL COOLER	8-97334-101-0	01	1	0211-0507		●	●
111	01.540 CORE; OIL COOLER	8-97334-101-0	01	1	0508-0609			●	●
111	01.540 CORE; OIL COOLER	8-97334-101-1	01	1	0610-	●		●	●
137	01.840 BOLT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0507		●	●
137	01.840 BOLT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0508-0512			●	●
137	01.840 BOLT 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0601-0609			●	●
137	01.840 BOLT 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0610-	●		●	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-98208-745-0	01	1	1207-			●	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK>	8-98208-745-0	01	1	1207-	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	0211-0507		●	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	0508-0609			●	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	0610-1206	●		●	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	1207-	●
208	01.540 PIPE; WATER,HTR ENGINE POWER N-SPEC(7QV)	8-97139-585-1	01	1	0211-0507		●
208	01.540 PIPE; WATER,HTR	8-97139-585-1	01	1	0508-				●
379	01.540 NUT; OIL COOLER 07.633 M8 FLANGE	0-91150-108-0	03	1	0211-0507		●	●
379	01.540 NUT; OIL COOLER 07.633 M8 FLANGE	0-91150-108-0	03	1	0508-0602			●	●
379	01.540 NUT; OIL COOLER 01.062 M8 FLANGE IDN	0-91180-108-0	03	1	0603-0609			●	●
379	01.540 NUT; OIL COOLER 01.062 M8 FLANGE IDN	0-91180-108-0	03	1	0610-	●		●	●
444	01.550 GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	0211-0406		●	●
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0407-0507		●	●
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0508-0609			●	●
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0610-	●		●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98207-974-0	01	1	1207-			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK> (A)	8-98207-974-0	01	1	1207-	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98207-975-0	01	1	1207-			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK> (C)	8-98207-975-0	01	1	1207-	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	0211-0211		●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0212-0507		●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0508-0609			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0610-	●		●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	0211-0211		●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	9-09566-226-0	01	1	0212-0507		●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	9-09566-226-0	01	1	0508-0606			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0607-0609			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0610-1206	●		●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1207-	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0211-0507		●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0508-0609			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0610-1206	●		●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	1207-	●
471	01.540 CLIP; HOSE ENGINE POWER N-SPEC(7QV) 03.162 ID=15.5	8-94221-519-0	04	1	0211-0507		●
471	01.540 CLIP; HOSE 03.162 ID=15.5	8-94221-519-0	04	1	0508-				●
519	01.540 HOSE; RUBBER ENGINE POWER N-SPEC(7QV)	8-97160-961-1	01	1	0211-0507		●
519	01.540 HOSE; RUBBER	8-97160-961-1	01	1	0508-				●
544	08.845 COVER; HEATER EXC. ENGINE POWER N-SPEC(7QV)	8-97147-028-0	01	1	0211-0507		●	●
544	08.845 COVER; HEATER	8-97147-028-0	01	1	0508-0609			●
544	08.845 COVER; HEATER	8-97147-028-0	01	1	0610-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
