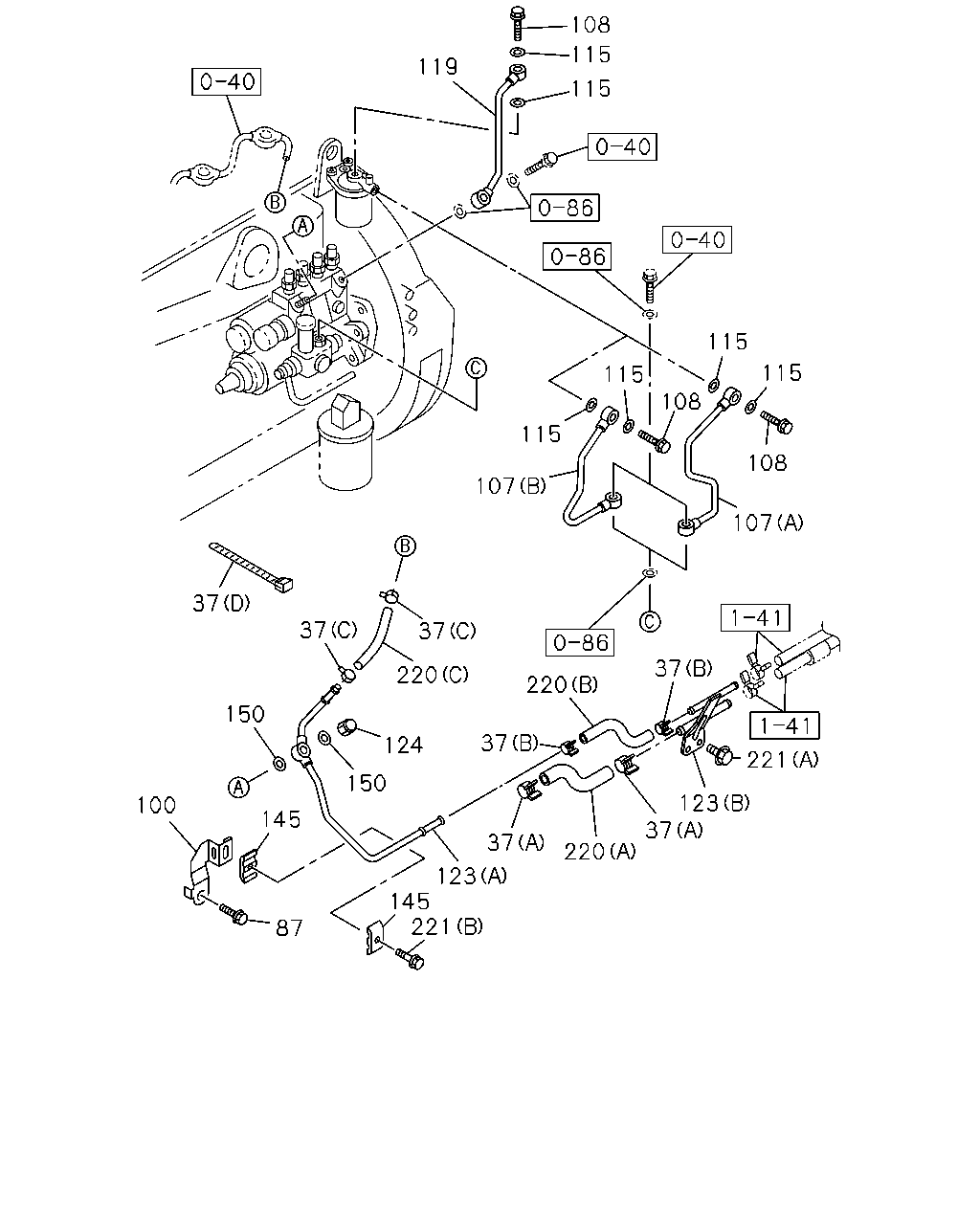

37 |
03.162 CLIP; FUEL HOSE
01.219
(C)
ID=12
IDN
|
8-94238-610-0 |
02 |
1 |
0211-0507 |
● |
● |
|
|
| |
37 |
03.162 CLIP; FUEL HOSE
01.219
(C)
ID=12
IDN
|
8-94238-610-0 |
02 |
1 |
0508-0609 |
● |
|
● |
|
| |
37 |
03.162 CLIP; FUEL HOSE
01.219
(C)
ID=12
IDN
|
8-94238-610-0 |
02 |
1 |
0610- |
● |
|
● |
● |
| |
37 |
03.162 CLIP; FUEL HOSE
EXC. ENGINE POWER N-SPEC(7QV)
04.930
(A)
ID=16
IDN
|
8-94238-568-0 |
02 |
1 |
0211-0507 |
● |
● |
|
|
| |
37 |
03.162 CLIP; FUEL HOSE
04.930
(A)
ID=16
IDN
|
8-94238-568-0 |
02 |
1 |
0508-0609 |
● |
|
|
|
| |
37 |
03.162 CLIP; FUEL HOSE
04.930
(A)
ID=16
IDN
|
8-94238-568-0 |
02 |
1 |
0610- |
● |
|
|
● |
| |
37 |
03.162 CLIP; FUEL HOSE
EXC. ENGINE POWER N-SPEC(7QV)
01.219
(B)
ID=13
IDN
|
8-94238-571-0 |
02 |
1 |
0211-0507 |
● |
● |
|
|
| |
37 |
03.162 CLIP; FUEL HOSE
01.219
(B)
ID=13
IDN
|
8-94238-571-0 |
02 |
1 |
0508-0609 |
● |
|
|
|
| |
37 |
03.162 CLIP; FUEL HOSE
01.219
(B)
ID=13
IDN
|
8-94238-571-0 |
02 |
1 |
0610- |
● |
|
|
● |
| |
37 |
03.162 CLIP; FUEL HOSE
(D)
L=140
IDN
|
5-09707-031-1 |
01 |
1 |
0610- |
|
|
|
● |
| |
87 |
03.162 BOLT; STAY,FUEL PIPE
EXC. ENGINE POWER N-SPEC(7QV)
08.900
M8X12 FLANGE
IDN
|
0-28080-812-0 |
01 |
1 |
0211-0507 |
● |
● |
|
|
| |
87 |
03.162 BOLT; STAY,FUEL PIPE
08.900
M8X12 FLANGE
IDN
|
0-28080-812-0 |
01 |
1 |
0508-0512 |
● |
|
|
|
| |
87 |
03.162 BOLT; STAY,FUEL PIPE
02.343
M8X12 FLANGE
|
0-28050-812-0 |
01 |
1 |
0601-0609 |
● |
|
|
|
| |
87 |
03.162 BOLT; STAY,FUEL PIPE
02.343
M8X12 FLANGE
|
0-28050-812-0 |
01 |
1 |
0610- |
● |
|
|
● |
| |
100 |
03.162 CLIP; "B",FUEL PIPE
EXC. ENGINE POWER N-SPEC(7QV)
|
8-97108-315-0 |
01 |
1 |
0211-0507 |
● |
● |
|
|
| |
100 |
03.162 CLIP; "B",FUEL PIPE
|
8-97108-315-0 |
01 |
1 |
0508-0609 |
● |
|
|
|
| |
100 |
03.162 CLIP; "B",FUEL PIPE
|
8-97108-315-0 |
01 |
1 |
0610- |
● |
|
|
● |
| |
107 |
03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL
GLOW SYSTEM DELETE<7RK>
(B)
|
8-98209-893-0 |
01 |
1 |
1212- |
|
|
|
● |
| |
107 |
03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL
EXC. ENGINE POWER N-SPEC(7QV)
(A)
|
8-97088-046-3 |
01 |
1 |
0211-0507 |
● |
● |
|
|
| |
107 |
03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL
(A)
|
8-97088-046-3 |
01 |
1 |
0508- |
● |
|
|
|
| |
107 |
03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL
(B)
|
8-97210-721-1 |
01 |
1 |
0610-1211 |
|
|
|
● |
| |
107 |
03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL
FAST GLOW SYSTEM<KM6>
(B)
|
8-97210-721-1 |
01 |
1 |
1212- |
|
|
|
● |
| |
108 |
03.162 BOLT; JOINT,FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV)
M14X27 FLANGE
|
1-09675-086-0 |
02 |
1 |
0211-0507 |
● |
● |
|
|
| |
108 |
03.162 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
|
1-09675-086-0 |
02 |
1 |
0508-0609 |
● |
|
|
|
| |
108 |
03.162 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
|
1-09675-086-0 |
02 |
1 |
0610- |
● |
|
|
● |
| |
115 |
03.162 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
EXC. ENGINE POWER N-SPEC(7QV)
03.107
ID=14.2 OD=23.0
IDN
|
9-09572-014-0 |
04 |
1 |
0211-0507 |
● |
● |
|
|
| |
115 |
03.162 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
03.107
ID=14.2 OD=23.0
IDN
|
9-09572-014-0 |
04 |
1 |
0508-0609 |
● |
|
|
|
| |
115 |
03.162 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
03.107
ID=14.2 OD=23.0
IDN
|
9-09572-014-0 |
04 |
1 |
0610- |
● |
|
|
● |
| |
119 |
03.163 PIPE; FUEL,FUEL FILTER TO INJ PU
GLOW SYSTEM DELETE<7RK>
|
8-98209-782-0 |
01 |
1 |
1212- |
|
|
|
● |
| |
119 |
03.163 PIPE; FUEL,FUEL FILTER TO INJ PU
EXC. ENGINE POWER N-SPEC(7QV)
|
8-97088-047-0 |
01 |
1 |
0211-0507 |
● |
● |
|
|
| |
119 |
03.163 PIPE; FUEL,FUEL FILTER TO INJ PU
|
8-97088-047-0 |
01 |
1 |
0508- |
● |
|
|
|
| |
119 |
03.163 PIPE; FUEL,FUEL FILTER TO INJ PU
|
8-97211-323-1 |
01 |
1 |
0610-1211 |
|
|
|
● |
| |
119 |
03.163 PIPE; FUEL,FUEL FILTER TO INJ PU
FAST GLOW SYSTEM<KM6>
|
8-97211-323-1 |
01 |
1 |
1212- |
|
|
|
● |
| |
123 |
03.163 PIPE; FUEL,FUEL FILTER LEAK OFF
(B)
IDN
|
8-98210-681-0 |
01 |
1 |
1302- |
● |
|
● |
|
| |
123 |
03.163 PIPE; FUEL,FUEL FILTER LEAK OFF
GLOW SYSTEM DELETE<7RK>
(B)
IDN
|
8-98210-681-0 |
01 |
1 |
1302- |
|
|
|
● |
| |
123 |
03.163 PIPE; FUEL,FUEL FILTER LEAK OFF
GLOW SYSTEM DELETE<7RK>
(A)
|
8-98209-875-0 |
01 |
1 |
1212- |
|
|
|
● |
| |
123 |
03.163 PIPE; FUEL,FUEL FILTER LEAK OFF
EXC. ENGINE POWER N-SPEC(7QV)
(B)
|
8-97087-196-0 |
01 |
1 |
0211-0507 |
● |
● |
|
|
| |
123 |
03.163 PIPE; FUEL,FUEL FILTER LEAK OFF
(B)
|
8-97087-196-0 |
01 |
1 |
0508-0609 |
● |
|
|
|
| |
123 |
03.163 PIPE; FUEL,FUEL FILTER LEAK OFF
(B)
|
8-97087-196-0 |
01 |
1 |
0610-1301 |
● |
|
|
● |
| |
123 |
03.163 PIPE; FUEL,FUEL FILTER LEAK OFF
FAST GLOW SYSTEM<KM6>
(B)
|
8-97087-196-0 |
01 |
1 |
1302- |
|
|
|
● |
| |
123 |
03.163 PIPE; FUEL,FUEL FILTER LEAK OFF
EXC. ENGINE POWER N-SPEC(7QV)
(A)
|
8-97118-894-1 |
01 |
1 |
0211-0507 |
● |
● |
|
|
| |
123 |
03.163 PIPE; FUEL,FUEL FILTER LEAK OFF
(A)
|
8-97118-894-1 |
01 |
1 |
0508- |
● |
|
|
|
| |
123 |
03.163 PIPE; FUEL,FUEL FILTER LEAK OFF
(A)
|
8-97223-179-0 |
01 |
1 |
0610-1211 |
|
|
|
● |
| |
123 |
03.163 PIPE; FUEL,FUEL FILTER LEAK OFF
FAST GLOW SYSTEM<KM6>
(A)
|
8-97223-179-0 |
01 |
1 |
1212- |
|
|
|
● |
| |
124 |
03.162 NUT; CAP,FUEL PIPE
EXC. ENGINE POWER N-SPEC(7QV)
M14
|
1-09468-002-1 |
01 |
1 |
0211-0507 |
● |
● |
|
|
| |
124 |
03.162 NUT; CAP,FUEL PIPE
M14
|
1-09468-002-1 |
01 |
1 |
0508-0609 |
● |
|
|
|
| |
124 |
03.162 NUT; CAP,FUEL PIPE
M14
|
1-09468-002-1 |
01 |
1 |
0610- |
● |
|
|
● |
| |
145 |
03.162 CLIP; FUEL PIPE
EXC. ENGINE POWER N-SPEC(7QV)
03.330
ID=6.1 & 9.6
|
8-97016-323-0 |
02 |
1 |
0211-0507 |
● |
● |
|
|
| |
145 |
03.162 CLIP; FUEL PIPE
03.330
ID=6.1 & 9.6
|
8-97016-323-0 |
02 |
1 |
0508-0609 |
● |
|
|
|
| |
145 |
03.162 CLIP; FUEL PIPE
03.330
ID=6.1 & 9.6
|
8-97016-323-1 |
02 |
1 |
0610- |
● |
|
|
● |
| |
150 |
03.162 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
EXC. ENGINE POWER N-SPEC(7QV)
03.107
ID=14.2 OD=23.0
IDN
|
9-09572-014-0 |
02 |
1 |
0211-0507 |
● |
● |
|
|
| |
150 |
03.162 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
03.107
ID=14.2 OD=23.0
IDN
|
9-09572-014-0 |
02 |
1 |
0508-0609 |
● |
|
|
|
| |
150 |
03.162 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
03.107
ID=14.2 OD=23.0
IDN
|
9-09572-014-0 |
02 |
1 |
0610- |
● |
|
|
● |
| |
220 |
03.163 HOSE; FUEL
GLOW SYSTEM DELETE<7RK>
BIO DIESEL FUEL B10<8NV>
(C)
|
8-98293-110-0 |
01 |
1 |
1411- |
|
|
|
● |
| |
220 |
03.163 HOSE; FUEL
(C)
|
8-98209-801-0 |
01 |
1 |
1212-1410 |
|
|
|
● |
| |
220 |
03.163 HOSE; FUEL
GLOW SYSTEM DELETE<7RK>
EXC. BIO DIESEL FUEL B10<8NV>
(C)
|
8-98209-801-0 |
01 |
1 |
1411- |
|
|
|
● |
| |
220 |
03.163 HOSE; FUEL
(B)
IDN
|
8-98209-761-0 |
01 |
1 |
1302- |
● |
|
● |
|
| |
220 |
03.163 HOSE; FUEL
GLOW SYSTEM DELETE<7RK>
(B)
IDN
|
8-98209-761-0 |
01 |
1 |
1302- |
|
|
|
● |
| |
220 |
03.163 HOSE; FUEL
(A)
IDN
|
8-98210-837-0 |
01 |
1 |
1302- |
● |
|
● |
|
| |
220 |
03.163 HOSE; FUEL
GLOW SYSTEM DELETE<7RK>
(A)
IDN
|
8-98210-837-0 |
01 |
1 |
1302- |
|
|
|
● |
| |

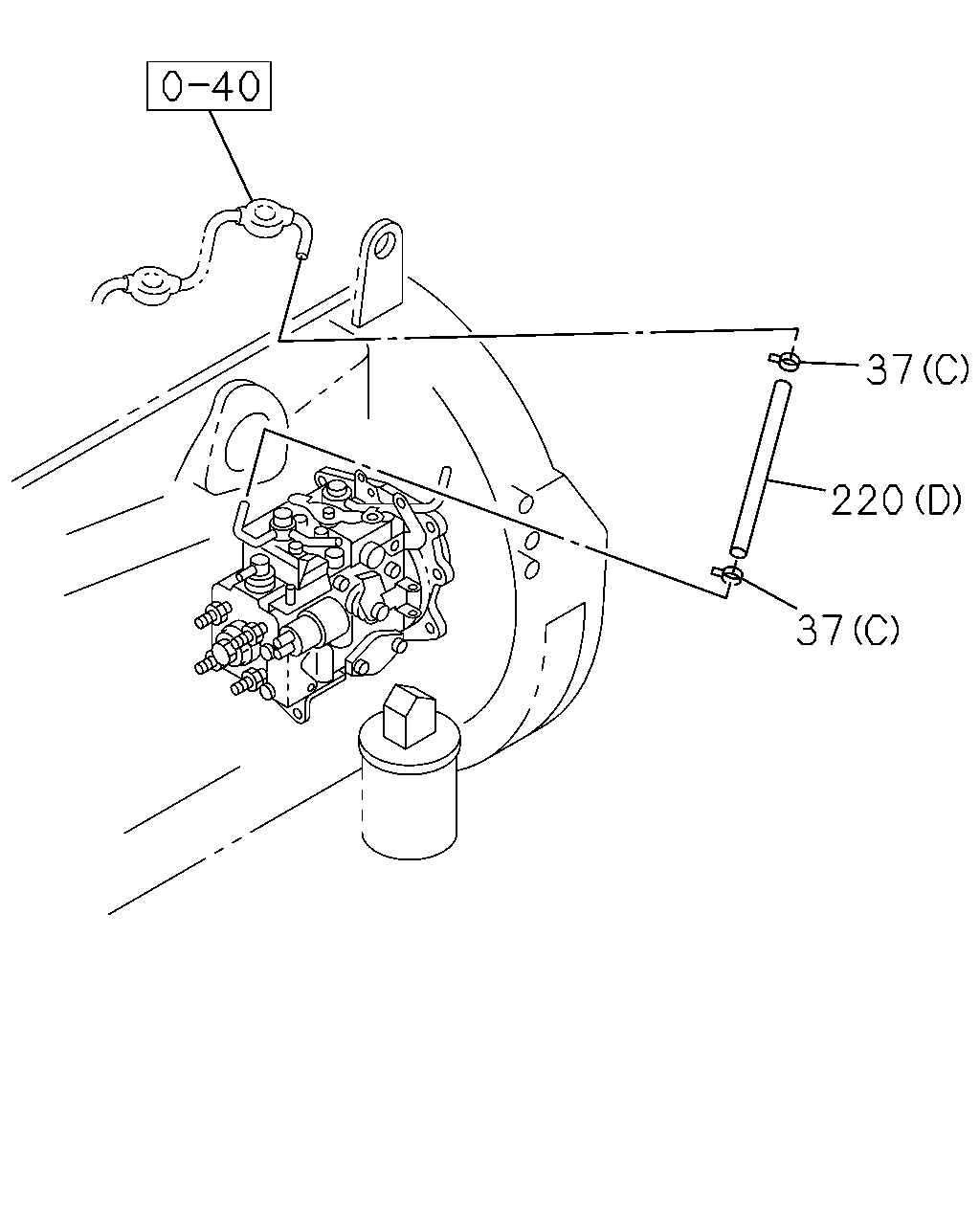

220 |
03.163 HOSE; FUEL
ENGINE POWER N-SPEC(7QV)
(D)
|
8-97145-019-2 |
01 |
1 |
0211-0507 |
|
● |
|
|
| |
220 |
03.163 HOSE; FUEL
(D)
|
8-97145-019-2 |
01 |
1 |
0508- |
|
|
● |
|
| |
220 |
03.163 HOSE; FUEL
EXC. ENGINE POWER N-SPEC(7QV)
(C)
L=270
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0507 |
● |
● |
|
|
| |
220 |
03.163 HOSE; FUEL
(C)
L=270
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0508-1412 |
● |
|
|
|
| |
220 |
03.163 HOSE; FUEL
(C)
L=270
SERVICED BY L=3000
|
0-01856-300-0 |
01 |
1 |
1501- |
● |
|
|
|
| |
220 |
03.163 HOSE; FUEL
EXC. ENGINE POWER N-SPEC(7QV)
(A)
|
8-97087-227-1 |
01 |
1 |
0211-0507 |
● |
● |
|
|
| |
220 |
03.163 HOSE; FUEL
(A)
|
8-97087-227-1 |
01 |
1 |
0508-0609 |
● |
|
|
|
| |
220 |
03.163 HOSE; FUEL
(A)
|
8-97087-227-2 |
01 |
1 |
0610-1301 |
● |
|
|
● |
| |
220 |
03.163 HOSE; FUEL
FAST GLOW SYSTEM<KM6>
(A)
|
8-97087-227-2 |
01 |
1 |
1302- |
|
|
|
● |
| |
220 |
03.163 HOSE; FUEL
EXC. ENGINE POWER N-SPEC(7QV)
(B)
|
8-97087-228-1 |
01 |
1 |
0211-0507 |
● |
● |
|
|
| |
220 |
03.163 HOSE; FUEL
(B)
|
8-97087-228-1 |
01 |
1 |
0508-0609 |
● |
|
|
|
| |
220 |
03.163 HOSE; FUEL
(B)
|
8-97087-228-2 |
01 |
1 |
0610-1301 |
● |
|
|
● |
| |
220 |
03.163 HOSE; FUEL
FAST GLOW SYSTEM<KM6>
(B)
|
8-97087-228-2 |
01 |
1 |
1302- |
|
|
|
● |
| |
220 |
03.163 HOSE; FUEL
(C)
|
8-97208-874-0 |
01 |
1 |
0610-1211 |
|
|
|
● |
| |
220 |
03.163 HOSE; FUEL
FAST GLOW SYSTEM<KM6>
(C)
|
8-97208-874-0 |
01 |
1 |
1212- |
|
|
|
● |
| |
221 |
03.163 BOLT; FUEL PIPE
EXC. ENGINE POWER N-SPEC(7QV)
01.062
(A)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0211-0507 |
● |
● |
|
|
| |
221 |
03.163 BOLT; FUEL PIPE
01.062
(A)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0508-0512 |
● |
|
|
|
| |
221 |
03.163 BOLT; FUEL PIPE
02.343
(A)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0601-0609 |
● |
|
|
|
| |
221 |
03.163 BOLT; FUEL PIPE
02.343
(A)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0610- |
● |
|
|
● |
| |
221 |
03.163 BOLT; FUEL PIPE
EXC. ENGINE POWER N-SPEC(7QV)
(B)
M6X40 FLANGE
|
0-28680-640-0 |
01 |
1 |
0211-0507 |
● |
● |
|
|
| |
221 |
03.163 BOLT; FUEL PIPE
(B)
M6X40 FLANGE
|
0-28680-640-0 |
01 |
1 |
0508-0512 |
● |
|
|
|
| |
221 |
03.163 BOLT; FUEL PIPE
00.685
(B)
M6X40 FLANGE
|
0-28650-640-0 |
01 |
1 |
0601-0609 |
● |
|
|
|
| |
221 |
03.163 BOLT; FUEL PIPE
00.685
(B)
M6X40 FLANGE
|
0-28650-640-0 |
01 |
1 |
0610- |
● |
|
|
● |
