Sayfa 0-41 - Isuzu EPC

0-41 — FUEL FILTER AND BRACKET (#78896) — 178 parça

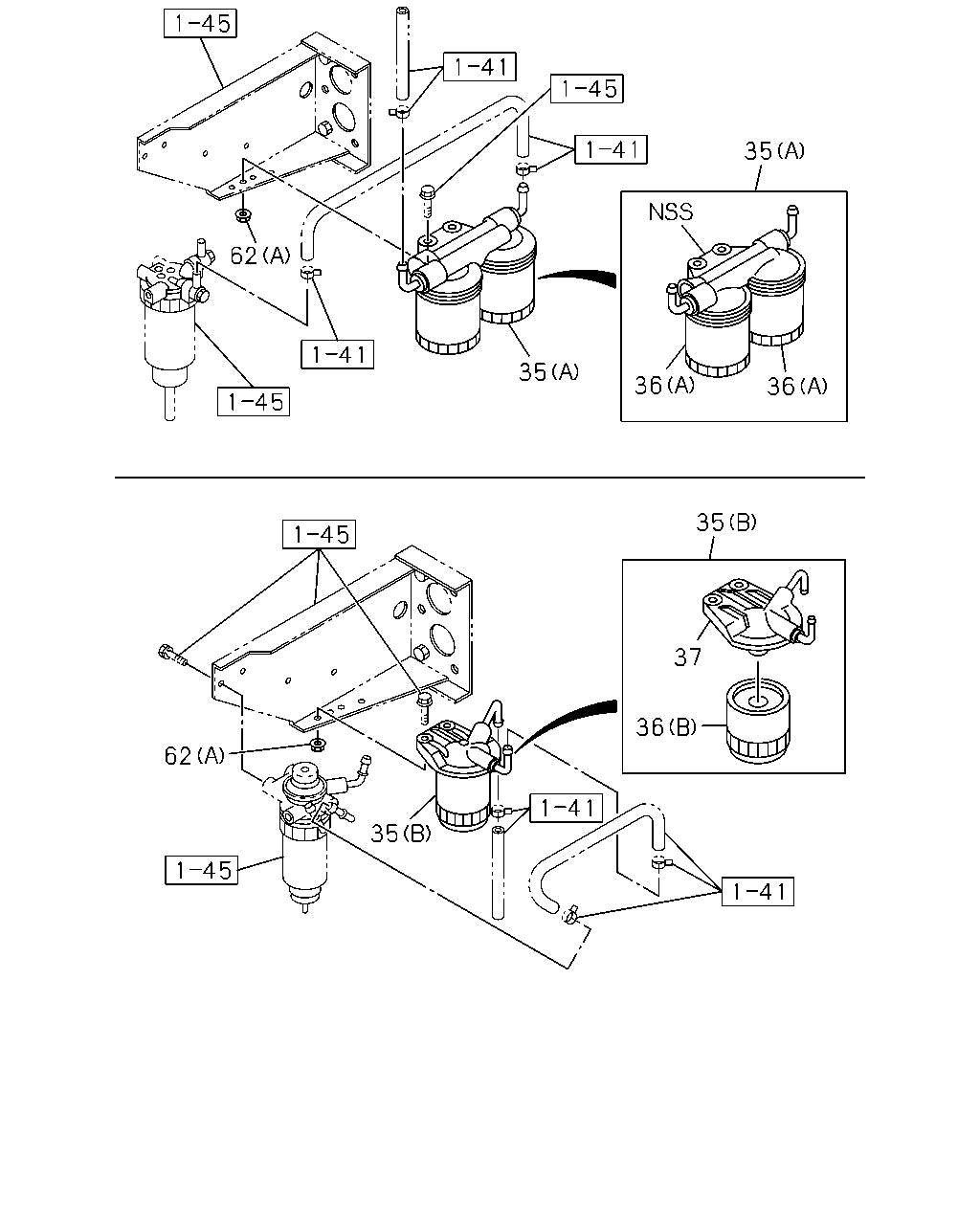

62 35 36 36 35 37 36 35 62 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
35	03.890 FILTER ASM; SUB FUEL VIN MODEL YEAR 2014(VZE) (C) IDN	8-98269-584-0	01	1	1405-1405	●
35	03.890 FILTER ASM; SUB FUEL VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (C) IDN	8-98269-584-0	01	1	1406-	●	●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) (A) IDN	8-97070-864-0	01	1	0211-0212			●	●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> (A) IDN	8-97070-864-0	01	1	0301-0507			●	●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> (A) IDN	8-97070-864-0	01	1	0508-0609			●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> (A) IDN	8-97070-864-0	01	1	0610-1404	●		●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02>,VIN MODEL YEAR 2014(VZE),FUEL TANK 75 LITTER<7GX> (A) IDN	8-97070-864-0	01	1	1405-1405	●		●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02>,VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF),FUEL TANK 75 LITTER<7GX> (A) IDN	8-97070-864-0	01	1	1406-	●		●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) (B)	8-97070-865-0	01	1	0301-0505			●	●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) (B) IDN	8-98006-454-0	01	1	0506-0507			●	●
35	03.890 FILTER ASM; SUB FUEL FUEL TANK 100 LITTER<N02>,FUEL TANK 75LITTER<7GX> FUEL FILTER DUAL(S6B) (B) IDN	8-98006-454-0	01	1	0508-0609			●		●
35	03.890 FILTER ASM; SUB FUEL FUEL TANK 100 LITTER<N02>,FUEL TANK 75LITTER<7GX> FUEL FILTER DUAL(S6B) (B) IDN	8-98006-454-0	01	1	0610-1404	●		●		●
35	03.890 FILTER ASM; SUB FUEL FUEL TANK 100 LITTER<N02>,FUEL TANK 75LITTER<7GX> FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) (B) IDN	8-98006-454-0	01	1	1405-1405	●		●		●
35	03.890 FILTER ASM; SUB FUEL FUEL TANK 100 LITTER<N02>,FUEL TANK 75LITTER<7GX> FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (B) IDN	8-98006-454-0	01	1	1406-	●		●		●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836 (A) IDN	8-94144-613-0	02	1	0211-0212			●	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> 01.836 (A) IDN	8-94144-613-0	02	1	0301-0507			●	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> 01.836 (A) IDN	8-94144-613-0	02	1	0508-0609			●		●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> 01.836 (A) IDN	8-94144-613-0	02	1	0610-1404	●		●		●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02>,VIN MODEL YEAR 2014(VZE),FUEL TANK 75 LITTER<7GX> 01.836 (A) IDN	8-94144-613-0	02	1	1405-1405	●		●		●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02>,VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF),FUEL TANK 75 LITTER<7GX> 01.836 (A) IDN	8-94144-613-0	02	1	1406-	●		●		●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) (B)	8-94246-908-0	01	1	0301-0505			●	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) (B)	8-97916-993-2	01	1	0506-0507			●	●
36	03.890 ELEMENT; FUEL FILTER FUEL TANK 100 LITTER<N02>,FUEL TANK 75LITTER<7GX> FUEL FILTER DUAL(S6B) (B)	8-97916-993-2	01	1	0508-0609			●		●
36	03.890 ELEMENT; FUEL FILTER FUEL TANK 100 LITTER<N02>,FUEL TANK 75LITTER<7GX> FUEL FILTER DUAL(S6B) (B)	8-97916-993-2	01	1	0610-1404	●		●		●
36	03.890 ELEMENT; FUEL FILTER FUEL TANK 100 LITTER<N02>,FUEL TANK 75LITTER<7GX> FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) (B)	8-97916-993-2	01	1	1405-1405	●		●		●
36	03.890 ELEMENT; FUEL FILTER FUEL TANK 100 LITTER<N02>,FUEL TANK 75LITTER<7GX> FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (B)	8-97916-993-2	01	1	1406-	●		●		●
37	03.890 COVER; FUEL FILTER FUEL FILTER DUAL(S6B)	8-97363-518-0	01	1	0301-0505			●	●
37	03.890 COVER; FUEL FILTER FUEL FILTER DUAL(S6B) IDN	8-97917-558-0	01	1	0506-0507			●	●
37	03.890 COVER; FUEL FILTER FUEL TANK 100 LITTER<N02>,FUEL TANK 75LITTER<7GX> FUEL FILTER DUAL(S6B) IDN	8-97917-558-0	01	1	0508-0609			●		●
37	03.890 COVER; FUEL FILTER FUEL TANK 100 LITTER<N02>,FUEL TANK 75LITTER<7GX> FUEL FILTER DUAL(S6B) IDN	8-97917-558-0	01	1	0610-1404	●		●		●
37	03.890 COVER; FUEL FILTER FUEL TANK 100 LITTER<N02>,FUEL TANK 75LITTER<7GX> FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) IDN	8-97917-558-0	01	1	1405-1405	●		●		●
37	03.890 COVER; FUEL FILTER FUEL TANK 100 LITTER<N02>,FUEL TANK 75LITTER<7GX> FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) IDN	8-97917-558-0	01	1	1406-	●		●		●
62	03.895 NUT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0211-0507			●	●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0508-0602			●
62	03.895 NUT; FUEL FILTER 03.162 (B) M10 FLANGE IDN	0-91180-110-0	02	1	0603-1405			●
62	03.895 NUT; FUEL FILTER 03.162 (B) M10 FLANGE IDN	0-91180-110-0	02	1	1406-			●
62	03.895 NUT; FUEL FILTER EXC. VIN MODEL YEAR 2015(VZF) 03.162 (B) M10 FLANGE IDN	0-91180-110-0	02	1	1406-	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0211-0507			●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0508-0602			●		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0603-0609			●		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0610-1404	●		●		●
62	03.895 NUT; FUEL FILTER 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0610-1404		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	1405-1405	●		●		●
62	03.895 NUT; FUEL FILTER EXC. VIN MODEL YEAR 2014(VZE) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	1405-1405		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	1405-1405	●
62	03.895 NUT; FUEL FILTER 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	1406-		●	●		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	1406-	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	1406-	●

35 35 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	03.890 ELEMENT KIT; FUEL FILTER VIN MODEL YEAR 2014(VZE) IDN	8-98270-184-0	01	1	1405-1405	●
2	03.890 ELEMENT KIT; FUEL FILTER VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) IDN	8-98270-184-0	01	1	1406-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-549-1	01	1	0211-0507			●	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	0508-0609			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	0610-	●		●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836 IDN	8-94144-613-0	02	1	0610-		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B)	8-97916-993-2	01	1	0610-		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) BEST VALUE PARTS	5-87610-041-0	01	1	0211-0507			●	●
2	03.890 ELEMENT KIT; FUEL FILTER BEST VALUE PARTS	5-87610-041-0	01	1	0508-0609			●
2	03.890 ELEMENT KIT; FUEL FILTER BEST VALUE PARTS	5-87610-041-0	01	1	0610-	●		●
35	03.890 FILTER ASM; SUB FUEL VIN MODEL YEAR 2014(VZE) (C) IDN	8-98269-584-0	01	1	1405-1405	●
35	03.890 FILTER ASM; SUB FUEL VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (C) IDN	8-98269-584-0	01	1	1406-	●	●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) (A) IDN	8-97070-864-0	01	1	0211-0212			●	●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> (A) IDN	8-97070-864-0	01	1	0301-0507			●	●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> (A) IDN	8-97070-864-0	01	1	0508-0609			●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> (A) IDN	8-97070-864-0	01	1	0610-1404	●		●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02>,VIN MODEL YEAR 2014(VZE),FUEL TANK 75 LITTER<7GX> (A) IDN	8-97070-864-0	01	1	1405-1405	●		●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02>,VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF),FUEL TANK 75 LITTER<7GX> (A) IDN	8-97070-864-0	01	1	1406-	●		●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) (B)	8-97070-865-0	01	1	0301-0505			●	●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) (B) IDN	8-98006-454-0	01	1	0506-0507			●	●
35	03.890 FILTER ASM; SUB FUEL FUEL TANK 100 LITTER<N02>,FUEL TANK 75LITTER<7GX> FUEL FILTER DUAL(S6B) (B) IDN	8-98006-454-0	01	1	0508-0609			●		●
35	03.890 FILTER ASM; SUB FUEL FUEL TANK 100 LITTER<N02>,FUEL TANK 75LITTER<7GX> FUEL FILTER DUAL(S6B) (B) IDN	8-98006-454-0	01	1	0610-1404	●		●		●
35	03.890 FILTER ASM; SUB FUEL FUEL TANK 100 LITTER<N02>,FUEL TANK 75LITTER<7GX> FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) (B) IDN	8-98006-454-0	01	1	1405-1405	●		●		●
35	03.890 FILTER ASM; SUB FUEL FUEL TANK 100 LITTER<N02>,FUEL TANK 75LITTER<7GX> FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (B) IDN	8-98006-454-0	01	1	1406-	●		●		●

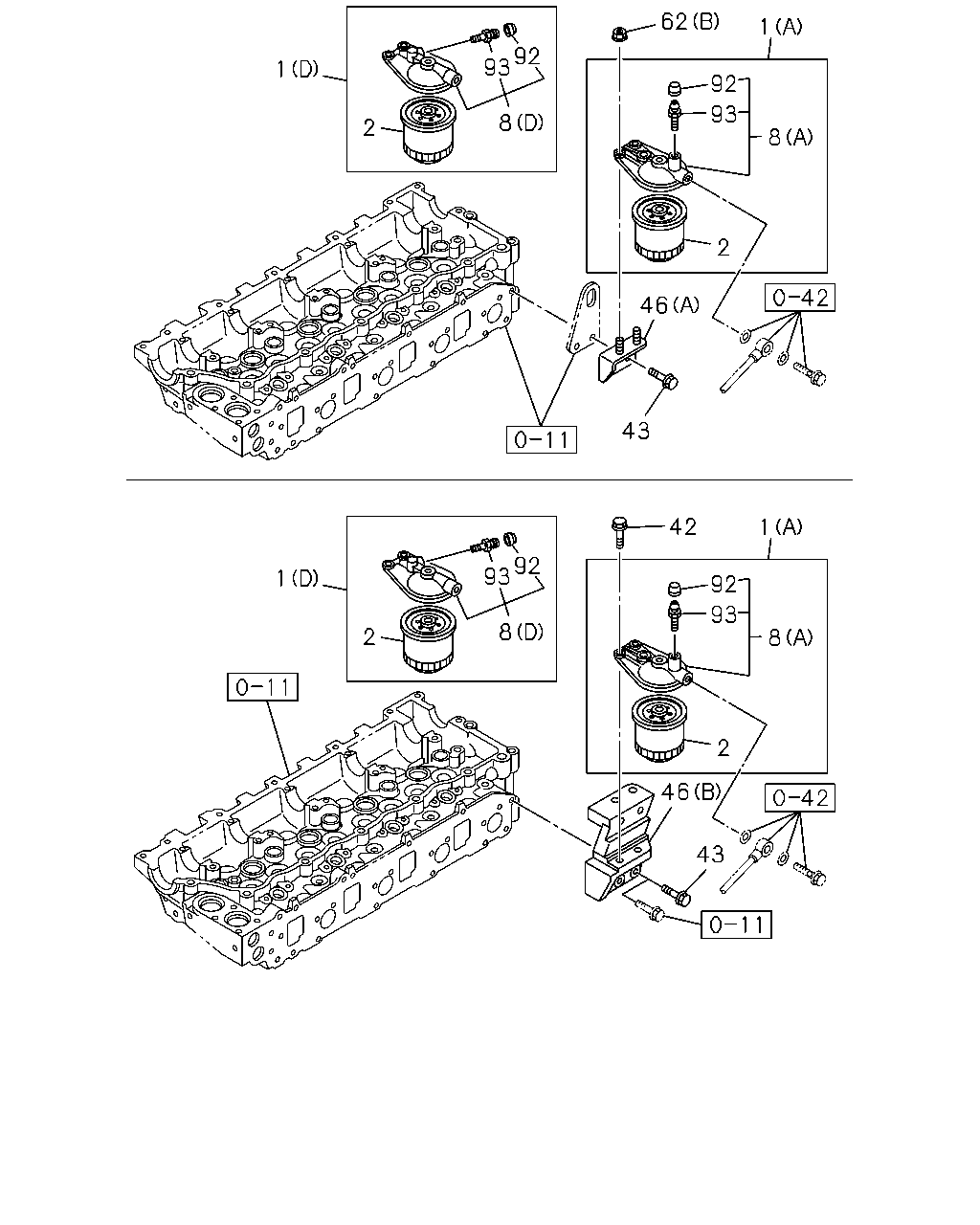

1 2 93 92 8 62 1 92 93 8 2 46 43 42 1 92 93 8 2 46 43 2 1 8 93 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.890 FILTER ASM; FUEL (D)	8-98215-478-0	01	1	1302-			●		●
1	03.890 FILTER ASM; FUEL GLOW SYSTEM DELETE<7RK> (D)	8-98215-478-0	01	1	1302-	●
1	03.890 FILTER ASM; FUEL EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97171-451-2	01	1	0211-0507			●	●
1	03.890 FILTER ASM; FUEL (A)	8-97171-451-2	01	1	0508-0609			●
1	03.890 FILTER ASM; FUEL (A)	8-97171-451-2	01	1	0610-1301	●		●
1	03.890 FILTER ASM; FUEL FAST GLOW SYSTEM<KM6> (A)	8-97171-451-2	01	1	1302-	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B) (C) IDN	8-97070-864-0	01	1	0610-		●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B) (B) IDN	8-98006-454-0	01	1	0610-		●
2	03.890 ELEMENT KIT; FUEL FILTER VIN MODEL YEAR 2014(VZE) IDN	8-98270-184-0	01	1	1405-1405	●
2	03.890 ELEMENT KIT; FUEL FILTER VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) IDN	8-98270-184-0	01	1	1406-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-549-1	01	1	0211-0507			●	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	0508-0609			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	0610-	●		●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836 IDN	8-94144-613-0	02	1	0610-		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B)	8-97916-993-2	01	1	0610-		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) BEST VALUE PARTS	5-87610-041-0	01	1	0211-0507			●	●
2	03.890 ELEMENT KIT; FUEL FILTER BEST VALUE PARTS	5-87610-041-0	01	1	0508-0609			●
2	03.890 ELEMENT KIT; FUEL FILTER BEST VALUE PARTS	5-87610-041-0	01	1	0610-	●		●
8	03.890 COVER; FUEL FILTER (D)	8-98234-919-0	01	1	1302-			●		●
8	03.890 COVER; FUEL FILTER GLOW SYSTEM DELETE<7RK> (D)	8-98234-919-0	01	1	1302-	●
8	03.890 COVER; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97172-543-1	01	1	0211-0507			●	●
8	03.890 COVER; FUEL FILTER (A)	8-97172-543-1	01	1	0508-0609			●
8	03.890 COVER; FUEL FILTER (A)	8-97172-543-1	01	1	0610-1301	●		●
8	03.890 COVER; FUEL FILTER FAST GLOW SYSTEM<KM6> (A)	8-97172-543-1	01	1	1302-	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B) (B) IDN	8-97917-558-0	01	1	0610-		●
8	03.890 COVER; FUEL FILTER FUEL FILTER DUAL(S6B) (C)	8-97127-541-0	01	1	0610-		●
42	03.890 BOLT; FUEL FILTER 00.780 M10X30 FLANGE	0-28751-030-0	02	1	0610-1405	●
42	03.890 BOLT; FUEL FILTER VIN MODEL YEAR 2015(VZF) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1406-1406	●
42	03.890 BOLT; FUEL FILTER VIN MODEL YEAR 2015(VZF) 00.029 M10X35 FLANGE	0-28751-035-0	02	1	1407-	●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	1406-	●		●
43	03.890 BOLT; BRKT EXC. ENGINE POWER N-SPEC(7QV) 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0211-0507			●	●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0508-0609			●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0610-1405	●		●
43	03.890 BOLT; BRKT EXC. VIN MODEL YEAR 2015(VZF) 00.029 M12X25 FLANGE	0-28151-225-0	02	1	1406-	●
46	03.890 BRACKET EXC. ENGINE POWER N-SPEC(7QV) (A)	8-94313-323-1	01	1	0211-0507			●	●
46	03.890 BRACKET (A)	8-94313-323-2	01	1	0508-1405			●
46	03.890 BRACKET (A)	8-94313-323-2	01	1	1406-			●
46	03.890 BRACKET EXC. VIN MODEL YEAR 2015(VZF) (A)	8-94313-323-2	01	1	1406-	●
46	03.890 BRACKET (B)	8-97061-452-0	01	1	0610-1405	●
46	03.890 BRACKET VIN MODEL YEAR 2015(VZF) (B)	8-97061-452-0	01	1	1406-	●
62	03.895 NUT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0211-0507			●	●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0508-0602			●
62	03.895 NUT; FUEL FILTER 03.162 (B) M10 FLANGE IDN	0-91180-110-0	02	1	0603-1405			●
62	03.895 NUT; FUEL FILTER 03.162 (B) M10 FLANGE IDN	0-91180-110-0	02	1	1406-			●
62	03.895 NUT; FUEL FILTER EXC. VIN MODEL YEAR 2015(VZF) 03.162 (B) M10 FLANGE IDN	0-91180-110-0	02	1	1406-	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0211-0507			●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0508-0602			●		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0603-0609			●		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0610-1404	●		●		●
62	03.895 NUT; FUEL FILTER 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0610-1404		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	1405-1405	●		●		●
62	03.895 NUT; FUEL FILTER EXC. VIN MODEL YEAR 2014(VZE) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	1405-1405		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	1405-1405	●
62	03.895 NUT; FUEL FILTER 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	1406-		●	●		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	1406-	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	1406-	●
92	03.417 CAP; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-548-0	01	1	0211-0507			●	●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	0508-0609			●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	0610-	●		●
93	03.890 CONNECTOR; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-546-1	01	1	0211-0507			●	●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	0508-0609			●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	0610-	●		●

62 1 8 2 62 1 2 2 8 57 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.890 FILTER ASM; FUEL (D)	8-98215-478-0	01	1	1302-			●		●
1	03.890 FILTER ASM; FUEL GLOW SYSTEM DELETE<7RK> (D)	8-98215-478-0	01	1	1302-	●
1	03.890 FILTER ASM; FUEL EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97171-451-2	01	1	0211-0507			●	●
1	03.890 FILTER ASM; FUEL (A)	8-97171-451-2	01	1	0508-0609			●
1	03.890 FILTER ASM; FUEL (A)	8-97171-451-2	01	1	0610-1301	●		●
1	03.890 FILTER ASM; FUEL FAST GLOW SYSTEM<KM6> (A)	8-97171-451-2	01	1	1302-	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B) (C) IDN	8-97070-864-0	01	1	0610-		●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B) (B) IDN	8-98006-454-0	01	1	0610-		●
2	03.890 ELEMENT KIT; FUEL FILTER VIN MODEL YEAR 2014(VZE) IDN	8-98270-184-0	01	1	1405-1405	●
2	03.890 ELEMENT KIT; FUEL FILTER VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) IDN	8-98270-184-0	01	1	1406-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-549-1	01	1	0211-0507			●	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	0508-0609			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	0610-	●		●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836 IDN	8-94144-613-0	02	1	0610-		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B)	8-97916-993-2	01	1	0610-		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) BEST VALUE PARTS	5-87610-041-0	01	1	0211-0507			●	●
2	03.890 ELEMENT KIT; FUEL FILTER BEST VALUE PARTS	5-87610-041-0	01	1	0508-0609			●
2	03.890 ELEMENT KIT; FUEL FILTER BEST VALUE PARTS	5-87610-041-0	01	1	0610-	●		●
8	03.890 COVER; FUEL FILTER (D)	8-98234-919-0	01	1	1302-			●		●
8	03.890 COVER; FUEL FILTER GLOW SYSTEM DELETE<7RK> (D)	8-98234-919-0	01	1	1302-	●
8	03.890 COVER; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97172-543-1	01	1	0211-0507			●	●
8	03.890 COVER; FUEL FILTER (A)	8-97172-543-1	01	1	0508-0609			●
8	03.890 COVER; FUEL FILTER (A)	8-97172-543-1	01	1	0610-1301	●		●
8	03.890 COVER; FUEL FILTER FAST GLOW SYSTEM<KM6> (A)	8-97172-543-1	01	1	1302-	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B) (B) IDN	8-97917-558-0	01	1	0610-		●
8	03.890 COVER; FUEL FILTER FUEL FILTER DUAL(S6B) (C)	8-97127-541-0	01	1	0610-		●
56	03.890 PLUG; FUEL FILTER FUEL FILTER DUAL(S6B)	5-13226-001-0	01	1	0610-		●
57	03.890 GASKET; PLUG FUEL FILTER DUAL(S6B) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0610-		●
62	03.895 NUT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0211-0507			●	●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0508-0602			●
62	03.895 NUT; FUEL FILTER 03.162 (B) M10 FLANGE IDN	0-91180-110-0	02	1	0603-1405			●
62	03.895 NUT; FUEL FILTER 03.162 (B) M10 FLANGE IDN	0-91180-110-0	02	1	1406-			●
62	03.895 NUT; FUEL FILTER EXC. VIN MODEL YEAR 2015(VZF) 03.162 (B) M10 FLANGE IDN	0-91180-110-0	02	1	1406-	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0211-0507			●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0508-0602			●		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0603-0609			●		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0610-1404	●		●		●
62	03.895 NUT; FUEL FILTER 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0610-1404		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	1405-1405	●		●		●
62	03.895 NUT; FUEL FILTER EXC. VIN MODEL YEAR 2014(VZE) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	1405-1405		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	1405-1405	●
62	03.895 NUT; FUEL FILTER 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	1406-		●	●		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	1406-	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	1406-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
