Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#78895) — 900 parça

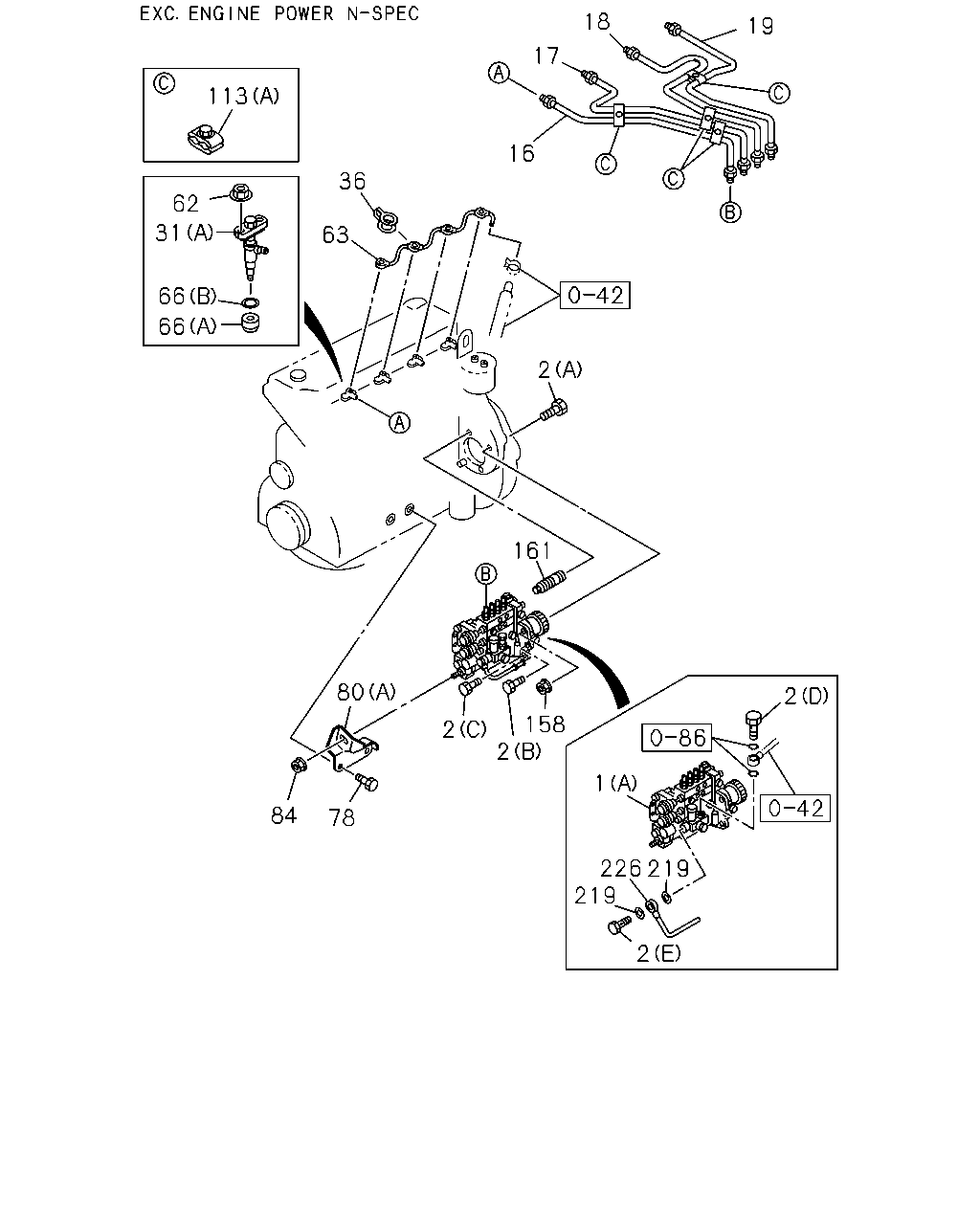

18 19 17 113 16 36 62 31 63 66 66 2 161 80 2 158 2 2 1 84 78 219 2 226 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. VIN MODEL YEAR 2014(VZE) (E)	8-98268-832-0	01	1	1405-1405	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. VIN MODEL YEAR 2015(VZF) (E)	8-98268-832-0	01	1	1406-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INDONESIA EQUIPMENT(S4S) (E)	8-98192-953-0	01	1	1112-1404	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2014(VZE) (E)	8-98192-953-0	01	1	1405-1405	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015(VZF) (E)	8-98192-953-0	01	1	1406-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ENGINE POWER N-SPEC(7QV) (B)	8-97223-104-1	01	1	0211-0507		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. (B)	8-97223-104-1	01	1	0508-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97203-380-0	01	1	0211-0507		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. (A)	8-97212-102-0	01	1	0211-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. (C)	8-97263-086-3	01	1	0610-1009					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> (C)	8-97263-086-3	01	1	1010-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. (D)	8-97178-485-5	01	1	0610-1111	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INDONESIA EQUIPMENT(S4S) (D)	8-97178-485-5	01	1	1112-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q<T1A> (C)	8-97204-201-9	01	1	1010-1309					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q<T1A> (C)	8-98253-290-0	01	1	1310-					●
2	03.330 BOLT; INJ PUMP 03.890 (A) M10X70 FLANGE	0-28181-070-0	01	1	0211-0507		●		●
2	03.330 BOLT; INJ PUMP 03.890 (A) M10X70 FLANGE	0-28181-070-0	01	1	0508-0512			●	●
2	03.330 BOLT; INJ PUMP 02.277 (A) M10X70 FLANGE	0-28151-070-0	01	1	0601-0609			●	●
2	03.330 BOLT; INJ PUMP 02.277 (A) M10X70 FLANGE	0-28151-070-0	01	1	0610-	●		●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0211-0507		●		●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0508-0512			●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-0609			●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0610-	●		●	●
2	03.330 BOLT; INJ PUMP (C) M12X90 FLANGE	0-28181-290-0	01	1	0211-0507		●		●
2	03.330 BOLT; INJ PUMP (C) M12X90 FLANGE	0-28181-290-0	01	1	0508-0512			●	●
2	03.330 BOLT; INJ PUMP (C) M12X90 FLANGE	0-28151-290-0	01	1	0601-0609			●	●
2	03.330 BOLT; INJ PUMP (C) M12X90 FLANGE	0-28151-290-0	01	1	0610-	●		●	●
2	03.330 BOLT; INJ PUMP ENGINE POWER N-SPEC(7QV) 03.417 (F) M10X25 FLANGE	0-28081-025-0	01	1	0211-0507		●
2	03.330 BOLT; INJ PUMP 03.417 (F) M10X25 FLANGE	0-28081-025-0	01	1	0508-0512			●
2	03.330 BOLT; INJ PUMP 09.171 (F) M10X25 FLANGE IDN	0-28051-025-0	01	1	0601-			●
2	03.330 BOLT; INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0507		●		●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0508-0609				●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0610-	●			●
2	03.330 BOLT; INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0507		●		●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0508-0609				●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0610-	●			●
16	03.330 PIPE; INJ NO.1 ENGINE POWER N-SPEC(7QV)	8-97134-166-1	01	1	0211-0507		●
16	03.330 PIPE; INJ NO.1	8-97134-166-1	01	1	0508-			●
16	03.330 PIPE; INJ NO.1 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-374-0	01	1	0211-0507		●		●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0508-				●
16	03.330 PIPE; INJ NO.1	8-97223-923-1	01	1	0610-					●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0610-	●
17	03.330 PIPE; INJ NO.2 ENGINE POWER N-SPEC(7QV)	8-97134-167-1	01	1	0211-0507		●
17	03.330 PIPE; INJ NO.2	8-97134-167-1	01	1	0508-			●
17	03.330 PIPE; INJ NO.2 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-375-0	01	1	0211-0507		●		●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0508-				●
17	03.330 PIPE; INJ NO.2	8-97223-924-1	01	1	0610-					●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0610-	●
18	03.330 PIPE; INJ NO.3 ENGINE POWER N-SPEC(7QV)	8-97134-168-0	01	1	0211-0507		●
18	03.330 PIPE; INJ NO.3	8-97134-168-0	01	1	0508-			●
18	03.330 PIPE; INJ NO.3 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-376-0	01	1	0211-0507		●		●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0508-				●
18	03.330 PIPE; INJ NO.3	8-97223-925-1	01	1	0610-					●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0610-	●
19	03.330 PIPE; INJ NO.4 ENGINE POWER N-SPEC(7QV)	8-97134-169-0	01	1	0211-0507		●
19	03.330 PIPE; INJ NO.4	8-97134-169-0	01	1	0508-			●
19	03.330 PIPE; INJ NO.4 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-377-1	01	1	0211-0507		●		●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0508-				●
19	03.330 PIPE; INJ NO.4	8-97223-926-1	01	1	0610-					●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0610-	●

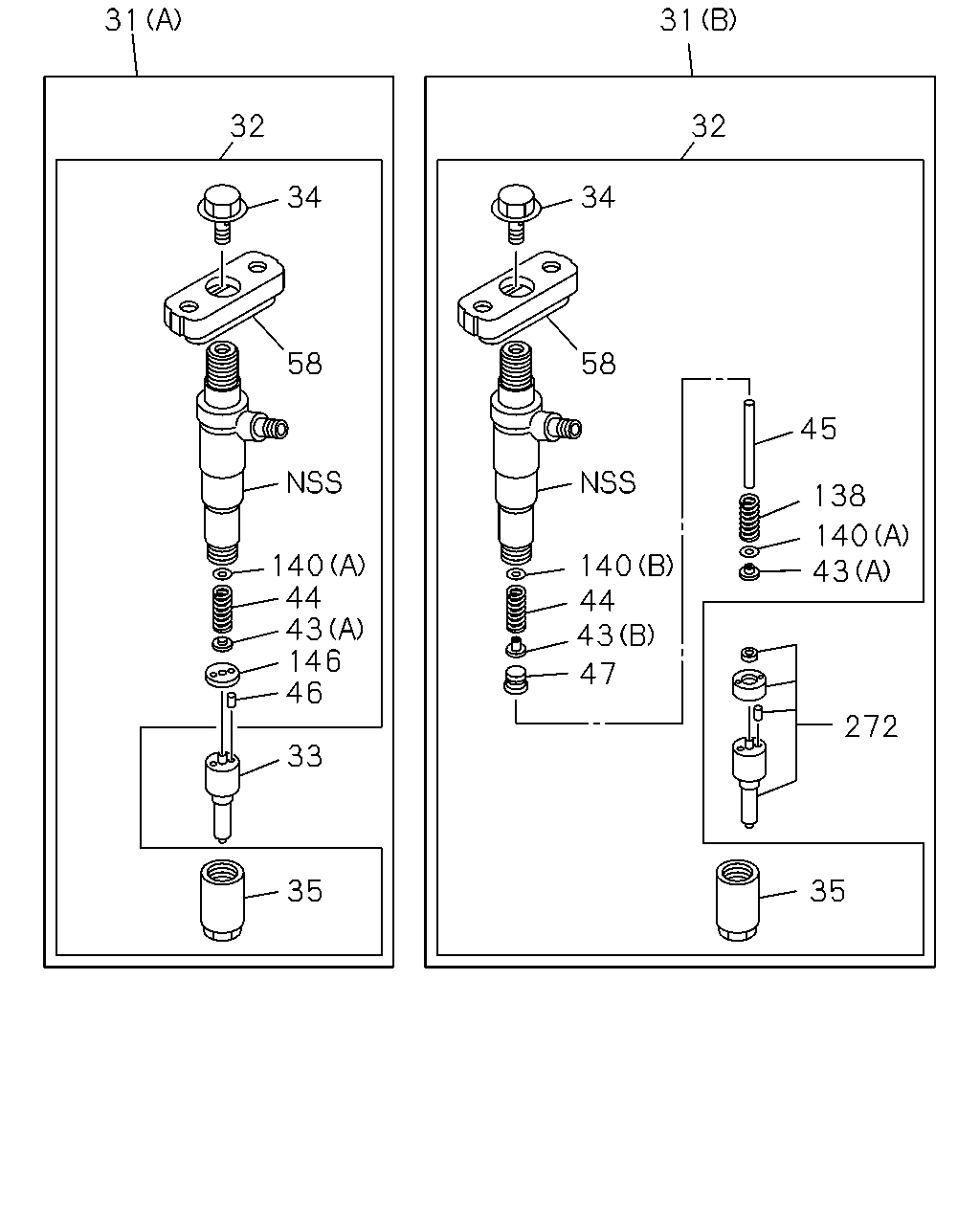

31	03.332 NOZZLE ASM; INJ ENGINE POWER N-SPEC(7QV) (A)	8-97174-112-0	04	1	0211-0507		●
31	03.332 NOZZLE ASM; INJ (A)	8-97174-112-0	04	1	0508-			●
31	03.332 NOZZLE ASM; INJ EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97119-812-0	04	1	0211-0507		●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0211-				●
31	03.332 NOZZLE ASM; INJ (C)	8-97382-945-0	04	1	0610-					●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0610-	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0211-0507		●		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0508-0609			●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0610-1312	●		●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-98246-930-0	04	1	1401-	●		●	●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0211-0507		●		●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0508-0602			●	●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE IDN	0-91180-108-0	08	1	0603-0609			●	●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE IDN	0-91180-108-0	08	1	0610-	●		●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF GLOW SYSTEM DELETE<7RK>	8-98209-783-0	01	1	1212-	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0211-0507		●		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0508-			●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97288-702-0	01	1	0610-					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0610-1211	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF FAST GLOW SYSTEM<KM6>	8-97148-969-2	01	1	1212-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0211-0507		●		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0508-0609			●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0610-	●		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0211-0507		●		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0508-0609			●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 07.003 (A)	8-97171-332-0	04	1	0610-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0610-			●	●	●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0211-0507		●		●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0508-0512			●	●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	02	1	0601-			●	●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0610-					●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0610-	●
80	03.306 BRACKET; PUMP (A)	8-98209-944-0	01	1	1212-			●	●
80	03.306 BRACKET; PUMP GLOW SYSTEM DELETE<7RK> (A)	8-98209-944-0	01	1	1212-	●
80	03.306 BRACKET; PUMP ENGINE POWER N-SPEC(7QV) (B)	8-97119-363-1	01	1	0211-0507		●
80	03.306 BRACKET; PUMP (B)	8-97119-363-1	01	1	0508-			●
80	03.306 BRACKET; PUMP EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97136-677-0	01	1	0211-0507		●		●
80	03.306 BRACKET; PUMP (A)	8-97136-677-0	01	1	0508-0609				●
80	03.306 BRACKET; PUMP (A)	8-97136-677-0	01	1	0610-1211	●			●
80	03.306 BRACKET; PUMP FAST GLOW SYSTEM<KM6> (A)	8-97136-677-0	01	1	1212-	●
80	03.306 BRACKET; PUMP (C)	8-97368-670-0	01	1	0610-					●
80	03.306 BRACKET; PUMP (D)	8-97368-671-0	01	1	0610-					●
84	03.330 NUT; BRKT TO BRKT EXC. ENGINE POWER N-SPEC(7QV) 08.917 M10 FLANGE	0-91150-210-0	01	1	0211-0507		●		●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	0508-0602				●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-0609				●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0610-	●			●
113	03.162 CLIP; INJ PIPE ENGINE POWER N-SPEC(7QV) (A)	8-97213-050-0	02	1	0211-0507		●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	02	1	0508-			●
113	03.162 CLIP; INJ PIPE EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97213-050-0	04	1	0211-0507		●		●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0508-0609				●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0610-	●			●
113	03.162 CLIP; INJ PIPE (D)	1-09701-132-1	02	1	0610-1210					●
113	03.162 CLIP; INJ PIPE 03.634 (D)	1-09701-240-0	02	1	1211-					●
113	03.162 CLIP; INJ PIPE (C)	8-97224-041-1	02	1	0610-1212					●
113	03.162 CLIP; INJ PIPE (C)	8-98227-926-0	02	1	1301-					●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0610-	●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0507		●		●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0508-0602			●	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0603-0609			●	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0610-	●		●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0211-0212		●		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0301-0507		●		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0508-0609			●	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0610-0910	●		●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0911-	●		●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0507		●		●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0508-0609				●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0610-1312	●			●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
226	03.163 PIPE; FUEL EXC. ENGINE POWER N-SPEC(7QV)	8-97203-567-0	01	1	0211-0507		●		●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0508-0609				●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0610-	●			●

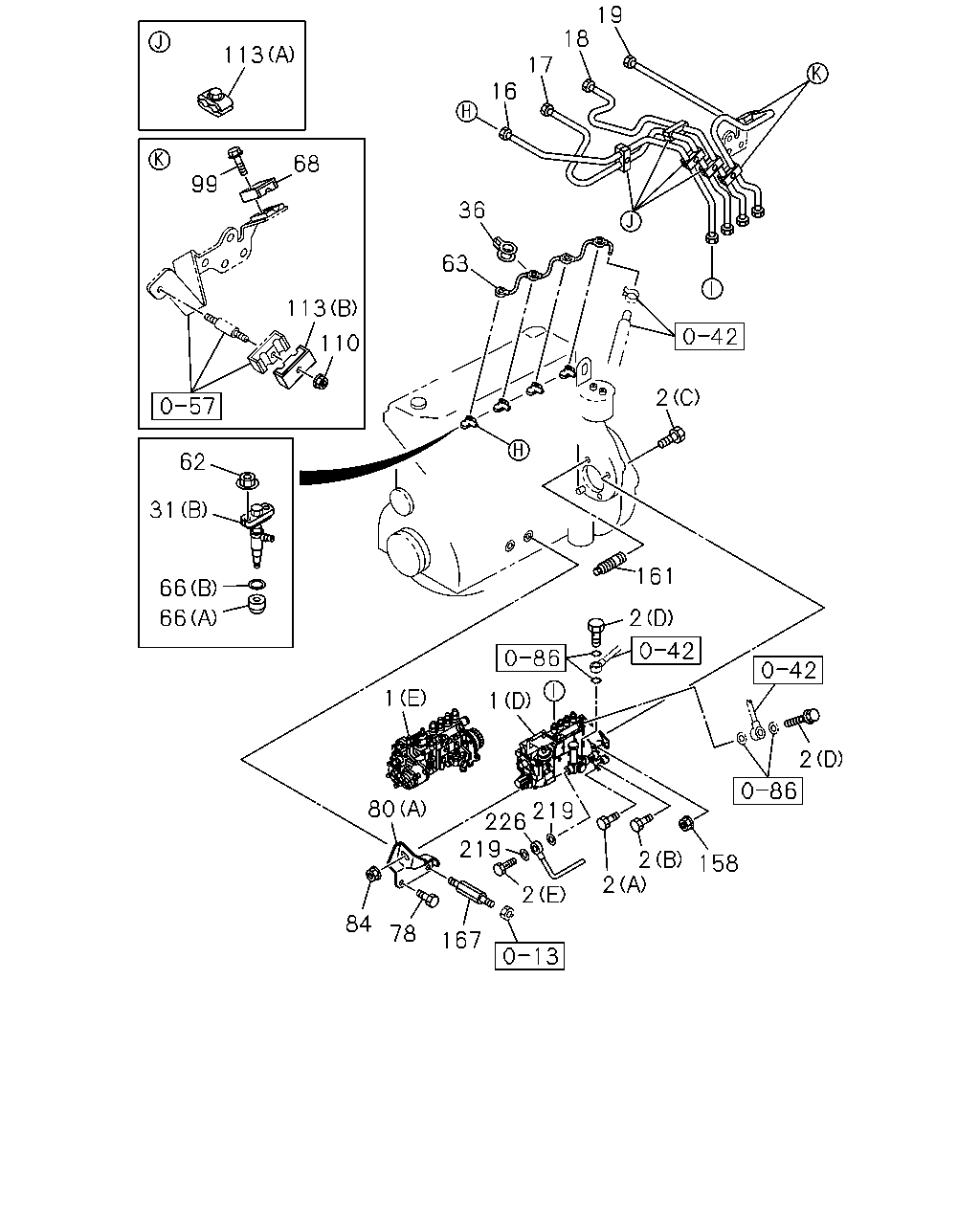

19 18 113 17 16 68 99 36 63 113 110 2 62 31 161 66 2 66 1 1 2 219 226 219 80 2 158 2 2 84 78 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. VIN MODEL YEAR 2014(VZE) (E)	8-98268-832-0	01	1	1405-1405	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. VIN MODEL YEAR 2015(VZF) (E)	8-98268-832-0	01	1	1406-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INDONESIA EQUIPMENT(S4S) (E)	8-98192-953-0	01	1	1112-1404	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2014(VZE) (E)	8-98192-953-0	01	1	1405-1405	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015(VZF) (E)	8-98192-953-0	01	1	1406-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ENGINE POWER N-SPEC(7QV) (B)	8-97223-104-1	01	1	0211-0507		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. (B)	8-97223-104-1	01	1	0508-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97203-380-0	01	1	0211-0507		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. (A)	8-97212-102-0	01	1	0211-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. (C)	8-97263-086-3	01	1	0610-1009					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> (C)	8-97263-086-3	01	1	1010-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. (D)	8-97178-485-5	01	1	0610-1111	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INDONESIA EQUIPMENT(S4S) (D)	8-97178-485-5	01	1	1112-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q<T1A> (C)	8-97204-201-9	01	1	1010-1309					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q<T1A> (C)	8-98253-290-0	01	1	1310-					●
2	03.330 BOLT; INJ PUMP 03.890 (A) M10X70 FLANGE	0-28181-070-0	01	1	0211-0507		●		●
2	03.330 BOLT; INJ PUMP 03.890 (A) M10X70 FLANGE	0-28181-070-0	01	1	0508-0512			●	●
2	03.330 BOLT; INJ PUMP 02.277 (A) M10X70 FLANGE	0-28151-070-0	01	1	0601-0609			●	●
2	03.330 BOLT; INJ PUMP 02.277 (A) M10X70 FLANGE	0-28151-070-0	01	1	0610-	●		●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0211-0507		●		●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0508-0512			●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-0609			●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0610-	●		●	●
2	03.330 BOLT; INJ PUMP (C) M12X90 FLANGE	0-28181-290-0	01	1	0211-0507		●		●
2	03.330 BOLT; INJ PUMP (C) M12X90 FLANGE	0-28181-290-0	01	1	0508-0512			●	●
2	03.330 BOLT; INJ PUMP (C) M12X90 FLANGE	0-28151-290-0	01	1	0601-0609			●	●
2	03.330 BOLT; INJ PUMP (C) M12X90 FLANGE	0-28151-290-0	01	1	0610-	●		●	●
2	03.330 BOLT; INJ PUMP ENGINE POWER N-SPEC(7QV) 03.417 (F) M10X25 FLANGE	0-28081-025-0	01	1	0211-0507		●
2	03.330 BOLT; INJ PUMP 03.417 (F) M10X25 FLANGE	0-28081-025-0	01	1	0508-0512			●
2	03.330 BOLT; INJ PUMP 09.171 (F) M10X25 FLANGE IDN	0-28051-025-0	01	1	0601-			●
2	03.330 BOLT; INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0507		●		●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0508-0609				●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0610-	●			●
2	03.330 BOLT; INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0507		●		●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0508-0609				●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0610-	●			●
16	03.330 PIPE; INJ NO.1 ENGINE POWER N-SPEC(7QV)	8-97134-166-1	01	1	0211-0507		●
16	03.330 PIPE; INJ NO.1	8-97134-166-1	01	1	0508-			●
16	03.330 PIPE; INJ NO.1 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-374-0	01	1	0211-0507		●		●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0508-				●
16	03.330 PIPE; INJ NO.1	8-97223-923-1	01	1	0610-					●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0610-	●
17	03.330 PIPE; INJ NO.2 ENGINE POWER N-SPEC(7QV)	8-97134-167-1	01	1	0211-0507		●
17	03.330 PIPE; INJ NO.2	8-97134-167-1	01	1	0508-			●
17	03.330 PIPE; INJ NO.2 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-375-0	01	1	0211-0507		●		●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0508-				●
17	03.330 PIPE; INJ NO.2	8-97223-924-1	01	1	0610-					●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0610-	●
18	03.330 PIPE; INJ NO.3 ENGINE POWER N-SPEC(7QV)	8-97134-168-0	01	1	0211-0507		●
18	03.330 PIPE; INJ NO.3	8-97134-168-0	01	1	0508-			●
18	03.330 PIPE; INJ NO.3 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-376-0	01	1	0211-0507		●		●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0508-				●
18	03.330 PIPE; INJ NO.3	8-97223-925-1	01	1	0610-					●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0610-	●
19	03.330 PIPE; INJ NO.4 ENGINE POWER N-SPEC(7QV)	8-97134-169-0	01	1	0211-0507		●
19	03.330 PIPE; INJ NO.4	8-97134-169-0	01	1	0508-			●
19	03.330 PIPE; INJ NO.4 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-377-1	01	1	0211-0507		●		●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0508-				●
19	03.330 PIPE; INJ NO.4	8-97223-926-1	01	1	0610-					●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0610-	●
31	03.332 NOZZLE ASM; INJ ENGINE POWER N-SPEC(7QV) (A)	8-97174-112-0	04	1	0211-0507		●
31	03.332 NOZZLE ASM; INJ (A)	8-97174-112-0	04	1	0508-			●
31	03.332 NOZZLE ASM; INJ EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97119-812-0	04	1	0211-0507		●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0211-				●
31	03.332 NOZZLE ASM; INJ (C)	8-97382-945-0	04	1	0610-					●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0610-	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0211-0507		●		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0508-0609			●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0610-1312	●		●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-98246-930-0	04	1	1401-	●		●	●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0211-0507		●		●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0508-0602			●	●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE IDN	0-91180-108-0	08	1	0603-0609			●	●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE IDN	0-91180-108-0	08	1	0610-	●		●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF GLOW SYSTEM DELETE<7RK>	8-98209-783-0	01	1	1212-	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0211-0507		●		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0508-			●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97288-702-0	01	1	0610-					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0610-1211	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF FAST GLOW SYSTEM<KM6>	8-97148-969-2	01	1	1212-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0211-0507		●		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0508-0609			●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0610-	●		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0211-0507		●		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0508-0609			●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 07.003 (A)	8-97171-332-0	04	1	0610-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0610-			●	●	●
68	03.162 CLIP; INJ PIPE ENGINE POWER N-SPEC(7QV)	8-97213-049-0	04	1	0211-0507		●
68	03.162 CLIP; INJ PIPE	8-97213-049-0	04	1	0508-			●
68	03.162 CLIP; INJ PIPE	1-09701-091-0	01	1	0610-	●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0211-0507		●		●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0508-0512			●	●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	02	1	0601-			●	●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0610-					●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0610-	●
80	03.306 BRACKET; PUMP (A)	8-98209-944-0	01	1	1212-			●	●
80	03.306 BRACKET; PUMP GLOW SYSTEM DELETE<7RK> (A)	8-98209-944-0	01	1	1212-	●
80	03.306 BRACKET; PUMP ENGINE POWER N-SPEC(7QV) (B)	8-97119-363-1	01	1	0211-0507		●
80	03.306 BRACKET; PUMP (B)	8-97119-363-1	01	1	0508-			●
80	03.306 BRACKET; PUMP EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97136-677-0	01	1	0211-0507		●		●
80	03.306 BRACKET; PUMP (A)	8-97136-677-0	01	1	0508-0609				●
80	03.306 BRACKET; PUMP (A)	8-97136-677-0	01	1	0610-1211	●			●
80	03.306 BRACKET; PUMP FAST GLOW SYSTEM<KM6> (A)	8-97136-677-0	01	1	1212-	●
80	03.306 BRACKET; PUMP (C)	8-97368-670-0	01	1	0610-					●
80	03.306 BRACKET; PUMP (D)	8-97368-671-0	01	1	0610-					●
84	03.330 NUT; BRKT TO BRKT EXC. ENGINE POWER N-SPEC(7QV) 08.917 M10 FLANGE	0-91150-210-0	01	1	0211-0507		●		●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	0508-0602				●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-0609				●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0610-	●			●
99	03.330 BOLT; CLIP,INJ,PIPE 00.685 M6X25 FLANGE IDN	0-28650-625-0	01	1	0610-	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0610-	●				●
113	03.162 CLIP; INJ PIPE ENGINE POWER N-SPEC(7QV) (A)	8-97213-050-0	02	1	0211-0507		●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	02	1	0508-			●
113	03.162 CLIP; INJ PIPE EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97213-050-0	04	1	0211-0507		●		●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0508-0609				●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0610-	●			●
113	03.162 CLIP; INJ PIPE (D)	1-09701-132-1	02	1	0610-1210					●
113	03.162 CLIP; INJ PIPE 03.634 (D)	1-09701-240-0	02	1	1211-					●
113	03.162 CLIP; INJ PIPE (C)	8-97224-041-1	02	1	0610-1212					●
113	03.162 CLIP; INJ PIPE (C)	8-98227-926-0	02	1	1301-					●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0610-	●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0507		●		●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0508-0602			●	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0603-0609			●	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0610-	●		●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0211-0212		●		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0301-0507		●		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0508-0609			●	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0610-0910	●		●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0911-	●		●	●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	0610-	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0507		●		●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0508-0609				●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0610-1312	●			●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
226	03.163 PIPE; FUEL EXC. ENGINE POWER N-SPEC(7QV)	8-97203-567-0	01	1	0211-0507		●		●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0508-0609				●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0610-	●			●

93 63 34 31 29 30 29 61 59 50 66 120 110 19 113 113 17 18 113 16 113 77 76 81 1 78 80 80 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. VIN MODEL YEAR 2014(VZE) (E)	8-98268-832-0	01	1	1405-1405	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. VIN MODEL YEAR 2015(VZF) (E)	8-98268-832-0	01	1	1406-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INDONESIA EQUIPMENT(S4S) (E)	8-98192-953-0	01	1	1112-1404	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2014(VZE) (E)	8-98192-953-0	01	1	1405-1405	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015(VZF) (E)	8-98192-953-0	01	1	1406-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ENGINE POWER N-SPEC(7QV) (B)	8-97223-104-1	01	1	0211-0507		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. (B)	8-97223-104-1	01	1	0508-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97203-380-0	01	1	0211-0507		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. (A)	8-97212-102-0	01	1	0211-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. (C)	8-97263-086-3	01	1	0610-1009					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> (C)	8-97263-086-3	01	1	1010-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. (D)	8-97178-485-5	01	1	0610-1111	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INDONESIA EQUIPMENT(S4S) (D)	8-97178-485-5	01	1	1112-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q<T1A> (C)	8-97204-201-9	01	1	1010-1309					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q<T1A> (C)	8-98253-290-0	01	1	1310-					●
16	03.330 PIPE; INJ NO.1 ENGINE POWER N-SPEC(7QV)	8-97134-166-1	01	1	0211-0507		●
16	03.330 PIPE; INJ NO.1	8-97134-166-1	01	1	0508-			●
16	03.330 PIPE; INJ NO.1 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-374-0	01	1	0211-0507		●		●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0508-				●
16	03.330 PIPE; INJ NO.1	8-97223-923-1	01	1	0610-					●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0610-	●
17	03.330 PIPE; INJ NO.2 ENGINE POWER N-SPEC(7QV)	8-97134-167-1	01	1	0211-0507		●
17	03.330 PIPE; INJ NO.2	8-97134-167-1	01	1	0508-			●
17	03.330 PIPE; INJ NO.2 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-375-0	01	1	0211-0507		●		●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0508-				●
17	03.330 PIPE; INJ NO.2	8-97223-924-1	01	1	0610-					●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0610-	●
18	03.330 PIPE; INJ NO.3 ENGINE POWER N-SPEC(7QV)	8-97134-168-0	01	1	0211-0507		●
18	03.330 PIPE; INJ NO.3	8-97134-168-0	01	1	0508-			●
18	03.330 PIPE; INJ NO.3 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-376-0	01	1	0211-0507		●		●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0508-				●
18	03.330 PIPE; INJ NO.3	8-97223-925-1	01	1	0610-					●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0610-	●
19	03.330 PIPE; INJ NO.4 ENGINE POWER N-SPEC(7QV)	8-97134-169-0	01	1	0211-0507		●
19	03.330 PIPE; INJ NO.4	8-97134-169-0	01	1	0508-			●
19	03.330 PIPE; INJ NO.4 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-377-1	01	1	0211-0507		●		●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0508-				●
19	03.330 PIPE; INJ NO.4	8-97223-926-1	01	1	0610-					●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0610-	●
29	03.162 CLIP; HOSE 03.163 ID=11	8-97173-219-0	02	1	0610-					●
30	03.163 HOSE; RUBBER,FUEL LEAK L=320	8-97364-773-0	01	1	0610-1509					●
30	03.163 HOSE; RUBBER,FUEL LEAK EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> L=320	8-97364-773-0	01	1	1510-					●
30	03.163 HOSE; RUBBER,FUEL LEAK L=320	8-97364-773-0	01	1	1510-					●
31	03.332 NOZZLE ASM; INJ ENGINE POWER N-SPEC(7QV) (A)	8-97174-112-0	04	1	0211-0507		●
31	03.332 NOZZLE ASM; INJ (A)	8-97174-112-0	04	1	0508-			●
31	03.332 NOZZLE ASM; INJ EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97119-812-0	04	1	0211-0507		●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0211-				●
31	03.332 NOZZLE ASM; INJ (C)	8-97382-945-0	04	1	0610-					●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0610-	●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	0211-0507		●		●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	0508-			●	●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	0610-					●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.162 M8X18 EYE-BOLT	1-09675-037-1	04	1	0610-	●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97287-402-2	04	1	0610-					●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0610-					●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	0610-					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF GLOW SYSTEM DELETE<7RK>	8-98209-783-0	01	1	1212-	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0211-0507		●		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0508-			●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97288-702-0	01	1	0610-					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0610-1211	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF FAST GLOW SYSTEM<KM6>	8-97148-969-2	01	1	1212-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0211-0507		●		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0508-0609			●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0610-	●		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0211-0507		●		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0508-0609			●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 07.003 (A)	8-97171-332-0	04	1	0610-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0610-			●	●	●
72	03.330 BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50551-020-0	02	1	0610-					●
76	03.330 BOLT; BRKT TO BRKT 09.008 M8X25 W/LK WASHER	0-50540-825-0	02	1	0610-					●
77	03.340 RUBBER; SPACE,INJ PUMP INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97226-808-0	01	1	1010-1401					●
77	03.340 RUBBER; SPACE,INJ PUMP INJ PUMP Q SET SPECIAL +5%Q<T1A> IDN	8-97520-590-0	01	1	1402-					●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0211-0507		●		●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0508-0512			●	●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	02	1	0601-			●	●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0610-					●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0610-	●
80	03.306 BRACKET; PUMP (A)	8-98209-944-0	01	1	1212-			●	●
80	03.306 BRACKET; PUMP GLOW SYSTEM DELETE<7RK> (A)	8-98209-944-0	01	1	1212-	●
80	03.306 BRACKET; PUMP ENGINE POWER N-SPEC(7QV) (B)	8-97119-363-1	01	1	0211-0507		●
80	03.306 BRACKET; PUMP (B)	8-97119-363-1	01	1	0508-			●
80	03.306 BRACKET; PUMP EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97136-677-0	01	1	0211-0507		●		●
80	03.306 BRACKET; PUMP (A)	8-97136-677-0	01	1	0508-0609				●
80	03.306 BRACKET; PUMP (A)	8-97136-677-0	01	1	0610-1211	●			●
80	03.306 BRACKET; PUMP FAST GLOW SYSTEM<KM6> (A)	8-97136-677-0	01	1	1212-	●
80	03.306 BRACKET; PUMP (C)	8-97368-670-0	01	1	0610-					●
80	03.306 BRACKET; PUMP (D)	8-97368-671-0	01	1	0610-					●
81	03.330 WASHER; PL,BRKT TO PUMP 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	02	1	0610-					●
93	03.162 GASKET; LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-236-0	04	1	0610-					●
110	03.330 NUT; CLIP 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0610-	●				●
113	03.162 CLIP; INJ PIPE ENGINE POWER N-SPEC(7QV) (A)	8-97213-050-0	02	1	0211-0507		●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	02	1	0508-			●
113	03.162 CLIP; INJ PIPE EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97213-050-0	04	1	0211-0507		●		●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0508-0609				●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0610-	●			●
113	03.162 CLIP; INJ PIPE (D)	1-09701-132-1	02	1	0610-1210					●
113	03.162 CLIP; INJ PIPE 03.634 (D)	1-09701-240-0	02	1	1211-					●
113	03.162 CLIP; INJ PIPE (C)	8-97224-041-1	02	1	0610-1212					●
113	03.162 CLIP; INJ PIPE (C)	8-98227-926-0	02	1	1301-					●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0610-	●
120	03.330 BRACKET; INJ PIPE	8-98015-024-1	01	1	0610-					●

19 18 113 17 16 68 107 68 194 36 63 62 31 66 66 2 161 1 80 158 2 78 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. VIN MODEL YEAR 2014(VZE) (E)	8-98268-832-0	01	1	1405-1405	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. VIN MODEL YEAR 2015(VZF) (E)	8-98268-832-0	01	1	1406-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INDONESIA EQUIPMENT(S4S) (E)	8-98192-953-0	01	1	1112-1404	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2014(VZE) (E)	8-98192-953-0	01	1	1405-1405	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015(VZF) (E)	8-98192-953-0	01	1	1406-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ENGINE POWER N-SPEC(7QV) (B)	8-97223-104-1	01	1	0211-0507		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. (B)	8-97223-104-1	01	1	0508-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97203-380-0	01	1	0211-0507		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. (A)	8-97212-102-0	01	1	0211-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. (C)	8-97263-086-3	01	1	0610-1009					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> (C)	8-97263-086-3	01	1	1010-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. (D)	8-97178-485-5	01	1	0610-1111	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INDONESIA EQUIPMENT(S4S) (D)	8-97178-485-5	01	1	1112-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q<T1A> (C)	8-97204-201-9	01	1	1010-1309					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q<T1A> (C)	8-98253-290-0	01	1	1310-					●
2	03.330 BOLT; INJ PUMP 03.890 (A) M10X70 FLANGE	0-28181-070-0	01	1	0211-0507		●		●
2	03.330 BOLT; INJ PUMP 03.890 (A) M10X70 FLANGE	0-28181-070-0	01	1	0508-0512			●	●
2	03.330 BOLT; INJ PUMP 02.277 (A) M10X70 FLANGE	0-28151-070-0	01	1	0601-0609			●	●
2	03.330 BOLT; INJ PUMP 02.277 (A) M10X70 FLANGE	0-28151-070-0	01	1	0610-	●		●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0211-0507		●		●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0508-0512			●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-0609			●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0610-	●		●	●
2	03.330 BOLT; INJ PUMP (C) M12X90 FLANGE	0-28181-290-0	01	1	0211-0507		●		●
2	03.330 BOLT; INJ PUMP (C) M12X90 FLANGE	0-28181-290-0	01	1	0508-0512			●	●
2	03.330 BOLT; INJ PUMP (C) M12X90 FLANGE	0-28151-290-0	01	1	0601-0609			●	●
2	03.330 BOLT; INJ PUMP (C) M12X90 FLANGE	0-28151-290-0	01	1	0610-	●		●	●
2	03.330 BOLT; INJ PUMP ENGINE POWER N-SPEC(7QV) 03.417 (F) M10X25 FLANGE	0-28081-025-0	01	1	0211-0507		●
2	03.330 BOLT; INJ PUMP 03.417 (F) M10X25 FLANGE	0-28081-025-0	01	1	0508-0512			●
2	03.330 BOLT; INJ PUMP 09.171 (F) M10X25 FLANGE IDN	0-28051-025-0	01	1	0601-			●
2	03.330 BOLT; INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0507		●		●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0508-0609				●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0610-	●			●
2	03.330 BOLT; INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0507		●		●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0508-0609				●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0610-	●			●
16	03.330 PIPE; INJ NO.1 ENGINE POWER N-SPEC(7QV)	8-97134-166-1	01	1	0211-0507		●
16	03.330 PIPE; INJ NO.1	8-97134-166-1	01	1	0508-			●
16	03.330 PIPE; INJ NO.1 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-374-0	01	1	0211-0507		●		●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0508-				●
16	03.330 PIPE; INJ NO.1	8-97223-923-1	01	1	0610-					●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0610-	●
17	03.330 PIPE; INJ NO.2 ENGINE POWER N-SPEC(7QV)	8-97134-167-1	01	1	0211-0507		●
17	03.330 PIPE; INJ NO.2	8-97134-167-1	01	1	0508-			●
17	03.330 PIPE; INJ NO.2 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-375-0	01	1	0211-0507		●		●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0508-				●
17	03.330 PIPE; INJ NO.2	8-97223-924-1	01	1	0610-					●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0610-	●
18	03.330 PIPE; INJ NO.3 ENGINE POWER N-SPEC(7QV)	8-97134-168-0	01	1	0211-0507		●
18	03.330 PIPE; INJ NO.3	8-97134-168-0	01	1	0508-			●
18	03.330 PIPE; INJ NO.3 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-376-0	01	1	0211-0507		●		●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0508-				●
18	03.330 PIPE; INJ NO.3	8-97223-925-1	01	1	0610-					●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0610-	●
19	03.330 PIPE; INJ NO.4 ENGINE POWER N-SPEC(7QV)	8-97134-169-0	01	1	0211-0507		●
19	03.330 PIPE; INJ NO.4	8-97134-169-0	01	1	0508-			●
19	03.330 PIPE; INJ NO.4 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-377-1	01	1	0211-0507		●		●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0508-				●
19	03.330 PIPE; INJ NO.4	8-97223-926-1	01	1	0610-					●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0610-	●
31	03.332 NOZZLE ASM; INJ ENGINE POWER N-SPEC(7QV) (A)	8-97174-112-0	04	1	0211-0507		●
31	03.332 NOZZLE ASM; INJ (A)	8-97174-112-0	04	1	0508-			●
31	03.332 NOZZLE ASM; INJ EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97119-812-0	04	1	0211-0507		●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0211-				●
31	03.332 NOZZLE ASM; INJ (C)	8-97382-945-0	04	1	0610-					●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0610-	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0211-0507		●		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0508-0609			●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0610-1312	●		●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-98246-930-0	04	1	1401-	●		●	●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0211-0507		●		●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0508-0602			●	●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE IDN	0-91180-108-0	08	1	0603-0609			●	●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE IDN	0-91180-108-0	08	1	0610-	●		●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF GLOW SYSTEM DELETE<7RK>	8-98209-783-0	01	1	1212-	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0211-0507		●		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0508-			●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97288-702-0	01	1	0610-					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0610-1211	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF FAST GLOW SYSTEM<KM6>	8-97148-969-2	01	1	1212-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0211-0507		●		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0508-0609			●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0610-	●		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0211-0507		●		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0508-0609			●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 07.003 (A)	8-97171-332-0	04	1	0610-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0610-			●	●	●
68	03.162 CLIP; INJ PIPE ENGINE POWER N-SPEC(7QV)	8-97213-049-0	04	1	0211-0507		●
68	03.162 CLIP; INJ PIPE	8-97213-049-0	04	1	0508-			●
68	03.162 CLIP; INJ PIPE	1-09701-091-0	01	1	0610-	●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0211-0507		●		●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0508-0512			●	●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	02	1	0601-			●	●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0610-					●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0610-	●
80	03.306 BRACKET; PUMP (A)	8-98209-944-0	01	1	1212-			●	●
80	03.306 BRACKET; PUMP GLOW SYSTEM DELETE<7RK> (A)	8-98209-944-0	01	1	1212-	●
80	03.306 BRACKET; PUMP ENGINE POWER N-SPEC(7QV) (B)	8-97119-363-1	01	1	0211-0507		●
80	03.306 BRACKET; PUMP (B)	8-97119-363-1	01	1	0508-			●
80	03.306 BRACKET; PUMP EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97136-677-0	01	1	0211-0507		●		●
80	03.306 BRACKET; PUMP (A)	8-97136-677-0	01	1	0508-0609				●
80	03.306 BRACKET; PUMP (A)	8-97136-677-0	01	1	0610-1211	●			●
80	03.306 BRACKET; PUMP FAST GLOW SYSTEM<KM6> (A)	8-97136-677-0	01	1	1212-	●
80	03.306 BRACKET; PUMP (C)	8-97368-670-0	01	1	0610-					●
80	03.306 BRACKET; PUMP (D)	8-97368-671-0	01	1	0610-					●
107	03.162 NUT; INJ PIPE CLIP ENGINE POWER N-SPEC(7QV) 03.671 M5 FLANGE	8-94178-699-0	02	1	0211-0507		●
107	03.162 NUT; INJ PIPE CLIP 03.671 M5 FLANGE	8-94178-699-0	02	1	0508-			●
113	03.162 CLIP; INJ PIPE ENGINE POWER N-SPEC(7QV) (A)	8-97213-050-0	02	1	0211-0507		●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	02	1	0508-			●
113	03.162 CLIP; INJ PIPE EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97213-050-0	04	1	0211-0507		●		●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0508-0609				●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0610-	●			●
113	03.162 CLIP; INJ PIPE (D)	1-09701-132-1	02	1	0610-1210					●
113	03.162 CLIP; INJ PIPE 03.634 (D)	1-09701-240-0	02	1	1211-					●
113	03.162 CLIP; INJ PIPE (C)	8-97224-041-1	02	1	0610-1212					●
113	03.162 CLIP; INJ PIPE (C)	8-98227-926-0	02	1	1301-					●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0610-	●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0507		●		●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0508-0602			●	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0603-0609			●	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0610-	●		●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0211-0212		●		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0301-0507		●		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0508-0609			●	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0610-0910	●		●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0911-	●		●	●
194	03.162 STUD; INJ PIPE ENGINE POWER N-SPEC(7QV)	8-97176-071-0	02	1	0211-0507		●
194	03.162 STUD; INJ PIPE	8-97176-071-0	02	1	0508-0610			●
194	03.162 STUD; INJ PIPE	8-98048-396-0	02	1	0611-			●

31 31 32 32 34 34 58 58 45 138 140 43 140 44 43 146 46 140 44 43 47 272 33 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
31	03.332 NOZZLE ASM; INJ ENGINE POWER N-SPEC(7QV) (A)	8-97174-112-0	04	1	0211-0507		●
31	03.332 NOZZLE ASM; INJ (A)	8-97174-112-0	04	1	0508-			●
31	03.332 NOZZLE ASM; INJ EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97119-812-0	04	1	0211-0507		●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0211-				●
31	03.332 NOZZLE ASM; INJ (C)	8-97382-945-0	04	1	0610-					●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0610-	●
32	03.332 HOLDER ASM; NOZZLE	8-94311-966-2	04	1	0211-0507		●		●
32	03.332 HOLDER ASM; NOZZLE	8-94311-966-2	04	1	0508-			●	●
32	03.332 HOLDER ASM; NOZZLE	8-97203-471-1	04	1	0610-					●
32	03.332 HOLDER ASM; NOZZLE	8-97078-783-1	04	1	0610-	●
33	03.332 NOZZLE; INJ ENGINE POWER N-SPEC(7QV)	8-97174-114-0	04	1	0211-0507		●
33	03.332 NOZZLE; INJ	8-97174-114-0	04	1	0508-			●
33	03.332 NOZZLE; INJ EXC. ENGINE POWER N-SPEC(7QV)	8-97119-810-0	04	1	0211-0507		●
33	03.332 NOZZLE; INJ	8-97119-809-0	04	1	0211-				●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	0211-0507		●		●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	0508-			●	●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	0610-					●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.162 M8X18 EYE-BOLT	1-09675-037-1	04	1	0610-	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	0211-0507		●		●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	0508-			●	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	0610-	●				●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94329-555-0	04	1	0211-0507		●		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94329-555-0	04	1	0508-			●	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.00	8-97223-343-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.02	8-97223-344-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.04	8-97223-345-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.06	8-97223-346-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.08	8-97223-347-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.10	8-97223-348-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.12	8-97223-349-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.14	8-97223-350-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.16	8-97223-351-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.18	8-97223-352-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.20	8-97223-353-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.22	8-97223-354-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.24	8-97223-355-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.26	8-97223-356-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.28	8-97223-357-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.30	8-97223-358-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.32	8-97223-359-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.34	8-97223-360-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.36	8-97223-361-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.38	8-97223-362-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.40	8-97223-363-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.42	8-97223-364-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.44	8-97223-365-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.46	8-97223-366-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.48	8-97223-367-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.50	8-97223-368-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.52	8-97223-369-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.54	8-97223-370-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.56	8-97223-371-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.58	8-97223-372-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.60	8-97223-373-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.62	8-97223-374-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.64	8-97223-375-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.66	8-97223-376-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.68	8-97223-377-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.70	8-97223-378-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.72	8-97223-379-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.74	8-97223-380-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.76	8-97223-381-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.78	8-97223-382-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.80	8-97223-383-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.82	8-97223-384-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.84	8-97223-385-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.86	8-97223-386-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.88	8-97223-387-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.90	8-97223-388-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.92	8-97223-389-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.94	8-97223-390-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.96	8-97223-391-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.98	8-97223-392-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=3.00	8-97223-393-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B)	8-97361-697-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-97223-339-0	04	1	0610-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B)	8-97349-452-0	04	1	0610-	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	0211-0507		●		●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	0508-			●	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	0610-	●				●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.25	8-97355-112-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.26	8-97355-113-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.27	8-97355-114-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.28	8-97355-115-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.29	8-97355-116-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.30	8-97355-117-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.31	8-97355-118-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.32	8-97355-119-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.33	8-97355-120-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.34	8-97355-121-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.35	8-97355-122-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.36	8-97355-123-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.37	8-97355-124-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.38	8-97355-125-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.39	8-97355-126-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.40	8-97355-127-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.41	8-97355-128-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.42	8-97355-129-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.43	8-97355-130-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.44	8-97355-131-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.45	8-97355-132-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.46	8-97355-133-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.47	8-97355-134-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.48	8-97355-135-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.49	8-97355-136-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.50	8-97355-137-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.51	8-97355-138-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.52	8-97355-139-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.53	8-97355-140-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.54	8-97355-141-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.55	8-97355-142-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.56	8-97355-143-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.57	8-97355-144-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.58	8-97355-145-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.59	8-97355-146-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.60	8-97355-147-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.61	8-97355-148-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.62	8-97355-149-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.63	8-97355-150-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.64	8-97355-151-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.65	8-97355-152-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.66	8-97355-153-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.67	8-97355-154-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.68	8-97355-155-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.69	8-97355-156-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.70	8-97355-157-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.71	8-97355-158-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.72	8-97355-159-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.73	8-97355-160-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.74	8-97355-161-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.75	8-97355-162-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.76	8-97355-163-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.77	8-97355-164-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.78	8-97355-165-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.79	8-97355-166-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.80	8-97355-167-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.81	8-97355-168-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.82	8-97355-169-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.83	8-97355-170-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.84	8-97355-171-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.85	8-97355-172-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.86	8-97355-173-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.87	8-97355-174-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.88	8-97355-175-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.89	8-97355-176-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.90	8-97355-177-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.91	8-97355-178-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.92	8-97355-179-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.93	8-97355-180-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.94	8-97355-182-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER	1-15341-008-0	04	1	0610-	●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	0211-0507		●		●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	0508-			●	●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL	8-97223-340-0	04	1	0610-	●				●
58	03.332 FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0211-0507		●		●
58	03.332 FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0508-0609			●	●
58	03.332 FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0610-	●		●	●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER	8-94174-141-0	04	1	0610-					●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-004-0	04	1	0610-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.10	8-97027-432-0	AR	1	0211-0507		●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.10	8-97027-432-0	AR	1	0508-			●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.20	8-97027-433-0	AR	1	0211-0507		●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.20	8-97027-433-0	AR	1	0508-			●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.30	8-97027-434-0	AR	1	0211-0507		●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.30	8-97027-434-0	AR	1	0508-			●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.40	8-97027-435-0	AR	1	0211-0507		●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.40	8-97027-435-0	AR	1	0508-			●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.50	8-97027-436-0	AR	1	0211-0507		●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.50	8-97027-436-0	AR	1	0508-			●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.52	8-97027-437-0	AR	1	0211-0507		●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.52	8-97027-437-0	AR	1	0508-			●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.54	8-97027-438-0	AR	1	0211-0507		●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.54	8-97027-438-0	AR	1	0508-			●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.56	8-97027-439-0	AR	1	0211-0507		●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.56	8-97027-439-0	AR	1	0508-			●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.58	8-97027-440-0	AR	1	0211-0507		●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.58	8-97027-440-0	AR	1	0508-			●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=1.20	1-15349-004-0	AR	1	0610-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.52	1-15349-044-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.54	1-15349-045-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.56	1-15349-046-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.58	1-15349-047-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.60	1-15349-048-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.70	1-15349-049-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.10	8-97116-029-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.20	8-97116-032-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.30	8-97116-033-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.40	8-97116-034-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.50	8-97116-035-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.51	8-97116-036-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	8-97116-037-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.53	8-97116-038-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	8-97116-039-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.55	8-97116-040-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	8-97116-041-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.57	8-97116-042-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	8-97116-043-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.59	8-97116-044-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=1.20	1-15349-004-0	04	1	0610-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.40	1-15349-042-0	AR	1	0610-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.50	1-15349-043-0	AR	1	0610-	●
146	03.332 SPACER; NOZZLE	8-94344-439-0	04	1	0211-0507		●		●
146	03.332 SPACER; NOZZLE	8-94344-439-0	04	1	0508-			●	●
272	03.332 NOZZLE KIT; INJ	8-97329-208-0	04	1	0610-					●
272	03.332 NOZZLE KIT; INJ	8-97352-267-0	04	1	0610-	●

31 32 34 140 44 43 47 45 138 140 43 272 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
31	03.332 NOZZLE ASM; INJ ENGINE POWER N-SPEC(7QV) (A)	8-97174-112-0	04	1	0211-0507		●
31	03.332 NOZZLE ASM; INJ (A)	8-97174-112-0	04	1	0508-			●
31	03.332 NOZZLE ASM; INJ EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97119-812-0	04	1	0211-0507		●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0211-				●
31	03.332 NOZZLE ASM; INJ (C)	8-97382-945-0	04	1	0610-					●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0610-	●
32	03.332 HOLDER ASM; NOZZLE	8-94311-966-2	04	1	0211-0507		●		●
32	03.332 HOLDER ASM; NOZZLE	8-94311-966-2	04	1	0508-			●	●
32	03.332 HOLDER ASM; NOZZLE	8-97203-471-1	04	1	0610-					●
32	03.332 HOLDER ASM; NOZZLE	8-97078-783-1	04	1	0610-	●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	0211-0507		●		●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	0508-			●	●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	0610-					●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.162 M8X18 EYE-BOLT	1-09675-037-1	04	1	0610-	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	0211-0507		●		●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	0508-			●	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	0610-	●				●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94329-555-0	04	1	0211-0507		●		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94329-555-0	04	1	0508-			●	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.00	8-97223-343-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.02	8-97223-344-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.04	8-97223-345-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.06	8-97223-346-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.08	8-97223-347-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.10	8-97223-348-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.12	8-97223-349-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.14	8-97223-350-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.16	8-97223-351-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.18	8-97223-352-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.20	8-97223-353-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.22	8-97223-354-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.24	8-97223-355-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.26	8-97223-356-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.28	8-97223-357-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.30	8-97223-358-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.32	8-97223-359-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.34	8-97223-360-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.36	8-97223-361-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.38	8-97223-362-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.40	8-97223-363-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.42	8-97223-364-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.44	8-97223-365-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.46	8-97223-366-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.48	8-97223-367-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.50	8-97223-368-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.52	8-97223-369-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.54	8-97223-370-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.56	8-97223-371-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.58	8-97223-372-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.60	8-97223-373-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.62	8-97223-374-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.64	8-97223-375-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.66	8-97223-376-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.68	8-97223-377-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.70	8-97223-378-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.72	8-97223-379-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.74	8-97223-380-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.76	8-97223-381-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.78	8-97223-382-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.80	8-97223-383-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.82	8-97223-384-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.84	8-97223-385-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.86	8-97223-386-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.88	8-97223-387-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.90	8-97223-388-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.92	8-97223-389-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.94	8-97223-390-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.96	8-97223-391-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.98	8-97223-392-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=3.00	8-97223-393-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B)	8-97361-697-0	04	1	0610-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-97223-339-0	04	1	0610-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B)	8-97349-452-0	04	1	0610-	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	0211-0507		●		●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	0508-			●	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	0610-	●				●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.25	8-97355-112-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.26	8-97355-113-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.27	8-97355-114-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.28	8-97355-115-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.29	8-97355-116-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.30	8-97355-117-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.31	8-97355-118-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.32	8-97355-119-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.33	8-97355-120-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.34	8-97355-121-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.35	8-97355-122-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.36	8-97355-123-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.37	8-97355-124-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.38	8-97355-125-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.39	8-97355-126-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.40	8-97355-127-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.41	8-97355-128-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.42	8-97355-129-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.43	8-97355-130-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.44	8-97355-131-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.45	8-97355-132-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.46	8-97355-133-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.47	8-97355-134-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.48	8-97355-135-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.49	8-97355-136-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.50	8-97355-137-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.51	8-97355-138-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.52	8-97355-139-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.53	8-97355-140-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.54	8-97355-141-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.55	8-97355-142-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.56	8-97355-143-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.57	8-97355-144-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.58	8-97355-145-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.59	8-97355-146-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.60	8-97355-147-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.61	8-97355-148-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.62	8-97355-149-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.63	8-97355-150-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.64	8-97355-151-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.65	8-97355-152-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.66	8-97355-153-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.67	8-97355-154-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.68	8-97355-155-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.69	8-97355-156-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.70	8-97355-157-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.71	8-97355-158-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.72	8-97355-159-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.73	8-97355-160-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.74	8-97355-161-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.75	8-97355-162-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.76	8-97355-163-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.77	8-97355-164-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.78	8-97355-165-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.79	8-97355-166-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.80	8-97355-167-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.81	8-97355-168-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.82	8-97355-169-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.83	8-97355-170-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.84	8-97355-171-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.85	8-97355-172-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.86	8-97355-173-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.87	8-97355-174-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.88	8-97355-175-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.89	8-97355-176-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.90	8-97355-177-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.91	8-97355-178-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.92	8-97355-179-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.93	8-97355-180-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.94	8-97355-182-0	04	1	0610-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER	1-15341-008-0	04	1	0610-	●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL	8-97223-340-0	04	1	0610-	●				●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER	8-94174-141-0	04	1	0610-					●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-004-0	04	1	0610-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.10	8-97027-432-0	AR	1	0211-0507		●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.10	8-97027-432-0	AR	1	0508-			●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.20	8-97027-433-0	AR	1	0211-0507		●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.20	8-97027-433-0	AR	1	0508-			●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.30	8-97027-434-0	AR	1	0211-0507		●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.30	8-97027-434-0	AR	1	0508-			●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.40	8-97027-435-0	AR	1	0211-0507		●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.40	8-97027-435-0	AR	1	0508-			●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.50	8-97027-436-0	AR	1	0211-0507		●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.50	8-97027-436-0	AR	1	0508-			●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.52	8-97027-437-0	AR	1	0211-0507		●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.52	8-97027-437-0	AR	1	0508-			●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.54	8-97027-438-0	AR	1	0211-0507		●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.54	8-97027-438-0	AR	1	0508-			●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.56	8-97027-439-0	AR	1	0211-0507		●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.56	8-97027-439-0	AR	1	0508-			●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.58	8-97027-440-0	AR	1	0211-0507		●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.58	8-97027-440-0	AR	1	0508-			●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=1.20	1-15349-004-0	AR	1	0610-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.52	1-15349-044-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.54	1-15349-045-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.56	1-15349-046-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.58	1-15349-047-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.60	1-15349-048-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.70	1-15349-049-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.10	8-97116-029-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.20	8-97116-032-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.30	8-97116-033-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.40	8-97116-034-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.50	8-97116-035-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.51	8-97116-036-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	8-97116-037-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.53	8-97116-038-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	8-97116-039-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.55	8-97116-040-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	8-97116-041-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.57	8-97116-042-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	8-97116-043-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.59	8-97116-044-0	AR	1	0610-	●				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=1.20	1-15349-004-0	04	1	0610-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.40	1-15349-042-0	AR	1	0610-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.50	1-15349-043-0	AR	1	0610-	●
272	03.332 NOZZLE KIT; INJ	8-97329-208-0	04	1	0610-					●
272	03.332 NOZZLE KIT; INJ	8-97352-267-0	04	1	0610-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
