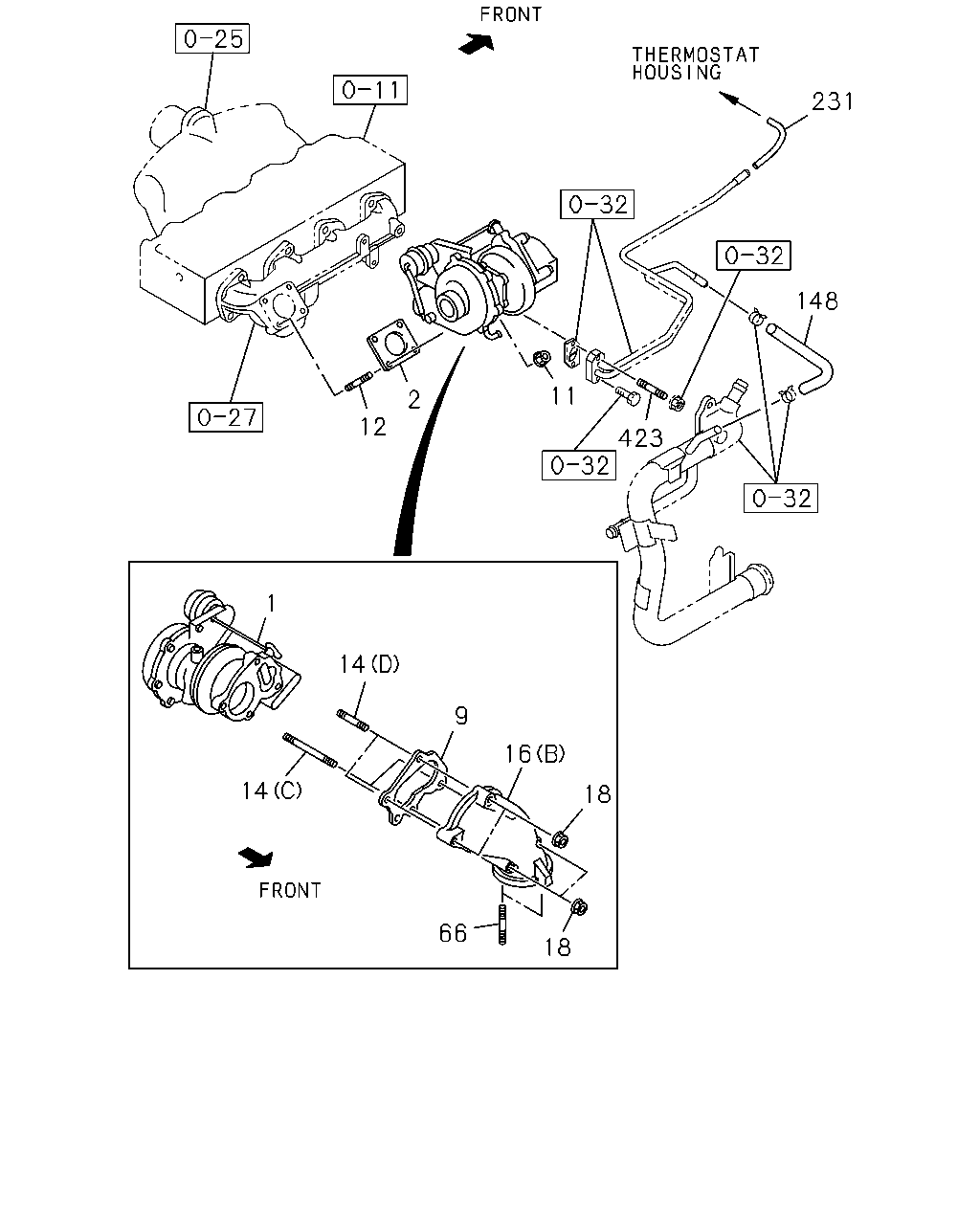

0-36 — TURBOCHARGER SYSTEM (#78893) — 118 parça

2 12 11 423 148 231 14 9 16 18 18 66 14 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. VIN MODEL YEAR 2014(VZE)	8-98254-714-0	01	1	1405-1405	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. VIN MODEL YEAR 2015(VZF)	8-98254-714-0	01	1	1406-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97331-185-1	01	1	0610-1009		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97331-185-1	01	1	1010-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0610-1404	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. VIN MODEL YEAR 2014(VZE)	8-97326-752-1	01	1	1405-1405	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. VIN MODEL YEAR 2015(VZF)	8-97326-752-1	01	1	1406-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97192-331-4	01	1	1010-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97315-266-0	01	1	0610-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97139-726-0	01	1	0610-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97039-777-1	01	1	0610-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE IDN	8-97161-607-0	04	1	0610-		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0610-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X43 L=54	8-97378-067-0	02	1	0610-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X126 L=137	8-97378-069-0	02	1	0610-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0610-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0610-	●
16	03.609 ADAPTER; EXH PIPE GLOW SYSTEM DELETE<7RK> (C)	8-98209-505-0	01	1	1212-	●
16	03.609 ADAPTER; EXH PIPE (A)	8-97178-487-3	01	1	0610-1211	●
16	03.609 ADAPTER; EXH PIPE FAST GLOW SYSTEM<KM6> (A)	8-97178-487-3	01	1	1212-	●
16	03.609 ADAPTER; EXH PIPE (B)	8-97192-332-0	01	1	0610-		●
18	03.613 NUT; EXH PIPE M8 FLANGE IDN	8-97161-607-0	04	1	0610-		●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0610-		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0610-	●
148	03.417 HOSE; TURBOCHARGER,INL 01.097 L=180 SERVICED BY L=3000	0-03559-300-0	01	1	0610-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT GLOW SYSTEM DELETE<7RK>	8-98215-875-0	01	1	1212-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	0610-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0610-1211	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT FAST GLOW SYSTEM<KM6>	8-97209-950-0	01	1	1212-	●
423	03.373 STUD; WATER PIPE 01.652 M6X20 L=28	0-41010-620-0	01	1	0610-		●

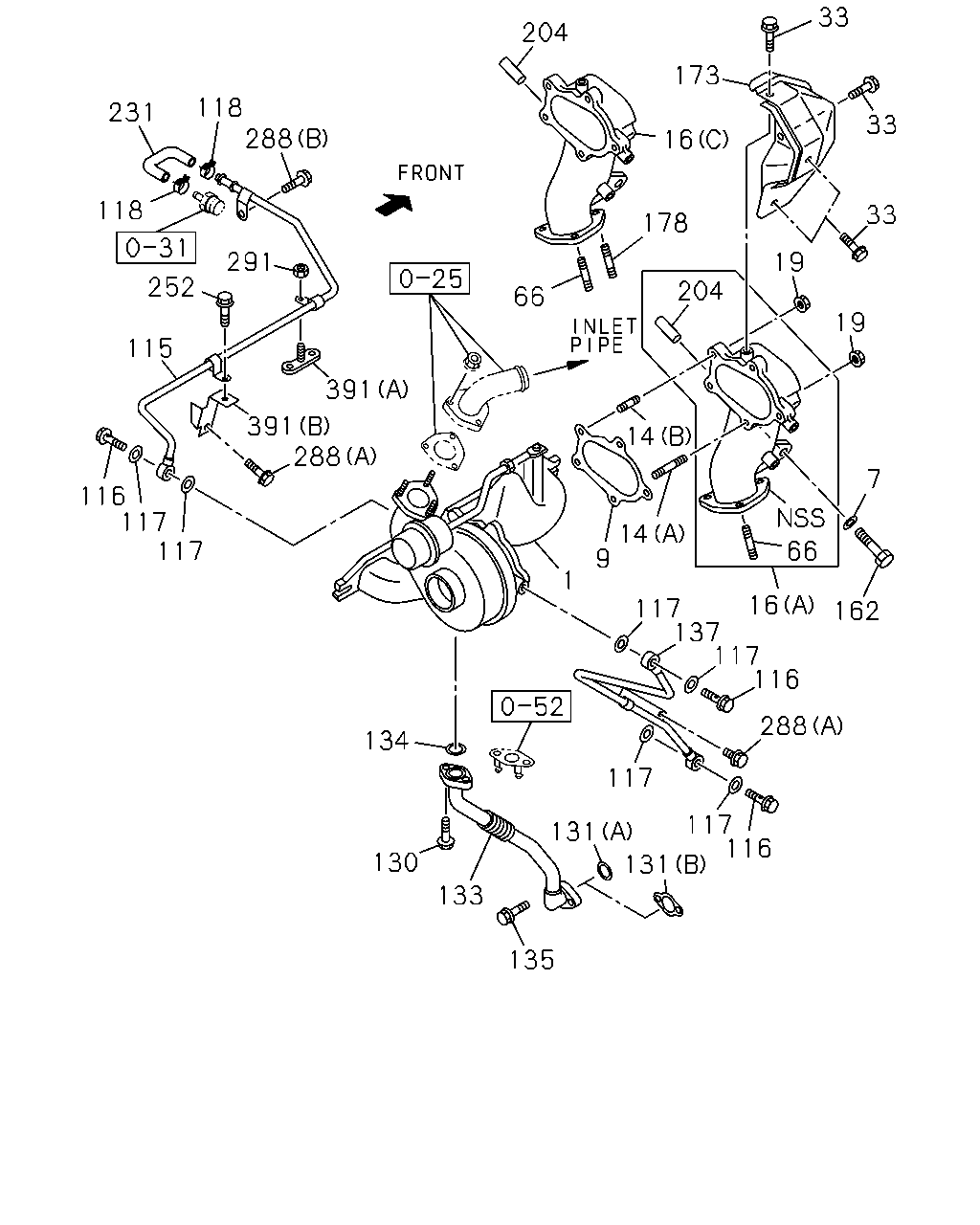

16 162 288 116 117 137 117 9 14 1 117 117 116 131 131 135 133 130 134 117 117 116 115 391 391 288 291 288 118 231 118 252 204 173 33 33 33 19 19 178 16 66 14 204 7 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. VIN MODEL YEAR 2014(VZE)	8-98254-714-0	01	1	1405-1405	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. VIN MODEL YEAR 2015(VZF)	8-98254-714-0	01	1	1406-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97331-185-1	01	1	0610-1009		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97331-185-1	01	1	1010-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0610-1404	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. VIN MODEL YEAR 2014(VZE)	8-97326-752-1	01	1	1405-1405	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. VIN MODEL YEAR 2015(VZF)	8-97326-752-1	01	1	1406-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97192-331-4	01	1	1010-		●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0610-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97139-726-0	01	1	0610-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97039-777-1	01	1	0610-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X43 L=54	8-97378-067-0	02	1	0610-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X126 L=137	8-97378-069-0	02	1	0610-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0610-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0610-	●
16	03.609 ADAPTER; EXH PIPE GLOW SYSTEM DELETE<7RK> (C)	8-98209-505-0	01	1	1212-	●
16	03.609 ADAPTER; EXH PIPE (A)	8-97178-487-3	01	1	0610-1211	●
16	03.609 ADAPTER; EXH PIPE FAST GLOW SYSTEM<KM6> (A)	8-97178-487-3	01	1	1212-	●
16	03.609 ADAPTER; EXH PIPE (B)	8-97192-332-0	01	1	0610-		●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0610-	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0610-	●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0610-		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0610-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT VIN MODEL YEAR 2014(VZE)	8-98261-645-0	01	1	1405-1405	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT VIN MODEL YEAR 2015(VZF)	8-98261-645-0	01	1	1406-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97210-077-2	01	1	0610-1404	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. VIN MODEL YEAR 2014(VZE)	8-97210-077-2	01	1	1405-1405	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. VIN MODEL YEAR 2015(VZF)	8-97210-077-2	01	1	1406-	●
116	03.342 BOLT; WATER PIPE VIN MODEL YEAR 2014(VZE) M14X30 EYE-BOLT	8-94455-144-0	02	1	1405-1405	●
116	03.342 BOLT; WATER PIPE VIN MODEL YEAR 2015(VZF) M14X30 EYE-BOLT	8-94455-144-0	02	1	1406-1409	●
116	03.342 BOLT; WATER PIPE VIN MODEL YEAR 2015(VZF) M14X30 EYE-BOLT	8-94455-144-0	01	1	1410-	●
116	03.342 BOLT; WATER PIPE VIN MODEL YEAR 2014(VZE) M14X31 EYE-BOLT	8-98037-067-0	01	1	1405-1405	●
116	03.342 BOLT; WATER PIPE VIN MODEL YEAR 2015(VZF) M14X31 EYE-BOLT	8-98037-067-0	01	1	1406-1409	●
116	03.342 BOLT; WATER PIPE VIN MODEL YEAR 2015(VZF) M14X31 EYE-BOLT	8-98037-067-0	02	1	1410-	●
116	03.342 BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	0610-1404	●
116	03.342 BOLT; WATER PIPE EXC. VIN MODEL YEAR 2014(VZE) M14X30 EYE-BOLT	8-94455-144-0	03	1	1405-1405	●
116	03.342 BOLT; WATER PIPE EXC. VIN MODEL YEAR 2015(VZF) M14X30 EYE-BOLT	8-94455-144-0	03	1	1406-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2014(VZE) 08.955 ID=14.2 OD=20.0	9-09571-414-0	06	1	1405-1405	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015(VZF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	06	1	1406-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0610-0902	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0903-1312	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-1404	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2014(VZE) 01.531 ID=14.2 OD=19.2	8-98251-345-0	04	1	1405-1405	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015(VZF) 01.531 ID=14.2 OD=19.2	8-98251-345-0	04	1	1406-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0903-1404	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2014(VZE) 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1405-1405	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015(VZF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1406-	●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	02	1	0610-	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D VIN MODEL YEAR 2014(VZE) 00.724 M6X16 HEX SOCKET	0-58330-616-0	02	1	1405-1405	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D VIN MODEL YEAR 2015(VZF) 00.724 M6X16 HEX SOCKET	0-58330-616-0	02	1	1406-1410	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D VIN MODEL YEAR 2015(VZF) 00.662 M6X16 W/LK WASHER	0-50540-616-0	02	1	1411-	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0610-1404	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D EXC. VIN MODEL YEAR 2014(VZE) M6X20 W/LK WASHER	0-50540-620-0	02	1	1405-1405	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D EXC. VIN MODEL YEAR 2015(VZF) M6X20 W/LK WASHER	0-50540-620-0	02	1	1406-	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0610-1006	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER VIN MODEL YEAR 2014(VZE)	8-98261-657-0	01	1	1405-1405	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER VIN MODEL YEAR 2015(VZF)	8-98261-657-0	01	1	1406-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-2	01	1	0610-1006	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1007-1404	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. VIN MODEL YEAR 2014(VZE)	8-98172-659-0	01	1	1405-1405	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. VIN MODEL YEAR 2015(VZF)	8-98172-659-0	01	1	1406-	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0610-1404	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2014(VZE) ID=22.8	1-09623-462-0	01	1	1405-1405	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015(VZF) ID=22.8	1-09623-462-0	01	1	1406-	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0610-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN VIN MODEL YEAR 2014(VZE)	8-98213-680-0	01	1	1405-1405	●
137	01.097 PIPE; WATER,TURBOCHARGER IN VIN MODEL YEAR 2015(VZF)	8-98213-680-0	01	1	1406-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0610-1404	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. VIN MODEL YEAR 2014(VZE)	8-97229-036-0	01	1	1405-1405	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. VIN MODEL YEAR 2015(VZF)	8-97229-036-0	01	1	1406-	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0610-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0610-	●
178	03.407 STUD; DUCT VIN MODEL YEAR 2014(VZE) 03.275 M6X25 L=34	0-41010-625-0	04	1	1405-1405	●
178	03.407 STUD; DUCT VIN MODEL YEAR 2015(VZF) 03.275 M6X25 L=34	0-41010-625-0	04	1	1406-	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0610-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT GLOW SYSTEM DELETE<7RK>	8-98215-875-0	01	1	1212-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	0610-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0610-1211	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT FAST GLOW SYSTEM<KM6>	8-97209-950-0	01	1	1212-	●
252	03.417 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0610-	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0610-	●
288	03.342 BOLT; WATER PIPE CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0610-	●
291	03.374 NUT; PIPE TO BRKT 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-	●
391	03.342 BRACKET; WATER PIPE GLOW SYSTEM DELETE<7RK> (A)	8-98209-661-0	01	1	1212-	●
391	03.342 BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	0610-1211	●
391	03.342 BRACKET; WATER PIPE FAST GLOW SYSTEM<KM6> (A)	8-97210-078-0	01	1	1212-	●
391	03.342 BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	0610-	●
