0-33 — FAN AND FAN BELT (#78891) — 147 parça

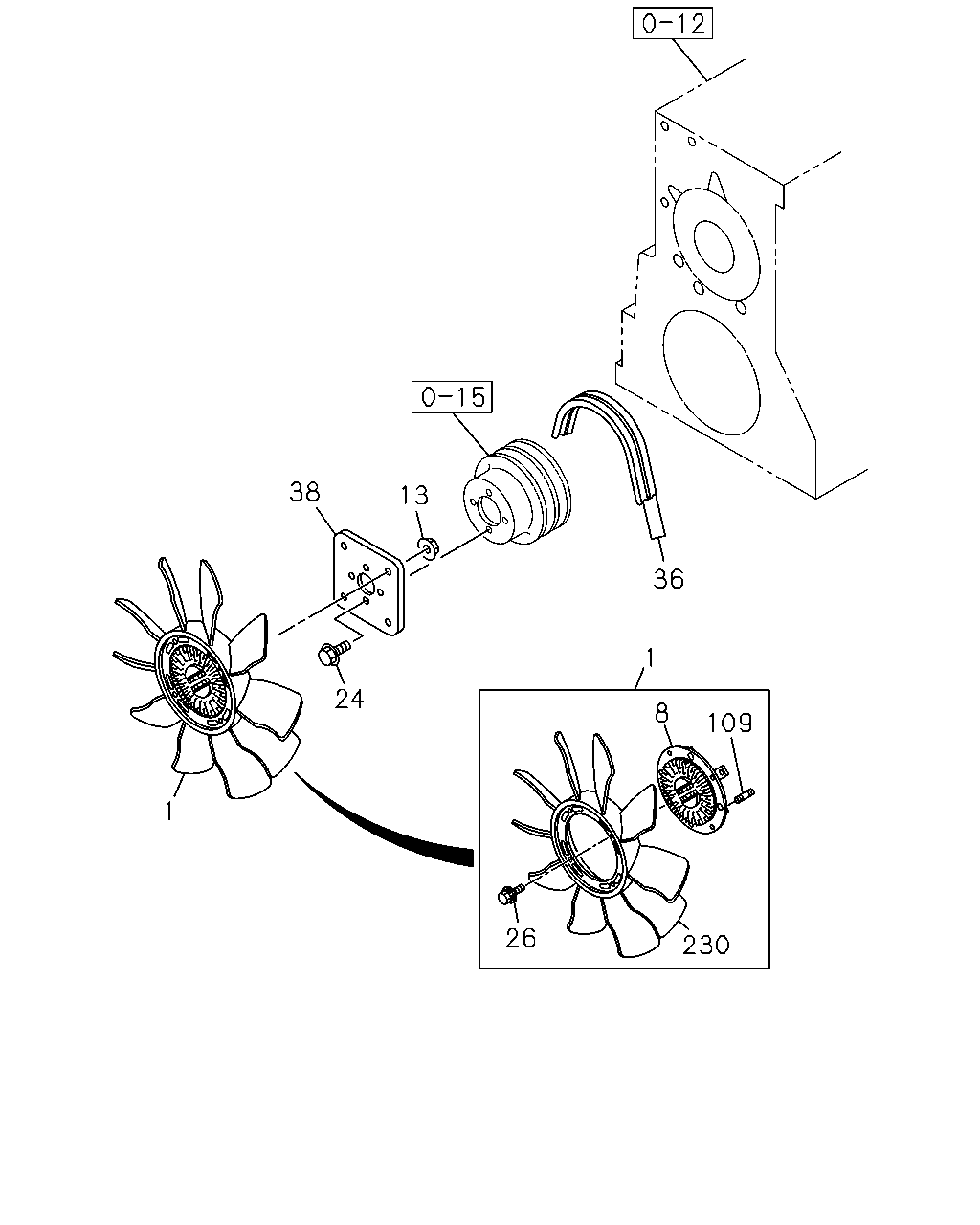

38 13 36 1 24 8 109 1 26 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.064 FAN; COOLING	8-97129-772-1	01	1	0211-0507	●
1	01.064 FAN; COOLING	8-97129-772-1	01	1	0508-		●
1	01.064 FAN; COOLING OD=430	8-97141-195-2	01	1	0211-0609			●
1	01.064 FAN; COOLING OD=430	8-97141-195-2	01	1	0610-			●	●
1	01.064 FAN; COOLING OD=410	8-97129-769-2	01	1	0610-					●
8	01.064 CLUTCH; COOLING FAN	8-97129-738-0	01	1	0211-0507	●
8	01.064 CLUTCH; COOLING FAN	8-97129-738-0	01	1	0508-		●
8	01.064 CLUTCH; COOLING FAN	8-97139-299-0	01	1	0211-0609			●
8	01.064 CLUTCH; COOLING FAN	8-97139-299-0	01	1	0610-			●	●
8	01.064 CLUTCH; COOLING FAN	8-97129-735-0	01	1	0610-					●
13	01.062 NUT; COOLING FAN 07.633 M8 FLANGE	0-91150-108-0	04	1	0211-0507	●		●
13	01.062 NUT; COOLING FAN 07.633 M8 FLANGE	0-91150-108-0	04	1	0508-0602		●	●
13	01.062 NUT; COOLING FAN M8 FLANGE IDN	0-91180-108-0	04	1	0603-0609		●	●
13	01.062 NUT; COOLING FAN M8 FLANGE IDN	0-91180-108-0	04	1	0610-		●	●	●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE IDN	5-09440-004-0	04	1	0610-					●
24	01.062 BOLT; FAN 08.900 M8X18 FLANGE	0-28080-818-0	04	1	0211-0507	●		●
24	01.062 BOLT; FAN 08.900 M8X18 FLANGE	0-28080-818-0	04	1	0508-0609		●	●
24	01.062 BOLT; FAN 08.900 M8X18 FLANGE	0-28080-818-0	04	1	0610-		●	●	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	0211-0507	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	0508-0609		●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	0610-		●			●
26	01.062 BOLT; FAN TO CLU 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0211-0609			●
26	01.062 BOLT; FAN TO CLU 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0610-			●	●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810) IDN	8-97180-199-1	01	1	0211-0507	●		●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810) IDN	8-97180-199-1	01	1	0508-0609		●	●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810) IDN	8-97180-199-1	01	1	0610-		●	●	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97315-153-0	01	1	0610-					●
36	01.066 BELT; COOLING FAN BEST VALUE PARTS IDN	5-87610-098-0	01	1	0211-0507	●		●
36	01.066 BELT; COOLING FAN BEST VALUE PARTS IDN	5-87610-098-0	01	1	0508-0609		●	●
36	01.066 BELT; COOLING FAN BEST VALUE PARTS IDN	5-87610-098-0	01	1	0610-		●	●	●
38	01.062 SPACER; FAN	8-98209-524-0	01	1	1210-		●	●	●
38	01.062 SPACER; FAN	8-97108-643-0	01	1	0211-0507	●		●
38	01.062 SPACER; FAN	8-97108-643-0	01	1	0508-0609		●	●
38	01.062 SPACER; FAN	8-97108-643-0	01	1	0610-1209		●	●	●
38	01.062 SPACER; FAN	8-97108-643-0	01	1	1210-				●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	0211-0507	●		●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	0508-0609		●	●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	0610-		●	●	●
109	01.062 STUD; FAN CLU M6X18 L=27	0-41010-618-0	04	1	0610-					●
230	01.055 FAN; COOLING	8-97078-662-1	01	1	0211-0507	●
230	01.055 FAN; COOLING	8-97078-662-1	01	1	0508-		●
230	01.055 FAN; COOLING	8-97140-854-1	01	1	0211-0609			●
230	01.055 FAN; COOLING	8-97140-854-1	01	1	0610-			●	●
230	01.055 FAN; COOLING 01.064	8-97094-660-1	01	1	0610-					●

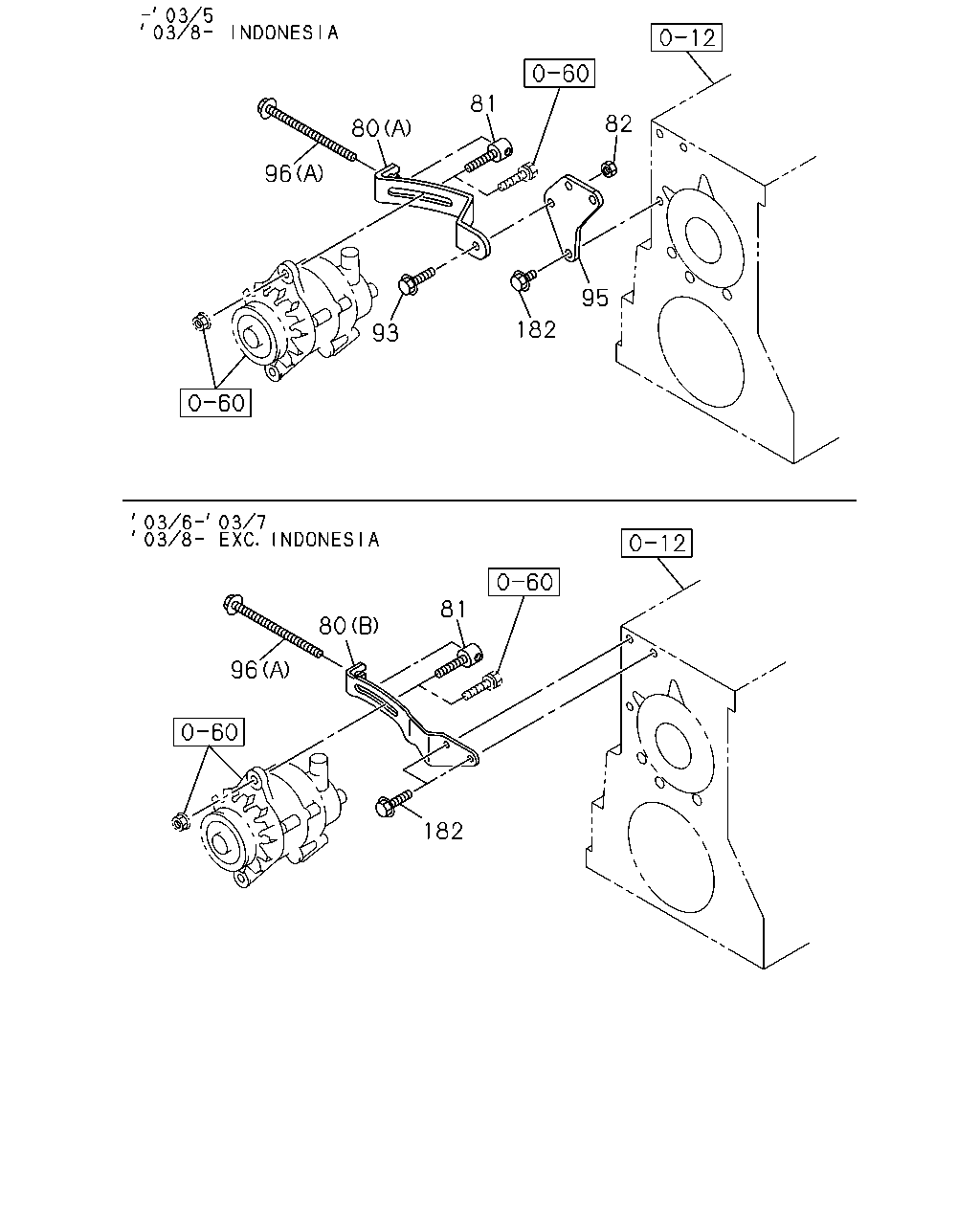

96 80 81 82 95 182 93 96 80 81 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
80	02.317 PLATE; ADJ GENERATOR 24V80A(7YN) (B)	8-97249-636-0	01	1	1405-				●
80	02.317 PLATE; ADJ (A) IDN	8-97172-415-0	01	1	0211-0305	●		●
80	02.317 PLATE; ADJ (B)	8-97164-089-2	01	1	0306-0307	●		●
80	02.317 PLATE; ADJ EXC. INDONESIA EQUIPMENT(S4S) (B)	8-97164-089-2	01	1	0308-0507	●
80	02.317 PLATE; ADJ (A) IDN	8-97172-415-0	01	1	0308-0507			●
80	02.317 PLATE; ADJ INDONESIA EQUIPMENT(S4S) (A) IDN	8-97172-415-0	01	1	0308-0507	●
80	02.317 PLATE; ADJ (A) IDN	8-97172-415-0	01	1	0508-0609		●	●
80	02.317 PLATE; ADJ (A) IDN	8-97172-415-0	01	1	0610-0712		●	●	●
80	02.317 PLATE; ADJ (A) IDN	8-97172-415-0	01	1	0801-		●	●
80	02.317 PLATE; ADJ GLOW SYSTEM DELETE<7RK> (A) IDN	8-97172-415-0	01	1	0801-				●
80	02.317 PLATE; ADJ (C) IDN	8-97080-556-2	01	1	0610-					●
80	02.317 PLATE; ADJ FAST GLOW SYSTEM<KM6> (B)	8-97164-089-2	01	1	1004-				●
81	02.317 PIECE; SLIDING AIR CONDITIONER MANUAL CONT(C60)	8-97257-223-0	01	1	0211-0507	●
81	02.317 PIECE; SLIDING AIR CONDITIONER MANUAL CONT(C60)	8-97257-223-0	01	1	0508-0609		●	●
81	02.317 PIECE; SLIDING AIR CONDITIONER MANUAL CONT(C60)	8-97257-223-0	01	1	0610-		●	●	●
82	02.317 NUT; ADJ PLATE GLOW SYSTEM DELETE<7RK>	8-97695-684-0	01	1	1506-				●
93	02.317 BOLT; ADJ PLATE BRKT 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0211-0305	●		●
93	02.317 BOLT; ADJ PLATE BRKT 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0308-0507			●
93	02.317 BOLT; ADJ PLATE BRKT INDONESIA EQUIPMENT(S4S) 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0308-0507	●
93	02.317 BOLT; ADJ PLATE BRKT 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0508-0512		●	●
93	02.317 BOLT; ADJ PLATE BRKT 00.029 M10X25 FLANGE IDN	0-28651-025-0	01	1	0601-0609		●	●
93	02.317 BOLT; ADJ PLATE BRKT 00.029 M10X25 FLANGE IDN	0-28651-025-0	01	1	0610-0712		●	●	●
93	02.317 BOLT; ADJ PLATE BRKT 00.029 M10X25 FLANGE IDN	0-28651-025-0	01	1	0801-		●	●
93	02.317 BOLT; ADJ PLATE BRKT GLOW SYSTEM DELETE<7RK> 00.029 M10X25 FLANGE IDN	0-28651-025-0	01	1	0801-				●
95	02.317 BRACKET; ADJ PLATE GLOW SYSTEM DELETE<7RK>	8-97520-907-0	01	1	1506-				●
95	02.317 BRACKET; ADJ PLATE	8-97037-510-0	01	1	0211-0305	●		●
95	02.317 BRACKET; ADJ PLATE	8-97037-510-0	01	1	0308-0507			●
95	02.317 BRACKET; ADJ PLATE INDONESIA EQUIPMENT(S4S)	8-97037-510-0	01	1	0308-0507	●
95	02.317 BRACKET; ADJ PLATE	8-97037-510-0	01	1	0508-0609		●	●
95	02.317 BRACKET; ADJ PLATE	8-97037-510-0	01	1	0610-0712		●	●	●
95	02.317 BRACKET; ADJ PLATE	8-97037-510-0	01	1	0801-1505		●	●
95	02.317 BRACKET; ADJ PLATE GLOW SYSTEM DELETE<7RK>	8-97037-510-0	01	1	0801-1505				●
95	02.317 BRACKET; ADJ PLATE	8-97037-510-0	01	1	1506-		●	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) (A) M8X130 FLANGE	8-97172-720-1	01	1	0211-0507	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) (A) M8X130 FLANGE	8-97172-720-1	01	1	0508-0609		●	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) (A) M8X130 FLANGE	8-97172-720-1	01	1	0610-		●	●	●
96	02.317 BOLT; ADJ PLATE 09.173 (C) M8X45 FLANGE	0-28050-845-0	01	1	0610-					●
96	02.317 BOLT; ADJ PLATE 09.008 (B) M8X25 W/LK WASHER	0-50540-825-0	01	1	0610-					●
182	01.062 BOLT; BRKT 02.183 M8X35 FLANGE	0-28680-835-0	03	1	0211-0305	●		●
182	01.062 BOLT; BRKT 02.183 M8X35 FLANGE	0-28680-835-0	02	1	0306-0307	●		●
182	01.062 BOLT; BRKT EXC. INDONESIA EQUIPMENT(S4S) 02.183 M8X35 FLANGE	0-28680-835-0	02	1	0308-0507	●
182	01.062 BOLT; BRKT 02.183 M8X35 FLANGE	0-28680-835-0	03	1	0308-0507			●
182	01.062 BOLT; BRKT INDONESIA EQUIPMENT(S4S) 02.183 M8X35 FLANGE	0-28680-835-0	03	1	0308-0507	●
182	01.062 BOLT; BRKT 02.183 M8X35 FLANGE	0-28680-835-0	03	1	0508-0512		●	●
182	01.062 BOLT; BRKT 01.060 M8X35 FLANGE	0-28650-835-0	03	1	0601-0609		●	●
182	01.062 BOLT; BRKT 01.060 M8X35 FLANGE	0-28650-835-0	03	1	0610-0712		●	●	●
182	01.062 BOLT; BRKT 01.060 M8X35 FLANGE	0-28650-835-0	03	1	0801-		●	●
182	01.062 BOLT; BRKT GLOW SYSTEM DELETE<7RK> 01.060 M8X35 FLANGE	0-28650-835-0	03	1	0801-				●
182	01.062 BOLT; BRKT FAST GLOW SYSTEM<KM6> 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1004-				●

80 88 96 96 109 36 1 13 8 26 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.064 FAN; COOLING	8-97129-772-1	01	1	0211-0507	●
1	01.064 FAN; COOLING	8-97129-772-1	01	1	0508-		●
1	01.064 FAN; COOLING OD=430	8-97141-195-2	01	1	0211-0609			●
1	01.064 FAN; COOLING OD=430	8-97141-195-2	01	1	0610-			●	●
1	01.064 FAN; COOLING OD=410	8-97129-769-2	01	1	0610-					●
8	01.064 CLUTCH; COOLING FAN	8-97129-738-0	01	1	0211-0507	●
8	01.064 CLUTCH; COOLING FAN	8-97129-738-0	01	1	0508-		●
8	01.064 CLUTCH; COOLING FAN	8-97139-299-0	01	1	0211-0609			●
8	01.064 CLUTCH; COOLING FAN	8-97139-299-0	01	1	0610-			●	●
8	01.064 CLUTCH; COOLING FAN	8-97129-735-0	01	1	0610-					●
13	01.062 NUT; COOLING FAN 07.633 M8 FLANGE	0-91150-108-0	04	1	0211-0507	●		●
13	01.062 NUT; COOLING FAN 07.633 M8 FLANGE	0-91150-108-0	04	1	0508-0602		●	●
13	01.062 NUT; COOLING FAN M8 FLANGE IDN	0-91180-108-0	04	1	0603-0609		●	●
13	01.062 NUT; COOLING FAN M8 FLANGE IDN	0-91180-108-0	04	1	0610-		●	●	●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE IDN	5-09440-004-0	04	1	0610-					●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	0211-0507	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	0508-0609		●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	0610-		●			●
26	01.062 BOLT; FAN TO CLU 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0211-0609			●
26	01.062 BOLT; FAN TO CLU 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0610-			●	●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810) IDN	8-97180-199-1	01	1	0211-0507	●		●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810) IDN	8-97180-199-1	01	1	0508-0609		●	●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810) IDN	8-97180-199-1	01	1	0610-		●	●	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97315-153-0	01	1	0610-					●
36	01.066 BELT; COOLING FAN BEST VALUE PARTS IDN	5-87610-098-0	01	1	0211-0507	●		●
36	01.066 BELT; COOLING FAN BEST VALUE PARTS IDN	5-87610-098-0	01	1	0508-0609		●	●
36	01.066 BELT; COOLING FAN BEST VALUE PARTS IDN	5-87610-098-0	01	1	0610-		●	●	●
80	02.317 PLATE; ADJ GENERATOR 24V80A(7YN) (B)	8-97249-636-0	01	1	1405-				●
80	02.317 PLATE; ADJ (A) IDN	8-97172-415-0	01	1	0211-0305	●		●
80	02.317 PLATE; ADJ (B)	8-97164-089-2	01	1	0306-0307	●		●
80	02.317 PLATE; ADJ EXC. INDONESIA EQUIPMENT(S4S) (B)	8-97164-089-2	01	1	0308-0507	●
80	02.317 PLATE; ADJ (A) IDN	8-97172-415-0	01	1	0308-0507			●
80	02.317 PLATE; ADJ INDONESIA EQUIPMENT(S4S) (A) IDN	8-97172-415-0	01	1	0308-0507	●
80	02.317 PLATE; ADJ (A) IDN	8-97172-415-0	01	1	0508-0609		●	●
80	02.317 PLATE; ADJ (A) IDN	8-97172-415-0	01	1	0610-0712		●	●	●
80	02.317 PLATE; ADJ (A) IDN	8-97172-415-0	01	1	0801-		●	●
80	02.317 PLATE; ADJ GLOW SYSTEM DELETE<7RK> (A) IDN	8-97172-415-0	01	1	0801-				●
80	02.317 PLATE; ADJ (C) IDN	8-97080-556-2	01	1	0610-					●
80	02.317 PLATE; ADJ FAST GLOW SYSTEM<KM6> (B)	8-97164-089-2	01	1	1004-				●
88	02.317 WASHER; PL,ADJ PLATE 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	01	1	0610-					●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) (A) M8X130 FLANGE	8-97172-720-1	01	1	0211-0507	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) (A) M8X130 FLANGE	8-97172-720-1	01	1	0508-0609		●	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) (A) M8X130 FLANGE	8-97172-720-1	01	1	0610-		●	●	●
96	02.317 BOLT; ADJ PLATE 09.173 (C) M8X45 FLANGE	0-28050-845-0	01	1	0610-					●
96	02.317 BOLT; ADJ PLATE 09.008 (B) M8X25 W/LK WASHER	0-50540-825-0	01	1	0610-					●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	0211-0507	●		●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	0508-0609		●	●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	0610-		●	●	●
109	01.062 STUD; FAN CLU M6X18 L=27	0-41010-618-0	04	1	0610-					●
230	01.055 FAN; COOLING	8-97078-662-1	01	1	0211-0507	●
230	01.055 FAN; COOLING	8-97078-662-1	01	1	0508-		●
230	01.055 FAN; COOLING	8-97140-854-1	01	1	0211-0609			●
230	01.055 FAN; COOLING	8-97140-854-1	01	1	0610-			●	●
230	01.055 FAN; COOLING 01.064	8-97094-660-1	01	1	0610-					●
