0-31 — THERMOSTAT AND HOUSING (#78889) — 96 parça

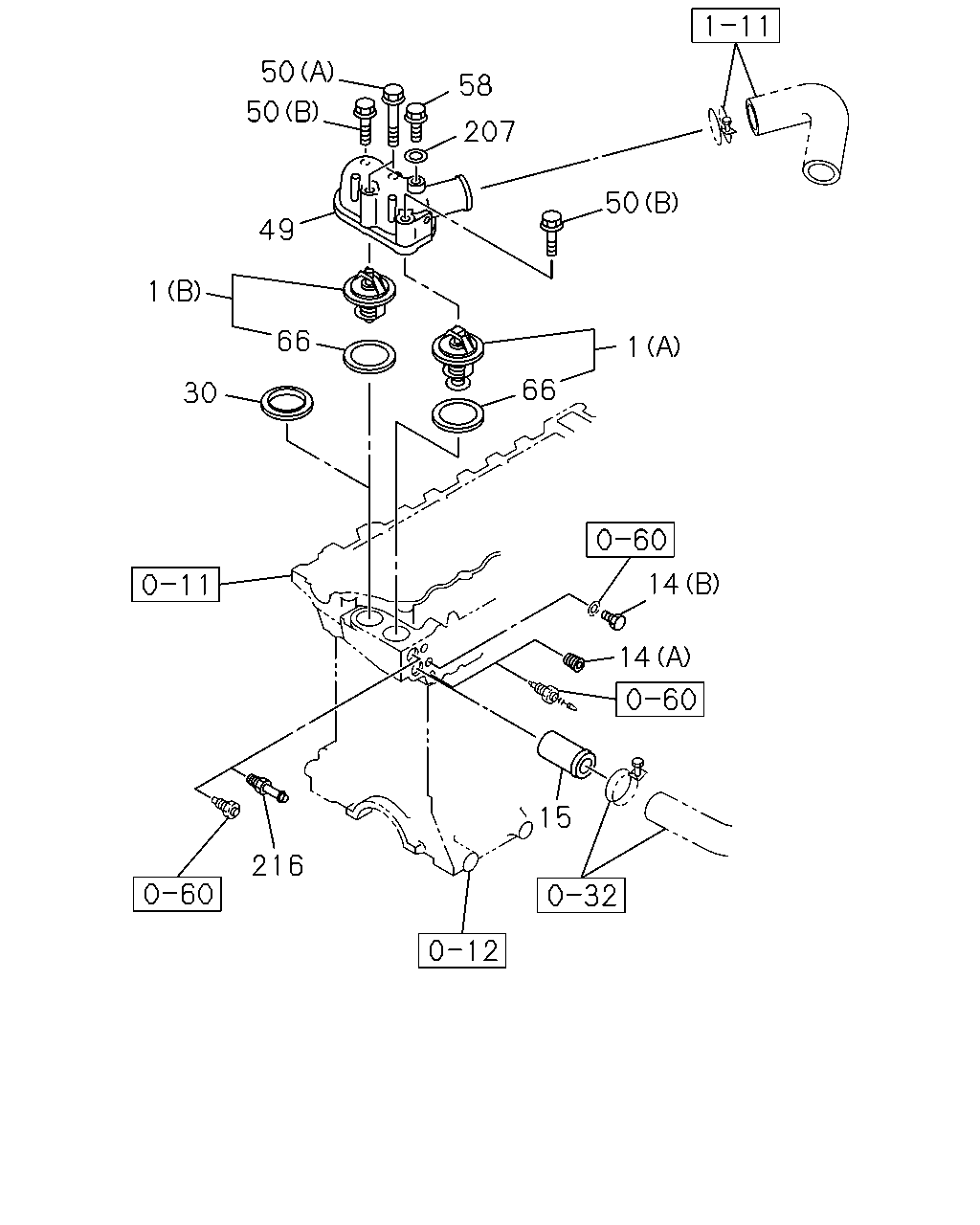

çizim 41829
50 207 58 50 50 49 1 66 66 1 30 14 14 15 216
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-789-2 01 1 0211-0507 ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-789-2 01 1 0508-0609 ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-789-3 01 1 0610- ● ● ●
1 01.246 THERMOSTAT
(B) 85 CELSIUS 		8-97300-792-1 01 1 0211-0310 ● ●
1 01.246 THERMOSTAT
EXC. INDONESIA EQUIPMENT(S4S) (B) 85 CELSIUS 		8-97300-792-1 01 1 0311-0507 ●
1 01.246 THERMOSTAT
(C) 82 CELSIUS 		8-97254-816-1 01 1 0610- ●
1 01.246 THERMOSTAT
FAST GLOW SYSTEM<KM6> (B) 85 CELSIUS 		8-97300-792-2 01 1 1004- ●
14 01.252 PLUG; SW
01.073 (A) PT3/8 		5-09605-005-0 01 1 0610- ●
14 01.252 PLUG; SW
04.520 (B) M16X8 PLUG 		9-09661-005-0 01 1 0610- ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 0211-0507 ● ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 0508-0609 ● ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 0610- ● ● ●
30 01.153 SPACER
01.246 		8-97373-039-0 01 1 0311-0507 ●
30 01.153 SPACER
INDONESIA EQUIPMENT(S4S) 01.246 		8-97373-039-0 01 1 0311-0507 ●
30 01.153 SPACER
01.246 		8-97373-039-0 01 1 0508-0609 ● ●
30 01.153 SPACER
01.246 		8-97373-039-0 01 1 0610-0712 ● ● ●
30 01.153 SPACER
01.246 		8-97373-039-1 01 1 0801- ● ●
30 01.153 SPACER
GLOW SYSTEM DELETE<7RK> 01.246 		8-97373-039-1 01 1 0801- ●
49 01.153 PIPE; WATER OUTLET 8-98210-658-0 01 1 1212- ● ●
49 01.153 PIPE; WATER OUTLET
GLOW SYSTEM DELETE<7RK> 		8-98210-658-0 01 1 1212- ●
49 01.153 PIPE; WATER OUTLET 8-97200-620-0 01 1 0211-0407 ● ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-0 01 1 0408-0507 ● ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-0 01 1 0508-0609 ● ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-0 01 1 0610-1211 ● ● ●
49 01.153 PIPE; WATER OUTLET
FAST GLOW SYSTEM<KM6> 		8-97372-769-1 01 1 1212- ●
49 01.153 PIPE; WATER OUTLET 8-97204-199-0 01 1 0610- ●
50 01.252 BOLT; OUTLET PIPE
02.559 (B) M8X25 FLANGE IDN 		0-28680-825-0 02 1 0211-0507 ● ●
50 01.252 BOLT; OUTLET PIPE
02.559 (B) M8X25 FLANGE IDN 		0-28680-825-0 02 1 0508-0512 ● ●
50 01.252 BOLT; OUTLET PIPE
06.216 (B) M8X25 FLANGE IDN 		0-28650-825-0 02 1 0601-0609 ● ●
50 01.252 BOLT; OUTLET PIPE
06.216 (B) M8X25 FLANGE IDN 		0-28650-825-0 02 1 0610- ● ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (A) M8X65 FLANGE 		1-09044-072-1 02 1 0211-0507 ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (A) M8X65 FLANGE 		1-09044-072-1 02 1 0508-0609 ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (A) M8X65 FLANGE 		1-09044-072-1 02 1 0610- ● ● ●
50 01.252 BOLT; OUTLET PIPE
(C) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0610- ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 0211-0507 ● ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 0508-0609 ● ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 0610- ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0211-0310 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) EXHAUST BRAKE<NF8> ID=49.5 OD=56.5 		8-97300-793-0 01 1 0311-0507 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) EXHAUST BRAKE<NF8> POWER STEERING<N40> ID=49.5 OD=56.5 		8-97300-793-0 01 1 0311-0507 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-97300-793-0 01 1 0508-0609 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-97300-793-0 01 1 0610-1003 ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1004-1404 ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1004-1404 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1405-1501 ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1405-1501 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97216-156-0 01 1 0610-0905 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97212-537-1 01 1 0906- ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0211-0507 ● ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0508-0609 ● ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0610- ● ● ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET 8-97358-699-0 01 1 0610- ●
çizim 190699
50 54 49 64 1 66 2 26 26 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-789-2 01 1 0211-0507 ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-789-2 01 1 0508-0609 ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-789-3 01 1 0610- ● ● ●
1 01.246 THERMOSTAT
(B) 85 CELSIUS 		8-97300-792-1 01 1 0211-0310 ● ●
1 01.246 THERMOSTAT
EXC. INDONESIA EQUIPMENT(S4S) (B) 85 CELSIUS 		8-97300-792-1 01 1 0311-0507 ●
1 01.246 THERMOSTAT
(C) 82 CELSIUS 		8-97254-816-1 01 1 0610- ●
1 01.246 THERMOSTAT
FAST GLOW SYSTEM<KM6> (B) 85 CELSIUS 		8-97300-792-2 01 1 1004- ●
2 01.251 HOUSING; THERMOSTAT 8-97139-604-3 01 1 0610- ●
26 01.251 CUP; SEALING,VLV,VENTILATION
00.253 (B) OD=18 		5-11219-008-0 01 1 0610- ●
26 01.251 CUP; SEALING,VLV,VENTILATION
(A) OD=18 		9-11129-082-0 02 1 0610-0802 ●
44 01.252 BOLT; HSG TO HD
09.171 M8X30 W/LK WASHER 		0-50540-830-0 05 1 0610- ●
49 01.153 PIPE; WATER OUTLET 8-98210-658-0 01 1 1212- ● ●
49 01.153 PIPE; WATER OUTLET
GLOW SYSTEM DELETE<7RK> 		8-98210-658-0 01 1 1212- ●
49 01.153 PIPE; WATER OUTLET 8-97200-620-0 01 1 0211-0407 ● ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-0 01 1 0408-0507 ● ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-0 01 1 0508-0609 ● ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-0 01 1 0610-1211 ● ● ●
49 01.153 PIPE; WATER OUTLET
FAST GLOW SYSTEM<KM6> 		8-97372-769-1 01 1 1212- ●
49 01.153 PIPE; WATER OUTLET 8-97204-199-0 01 1 0610- ●
50 01.252 BOLT; OUTLET PIPE
02.559 (B) M8X25 FLANGE IDN 		0-28680-825-0 02 1 0211-0507 ● ●
50 01.252 BOLT; OUTLET PIPE
02.559 (B) M8X25 FLANGE IDN 		0-28680-825-0 02 1 0508-0512 ● ●
50 01.252 BOLT; OUTLET PIPE
06.216 (B) M8X25 FLANGE IDN 		0-28650-825-0 02 1 0601-0609 ● ●
50 01.252 BOLT; OUTLET PIPE
06.216 (B) M8X25 FLANGE IDN 		0-28650-825-0 02 1 0610- ● ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (A) M8X65 FLANGE 		1-09044-072-1 02 1 0211-0507 ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (A) M8X65 FLANGE 		1-09044-072-1 02 1 0508-0609 ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (A) M8X65 FLANGE 		1-09044-072-1 02 1 0610- ● ● ●
50 01.252 BOLT; OUTLET PIPE
(C) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0610- ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=13 H=50 L=27 		8-94130-076-0 01 1 0610- ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 01.252 		8-94365-674-2 01 1 0610- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0211-0310 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) EXHAUST BRAKE<NF8> ID=49.5 OD=56.5 		8-97300-793-0 01 1 0311-0507 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) EXHAUST BRAKE<NF8> POWER STEERING<N40> ID=49.5 OD=56.5 		8-97300-793-0 01 1 0311-0507 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-97300-793-0 01 1 0508-0609 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-97300-793-0 01 1 0610-1003 ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1004-1404 ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1004-1404 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1405-1501 ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1405-1501 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97216-156-0 01 1 0610-0905 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97212-537-1 01 1 0906- ●
