Isuzu WW
▶
TRUCKS
▶
NKR
▶
51280 - NKR INDONESIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

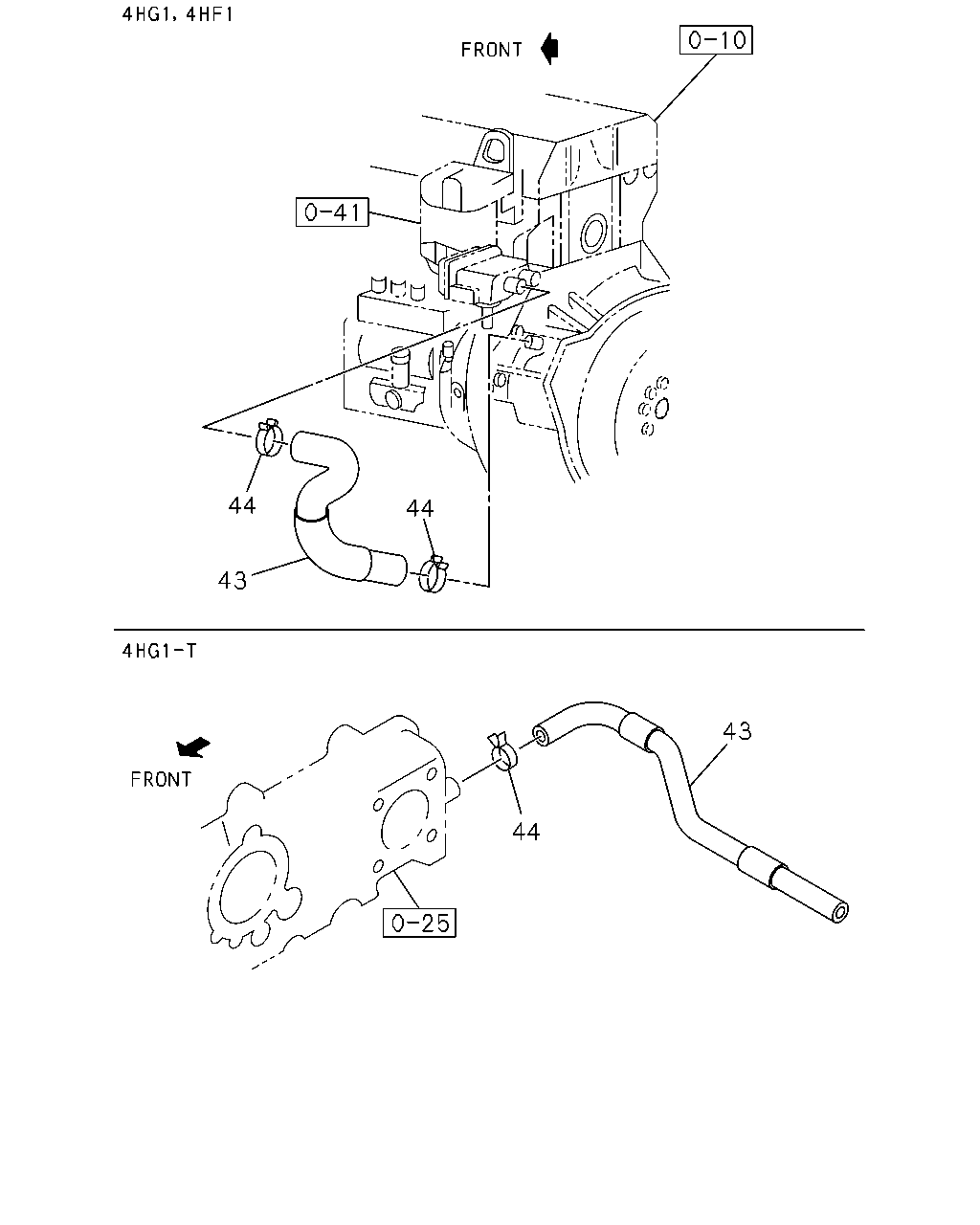

0-28 — VENTILATION SYSTEM
(#78887) — 14 parça
Tümü
A - 4JB1-TC ENG
B - 4HG1-T ENG
C - 4HG1 ENG
D - 4HF1-S ENG
E - 4HF1-N ENG
◀
[028A] 4JB1 (5 parça)
[028A] 4HG1,4HF1 (9 parça)
▶
13
12
97
51
50
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
12
01.745 VENTILATOR; AIR
03.415
8-97119-887-0
01
1
0610-
●
13
00.386 SCREW; VENTILATOR TO HD COVER
00.662 M4X8 W/LK WASHER
0-36220-408-0
04
1
0610-
●
50
03.265 HOSE; PCV
8-97212-347-1
01
1
0610-
●
51
03.265 CLIP; PCV HOSE
ID=20.4
8-94121-113-0
02
1
0610-
●
97
01.750 BRACKET; HOSE
8-97212-350-0
01
1
0610-
●
44
44
43
43
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
43
03.278 HOSE; PCV
GLOW SYSTEM DELETE<7RK>
8-98209-762-0
01
1
1212-
●
43
03.278 HOSE; PCV
8-97139-586-3
01
1
0211-0312
●
●
43
03.278 HOSE; PCV
8-97375-924-0
01
1
0401-0507
●
●
43
03.278 HOSE; PCV
8-97375-924-0
01
1
0508-
●
●
43
03.278 HOSE; PCV
8-97375-134-0
01
1
0610-1211
●
43
03.278 HOSE; PCV
FAST GLOW SYSTEM<KM6>
8-97375-134-0
01
1
1212-
●
44
03.278 CLIP; HOSE,PCV
01.252 ID=22.7
8-94466-382-0
02
1
0211-0507
●
●
44
03.278 CLIP; HOSE,PCV
01.252 ID=22.7
8-94466-382-0
02
1
0508-
●
●
44
03.278 CLIP; HOSE,PCV
01.252 ID=22.7
8-94466-382-0
01
1
0610-
●
