0-27 — EXHAUST MANIFOLD (#78886) — 60 parça

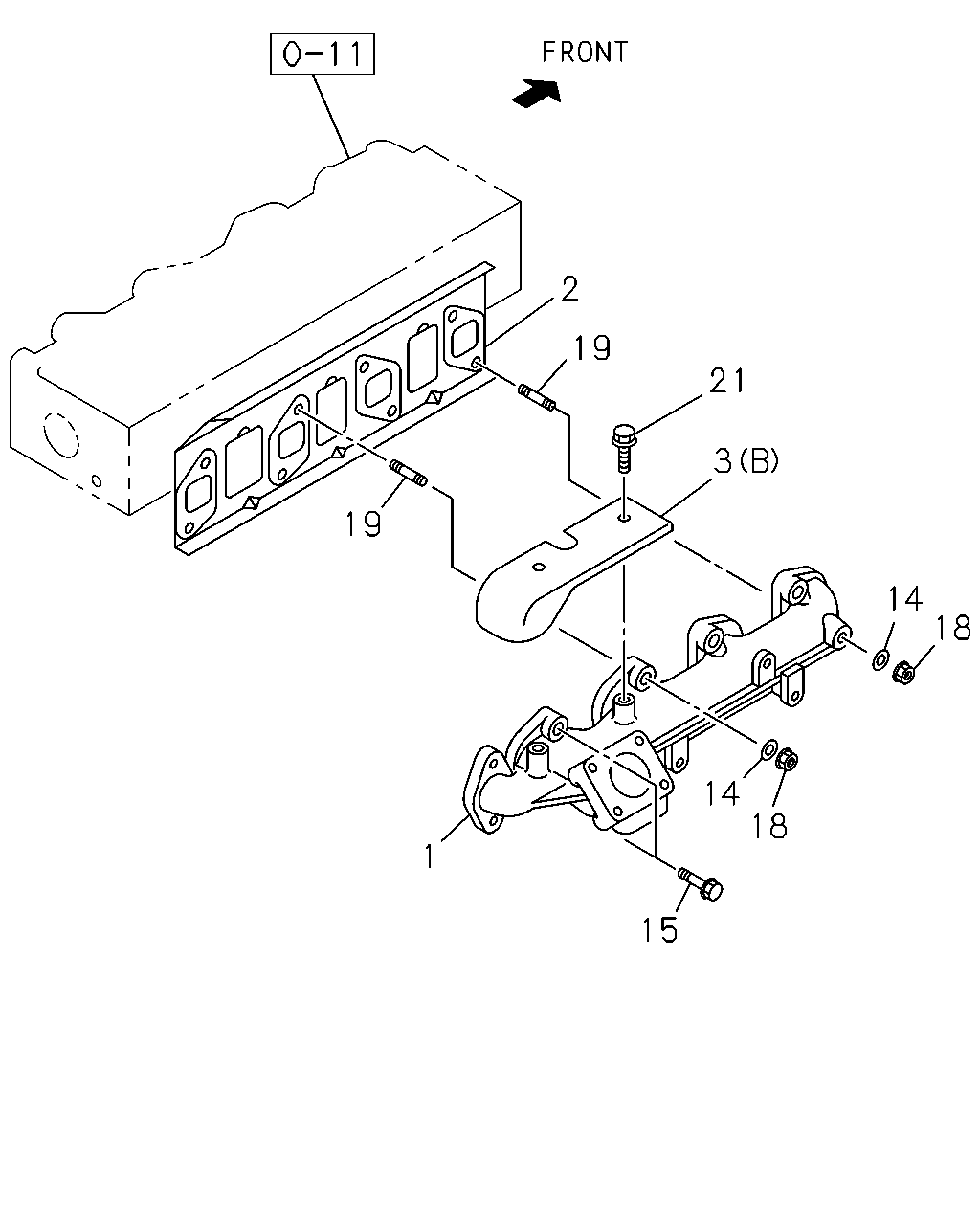

2 19 21 3 19 14 18 14 18 1 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.601 MANIFOLD; EXHAUST	8-97163-079-0	01	1	0211-0507	●	●
1	03.601 MANIFOLD; EXHAUST	8-97163-079-1	01	1	0508-	●		●
1	03.601 MANIFOLD; EXHAUST	8-97217-908-0	01	1	0610-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98210-152-0	01	1	1212-	●		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) GLOW SYSTEM DELETE<7RK>	8-98210-152-0	01	1	1212-					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	0211-0507	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	0508-0609	●		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-2	01	1	0610-1211	●		●		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) FAST GLOW SYSTEM<KM6>	8-97146-499-2	01	1	1212-					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97350-317-2	01	1	0610-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97096-424-1	01	1	0211-0507	●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97096-424-1	01	1	0508-	●		●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97214-580-0	01	1	0610-				●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0610-				●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0211-0507	●	●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0508-0609	●		●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0610-	●		●		●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0610-				●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0211-0507	●	●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0508-0512	●		●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	0601-0609	●		●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	0610-	●		●		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE IDN	0-91180-208-0	02	1	0610-				●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97378-065-0	02	1	0610-				●
21	03.604 BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	08	1	0211-0507	●	●
21	03.604 BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	08	1	0508-	●		●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0610-				●

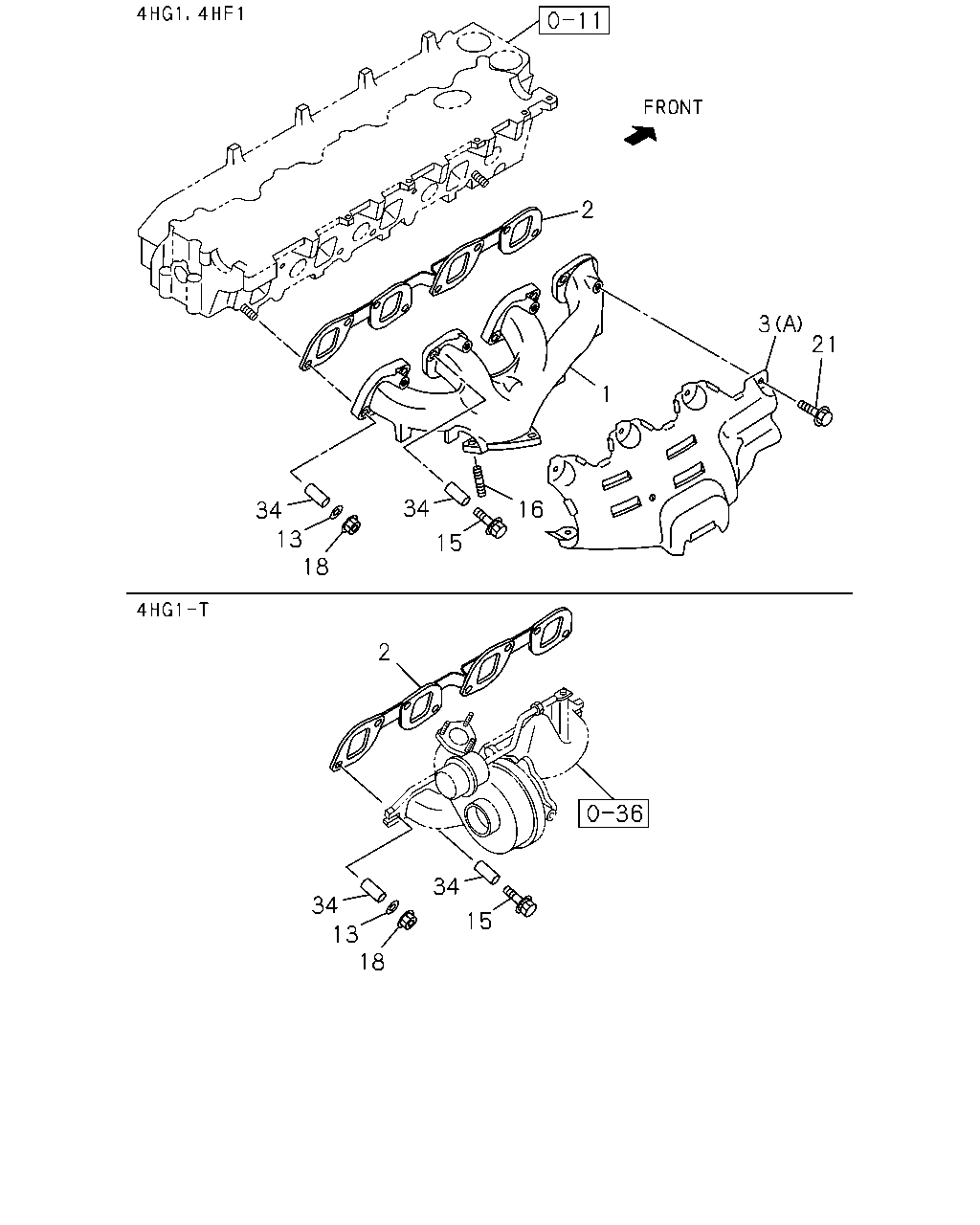

2 3 21 1 34 16 34 13 18 15 2 34 34 15 13 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.601 MANIFOLD; EXHAUST	8-97163-079-0	01	1	0211-0507	●	●
1	03.601 MANIFOLD; EXHAUST	8-97163-079-1	01	1	0508-	●		●
1	03.601 MANIFOLD; EXHAUST	8-97217-908-0	01	1	0610-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98210-152-0	01	1	1212-	●		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) GLOW SYSTEM DELETE<7RK>	8-98210-152-0	01	1	1212-					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	0211-0507	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	0508-0609	●		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-2	01	1	0610-1211	●		●		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) FAST GLOW SYSTEM<KM6>	8-97146-499-2	01	1	1212-					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97350-317-2	01	1	0610-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97096-424-1	01	1	0211-0507	●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97096-424-1	01	1	0508-	●		●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97214-580-0	01	1	0610-				●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0211-0507	●	●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0508-0609	●		●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0610-	●		●		●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0211-0507	●	●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0508-0609	●		●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0610-	●		●		●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0610-				●
16	03.604 STUD; EXH PIPE TO MANIF M10X38 L=53	8-97077-549-0	03	1	0211-0507	●	●
16	03.604 STUD; EXH PIPE TO MANIF M10X38 L=53	8-97077-549-0	03	1	0508-	●		●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0211-0507	●	●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0508-0512	●		●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	0601-0609	●		●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	0610-	●		●		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE IDN	0-91180-208-0	02	1	0610-				●
21	03.604 BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	08	1	0211-0507	●	●
21	03.604 BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	08	1	0508-	●		●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0610-				●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0211-0507	●	●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0508-0609	●		●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0610-	●		●		●
