Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#78885) — 349 parça

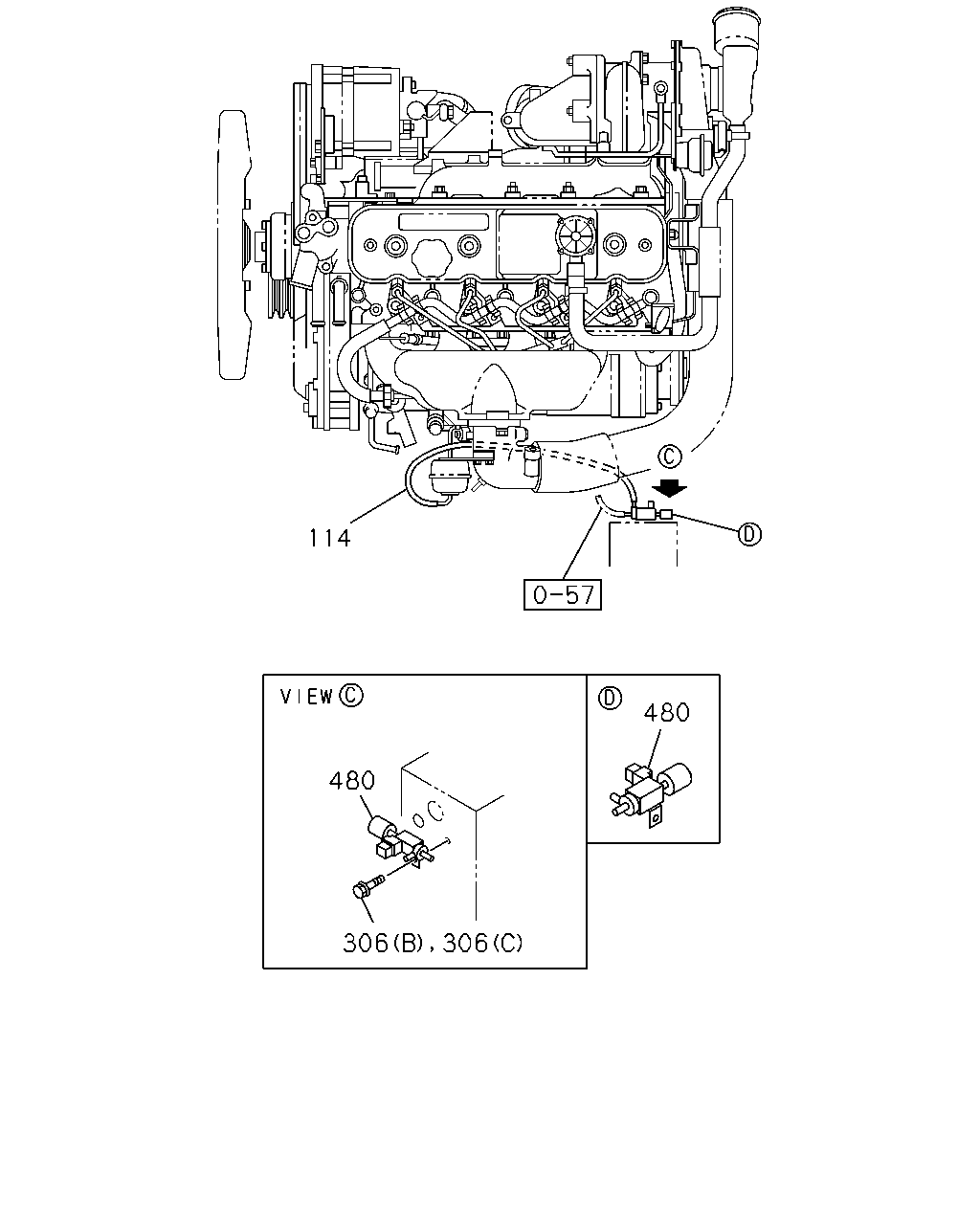

114 480 480 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
114	03.265 HOSE; VAC,INT THROTTLE L=403	8-97228-401-0	01	1	0610-	●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	0211-0507		●	●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	0508-0512		●		●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	0601-0609		●		●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	0610-		●		●	●
306	03.265 BOLT; VLV (D) M8X85 L=101	8-97118-454-0	01	1	0610-0701					●
306	03.265 BOLT; VLV (D) M8X85 L=101	8-98048-394-0	01	1	0702-					●
306	03.265 BOLT; VLV 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0610-	●
306	03.265 BOLT; VLV 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	0610-	●
480	03.314 VALVE ASM; VAC SW 03.670	8-94144-597-1	01	1	0610-	●

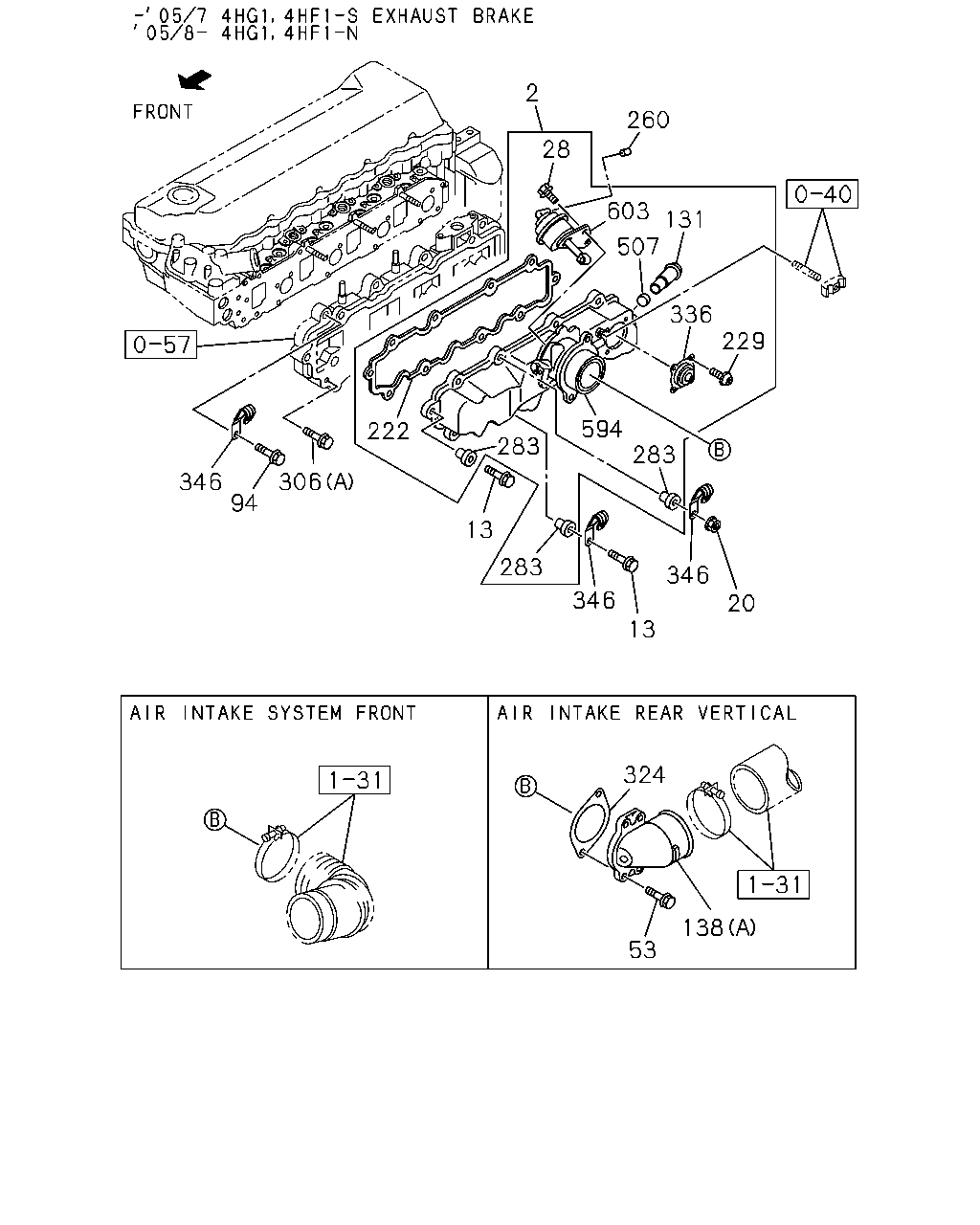

2 260 28 603 131 507 336 229 594 283 222 283 306 346 94 13 283 346 346 20 13 324 138 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8>	8-97222-239-0	01	1	0211-0507		●
2	03.407 COVER; INL EXHAUST BRAKE<NF8>	8-97146-866-2	01	1	0211-0507		●	●
2	03.407 COVER; INL	8-97146-866-2	01	1	0508-1310		●		●
2	03.407 COVER; INL	8-98245-383-0	01	1	1311-1404		●		●
2	03.407 COVER; INL	8-98245-383-0	01	1	1405-1409		●		●	●
2	03.407 COVER; INL	8-97212-454-3	01	1	1410-					●
2	03.407 COVER; INL	8-97212-454-2	01	1	0610-1404					●
2	03.407 COVER; INL EXC. VIN MODEL YEAR 2014(VZE)	8-97212-454-2	01	1	1405-1405					●
2	03.407 COVER; INL EXC. VIN MODEL YEAR 2015(VZF)	8-97212-454-2	01	1	1406-1409					●
2	03.407 COVER; INL	8-98245-383-0	01	1	1410-		●		●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	0211-0507		●	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	0508-0512		●		●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	08	1	0601-		●		●
13	03.275 BOLT; INL MANIF M8X52 L=68	8-97118-455-0	01	1	0610-0701					●
13	03.275 BOLT; INL MANIF M8X52 L=68	8-98048-395-0	01	1	0702-					●
13	03.275 BOLT; INL MANIF 09.008 M8X25 W/LK WASHER	0-50540-825-0	05	1	0610-	●
13	03.275 BOLT; INL MANIF 09.171 M8X30 W/LK WASHER	0-50540-830-0	01	1	0610-	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	07	1	0610-					●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0507		●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0508-0602		●		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0603-0609		●		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-		●		●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0610-0805	●
20	03.275 NUT; INL MANIF 04.634 M8 FLANGE	8-97581-233-0	02	1	0806-	●
28	03.278 BOLT; CHAMBER EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0507		●	●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0508-0512		●		●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-0609		●		●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0610-		●		●	●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015(VZF) 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	1406-					●
53	03.602 BOLT; INL PIPE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0211-0507		●	●
53	03.602 BOLT; INL PIPE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0508-0512		●		●
53	03.602 BOLT; INL PIPE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0601-0609		●		●
53	03.602 BOLT; INL PIPE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0610-		●		●	●
53	03.602 BOLT; INL PIPE 02.042 M10X25 FLANGE	0-28151-025-0	02	1	0610-	●
53	03.602 BOLT; INL PIPE 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0610-1405					●
53	03.602 BOLT; INL PIPE EXC. VIN MODEL YEAR 2015(VZF) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1406-					●
53	03.602 BOLT; INL PIPE 00.029 M10X25 FLANGE IDN	0-28651-025-0	02	1	0610-1405					●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015(VZF) 00.029 M10X25 FLANGE IDN	0-28651-025-0	02	1	1406-					●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0211-0507		●	●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0508-0512		●		●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-		●		●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	01	1	0610-					●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	0211-0507		●	●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	0508-1404		●		●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	1405-1409		●		●	●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	1410-		●		●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	0211-0507		●	●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	0508-0609		●		●
138	03.265 PIPE; INL (A)	8-97180-566-2	01	1	0610-		●		●	●
138	03.265 PIPE; INL (B)	8-97178-748-3	01	1	0610-1404					●
138	03.265 PIPE; INL G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (B)	8-97178-748-3	01	1	1405-					●
138	03.265 PIPE; INL EXC. MINI BUS CHASSIS(V4B) (B)	8-97178-748-3	01	1	1405-					●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	0211-0507		●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	0508-0609		●		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	0610-		●		●	●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	0211-0507		●	●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	0508-0604		●		●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	0605-1404		●		●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	1405-1409		●		●	●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	1410-		●		●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0211-0507		●	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0508-1409		●		●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	1410-		●		●	●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	0211-0507		●	●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	0508-1404		●		●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	1405-1409		●		●	●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	1410-		●		●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	0211-0507		●	●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	0508-0512		●		●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	0601-0609		●		●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	0610-		●		●	●
306	03.265 BOLT; VLV (D) M8X85 L=101	8-97118-454-0	01	1	0610-0701					●
306	03.265 BOLT; VLV (D) M8X85 L=101	8-98048-394-0	01	1	0702-					●
306	03.265 BOLT; VLV 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0610-	●
306	03.265 BOLT; VLV 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	0610-	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97180-546-0	01	1	0211-0507		●	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97180-546-1	01	1	0508-0609		●		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97180-546-1	01	1	0610-		●		●	●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	0211-0507		●	●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	0508-1310		●		●
336	03.415 VALVE; VENTILATION	8-98245-399-0	01	1	1311-1404		●		●
336	03.415 VALVE; VENTILATION	8-98245-399-0	01	1	1405-1409		●		●	●
336	03.415 VALVE; VENTILATION	8-98245-399-0	01	1	1410-		●		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5 IDN	5-09700-350-0	03	1	0211-0507		●	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5 IDN	5-09700-350-0	03	1	0508-0609		●		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5 IDN	5-09700-350-0	03	1	0610-0801		●		●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE IDN	8-97367-984-1	03	1	0802-		●		●	●
346	02.559 CLIP; ENG HARNESS ENGINE POWER N-SPEC(7QV) 00.446 ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0211-0507			●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0508-0801				●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE IDN	8-97367-984-1	01	1	0802-				●
507	03.415 ORIFICE	8-97088-649-0	01	1	0211-0507		●	●
507	03.415 ORIFICE	8-97088-649-0	01	1	0508-1404		●		●
507	03.415 ORIFICE	8-97088-649-0	01	1	1405-1409		●		●	●
507	03.415 ORIFICE	8-97088-649-0	01	1	1410-		●		●
594	03.278 CASE EXC. EXHAUST BRAKE<NF8>	8-97222-389-0	01	1	0211-0507		●
594	03.278 CASE EXHAUST BRAKE<NF8>	8-97204-881-0	01	1	0211-0507		●	●
594	03.278 CASE	8-97204-881-0	01	1	0508-		●		●
594	03.278 CASE	8-97212-455-1	01	1	0610-					●
603	03.278 CHAMBER; THROTTLE EXHAUST BRAKE<NF8>	8-97204-780-0	01	1	0211-0507		●	●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0508-0609		●		●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0610-		●		●	●

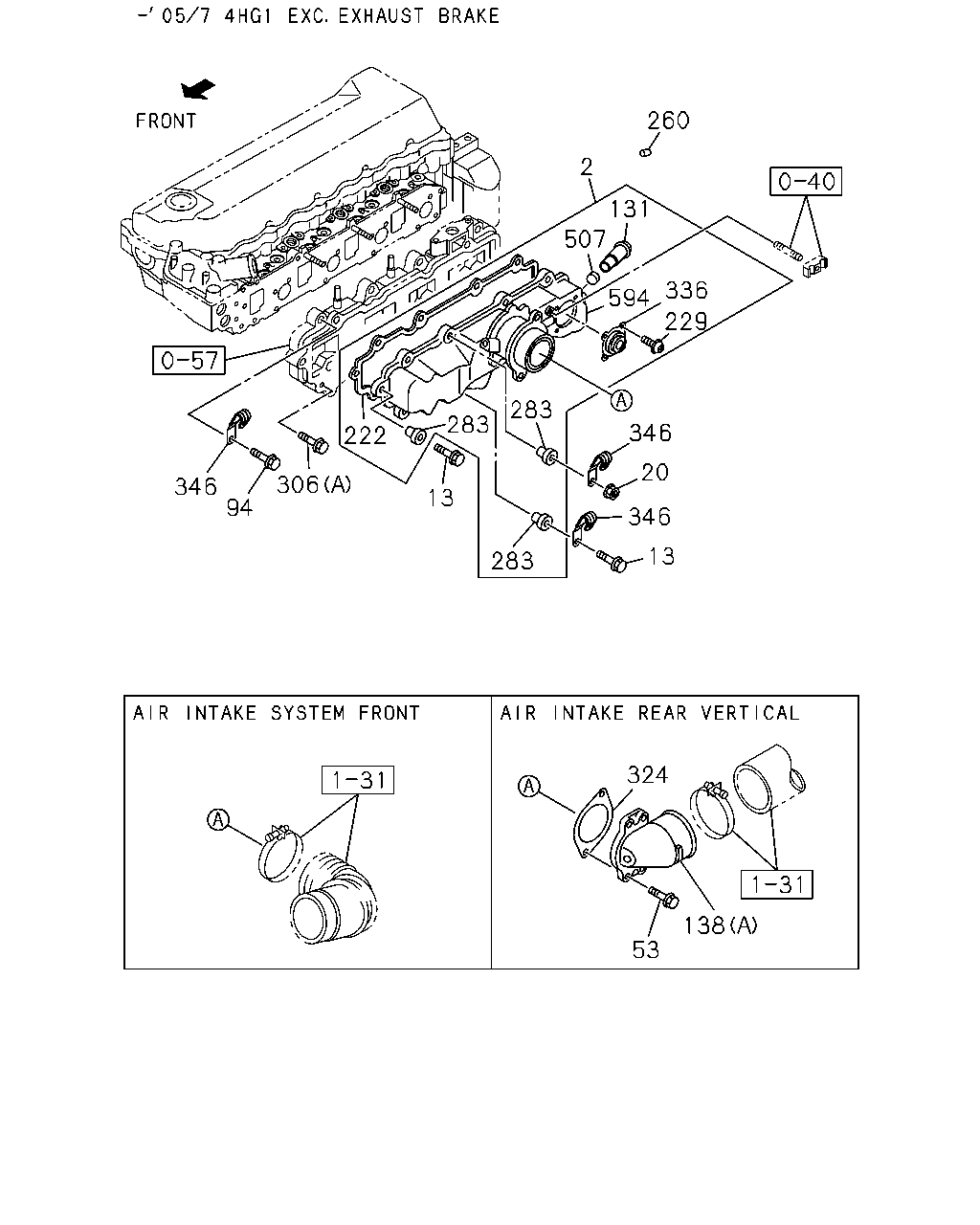

260 2 131 507 336 594 229 283 283 346 222 20 306 346 94 346 13 13 283 324 138 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8>	8-97222-239-0	01	1	0211-0507		●
2	03.407 COVER; INL EXHAUST BRAKE<NF8>	8-97146-866-2	01	1	0211-0507		●	●
2	03.407 COVER; INL	8-97146-866-2	01	1	0508-1310		●		●
2	03.407 COVER; INL	8-98245-383-0	01	1	1311-1404		●		●
2	03.407 COVER; INL	8-98245-383-0	01	1	1405-1409		●		●	●
2	03.407 COVER; INL	8-97212-454-3	01	1	1410-					●
2	03.407 COVER; INL	8-97212-454-2	01	1	0610-1404					●
2	03.407 COVER; INL EXC. VIN MODEL YEAR 2014(VZE)	8-97212-454-2	01	1	1405-1405					●
2	03.407 COVER; INL EXC. VIN MODEL YEAR 2015(VZF)	8-97212-454-2	01	1	1406-1409					●
2	03.407 COVER; INL	8-98245-383-0	01	1	1410-		●		●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	0211-0507		●	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	0508-0512		●		●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	08	1	0601-		●		●
13	03.275 BOLT; INL MANIF M8X52 L=68	8-97118-455-0	01	1	0610-0701					●
13	03.275 BOLT; INL MANIF M8X52 L=68	8-98048-395-0	01	1	0702-					●
13	03.275 BOLT; INL MANIF 09.008 M8X25 W/LK WASHER	0-50540-825-0	05	1	0610-	●
13	03.275 BOLT; INL MANIF 09.171 M8X30 W/LK WASHER	0-50540-830-0	01	1	0610-	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	07	1	0610-					●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0507		●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0508-0602		●		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0603-0609		●		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-		●		●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0610-0805	●
20	03.275 NUT; INL MANIF 04.634 M8 FLANGE	8-97581-233-0	02	1	0806-	●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015(VZF) 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	1406-					●
53	03.602 BOLT; INL PIPE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0211-0507		●	●
53	03.602 BOLT; INL PIPE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0508-0512		●		●
53	03.602 BOLT; INL PIPE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0601-0609		●		●
53	03.602 BOLT; INL PIPE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0610-		●		●	●
53	03.602 BOLT; INL PIPE 02.042 M10X25 FLANGE	0-28151-025-0	02	1	0610-	●
53	03.602 BOLT; INL PIPE 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0610-1405					●
53	03.602 BOLT; INL PIPE EXC. VIN MODEL YEAR 2015(VZF) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1406-					●
53	03.602 BOLT; INL PIPE 00.029 M10X25 FLANGE IDN	0-28651-025-0	02	1	0610-1405					●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015(VZF) 00.029 M10X25 FLANGE IDN	0-28651-025-0	02	1	1406-					●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0211-0507		●	●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0508-0512		●		●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-		●		●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	01	1	0610-					●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	0211-0507		●	●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	0508-1404		●		●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	1405-1409		●		●	●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	1410-		●		●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	0211-0507		●	●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	0508-0609		●		●
138	03.265 PIPE; INL (A)	8-97180-566-2	01	1	0610-		●		●	●
138	03.265 PIPE; INL (B)	8-97178-748-3	01	1	0610-1404					●
138	03.265 PIPE; INL G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (B)	8-97178-748-3	01	1	1405-					●
138	03.265 PIPE; INL EXC. MINI BUS CHASSIS(V4B) (B)	8-97178-748-3	01	1	1405-					●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	0211-0507		●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	0508-0609		●		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	0610-		●		●	●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	0211-0507		●	●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	0508-0604		●		●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	0605-1404		●		●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	1405-1409		●		●	●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	1410-		●		●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0211-0507		●	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0508-1409		●		●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	1410-		●		●	●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	0211-0507		●	●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	0508-1404		●		●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	1405-1409		●		●	●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	1410-		●		●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	0211-0507		●	●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	0508-0512		●		●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	0601-0609		●		●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	0610-		●		●	●
306	03.265 BOLT; VLV (D) M8X85 L=101	8-97118-454-0	01	1	0610-0701					●
306	03.265 BOLT; VLV (D) M8X85 L=101	8-98048-394-0	01	1	0702-					●
306	03.265 BOLT; VLV 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0610-	●
306	03.265 BOLT; VLV 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	0610-	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97180-546-0	01	1	0211-0507		●	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97180-546-1	01	1	0508-0609		●		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97180-546-1	01	1	0610-		●		●	●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	0211-0507		●	●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	0508-1310		●		●
336	03.415 VALVE; VENTILATION	8-98245-399-0	01	1	1311-1404		●		●
336	03.415 VALVE; VENTILATION	8-98245-399-0	01	1	1405-1409		●		●	●
336	03.415 VALVE; VENTILATION	8-98245-399-0	01	1	1410-		●		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5 IDN	5-09700-350-0	03	1	0211-0507		●	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5 IDN	5-09700-350-0	03	1	0508-0609		●		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5 IDN	5-09700-350-0	03	1	0610-0801		●		●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE IDN	8-97367-984-1	03	1	0802-		●		●	●
346	02.559 CLIP; ENG HARNESS ENGINE POWER N-SPEC(7QV) 00.446 ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0211-0507			●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0508-0801				●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE IDN	8-97367-984-1	01	1	0802-				●
507	03.415 ORIFICE	8-97088-649-0	01	1	0211-0507		●	●
507	03.415 ORIFICE	8-97088-649-0	01	1	0508-1404		●		●
507	03.415 ORIFICE	8-97088-649-0	01	1	1405-1409		●		●	●
507	03.415 ORIFICE	8-97088-649-0	01	1	1410-		●		●
594	03.278 CASE EXC. EXHAUST BRAKE<NF8>	8-97222-389-0	01	1	0211-0507		●
594	03.278 CASE EXHAUST BRAKE<NF8>	8-97204-881-0	01	1	0211-0507		●	●
594	03.278 CASE	8-97204-881-0	01	1	0508-		●		●
594	03.278 CASE	8-97212-455-1	01	1	0610-					●

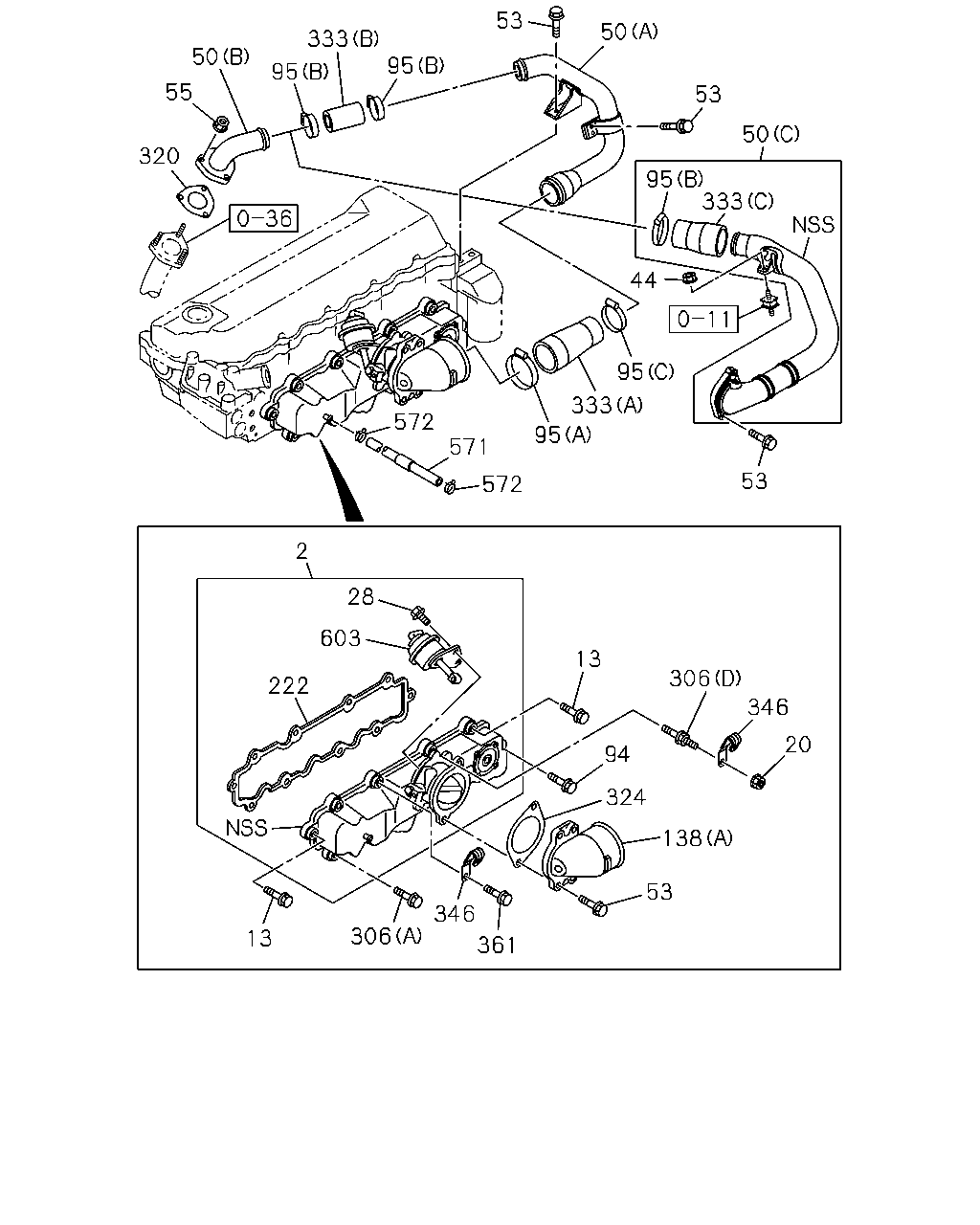

50 55 320 95 333 95 53 50 53 50 333 95 95 44 53 333 95 571 572 572 2 603 222 13 306 361 346 53 20 138 324 94 13 306 346 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8>	8-97222-239-0	01	1	0211-0507		●
2	03.407 COVER; INL EXHAUST BRAKE<NF8>	8-97146-866-2	01	1	0211-0507		●	●
2	03.407 COVER; INL	8-97146-866-2	01	1	0508-1310		●		●
2	03.407 COVER; INL	8-98245-383-0	01	1	1311-1404		●		●
2	03.407 COVER; INL	8-98245-383-0	01	1	1405-1409		●		●	●
2	03.407 COVER; INL	8-97212-454-3	01	1	1410-					●
2	03.407 COVER; INL	8-97212-454-2	01	1	0610-1404					●
2	03.407 COVER; INL EXC. VIN MODEL YEAR 2014(VZE)	8-97212-454-2	01	1	1405-1405					●
2	03.407 COVER; INL EXC. VIN MODEL YEAR 2015(VZF)	8-97212-454-2	01	1	1406-1409					●
2	03.407 COVER; INL	8-98245-383-0	01	1	1410-		●		●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	0211-0507		●	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	0508-0512		●		●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	08	1	0601-		●		●
13	03.275 BOLT; INL MANIF M8X52 L=68	8-97118-455-0	01	1	0610-0701					●
13	03.275 BOLT; INL MANIF M8X52 L=68	8-98048-395-0	01	1	0702-					●
13	03.275 BOLT; INL MANIF 09.008 M8X25 W/LK WASHER	0-50540-825-0	05	1	0610-	●
13	03.275 BOLT; INL MANIF 09.171 M8X30 W/LK WASHER	0-50540-830-0	01	1	0610-	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	07	1	0610-					●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0507		●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0508-0602		●		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0603-0609		●		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-		●		●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0610-0805	●
20	03.275 NUT; INL MANIF 04.634 M8 FLANGE	8-97581-233-0	02	1	0806-	●
28	03.278 BOLT; CHAMBER EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0507		●	●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0508-0512		●		●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-0609		●		●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0610-		●		●	●
44	03.407 NUT; PIPE BRKT EXC. VIN MODEL YEAR 2015(VZF) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1406-					●
50	03.265 PIPE; INL VIN MODEL YEAR 2014(VZE) (B)	8-98261-643-0	01	1	1405-1405					●
50	03.265 PIPE; INL VIN MODEL YEAR 2015(VZF) (B)	8-98261-643-0	01	1	1406-					●
50	03.265 PIPE; INL VIN MODEL YEAR 2015(VZF) (A)	8-97178-735-5	01	1	1406-					●
50	03.265 PIPE; INL (A)	8-97178-735-5	01	1	0610-1405					●
50	03.265 PIPE; INL EXC. VIN MODEL YEAR 2015(VZF) (C)	8-98254-369-0	01	1	1406-					●
50	03.265 PIPE; INL (B)	8-97202-327-2	01	1	0610-1404					●
50	03.265 PIPE; INL EXC. VIN MODEL YEAR 2014(VZE) (B)	8-97202-327-2	01	1	1405-1405					●
50	03.265 PIPE; INL EXC. VIN MODEL YEAR 2015(VZF) (B)	8-97202-327-2	01	1	1406-					●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015(VZF) 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	1406-					●
53	03.602 BOLT; INL PIPE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0211-0507		●	●
53	03.602 BOLT; INL PIPE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0508-0512		●		●
53	03.602 BOLT; INL PIPE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0601-0609		●		●
53	03.602 BOLT; INL PIPE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0610-		●		●	●
53	03.602 BOLT; INL PIPE 02.042 M10X25 FLANGE	0-28151-025-0	02	1	0610-	●
53	03.602 BOLT; INL PIPE 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0610-1405					●
53	03.602 BOLT; INL PIPE EXC. VIN MODEL YEAR 2015(VZF) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1406-					●
53	03.602 BOLT; INL PIPE 00.029 M10X25 FLANGE IDN	0-28651-025-0	02	1	0610-1405					●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015(VZF) 00.029 M10X25 FLANGE IDN	0-28651-025-0	02	1	1406-					●
55	03.407 NUT; INL PIPE 01.540 M6 FLANGE	0-91180-206-0	03	1	0610-					●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0211-0507		●	●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0508-0512		●		●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-		●		●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	01	1	0610-					●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-198-0	01	1	0610-0810					●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	0811-1405					●
95	03.278 CLIP; RUBBER HOSE VIN MODEL YEAR 2015(VZF) 03.407 (A) ID=77-95	1-09707-114-0	01	1	1406-					●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	1-09707-202-0	01	1	0610-0810					●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	0811-1405					●
95	03.278 CLIP; RUBBER HOSE VIN MODEL YEAR 2015(VZF) 03.407 (C) ID=68-85	8-94320-428-0	01	1	1406-					●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-65	1-09707-204-0	02	1	0610-0810					●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	02	1	0811-					●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	0211-0507		●	●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	0508-0609		●		●
138	03.265 PIPE; INL (A)	8-97180-566-2	01	1	0610-		●		●	●
138	03.265 PIPE; INL (B)	8-97178-748-3	01	1	0610-1404					●
138	03.265 PIPE; INL G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (B)	8-97178-748-3	01	1	1405-					●
138	03.265 PIPE; INL EXC. MINI BUS CHASSIS(V4B) (B)	8-97178-748-3	01	1	1405-					●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	0211-0507		●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	0508-0609		●		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	0610-		●		●	●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	0211-0507		●	●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	0508-0512		●		●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	0601-0609		●		●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	0610-		●		●	●
306	03.265 BOLT; VLV (D) M8X85 L=101	8-97118-454-0	01	1	0610-0701					●
306	03.265 BOLT; VLV (D) M8X85 L=101	8-98048-394-0	01	1	0702-					●
306	03.265 BOLT; VLV 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0610-	●
306	03.265 BOLT; VLV 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	0610-	●
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) GLOW SYSTEM DELETE<7RK>	8-98211-431-0	01	1	1212-					●
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=47	8-97202-328-1	01	1	0610-1211					●
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) FAST GLOW SYSTEM<KM6> ID=47	8-97202-328-1	01	1	1212-					●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97180-546-0	01	1	0211-0507		●	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97180-546-1	01	1	0508-0609		●		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97180-546-1	01	1	0610-		●		●	●
333	03.278 HOSE; RUBBER,INL PIPE VIN MODEL YEAR 2015(VZF) (A)	8-97201-103-2	01	1	1406-					●
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-97201-103-2	01	1	0610-1405					●
333	03.278 HOSE; RUBBER,INL PIPE EXC. VIN MODEL YEAR 2015(VZF) (C)	8-98219-796-0	01	1	1406-					●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-3	01	1	0610-1405					●
333	03.278 HOSE; RUBBER,INL PIPE VIN MODEL YEAR 2015(VZF) (B)	8-97369-717-3	01	1	1406-					●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5 IDN	5-09700-350-0	03	1	0211-0507		●	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5 IDN	5-09700-350-0	03	1	0508-0609		●		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5 IDN	5-09700-350-0	03	1	0610-0801		●		●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE IDN	8-97367-984-1	03	1	0802-		●		●	●
346	02.559 CLIP; ENG HARNESS ENGINE POWER N-SPEC(7QV) 00.446 ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0211-0507			●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0508-0801				●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE IDN	8-97367-984-1	01	1	0802-				●
361	03.278 BOLT; CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0610-					●
571	03.265 HOSE; AIR BOOST GLOW SYSTEM DELETE<7RK> L=210	8-98210-164-0	01	1	1212-1404					●
571	03.265 HOSE; AIR BOOST GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2014(VZE) L=210	8-98210-164-0	01	1	1405-1405					●
571	03.265 HOSE; AIR BOOST GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015(VZF) L=210	8-98210-164-0	01	1	1406-					●
571	03.265 HOSE; AIR BOOST 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	0610-1211					●
571	03.265 HOSE; AIR BOOST FAST GLOW SYSTEM<KM6> 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	1212-					●
572	03.407 CLIP; BOOST HOSE VIN MODEL YEAR 2015(VZF) 03.145 ID=8	8-94107-762-0	01	1	1410-					●
572	03.407 CLIP; BOOST HOSE 03.145 ID=8	8-94107-762-0	02	1	0610-1404					●
572	03.407 CLIP; BOOST HOSE EXC. VIN MODEL YEAR 2014(VZE) 03.145 ID=8	8-94107-762-0	02	1	1405-1405					●
572	03.407 CLIP; BOOST HOSE EXC. VIN MODEL YEAR 2015(VZF) 03.145 ID=8	8-94107-762-0	02	1	1406-					●
603	03.278 CHAMBER; THROTTLE EXHAUST BRAKE<NF8>	8-97204-780-0	01	1	0211-0507		●	●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0508-0609		●		●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0610-		●		●	●

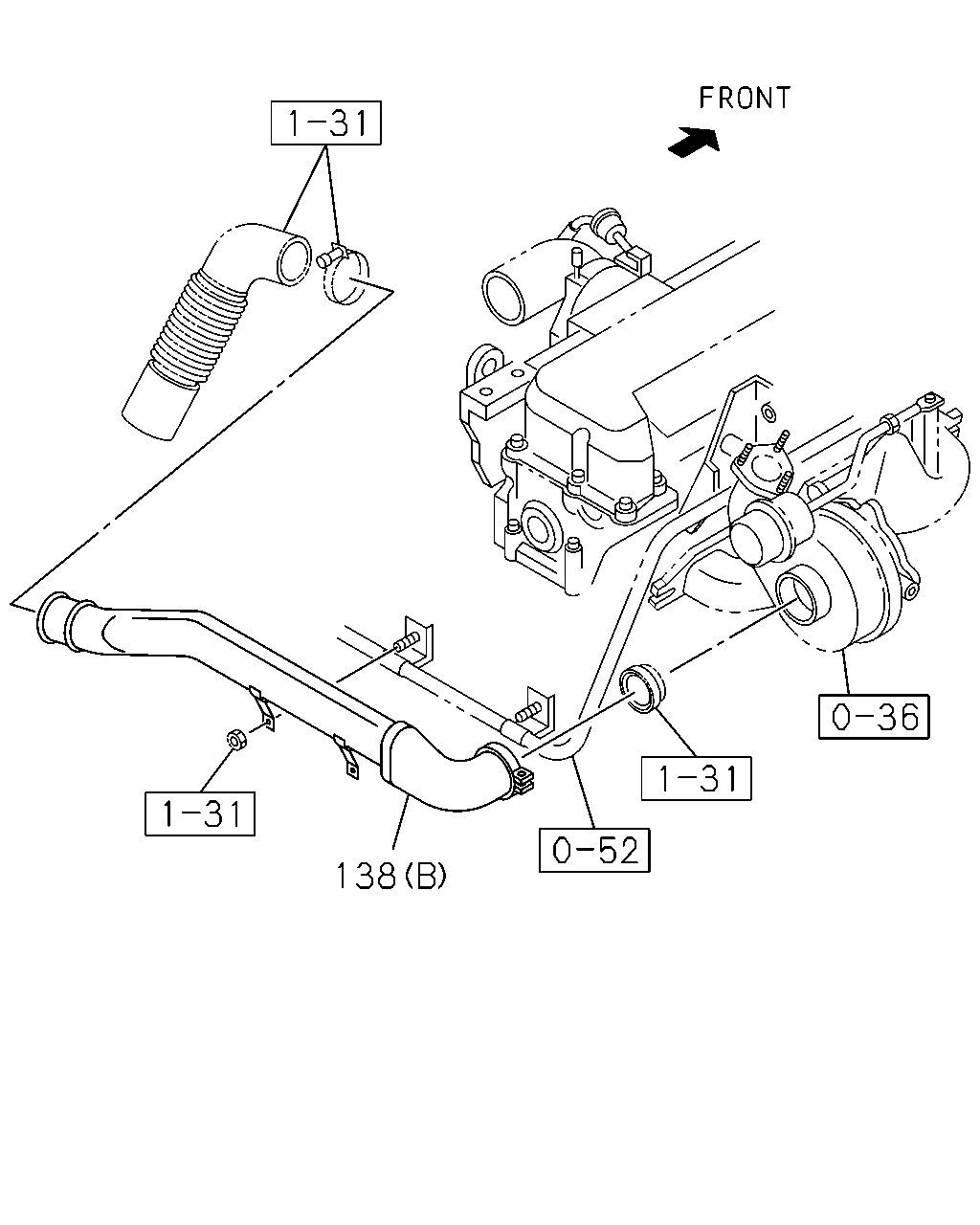

138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	0211-0507	●	●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	0508-0609	●		●
138	03.265 PIPE; INL (A)	8-97180-566-2	01	1	0610-	●		●	●
138	03.265 PIPE; INL (B)	8-97178-748-3	01	1	0610-1404				●
138	03.265 PIPE; INL G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (B)	8-97178-748-3	01	1	1405-				●
138	03.265 PIPE; INL EXC. MINI BUS CHASSIS(V4B) (B)	8-97178-748-3	01	1	1405-				●

27 1 184 53 13 23 20 27 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0610-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97301-838-1	01	1	0610-	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	0211-0507		●	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	0508-0512		●		●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	08	1	0601-		●		●
13	03.275 BOLT; INL MANIF M8X52 L=68	8-97118-455-0	01	1	0610-0701					●
13	03.275 BOLT; INL MANIF M8X52 L=68	8-98048-395-0	01	1	0702-					●
13	03.275 BOLT; INL MANIF 09.008 M8X25 W/LK WASHER	0-50540-825-0	05	1	0610-	●
13	03.275 BOLT; INL MANIF 09.171 M8X30 W/LK WASHER	0-50540-830-0	01	1	0610-	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	07	1	0610-					●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0507		●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0508-0602		●		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0603-0609		●		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-		●		●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0610-0805	●
20	03.275 NUT; INL MANIF 04.634 M8 FLANGE	8-97581-233-0	02	1	0806-	●
23	03.275 WASHER; PL,INL MANIF 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	01	1	0610-	●
27	03.275 STUD; INL MANIF M8X25 L=37	0-41010-825-0	01	1	0610-	●
27	03.275 STUD; INL MANIF 00.219 M8X35 L=46	9-09630-034-1	01	1	0610-	●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015(VZF) 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	1406-					●
53	03.602 BOLT; INL PIPE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0211-0507		●	●
53	03.602 BOLT; INL PIPE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0508-0512		●		●
53	03.602 BOLT; INL PIPE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0601-0609		●		●
53	03.602 BOLT; INL PIPE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0610-		●		●	●
53	03.602 BOLT; INL PIPE 02.042 M10X25 FLANGE	0-28151-025-0	02	1	0610-	●
53	03.602 BOLT; INL PIPE 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0610-1405					●
53	03.602 BOLT; INL PIPE EXC. VIN MODEL YEAR 2015(VZF) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1406-					●
53	03.602 BOLT; INL PIPE 00.029 M10X25 FLANGE IDN	0-28651-025-0	02	1	0610-1405					●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015(VZF) 00.029 M10X25 FLANGE IDN	0-28651-025-0	02	1	1406-					●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.406	8-97035-883-1	01	1	0610-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
