0-22 — ENGINE MOUNTING (#78884) — 163 parça

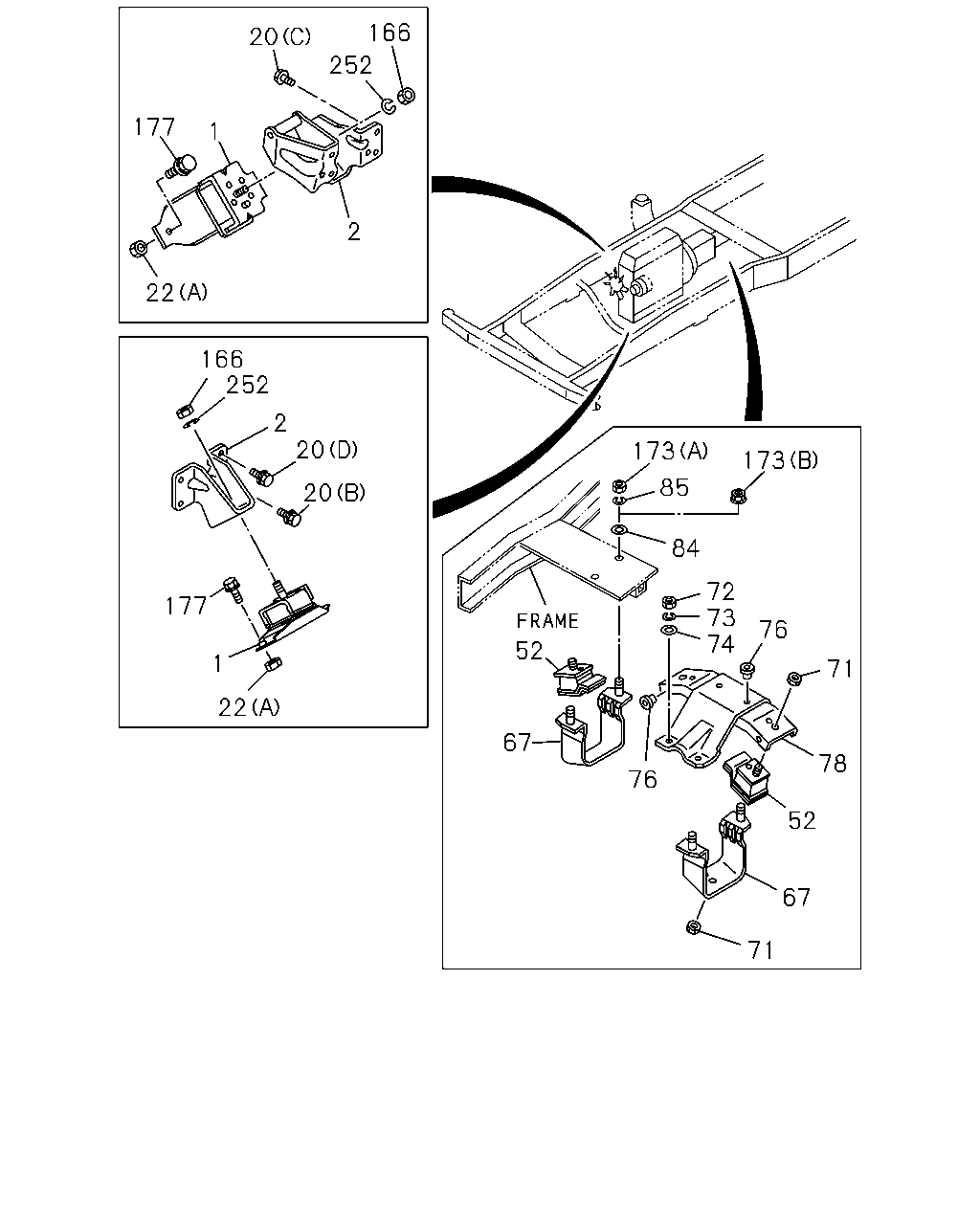

çizim 39224
1 2 22 177 20 166 252 166 252 2 20 20 177 1 22 52 67 173 173 85 84 72 73 74 71 78 52 67 71 76 76
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.027 RUBBER; ENG FOOT,FRT
INJ PUMP Q SET SPECIAL +5%Q<T1A> 		8-97520-598-0 01 1 1506- ●
1 00.027 RUBBER; ENG FOOT,FRT
INJ PUMP Q SET SPECIAL +5%Q<T1A> 		8-97520-599-0 01 1 1506- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-893-0 01 1 0211-0507 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-893-1 01 1 0508-0609 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-893-1 01 1 0610- ● ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-895-0 01 1 0211-0507 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-895-1 01 1 0508-0609 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-895-1 01 1 0610- ● ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-620-0 01 1 0610-1505 ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> 		8-97080-620-0 01 1 1506- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-621-0 01 1 0610-1505 ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> 		8-97080-621-0 01 1 1506- ●
2 00.029 FOOT; ENG 8-97228-669-1 02 1 0211-0507 ● ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 0508-0609 ● ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 0610- ● ● ●
2 00.029 FOOT; ENG 8-97287-639-2 01 1 0610- ●
2 00.029 FOOT; ENG 8-97300-156-0 01 1 0610- ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28191-020-0 08 1 0211-0507 ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28191-020-0 08 1 0508-0512 ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28161-020-0 08 1 0601-0609 ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28161-020-0 08 1 0610- ● ● ●
20 00.029 BOLT; ENG FOOT
02.277 (D) M10X22 W/LK WASHER 		0-50041-022-0 05 1 0610-0909 ●
20 00.029 BOLT; ENG FOOT
(D) M10X22 W/LK WASHER 		0-50541-022-0 05 1 0910- ●
20 00.029 BOLT; ENG FOOT
(B) M14X25 W/LK WASHER 		0-50541-425-0 01 1 0610- ●
20 00.029 BOLT; ENG FOOT
00.034 (C) M10X28 		8-94329-952-1 02 1 0610- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0211-0507 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0508-0512 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.002 (B) M12 		0-91110-512-0 02 1 0601-0609 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.002 (B) M12 		0-91110-512-0 02 1 0610-0612 ● ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (C) M12 FLANGE IDN 		0-91180-112-0 02 1 0701- ● ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ● ● ● ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (A) M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 0211-0507 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 0508-0509 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 03 1 0510-0510 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 0510-0609 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 0610- ● ● ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97325-566-0 01 1 0211-0306 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97371-918-0 01 1 0307-0507 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97371-918-1 01 1 0508-0609 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97371-918-1 01 1 0610- ● ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97325-567-0 01 1 0211-0507 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97325-567-1 01 1 0508-0609 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97325-567-1 01 1 0610- ● ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 0610- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 0610- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0211-0507 ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0508-0602 ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE IDN 		0-91180-110-0 04 1 0603-0609 ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE IDN 		0-91180-110-0 04 1 0610- ● ● ● ●
72 00.002 NUT; SUPPORT RUBBER TO TRANS
00.833 M10 		0-91110-510-0 04 1 0610- ●
73 00.002 WASHER; LK,CUSHION RUBBER TO FRA
ID=10.2 IDN 		0-91510-610-0 04 1 0610- ●
74 00.002 WASHER; PL,SUPPORT RUBBER TO TRA
ID=10.5 OD=22 		0-91614-610-0 02 1 0610- ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 06 1 0211-0507 ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 06 1 0508-0609 ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 02 1 0610-1403 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 02 1 1404- ● ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 06 1 0610-1403 ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER 8-97039-947-1 04 1 1404- ● ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-560-0 01 1 0211-0507 ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-560-1 01 1 0508-0609 ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-560-1 01 1 0610- ● ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-561-0 01 1 0211-0507 ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-561-1 01 1 0508-0609 ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-561-1 01 1 0610- ● ● ●
78 00.029 BRACKET; ENG MTG,RR 8-94133-393-2 01 1 0610- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 0211-0605 ● ● ● ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0606- ● ● ● ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 0211-0603 ● ● ● ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 IDN 		0-91510-610-0 04 1 0604-0610 ● ● ● ● ●
166 00.002 NUT; SUPPORT RUBBER
05.002 M12 		0-91110-512-0 02 1 0610- ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 (A) M10 		9-09110-410-0 04 1 0211-0512 ● ● ● ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
00.833 (A) M10 		0-91110-510-0 04 1 0601-0610 ● ● ● ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
03.162 (B) M10 FLANGE IDN 		0-91180-110-0 04 1 0611- ● ● ● ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0211- ● ● ● ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0211-0507 ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0508-0603 ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0604-0609 ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0610-0612 ● ● ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0701- ●

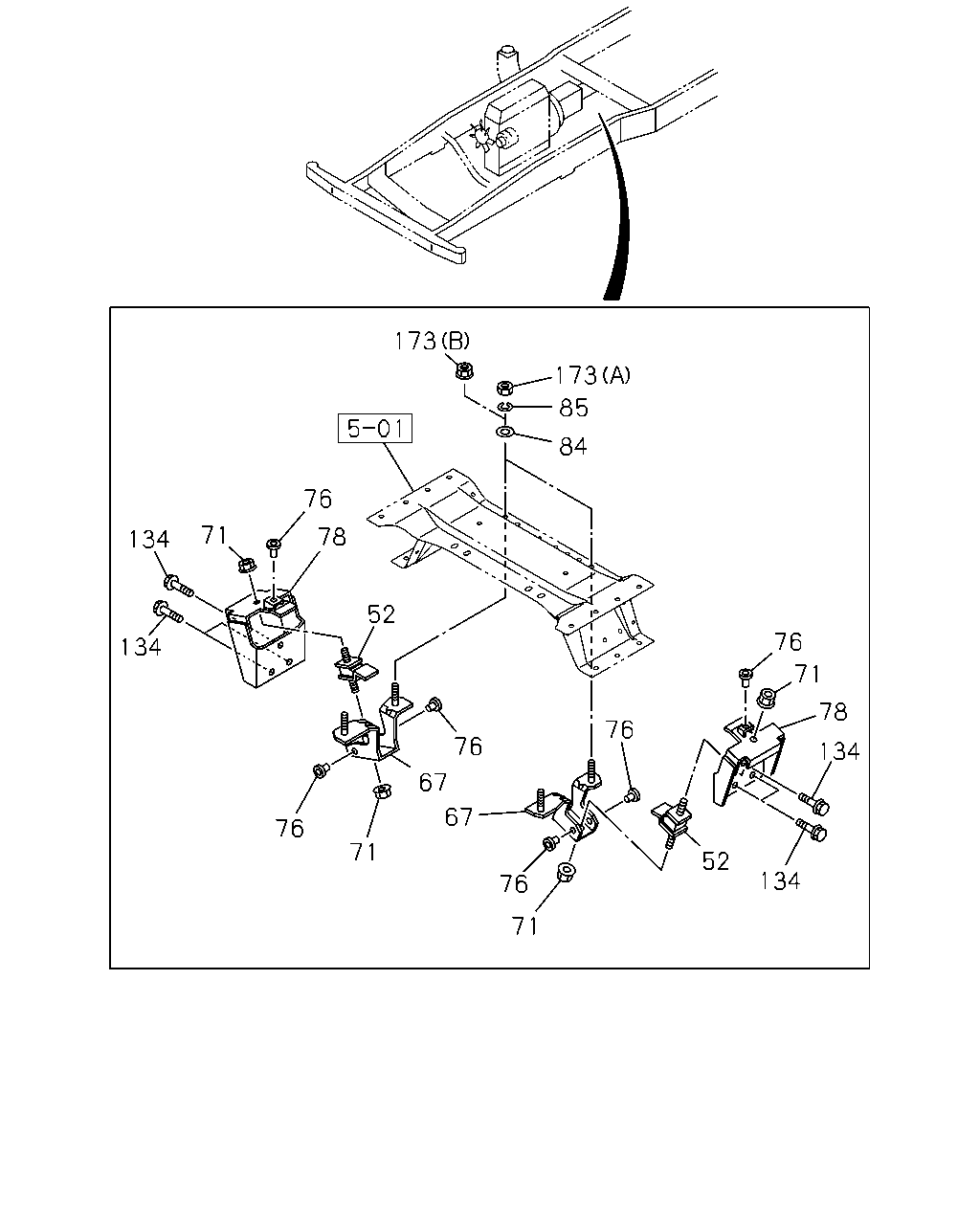

çizim 39254
173 173 85 84 76 71 78 134 52 76 134 71 78 76 76 134 67 67 76 71 52 134 76 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 0211-0507 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 0508-0509 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 03 1 0510-0510 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 0510-0609 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 0610- ● ● ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97325-566-0 01 1 0211-0306 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97371-918-0 01 1 0307-0507 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97371-918-1 01 1 0508-0609 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97371-918-1 01 1 0610- ● ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97325-567-0 01 1 0211-0507 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97325-567-1 01 1 0508-0609 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97325-567-1 01 1 0610- ● ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 0610- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 0610- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0211-0507 ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0508-0602 ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE IDN 		0-91180-110-0 04 1 0603-0609 ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE IDN 		0-91180-110-0 04 1 0610- ● ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 06 1 0211-0507 ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 06 1 0508-0609 ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 02 1 0610-1403 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 02 1 1404- ● ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 06 1 0610-1403 ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER 8-97039-947-1 04 1 1404- ● ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-560-0 01 1 0211-0507 ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-560-1 01 1 0508-0609 ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-560-1 01 1 0610- ● ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-561-0 01 1 0211-0507 ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-561-1 01 1 0508-0609 ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-561-1 01 1 0610- ● ● ●
78 00.029 BRACKET; ENG MTG,RR 8-94133-393-2 01 1 0610- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 0211-0605 ● ● ● ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0606- ● ● ● ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 0211-0603 ● ● ● ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 IDN 		0-91510-610-0 04 1 0604-0610 ● ● ● ● ●
134 00.029 BOLT; SUPPORT BRKT
03.890 M12X25 		0-28781-225-0 06 1 0211-0507 ● ●
134 00.029 BOLT; SUPPORT BRKT
03.890 M12X25 		0-28781-225-0 06 1 0508-0512 ● ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 0601-0609 ● ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 0610- ● ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 (A) M10 		9-09110-410-0 04 1 0211-0512 ● ● ● ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
00.833 (A) M10 		0-91110-510-0 04 1 0601-0610 ● ● ● ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
03.162 (B) M10 FLANGE IDN 		0-91180-110-0 04 1 0611- ● ● ● ● ●
çizim 190697
22 22 20 252 16 177 2 22 1 22 22 20 252 1 2 177 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.027 RUBBER; ENG FOOT,FRT
INJ PUMP Q SET SPECIAL +5%Q<T1A> 		8-97520-598-0 01 1 1506- ●
1 00.027 RUBBER; ENG FOOT,FRT
INJ PUMP Q SET SPECIAL +5%Q<T1A> 		8-97520-599-0 01 1 1506- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-893-0 01 1 0211-0507 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-893-1 01 1 0508-0609 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-893-1 01 1 0610- ● ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-895-0 01 1 0211-0507 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-895-1 01 1 0508-0609 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-895-1 01 1 0610- ● ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-620-0 01 1 0610-1505 ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> 		8-97080-620-0 01 1 1506- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-621-0 01 1 0610-1505 ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> 		8-97080-621-0 01 1 1506- ●
2 00.029 FOOT; ENG 8-97228-669-1 02 1 0211-0507 ● ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 0508-0609 ● ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 0610- ● ● ●
2 00.029 FOOT; ENG 8-97287-639-2 01 1 0610- ●
2 00.029 FOOT; ENG 8-97300-156-0 01 1 0610- ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT
00.027 		8-94365-486-0 01 1 0211-0507 ● ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT
00.027 		8-94365-486-0 01 1 0508-0609 ● ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT
00.027 		8-94365-486-0 01 1 0610- ● ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28191-020-0 08 1 0211-0507 ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28191-020-0 08 1 0508-0512 ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28161-020-0 08 1 0601-0609 ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28161-020-0 08 1 0610- ● ● ●
20 00.029 BOLT; ENG FOOT
02.277 (D) M10X22 W/LK WASHER 		0-50041-022-0 05 1 0610-0909 ●
20 00.029 BOLT; ENG FOOT
(D) M10X22 W/LK WASHER 		0-50541-022-0 05 1 0910- ●
20 00.029 BOLT; ENG FOOT
(B) M14X25 W/LK WASHER 		0-50541-425-0 01 1 0610- ●
20 00.029 BOLT; ENG FOOT
00.034 (C) M10X28 		8-94329-952-1 02 1 0610- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0211-0507 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0508-0512 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.002 (B) M12 		0-91110-512-0 02 1 0601-0609 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.002 (B) M12 		0-91110-512-0 02 1 0610-0612 ● ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (C) M12 FLANGE IDN 		0-91180-112-0 02 1 0701- ● ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ● ● ● ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (A) M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0211- ● ● ● ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0211-0507 ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0508-0603 ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0604-0609 ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0610-0612 ● ● ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0701- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
