◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#78883) — 151 parça

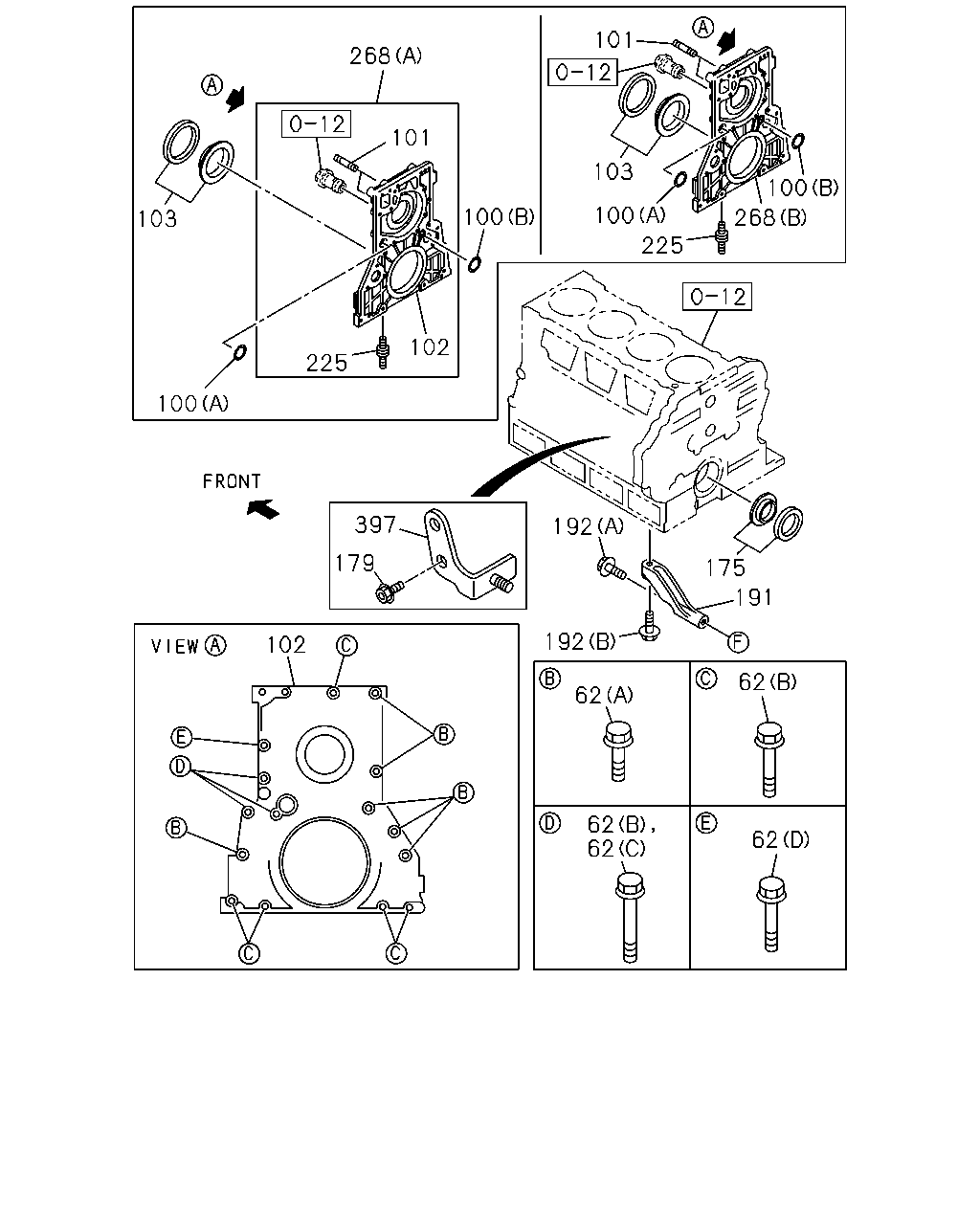

çizim 37922
192 192 397 179 100 103 101 268 100 102 225 225 100 103 101 268 100 175 191 102 62 62 62 62 62
BalonParca AdiParca NoAdetTipApplied Date A B C D E
62 00.206 BOLT; COVER
02.559 (A) M8X25 FLANGE IDN 		0-28680-825-0 06 1 0211-0507 ● ●
62 00.206 BOLT; COVER
02.559 (A) M8X25 FLANGE IDN 		0-28680-825-0 06 1 0508-0512 ● ●
62 00.206 BOLT; COVER
06.216 (A) M8X25 FLANGE IDN 		0-28650-825-0 06 1 0601-0609 ● ●
62 00.206 BOLT; COVER
06.216 (A) M8X25 FLANGE IDN 		0-28650-825-0 06 1 0610- ● ● ●
62 00.206 BOLT; COVER
02.183 (B) M8X35 FLANGE 		0-28680-835-0 05 1 0211-0507 ● ●
62 00.206 BOLT; COVER
02.183 (B) M8X35 FLANGE 		0-28680-835-0 05 1 0508-0512 ● ●
62 00.206 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 05 1 0601-0609 ● ●
62 00.206 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 05 1 0610-0706 ● ● ●
62 00.206 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 06 1 0707- ● ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 0211-0507 ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 0508-0609 ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 0610-0706 ● ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 02 1 0707- ● ● ●
62 00.206 BOLT; COVER
04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 0306-0404 ● ●
62 00.206 BOLT; COVER
EXC. INDONESIA EQUIPMENT(S4S) 04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 0405-0507 ●
62 00.206 BOLT; COVER
FAST GLOW SYSTEM<KM6> 03.403 (D) M8X30 FLANGE 		0-28650-830-0 01 1 1004- ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 0211-0507 ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 0508-0609 ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 0610- ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 0211-0507 ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 0508-0609 ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 0610- ● ● ●
101 01.073 STUD; WATER PUMP
00.206 M8X18 L=29 		8-97028-541-0 01 1 0211-0507 ● ●
101 01.073 STUD; WATER PUMP
00.206 M8X18 L=29 		8-97028-541-0 01 1 0508-0609 ● ●
101 01.073 STUD; WATER PUMP
00.206 M8X18 L=29 		8-97028-541-0 01 1 0610- ● ● ●
101 01.073 STUD; WATER PUMP
01.428 M8X18 L=30 		9-04110-818-0 01 1 0211-0507 ● ●
101 01.073 STUD; WATER PUMP
01.428 M8X18 L=30 		9-04110-818-0 01 1 0508-0604 ● ●
101 01.073 STUD; WATER PUMP
01.428 M8X18 L=30 		0-41010-818-0 01 1 0605-0609 ● ●
101 01.073 STUD; WATER PUMP
01.428 M8X18 L=30 		0-41010-818-0 01 1 0610- ● ● ●
102 00.137 RETAINER; FRT 8-97094-943-3 01 1 0211-0507 ● ●
102 00.137 RETAINER; FRT 8-97094-943-3 01 1 0508-0609 ● ●
102 00.137 RETAINER; FRT 8-97094-943-3 01 1 0610-0706 ● ● ●
102 00.137 RETAINER; FRT 8-98039-932-2 01 1 0707-1209 ● ● ●
102 00.137 RETAINER; FRT 8-98039-932-2 01 1 1210- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98209-640-0 01 1 1207- ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK> 		8-98209-640-0 01 1 1207- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0211-0507 ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0508-0609 ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0610-1206 ● ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 1207- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97351-704-0 01 1 0610- ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0211-0507 ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0508-0609 ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0610- ● ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 0610- ●
179 00.206 BOLT; BRKT
ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0211-0507 ● ●
179 00.206 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0508-0512 ● ●
179 00.206 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-0604 ● ●
179 00.206 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0605- ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 0610-1404 ●
192 00.206 BOLT; STAY TO HSG
02.510 (A) M12X100 FLANGE 		0-28151-200-0 01 1 0610-1404 ●
192 00.206 BOLT; STAY TO HSG
00.685 (B) M12X50 FLANGE 		0-28151-250-0 01 1 0610-1404 ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0211-0507 ● ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0508-0609 ● ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0610- ● ● ●
268 00.206 COVER; FRT
(B) 		8-98209-520-0 01 1 1210- ● ● ●
268 00.206 COVER; FRT
(A) 		8-97259-416-0 01 1 0211-0507 ● ●
268 00.206 COVER; FRT
(A) 		8-97259-416-0 01 1 0508-0609 ● ●
268 00.206 COVER; FRT
(A) 		8-97259-416-0 01 1 0610-0706 ● ● ●
268 00.206 COVER; FRT
(A) 		8-98039-931-2 01 1 0707-1209 ● ● ●
268 00.206 COVER; FRT
(A) 		8-98039-931-2 01 1 1210- ●
397 00.206 BRACKET; CONNECTOR
ENGINE POWER N-SPEC(7QV) 		8-97163-042-0 01 1 0211-0507 ● ●
397 00.206 BRACKET; CONNECTOR 8-97163-042-0 01 1 0508-0604 ● ●
397 00.206 BRACKET; CONNECTOR 8-97163-042-0 01 1 0605- ●

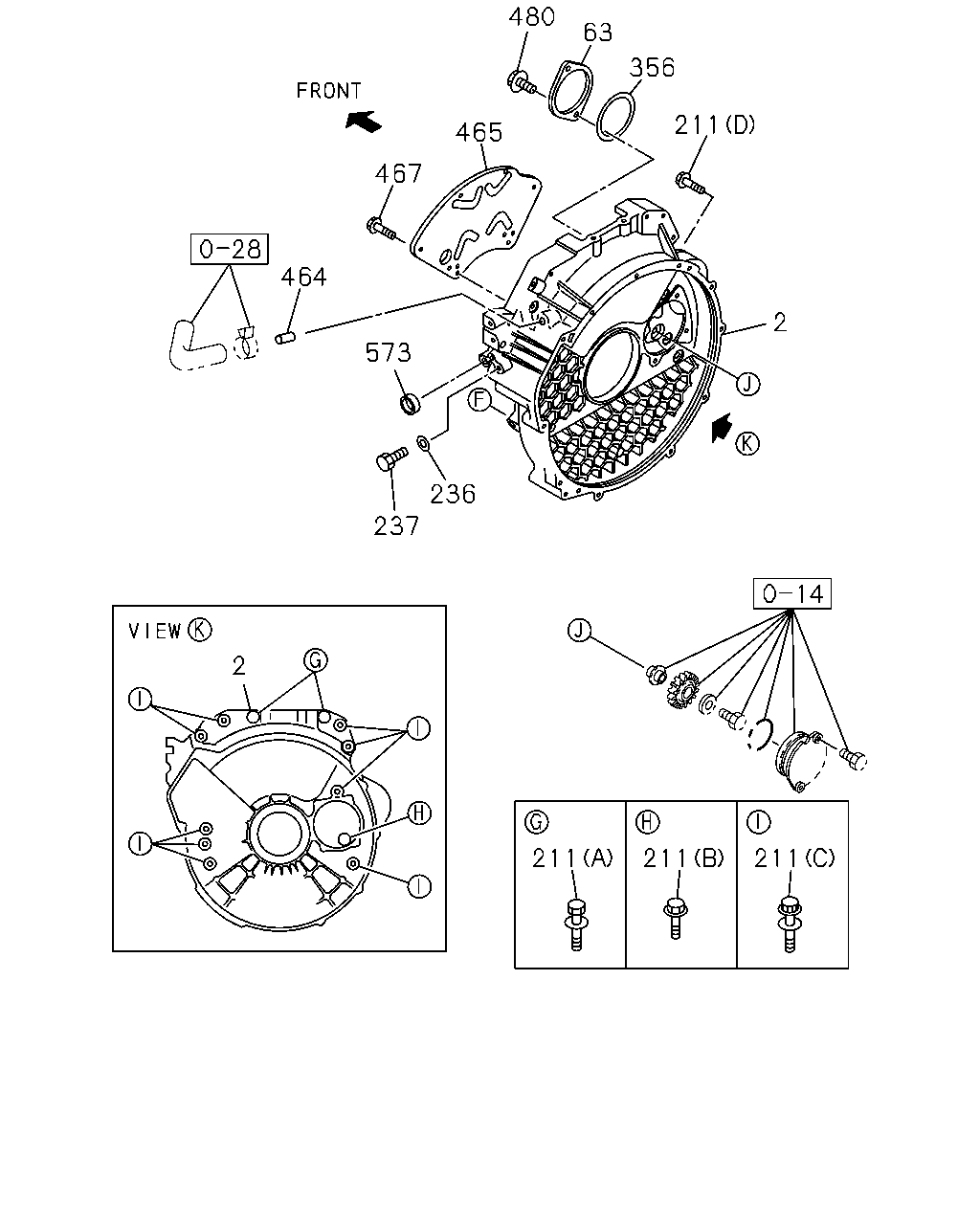

çizim 38228
480 63 356 211 465 467 464 2 573 236 237 2 211 211 211
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 00.683 HOUSING; FLYWHEEL 8-97241-584-0 01 1 0211-0308 ● ●
2 00.683 HOUSING; FLYWHEEL 8-97364-899-2 01 1 0309-0507 ● ●
2 00.683 HOUSING; FLYWHEEL 8-97364-899-2 01 1 0508-0609 ● ●
2 00.683 HOUSING; FLYWHEEL 8-97364-899-6 01 1 0610- ● ● ●
63 00.206 COVER; P/S
EXC. POWER STEERING<N40> 		8-97126-392-0 01 1 0211-0507 ● ●
63 00.206 COVER; P/S
EXC. POWER STEERING<N40> 		8-97126-392-0 01 1 0508-0609 ● ●
63 00.206 COVER; P/S
EXC. POWER STEERING<N40> 		8-97126-392-0 01 1 0610- ● ● ●
211 00.669 BOLT; HSG
(D) M10X40 FLANGE 		0-28781-040-0 01 1 0211-0507 ● ●
211 00.669 BOLT; HSG
(D) M10X40 FLANGE 		0-28781-040-0 01 1 0508-0512 ● ●
211 00.669 BOLT; HSG
00.029 (D) M10X40 FLANGE 		0-28751-040-0 01 1 0601-0609 ● ●
211 00.669 BOLT; HSG
00.029 (D) M10X40 FLANGE 		0-28751-040-0 01 1 0610- ● ● ●
211 00.669 BOLT; HSG
(A) M8X65 W/PL WASHER 		8-94388-781-0 02 1 0211-0507 ● ●
211 00.669 BOLT; HSG
(A) M8X65 W/PL WASHER 		8-94388-781-0 02 1 0508- ● ●
211 00.669 BOLT; HSG
(C) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 09 1 0211-0507 ● ●
211 00.669 BOLT; HSG
(C) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 09 1 0508-0609 ● ●
211 00.669 BOLT; HSG
(C) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 09 1 0610-1102 ● ● ●
211 00.669 BOLT; HSG
(C) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 09 1 1103- ● ● ●
211 00.669 BOLT; HSG
(B) M12X30 FLANGE 		8-97135-419-0 01 1 0211-0507 ● ●
211 00.669 BOLT; HSG
(B) M12X30 FLANGE 		8-97135-419-0 01 1 0508-0609 ● ●
211 00.669 BOLT; HSG
(B) M12X30 FLANGE 		8-97135-419-0 01 1 0610- ● ● ●
211 00.669 BOLT; HSG
EXC. POWER STEERING<N40> (C) M14X35 FLANGE 		0-28791-435-0 01 1 0211-0507 ● ●
211 00.669 BOLT; HSG
EXC. POWER STEERING<N40> (C) M14X35 FLANGE 		0-28791-435-0 01 1 0508-0512 ● ●
211 00.669 BOLT; HSG
EXC. POWER STEERING<N40> (C) M14X35 FLANGE 		0-28761-435-0 01 1 0601-0609 ● ●
211 00.669 BOLT; HSG
EXC. POWER STEERING<N40> (C) M14X35 FLANGE 		0-28761-435-0 01 1 0610- ● ● ●
211 00.669 BOLT; HSG
(A) M8X20,M8X65 L=90 		8-97200-622-1 02 1 0610- ●
236 00.669 GASKET; FLYWHEEL HSG
ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) 01.531 ID=10.2 OD=15.2 		1-09630-083-0 01 1 0304-0507 ●
237 00.686 PLUG; FLYWHEEL HSG
ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) 04.640 M10X12 FLANGE 		0-28081-012-0 01 1 0304-0507 ●
356 00.207 GASKET; COVER
EXC. POWER STEERING<N40> 06.673 		8-97101-875-2 01 1 0211-0507 ● ●
356 00.207 GASKET; COVER
EXC. POWER STEERING<N40> 06.673 		8-97101-875-2 01 1 0508-0609 ● ●
356 00.207 GASKET; COVER
EXC. POWER STEERING<N40> 06.673 		8-97101-875-2 01 1 0610- ● ● ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 0211-0507 ● ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 0508-0609 ● ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 0610- ● ● ●
465 00.686 PLATE; FLYWHEEL HSG
00.669 		8-94370-384-3 01 1 0211-0308 ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-824-1 01 1 0309-0507 ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-824-1 01 1 0508-0609 ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-824-1 01 1 0610- ● ● ●
467 00.686 BOLT; PLATE
02.500 M6X10 FLANGE IDN 		0-28080-610-0 06 1 0211-0507 ● ●
467 00.686 BOLT; PLATE
05.815 M6X10 		0-20800-610-0 06 1 0508-0508 ● ●
467 00.686 BOLT; PLATE
05.815 M6X10 		0-20800-610-0 06 1 0508-0609 ● ●
467 00.686 BOLT; PLATE
05.815 M6X10 		0-20800-610-0 06 1 0610-0805 ● ● ●
467 00.686 BOLT; PLATE
06.321 M6X10 		8-98030-649-0 06 1 0806- ● ● ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0211-0507 ● ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0508-0609 ● ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0610-0805 ● ● ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 04.439 M10X28 FLANGE 		8-98044-944-0 02 1 0806-1010 ● ● ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1011- ● ● ●
573 00.206 CUP; SEALING
00.034 OD=19 		8-94150-231-0 01 1 0211-0507 ● ●
573 00.206 CUP; SEALING
00.034 OD=19 		8-94150-231-0 01 1 0508-0609 ● ●
573 00.206 CUP; SEALING
00.034 OD=19 		8-94150-231-0 01 1 0610- ● ● ●

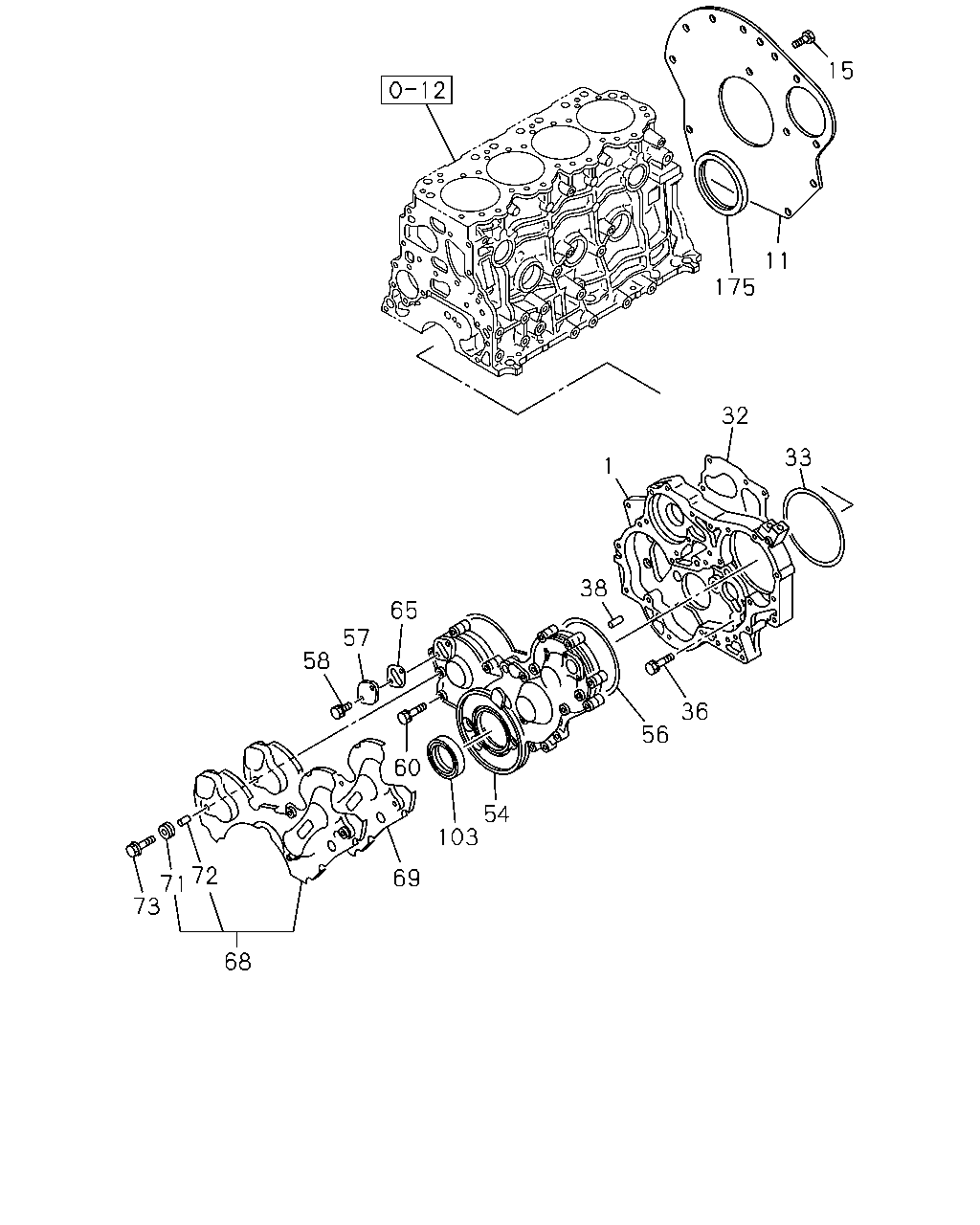

çizim 38778
15 11 175 32 33 1 38 65 57 58 36 56 60 54 103 72 71 73 69 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.206 CASE; TIMING GEAR 8-97219-001-4 01 1 0610- ●
11 00.683 PLATE; RR,C/BL 8-94437-923-2 01 1 0610- ●
15 00.683 BOLT; RR PLATE TO C/BL
M12X25 		5-09000-227-0 03 1 0610- ●
32 00.207 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97129-427-1 01 1 0610- ●
33 00.207 GASKET; BRKT TO CASE
ALSO INCLUDED IN GASKET SET(ENGINE). INJ PUMP Q SET SPECIAL +5%Q<T1A> IDN 		8-98269-758-0 01 1 1401- ●
33 00.207 GASKET; BRKT TO CASE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94109-707-0 01 1 0610-1312 ●
33 00.207 GASKET; BRKT TO CASE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> 		8-94109-707-0 01 1 1401- ●
36 00.206 BOLT; GEAR CASE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 06 1 0610-0909 ●
36 00.206 BOLT; GEAR CASE
M8X20 W/LK WASHER 		0-50540-820-0 06 1 0910- ●
36 00.206 BOLT; GEAR CASE
01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 0610-0909 ●
36 00.206 BOLT; GEAR CASE
03.704 M8X45 W/LK WASHER 		0-50540-845-0 02 1 0910- ●
38 00.685 PIN; GEAR CASE COVER
04.510 OD=10 L=20 		8-97135-423-0 02 1 0610- ●
54 00.206 COVER; GEAR CASE 8-97231-214-1 01 1 0610- ●
56 00.207 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97287-694-0 01 1 0610- ●
57 00.206 COVER; TIMING CHECK HOLE 5-11321-009-0 02 1 0610- ●
58 00.206 BOLT; CHECK HOLE COVER
03.162 M6X12 FLANGE 		0-28050-612-0 04 1 0610- ●
60 00.206 BOLT; COVER TO CASE
M8X30 FLANGE 		0-28050-830-0 08 1 0610- ●
60 00.206 BOLT; COVER TO CASE
M8X70 W/LK WASHER 		0-50540-870-0 06 1 0610- ●
60 00.206 BOLT; COVER TO CASE
M12X55 HEX SOCKET 		0-58331-255-0 01 1 0610- ●
60 00.206 BOLT; COVER TO CASE
01.252 M8X58 FLANGE 		8-94130-055-1 01 1 0610- ●
65 00.207 GASKET; COVER,TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97118-698-1 02 1 0610- ●
68 00.206 COVER ASM; GEAR CASE COVER 8-94155-721-1 01 1 0610- ●
69 00.206 SEAL; RUBBER,COVER TO COVER 8-94155-722-3 01 1 0610- ●
71 00.206 RUBBER; MTG,COVER
IDN 		5-19389-002-0 04 1 0610- ●
72 00.206 BUSHING; SPACER,COVER TO COVER
IDN 		5-19389-009-0 04 1 0610- ●
73 00.206 BOLT; COVER FIX
09.242 M6X16 FLANGE IDN 		0-28050-616-0 04 1 0610- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98209-640-0 01 1 1207- ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK> 		8-98209-640-0 01 1 1207- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0211-0507 ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0508-0609 ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0610-1206 ● ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 1207- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97351-704-0 01 1 0610- ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0211-0507 ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0508-0609 ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0610- ● ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 0610- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
