0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#78882) — 251 parça

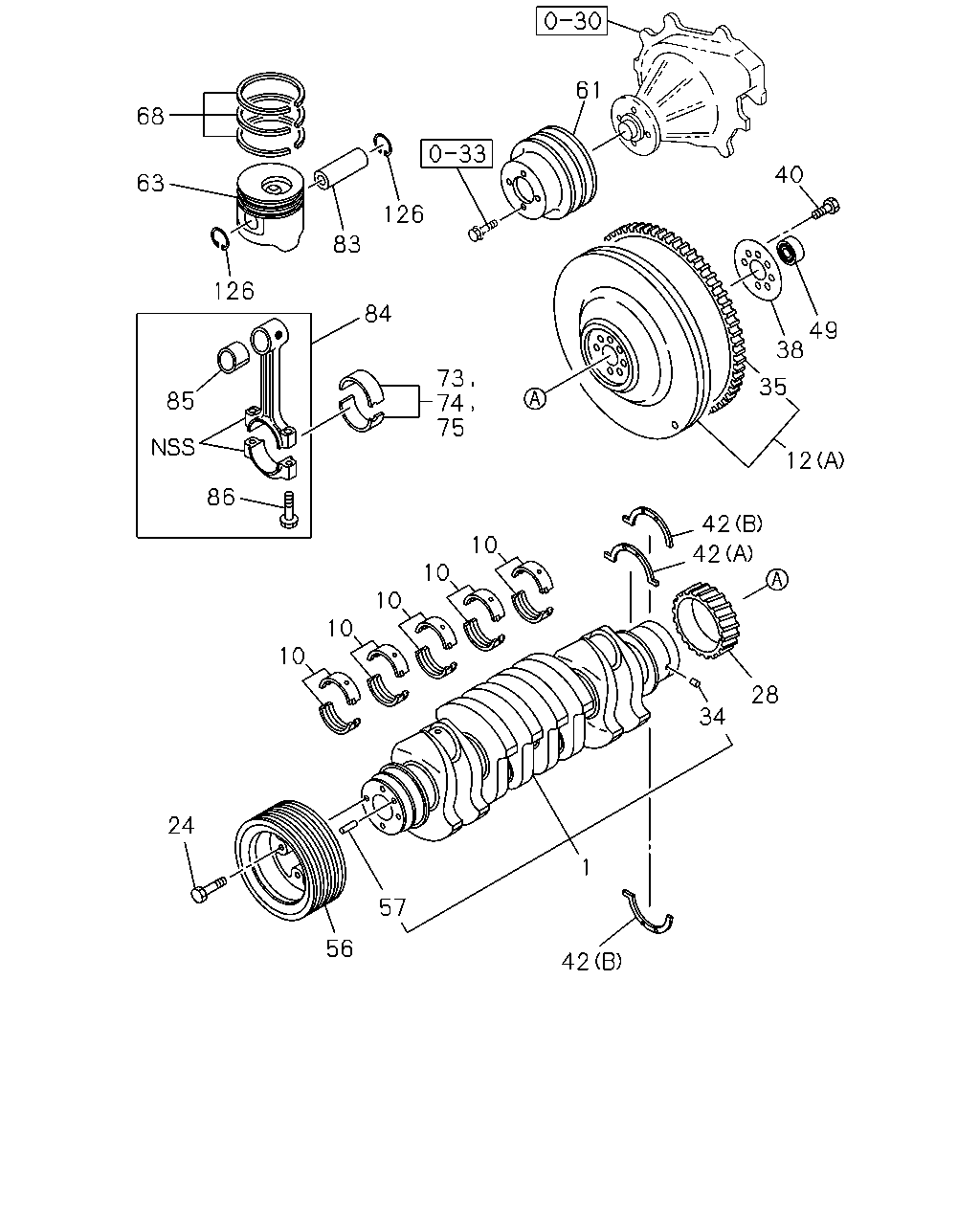

61 68 40 63 126 83 126 84 49 38 73 74 75 35 85 12 86 42 10 42 10 10 10 10 28 34 24 1 57 56 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	0211-0507	●	●
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	0508-0609	●		●
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	0610-	●		●	●
1	00.646 CRANKSHAFT	8-97331-853-1	01	1	0610-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97219-456-0	05	1	0211-0303	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97219-457-0	05	1	0211-0303	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97219-458-0	05	1	0211-0303	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-0	05	1	0308-0507	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-0	05	1	0508-0609	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	0610-	●		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-0	05	1	0308-0507	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-0	05	1	0508-0609	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	0610-	●		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-0	05	1	0308-0507	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-0	05	1	0508-0609	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	0610-	●		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	0610-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	0610-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	0610-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	05	1	0610-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	05	1	0610-					●
12	00.666 FLYWHEEL (A)	8-97330-892-0	01	1	0211-0507	●	●
12	00.666 FLYWHEEL (A)	8-97330-892-0	01	1	0508-0609	●		●
12	00.666 FLYWHEEL (A)	8-97330-892-1	01	1	0610-	●		●	●
12	00.666 FLYWHEEL (B) IDN	8-97034-430-2	01	1	0610-					●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	0211-0507	●	●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	0508-0609	●		●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	0610-	●		●	●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	0211-0507	●	●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	0508-0609	●		●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	0610-	●		●	●
28	00.728 GEAR; CR/SHF Z=21	8-97229-593-1	01	1	0610-					●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0211-0507	●	●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0508-0609	●		●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0610-	●		●	●
35	00.673 GEAR; RING Z=138	8-97046-366-0	01	1	0211-0507	●	●
35	00.673 GEAR; RING Z=138	8-97046-366-0	01	1	0508-0609	●		●
35	00.673 GEAR; RING Z=138	8-97046-366-1	01	1	0610-	●		●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0610-					●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-98210-373-0	01	1	1212-	●		●
38	00.862 WASHER; FLYWHEEL GLOW SYSTEM DELETE<7RK> ID=55 OD=110	8-98210-373-0	01	1	1212-				●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0211-0507	●	●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0508-0609	●		●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0610-1211	●		●	●
38	00.862 WASHER; FLYWHEEL FAST GLOW SYSTEM<KM6> ID=55 OD=110	8-94397-496-1	01	1	1212-				●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-1	01	1	0610-1005					●
38	00.862 WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1006-					●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0211-0507	●	●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0508-0609	●		●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0610-	●		●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0610-					●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0211-0507	●	●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0508-0609	●		●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0610-0703	●		●	●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-	●		●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0211-0507	●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0508-0609	●		●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0610-0703	●		●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-	●		●	●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-97383-740-0	02	1	0610-1108					●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-98040-704-0	02	1	1109-					●
49	00.669 BEARING; PILOT	8-98208-431-0	01	1	1207-	●		●
49	00.669 BEARING; PILOT GLOW SYSTEM DELETE<7RK>	8-98208-431-0	01	1	1207-				●
49	00.669 BEARING; PILOT	8-97258-239-0	01	1	0211-0507	●	●
49	00.669 BEARING; PILOT	8-97258-239-0	01	1	0508-0609	●		●
49	00.669 BEARING; PILOT	8-97258-239-0	01	1	0610-1206	●		●	●
49	00.669 BEARING; PILOT	8-97258-239-0	01	1	1207-				●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	0211-0507	●	●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	0508-0609	●		●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	0610-1206	●		●	●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	1207-				●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	0211-0507	●	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	0508-0609	●		●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	0610-	●		●	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97204-204-0	01	1	0610-					●
57	00.662 PIN; PULLEY 08.939 OD=8 L=16	9-08150-816-0	02	1	0211-0212	●	●
57	00.662 PIN; PULLEY 08.939 OD=8 L=20	9-08160-820-0	02	1	0301-0304	●	●
57	00.662 PIN; PULLEY 00.862 OD=8 L=20	9-08150-820-0	02	1	0305-0507	●	●
57	00.662 PIN; PULLEY 00.862 OD=8 L=20	9-08150-820-0	02	1	0508-0609	●		●
57	00.662 PIN; PULLEY 00.862 OD=8 L=20	9-08150-820-0	02	1	0610-	●		●	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	0211-0507	●	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	0508-0609	●		●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	0610-	●		●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	0610-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-2	04	1	0211-0507		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-2	04	1	0508-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-1	04	1	0211-1112	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-746-0	04	1	1201-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	0610-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	0610-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97219-032-1	04	1	0610-1112				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-745-0	04	1	1201-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	0211-0507		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	0508-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	0211-0609	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	0610-	●			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-2	04	1	0610-					●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	0211-0507	●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	0508-0609	●		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	0610-	●		●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	0211-0507	●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	0508-0609	●		●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	0610-	●		●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0610-					●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	0211-0507	●	●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	0508-0609	●		●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	0610-	●		●	●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	0211-0507	●	●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	0508-0609	●		●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	0610-	●		●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	0211-0507	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	0508-0609	●		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	0610-	●		●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	0610-					●
84	00.603 ROD ASM; CONN	8-97135-032-1	04	1	0211-0507	●	●
84	00.603 ROD ASM; CONN	8-97135-032-1	04	1	0508-0609	●		●
84	00.603 ROD ASM; CONN	8-97135-032-6	04	1	0610-	●		●	●
84	00.603 ROD ASM; CONN	8-98013-290-2	04	1	0610-0705					●
84	00.603 ROD ASM; CONN	8-98013-962-4	04	1	0706-					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	0211-0507	●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	0508-0609	●		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	0610-0805	●		●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. 00.603	8-98075-233-0	04	1	0806-0905	●		●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	04	1	0906-	●		●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	0610-0705					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97289-264-1	04	1	0706-					●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0211-0507	●	●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0508-0609	●		●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0610-1004	●		●	●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1005-	●		●	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0610-0701					●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0702-					●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	08	1	0211-0507	●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	08	1	0508-0609	●		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	08	1	0610-	●		●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	0610-					●

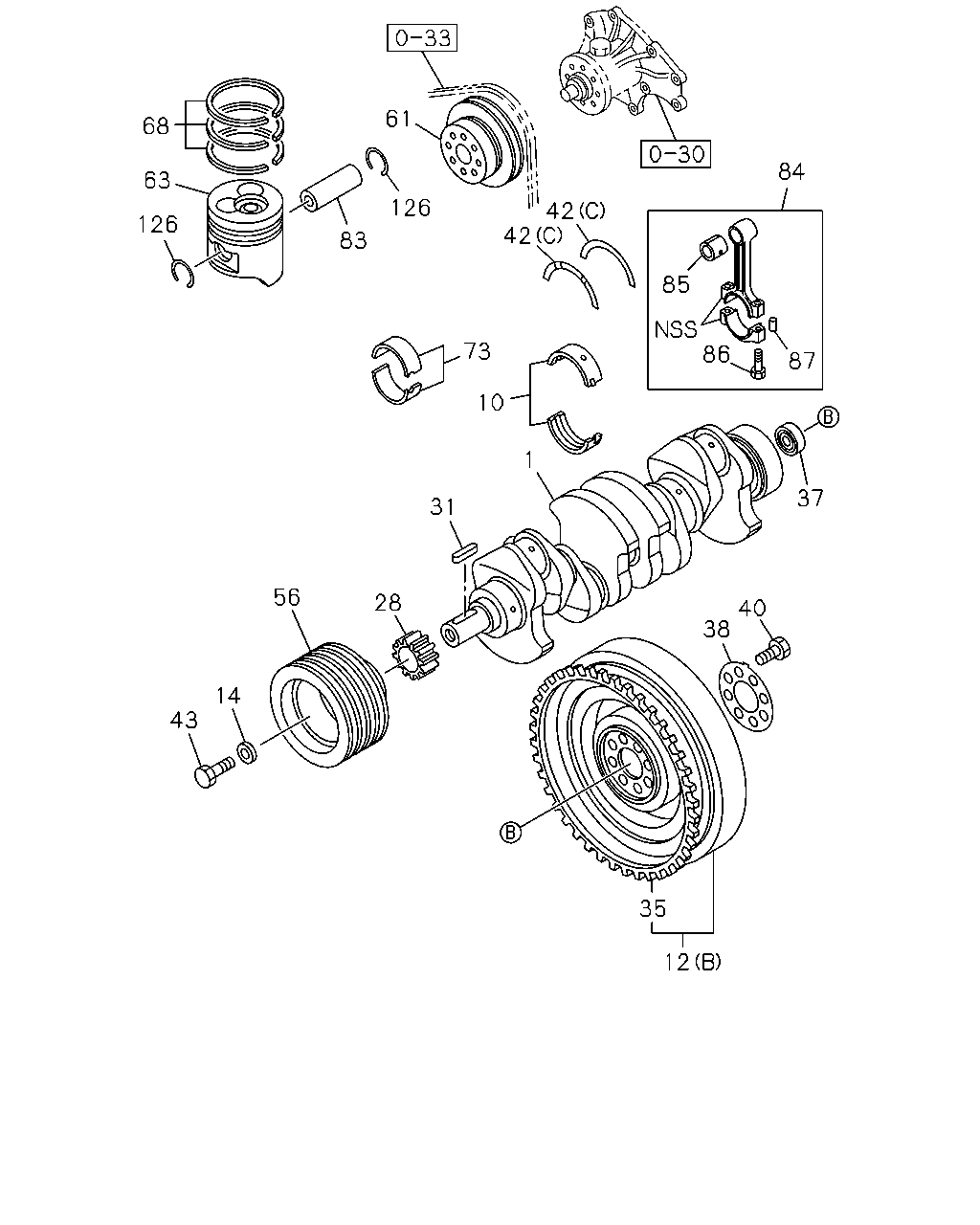

68 63 126 83 126 61 42 42 73 10 1 31 28 56 14 43 86 85 84 87 40 38 37 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	0211-0507	●	●
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	0508-0609	●		●
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	0610-	●		●	●
1	00.646 CRANKSHAFT	8-97331-853-1	01	1	0610-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97219-456-0	05	1	0211-0303	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97219-457-0	05	1	0211-0303	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97219-458-0	05	1	0211-0303	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-0	05	1	0308-0507	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-0	05	1	0508-0609	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	0610-	●		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-0	05	1	0308-0507	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-0	05	1	0508-0609	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	0610-	●		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-0	05	1	0308-0507	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-0	05	1	0508-0609	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	0610-	●		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	0610-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	0610-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	0610-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	05	1	0610-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	05	1	0610-					●
12	00.666 FLYWHEEL (A)	8-97330-892-0	01	1	0211-0507	●	●
12	00.666 FLYWHEEL (A)	8-97330-892-0	01	1	0508-0609	●		●
12	00.666 FLYWHEEL (A)	8-97330-892-1	01	1	0610-	●		●	●
12	00.666 FLYWHEEL (B) IDN	8-97034-430-2	01	1	0610-					●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	0610-					●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	0211-0507	●	●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	0508-0609	●		●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	0610-	●		●	●
28	00.728 GEAR; CR/SHF Z=21	8-97229-593-1	01	1	0610-					●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0610-					●
35	00.673 GEAR; RING Z=138	8-97046-366-0	01	1	0211-0507	●	●
35	00.673 GEAR; RING Z=138	8-97046-366-0	01	1	0508-0609	●		●
35	00.673 GEAR; RING Z=138	8-97046-366-1	01	1	0610-	●		●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0610-					●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	0610-					●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	5-87610-165-0	01	1	0610-					●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-98210-373-0	01	1	1212-	●		●
38	00.862 WASHER; FLYWHEEL GLOW SYSTEM DELETE<7RK> ID=55 OD=110	8-98210-373-0	01	1	1212-				●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0211-0507	●	●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0508-0609	●		●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0610-1211	●		●	●
38	00.862 WASHER; FLYWHEEL FAST GLOW SYSTEM<KM6> ID=55 OD=110	8-94397-496-1	01	1	1212-				●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-1	01	1	0610-1005					●
38	00.862 WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1006-					●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0211-0507	●	●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0508-0609	●		●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0610-	●		●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0610-					●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0211-0507	●	●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0508-0609	●		●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0610-0703	●		●	●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-	●		●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0211-0507	●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0508-0609	●		●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0610-0703	●		●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-	●		●	●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-97383-740-0	02	1	0610-1108					●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-98040-704-0	02	1	1109-					●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0610-					●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	0211-0507	●	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	0508-0609	●		●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	0610-	●		●	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97204-204-0	01	1	0610-					●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	0211-0507	●	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	0508-0609	●		●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	0610-	●		●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	0610-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-2	04	1	0211-0507		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-2	04	1	0508-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-1	04	1	0211-1112	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-746-0	04	1	1201-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	0610-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	0610-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97219-032-1	04	1	0610-1112				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-745-0	04	1	1201-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	0211-0507		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	0508-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	0211-0609	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	0610-	●			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-2	04	1	0610-					●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	0211-0507	●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	0508-0609	●		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	0610-	●		●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	0211-0507	●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	0508-0609	●		●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	0610-	●		●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0610-					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	0211-0507	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	0508-0609	●		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	0610-	●		●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	0610-					●
84	00.603 ROD ASM; CONN	8-97135-032-1	04	1	0211-0507	●	●
84	00.603 ROD ASM; CONN	8-97135-032-1	04	1	0508-0609	●		●
84	00.603 ROD ASM; CONN	8-97135-032-6	04	1	0610-	●		●	●
84	00.603 ROD ASM; CONN	8-98013-290-2	04	1	0610-0705					●
84	00.603 ROD ASM; CONN	8-98013-962-4	04	1	0706-					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	0211-0507	●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	0508-0609	●		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	0610-0805	●		●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. 00.603	8-98075-233-0	04	1	0806-0905	●		●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	04	1	0906-	●		●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	0610-0705					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97289-264-1	04	1	0706-					●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0211-0507	●	●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0508-0609	●		●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0610-1004	●		●	●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1005-	●		●	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0610-0701					●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0702-					●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0610-					●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	08	1	0211-0507	●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	08	1	0508-0609	●		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	08	1	0610-	●		●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	0610-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
