Sayfa 0-14 - Isuzu EPC

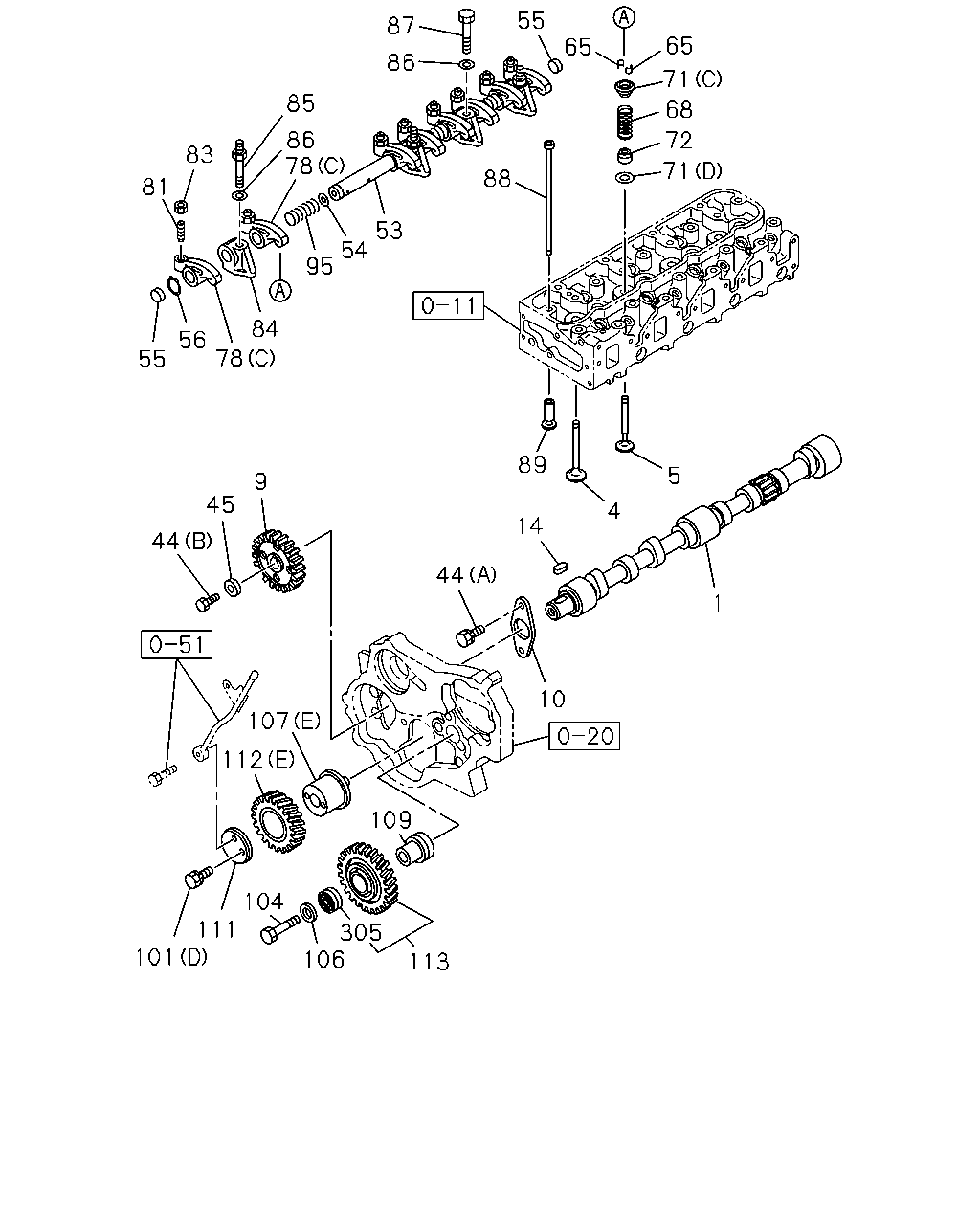

0-14 — CAMSHAFT AND VALVE (#78881) — 376 parça

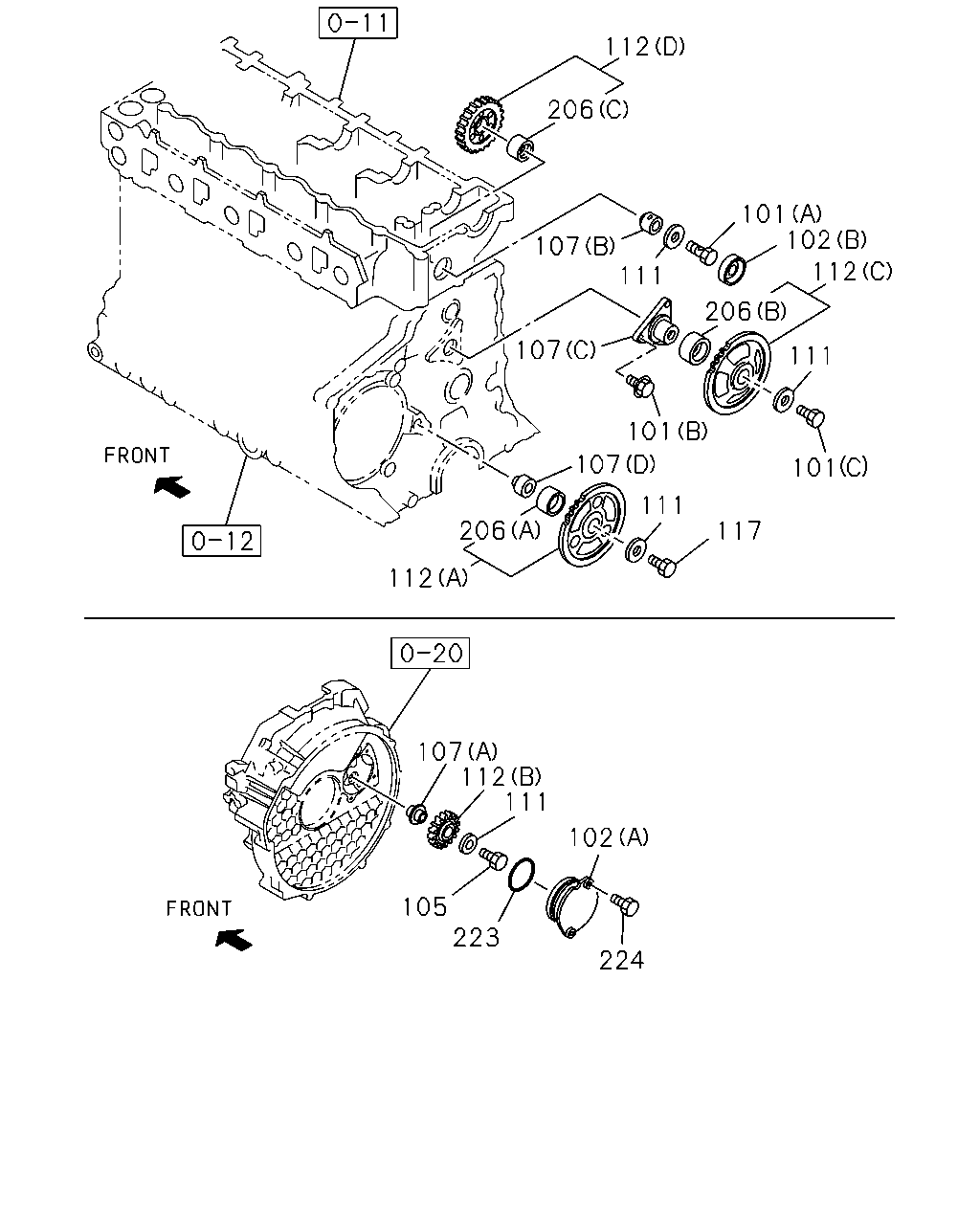

112 206 101 102 112 107 111 206 107 111 101 107 101 111 206 117 112 107 112 111 102 105 223 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0211-0507	●	●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0508-0512	●		●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-0609	●		●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0610-	●		●	●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0211-0507	●	●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0508-0609	●		●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0610-	●		●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0211-0507	●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0508-0609	●		●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0610-1310	●		●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-	●		●	●
101	00.724 BOLT; THRUST COLLAR (D) M8X53 FLANGE IDN	8-97223-999-0	02	1	0610-					●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-98209-813-0	01	1	1212-	●		●
102	00.724 COVER; IDLE GEAR GLOW SYSTEM DELETE<7RK> (B) OD=51	8-98209-813-0	01	1	1212-				●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0211-0507	●	●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0508-0609	●		●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0610-	●		●	●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0211-0507	●	●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0508-0609	●		●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0610-1211	●		●	●
102	00.724 COVER; IDLE GEAR FAST GLOW SYSTEM<KM6> (B) OD=51	8-97096-826-0	01	1	1212-				●
105	00.724 BOLT; IDLE GEAR SHAFT POWER STEERING<N40> 08.900 M14X60	9-91666-460-0	01	1	0211-0507	●	●
105	00.724 BOLT; IDLE GEAR SHAFT POWER STEERING<N40> 08.900 M14X60	9-91666-460-0	01	1	0508-0512	●		●
105	00.724 BOLT; IDLE GEAR SHAFT POWER STEERING<N40> M14X60	0-16956-460-0	01	1	0601-0609	●		●
105	00.724 BOLT; IDLE GEAR SHAFT POWER STEERING<N40> M14X60	0-16956-460-0	01	1	0610-	●		●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-98209-525-0	01	1	1212-	●		●
107	00.724 SHAFT; IDLE GEAR GLOW SYSTEM DELETE<7RK> (C)	8-98209-525-0	01	1	1212-				●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-0	01	1	0211-0507	●	●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-0	01	1	0508-0609	●		●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-1	01	1	0610-	●		●	●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0211-0507	●	●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0508-0609	●		●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0610-	●		●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0211-0507	●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0508-0609	●		●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0610-	●		●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0211-0507	●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0508-0609	●		●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0610-1211	●		●	●
107	00.724 SHAFT; IDLE GEAR FAST GLOW SYSTEM<KM6> (C)	8-97350-021-0	01	1	1212-				●
107	00.724 SHAFT; IDLE GEAR (E)	8-97920-007-0	01	1	0610-					●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46 IDN	8-98209-850-0	01	1	1212-1306	●		●
111	00.724 COLLAR; THRUST,IDLE GEAR GLOW SYSTEM DELETE<7RK> ID=14.5 OD=46 IDN	8-98209-850-0	01	1	1212-1306				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46 IDN	8-98209-850-0	03	1	1307-	●		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	0211-0507	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	0508-0609	●		●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	0610-1211	●		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	1212-1306	●		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	1212-1306				●
111	00.724 COLLAR; THRUST,IDLE GEAR FAST GLOW SYSTEM<KM6> ID=14.5 OD=46	8-97209-728-2	04	1	1307-				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0211-0507	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0508-0609	●		●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0610-1211	●		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	02	1	1212-1306	●		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46 IDN	8-98209-850-0	01	1	1307-	●		●
111	00.724 COLLAR; THRUST,IDLE GEAR GLOW SYSTEM DELETE<7RK> POWER STEERING<N40> ID=14.5 OD=46 IDN	8-98209-850-0	01	1	1307-				●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	0610-					●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	0211-0507	●	●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	0508-0609	●		●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-1	01	1	0610-	●		●	●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	0211-0507	●	●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-2	01	1	0508-	●		●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	0211-0507	●	●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-2	01	1	0508-	●		●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97227-213-0	01	1	0211-0507	●	●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97227-213-0	01	1	0508-	●		●
112	00.724 GEAR; IDLE (E) Z=31	8-97229-601-0	01	1	0610-					●
112	00.724 GEAR; IDLE (C) Z=61	8-97094-546-2	01	1	0610-				●
112	00.724 GEAR; IDLE (D) Z=41	8-97112-607-1	01	1	0610-				●
112	00.724 GEAR; IDLE (A) Z=72-30	8-97227-074-0	01	1	0610-				●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0211-0507	●	●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0508-0609	●		●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0610-	●		●	●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0211-0507	●	●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0508-0609	●		●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0610-	●		●	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0211-0507	●	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0508-0609	●		●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0610-0802	●		●	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0803-	●		●	●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0211-0507	●	●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0508-0609	●		●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0610-0809	●		●	●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0810-	●		●	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). 04.854 ID=105.6	1-09623-247-0	01	1	0211-0211	●	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0212-0507	●	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0508-0609	●		●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0610-	●		●	●
224	00.724 BOLT; COVER 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0507	●	●
224	00.724 BOLT; COVER 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0508-0512	●		●
224	00.724 BOLT; COVER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-0609	●		●
224	00.724 BOLT; COVER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0610-	●		●	●

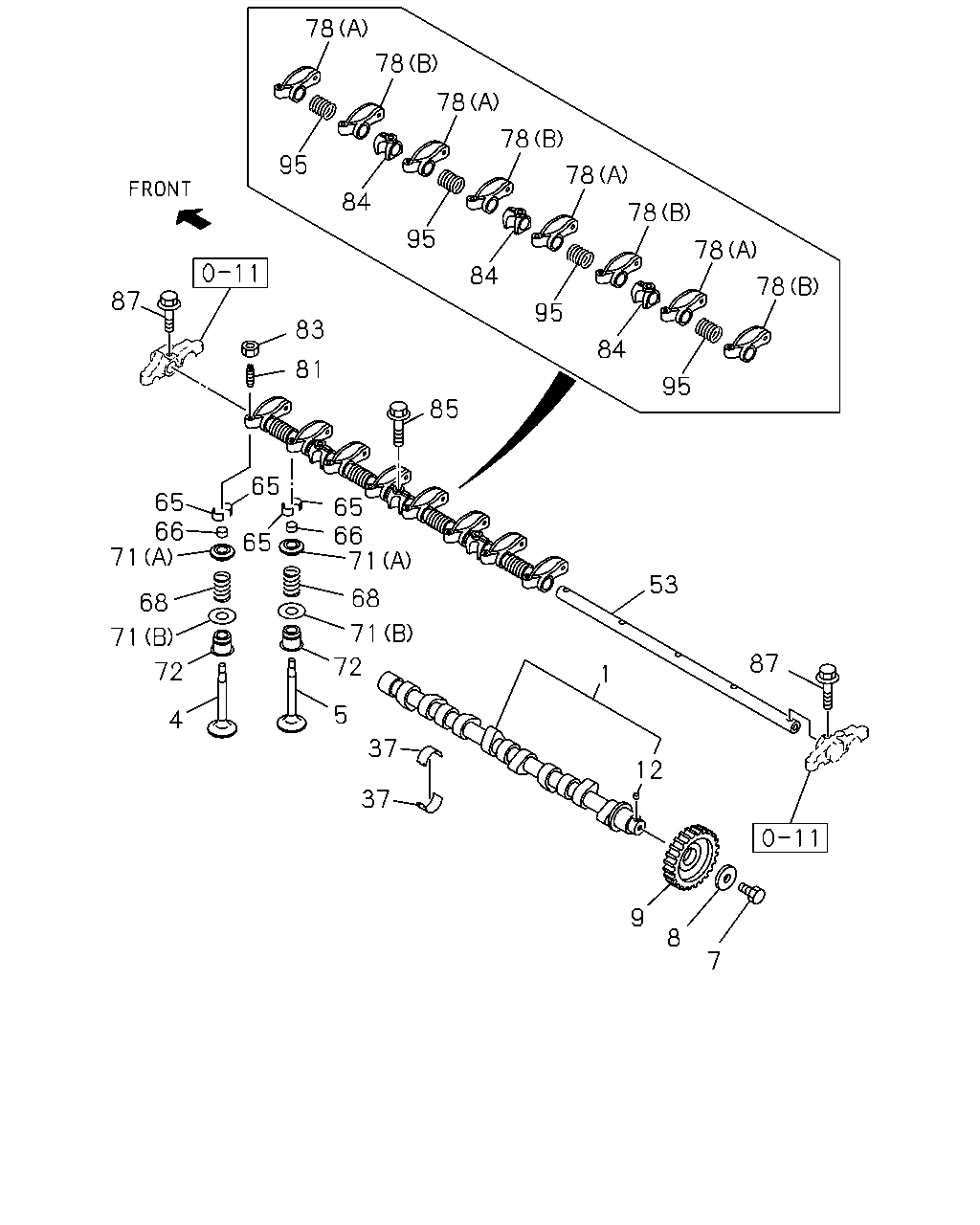

78 78 78 78 95 78 84 78 95 78 84 78 87 95 83 84 81 95 85 65 66 71 65 65 66 71 65 53 68 68 71 71 87 72 72 1 5 4 37 12 37 9 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.519 CAMSHAFT	8-97077-829-0	01	1	0211-0507	●	●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	0508-0609	●		●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	0610-	●		●	●
1	00.519 CAMSHAFT IDN	8-97287-657-1	01	1	0610-					●
4	00.296 VALVE; INL	8-97171-398-0	04	1	0211-0507	●	●
4	00.296 VALVE; INL	8-97171-398-0	04	1	0508-0609	●		●
4	00.296 VALVE; INL	8-97171-398-0	04	1	0610-	●		●	●
4	00.296 VALVE; INL	8-94464-921-2	04	1	0610-					●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	0211-0507	●	●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	0508-0609	●		●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	0610-	●		●	●
5	00.297 VALVE; EXH	8-94433-245-1	04	1	0610-1405					●
5	00.297 VALVE; EXH	8-98277-383-0	04	1	1406-					●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0211-0507	●	●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0508-0609	●		●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0610-	●		●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	8-98209-848-0	01	1	1212-	●		●
8	00.738 WASHER; CM/SHF GEAR GLOW SYSTEM DELETE<7RK> ID=14.5	8-98209-848-0	01	1	1212-				●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0211-0507	●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0508-0609	●		●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0610-1211	●		●	●
8	00.738 WASHER; CM/SHF GEAR FAST GLOW SYSTEM<KM6> ID=14.5	9-09851-850-3	01	1	1212-				●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	0211-0507	●	●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	0508-	●		●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-1	01	1	0610-0911					●
9	00.736 GEAR; CM/SHF Z=42	8-97229-594-2	01	1	0912-					●
9	00.736 GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0610-				●
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	0211-0507	●	●
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	0508-0609	●		●
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	0610-	●		●	●
37	00.539 METAL; CM/SHF B=16	8-97356-939-0	10	1	0211-0507	●	●
37	00.539 METAL; CM/SHF B=16	8-97356-939-0	10	1	0508-0609	●		●
37	00.539 METAL; CM/SHF B=16	8-97356-939-0	10	1	0610-0706	●		●	●
37	00.539 METAL; CM/SHF B=16	8-97386-189-0	10	1	0707-	●		●	●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0211-0507	●	●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0508-0609	●		●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0610-	●		●	●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0211-0507	●	●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0508-0609	●		●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0610-	●		●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0610-					●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	0211-0507	●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	0508-0609	●		●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	0610-	●		●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0610-					●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	0211-0507	●	●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	0508-0609	●		●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	0610-	●		●	●
68	00.303 SPRING; VLV INJ PUMP Q SET SPECIAL +5%Q<T1A> IDN	8-98276-958-0	08	1	1507-					●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	0211-0507	●	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	0508-0609	●		●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	0610-	●		●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0610-1506					●
68	00.303 SPRING; VLV EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> H=48 NATURAL	8-94433-247-0	08	1	1507-					●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0211-0507	●	●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0508-0609	●		●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0610-	●		●	●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0211-0507	●	●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0508-0609	●		●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0610-	●		●	●
71	00.309 SEAT; SPR (D) OD=34	5-12563-001-0	08	1	0610-					●
71	00.309 SEAT; SPR (C) OD=32.8	8-94133-731-2	08	1	0610-					●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-94396-609-2	08	1	0211-0507	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-94396-609-2	08	1	0508-0609	●		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-94396-609-2	08	1	0610-	●		●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97120-307-0	08	1	0610-					●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0211-0507	●	●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0508-0609	●		●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0610-	●		●	●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0211-0507	●	●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0508-0609	●		●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0610-	●		●	●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0211-0507	●	●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0508-0609	●		●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0610-	●		●	●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0211-0507	●	●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0508-0609	●		●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0610-	●		●	●
78	00.333 ARM; ROCKER (C)	8-94152-344-0	08	1	0610-					●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0211-0507	●	●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0508-0609	●		●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0610-	●		●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	0610-					●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	0211-0507	●	●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	0508-0512	●		●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0601-0609	●		●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0610-	●		●	●
83	00.787 NUT; ADJ SCREW,LK 00.777 M8	0-91111-508-0	08	1	0610-					●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0211-0507	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0508-0609	●		●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0610-	●		●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0211-0507	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0508-0609	●		●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0610-	●		●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0610-					●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	0211-0507	●	●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	0508-0609	●		●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	0610-	●		●	●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0211-0507	●	●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0508-0609	●		●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0610-	●		●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0610-					●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	0211-0507	●	●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	0508-0512	●		●
87	00.349 BOLT; ROCKER SHAFT 03.162 M8X35 FLANGE	0-28050-835-0	02	1	0601-0609	●		●
87	00.349 BOLT; ROCKER SHAFT 03.162 M8X35 FLANGE	0-28050-835-0	02	1	0610-	●		●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0610-					●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0211-0507	●	●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0508-0609	●		●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0610-	●		●	●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0211-0507	●	●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0508-0609	●		●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0610-	●		●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0610-					●

55 87 65 65 86 71 85 68 86 78 72 83 71 88 81 53 54 95 84 56 78 55 89 5 9 45 4 14 44 44 1 10 107 112 109 104 111 101 305 106 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.519 CAMSHAFT	8-97077-829-0	01	1	0211-0507	●	●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	0508-0609	●		●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	0610-	●		●	●
1	00.519 CAMSHAFT IDN	8-97287-657-1	01	1	0610-					●
4	00.296 VALVE; INL	8-97171-398-0	04	1	0211-0507	●	●
4	00.296 VALVE; INL	8-97171-398-0	04	1	0508-0609	●		●
4	00.296 VALVE; INL	8-97171-398-0	04	1	0610-	●		●	●
4	00.296 VALVE; INL	8-94464-921-2	04	1	0610-					●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	0211-0507	●	●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	0508-0609	●		●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	0610-	●		●	●
5	00.297 VALVE; EXH	8-94433-245-1	04	1	0610-1405					●
5	00.297 VALVE; EXH	8-98277-383-0	04	1	1406-					●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	0211-0507	●	●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	0508-	●		●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-1	01	1	0610-0911					●
9	00.736 GEAR; CM/SHF Z=42	8-97229-594-2	01	1	0912-					●
9	00.736 GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0610-				●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	0610-					●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0610-					●
44	00.738 BOLT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0610-					●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	0610-					●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0610-					●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0211-0507	●	●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0508-0609	●		●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0610-	●		●	●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0211-0507	●	●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0508-0609	●		●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0610-	●		●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0610-					●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0610-					●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0610-					●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0610-					●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	0211-0507	●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	0508-0609	●		●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	0610-	●		●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0610-					●
68	00.303 SPRING; VLV INJ PUMP Q SET SPECIAL +5%Q<T1A> IDN	8-98276-958-0	08	1	1507-					●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	0211-0507	●	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	0508-0609	●		●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	0610-	●		●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0610-1506					●
68	00.303 SPRING; VLV EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> H=48 NATURAL	8-94433-247-0	08	1	1507-					●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0211-0507	●	●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0508-0609	●		●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0610-	●		●	●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0211-0507	●	●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0508-0609	●		●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0610-	●		●	●
71	00.309 SEAT; SPR (D) OD=34	5-12563-001-0	08	1	0610-					●
71	00.309 SEAT; SPR (C) OD=32.8	8-94133-731-2	08	1	0610-					●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-94396-609-2	08	1	0211-0507	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-94396-609-2	08	1	0508-0609	●		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-94396-609-2	08	1	0610-	●		●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97120-307-0	08	1	0610-					●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0211-0507	●	●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0508-0609	●		●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0610-	●		●	●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0211-0507	●	●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0508-0609	●		●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0610-	●		●	●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0211-0507	●	●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0508-0609	●		●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0610-	●		●	●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0211-0507	●	●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0508-0609	●		●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0610-	●		●	●
78	00.333 ARM; ROCKER (C)	8-94152-344-0	08	1	0610-					●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0211-0507	●	●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0508-0609	●		●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0610-	●		●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	0610-					●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	0211-0507	●	●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	0508-0512	●		●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0601-0609	●		●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0610-	●		●	●
83	00.787 NUT; ADJ SCREW,LK 00.777 M8	0-91111-508-0	08	1	0610-					●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0211-0507	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0508-0609	●		●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0610-	●		●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0211-0507	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0508-0609	●		●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0610-	●		●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0610-					●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	0211-0507	●	●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	0508-0609	●		●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	0610-	●		●	●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0211-0507	●	●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0508-0609	●		●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0610-	●		●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0610-					●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0610-					●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	0211-0507	●	●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	0508-0512	●		●
87	00.349 BOLT; ROCKER SHAFT 03.162 M8X35 FLANGE	0-28050-835-0	02	1	0601-0609	●		●
87	00.349 BOLT; ROCKER SHAFT 03.162 M8X35 FLANGE	0-28050-835-0	02	1	0610-	●		●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0610-					●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	0610-					●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0610-					●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0211-0507	●	●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0508-0609	●		●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0610-	●		●	●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0211-0507	●	●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0508-0609	●		●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0610-	●		●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0610-					●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0211-0507	●	●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0508-0512	●		●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-0609	●		●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0610-	●		●	●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0211-0507	●	●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0508-0609	●		●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0610-	●		●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0211-0507	●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0508-0609	●		●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0610-1310	●		●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-	●		●	●
101	00.724 BOLT; THRUST COLLAR (D) M8X53 FLANGE IDN	8-97223-999-0	02	1	0610-					●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	0610-					●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	0610-					●
107	00.724 SHAFT; IDLE GEAR (C)	8-98209-525-0	01	1	1212-	●		●
107	00.724 SHAFT; IDLE GEAR GLOW SYSTEM DELETE<7RK> (C)	8-98209-525-0	01	1	1212-				●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-0	01	1	0211-0507	●	●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-0	01	1	0508-0609	●		●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-1	01	1	0610-	●		●	●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0211-0507	●	●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0508-0609	●		●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0610-	●		●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0211-0507	●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0508-0609	●		●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0610-	●		●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0211-0507	●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0508-0609	●		●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0610-1211	●		●	●
107	00.724 SHAFT; IDLE GEAR FAST GLOW SYSTEM<KM6> (C)	8-97350-021-0	01	1	1212-				●
107	00.724 SHAFT; IDLE GEAR (E)	8-97920-007-0	01	1	0610-					●
109	00.724 SHAFT; IDLE GEAR	8-97218-780-0	01	1	0610-					●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46 IDN	8-98209-850-0	01	1	1212-1306	●		●
111	00.724 COLLAR; THRUST,IDLE GEAR GLOW SYSTEM DELETE<7RK> ID=14.5 OD=46 IDN	8-98209-850-0	01	1	1212-1306				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46 IDN	8-98209-850-0	03	1	1307-	●		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	0211-0507	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	0508-0609	●		●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	0610-1211	●		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	1212-1306	●		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	1212-1306				●
111	00.724 COLLAR; THRUST,IDLE GEAR FAST GLOW SYSTEM<KM6> ID=14.5 OD=46	8-97209-728-2	04	1	1307-				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0211-0507	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0508-0609	●		●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0610-1211	●		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	02	1	1212-1306	●		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46 IDN	8-98209-850-0	01	1	1307-	●		●
111	00.724 COLLAR; THRUST,IDLE GEAR GLOW SYSTEM DELETE<7RK> POWER STEERING<N40> ID=14.5 OD=46 IDN	8-98209-850-0	01	1	1307-				●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	0610-					●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	0211-0507	●	●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	0508-0609	●		●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-1	01	1	0610-	●		●	●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	0211-0507	●	●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-2	01	1	0508-	●		●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	0211-0507	●	●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-2	01	1	0508-	●		●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97227-213-0	01	1	0211-0507	●	●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97227-213-0	01	1	0508-	●		●
112	00.724 GEAR; IDLE (E) Z=31	8-97229-601-0	01	1	0610-					●
112	00.724 GEAR; IDLE (C) Z=61	8-97094-546-2	01	1	0610-				●
112	00.724 GEAR; IDLE (D) Z=41	8-97112-607-1	01	1	0610-				●
112	00.724 GEAR; IDLE (A) Z=72-30	8-97227-074-0	01	1	0610-				●
113	00.724 GEAR; IDLE Z=37	8-97229-602-0	01	1	0610-0908					●
113	00.724 GEAR; IDLE Z=37 IDN	8-98140-217-0	01	1	0909-					●
305	00.724 BEARING; IDLE GEAR	8-97218-947-1	01	1	0610-0908					●
305	00.724 BEARING; IDLE GEAR	8-98140-110-0	01	1	0909-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
