0-13 — OIL PAN AND LEVEL GAUGE (#78880) — 154 parça

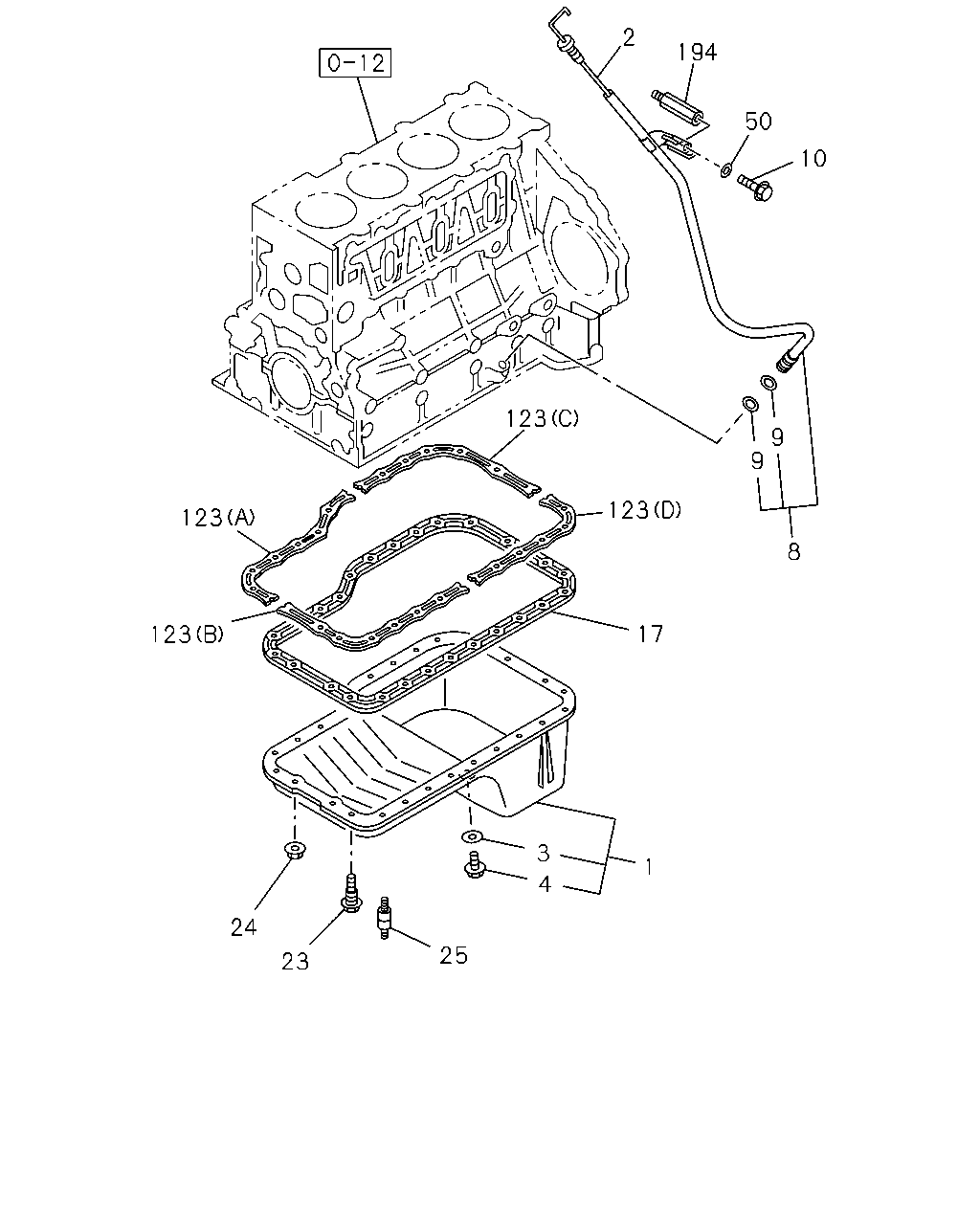

123 123 24 23 25 4 3 1 17 123 123 8 9 9 10 50 194 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0211-0405	●	●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0406-0507	●	●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0508-0609	●		●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0610-1202	●		●	●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1203-	●		●	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0610-					●
2	01.516 GAUGE; OIL LEVEL	8-98210-002-0	01	1	1212-	●		●
2	01.516 GAUGE; OIL LEVEL GLOW SYSTEM DELETE<7RK>	8-98210-002-0	01	1	1212-				●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0211-0507	●	●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0508-0609	●		●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0610-1211	●		●	●
2	01.516 GAUGE; OIL LEVEL FAST GLOW SYSTEM<KM6>	8-97094-460-2	01	1	1212-				●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0610-					●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0211-0507	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0508-0609	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0610-	●		●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14 IDN	8-94152-613-0	01	1	0211-0507	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14 IDN	8-94152-613-0	01	1	0508-0609	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14 IDN	8-94152-613-0	01	1	0610-	●		●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0211-0507	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0508-	●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	0610-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	0610-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0211-0507	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0508-0609	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0610-	●		●	●	●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0507	●	●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0508-0512	●		●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE IDN	0-28650-820-0	01	1	0601-	●		●
10	01.516 BOLT; GUIDE TUBE 09.171 M10X110 FLANGE	0-28156-011-0	01	1	0610-				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97190-191-1	01	1	0211-0402	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	0403-0507	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	0508-0609	●		●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	0610-	●		●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0211-0507	●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0508-0609	●		●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0610-	●		●	●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0211-0507	●	●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0508-0602	●		●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE IDN	0-91180-108-0	13	1	0603-0609	●		●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE IDN	0-91180-108-0	13	1	0610-	●		●	●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0211-0507	●	●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0508-0609	●		●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0610-	●		●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0211-0507	●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0508-0609	●		●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0610-	●		●	●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	0211-0507	●	●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	0508-0605	●		●
50	01.516 WASHER; PL,GUIDE TUBE 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0606-	●		●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0211-0507	●	●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0508-0609	●		●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0610-	●		●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0211-0507	●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0508-0609	●		●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0610-	●		●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0211-0507	●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0508-0609	●		●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0610-	●		●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0211-0507	●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0508-0609	●		●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0610-	●		●	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0211-0507	●	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0508-	●		●

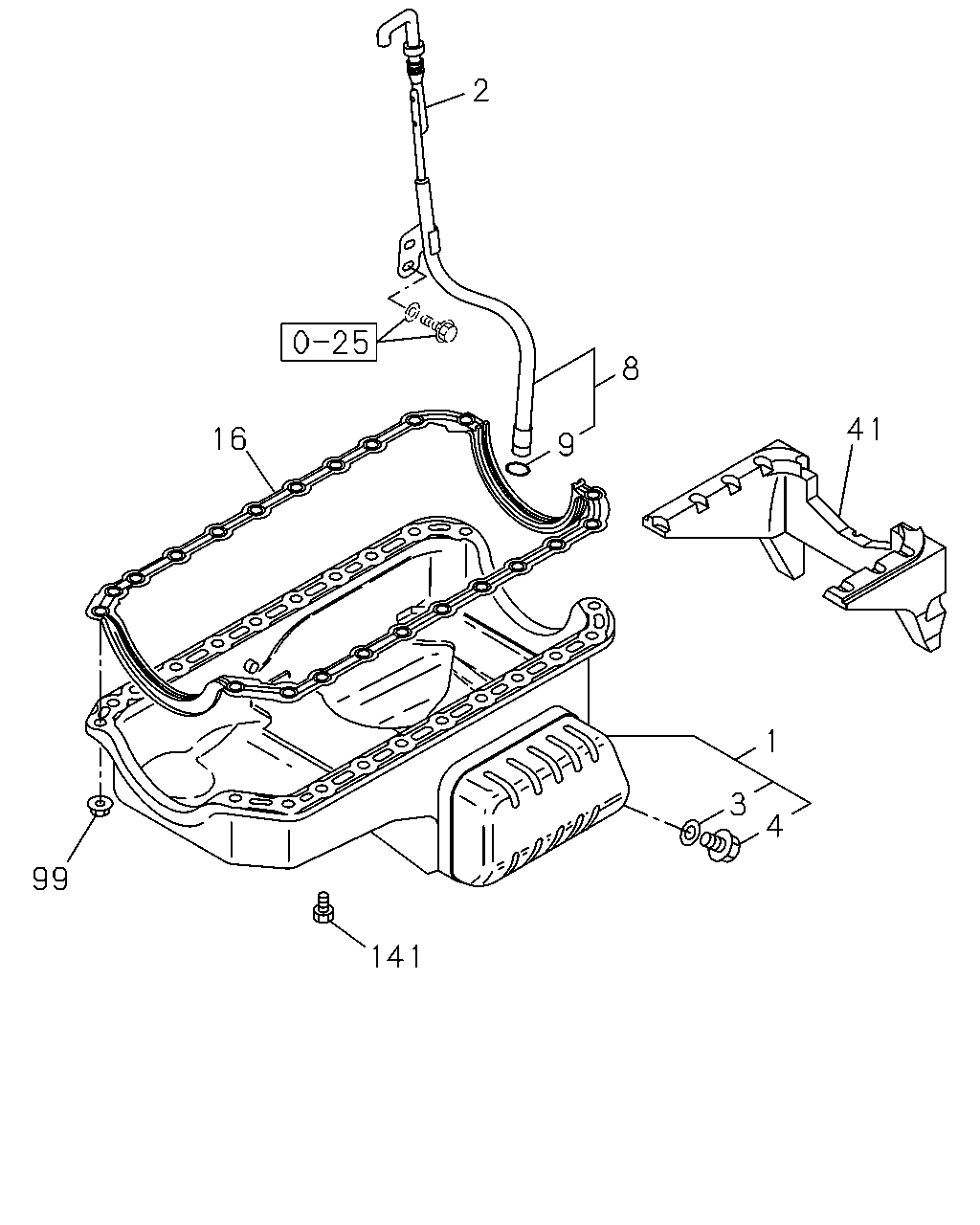

2 8 41 16 9 1 3 4 99 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0211-0405	●	●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0406-0507	●	●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0508-0609	●		●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0610-1202	●		●	●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1203-	●		●	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0610-					●
2	01.516 GAUGE; OIL LEVEL	8-98210-002-0	01	1	1212-	●		●
2	01.516 GAUGE; OIL LEVEL GLOW SYSTEM DELETE<7RK>	8-98210-002-0	01	1	1212-				●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0211-0507	●	●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0508-0609	●		●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0610-1211	●		●	●
2	01.516 GAUGE; OIL LEVEL FAST GLOW SYSTEM<KM6>	8-97094-460-2	01	1	1212-				●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0610-					●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0211-0507	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0508-0609	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0610-	●		●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14 IDN	8-94152-613-0	01	1	0211-0507	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14 IDN	8-94152-613-0	01	1	0508-0609	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14 IDN	8-94152-613-0	01	1	0610-	●		●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0211-0507	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0508-	●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	0610-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	0610-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0211-0507	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0508-0609	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0610-	●		●	●	●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	0610-					●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0610-1204					●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0610-					●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0610-					●

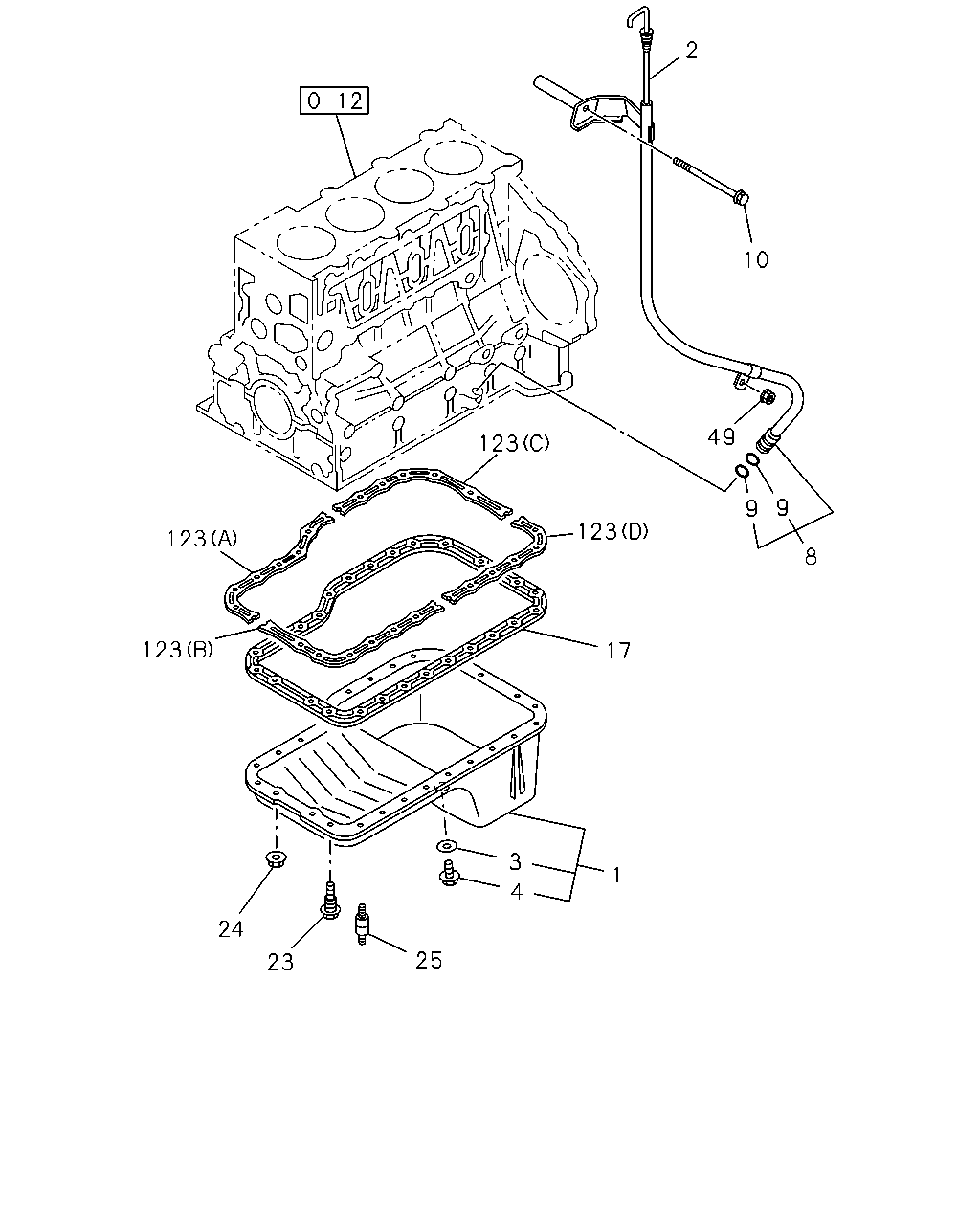

9 9 8 49 10 2 123 123 17 1 4 3 25 23 24 123 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0211-0405	●	●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0406-0507	●	●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0508-0609	●		●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0610-1202	●		●	●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1203-	●		●	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0610-					●
2	01.516 GAUGE; OIL LEVEL	8-98210-002-0	01	1	1212-	●		●
2	01.516 GAUGE; OIL LEVEL GLOW SYSTEM DELETE<7RK>	8-98210-002-0	01	1	1212-				●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0211-0507	●	●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0508-0609	●		●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0610-1211	●		●	●
2	01.516 GAUGE; OIL LEVEL FAST GLOW SYSTEM<KM6>	8-97094-460-2	01	1	1212-				●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0610-					●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0211-0507	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0508-0609	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0610-	●		●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14 IDN	8-94152-613-0	01	1	0211-0507	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14 IDN	8-94152-613-0	01	1	0508-0609	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14 IDN	8-94152-613-0	01	1	0610-	●		●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0211-0507	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0508-	●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	0610-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	0610-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0211-0507	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0508-0609	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0610-	●		●	●	●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0507	●	●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0508-0512	●		●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE IDN	0-28650-820-0	01	1	0601-	●		●
10	01.516 BOLT; GUIDE TUBE 09.171 M10X110 FLANGE	0-28156-011-0	01	1	0610-				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97190-191-1	01	1	0211-0402	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	0403-0507	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	0508-0609	●		●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	0610-	●		●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0211-0507	●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0508-0609	●		●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0610-	●		●	●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0211-0507	●	●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0508-0602	●		●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE IDN	0-91180-108-0	13	1	0603-0609	●		●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE IDN	0-91180-108-0	13	1	0610-	●		●	●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0211-0507	●	●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0508-0609	●		●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0610-	●		●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0211-0507	●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0508-0609	●		●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0610-	●		●	●
49	01.516 NUT; GUIDE TUBE 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	0610-				●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0211-0507	●	●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0508-0609	●		●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0610-	●		●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0211-0507	●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0508-0609	●		●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0610-	●		●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0211-0507	●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0508-0609	●		●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0610-	●		●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0211-0507	●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0508-0609	●		●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0610-	●		●	●
