0-10 — CYLINDER HEAD COVER (#78877) — 89 parça

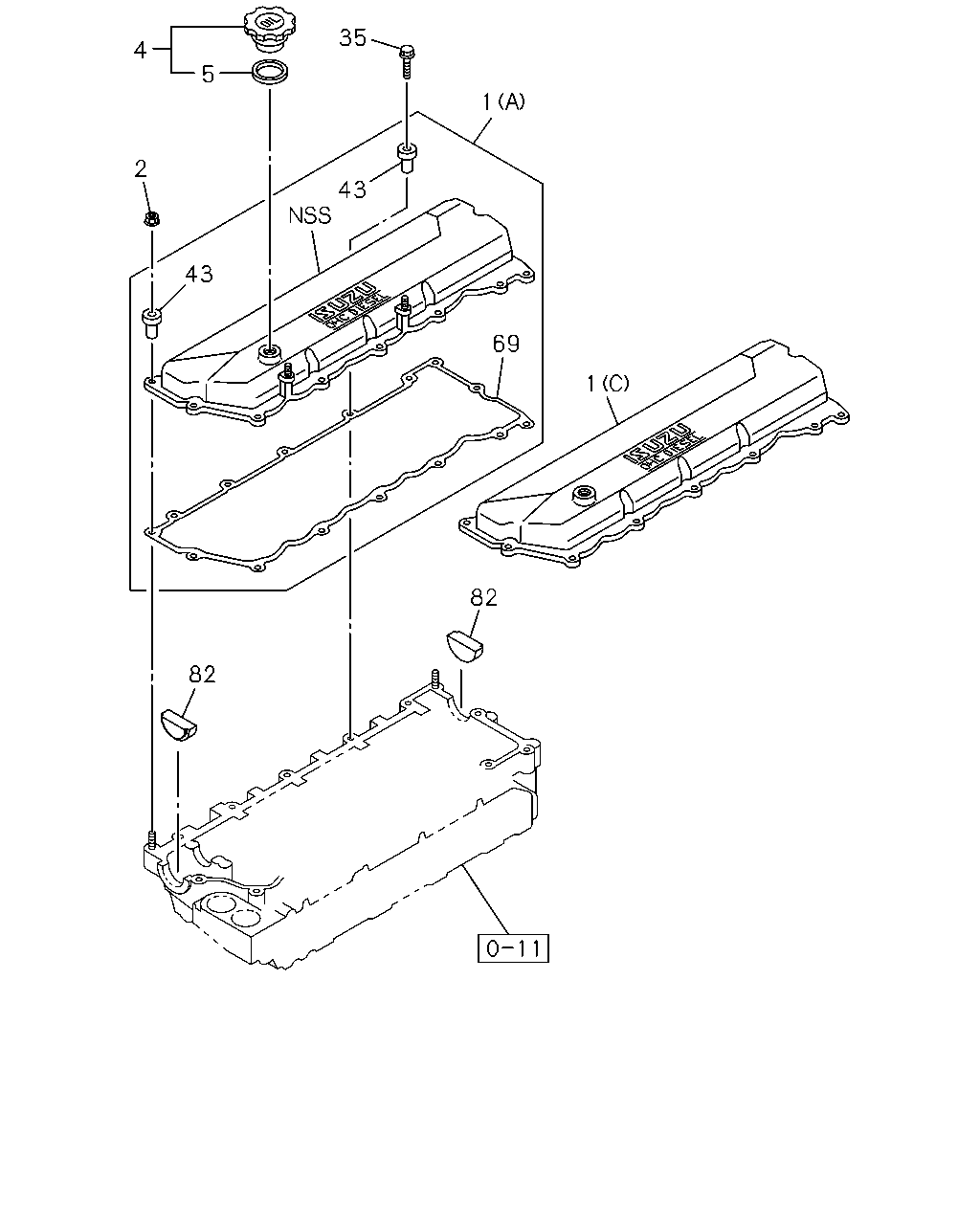

4 35 5 2 43 43 1 69 82 82 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.386 COVER; CYL HD (C)	8-98210-092-0	01	1	1207-	●	●
1	00.386 COVER; CYL HD GLOW SYSTEM DELETE<7RK> (C)	8-98210-092-0	01	1	1207-			●
1	00.386 COVER; CYL HD (A) IDN	8-97226-760-1	01	1	0211-0507	●			●
1	00.386 COVER; CYL HD (A) IDN	8-97226-760-1	01	1	0508-0910	●	●
1	00.386 COVER; CYL HD (B)	8-94476-696-1	01	1	0610-					●
1	00.386 COVER; CYL HD (A)	8-97113-025-3	01	1	0610-0910			●
1	00.386 COVER; CYL HD (A)	8-97113-025-3	01	1	0911-1006	●	●	●
1	00.386 COVER; CYL HD (A)	8-98171-615-0	01	1	1007-1206	●	●	●
1	00.386 COVER; CYL HD (A)	8-98171-615-0	01	1	1207-			●
2	00.413 NUT; COVER,HD VIN MODEL YEAR 2014(VZE) 01.062 M8 FLANGE IDN	0-91180-108-0	03	1	1405-1405			●
2	00.413 NUT; COVER,HD VIN MODEL YEAR 2015(VZF) 01.062 M8 FLANGE IDN	0-91180-108-0	03	1	1406-			●
2	00.413 NUT; COVER,HD 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0507	●			●
2	00.413 NUT; COVER,HD 07.633 M8 FLANGE	0-91150-108-0	02	1	0508-0602	●	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0603-0609	●	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-1404	●	●	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1405-1405	●	●
2	00.413 NUT; COVER,HD EXC. VIN MODEL YEAR 2014(VZE) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1405-1405			●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1406-	●	●
2	00.413 NUT; COVER,HD EXC. VIN MODEL YEAR 2015(VZF) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1406-			●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-1404			●
2	00.413 NUT; COVER,HD EXC. VIN MODEL YEAR 2014(VZE) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1405-1405			●
2	00.413 NUT; COVER,HD EXC. VIN MODEL YEAR 2015(VZF) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1406-			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0211-0507	●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0508-0609	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0610-	●	●	●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0211-0507	●			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0508-0609	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0610-1008	●	●	●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1009-	●	●	●
35	00.293 BOLT; NOISE SHIELD COVER 03.704 M8X40 FLANGE	0-28680-840-0	06	1	0211-0507	●			●
35	00.293 BOLT; NOISE SHIELD COVER 03.704 M8X40 FLANGE	0-28680-840-0	06	1	0508-0512	●	●
35	00.293 BOLT; NOISE SHIELD COVER 00.685 M8X40 FLANGE	0-28650-840-0	06	1	0601-0910	●	●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	13	1	0911-	●	●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	12	1	0610-			●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=23 IDN	8-97190-120-2	08	1	0211-0507	●			●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=23 IDN	8-97190-120-2	08	1	0508-0910	●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	0610-0910			●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	0911-1206	●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98207-973-0	01	1	1207-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D) GLOW SYSTEM DELETE<7RK>	8-98207-973-0	01	1	1207-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97189-871-1	01	1	0211-0507	●			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97189-871-1	01	1	0508-0910	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97349-416-1	01	1	0610-					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97105-690-2	01	1	0610-0910			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97105-690-2	01	1	0911-1206	●	●	●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0211-0507	●			●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0508-0609	●	●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0610-1005	●	●	●
82	00.386 PLUG; CYL HD COVER	8-98163-813-0	02	1	1006-	●	●	●

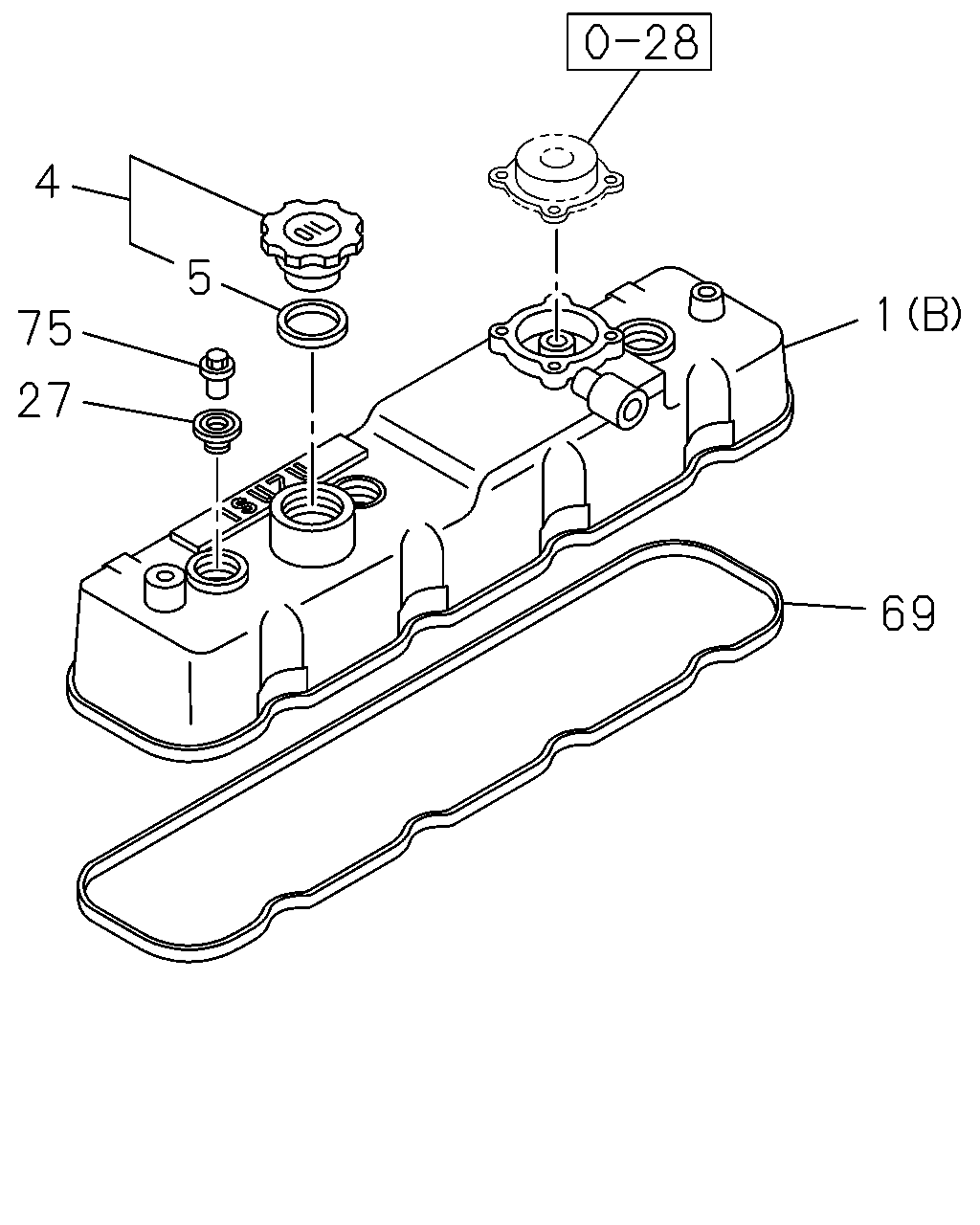

4 75 27 1 69 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.386 COVER; CYL HD (C)	8-98210-092-0	01	1	1207-	●	●
1	00.386 COVER; CYL HD GLOW SYSTEM DELETE<7RK> (C)	8-98210-092-0	01	1	1207-			●
1	00.386 COVER; CYL HD (A) IDN	8-97226-760-1	01	1	0211-0507	●			●
1	00.386 COVER; CYL HD (A) IDN	8-97226-760-1	01	1	0508-0910	●	●
1	00.386 COVER; CYL HD (B)	8-94476-696-1	01	1	0610-					●
1	00.386 COVER; CYL HD (A)	8-97113-025-3	01	1	0610-0910			●
1	00.386 COVER; CYL HD (A)	8-97113-025-3	01	1	0911-1006	●	●	●
1	00.386 COVER; CYL HD (A)	8-98171-615-0	01	1	1007-1206	●	●	●
1	00.386 COVER; CYL HD (A)	8-98171-615-0	01	1	1207-			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0211-0507	●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0508-0609	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0610-	●	●	●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0211-0507	●			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0508-0609	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0610-1008	●	●	●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1009-	●	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=19.5	8-97263-801-1	03	1	0610-					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98207-973-0	01	1	1207-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D) GLOW SYSTEM DELETE<7RK>	8-98207-973-0	01	1	1207-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97189-871-1	01	1	0211-0507	●			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97189-871-1	01	1	0508-0910	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97349-416-1	01	1	0610-					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97105-690-2	01	1	0610-0910			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97105-690-2	01	1	0911-1206	●	●	●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0610-					●

109 124 137 35 135 135 124 137 136 135 135 124 137 109 138 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
35	00.293 BOLT; NOISE SHIELD COVER 03.704 M8X40 FLANGE	0-28680-840-0	06	1	0211-0507	●			●
35	00.293 BOLT; NOISE SHIELD COVER 03.704 M8X40 FLANGE	0-28680-840-0	06	1	0508-0512	●	●
35	00.293 BOLT; NOISE SHIELD COVER 00.685 M8X40 FLANGE	0-28650-840-0	06	1	0601-0910	●	●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	13	1	0911-	●	●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	12	1	0610-			●
109	00.386 COVER; ENG (A)	8-97223-628-2	01	1	0610-					●
109	00.386 COVER; ENG (B)	8-97223-629-1	01	1	0610-					●
109	00.386 COVER; ENG (C)	8-97223-630-1	01	1	0610-					●
124	00.413 RUBBER; MTG,COVER OD=21.8	8-97325-051-0	03	1	0610-					●
135	00.413 BOLT; COVER,ENG 03.407 (C) M8X10 FLANGE	0-28050-810-0	02	1	0610-					●
135	00.413 BOLT; COVER,ENG 00.029 (A) M10X20 FLANGE IDN	0-28051-020-0	01	1	0610-					●
135	00.413 BOLT; COVER,ENG 00.034 (B) M8X22 W/LK&PL WASHER IDN	8-94329-953-1	02	1	0610-					●
136	00.413 WASHER; PL,ENG COVER 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0610-					●
137	00.413 BUSHING; MTG RUBBER,COVER 00.034 OD=13 T=9.5 IDN	8-94140-427-1	03	1	0610-					●
138	00.413 NUT; COVER,ENG 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-					●
