Sayfa 9-33 - Isuzu EPC

9-33 — REAR BODY; GATE AND SIDE GUARD (#78874) — 226 parça

70 37 40 40 37 37 37 37 70 70 40 36 36 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA) 17.490 (B) OD=60 H=28	8-94194-895-0	02	1	0211-0501	●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6> 17.507 (A)	5-66950-178-0	02	1	0502-	●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6> EXC. VIN MODEL YEAR 2004(8JA) 17.507 (A)	5-66950-178-0	02	1	0211-0501	●
37	17.202 SCREW RR BODY FLAT BED<RS6> TAKADA	8-94194-119-1	06	1	0211-	●	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	0211-	●	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	0211-0602	●	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	0603-	●	●	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.202 (C) OD=45 H=28	8-94192-532-0	02	1	0211-	●	●	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.507 (A) OD=60 H=22	8-94193-455-0	02	1	0211-	●	●	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> (B) OD=60 H=28	8-94194-895-0	02	1	0211-	●	●	●

108 11 341 88 11 341 108 1 74 1 229 40 14 259 210 22 9 2 26 4 228 4 12 76 23

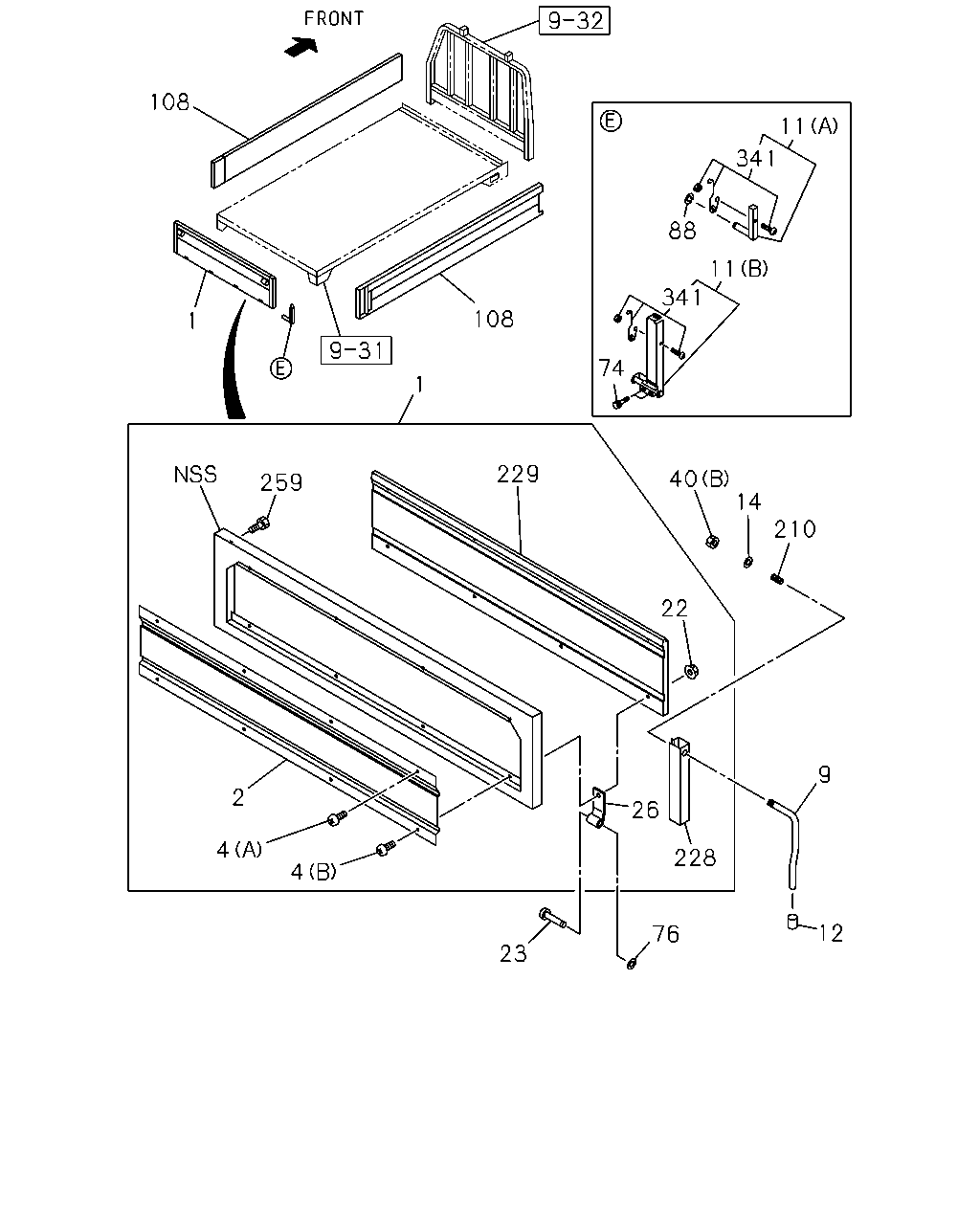

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=1907 H=398 B=50 PLYWOOD	8-94195-514-4	01	1	0211-0501		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=1907 H=398 B=50 PLYWOOD	8-97591-789-0	01	1	0502-0801		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=1907 H=398 B=50 PLYWOOD	8-97594-488-0	01	1	0802-		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=398 B=45 PLYWOOD	8-94195-477-3	01	1	0211-0501		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1787 H=398 B=45 PLYWOOD	8-94195-477-3	01	1	0211-0501	●		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=398 B=45 PLYWOOD	8-97591-612-0	01	1	0502-0801		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1787 H=398 B=45 PLYWOOD	8-97591-612-0	01	1	0502-0801	●		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=398 B=45 PLYWOOD	8-97594-487-0	01	1	0802-		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1787 H=398 B=45 PLYWOOD	8-97594-487-0	01	1	0802-	●		●
2	17.185 PANEL; RR GATE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> TAKADA	8-97590-082-0	01	1	0211-		●
2	17.185 PANEL; RR GATE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> TAKADA	8-97590-081-0	01	1	0211-		●
2	17.185 PANEL; RR GATE RR BODY FLAT BED<RS6> TAKADA	8-97590-081-0	01	1	0211-	●		●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED<RS6> (A) UPPER M8X16	8-94193-952-3	04	1	0211-	●	●	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED<RS6> (B) LOWER M8X21	8-94193-953-3	04	1	0211-	●	●	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6> TAKADA	8-94196-400-2	01	1	0211-	●	●	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6> TAKADA	8-94196-401-2	01	1	0211-	●	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> (A) TAKADA	8-94196-398-0	01	1	0211-0501	●	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> (B) TAKADA	8-97591-898-0	01	1	0502-	●	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> (A) TAKADA	8-94196-399-0	01	1	0211-0501	●	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> (B) TAKADA	8-97591-899-0	01	1	0502-	●	●	●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94193-344-0	02	1	0211-0501		●	●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA) TAKADA	8-94193-344-0	02	1	0211-0501	●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94193-344-0	02	1	0502-	●	●	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> 06.172 ID=12.5	9-09164-512-0	02	1	0211-	●	●	●
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED<RS6> M8	8-94193-954-1	08	1	0211-	●	●	●
23	17.208 PIN; HINGE,RR GATE RR BODY FLAT BED<RS6> OD=10 L=58.5	8-94193-933-2	04	1	0211-	●	●	●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED<RS6> TAKADA	8-97590-079-0	04	1	0211-	●	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	0211-	●	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	0211-0602	●	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	0603-	●	●	●
74	17.490 SCREW; LOCK RR BODY FLAT BED<RS6> 17.185 M8X25	8-94194-111-2	04	1	0502-	●	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=9	8-94194-116-0	16	1	0211-0505		●
76	17.505 RING; SNAP,GATE HINGE PIN BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> ID=9	8-94194-116-0	16	1	0211-0505			●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	16	1	0506-		●
76	17.505 RING; SNAP,GATE HINGE PIN BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	16	1	0506-			●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=9	8-94194-116-0	18	1	0211-0505	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	18	1	0506-	●
88	17.505 RING; SNAP,VERTICAL LOCK RR BODY FLAT BED<RS6> EXC. VIN MODEL YEAR 2004(8JA)	8-94194-123-0	02	1	0211-0501	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=3102.5 H=398 B=50 PLYWOOD	8-97590-513-1	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=3102.5 H=398 B=50 PLYWOOD	8-97592-121-0	01	1	0502-0801		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97594-482-0	01	1	0802-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=3102.5 H=398 B=50 PLYWOOD	8-97590-514-1	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=3102.5 H=398 B=50 PLYWOOD	8-97592-122-0	01	1	0502-0801		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97594-483-0	01	1	0802-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=3102.5 H=398 B=45 PLYWOOD	8-97590-489-1	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=3102.5 H=398 B=45 PLYWOOD	8-97592-150-0	01	1	0502-0801		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97594-654-0	01	1	0802-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=3102.5 H=398 B=45 PLYWOOD	8-97590-490-1	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=3102.5 H=398 B=45 PLYWOOD	8-97592-151-0	01	1	0502-0801		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97594-655-0	01	1	0802-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-94195-865-3	01	1	0211-0501	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-97591-606-0	01	1	0502-0801	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6>	8-97594-630-0	01	1	0802-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-94195-866-3	01	1	0211-0501	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-97591-607-0	01	1	0502-0801	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6>	8-97594-631-0	01	1	0802-	●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> L=3331 H=398 B=45 PLYWOOD	8-94195-867-3	01	1	0211-0501			●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> L=3331 H=398 B=45 PLYWOOD	8-97591-630-0	01	1	0502-0801			●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6>	8-97594-632-0	01	1	0802-			●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> L=3331 H=398 B=45 PLYWOOD	8-94195-868-3	01	1	0211-0501			●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> L=3331 H=398 B=45 PLYWOOD	8-97591-631-0	01	1	0502-0801			●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6>	8-97594-633-0	01	1	0802-			●
210	17.505 SPRING; LATCH HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94194-192-1	02	1	0211-	●	●	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97590-094-0	01	1	0211-		●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97590-095-0	01	1	0211-		●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97590-092-0	01	1	0211-		●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6>	8-97590-092-0	01	1	0211-	●		●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97590-093-0	01	1	0211-		●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6>	8-97590-093-0	01	1	0211-	●		●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97590-087-0	01	1	0211-0501		●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> TAKADA	8-97591-997-0	01	1	0502-0801		●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> TAKADA	8-97594-243-0	01	1	0802-		●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97590-086-0	01	1	0211-0501		●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6>	8-97590-086-0	01	1	0211-0501	●		●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> TAKADA	8-97591-996-0	01	1	0502-0801		●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6> TAKADA	8-97591-996-0	01	1	0502-0801	●		●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> TAKADA	8-97594-242-0	01	1	0802-		●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6> TAKADA	8-97594-242-0	01	1	0802-	●		●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> M8X40 TAKADA	8-97590-325-0	04	1	0211-		●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-94193-439-0	04	1	0211-		●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED<RS6>	8-94193-439-0	04	1	0211-	●		●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-448-0	01	1	0211-	●	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-449-0	01	1	0211-	●	●	●

101 95 93 95 92 97 93 101 97 95 93 97 101 97 95 93 92 101 94 101 94 101 101 94 101 94

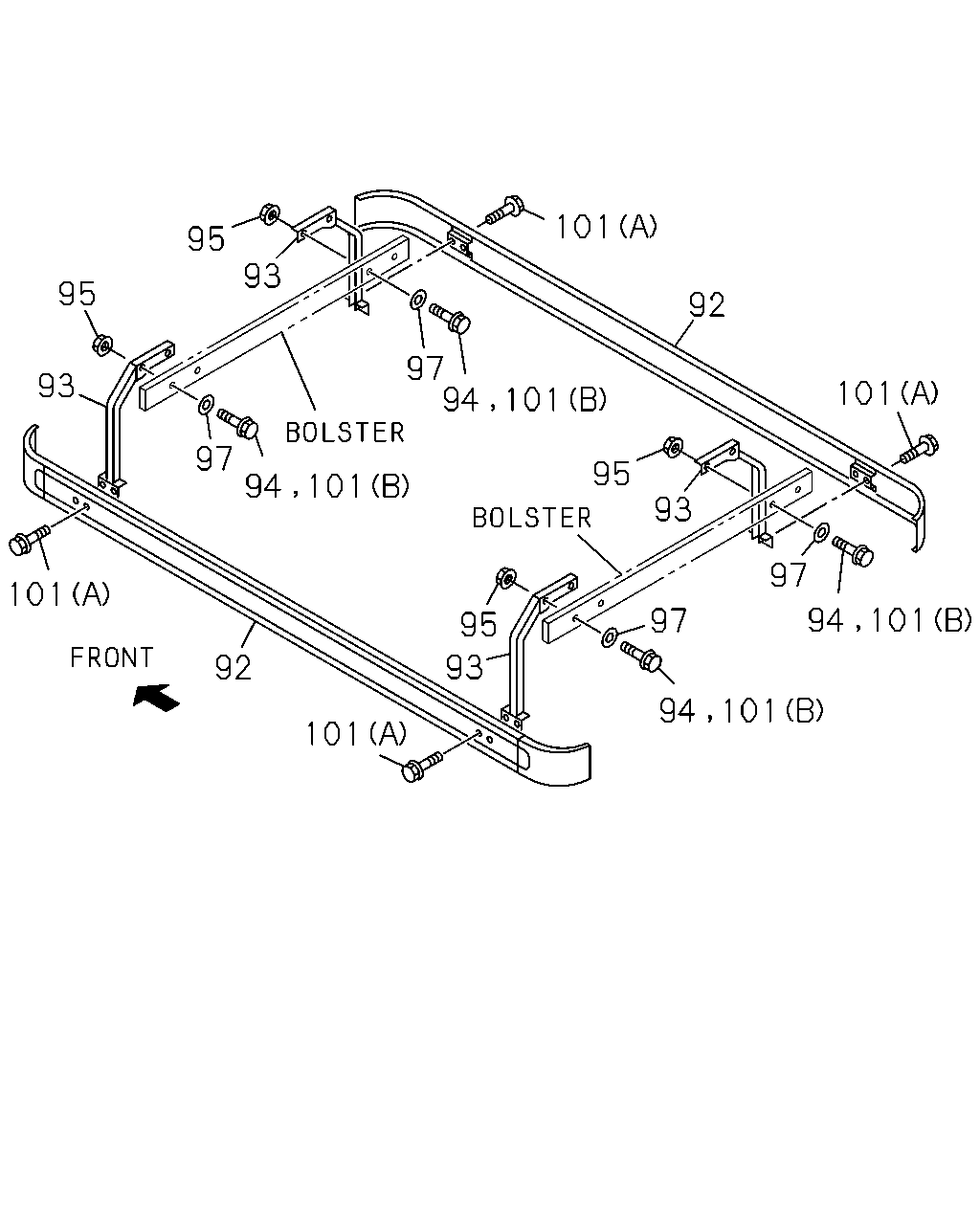

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
92	17.505 PIPE; SIDE GUARD RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97171-947-2	01	1	0211-		●
92	17.505 PIPE; SIDE GUARD RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97289-127-1	01	1	0211-		●
92	17.505 PIPE; SIDE GUARD RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA)	8-97171-946-2	02	1	0211-0501	●
92	17.505 PIPE; SIDE GUARD RR BODY FLAT BED<RS6>	8-97171-946-2	02	1	0502-	●
92	17.505 PIPE; SIDE GUARD RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA)	8-97354-815-1	02	1	0211-0501			●
92	17.505 PIPE; SIDE GUARD RR BODY FLAT BED<RS6>	8-97354-815-1	02	1	0502-			●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97190-187-2	02	1	0211-0501		●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA)	8-97190-187-2	02	1	0211-0501	●		●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97190-187-2	02	1	0502-		●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED<RS6>	8-97190-187-2	02	1	0502-	●		●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97190-188-2	02	1	0211-0501		●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA)	8-97190-188-2	02	1	0211-0501	●		●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97190-188-2	02	1	0502-		●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED<RS6>	8-97190-188-2	02	1	0502-	●		●
94	17.185 BOLT; STAY TO BOLSTER RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> 02.277 M10X125	9-09801-325-0	02	1	0211-		●
94	17.185 BOLT; STAY TO BOLSTER RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> 02.277 M10X70 W/LK WASHER	0-50041-070-0	06	1	0211-0705		●
94	17.185 BOLT; STAY TO BOLSTER RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> M10X70 W/LK WASHER	0-50541-070-0	06	1	0706-		●
95	17.505 NUT; STAY TO BOLSTER RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> 04.785 M10 FLANGE	0-91150-110-0	08	1	0211-0501		●
95	17.505 NUT; STAY TO BOLSTER RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA) 04.785 M10 FLANGE	0-91150-110-0	08	1	0211-0501	●		●
95	17.505 NUT; STAY TO BOLSTER RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> 04.785 M10 FLANGE	0-91150-110-0	08	1	0502-0602		●
95	17.505 NUT; STAY TO BOLSTER RR BODY FLAT BED<RS6> 04.785 M10 FLANGE	0-91150-110-0	08	1	0502-0602	●		●
95	17.505 NUT; STAY TO BOLSTER RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> 03.162 M10 FLANGE	0-91180-110-0	08	1	0603-		●
95	17.505 NUT; STAY TO BOLSTER RR BODY FLAT BED<RS6> 03.162 M10 FLANGE	0-91180-110-0	08	1	0603-	●		●
97	17.507 WASHER; PL,STAY TO BOLSTER RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> 03.706 ID=10.5 OD=32	9-09164-810-0	08	1	0211-0501		●
97	17.507 WASHER; PL,STAY TO BOLSTER RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA) 03.706 ID=10.5 OD=32	9-09164-810-0	08	1	0211-0501	●		●
97	17.507 WASHER; PL,STAY TO BOLSTER RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> 03.706 ID=10.5 OD=32	9-09164-810-0	08	1	0502-0605		●
97	17.507 WASHER; PL,STAY TO BOLSTER RR BODY FLAT BED<RS6> 03.706 ID=10.5 OD=32	9-09164-810-0	08	1	0502-0605	●		●
97	17.507 WASHER; PL,STAY TO BOLSTER RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> 00.002 ID=10.5 OD=32	0-91614-810-0	08	1	0606-		●
97	17.507 WASHER; PL,STAY TO BOLSTER RR BODY FLAT BED<RS6> 00.002 ID=10.5 OD=32	0-91614-810-0	08	1	0606-	●		●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> 02.559 (A) M8X25 FLANGE	0-28680-825-0	08	1	0211-0501		●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA) 02.559 (A) M8X25 FLANGE	0-28680-825-0	08	1	0211-0501	●		●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> 02.559 (A) M8X25 FLANGE	0-28680-825-0	08	1	0502-0512		●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED<RS6> 02.559 (A) M8X25 FLANGE	0-28680-825-0	08	1	0502-0512	●		●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> 06.216 (A) M8X25 FLANGE	0-28650-825-0	08	1	0601-		●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED<RS6> 06.216 (A) M8X25 FLANGE	0-28650-825-0	08	1	0601-	●		●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA) 02.277 (B) M10X70 W/LK WASHER	0-50041-070-0	08	1	0211-0501	●		●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED<RS6> 02.277 (B) M10X70 W/LK WASHER	0-50041-070-0	08	1	0502-0705	●		●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED<RS6> 17.185 (B) M10X70 W/LK WASHER	0-50541-070-0	08	1	0706-	●		●

108 108 108 1 223 222 29 258 30 223 112 29 224 225 29 35 28 27 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=1907 H=398 B=50 PLYWOOD	8-94195-514-4	01	1	0211-0501		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=1907 H=398 B=50 PLYWOOD	8-97591-789-0	01	1	0502-0801		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=1907 H=398 B=50 PLYWOOD	8-97594-488-0	01	1	0802-		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=398 B=45 PLYWOOD	8-94195-477-3	01	1	0211-0501		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1787 H=398 B=45 PLYWOOD	8-94195-477-3	01	1	0211-0501	●		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=398 B=45 PLYWOOD	8-97591-612-0	01	1	0502-0801		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1787 H=398 B=45 PLYWOOD	8-97591-612-0	01	1	0502-0801	●		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=398 B=45 PLYWOOD	8-97594-487-0	01	1	0802-		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1787 H=398 B=45 PLYWOOD	8-97594-487-0	01	1	0802-	●		●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> OD=10 L=89.5	8-94195-763-2	12	1	0211-		●
27	17.208 PIN; HINGE,SIDE GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> OD=10 L=89.5	8-94195-763-2	12	1	0211-			●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> OD=10 L=89.5	8-94195-763-2	14	1	0211-	●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6> W0/HOLE TAKADA	8-97590-027-0	12	1	0211-	●	●	●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6> W/HOLE TAKADA	8-97590-077-0	02	1	0211-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> (C)	9-03090-825-0	02	1	0502-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 (A) M8X16	8-94193-952-3	12	1	0211-		●
29	17.455 SCREW; PANEL SIDE GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> 17.185 (A) M8X16	8-94193-952-3	12	1	0211-			●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 (B) M8X21	8-94193-953-3	12	1	0211-		●
29	17.455 SCREW; PANEL SIDE GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> 17.185 (B) M8X21	8-94193-953-3	12	1	0211-			●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 (A) M8X16	8-94193-952-3	14	1	0211-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 (B) M8X21	8-94193-953-3	14	1	0211-	●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-1	24	1	0211-		●
30	17.455 NUT; PLATE,SIDE GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-1	24	1	0211-			●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-1	28	1	0211-	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6>	8-94194-277-0	02	1	0211-	●	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=9	8-94194-116-0	16	1	0211-0505		●
76	17.505 RING; SNAP,GATE HINGE PIN BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> ID=9	8-94194-116-0	16	1	0211-0505			●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	16	1	0506-		●
76	17.505 RING; SNAP,GATE HINGE PIN BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	16	1	0506-			●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=9	8-94194-116-0	18	1	0211-0505	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	18	1	0506-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=3102.5 H=398 B=50 PLYWOOD	8-97590-513-1	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=3102.5 H=398 B=50 PLYWOOD	8-97592-121-0	01	1	0502-0801		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97594-482-0	01	1	0802-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=3102.5 H=398 B=50 PLYWOOD	8-97590-514-1	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=3102.5 H=398 B=50 PLYWOOD	8-97592-122-0	01	1	0502-0801		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97594-483-0	01	1	0802-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=3102.5 H=398 B=45 PLYWOOD	8-97590-489-1	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=3102.5 H=398 B=45 PLYWOOD	8-97592-150-0	01	1	0502-0801		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97594-654-0	01	1	0802-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=3102.5 H=398 B=45 PLYWOOD	8-97590-490-1	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=3102.5 H=398 B=45 PLYWOOD	8-97592-151-0	01	1	0502-0801		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97594-655-0	01	1	0802-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-94195-865-3	01	1	0211-0501	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-97591-606-0	01	1	0502-0801	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6>	8-97594-630-0	01	1	0802-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-94195-866-3	01	1	0211-0501	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-97591-607-0	01	1	0502-0801	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6>	8-97594-631-0	01	1	0802-	●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> L=3331 H=398 B=45 PLYWOOD	8-94195-867-3	01	1	0211-0501			●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> L=3331 H=398 B=45 PLYWOOD	8-97591-630-0	01	1	0502-0801			●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6>	8-97594-632-0	01	1	0802-			●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> L=3331 H=398 B=45 PLYWOOD	8-94195-868-3	01	1	0211-0501			●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> L=3331 H=398 B=45 PLYWOOD	8-97591-631-0	01	1	0502-0801			●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6>	8-97594-633-0	01	1	0802-			●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6>	8-97590-540-0	01	1	0211-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6>	8-97590-541-0	01	1	0211-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> TAKADA	8-97590-037-0	02	1	0211-	●
112	17.455 PANEL; SIDE GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> TAKADA	8-97590-036-0	02	1	0211-			●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-97590-542-0	01	1	0211-0501		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-97592-540-0	01	1	0502-0801		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-97594-732-0	01	1	0802-		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-97590-543-0	01	1	0211-0501		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-97592-541-0	01	1	0502-0801		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-97594-733-0	01	1	0802-		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-97590-063-0	02	1	0211-0501	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6> TAKADA	8-97591-982-0	02	1	0502-0801	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-97594-734-0	02	1	0802-	●
222	17.505 BOARD; SIDE GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> TAKADA	8-97590-062-0	02	1	0211-0501			●
222	17.505 BOARD; SIDE GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6>	8-97591-990-0	02	1	0502-0801			●
222	17.505 BOARD; SIDE GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> TAKADA	8-97594-232-0	02	1	0802-			●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> FRONT TAKADA	8-94194-396-0	01	1	0502-0801		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> FRONT TAKADA	8-94194-396-0	01	1	0802-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> FRONT TAKADA	8-94194-397-0	01	1	0502-0801		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> FRONT TAKADA	8-94194-397-0	01	1	0802-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT	8-94194-291-0	01	1	0211-0501	●	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT	8-97591-977-0	01	1	0502-	●	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT	8-94194-292-0	01	1	0211-0501	●	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT	8-97591-978-0	01	1	0502-	●	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR	8-94194-371-0	01	1	0211-0501	●	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> REAR	8-94194-371-0	01	1	0502-0801		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR	8-94194-371-0	01	1	0502-0801	●		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> REAR	8-94194-371-0	01	1	0802-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR	8-94194-371-0	01	1	0802-	●		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR	8-94194-372-0	01	1	0211-0501	●	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> REAR	8-94194-372-0	01	1	0502-0801		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR	8-94194-372-0	01	1	0502-0801	●		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> REAR	8-94194-372-0	01	1	0802-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR	8-94194-372-0	01	1	0802-	●		●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94194-373-0	01	1	0211-0501	●	●	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94194-275-0	01	1	0502-	●	●	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94194-374-0	01	1	0211-0501	●	●	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94194-276-0	01	1	0502-	●	●	●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6> TAKADA	8-94194-351-0	08	1	0211-	●	●	●
258	17.208 WASHER; SIDE GATE RR BODY FLAT BED<RS6> 17.447	8-94193-940-0	02	1	0502-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
