9-31 — REAR BODY; FLOOR AND FENDER (#78872) — 75 parça

1 52 71 64 53 57 58 59 53 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6>	8-97162-720-0	02	1	0211-1604	●	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6>	8-98253-302-0	02	1	1605-	●	●	●
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED<RS6>	8-97179-829-0	02	1	0211-	●	●	●
52	17.447 BOLT; FENDER STAY,RR RR BODY FLAT BED<RS6> 01.252 M8X60 W/LK WASHER	0-50040-860-0	08	1	0211-0512	●	●	●
52	17.447 BOLT; FENDER STAY,RR RR BODY FLAT BED<RS6> 09.171 M8X60 W/LK WASHER	0-50540-860-0	08	1	0601-0705	●	●	●
52	17.447 BOLT; FENDER STAY,RR RR BODY FLAT BED<RS6> M8X60 W/LK WASHER	0-50740-860-0	08	1	0706-	●	●	●
53	17.447 NUT; FENDER STAY,RR RR BODY FLAT BED<RS6> EXC. VIN MODEL YEAR 2004(8JA) M8 FLANGE	8-94193-939-0	32	1	0211-0501		●
53	17.447 NUT; FENDER STAY,RR RR BODY FLAT BED<RS6> 07.633 M8 FLANGE	0-91150-108-0	16	1	0211-0602	●	●	●
53	17.447 NUT; FENDER STAY,RR RR BODY FLAT BED<RS6> 01.062 M8 FLANGE	0-91180-108-0	16	1	0603-	●	●	●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED<RS6> H=440 B=430	8-97214-177-1	02	1	0211-	●	●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6X16 FLANGE	8-97065-432-2	06	1	0211-0711	●	●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> M6X16 FLANGE	8-98098-459-0	06	1	0712-	●	●	●
59	17.208 NUT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6 FLANGE	8-97065-431-0	06	1	0211-	●	●	●
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED<RS6> 02.334 ID=8.4 OD=26	9-09164-808-0	08	1	0211-0605	●	●	●
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED<RS6> 03.706 ID=8.4 OD=26	0-91614-808-0	08	1	0606-	●	●	●
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED<RS6> EXC. VIN MODEL YEAR 2004(8JA) 02.334 ID=8.4 OD=26	9-09164-808-0	07	1	0211-0501		●
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED<RS6> EXC. VIN MODEL YEAR 2004(8JA) 03.706 ID=10.5 OD=32	9-09164-810-0	24	1	0211-0501		●
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6>	8-97179-830-1	08	1	0211-	●	●	●

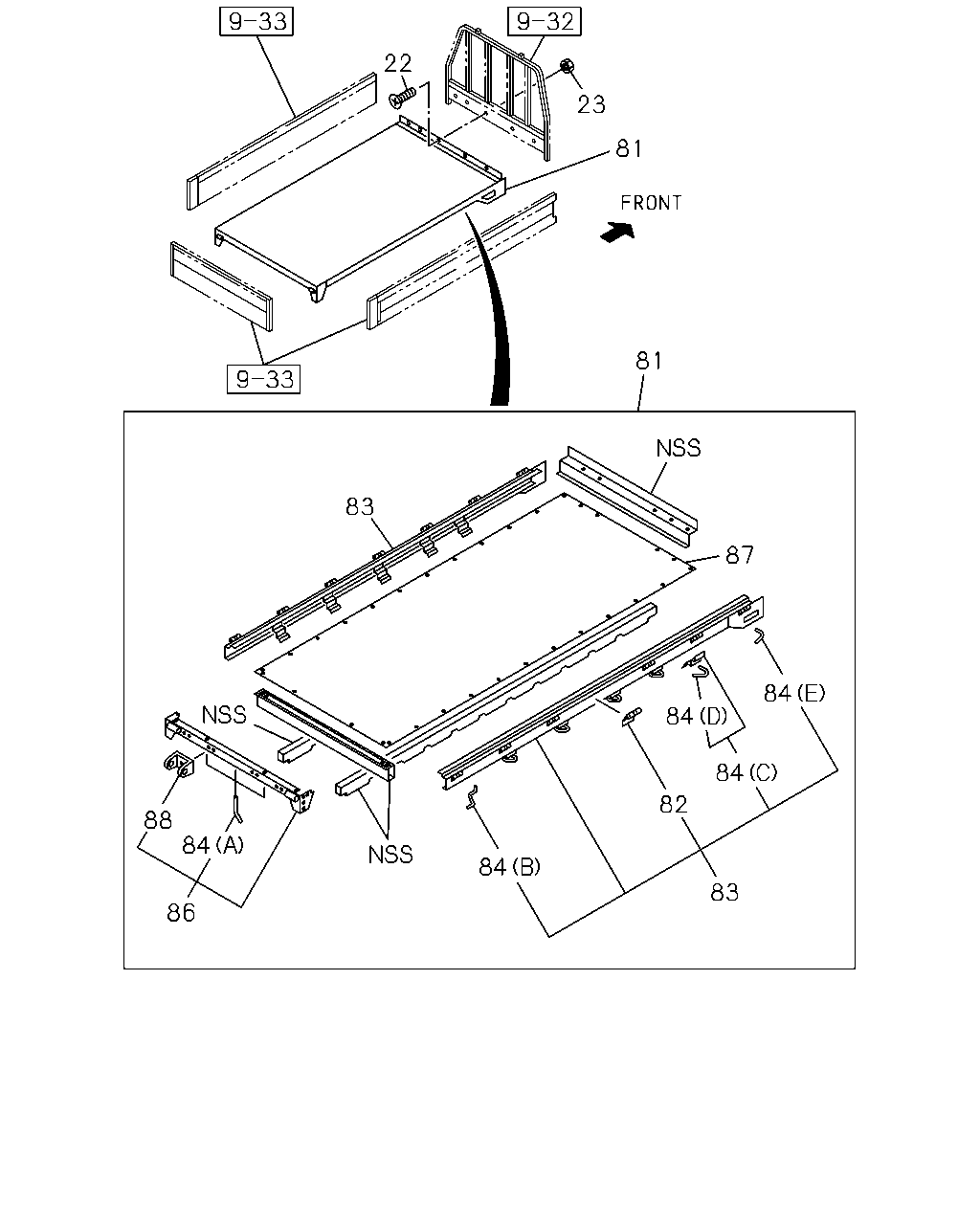

22 23 81 81 83 87 84 84 84 82 88 84 84 83 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	17.405 SCREW; ANGLE RR BODY FLAT BED<RS6>	8-97065-437-0	05	1	0211-	●	●	●
23	17.405 NUT; ANGLE RR BODY FLAT BED<RS6> 09.011 M8 W/LK WASHER	8-97065-435-0	05	1	0211-	●	●	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97590-515-2	01	1	0211-0409	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97592-087-0	01	1	0410-0501	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97592-123-0	01	1	0502-	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97590-480-2	01	1	0211-0409	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97592-084-0	01	1	0410-0501	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97592-118-0	01	1	0502-	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-97590-481-2	01	1	0211-0409		●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-97592-090-0	01	1	0410-0501		●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-97592-131-0	01	1	0502-		●
81	17.400 FLOOR ASM; RR BODY BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6>	8-97591-843-1	01	1	0211-0409			●
81	17.400 FLOOR ASM; RR BODY BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6>	8-97592-095-0	01	1	0410-0501			●
81	17.400 FLOOR ASM; RR BODY BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6>	8-97592-126-0	01	1	0502-			●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-219-0	12	1	0211-	●
82	17.510 HINGE; SIDE GATE,LWR BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> TAKADA	8-97590-219-0	12	1	0211-			●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-219-0	14	1	0211-		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97590-545-0	01	1	0211-0501	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-97592-530-0	01	1	0502-	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97590-546-0	01	1	0211-0501	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-97592-531-0	01	1	0502-	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97590-526-0	01	1	0211-0501	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97590-527-0	01	1	0211-0501	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-97590-529-0	01	1	0211-0501		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-97592-250-0	01	1	0502-		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-97590-530-0	01	1	0211-0501		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-97592-251-0	01	1	0502-		●
83	08.309 FRAME; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6>	8-97590-183-0	01	1	0211-0501			●
83	08.309 FRAME; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6>	8-97592-532-0	01	1	0502-			●
83	08.309 FRAME; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6>	8-97590-184-0	01	1	0211-0501			●
83	08.309 FRAME; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6>	8-97592-533-0	01	1	0502-			●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (C)	8-97590-230-0	05	1	0211-	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (C)	8-97590-231-0	05	1	0211-	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (D)	8-97590-232-0	05	1	0211-0501	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (E)	8-97590-218-0	02	1	0211-0501	●	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (B)	8-97590-221-0	02	1	0211-	●	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (A)	8-97590-252-0	03	1	0211-	●	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (C)	8-97590-230-0	08	1	0211-		●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (C)	8-97590-231-0	08	1	0211-		●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (D)	8-97590-232-0	08	1	0211-0501		●
84	08.820 HOOK; ROPE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> (C)	8-97590-230-0	06	1	0211-			●
84	08.820 HOOK; ROPE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> (C)	8-97590-231-0	06	1	0211-			●
84	08.820 HOOK; ROPE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> (D)	8-97590-232-0	06	1	0211-0501			●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97590-239-0	01	1	0211-0501	●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-97590-239-0	01	1	0211-0501			●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97592-256-0	01	1	0502-	●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-97592-256-0	01	1	0502-		●	●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97590-528-0	01	1	0211-0501	●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-97590-528-0	01	1	0211-0501		●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97592-538-0	01	1	0502-	●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97590-544-0	01	1	0211-	●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97590-525-0	01	1	0211-	●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-97590-111-0	01	1	0211-0501		●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-94194-385-1	01	1	0502-		●
87	17.400 BOARD; FLOOR BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6>	8-97590-112-0	01	1	0211-0501			●
87	17.400 BOARD; FLOOR BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6>	8-97592-544-0	01	1	0502-			●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-251-0	04	1	0211-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
