◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51278 - NKR MIDDLE EAST ▶ 9 - Tools ▶ 9-30 - REAR BODY ASM AND MOUNTING ▶
9-30 — REAR BODY ASM AND MOUNTING (#78871) — 70 parça

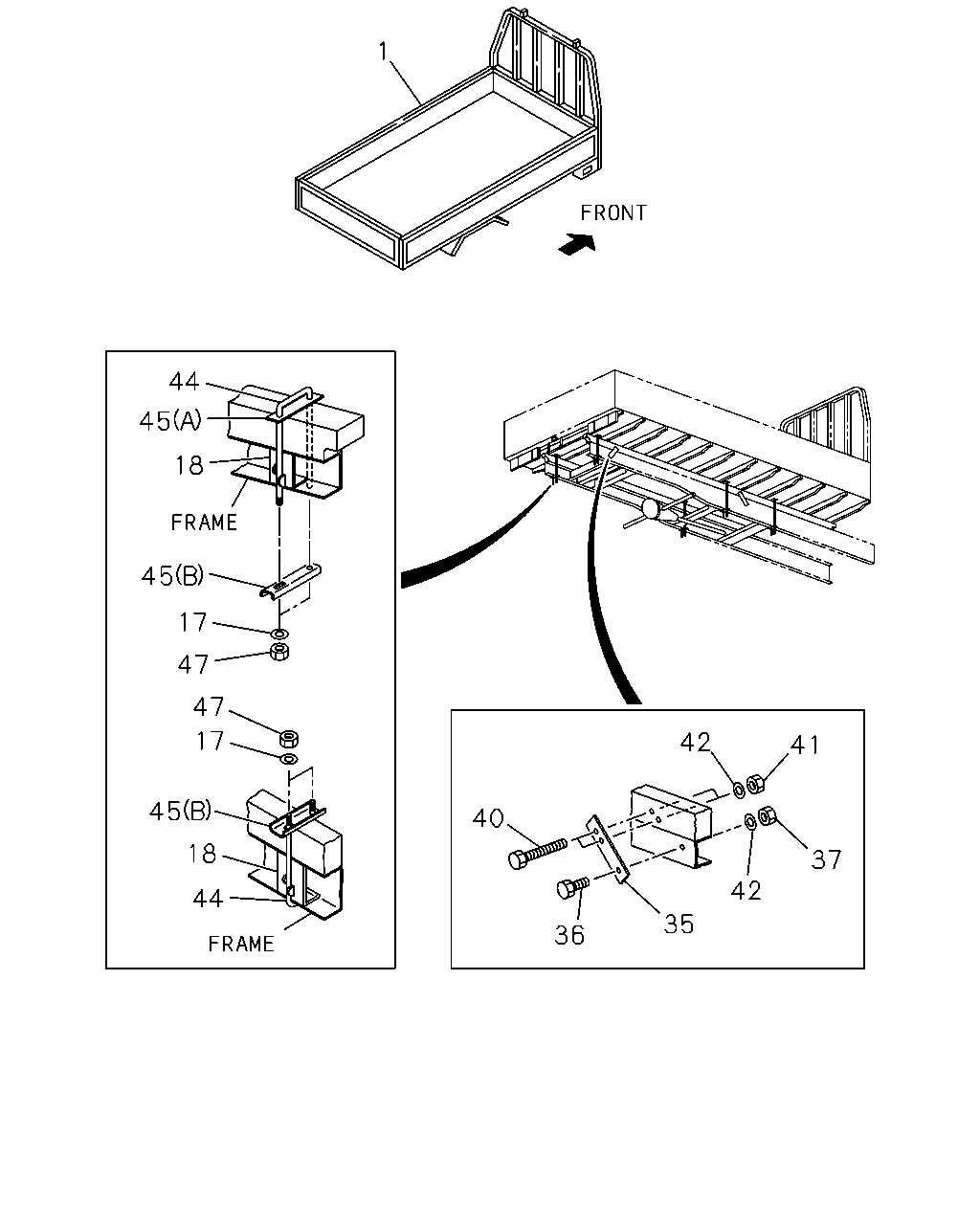

çizim 135476
1 44 45 18 45 17 47 47 17 42 41 45 40 18 37 42 44 35 36
BalonParca AdiParca NoAdetTipApplied Date A B C
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH> WHITE 		8-97297-861-1 01 1 0211-0409 ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH> WHITE 		8-97400-293-0 01 1 0410-0501 ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH> WHITE 		8-97402-599-1 01 1 0502- ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH> WHITE 		8-97296-847-1 01 1 0211-0409 ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH> WHITE 		8-97400-287-0 01 1 0410-0501 ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH> WHITE 		8-97402-595-1 01 1 0502- ●
1 17.090 BODY ASM; REAR
BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH> SILVER 		8-97297-860-1 01 1 0211-0409 ●
1 17.090 BODY ASM; REAR
BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH> SILVER 		8-97400-292-0 01 1 0410-0501 ●
1 17.090 BODY ASM; REAR
BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH> SILVER 		8-97402-598-1 01 1 0502- ●
1 17.090 BODY ASM; REAR
BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH> SILVER 		8-97297-871-1 01 1 0211-0409 ●
1 17.090 BODY ASM; REAR
BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH> SILVER 		8-97400-289-0 01 1 0410-0501 ●
1 17.090 BODY ASM; REAR
BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH> SILVER 		8-97402-597-1 01 1 0502- ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH> BLUE 		8-97297-862-1 01 1 0211-0409 ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH> BLUE 		8-97400-294-0 01 1 0410-0501 ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH> BLUE 		8-97402-600-1 01 1 0502- ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH> BLUE 		8-97296-848-1 01 1 0211-0409 ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH> BLUE 		8-97400-288-0 01 1 0410-0501 ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH> BLUE 		8-97402-596-1 01 1 0502- ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> WHITE 		8-97394-740-0 01 1 0211-0409 ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> WHITE 		8-97400-296-0 01 1 0410-0501 ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> WHITE 		8-97402-605-1 01 1 0502- ●
1 17.090 BODY ASM; REAR
BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED<RS6> SILVER 		8-97394-739-0 01 1 0211-0409 ●
1 17.090 BODY ASM; REAR
BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED<RS6> SILVER 		8-97400-295-0 01 1 0410-0501 ●
1 17.090 BODY ASM; REAR
BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED<RS6> SILVER 		8-97402-604-1 01 1 0502- ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE 		8-97394-741-0 01 1 0211-0409 ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE 		8-97400-297-0 01 1 0410-0501 ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE 		8-97402-606-1 01 1 0502- ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> WHITE 		8-97394-746-0 01 1 0211-0409 ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> WHITE 		8-97400-302-0 01 1 0410-0501 ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> WHITE 		8-97402-611-1 01 1 0502- ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE 		8-97394-747-0 01 1 0211-0409 ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE 		8-97400-303-0 01 1 0410-0501 ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE 		8-97402-612-1 01 1 0502- ●
17 17.447 WASHER; PL,U-BOLT
RR BODY FLAT BED<RS6> 00.029 ID=15 OD=26 		9-09164-514-0 04 1 0211-1206 ●
17 17.447 WASHER; PL,U-BOLT
RR BODY FLAT BED<RS6> 09.011 ID=15 OD=26 		0-91614-514-0 04 1 1207- ●
17 17.447 WASHER; PL,U-BOLT
RR BODY FLAT BED<RS6> 00.029 ID=15 OD=26 		9-09164-514-0 06 1 0211-1206 ● ●
17 17.447 WASHER; PL,U-BOLT
RR BODY FLAT BED<RS6> 09.011 ID=15 OD=26 		0-91614-514-0 06 1 1207- ● ●
18 17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED<RS6> FRONT H=161 B=50 D=68 		5-53119-091-3 02 1 0211- ●
18 17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED<RS6> REAR 		8-94378-296-0 02 1 0211- ●
18 17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED<RS6> FRONT H=161 B=50 D=68 		5-53119-091-3 04 1 0211- ● ●
18 17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED<RS6> REAR H=91 B=50 D=68 		5-53119-092-3 02 1 0211- ● ●
35 17.447 STOPPER; RR BODY
RR BODY FLAT BED<RS6> L=185 		9-53459-602-0 02 1 0503- ●
35 17.447 STOPPER; RR BODY
RR BODY FLAT BED<RS6> L=185 		9-53459-602-0 04 1 0211- ● ●
35 17.447 STOPPER; RR BODY
RR BODY FLAT BED<RS6> L=215 		8-97100-408-0 02 1 0211- ●
35 17.447 STOPPER; RR BODY
RR BODY FLAT BED<RS6> L=185 		9-53459-602-0 02 1 0211-0501 ●
36 17.447 BOLT; FRAME
RR BODY FLAT BED<RS6> 09.171 M10X30 W/LK WASHER 		0-50041-030-0 04 1 0211-0512 ● ● ●
36 17.447 BOLT; FRAME
RR BODY FLAT BED<RS6> 04.439 M10X30 W/LK WASHER 		0-50541-030-0 04 1 0601- ● ● ●
37 17.447 NUT; STOPPER TO FRAME
RR BODY FLAT BED<RS6> 08.917 M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ● ● ●
37 17.447 NUT; STOPPER TO FRAME
RR BODY FLAT BED<RS6> 04.085 M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
40 17.447 BOLT; STOPPER TO RR BODY
RR BODY FLAT BED<RS6> 01.840 M8X70 FLANGE 		0-28080-870-0 08 1 0211-0512 ● ● ●
40 17.447 BOLT; STOPPER TO RR BODY
RR BODY FLAT BED<RS6> 00.206 M8X70 FLANGE 		0-28050-870-0 08 1 0601- ● ● ●
41 17.447 NUT; STOPPER TO RR BODY
RR BODY FLAT BED<RS6> 03.023 M8 FLANGE 		9-09130-408-0 08 1 0211- ● ● ●
42 17.447 WASHER; PL,STOPPER TO RR BODY
RR BODY FLAT BED<RS6> 07.633 ID=8.4 OD=22 		9-09164-708-0 08 1 0211-0605 ● ● ●
42 17.447 WASHER; PL,STOPPER TO RR BODY
RR BODY FLAT BED<RS6> 02.277 ID=8.4 OD=22 		0-91614-708-0 08 1 0606- ● ● ●
44 17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED<RS6> L=345 		8-94317-633-0 02 1 0211- ●
44 17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED<RS6> L=297 		5-51171-009-1 02 1 0211- ● ●
44 17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED<RS6> L=272 		5-51171-007-1 02 1 0211- ●
44 17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED<RS6> L=345 		8-94317-633-0 04 1 0211- ●
44 17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED<RS6> L=367 		5-51171-008-1 04 1 0211- ●
45 17.447 PLATE; U-BOLT
RR BODY FLAT BED<RS6> (A) L=116 B=35 		5-66900-203-0 03 1 0211- ●
45 17.447 PLATE; U-BOLT
RR BODY FLAT BED<RS6> (B) L=120 B=45 		5-66900-204-3 04 1 0211- ●
45 17.447 PLATE; U-BOLT
RR BODY FLAT BED<RS6> (A) L=116 B=35 		5-66900-203-0 06 1 0211- ●
45 17.447 PLATE; U-BOLT
RR BODY FLAT BED<RS6> (B) L=120 B=45 		5-66900-204-3 06 1 0211- ● ●
45 17.447 PLATE; U-BOLT
RR BODY FLAT BED<RS6> (A) L=116 B=35 		5-66900-203-0 05 1 0211- ●
47 17.447 NUT; U-BOLT
RR BODY FLAT BED<RS6> 06.008 M14 		9-09130-414-0 08 1 0211- ●
47 17.447 NUT; U-BOLT
RR BODY FLAT BED<RS6> 06.008 M14 		9-09130-414-0 12 1 0211- ● ●
çizim 135485
13 14 15
BalonParca AdiParca NoAdetTipApplied Date A B C
13 09.008 BOLT; RR BODY MTG
RR BODY FLAT BED<RS6> M8X100 		8-97090-620-0 02 1 0211- ● ● ●
14 09.011 WASHER; PL,RR BODY MTG
RR BODY FLAT BED<RS6> 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 0211-0605 ● ● ●
14 09.011 WASHER; PL,RR BODY MTG
RR BODY FLAT BED<RS6> 04.595 ID=8.4 OD=22 		0-91610-708-0 02 1 0606- ● ● ●
15 09.011 NUT; RR BODY MTG
RR BODY FLAT BED<RS6> M8 W/LK WASHER 		8-97065-435-0 02 1 0211- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
