8-75 — CONDENSER (#78867) — 57 parça

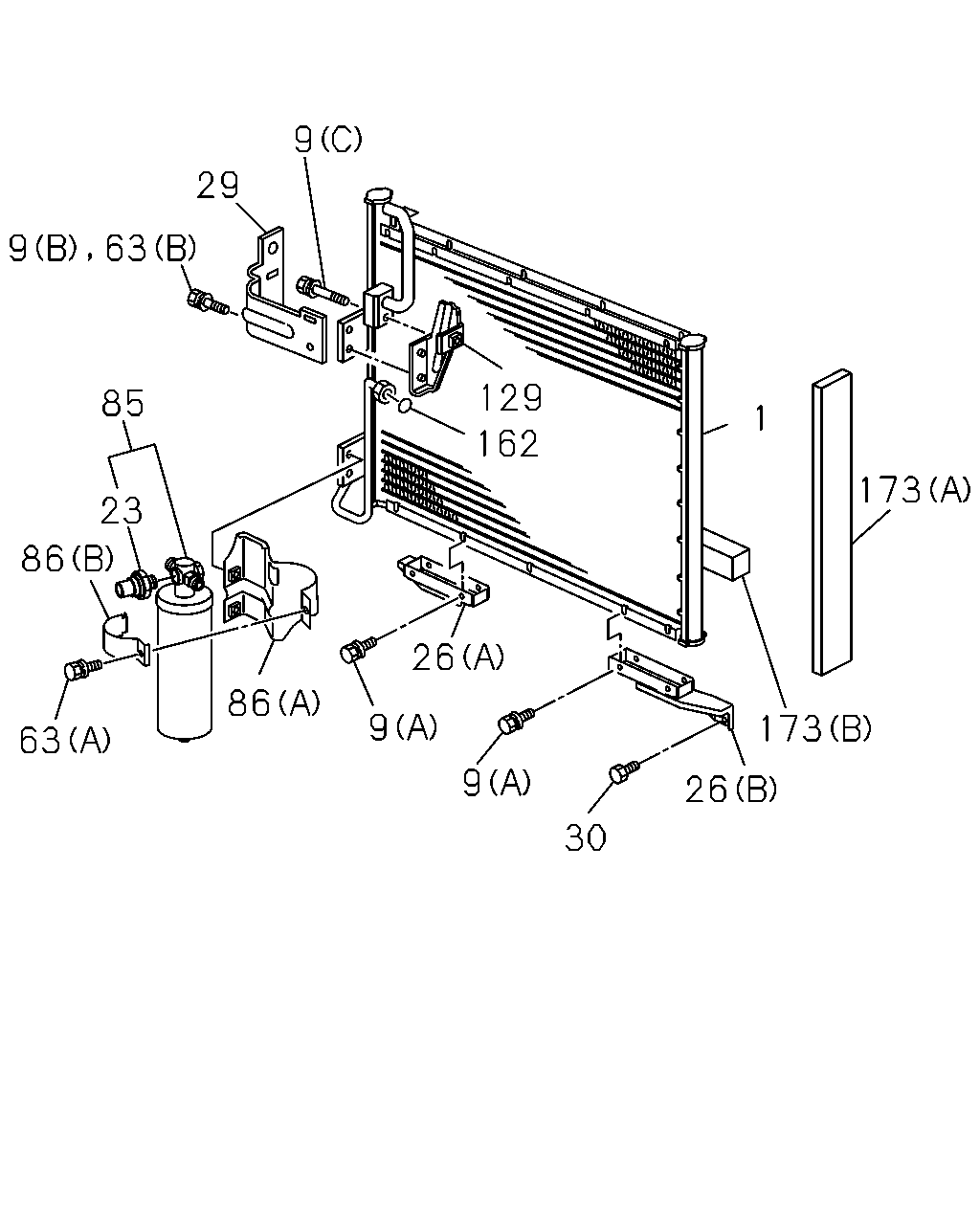

9 29 129 85 1 162 173 23 86 26 86 9 173 63 9 26 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.190 CONDENSER; A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97187-713-0	01	1	0211-0501	●	●	●
1	09.190 CONDENSER; A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW>	8-97376-813-0	01	1	0502-	●
1	09.190 CONDENSER; A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97376-813-0	01	1	0502-		●
9	09.190 BOLT; BRKT 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B)	8-97112-752-0	02	1	0211-0501	●	●	●
9	09.190 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 09.175 (B)	8-97112-752-0	02	1	0502-	●
9	09.190 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B)	8-97112-752-0	02	1	0502-		●
9	09.190 BOLT; BRKT 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97114-209-0	04	1	0211-0501	●	●	●
9	09.190 BOLT; BRKT 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97178-387-0	01	1	0211-0501	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97095-659-0	01	1	0211-0501	●	●	●
26	09.190 BRACKET; LOW 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-961-2	01	1	0211-0501	●	●	●
26	09.190 BRACKET; LOW 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-368-1	01	1	0211-0501	●	●	●
29	09.190 BRACKET; SIDE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97107-366-0	01	1	0211-0501	●	●	●
29	09.190 BRACKET; SIDE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW>	8-97219-180-0	01	1	0502-	●
29	09.190 BRACKET; SIDE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97219-180-0	01	1	0502-		●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0211-0501	●	●	●
30	09.190 BOLT; CONDENSER,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0502-0512	●
30	09.190 BOLT; CONDENSER,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0502-0512		●
30	09.190 BOLT; CONDENSER,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-	●
30	09.190 BOLT; CONDENSER,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-		●
63	09.175 BOLT; RECEIVER TANK 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97112-752-0	02	1	0211-0501	●	●	●
63	09.175 BOLT; RECEIVER TANK 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> (B)	8-97112-752-0	02	1	0502-	●
63	09.175 BOLT; RECEIVER TANK 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97112-752-0	02	1	0502-		●
63	09.175 BOLT; RECEIVER TANK 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97178-388-0	01	1	0211-0501	●	●	●
85	09.172 DRYER; RECEIVER 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195	8-97096-032-1	01	1	0211-0501	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97077-536-2	01	1	0211-0501	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-367-1	01	1	0211-0501	●	●	●
129	09.190 BRACKET; UPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97095-962-1	01	1	0211-0501	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	01	1	0211-0501	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW>	8-97161-776-0	01	1	0502-	●
162	09.195 GASKET; PIPE TO DRYER 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97161-776-0	01	1	0502-		●
173	09.190 INSULATOR; CONDENSER 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97096-033-1	02	1	0211-0501	●	●	●
173	09.190 INSULATOR; CONDENSER 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97096-037-1	02	1	0211-0501	●	●	●

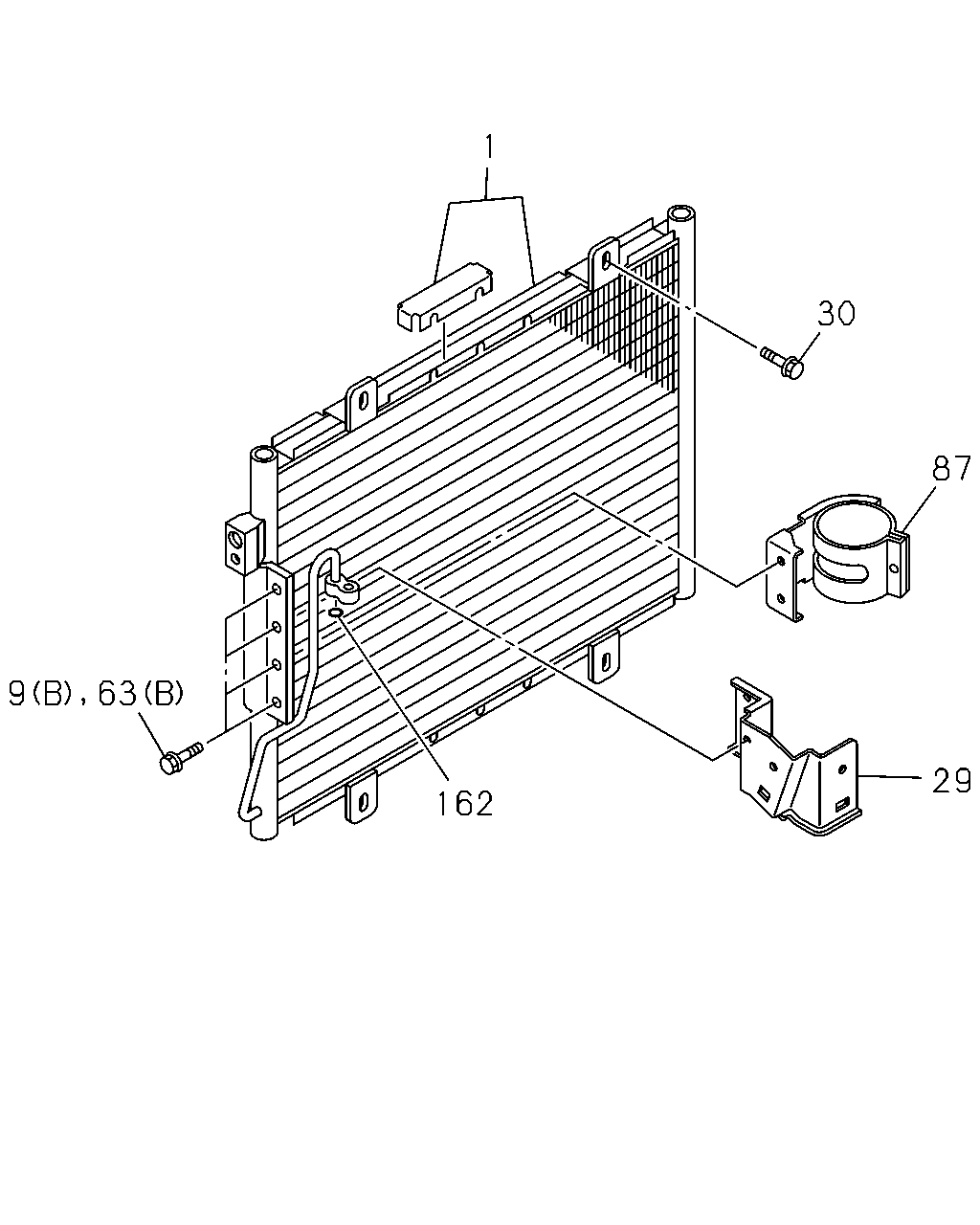

1 30 87 29 162 9 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.190 CONDENSER; A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97187-713-0	01	1	0211-0501	●	●	●
1	09.190 CONDENSER; A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW>	8-97376-813-0	01	1	0502-	●
1	09.190 CONDENSER; A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97376-813-0	01	1	0502-		●
9	09.190 BOLT; BRKT 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B)	8-97112-752-0	02	1	0211-0501	●	●	●
9	09.190 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 09.175 (B)	8-97112-752-0	02	1	0502-	●
9	09.190 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B)	8-97112-752-0	02	1	0502-		●
9	09.190 BOLT; BRKT 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97114-209-0	04	1	0211-0501	●	●	●
9	09.190 BOLT; BRKT 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97178-387-0	01	1	0211-0501	●	●	●
29	09.190 BRACKET; SIDE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97107-366-0	01	1	0211-0501	●	●	●
29	09.190 BRACKET; SIDE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW>	8-97219-180-0	01	1	0502-	●
29	09.190 BRACKET; SIDE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97219-180-0	01	1	0502-		●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0211-0501	●	●	●
30	09.190 BOLT; CONDENSER,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0502-0512	●
30	09.190 BOLT; CONDENSER,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0502-0512		●
30	09.190 BOLT; CONDENSER,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-	●
30	09.190 BOLT; CONDENSER,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-		●
63	09.175 BOLT; RECEIVER TANK 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97112-752-0	02	1	0211-0501	●	●	●
63	09.175 BOLT; RECEIVER TANK 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> (B)	8-97112-752-0	02	1	0502-	●
63	09.175 BOLT; RECEIVER TANK 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97112-752-0	02	1	0502-		●
63	09.175 BOLT; RECEIVER TANK 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97178-388-0	01	1	0211-0501	●	●	●
87	09.196 BRACKET; RECEIVER DRYER 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 09.190	8-97262-878-0	01	1	0502-	●
87	09.196 BRACKET; RECEIVER DRYER 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97262-878-0	01	1	0502-		●
162	09.195 GASKET; PIPE TO DRYER 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	01	1	0211-0501	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW>	8-97161-776-0	01	1	0502-	●
162	09.195 GASKET; PIPE TO DRYER 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97161-776-0	01	1	0502-		●
