Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#78861) — 137 parça

66 168 67 50 50 67 148 147 66 67 147 67 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
50	09.222 GASKET; FLEX HOSE,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	0211-0501	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 09.195	8-97161-776-0	02	1	0502-	●
50	09.222 GASKET; FLEX HOSE,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 09.195	8-97161-776-0	02	1	0502-		●
66	09.225 HOSE; FLEX,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97091-246-3	01	1	0211-0501	●	●	●
66	09.225 HOSE; FLEX,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> (D)	8-97376-697-2	01	1	0502-	●
66	09.225 HOSE; FLEX,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97376-697-2	01	1	0502-		●
66	09.225 HOSE; FLEX,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97103-574-3	01	1	0211-0501	●	●	●
66	09.225 HOSE; FLEX,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> (C)	8-97331-507-0	01	1	0502-	●
66	09.225 HOSE; FLEX,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97331-507-0	01	1	0502-		●
67	09.260 GASKET; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	0211-0501	●	●	●
67	09.260 GASKET; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> ID=15.5	8-97161-777-0	02	1	0502-	●
67	09.260 GASKET; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) ID=15.5	8-97161-777-0	02	1	0502-		●
67	09.260 GASKET; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	0211-0501	●	●	●
67	09.260 GASKET; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 09.225 ID=18.3	8-97161-778-0	01	1	0502-	●
67	09.260 GASKET; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 09.225 ID=18.3	8-97161-778-0	01	1	0502-		●
67	09.260 GASKET; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	0211-0501	●	●	●
67	09.260 GASKET; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> ID=21.3	8-97223-125-0	01	1	0502-	●
67	09.260 GASKET; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) ID=21.3	8-97223-125-0	01	1	0502-		●
67	09.260 GASKET; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	0211-0501	●	●	●
147	09.242 CAP; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	0211-0501	●	●	●
147	09.242 CAP; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> CAP MARK H	8-97083-101-0	01	1	0502-	●
147	09.242 CAP; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	0502-		●
147	09.242 CAP; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	0211-0501	●	●	●
147	09.242 CAP; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 09.226 CAP MARK L	8-97083-102-0	01	1	0502-	●
147	09.242 CAP; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	0502-		●
148	09.262 VALVE; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 09.198 (B)	8-97083-892-0	01	1	0502-	●
148	09.262 VALVE; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 09.198 (B)	8-97083-892-0	01	1	0502-		●
148	09.262 VALVE; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97083-100-0	02	1	0211-0501	●	●	●
148	09.262 VALVE; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> (A)	8-97083-100-0	01	1	0502-	●
148	09.262 VALVE; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97083-100-0	01	1	0502-		●
168	09.225 HOSE; FLEX,TANK TO EVAP 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97103-570-1	01	1	0211-0501	●	●	●
168	09.225 HOSE; FLEX,TANK TO EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW>	8-97376-699-2	01	1	0502-	●
168	09.225 HOSE; FLEX,TANK TO EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97376-699-2	01	1	0502-		●

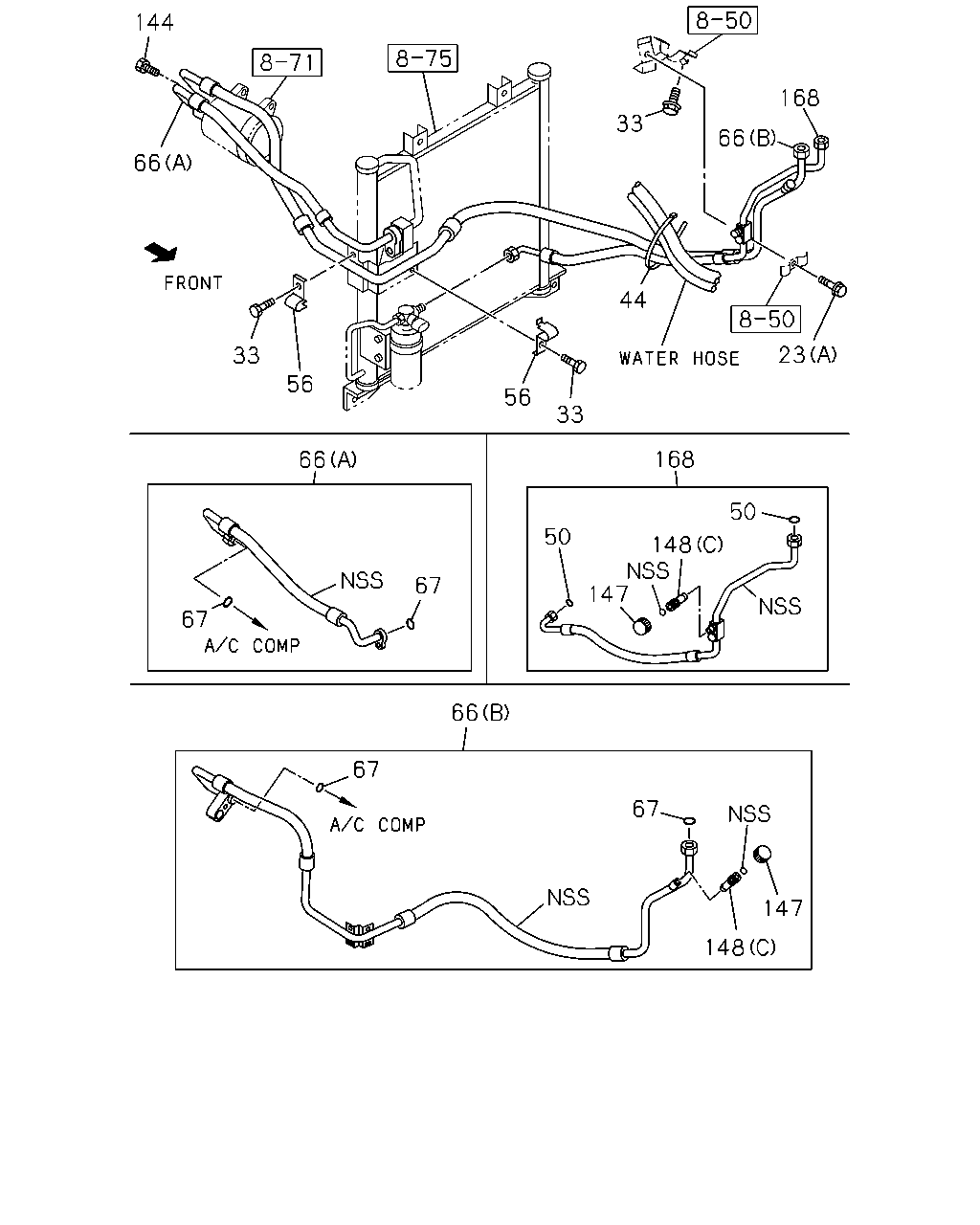

144 168 33 66 66 44 23 33 56 56 33 168 66 50 50 148 147 67 67 66 67 67 147 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	09.171 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 04.930 (B) M6X20 FLANGE	0-28680-620-0	01	1	0502-0512	●
23	09.171 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 04.930 (B) M6X20 FLANGE	0-28680-620-0	01	1	0502-0512		●
23	09.171 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0601-	●
23	09.171 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0601-		●
23	09.171 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 03.670 (A) M6X20 FLANGE	0-28080-620-0	01	1	0211-0501	●	●	●
23	09.171 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	0502-0512	●
23	09.171 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	0502-0512		●
23	09.171 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	0601-	●
23	09.171 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	0601-		●
33	09.920 BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0211-0501	●	●	●
33	09.920 BOLT; CLIP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0502-0512	●
33	09.920 BOLT; CLIP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0502-0512		●
33	09.920 BOLT; CLIP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0601-	●
33	09.920 BOLT; CLIP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0601-		●
44	09.242 CLIP; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	03	1	0211-0501	●	●	●
44	09.242 CLIP; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 02.559 L=250	5-09707-030-1	02	1	0502-	●
44	09.242 CLIP; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	02	1	0502-		●
50	09.222 GASKET; FLEX HOSE,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	0211-0501	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 09.195	8-97161-776-0	02	1	0502-	●
50	09.222 GASKET; FLEX HOSE,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 09.195	8-97161-776-0	02	1	0502-		●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97024-716-0	02	1	0211-0501	●	●	●
56	09.242 CLIP; PIPE,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 09.190	8-97024-716-0	02	1	0502-0611	●
56	09.242 CLIP; PIPE,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97024-716-0	02	1	0502-0611		●
56	09.242 CLIP; PIPE,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW>	8-98059-179-0	02	1	0612-	●
56	09.242 CLIP; PIPE,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-98059-179-0	02	1	0612-		●
66	09.225 HOSE; FLEX,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97091-246-3	01	1	0211-0501	●	●	●
66	09.225 HOSE; FLEX,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> (D)	8-97376-697-2	01	1	0502-	●
66	09.225 HOSE; FLEX,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97376-697-2	01	1	0502-		●
66	09.225 HOSE; FLEX,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97103-574-3	01	1	0211-0501	●	●	●
66	09.225 HOSE; FLEX,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> (C)	8-97331-507-0	01	1	0502-	●
66	09.225 HOSE; FLEX,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97331-507-0	01	1	0502-		●
67	09.260 GASKET; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	0211-0501	●	●	●
67	09.260 GASKET; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> ID=15.5	8-97161-777-0	02	1	0502-	●
67	09.260 GASKET; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) ID=15.5	8-97161-777-0	02	1	0502-		●
67	09.260 GASKET; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	0211-0501	●	●	●
67	09.260 GASKET; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 09.225 ID=18.3	8-97161-778-0	01	1	0502-	●
67	09.260 GASKET; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 09.225 ID=18.3	8-97161-778-0	01	1	0502-		●
67	09.260 GASKET; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	0211-0501	●	●	●
67	09.260 GASKET; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> ID=21.3	8-97223-125-0	01	1	0502-	●
67	09.260 GASKET; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) ID=21.3	8-97223-125-0	01	1	0502-		●
67	09.260 GASKET; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	0211-0501	●	●	●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0211-0501	●	●	●
144	09.242 BOLT; CONN TO CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512	●
144	09.242 BOLT; CONN TO CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
144	09.242 BOLT; CONN TO CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
144	09.242 BOLT; CONN TO CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
147	09.242 CAP; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	0211-0501	●	●	●
147	09.242 CAP; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> CAP MARK H	8-97083-101-0	01	1	0502-	●
147	09.242 CAP; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	0502-		●
147	09.242 CAP; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	0211-0501	●	●	●
147	09.242 CAP; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 09.226 CAP MARK L	8-97083-102-0	01	1	0502-	●
147	09.242 CAP; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	0502-		●
148	09.262 VALVE; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 09.198 (B)	8-97083-892-0	01	1	0502-	●
148	09.262 VALVE; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 09.198 (B)	8-97083-892-0	01	1	0502-		●
148	09.262 VALVE; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97083-100-0	02	1	0211-0501	●	●	●
148	09.262 VALVE; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> (A)	8-97083-100-0	01	1	0502-	●
148	09.262 VALVE; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97083-100-0	01	1	0502-		●
168	09.225 HOSE; FLEX,TANK TO EVAP 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97103-570-1	01	1	0211-0501	●	●	●
168	09.225 HOSE; FLEX,TANK TO EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW>	8-97376-699-2	01	1	0502-	●
168	09.225 HOSE; FLEX,TANK TO EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97376-699-2	01	1	0502-		●

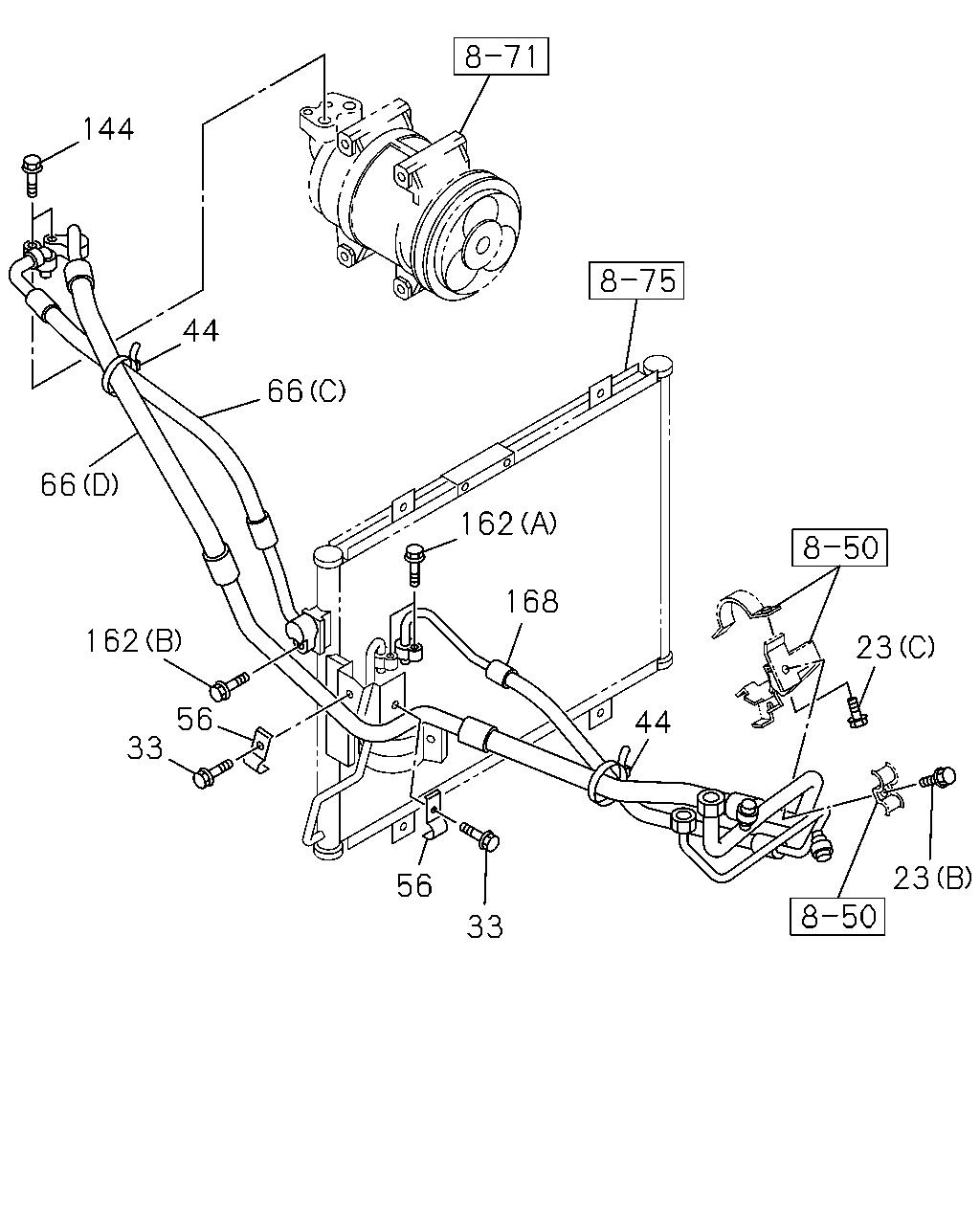

144 44 66 66 162 168 162 23 56 44 33 23 56 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	09.171 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 04.930 (B) M6X20 FLANGE	0-28680-620-0	01	1	0502-0512	●
23	09.171 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 04.930 (B) M6X20 FLANGE	0-28680-620-0	01	1	0502-0512		●
23	09.171 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0601-	●
23	09.171 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0601-		●
23	09.171 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 03.670 (A) M6X20 FLANGE	0-28080-620-0	01	1	0211-0501	●	●	●
23	09.171 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	0502-0512	●
23	09.171 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	0502-0512		●
23	09.171 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	0601-	●
23	09.171 BOLT; BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	0601-		●
33	09.920 BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0211-0501	●	●	●
33	09.920 BOLT; CLIP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0502-0512	●
33	09.920 BOLT; CLIP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0502-0512		●
33	09.920 BOLT; CLIP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0601-	●
33	09.920 BOLT; CLIP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0601-		●
44	09.242 CLIP; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	03	1	0211-0501	●	●	●
44	09.242 CLIP; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 02.559 L=250	5-09707-030-1	02	1	0502-	●
44	09.242 CLIP; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	02	1	0502-		●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97024-716-0	02	1	0211-0501	●	●	●
56	09.242 CLIP; PIPE,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 09.190	8-97024-716-0	02	1	0502-0611	●
56	09.242 CLIP; PIPE,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97024-716-0	02	1	0502-0611		●
56	09.242 CLIP; PIPE,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW>	8-98059-179-0	02	1	0612-	●
56	09.242 CLIP; PIPE,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-98059-179-0	02	1	0612-		●
66	09.225 HOSE; FLEX,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97091-246-3	01	1	0211-0501	●	●	●
66	09.225 HOSE; FLEX,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> (D)	8-97376-697-2	01	1	0502-	●
66	09.225 HOSE; FLEX,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97376-697-2	01	1	0502-		●
66	09.225 HOSE; FLEX,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97103-574-3	01	1	0211-0501	●	●	●
66	09.225 HOSE; FLEX,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> (C)	8-97331-507-0	01	1	0502-	●
66	09.225 HOSE; FLEX,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97331-507-0	01	1	0502-		●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0211-0501	●	●	●
144	09.242 BOLT; CONN TO CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512	●
144	09.242 BOLT; CONN TO CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
144	09.242 BOLT; CONN TO CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
144	09.242 BOLT; CONN TO CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
162	09.173 BOLT; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 02.334 (A) M6X25 FLANGE	0-28680-625-0	02	1	0502-0512	●
162	09.173 BOLT; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.334 (A) M6X25 FLANGE	0-28680-625-0	02	1	0502-0512		●
162	09.173 BOLT; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 00.685 (A) M6X25 FLANGE	0-28650-625-0	02	1	0601-	●
162	09.173 BOLT; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	02	1	0601-		●
162	09.173 BOLT; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●
162	09.173 BOLT; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●
162	09.173 BOLT; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
162	09.173 BOLT; FLEX HOSE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
168	09.225 HOSE; FLEX,TANK TO EVAP 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97103-570-1	01	1	0211-0501	●	●	●
168	09.225 HOSE; FLEX,TANK TO EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW>	8-97376-699-2	01	1	0502-	●
168	09.225 HOSE; FLEX,TANK TO EVAP 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97376-699-2	01	1	0502-		●
