◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51278 - NKR MIDDLE EAST ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶
8-45 — HEATER PIPING (#78859) — 96 parça

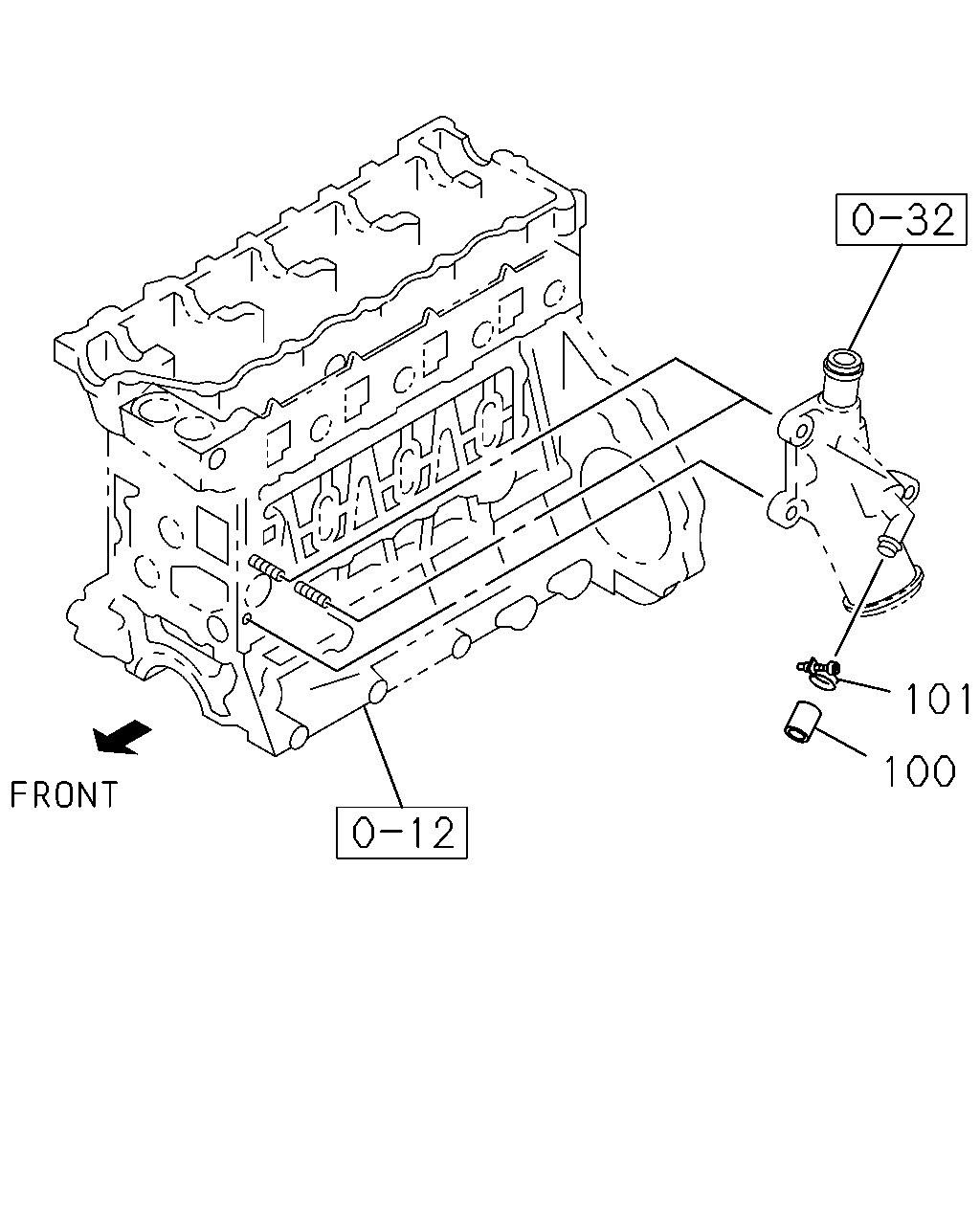

çizim 135458
101 100
BalonParca AdiParca NoAdetTipApplied Date A B C
100 08.846 CAP; RUBBER,WATER PIPE
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMP ENSATOR(EE2) 01.166 		8-94107-793-0 02 1 0211-0302 ●
100 08.846 CAP; RUBBER,WATER PIPE
4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRAME-KICK UP<7EW> 01.166 		8-94107-793-0 02 1 0211-0302 ●
100 08.846 CAP; RUBBER,WATER PIPE
4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 		8-94107-793-0 02 1 0211-0302 ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 		8-94107-793-0 02 1 0303-0501 ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 		8-94107-793-0 02 1 0502-1202 ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 01.166 		8-94107-793-0 02 1 0502-1202 ●
100 08.846 CAP; RUBBER,WATER PIPE
4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 		8-94107-793-0 01 1 1203- ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 01.166 		8-94107-793-0 01 1 1203- ●
101 08.846 CLIP; CAP,WATER PIPE
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMP ENSATOR(EE2) 01.166 ID=25 		8-94233-115-0 02 1 0211-0302 ●
101 08.846 CLIP; CAP,WATER PIPE
4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRAME-KICK UP<7EW> 01.166 ID=25 		8-94233-115-0 02 1 0211-0302 ●
101 08.846 CLIP; CAP,WATER PIPE
4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25 		8-94233-115-0 02 1 0211-0302 ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25 		8-94233-115-0 02 1 0303-0501 ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25 		8-94233-115-0 02 1 0502-1202 ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 01.166 ID=25 		8-94233-115-0 02 1 0502-1202 ●
101 08.846 CLIP; CAP,WATER PIPE
4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25 		8-94233-115-0 01 1 1203- ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 01.166 ID=25 		8-94233-115-0 01 1 1203- ●

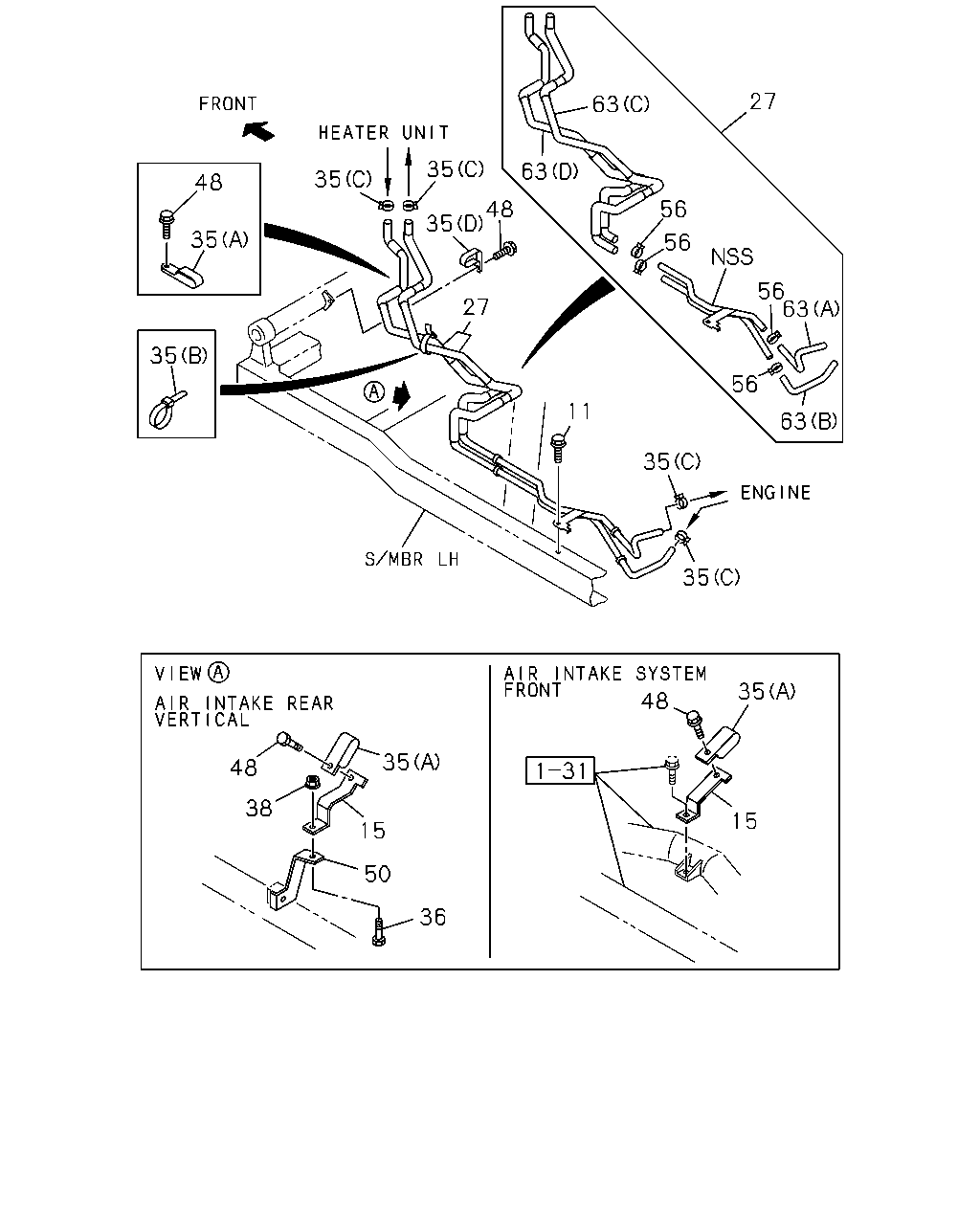

çizim 135464
27 63 35 63 35 48 56 48 35 35 56 56 63 27 35 56 11 63 35 35 35 48 35 48 38 15 15 50 36
BalonParca AdiParca NoAdetTipApplied Date A B C
11 08.845 BOLT; HTR PIPE
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ●
11 08.845 BOLT; HTR PIPE
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ●
11 08.845 BOLT; HTR PIPE
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
11 08.845 BOLT; HTR PIPE
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
11 08.845 BOLT; HTR PIPE
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
15 08.846 BRACKET; WATER HOSE
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97107-781-0 01 1 0211-0501 ● ●
15 08.846 BRACKET; WATER HOSE
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97107-781-0 01 1 0502- ● ●
15 08.846 BRACKET; WATER HOSE
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97101-872-0 01 1 0211-0501 ●
15 08.846 BRACKET; WATER HOSE
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 		8-97101-872-0 01 1 0502- ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97129-198-1 01 1 0211-0501 ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97129-198-1 01 1 0502- ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97219-007-1 01 1 0211-0501 ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 		8-97219-007-1 01 1 0502- ●
35 08.852 CLIP; WATER HOSE
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250 		5-09707-030-1 02 1 0211-0501 ● ● ●
35 08.852 CLIP; WATER HOSE
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250 		5-09707-030-1 02 1 0502- ● ●
35 08.852 CLIP; WATER HOSE
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 02.559 (B) L=250 		5-09707-030-1 02 1 0502- ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) 		8-94124-169-1 01 1 0211-0501 ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) 		8-94124-169-1 01 1 0502-0610 ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41) 08.846 (D) 		8-94124-169-1 01 1 0502-0610 ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98032-129-0 01 1 0611- ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41) (D) 		8-98032-129-0 01 1 0611- ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) ID=22 		8-94382-401-0 04 1 0211-0501 ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) ID=22 		8-94382-401-0 04 1 0502-0610 ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41) 08.846 (C) ID=22 		8-94382-401-0 04 1 0502-0610 ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22 		8-97359-141-0 04 1 0611- ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41) 03.278 (C) ID=22 		8-97359-141-0 04 1 0611- ●
35 08.852 CLIP; WATER HOSE
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18 		9-83651-948-1 01 1 0211-0501 ● ● ●
35 08.852 CLIP; WATER HOSE
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18 		9-83651-948-1 01 1 0502-0610 ● ●
35 08.852 CLIP; WATER HOSE
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 08.846 (A) B=18 		9-83651-948-1 01 1 0502-0610 ●
35 08.852 CLIP; WATER HOSE
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18 		8-97359-144-0 01 1 0611-1205 ● ●
35 08.852 CLIP; WATER HOSE
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 08.846 (A) B=18 		8-97359-144-0 01 1 0611-1205 ●
35 08.852 CLIP; WATER HOSE
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18 		8-98166-023-0 01 1 1206- ● ●
35 08.852 CLIP; WATER HOSE
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 08.846 (A) B=18 		8-98166-023-0 01 1 1206- ●
36 08.846 BOLT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0304 ● ●
36 08.846 BOLT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0305-0501 ● ●
36 08.846 BOLT; BRKT
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0305-0501 ●
36 08.846 BOLT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ●
36 08.846 BOLT; BRKT
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
36 08.846 BOLT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
36 08.846 BOLT; BRKT
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
38 08.846 NUT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE 		0-91150-208-0 01 1 0211-0304 ● ●
38 08.846 NUT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE 		0-91150-208-0 01 1 0305-0501 ● ●
38 08.846 NUT; BRKT
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE 		0-91150-208-0 01 1 0305-0501 ●
38 08.846 NUT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE 		0-91150-208-0 01 1 0502-0602 ● ●
38 08.846 NUT; BRKT
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE 		0-91150-208-0 01 1 0502-0602 ●
38 08.846 NUT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0603-1401 ● ●
38 08.846 NUT; BRKT
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0603-1401 ●
38 08.846 NUT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402- ● ●
38 08.846 NUT; BRKT
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402- ●
48 09.262 BOLT; CLIP FIX
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0211-0501 ● ● ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0211-0501 ● ● ●
48 09.262 BOLT; CLIP FIX
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0502-0512 ● ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0502-0512 ● ●
48 09.262 BOLT; CLIP FIX
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0502-0512 ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0502-0512 ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601- ● ●
48 09.262 BOLT; CLIP FIX
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601- ● ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601- ●
48 09.262 BOLT; CLIP FIX
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601- ●
50 08.846 BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.417 		8-97072-530-0 01 1 0211-0303 ● ●
50 08.846 BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 03.417 		8-97072-530-0 01 1 0304- ●
50 08.846 BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.417 		8-97072-530-0 01 1 0304- ●
50 08.846 BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) FRAME-KICK UP<7EW> 		8-97230-028-0 01 1 0304- ●
56 08.846 CLAMP; HTR HOSE
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22 		8-94382-401-0 04 1 0211-0501 ● ● ●
56 08.846 CLAMP; HTR HOSE
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22 		8-94382-401-0 04 1 0502- ● ●
56 08.846 CLAMP; HTR HOSE
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) ID=22 		8-94382-401-0 04 1 0502- ●
63 08.846 HOSE; WATER
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97107-611-0 01 1 0211-0501 ● ●
63 08.846 HOSE; WATER
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97107-611-0 01 1 0502- ● ●
63 08.846 HOSE; WATER
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97107-612-0 01 1 0211-0501 ● ●
63 08.846 HOSE; WATER
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97107-612-0 01 1 0502- ● ●
63 08.846 HOSE; WATER
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-830-0 01 1 0211-0501 ● ● ●
63 08.846 HOSE; WATER
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-830-0 01 1 0502- ● ●
63 08.846 HOSE; WATER
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) (A) 		8-97095-830-0 01 1 0502- ●
63 08.846 HOSE; WATER
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-831-0 01 1 0211-0501 ● ● ●
63 08.846 HOSE; WATER
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-831-0 01 1 0502- ● ●
63 08.846 HOSE; WATER
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) (B) 		8-97095-831-0 01 1 0502- ●
63 08.846 HOSE; WATER
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97239-090-0 01 1 0211-0501 ●
63 08.846 HOSE; WATER
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) (C) 		8-97239-090-0 01 1 0502- ●
63 08.846 HOSE; WATER
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97239-091-0 01 1 0211-0501 ●
63 08.846 HOSE; WATER
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) (D) 		8-97239-091-0 01 1 0502- ●
