8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#78856) — 20 parça

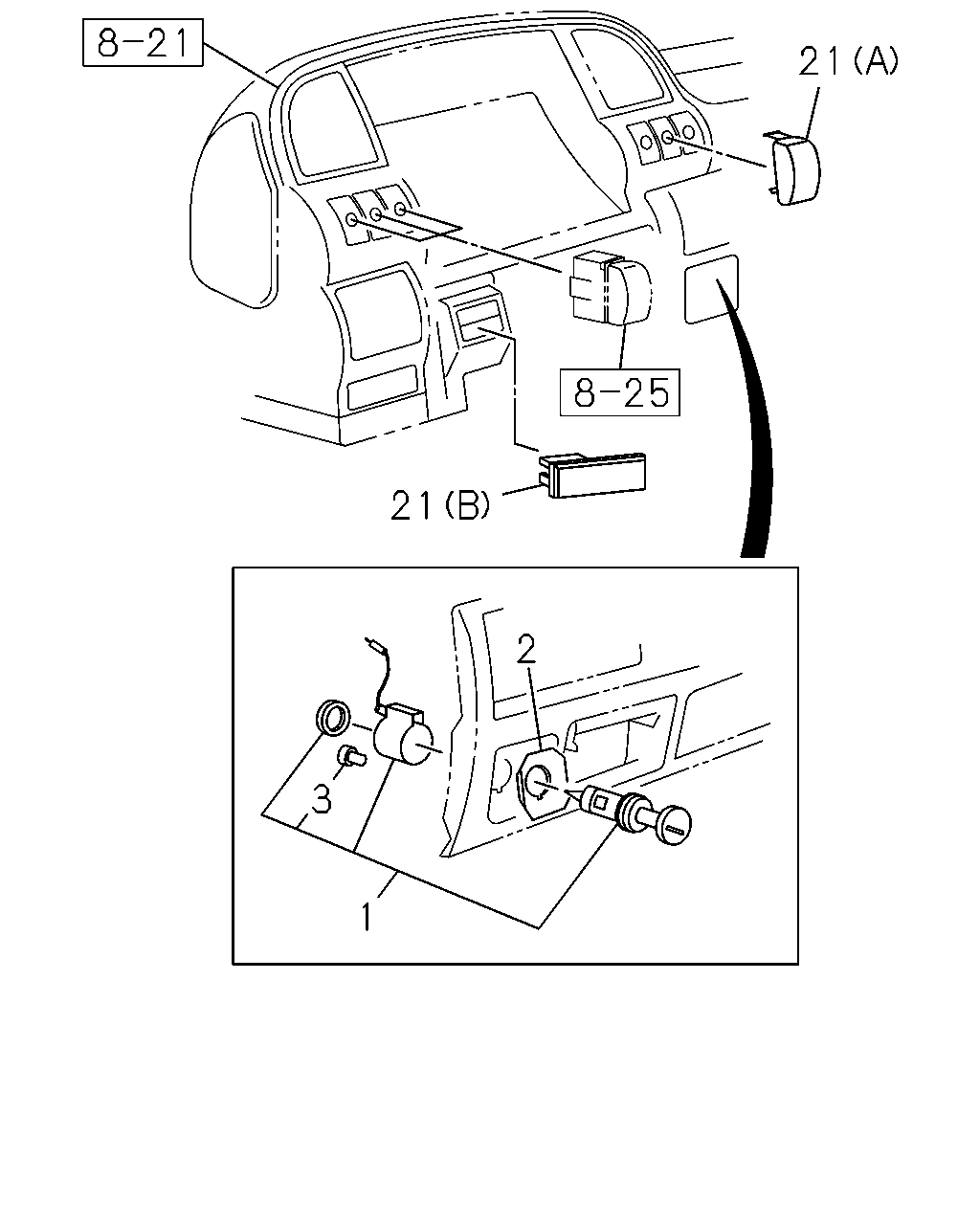

çizim 135429
21 21 2 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0211- ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0211-0706 ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-98091-060-0 01 1 0707- ● ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0211- ● ● ●
21 09.744 COVER; HOLE
4HF1-S ENG(RLS) (A) 		8-97136-694-0 01 1 0211-0501 ● ● ●
21 09.744 COVER; HOLE
4HF1-N ENG(RJZ) (A) 		8-97136-694-0 01 1 0502- ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0502- ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 02 1 0211-0501 ● ● ●
21 09.744 COVER; HOLE
EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0211- ● ●
21 09.744 COVER; HOLE
02.485 (B) 		8-94310-890-0 01 1 0211- ●

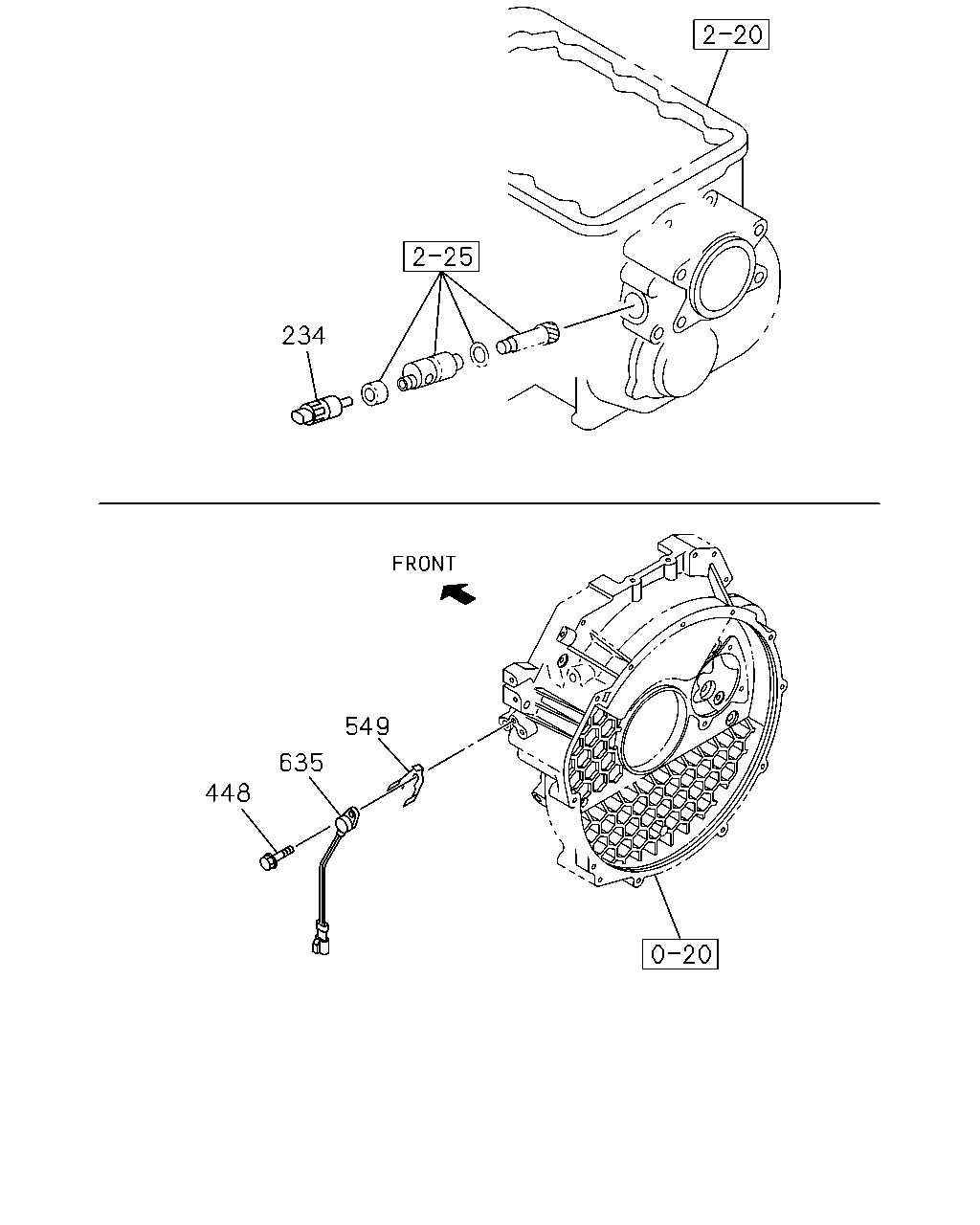

çizim 135438
234 549 635 448
BalonParca AdiParca NoAdetTipApplied Date A B C
234 03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0211- ● ● ●
448 02.500 BOLT; SENSOR
4HF1-S ENG(RLS) EXC. AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0211-0501 ● ● ●
448 02.500 BOLT; SENSOR
4HF1-N ENG(RJZ) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0502-0512 ● ● ●
448 02.500 BOLT; SENSOR
4HF1-N ENG(RJZ) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0601- ● ● ●
549 02.510 SHEET
4HF1-S ENG(RLS) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.743 		8-97161-633-2 01 1 0211-0501 ● ● ●
549 02.510 SHEET
4HF1-N ENG(RJZ) 09.743 		8-97161-633-2 01 1 0502- ● ● ●
635 09.750 SENSOR; TACHOMETER
4HF1-S ENG(RLS) EXC. AIR CONDITIONER MANUAL CONT(C60) CALSONIC KANSEI 		8-97163-104-0 01 1 0211-0501 ● ● ●
635 09.750 SENSOR; TACHOMETER
4HF1-N ENG(RJZ) CALSONIC KANSEI 		8-97163-104-0 01 1 0502- ● ● ●
çizim 135489
211 437
BalonParca AdiParca NoAdetTipApplied Date A B C
211 02.487 RESISTOR; SW
ADJUST HEADLAMP<6RC> 		8-97359-130-1 01 1 0502- ● ● ●
437 10.485 CONVERTER; DC
ADJUST HEADLAMP<6RC> KOITO 		8-97359-129-0 01 1 0502- ● ● ●
