◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51278 - NKR MIDDLE EAST ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#78855) — 100 parça

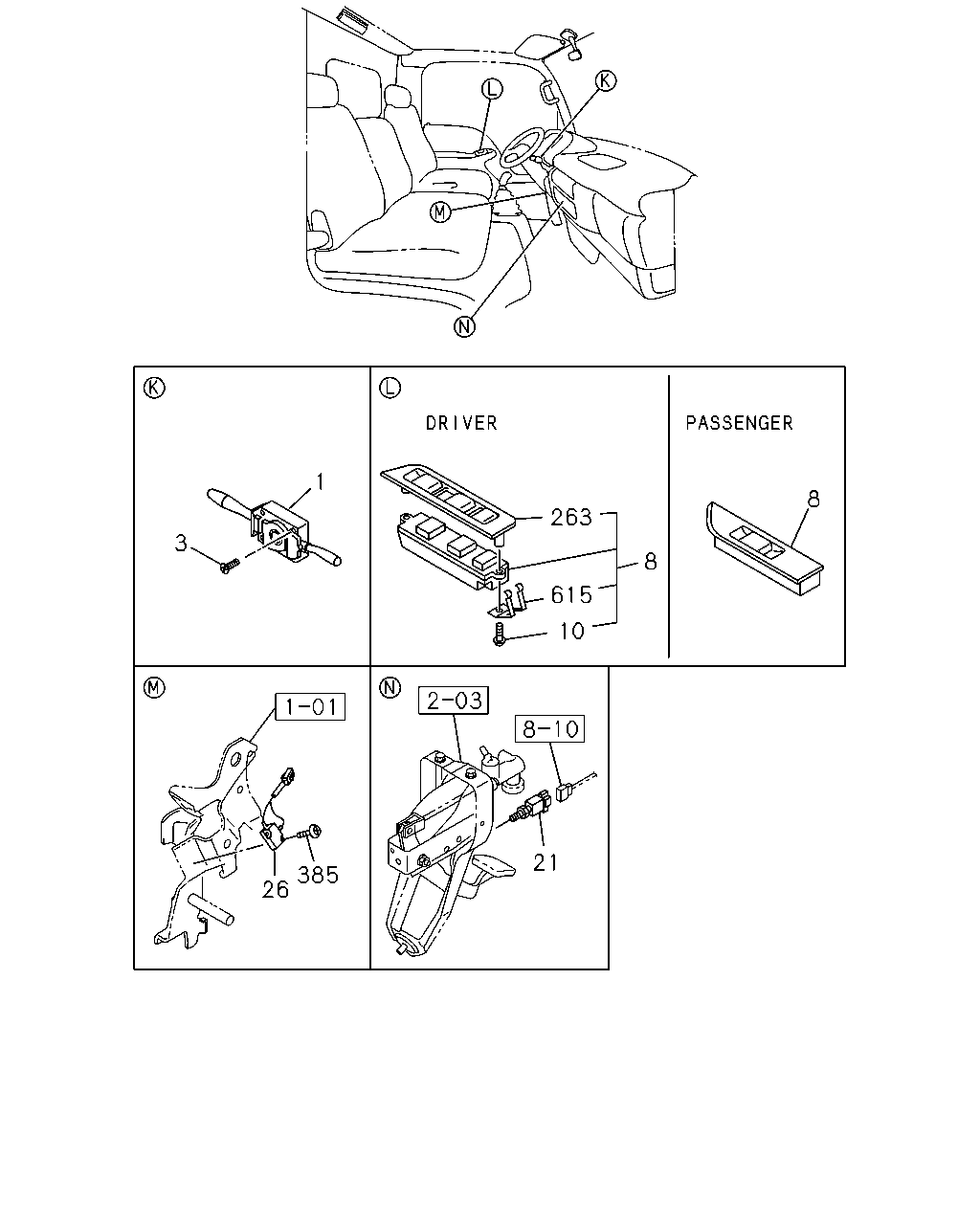

çizim 135414
1 8 263 3 8 615 10 21 385 26
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97287-890-2 01 1 0211-0301 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97364-074-0 01 1 0302-0501 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97383-517-0 01 1 0502- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97287-891-2 01 1 0211-0301 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97364-075-0 01 1 0302-0501 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97383-518-0 01 1 0502- ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97287-882-2 01 1 0211-0301 ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97364-070-0 01 1 0302-0501 ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97383-513-0 01 1 0502- ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97287-883-2 01 1 0211-0301 ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97364-071-0 01 1 0302-0501 ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97383-514-0 01 1 0502- ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 0211-0604 ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		0-36220-520-0 04 1 0605-0612 ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 04 1 0701- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97214-399-0 01 1 0211-0703 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98075-446-0 01 1 0704-0907 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98147-236-0 01 1 0908- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-178-0 01 1 0211-0907 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98147-226-0 01 1 0908- ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 0211- ● ● ●
21 02.575 SWITCH; CLU
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 04.054 		8-94331-723-1 01 1 0211-0211 ● ● ●
21 02.575 SWITCH; CLU
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0212-0501 ● ● ●
21 02.575 SWITCH; CLU
4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0502- ● ● ●
26 03.636 SWITCH; ACCEL
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 		8-97855-192-0 01 1 0211-0501 ● ● ●
26 03.636 SWITCH; ACCEL
4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 		8-97855-192-0 01 1 0502- ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-236-0 01 1 0211- ● ● ●
385 08.909 SCREW; ACCEL SW
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.451 M3X16 TAPPING 		0-71280-316-0 02 1 0211-0501 ● ● ●
385 08.909 SCREW; ACCEL SW
4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.451 M3X16 TAPPING 		0-71280-316-0 02 1 0502-0603 ● ● ●
385 08.909 SCREW; ACCEL SW
4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.425 M3X16 TAPPING 		0-71340-316-0 02 1 0604- ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 0211- ● ● ●

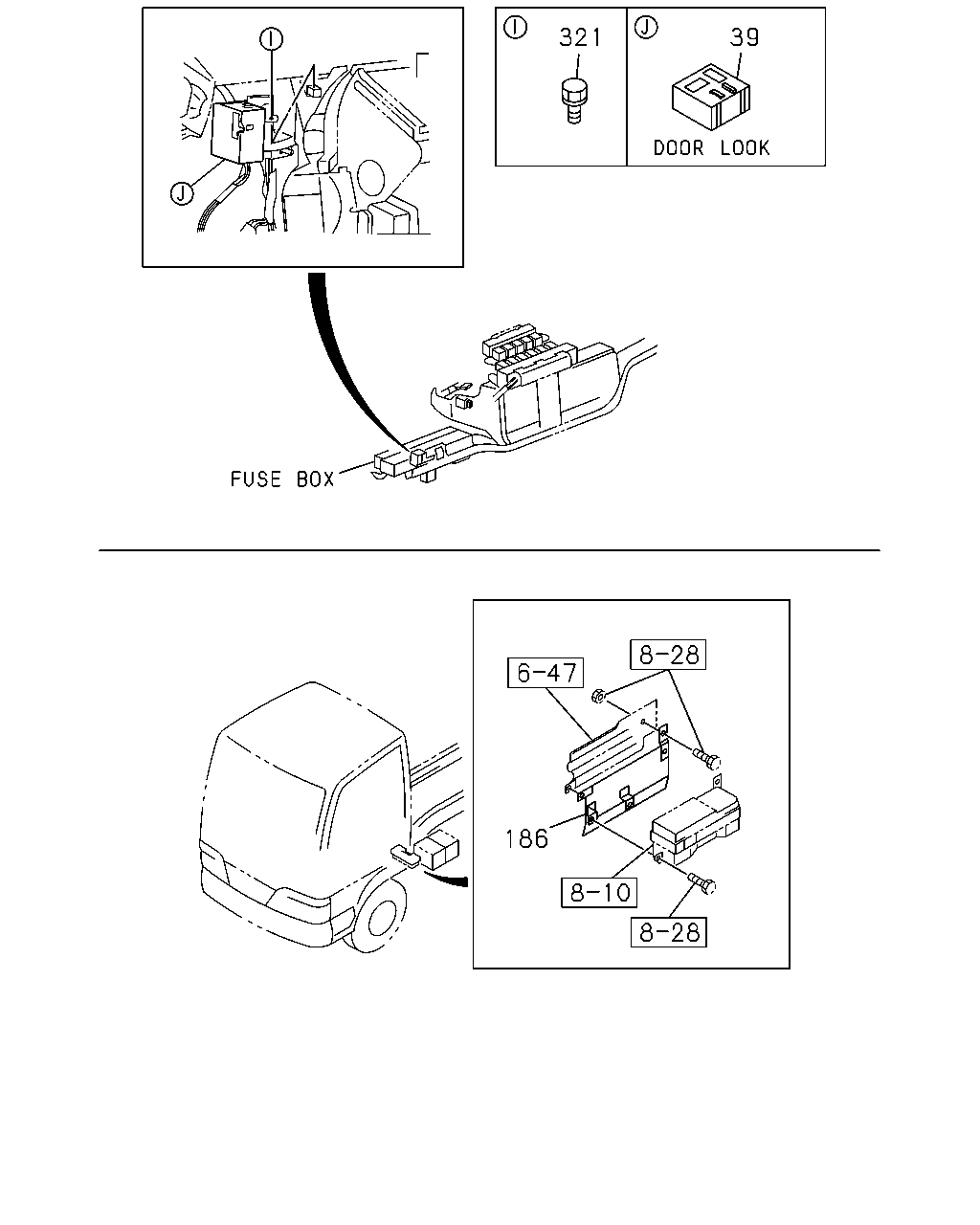

çizim 135415
321 39 186
BalonParca AdiParca NoAdetTipApplied Date A B C
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-214-0 01 1 0211- ● ● ●
186 09.277 BRACKET; RELAY BOX
4HF1-S ENG(RLS) 		8-97135-422-1 01 1 0211-0501 ● ● ●
186 09.277 BRACKET; RELAY BOX
4HF1-N ENG(RJZ) 		8-97135-422-1 01 1 0502- ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 0211-0612 ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0701-1101 ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ●
çizim 135424
85 311 12 191
BalonParca AdiParca NoAdetTipApplied Date A B C
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
311 02.596 RELAY; CORNERING LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
311 02.596 RELAY; CORNERING LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●

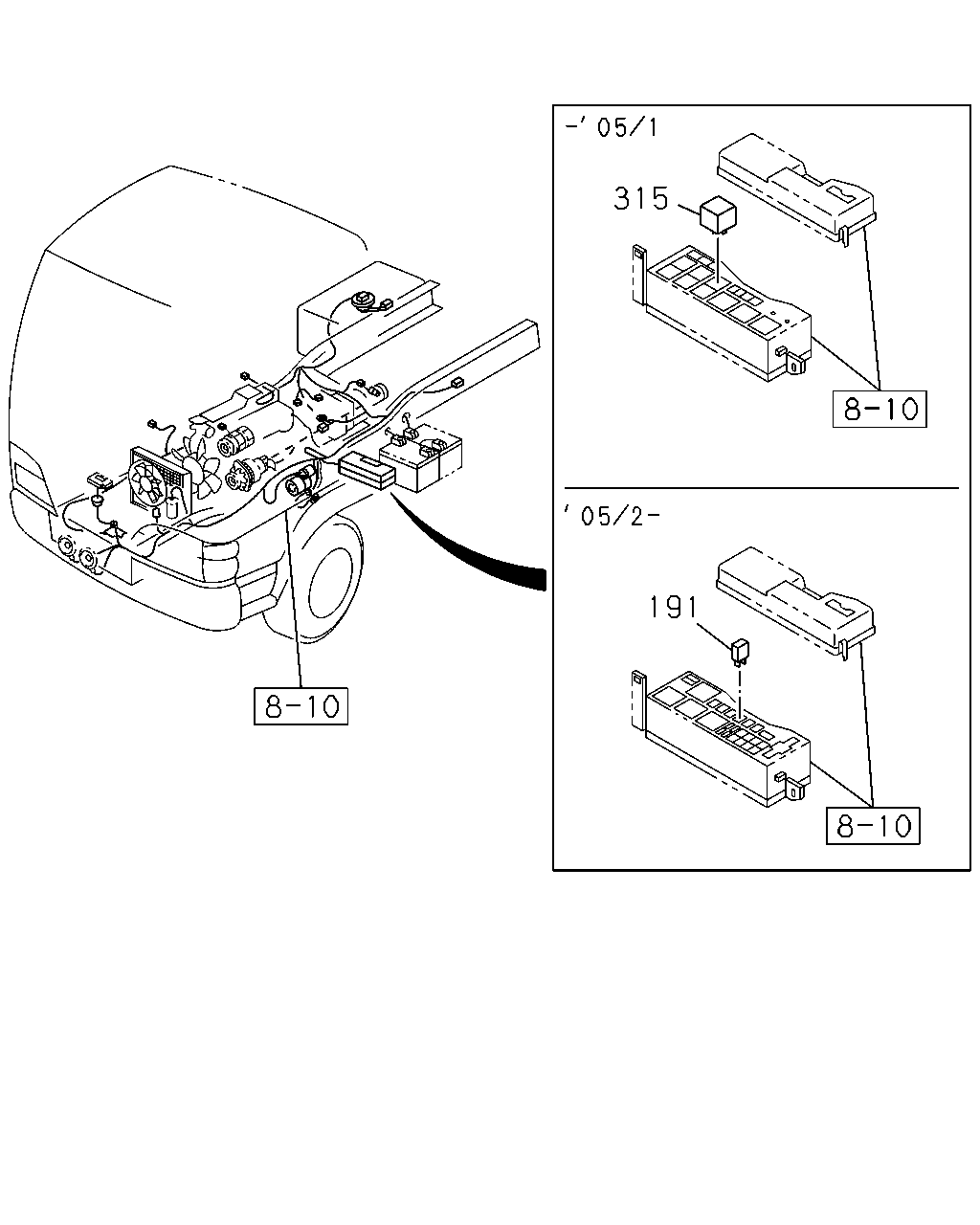

çizim 135428
315 191
BalonParca AdiParca NoAdetTipApplied Date A B C
191 02.510 RELAY; EXH BRK CUT
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
315 09.277 RELAY; EXH BRAKE CONT
REAR HEATER<C35> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> EXC. REAR HEATER<C35> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●

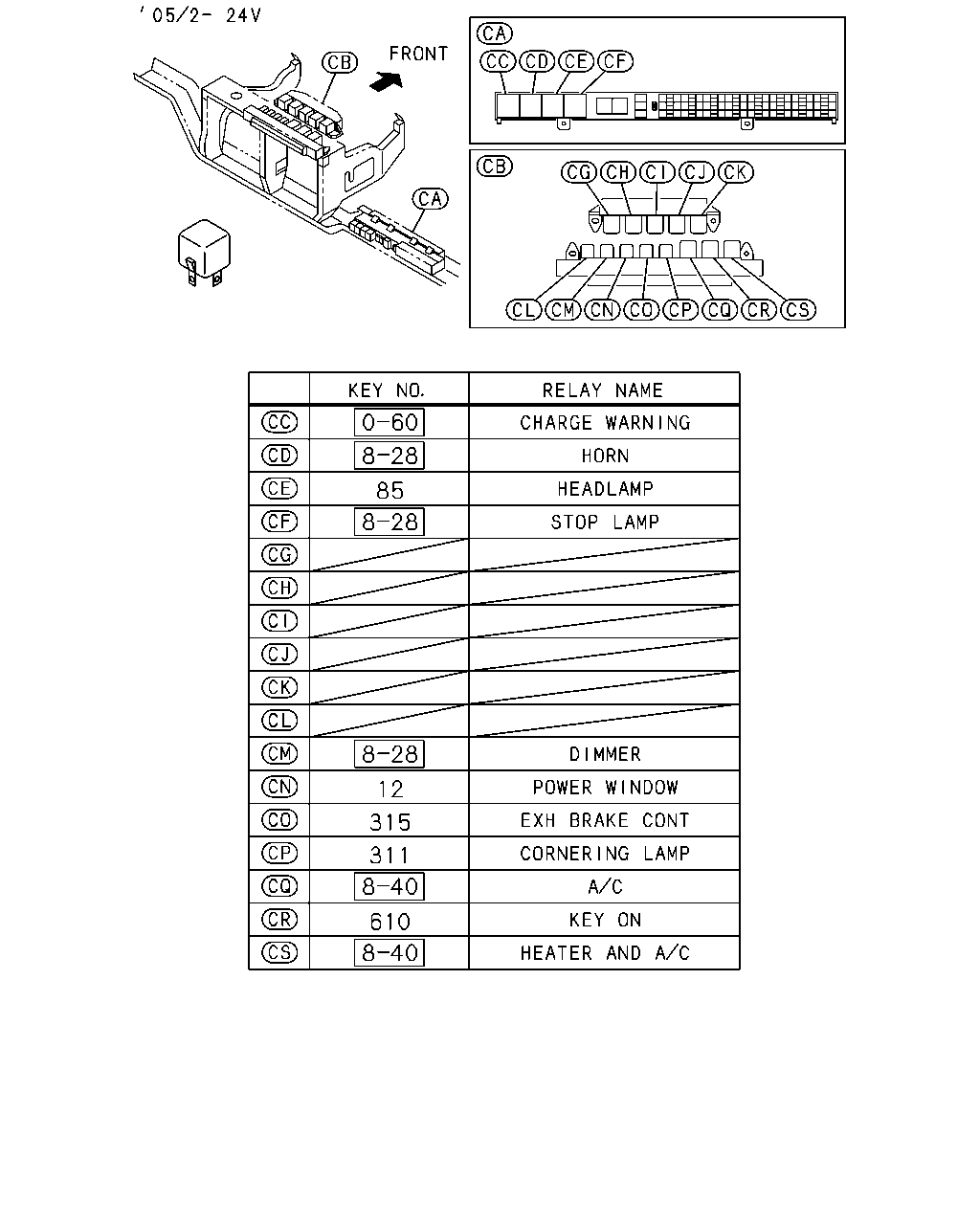

çizim 135430
85 12 315 311 610
BalonParca AdiParca NoAdetTipApplied Date A B C
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
311 02.596 RELAY; CORNERING LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
311 02.596 RELAY; CORNERING LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
315 09.277 RELAY; EXH BRAKE CONT
REAR HEATER<C35> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> EXC. REAR HEATER<C35> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0502- ● ● ●

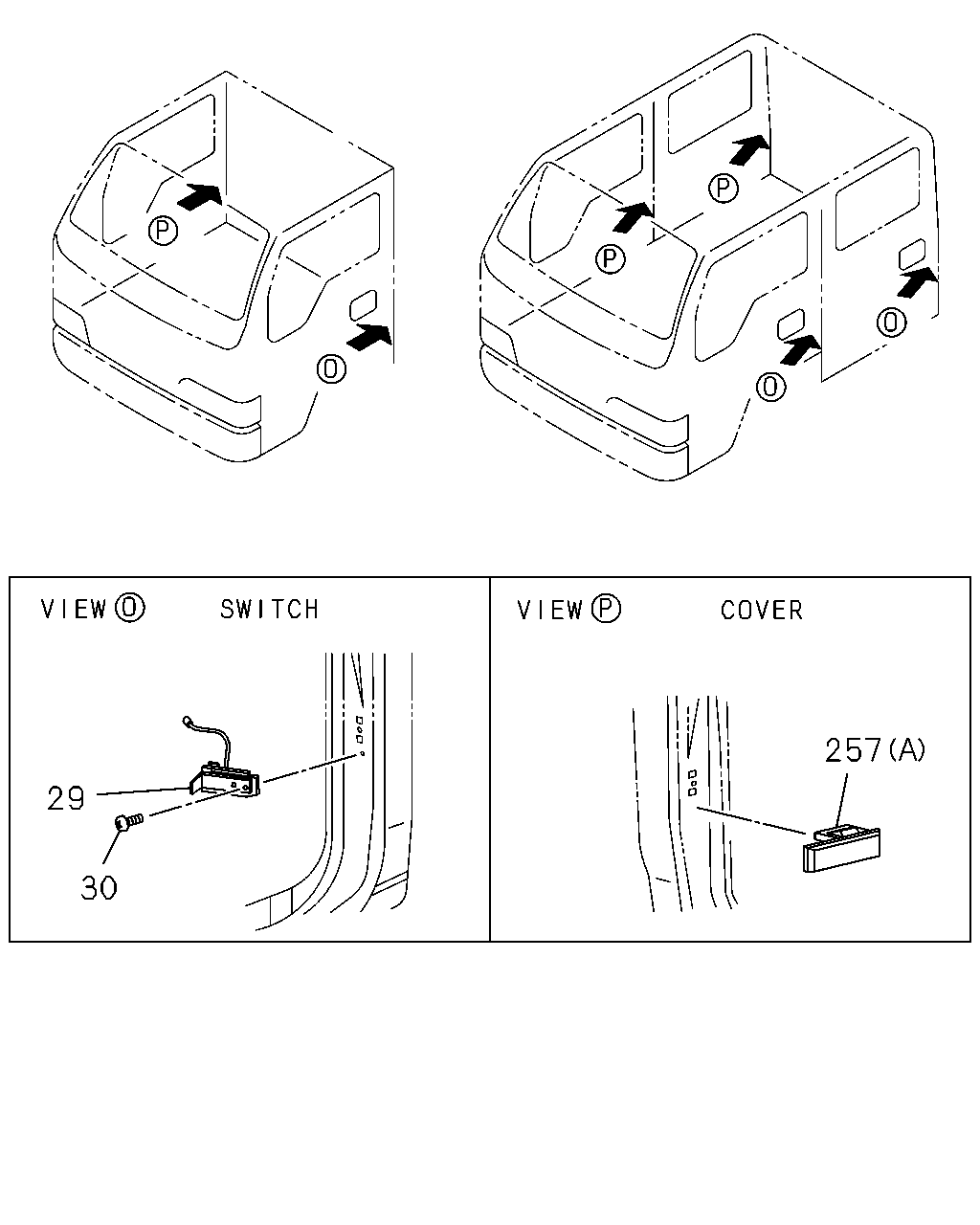

çizim 135434
257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C
29 16.263 SWITCH; DOOR 8-97855-032-3 01 1 0211- ● ●
29 16.263 SWITCH; DOOR 8-97855-032-3 02 1 0211- ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 0211- ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 0211- ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0211- ● ●
257 16.081 COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE(V66),ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 0211- ● ●
257 16.081 COVER; HOLE,SW
EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 0211- ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0211-0501 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0502- ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (C) 		8-97136-694-0 01 1 0502- ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 0211- ●

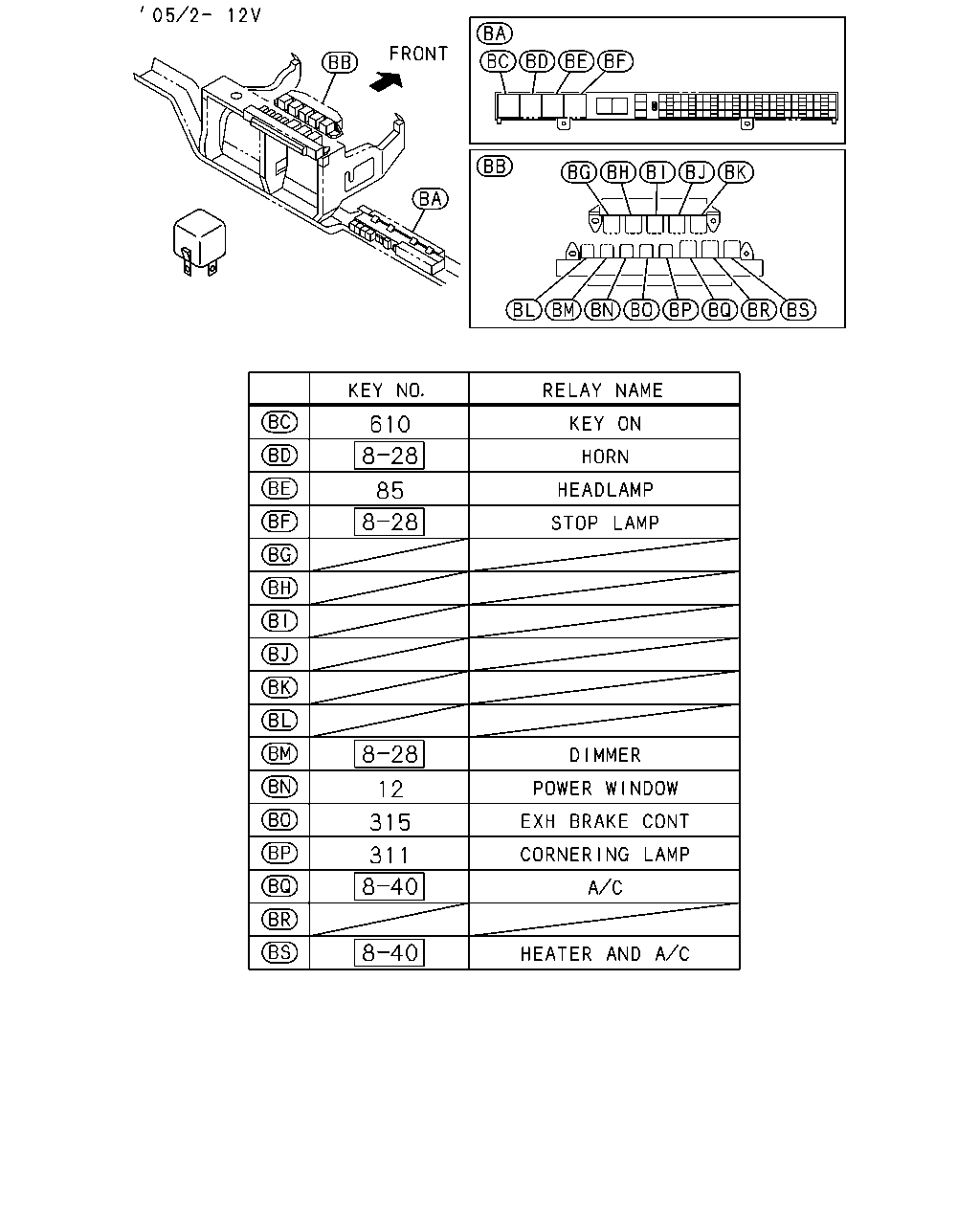

çizim 135436
610 85 12 315 311
BalonParca AdiParca NoAdetTipApplied Date A B C
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
311 02.596 RELAY; CORNERING LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
311 02.596 RELAY; CORNERING LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
315 09.277 RELAY; EXH BRAKE CONT
REAR HEATER<C35> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> EXC. REAR HEATER<C35> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0502- ● ● ●

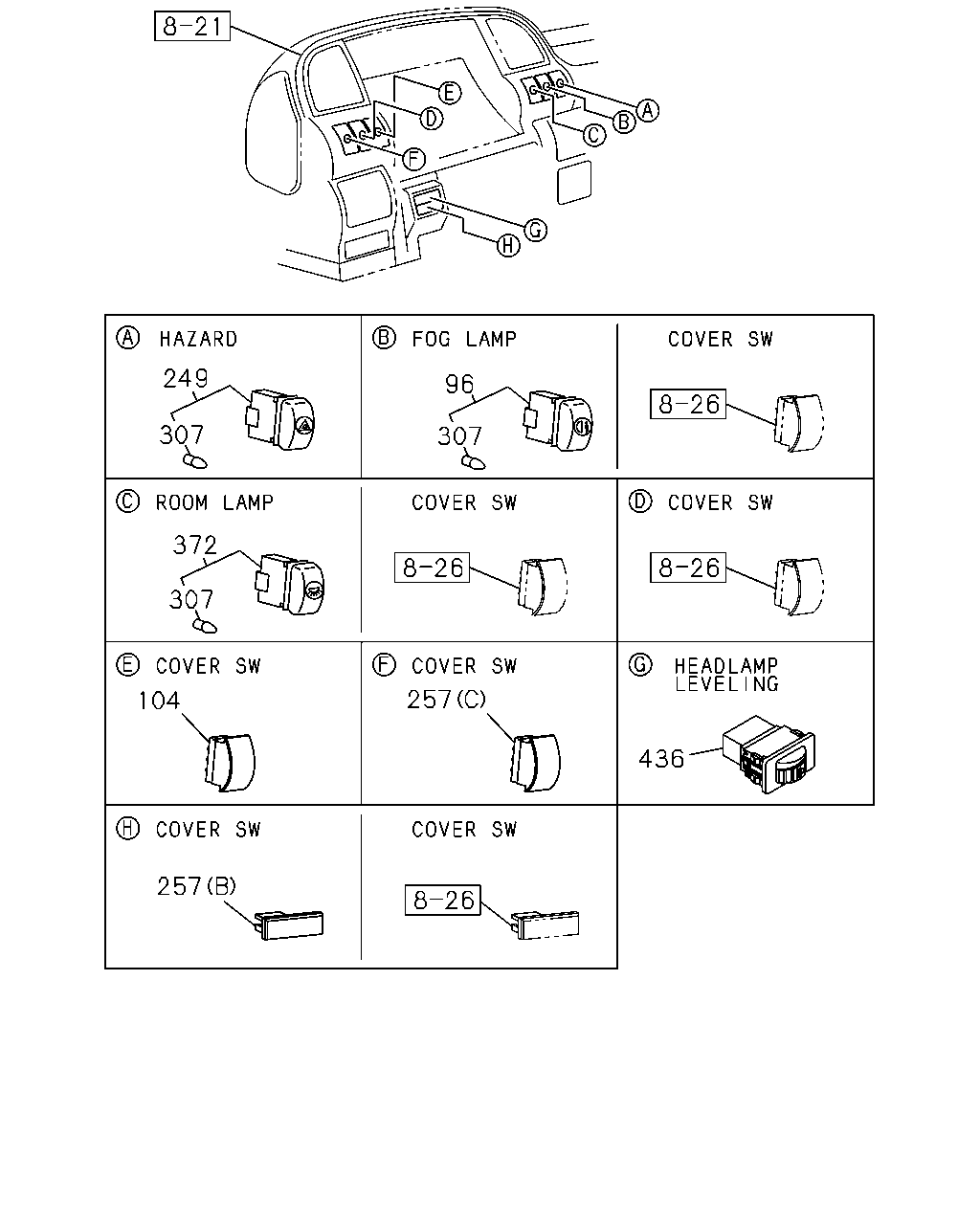

çizim 135452
249 96 307 307 372 307 257 104 436 257
BalonParca AdiParca NoAdetTipApplied Date A B C
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97170-441-0 01 1 0211- ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 0211- ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 0211- ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0211- ● ●
257 16.081 COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE(V66),ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 0211- ● ●
257 16.081 COVER; HOLE,SW
EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 0211- ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0211-0501 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0502- ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (C) 		8-97136-694-0 01 1 0502- ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 0211- ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 28V 40MA 		8-97116-331-0 01 1 0211- ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0211- ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0211- ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 0211- ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97260-401-1 01 1 0211- ● ● ●
