8-21 — METER ASM (#78854) — 85 parça

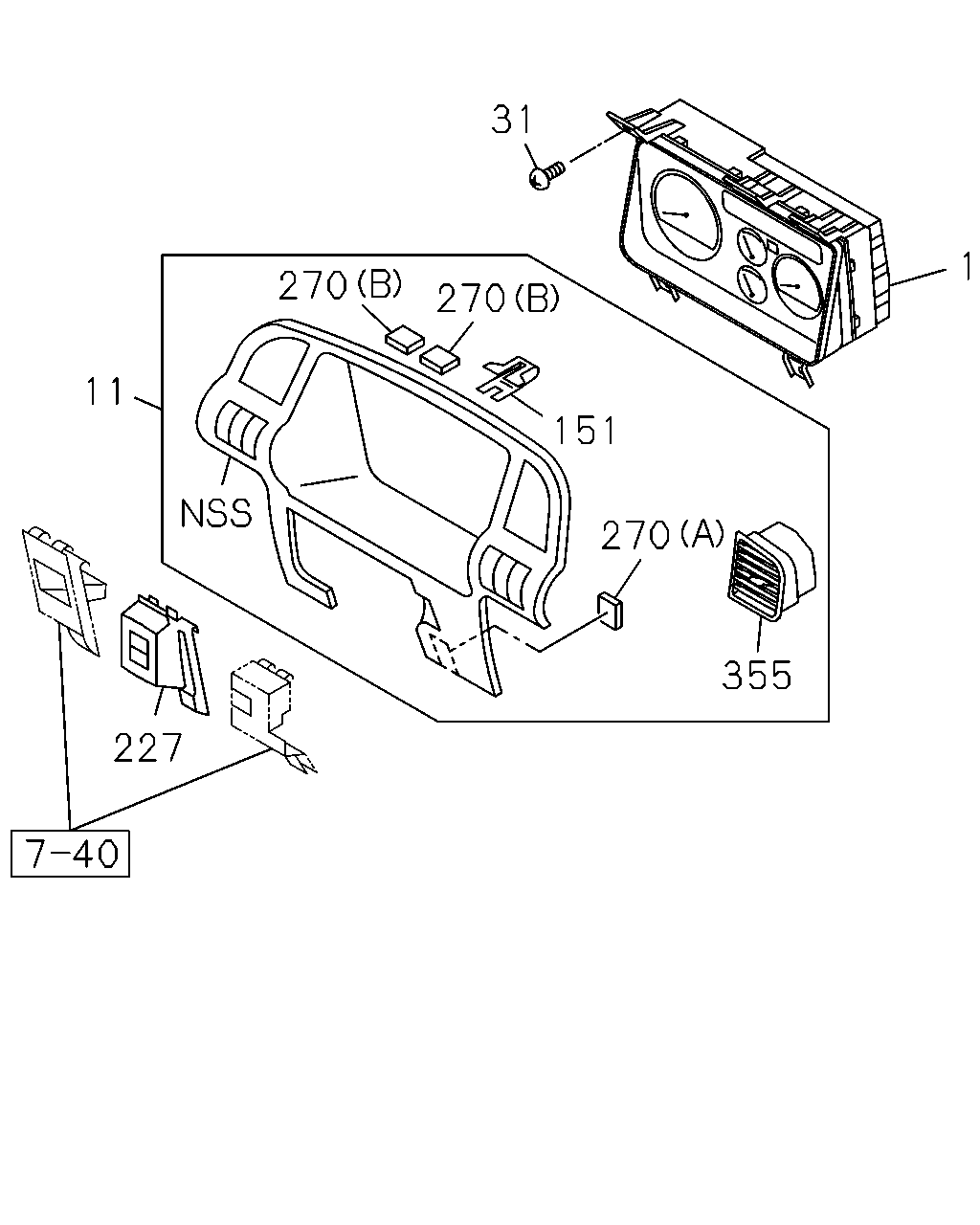

31 1 270 11 151 355 227 270 270

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.735 METER COMPL; CLUSTER 4HF1-S ENG(RLS)	8-97350-668-0	01	1	0211-0305	●	●	●
1	09.735 METER COMPL; CLUSTER 4HF1-S ENG(RLS)	8-97365-184-0	01	1	0306-0501	●	●	●
1	09.735 METER COMPL; CLUSTER 4HF1-N ENG(RJZ)	8-97385-415-0	01	1	0502-	●	●	●
11	09.743 CLUSTER ASM; METER BLACK	8-97195-965-2	01	1	0211-	●	●	●
31	09.761 SCREW; METER,INST PANEL 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0211-1210	●	●	●
31	09.761 SCREW; METER,INST PANEL 02.587 M6X19.5 W/LK&PL WASHER	8-97360-226-0	05	1	1211-	●	●	●
151	09.747 CLIP; METER CLUSTER	8-97217-066-0	14	1	0211-0211	●	●	●
151	09.747 CLIP; METER CLUSTER	8-97217-066-0	07	1	0211-	●	●	●
227	09.743 BEZEL; METER EXC. PTO TRANSMISSION SIDE(V66) BLACK	8-97307-066-0	01	1	0211-	●	●
227	09.743 BEZEL; METER BLACK	8-97307-066-0	01	1	0211-			●
270	09.743 CUSHION; METER CLUSTER 16.085 (A) 15X30 T=5	8-94270-366-2	01	1	0211-	●	●	●
270	09.743 CUSHION; METER CLUSTER (B) 6X30 T=2	8-94270-378-1	02	1	0211-	●	●	●
355	09.748 GRILLE; VENT BLACK	8-97195-966-1	01	1	0211-	●	●	●
355	09.748 GRILLE; VENT BLACK	8-97195-967-1	01	1	0211-	●	●	●

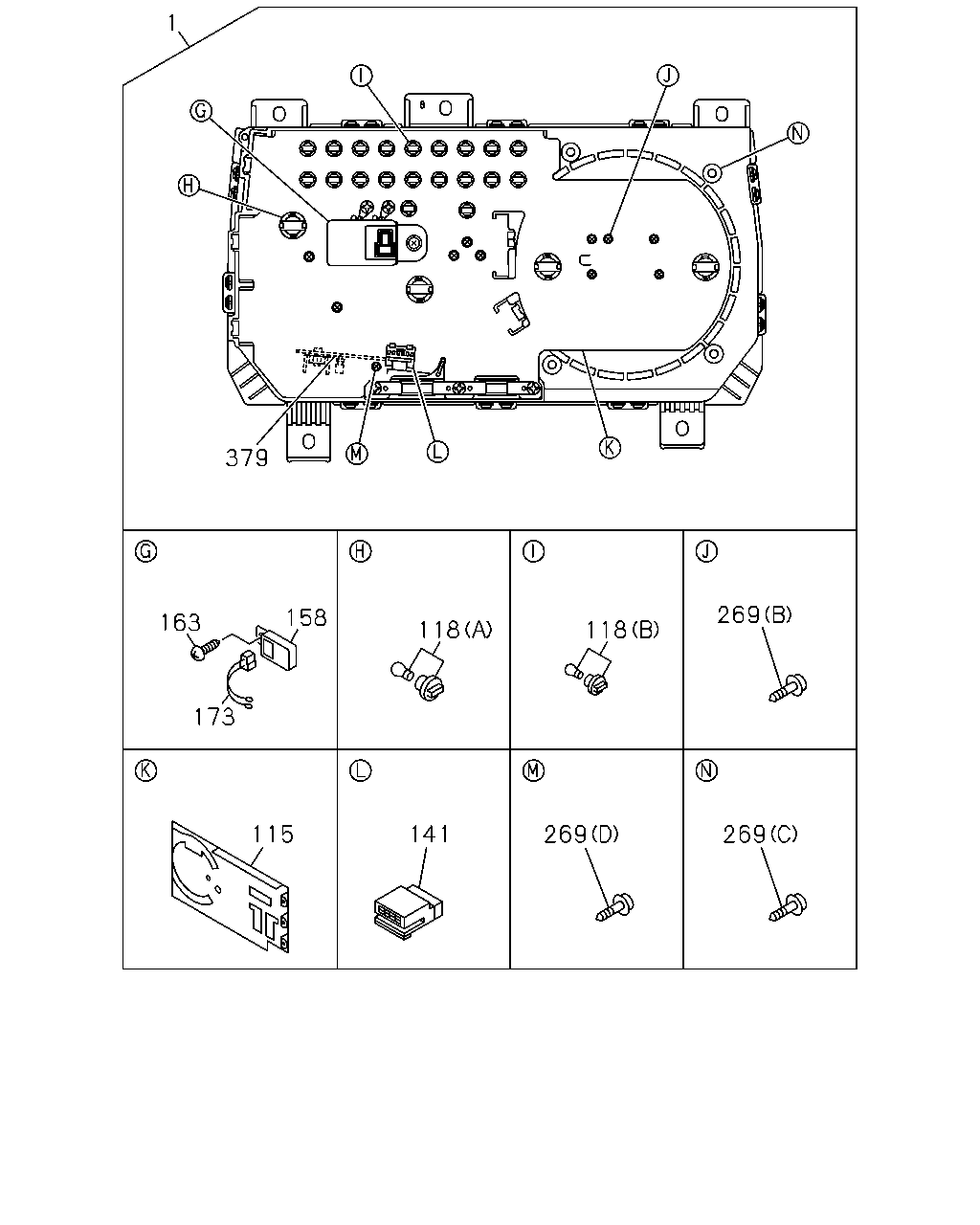

1 379 269 158 163 118 118 173 115 269 269 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.735 METER COMPL; CLUSTER 4HF1-S ENG(RLS)	8-97350-668-0	01	1	0211-0305	●	●	●
1	09.735 METER COMPL; CLUSTER 4HF1-S ENG(RLS)	8-97365-184-0	01	1	0306-0501	●	●	●
1	09.735 METER COMPL; CLUSTER 4HF1-N ENG(RJZ)	8-97385-415-0	01	1	0502-	●	●	●
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HF1-S ENG(RLS)	8-97185-494-0	01	1	0211-0501	●	●	●
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HF1-N ENG(RJZ)	8-97185-494-0	01	1	0502-	●	●	●
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HF1-S ENG(RLS)	8-97185-533-0	01	1	0211-0501	●	●	●
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HF1-N ENG(RJZ)	8-97368-342-0	01	1	0502-	●	●	●
118	08.991 BULB; CLUSTER METER 4HF1-S ENG(RLS) (A) 24V SOCKET COLOR DARK BROWN	8-97185-538-0	04	1	0211-0501	●	●	●
118	08.991 BULB; CLUSTER METER 4HF1-N ENG(RJZ) (A) 24V SOCKET COLOR DARK BROWN	8-97185-538-0	04	1	0502-	●	●	●
118	08.991 BULB; CLUSTER METER 4HF1-S ENG(RLS) (B) 24V SOCKET COLOR REDDISH BROWN	8-97185-540-0	03	1	0211-0501	●	●	●
118	08.991 BULB; CLUSTER METER 4HF1-N ENG(RJZ) (B) 24V SOCKET COLOR REDDISH BROWN	8-97185-540-0	03	1	0502-	●	●	●
118	08.991 BULB; CLUSTER METER 4HF1-S ENG(RLS) (B) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	09	1	0211-0305	●	●	●
118	08.991 BULB; CLUSTER METER 4HF1-S ENG(RLS) (B) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	11	1	0306-0501	●	●	●
118	08.991 BULB; CLUSTER METER 4HF1-N ENG(RJZ) (B) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	10	1	0502-	●	●	●
141	09.744 CONNECTOR; CLUSTER METER 4HF1-S ENG(RLS)	8-97185-513-0	01	1	0211-0501	●	●	●
141	09.744 CONNECTOR; CLUSTER METER 4HF1-N ENG(RJZ)	8-97185-513-0	01	1	0502-	●	●	●
158	09.765 BUZZER; VAC WARNING 4HF1-S ENG(RLS) 24V	8-97185-519-0	01	1	0211-0501	●	●	●
158	09.765 BUZZER; VAC WARNING 4HF1-N ENG(RJZ) 24V	8-97185-519-0	01	1	0502-	●	●	●
163	08.977 SCREW; BUZZER 4HF1-S ENG(RLS)	8-97185-527-0	01	1	0211-0501	●	●	●
163	08.977 SCREW; BUZZER 4HF1-N ENG(RJZ)	8-97185-527-0	01	1	0502-	●	●	●
173	09.744 WIRE; LEAD 4HF1-S ENG(RLS)	8-97185-643-0	01	1	0211-0501	●	●	●
173	09.744 WIRE; LEAD 4HF1-N ENG(RJZ)	8-97185-643-0	01	1	0502-	●	●	●
269	09.743 SCREW; METER CLUSTER 4HF1-S ENG(RLS) (D)	8-97185-523-0	01	1	0211-0501	●	●	●
269	09.743 SCREW; METER CLUSTER 4HF1-N ENG(RJZ) (D)	8-97185-523-0	01	1	0502-	●	●	●
269	09.743 SCREW; METER CLUSTER 4HF1-S ENG(RLS) (B)	8-97185-524-0	07	1	0211-0501	●	●	●
269	09.743 SCREW; METER CLUSTER 4HF1-N ENG(RJZ) (B)	8-97185-524-0	07	1	0502-	●	●	●
269	09.743 SCREW; METER CLUSTER 4HF1-S ENG(RLS) (C)	8-97185-525-0	06	1	0211-0501	●	●	●
269	09.743 SCREW; METER CLUSTER 4HF1-N ENG(RJZ) (C)	8-97185-525-0	06	1	0502-	●	●	●
269	09.743 SCREW; METER CLUSTER 4HF1-S ENG(RLS) (A)	8-97185-528-0	07	1	0211-0501	●	●	●
269	09.743 SCREW; METER CLUSTER 4HF1-N ENG(RJZ) (A)	8-97185-528-0	07	1	0502-	●	●	●
379	09.744 CIRCUIT; DROP 4HF1-S ENG(RLS)	8-97185-512-0	01	1	0211-0501	●	●	●
379	09.744 CIRCUIT; DROP 4HF1-N ENG(RJZ)	8-97185-512-0	01	1	0502-	●	●	●

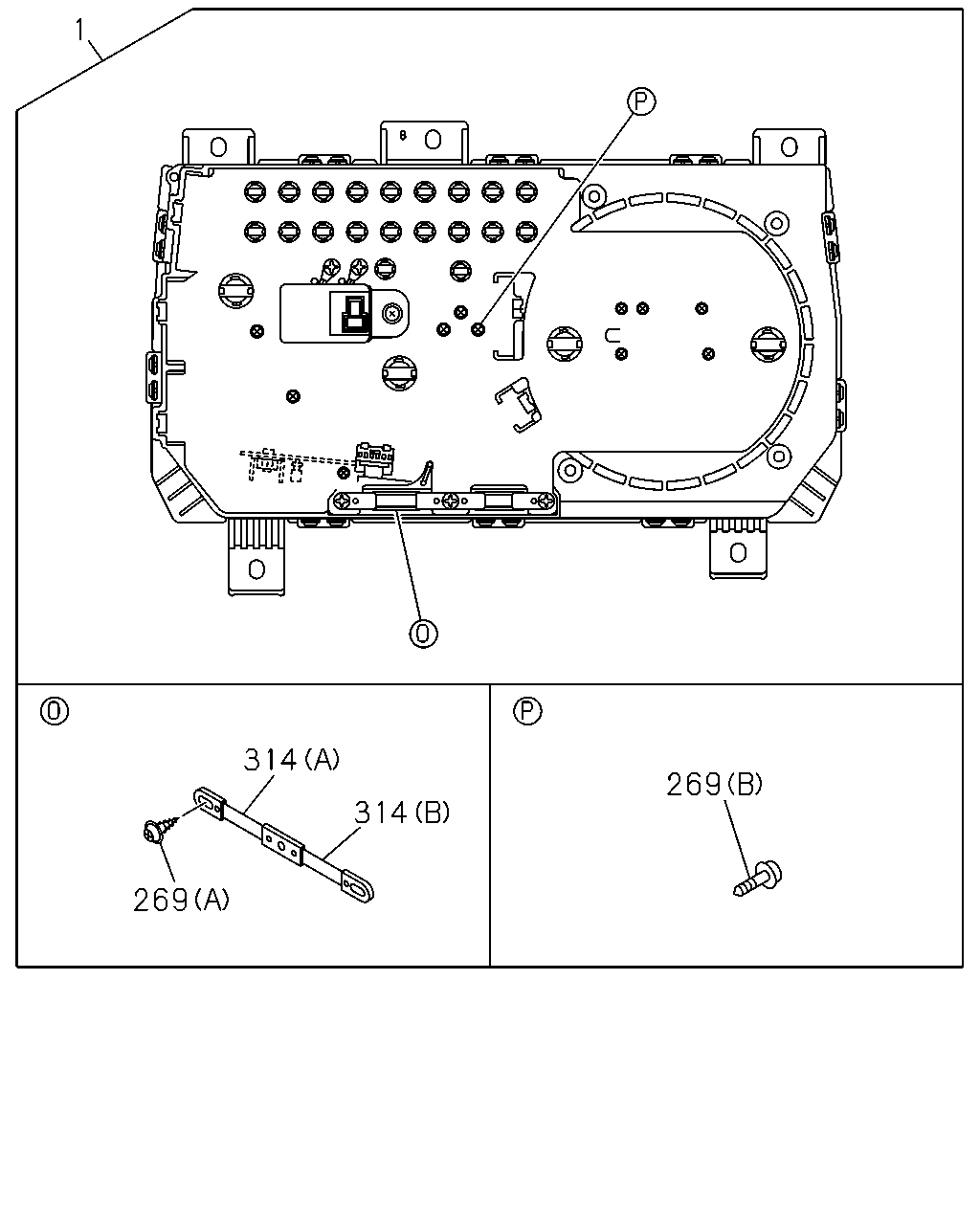

1 314 269 314 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.735 METER COMPL; CLUSTER 4HF1-S ENG(RLS)	8-97350-668-0	01	1	0211-0305	●	●	●
1	09.735 METER COMPL; CLUSTER 4HF1-S ENG(RLS)	8-97365-184-0	01	1	0306-0501	●	●	●
1	09.735 METER COMPL; CLUSTER 4HF1-N ENG(RJZ)	8-97385-415-0	01	1	0502-	●	●	●
269	09.743 SCREW; METER CLUSTER 4HF1-S ENG(RLS) (D)	8-97185-523-0	01	1	0211-0501	●	●	●
269	09.743 SCREW; METER CLUSTER 4HF1-N ENG(RJZ) (D)	8-97185-523-0	01	1	0502-	●	●	●
269	09.743 SCREW; METER CLUSTER 4HF1-S ENG(RLS) (B)	8-97185-524-0	07	1	0211-0501	●	●	●
269	09.743 SCREW; METER CLUSTER 4HF1-N ENG(RJZ) (B)	8-97185-524-0	07	1	0502-	●	●	●
269	09.743 SCREW; METER CLUSTER 4HF1-S ENG(RLS) (C)	8-97185-525-0	06	1	0211-0501	●	●	●
269	09.743 SCREW; METER CLUSTER 4HF1-N ENG(RJZ) (C)	8-97185-525-0	06	1	0502-	●	●	●
269	09.743 SCREW; METER CLUSTER 4HF1-S ENG(RLS) (A)	8-97185-528-0	07	1	0211-0501	●	●	●
269	09.743 SCREW; METER CLUSTER 4HF1-N ENG(RJZ) (A)	8-97185-528-0	07	1	0502-	●	●	●
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HF1-S ENG(RLS) (A)	8-97185-515-0	01	1	0211-0501	●	●	●
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HF1-N ENG(RJZ) (A)	8-97185-515-0	01	1	0502-	●	●	●
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HF1-S ENG(RLS) (B)	8-97185-516-0	01	1	0211-0501	●	●	●
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HF1-N ENG(RJZ) (B)	8-97185-516-0	01	1	0502-	●	●	●

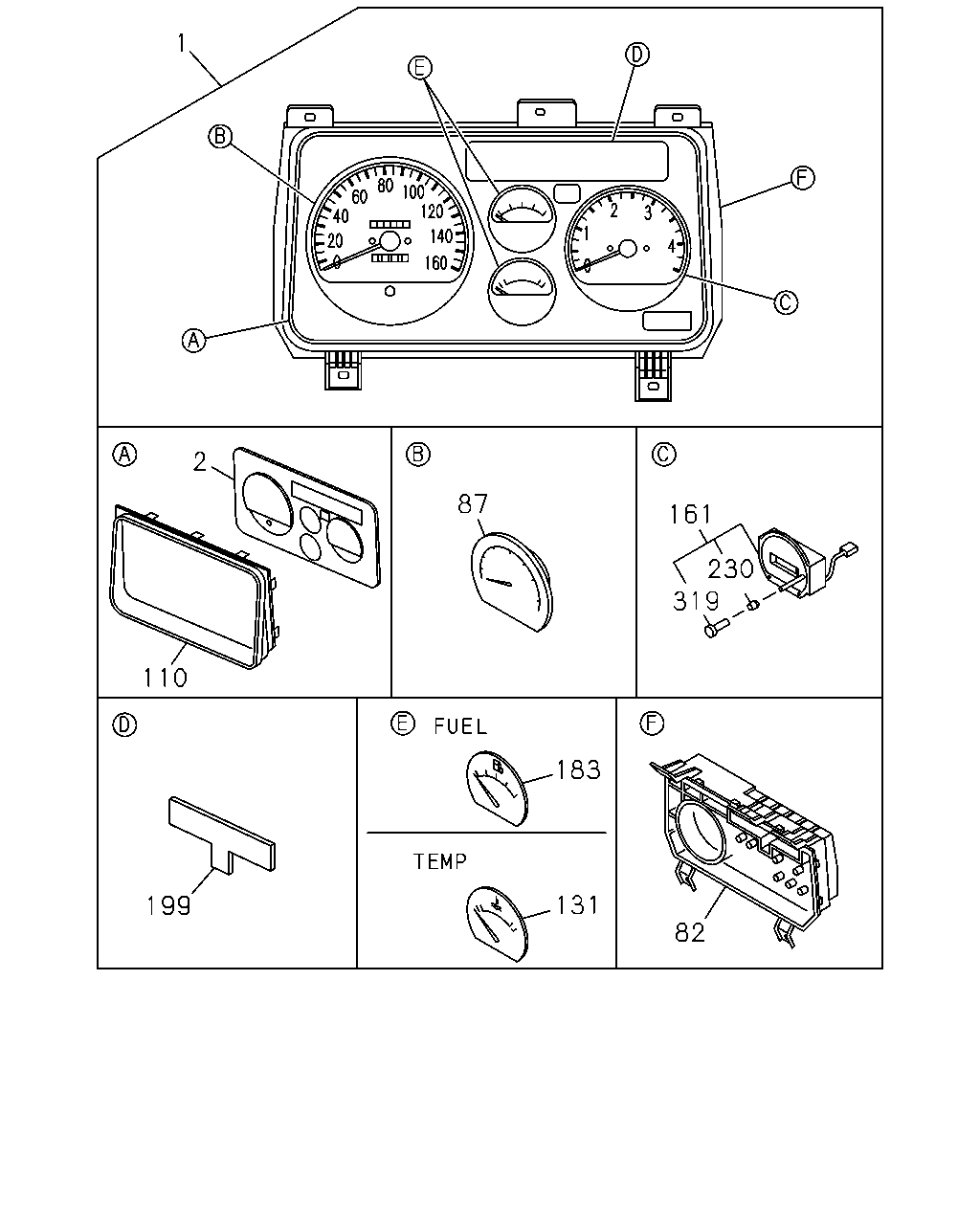

1 2 87 161 230 319 110 183 131 199 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.735 METER COMPL; CLUSTER 4HF1-S ENG(RLS)	8-97350-668-0	01	1	0211-0305	●	●	●
1	09.735 METER COMPL; CLUSTER 4HF1-S ENG(RLS)	8-97365-184-0	01	1	0306-0501	●	●	●
1	09.735 METER COMPL; CLUSTER 4HF1-N ENG(RJZ)	8-97385-415-0	01	1	0502-	●	●	●
2	09.735 PANEL; CLUSTER 4HF1-S ENG(RLS)	8-97185-443-0	01	1	0211-0501	●	●	●
2	09.735 PANEL; CLUSTER 4HF1-N ENG(RJZ)	8-97185-443-0	01	1	0502-	●	●	●
82	09.743 CASE ASM; CLUSTER METER 4HF1-S ENG(RLS)	8-97185-448-0	01	1	0211-0501	●	●	●
82	09.743 CASE ASM; CLUSTER METER 4HF1-N ENG(RJZ)	8-97185-448-0	01	1	0502-	●	●	●
87	09.761 SPEEDOMETER 4HF1-S ENG(RLS)	8-97185-456-0	01	1	0211-0501	●	●	●
87	09.761 SPEEDOMETER 4HF1-N ENG(RJZ)	8-98002-107-0	01	1	0502-	●	●	●
110	09.748 GLASS; CLUSTER METER 4HF1-S ENG(RLS)	8-97185-451-0	01	1	0211-0501	●	●	●
110	09.748 GLASS; CLUSTER METER 4HF1-N ENG(RJZ)	8-97185-451-0	01	1	0502-	●	●	●
131	01.148 GAUGE; TEMP,CLUSTER METER 4HF1-S ENG(RLS)	8-97185-475-0	01	1	0211-0501	●	●	●
131	01.148 GAUGE; TEMP,CLUSTER METER 4HF1-N ENG(RJZ)	8-98002-121-0	01	1	0502-	●	●	●
161	09.772 CLOCK; CLUSTER METER 4HF1-S ENG(RLS)	8-97185-462-0	01	1	0211-0501	●	●	●
161	09.772 CLOCK; CLUSTER METER 4HF1-N ENG(RJZ)	8-98002-110-0	01	1	0502-	●	●	●
183	03.107 GAUGE; FUEL 4HF1-S ENG(RLS)	8-97185-473-0	01	1	0211-0501	●	●	●
183	03.107 GAUGE; FUEL 4HF1-N ENG(RJZ)	8-98002-118-0	01	1	0502-	●	●	●
199	09.772 LENS; WARNING LAMP 4HF1-S ENG(RLS)	8-97185-481-0	01	1	0211-0305	●	●	●
199	09.772 LENS; WARNING LAMP 4HF1-S ENG(RLS)	8-97365-323-0	01	1	0306-0501	●	●	●
199	09.772 LENS; WARNING LAMP 4HF1-N ENG(RJZ)	8-98002-124-0	01	1	0502-	●	●	●
230	09.772 KNOB; DIGITAL CLOCK,SUB METER 4HF1-S ENG(RLS)	8-97185-644-0	01	1	0211-0501	●	●	●
230	09.772 KNOB; DIGITAL CLOCK,SUB METER 4HF1-N ENG(RJZ)	8-97185-644-0	01	1	0502-	●	●	●
319	09.744 SCREW; KNOB,CLUSTER METER 4HF1-S ENG(RLS)	8-97185-522-0	01	1	0211-0501	●	●	●
319	09.744 SCREW; KNOB,CLUSTER METER 4HF1-N ENG(RJZ)	8-97185-522-0	01	1	0502-	●	●	●
