Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#78853) — 653 parça

48 48 48 48 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> 01.516 (T) ID=13 L=20	9-09525-235-0	01	1	0211-0211	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) (I) ID=20	8-94169-650-0	01	1	0211-0305	●	●	●
48	02.559 CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) L=140	5-09707-031-1	02	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) L=140	5-09707-031-1	01	1	0502-	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 01.240 (H) T=5.5	5-09709-047-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> 01.240 (H) T=5.5	5-09709-047-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (H) T=5.5	5-09709-047-0	01	1	0211-0501			●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 01.240 (H) T=5.5	5-09709-047-0	01	1	0211-0501			●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 01.240 (H) T=5.5	5-09709-047-0	01	1	0502-	●		●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 01.240 (H) T=5.5	5-09709-047-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (G) ID=33 L=63	1-09700-807-0	01	1	0211-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.866 (P) ID=24 H=60 L=27	1-09701-004-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (L) ID=30 W/STUD	8-97078-642-2	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) (L) ID=30 W/STUD	8-97078-642-2	01	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	09	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	10	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> 00.855 (Q) ID=8.3 & 16.5	8-94169-027-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> 04.866 (P) ID=24 H=60 L=27	1-09701-004-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (R) ID=10 & 11	8-94438-996-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (S) ID=14-20	8-97061-603-0	02	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (S) ID=14-20	8-97061-603-0	03	1	0502-	●
48	02.559 CLIP; FRAME HARNESS (B) L=170.3	1-09987-182-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS (M) ID=31 L=30	1-09700-969-0	01	1	0211-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) (J) ID=20	5-09700-321-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) 03.162 (C) L=140	5-09707-031-1	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS (B) L=170.3	1-09987-182-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) ID=9	8-97063-874-0	01	1	0211-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (G) ID=33 L=63	1-09700-807-0	05	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) (G) ID=33 L=63	1-09700-807-0	05	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (G) ID=33 L=63	1-09700-807-0	05	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) (G) ID=33 L=63	1-09700-807-0	05	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME-KICK UP<7EW> (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0211-	●
48	02.559 CLIP; FRAME HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0211-		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME-KICK UP<7EW> (N) ID=32 L=35	1-09701-244-0	01	1	0211-	●
48	02.559 CLIP; FRAME HARNESS (N) ID=32 L=35	1-09701-244-0	01	1	0211-		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	0502-0506	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	0502-0506		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.240 (E) ID=14 L=47	5-09700-319-0	04	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) 01.240 (E) ID=14 L=47	5-09700-319-0	04	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.240 (E) ID=14 L=47	5-09700-319-0	04	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) 01.240 (E) ID=14 L=47	5-09700-319-0	04	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 02.525 (U) T=4.5 & 9	5-09709-023-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) 02.525 (U) T=4.5 & 9	5-09709-023-0	01	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 02.525 (U) T=4.5 & 9	5-09709-023-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) 02.525 (U) T=4.5 & 9	5-09709-023-0	01	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME-KICK UP<7EW> (L) ID=30 W/STUD	8-97078-642-2	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS (L) ID=30 W/STUD	8-97078-642-2	01	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME-KICK UP<7EW> (A) T=4.5 & 13	5-09709-096-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS (A) T=4.5 & 13	5-09709-096-0	01	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (O) T=9.2	5-09709-013-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (O) T=9.2	5-09709-013-0	01	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (O) T=9.2	5-09709-013-0	01	1	0502-		●

219 294 515 219 469 294 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
219	02.559 NUT EXC. FRAME-KICK UP<7EW> (A)	8-97108-658-0	01	1	0211-	●
219	02.559 NUT (A)	8-97108-658-0	01	1	0211-		●	●
219	02.559 NUT 4HF1-S ENG(RLS) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0305	●	●	●
219	02.559 NUT EXC. FRAME-KICK UP<7EW> 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0305	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0305		●	●
219	02.559 NUT EXC. FRAME-KICK UP<7EW> 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0306-0501	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0306-0501		●	●
219	02.559 NUT 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0502-0602	●
219	02.559 NUT 4HF1-N ENG(RJZ) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0502-0602		●	●
219	02.559 NUT 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0603-	●
219	02.559 NUT 4HF1-N ENG(RJZ) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0603-		●	●
219	02.559 NUT EXC. FRAME-KICK UP<7EW> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0211-0602	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0211-0602		●	●
219	02.559 NUT EXC. FRAME-KICK UP<7EW> 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0603-	●
219	02.559 NUT 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0603-		●	●
219	02.559 NUT EXC. FRAME-KICK UP<7EW> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0211-0602	●
219	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0211-0602		●	●
219	02.559 NUT EXC. FRAME-KICK UP<7EW> 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0603-	●
219	02.559 NUT 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
294	02.559 NUT 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0211-0602	●	●	●
294	02.559 NUT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●
294	02.559 NUT 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0501	●
294	02.559 NUT 4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0501		●	●
294	02.559 NUT 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602	●
294	02.559 NUT 4HF1-N ENG(RJZ) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602		●	●
294	02.559 NUT 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●
294	02.559 NUT 4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-		●	●
469	02.559 NUT; PROTECTOR 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●
469	02.559 NUT; PROTECTOR 4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501		●	●
469	02.559 NUT; PROTECTOR 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●
469	02.559 NUT; PROTECTOR 4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●	●
469	02.559 NUT; PROTECTOR 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●
469	02.559 NUT; PROTECTOR 4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
515	02.559 NUT; BRKT EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●
515	02.559 NUT; BRKT 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602		●	●
515	02.559 NUT; BRKT EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●
515	02.559 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-		●	●
515	02.559 NUT; BRKT 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE	0-91150-106-0	02	1	0211-0501	●
515	02.559 NUT; BRKT 4HF1-S ENG(RLS) 04.594 M6 FLANGE	0-91150-106-0	02	1	0211-0501		●	●
515	02.559 NUT; BRKT 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE	0-91150-106-0	02	1	0502-0602	●
515	02.559 NUT; BRKT 4HF1-N ENG(RJZ) 04.594 M6 FLANGE	0-91150-106-0	02	1	0502-0602		●	●
515	02.559 NUT; BRKT 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-	●
515	02.559 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-		●	●

16 48 52 48 48 48 48 48 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) L=155	8-97173-307-0	04	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (L) L=100	8-94327-067-1	04	1	0211-	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (L) L=100	8-94327-067-1	04	1	0211-	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (L) L=100	8-94327-067-1	04	1	0211-	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) L=155	8-97173-307-0	04	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1010-1010	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) L=155	8-97173-307-0	05	1	1010-1010	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1010-1010	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	06	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	1406-	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) L=155	8-97173-307-0	04	1	1406-	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	1406-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	10	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	11	1	1010-1010	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	05	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1406-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1406-	●	●	●
16	02.559 CLIP; HARNESS 4HF1-S ENG(RLS) RR BODY FLAT BED<RS6> (B) L=250	5-09707-030-1	01	1	0211-0501	●
16	02.559 CLIP; HARNESS DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (I) L=170.3	1-09987-182-0	09	1	0211-0501	●
16	02.559 CLIP; HARNESS FRAME-KICK UP<7EW> (I) L=170.3	1-09987-182-0	09	1	0502-0506	●
16	02.559 CLIP; HARNESS FRAME-KICK UP<7EW> (I) L=170.3	1-09987-182-0	07	1	0507-	●
16	02.559 CLIP; HARNESS 16.065 (D) 1 SET=5 PIECE	1-09987-214-0	03	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (E) ID=10 & 16	8-94413-325-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 01.166 (F) ID=22 & 22	8-94464-837-0	01	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 02.694 (G) ID=6 & 10-13	8-97069-515-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS (H) ID=15-32	8-97174-404-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	0211-0501	●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	0502-1403	●	●
16	02.559 CLIP; HARNESS 03.162 (B) L=140	5-09707-031-1	01	1	0502-1403			●
16	02.559 CLIP; HARNESS EXC. FRAME-KICK UP<7EW> 01.240 (C) ID=14 L=47	5-09700-319-0	06	1	0211-	●
16	02.559 CLIP; HARNESS 4HF1-S ENG(RLS) 01.240 (C) ID=14 L=47	5-09700-319-0	09	1	0211-0501		●	●
16	02.559 CLIP; HARNESS 01.240 (C) ID=14 L=47	5-09700-319-0	09	1	0502-		●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> (J) L=100	8-94442-388-0	02	1	0211-			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> (K) L=60	8-94457-053-0	04	1	0211-			●
16	02.559 CLIP; HARNESS 16.065 (D) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-			●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> 01.516 (T) ID=13 L=20	9-09525-235-0	01	1	0211-0211	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) (I) ID=20	8-94169-650-0	01	1	0211-0305	●	●	●
48	02.559 CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) L=140	5-09707-031-1	02	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) L=140	5-09707-031-1	01	1	0502-	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 01.240 (H) T=5.5	5-09709-047-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> 01.240 (H) T=5.5	5-09709-047-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (H) T=5.5	5-09709-047-0	01	1	0211-0501			●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 01.240 (H) T=5.5	5-09709-047-0	01	1	0211-0501			●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 01.240 (H) T=5.5	5-09709-047-0	01	1	0502-	●		●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 01.240 (H) T=5.5	5-09709-047-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (G) ID=33 L=63	1-09700-807-0	01	1	0211-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.866 (P) ID=24 H=60 L=27	1-09701-004-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (L) ID=30 W/STUD	8-97078-642-2	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) (L) ID=30 W/STUD	8-97078-642-2	01	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	09	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	10	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> 00.855 (Q) ID=8.3 & 16.5	8-94169-027-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> 04.866 (P) ID=24 H=60 L=27	1-09701-004-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (R) ID=10 & 11	8-94438-996-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (S) ID=14-20	8-97061-603-0	02	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (S) ID=14-20	8-97061-603-0	03	1	0502-	●
48	02.559 CLIP; FRAME HARNESS (B) L=170.3	1-09987-182-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS (M) ID=31 L=30	1-09700-969-0	01	1	0211-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) (J) ID=20	5-09700-321-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) 03.162 (C) L=140	5-09707-031-1	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS (B) L=170.3	1-09987-182-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) ID=9	8-97063-874-0	01	1	0211-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (G) ID=33 L=63	1-09700-807-0	05	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) (G) ID=33 L=63	1-09700-807-0	05	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (G) ID=33 L=63	1-09700-807-0	05	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) (G) ID=33 L=63	1-09700-807-0	05	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME-KICK UP<7EW> (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0211-	●
48	02.559 CLIP; FRAME HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0211-		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME-KICK UP<7EW> (N) ID=32 L=35	1-09701-244-0	01	1	0211-	●
48	02.559 CLIP; FRAME HARNESS (N) ID=32 L=35	1-09701-244-0	01	1	0211-		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	0502-0506	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	0502-0506		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.240 (E) ID=14 L=47	5-09700-319-0	04	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) 01.240 (E) ID=14 L=47	5-09700-319-0	04	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.240 (E) ID=14 L=47	5-09700-319-0	04	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) 01.240 (E) ID=14 L=47	5-09700-319-0	04	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 02.525 (U) T=4.5 & 9	5-09709-023-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) 02.525 (U) T=4.5 & 9	5-09709-023-0	01	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 02.525 (U) T=4.5 & 9	5-09709-023-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) 02.525 (U) T=4.5 & 9	5-09709-023-0	01	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME-KICK UP<7EW> (L) ID=30 W/STUD	8-97078-642-2	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS (L) ID=30 W/STUD	8-97078-642-2	01	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME-KICK UP<7EW> (A) T=4.5 & 13	5-09709-096-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS (A) T=4.5 & 13	5-09709-096-0	01	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (O) T=9.2	5-09709-013-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (O) T=9.2	5-09709-013-0	01	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (O) T=9.2	5-09709-013-0	01	1	0502-		●
52	02.559 CLIP; HARNESS TO BRKT EXC. FRAME-KICK UP<7EW> 01.240 ID=14 L=47	5-09700-319-0	01	1	0211-0501	●
52	02.559 CLIP; HARNESS TO BRKT 01.240 ID=14 L=47	5-09700-319-0	01	1	0211-0501		●
52	02.559 CLIP; HARNESS TO BRKT EXC. FRAME-KICK UP<7EW> 01.240 ID=14 L=47	5-09700-319-0	01	1	0502-	●
52	02.559 CLIP; HARNESS TO BRKT 01.240 ID=14 L=47	5-09700-319-0	01	1	0502-		●	●

31 53 53 312 312 412 510 504 514 514 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97357-142-0	03	1	0211-0211	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1-S ENG(RLS)	8-97357-142-0	03	1	0211-0211		●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97362-859-0	03	1	0211-0501	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1-S ENG(RLS)	8-97362-859-0	03	1	0211-0501		●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW>	8-97362-859-0	03	1	0502-	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1-N ENG(RJZ)	8-97362-859-0	03	1	0502-		●	●
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (A)	8-98003-046-0	01	1	0502-	●
53	02.483 BRACKET; HARNESS (A)	8-98003-046-0	01	1	0502-		●	●
53	02.483 BRACKET; HARNESS 4HF1-S ENG(RLS) (B)	8-97357-140-0	01	1	0211-0501	●	●	●
53	02.483 BRACKET; HARNESS 4HF1-N ENG(RJZ) (B)	8-97357-140-0	01	1	0502-	●	●	●
312	02.559 BRACKET; CLIP HARNESS 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (B)	8-97046-762-0	01	1	0211-0501	●
312	02.559 BRACKET; CLIP HARNESS 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (B)	8-97046-762-0	01	1	0502-	●
312	02.559 BRACKET; CLIP HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (A)	8-97018-095-3	01	1	0211-0501	●
312	02.559 BRACKET; CLIP HARNESS 4HF1-S ENG(RLS) (A)	8-97018-095-3	01	1	0211-0501		●	●
312	02.559 BRACKET; CLIP HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A)	8-97018-095-3	01	1	0502-	●
312	02.559 BRACKET; CLIP HARNESS 4HF1-N ENG(RJZ) (A)	8-97018-095-3	01	1	0502-		●	●
412	02.559 BRACKET; HARNESS,TRANS	8-97324-451-1	01	1	0211-	●	●	●
504	02.559 PROTECTOR; HARNESS EXC. FRAME-KICK UP<7EW> 04.785 L=200	8-97096-423-0	01	1	0211-	●
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0211-		●	●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0211-	●	●	●
514	02.559 FINISHER; HARNESS (C) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0503-	●	●	●
514	02.559 FINISHER; HARNESS ADJUST HEADLAMP<6RC> 03.885 (B) L=50	8-94270-377-1	01	1	0506-0508	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0211-0501	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0211-0501	●	●	●
514	02.559 FINISHER; HARNESS (A) L=120 SERVICED BY L=500	1-79937-746-0	01	1	0502-	●	●	●
514	02.559 FINISHER; HARNESS (A) L=120 SERVICED BY L=500	1-79937-746-0	01	1	0502-	●	●	●
514	02.559 FINISHER; HARNESS 4HF1-S ENG(RLS) 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	02	1	0211-0501	●	●	●
514	02.559 FINISHER; HARNESS 4HF1-N ENG(RJZ) (A) L=120 SERVICED BY L=500	1-79937-746-0	02	1	0502-	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (A) L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0211-0501	●	●	●
514	02.559 FINISHER; HARNESS (A) L=175 SERVICED BY L=500	1-79937-746-0	01	1	0502-	●	●	●

139 377 38 460 38 139 8 8 38 139 466 386 358 377 386 386 139 159 159 64 511 511 10 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

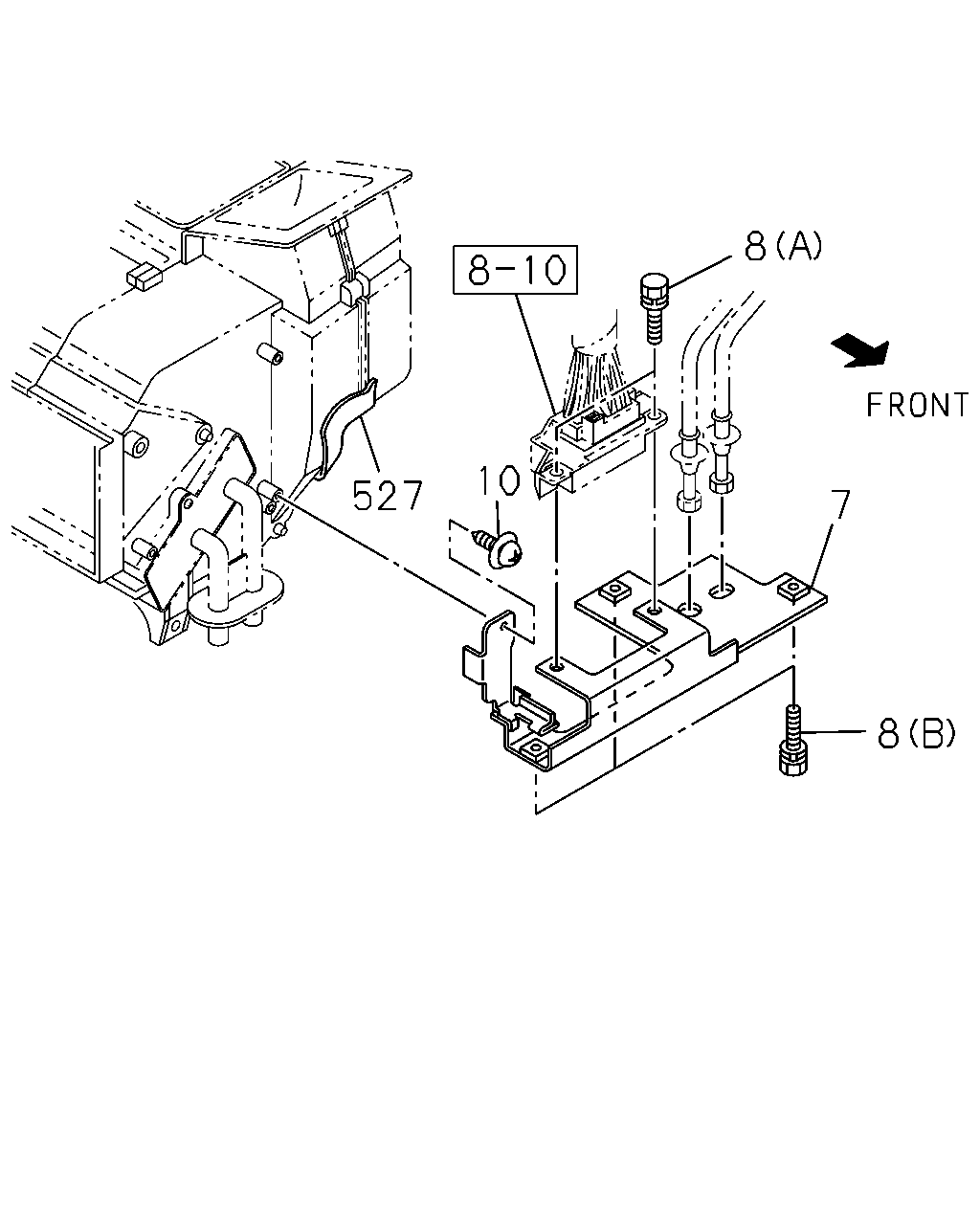

8	02.559 BOLT; BRKT,CONNECTOR 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-1210	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR 02.587 (A) M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	1211-	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR (B) M8X25 FLANGE	0-28680-825-0	03	1	0211-0512	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●	●
10	02.559 SCREW; BRKT TO BODY 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0211-0604	●	●	●
10	02.559 SCREW; BRKT TO BODY 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-0612	●	●	●
10	02.559 SCREW; BRKT TO BODY 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0701-1101	●	●	●
10	02.559 SCREW; BRKT TO BODY 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●
10	02.559 SCREW; BRKT TO BODY 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●
38	02.559 BOLT; CLIP,HARNESS FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0211-0211	●
38	02.559 BOLT; CLIP,HARNESS FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0211-0211	●
38	02.559 BOLT; CLIP,HARNESS FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0212-0512	●
38	02.559 BOLT; CLIP,HARNESS FRAME-KICK UP<7EW> 03.162 (C) M6X20 FLANGE	0-28650-620-0	01	1	0601-	●
38	02.559 BOLT; CLIP,HARNESS 4HF1-S ENG(RLS) 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0211-0305	●	●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME-KICK UP<7EW> 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0211-0305	●
38	02.559 BOLT; CLIP,HARNESS 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0211-0305		●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME-KICK UP<7EW> 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0306-0501	●
38	02.559 BOLT; CLIP,HARNESS 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0306-0501		●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME-KICK UP<7EW> 02.334 (D) M6X25 FLANGE	0-28680-625-0	02	1	0502-0512	●
38	02.559 BOLT; CLIP,HARNESS 02.334 (D) M6X25 FLANGE	0-28680-625-0	02	1	0502-0512		●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME-KICK UP<7EW> 00.685 (D) M6X25 FLANGE	0-28650-625-0	02	1	0601-	●
38	02.559 BOLT; CLIP,HARNESS 00.685 (D) M6X25 FLANGE	0-28650-625-0	02	1	0601-		●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME-KICK UP<7EW> 02.334 (D) M6X25 FLANGE	0-28680-625-0	02	1	0211-0501	●
38	02.559 BOLT; CLIP,HARNESS 02.334 (D) M6X25 FLANGE	0-28680-625-0	02	1	0211-0501		●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME-KICK UP<7EW> 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0502-0512	●
38	02.559 BOLT; CLIP,HARNESS 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0502-0512		●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME-KICK UP<7EW> 00.685 (D) M6X25 FLANGE	0-28650-625-0	01	1	0601-	●
38	02.559 BOLT; CLIP,HARNESS 00.685 (D) M6X25 FLANGE	0-28650-625-0	01	1	0601-		●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME-KICK UP<7EW> (B) M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0211-0512		●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME-KICK UP<7EW> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
38	02.559 BOLT; CLIP,HARNESS 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●	●
38	02.559 BOLT; CLIP,HARNESS FRAME-KICK UP<7EW> 06.008 (A) M8X12,M8X30 L=50	8-97032-290-0	01	1	0211-0805	●
38	02.559 BOLT; CLIP,HARNESS FRAME-KICK UP<7EW> 04.510 (A) M8X12,M8X30 L=50	8-98028-225-0	01	1	0806-	●
64	02.559 SCREW; CLIP 16.742 M4X16 TAPPING	1-09981-477-0	01	1	0211-			●
139	02.559 BOLT; BRKT 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (B)	8-97028-451-3	01	1	0211-0501	●
139	02.559 BOLT; BRKT 4HF1-S ENG(RLS) (B)	8-97028-451-3	01	1	0211-0501		●	●
139	02.559 BOLT; BRKT 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B)	8-97028-451-3	01	1	0502-	●
139	02.559 BOLT; BRKT 4HF1-N ENG(RJZ) (B)	8-97028-451-3	01	1	0502-		●	●
139	02.559 BOLT; BRKT 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0211-0501	●
139	02.559 BOLT; BRKT 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0502-0512	●
139	02.559 BOLT; BRKT 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 00.685 (D) M6X25 FLANGE	0-28650-625-0	01	1	0601-	●
139	02.559 BOLT; BRKT FRAME-KICK UP<7EW> (C) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●
139	02.559 BOLT; BRKT FRAME-KICK UP<7EW> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
139	02.559 BOLT; BRKT 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	0211-0501	●
139	02.559 BOLT; BRKT 4HF1-S ENG(RLS) 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	0211-0501		●	●
139	02.559 BOLT; BRKT EXC. FRAME-KICK UP<7EW> 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	0502-0512	●
139	02.559 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	0502-0512		●	●
139	02.559 BOLT; BRKT EXC. FRAME-KICK UP<7EW> 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
139	02.559 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-		●	●
159	02.559 BOLT; GRAND ENG ELEC 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0211-1004	●	●	●
159	02.559 BOLT; GRAND ENG ELEC 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●	●
358	02.480 BOLT; EARTH 4HF1-S ENG(RLS) EXC. AIR CONDITIONER MANUAL CONT(C60) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0211-0501	●	●	●
358	02.480 BOLT; EARTH 4HF1-N ENG(RJZ) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512	●	●	●
358	02.480 BOLT; EARTH 4HF1-N ENG(RJZ) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●	●
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0211-1004	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0211-0501	●	●	●
386	02.559 BOLT; GRAND HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0502-1004	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●
460	02.559 BOLT; HARNESS PROTECTOR FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0211-0512	●
460	02.559 BOLT; HARNESS PROTECTOR FRAME-KICK UP<7EW> 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0601-	●
466	02.483 BOLT; HEAT PROTECTOR 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0211-0501	●
466	02.483 BOLT; HEAT PROTECTOR 4HF1-S ENG(RLS) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0211-0501		●	●
466	02.483 BOLT; HEAT PROTECTOR 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0502-0512	●
466	02.483 BOLT; HEAT PROTECTOR 4HF1-N ENG(RJZ) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0502-0512		●	●
466	02.483 BOLT; HEAT PROTECTOR 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0601-	●
466	02.483 BOLT; HEAT PROTECTOR 4HF1-N ENG(RJZ) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0601-		●	●
511	02.559 SCREW; HARNESS COVER 08.845 (A) M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0211-0604	●	●	●
511	02.559 SCREW; HARNESS COVER 16.800 (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0605-0702	●	●	●
511	02.559 SCREW; HARNESS COVER 04.681 (B) T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	0703-	●	●	●

488 14 16 48 162 483 205 16 48 142 16 488 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	02.559 CLIP; BAND,HARNESS ADJUST HEADLAMP<6RC> 03.162 L=140	5-09707-031-1	01	1	0211-	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) L=155	8-97173-307-0	04	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (L) L=100	8-94327-067-1	04	1	0211-	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (L) L=100	8-94327-067-1	04	1	0211-	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (L) L=100	8-94327-067-1	04	1	0211-	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) L=155	8-97173-307-0	04	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1010-1010	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) L=155	8-97173-307-0	05	1	1010-1010	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1010-1010	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	06	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	1406-	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) L=155	8-97173-307-0	04	1	1406-	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	1406-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	10	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	11	1	1010-1010	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	05	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1406-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1406-	●	●	●
16	02.559 CLIP; HARNESS 4HF1-S ENG(RLS) RR BODY FLAT BED<RS6> (B) L=250	5-09707-030-1	01	1	0211-0501	●
16	02.559 CLIP; HARNESS DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (I) L=170.3	1-09987-182-0	09	1	0211-0501	●
16	02.559 CLIP; HARNESS FRAME-KICK UP<7EW> (I) L=170.3	1-09987-182-0	09	1	0502-0506	●
16	02.559 CLIP; HARNESS FRAME-KICK UP<7EW> (I) L=170.3	1-09987-182-0	07	1	0507-	●
16	02.559 CLIP; HARNESS 16.065 (D) 1 SET=5 PIECE	1-09987-214-0	03	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (E) ID=10 & 16	8-94413-325-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 01.166 (F) ID=22 & 22	8-94464-837-0	01	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 02.694 (G) ID=6 & 10-13	8-97069-515-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS (H) ID=15-32	8-97174-404-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	0211-0501	●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	0502-1403	●	●
16	02.559 CLIP; HARNESS 03.162 (B) L=140	5-09707-031-1	01	1	0502-1403			●
16	02.559 CLIP; HARNESS EXC. FRAME-KICK UP<7EW> 01.240 (C) ID=14 L=47	5-09700-319-0	06	1	0211-	●
16	02.559 CLIP; HARNESS 4HF1-S ENG(RLS) 01.240 (C) ID=14 L=47	5-09700-319-0	09	1	0211-0501		●	●
16	02.559 CLIP; HARNESS 01.240 (C) ID=14 L=47	5-09700-319-0	09	1	0502-		●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> (J) L=100	8-94442-388-0	02	1	0211-			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> (K) L=60	8-94457-053-0	04	1	0211-			●
16	02.559 CLIP; HARNESS 16.065 (D) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-			●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> 01.516 (T) ID=13 L=20	9-09525-235-0	01	1	0211-0211	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) (I) ID=20	8-94169-650-0	01	1	0211-0305	●	●	●
48	02.559 CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) L=140	5-09707-031-1	02	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) L=140	5-09707-031-1	01	1	0502-	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 01.240 (H) T=5.5	5-09709-047-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> 01.240 (H) T=5.5	5-09709-047-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (H) T=5.5	5-09709-047-0	01	1	0211-0501			●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 01.240 (H) T=5.5	5-09709-047-0	01	1	0211-0501			●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 01.240 (H) T=5.5	5-09709-047-0	01	1	0502-	●		●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 01.240 (H) T=5.5	5-09709-047-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (G) ID=33 L=63	1-09700-807-0	01	1	0211-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.866 (P) ID=24 H=60 L=27	1-09701-004-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (L) ID=30 W/STUD	8-97078-642-2	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) (L) ID=30 W/STUD	8-97078-642-2	01	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	09	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	10	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> 00.855 (Q) ID=8.3 & 16.5	8-94169-027-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> 04.866 (P) ID=24 H=60 L=27	1-09701-004-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (R) ID=10 & 11	8-94438-996-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (S) ID=14-20	8-97061-603-0	02	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (S) ID=14-20	8-97061-603-0	03	1	0502-	●
48	02.559 CLIP; FRAME HARNESS (B) L=170.3	1-09987-182-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS (M) ID=31 L=30	1-09700-969-0	01	1	0211-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) (J) ID=20	5-09700-321-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) 03.162 (C) L=140	5-09707-031-1	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS (B) L=170.3	1-09987-182-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) ID=9	8-97063-874-0	01	1	0211-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (G) ID=33 L=63	1-09700-807-0	05	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) (G) ID=33 L=63	1-09700-807-0	05	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (G) ID=33 L=63	1-09700-807-0	05	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) (G) ID=33 L=63	1-09700-807-0	05	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME-KICK UP<7EW> (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0211-	●
48	02.559 CLIP; FRAME HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0211-		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME-KICK UP<7EW> (N) ID=32 L=35	1-09701-244-0	01	1	0211-	●
48	02.559 CLIP; FRAME HARNESS (N) ID=32 L=35	1-09701-244-0	01	1	0211-		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	0502-0506	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	0502-0506		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.240 (E) ID=14 L=47	5-09700-319-0	04	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) 01.240 (E) ID=14 L=47	5-09700-319-0	04	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.240 (E) ID=14 L=47	5-09700-319-0	04	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) 01.240 (E) ID=14 L=47	5-09700-319-0	04	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 02.525 (U) T=4.5 & 9	5-09709-023-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) 02.525 (U) T=4.5 & 9	5-09709-023-0	01	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 02.525 (U) T=4.5 & 9	5-09709-023-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) 02.525 (U) T=4.5 & 9	5-09709-023-0	01	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME-KICK UP<7EW> (L) ID=30 W/STUD	8-97078-642-2	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS (L) ID=30 W/STUD	8-97078-642-2	01	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME-KICK UP<7EW> (A) T=4.5 & 13	5-09709-096-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS (A) T=4.5 & 13	5-09709-096-0	01	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (O) T=9.2	5-09709-013-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (O) T=9.2	5-09709-013-0	01	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (O) T=9.2	5-09709-013-0	01	1	0502-		●
142	02.559 CLIP; HARNESS,ENG L=170.3	1-09987-182-0	01	1	0211-0501	●	●	●
142	02.559 CLIP; HARNESS,ENG 4HF1-N ENG(RJZ) L=170.3	1-09987-182-0	01	1	0502-	●	●	●
162	02.559 CLIP; SW HARNESS 4HF1-S ENG(RLS) 03.162 L=140	5-09707-031-1	01	1	0211-0501	●	●	●
205	02.559 CLIP; BACK LAMP HARNESS L=135	1-09987-143-1	01	1	0211-	●	●	●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140	5-09707-031-1	01	1	0310-0501	●	●	●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140	5-09707-031-1	01	1	0502-	●	●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) HIGH ALTITUDE COMPENSATOR(EE2) 03.162 L=140	5-09707-031-1	01	1	0502-			●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) 03.162 L=140	5-09707-031-1	02	1	0310-0501	●	●	●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2),EXHAUST BRA KE<NF8>,FRAME-KICK UP<7EW> 03.162 L=140	5-09707-031-1	02	1	0502-0811	●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. HIGH ALTITUDE COMPENSATOR(EE2), FRAME-KICK UP<7EW> 03.162 L=140	5-09707-031-1	02	1	0502-0811	●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) 03.162 L=140	5-09707-031-1	02	1	0502-0811	●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2),EXHAUST BRA KE<NF8> 03.162 L=140	5-09707-031-1	02	1	0502-0811		●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 L=140	5-09707-031-1	02	1	0502-0811		●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 L=140	5-09707-031-1	02	1	0502-0811			●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2),EXHAUST BRA KE<NF8> 03.162 L=140	5-09707-031-1	02	1	0812-	●	●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 L=140	5-09707-031-1	02	1	0812-	●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. HIGH ALTITUDE COMPENSATOR(EE2), FRAME-KICK UP<7EW> 03.162 L=140	5-09707-031-1	02	1	0812-	●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMP ENSATOR(EE2) 03.162 L=140	5-09707-031-1	02	1	0812-	●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 L=140	5-09707-031-1	02	1	0812-		●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 L=140	5-09707-031-1	02	1	0812-			●
488	02.559 CLIP; CABLE,TRAILER RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> 02.587 (B) L=112	8-94232-618-0	04	1	0211-	●
488	02.559 CLIP; CABLE,TRAILER RR BODY FLAT BED<RS6> 02.587 (B) L=112	8-94232-618-0	04	1	0211-		●	●
488	02.559 CLIP; CABLE,TRAILER REAR BODY LAGER WIDTH<8EH> 02.587 (B) L=112	8-94232-618-0	05	1	0211-	●
488	02.559 CLIP; CABLE,TRAILER EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) (A) L=250	5-09707-030-1	01	1	0211-	●
488	02.559 CLIP; CABLE,TRAILER EXC. RR BODY FLAT BED<RS6> (A) L=250	5-09707-030-1	01	1	0211-		●	●

16 264 16 264 16 48 16 16 48 464 397 48 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) L=155	8-97173-307-0	04	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (L) L=100	8-94327-067-1	04	1	0211-	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (L) L=100	8-94327-067-1	04	1	0211-	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (L) L=100	8-94327-067-1	04	1	0211-	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) L=155	8-97173-307-0	04	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1010-1010	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) L=155	8-97173-307-0	05	1	1010-1010	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1010-1010	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	06	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	1406-	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) L=155	8-97173-307-0	04	1	1406-	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	1406-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	10	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	11	1	1010-1010	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	05	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1406-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1406-	●	●	●
16	02.559 CLIP; HARNESS 4HF1-S ENG(RLS) RR BODY FLAT BED<RS6> (B) L=250	5-09707-030-1	01	1	0211-0501	●
16	02.559 CLIP; HARNESS DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (I) L=170.3	1-09987-182-0	09	1	0211-0501	●
16	02.559 CLIP; HARNESS FRAME-KICK UP<7EW> (I) L=170.3	1-09987-182-0	09	1	0502-0506	●
16	02.559 CLIP; HARNESS FRAME-KICK UP<7EW> (I) L=170.3	1-09987-182-0	07	1	0507-	●
16	02.559 CLIP; HARNESS 16.065 (D) 1 SET=5 PIECE	1-09987-214-0	03	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (E) ID=10 & 16	8-94413-325-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 01.166 (F) ID=22 & 22	8-94464-837-0	01	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 02.694 (G) ID=6 & 10-13	8-97069-515-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS (H) ID=15-32	8-97174-404-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	0211-0501	●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	0502-1403	●	●
16	02.559 CLIP; HARNESS 03.162 (B) L=140	5-09707-031-1	01	1	0502-1403			●
16	02.559 CLIP; HARNESS EXC. FRAME-KICK UP<7EW> 01.240 (C) ID=14 L=47	5-09700-319-0	06	1	0211-	●
16	02.559 CLIP; HARNESS 4HF1-S ENG(RLS) 01.240 (C) ID=14 L=47	5-09700-319-0	09	1	0211-0501		●	●
16	02.559 CLIP; HARNESS 01.240 (C) ID=14 L=47	5-09700-319-0	09	1	0502-		●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> (J) L=100	8-94442-388-0	02	1	0211-			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> (K) L=60	8-94457-053-0	04	1	0211-			●
16	02.559 CLIP; HARNESS 16.065 (D) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-			●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> 01.516 (T) ID=13 L=20	9-09525-235-0	01	1	0211-0211	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) (I) ID=20	8-94169-650-0	01	1	0211-0305	●	●	●
48	02.559 CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) L=140	5-09707-031-1	02	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) L=140	5-09707-031-1	01	1	0502-	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 01.240 (H) T=5.5	5-09709-047-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> 01.240 (H) T=5.5	5-09709-047-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (H) T=5.5	5-09709-047-0	01	1	0211-0501			●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 01.240 (H) T=5.5	5-09709-047-0	01	1	0211-0501			●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 01.240 (H) T=5.5	5-09709-047-0	01	1	0502-	●		●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 01.240 (H) T=5.5	5-09709-047-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (G) ID=33 L=63	1-09700-807-0	01	1	0211-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.866 (P) ID=24 H=60 L=27	1-09701-004-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (L) ID=30 W/STUD	8-97078-642-2	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) (L) ID=30 W/STUD	8-97078-642-2	01	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	09	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	10	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> 00.855 (Q) ID=8.3 & 16.5	8-94169-027-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> 04.866 (P) ID=24 H=60 L=27	1-09701-004-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (R) ID=10 & 11	8-94438-996-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (S) ID=14-20	8-97061-603-0	02	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (S) ID=14-20	8-97061-603-0	03	1	0502-	●
48	02.559 CLIP; FRAME HARNESS (B) L=170.3	1-09987-182-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS (M) ID=31 L=30	1-09700-969-0	01	1	0211-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) (J) ID=20	5-09700-321-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) 03.162 (C) L=140	5-09707-031-1	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS (B) L=170.3	1-09987-182-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) ID=9	8-97063-874-0	01	1	0211-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (G) ID=33 L=63	1-09700-807-0	05	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) (G) ID=33 L=63	1-09700-807-0	05	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (G) ID=33 L=63	1-09700-807-0	05	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) (G) ID=33 L=63	1-09700-807-0	05	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME-KICK UP<7EW> (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0211-	●
48	02.559 CLIP; FRAME HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0211-		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME-KICK UP<7EW> (N) ID=32 L=35	1-09701-244-0	01	1	0211-	●
48	02.559 CLIP; FRAME HARNESS (N) ID=32 L=35	1-09701-244-0	01	1	0211-		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	0502-0506	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	0502-0506		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.240 (E) ID=14 L=47	5-09700-319-0	04	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) 01.240 (E) ID=14 L=47	5-09700-319-0	04	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.240 (E) ID=14 L=47	5-09700-319-0	04	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) 01.240 (E) ID=14 L=47	5-09700-319-0	04	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 02.525 (U) T=4.5 & 9	5-09709-023-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) 02.525 (U) T=4.5 & 9	5-09709-023-0	01	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 02.525 (U) T=4.5 & 9	5-09709-023-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) 02.525 (U) T=4.5 & 9	5-09709-023-0	01	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME-KICK UP<7EW> (L) ID=30 W/STUD	8-97078-642-2	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS (L) ID=30 W/STUD	8-97078-642-2	01	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME-KICK UP<7EW> (A) T=4.5 & 13	5-09709-096-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS (A) T=4.5 & 13	5-09709-096-0	01	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (O) T=9.2	5-09709-013-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (O) T=9.2	5-09709-013-0	01	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (O) T=9.2	5-09709-013-0	01	1	0502-		●
183	02.559 CLIP; CONNECTOR 4HF1-S ENG(RLS) 02.480 (A) ID=10.5 & 4.8	8-97019-966-0	01	1	0211-0301	●	●	●
183	02.559 CLIP; CONNECTOR (B) L=15	8-94315-436-1	02	1	0211-			●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	02	1	0211-0501	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0211-	●	●	●
397	02.559 CLIP; RR DOOR HARNESS AUTO DOOR LOCK<AU4> 10.154 ID=7	8-97014-713-0	02	1	0211-			●
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1-S ENG(RLS) 02.559 ID=6.5	8-94257-639-0	01	1	0211-0501	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1-N ENG(RJZ) 02.559 ID=6.5	8-94257-639-0	01	1	0502-	●	●	●

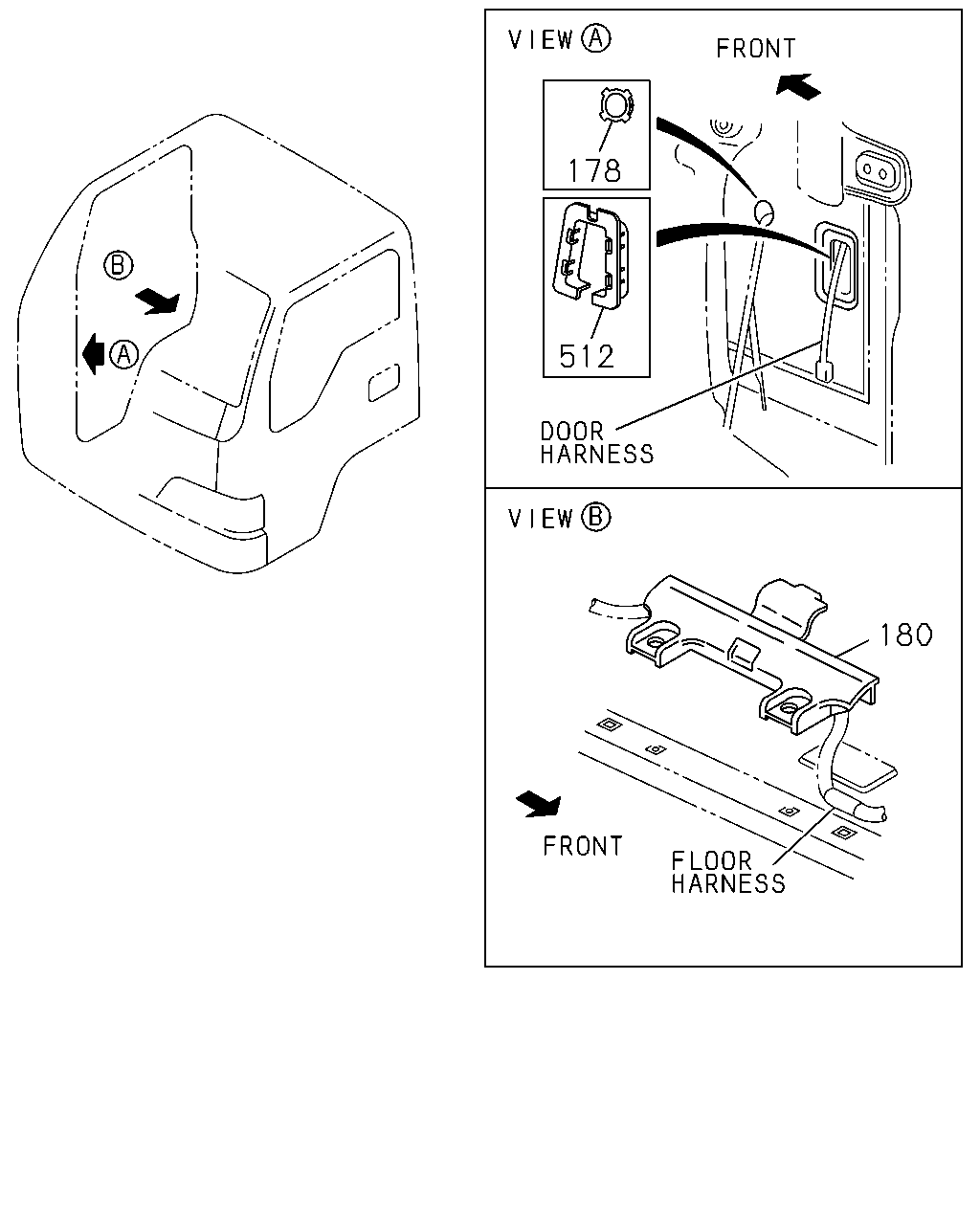

178 512 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0211-	●	●	●
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	0211-	●	●	●
512	02.559 PROTECTOR; HARNESS	8-97072-950-0	02	1	0211-	●	●	●

16 116 48 16 48 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) L=155	8-97173-307-0	04	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (L) L=100	8-94327-067-1	04	1	0211-	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (L) L=100	8-94327-067-1	04	1	0211-	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (L) L=100	8-94327-067-1	04	1	0211-	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) L=155	8-97173-307-0	04	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1010-1010	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) L=155	8-97173-307-0	05	1	1010-1010	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1010-1010	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	06	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	1406-	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) L=155	8-97173-307-0	04	1	1406-	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	1406-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	10	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	11	1	1010-1010	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	05	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1011-1405	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1406-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1406-	●	●	●
16	02.559 CLIP; HARNESS 4HF1-S ENG(RLS) RR BODY FLAT BED<RS6> (B) L=250	5-09707-030-1	01	1	0211-0501	●
16	02.559 CLIP; HARNESS DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (I) L=170.3	1-09987-182-0	09	1	0211-0501	●
16	02.559 CLIP; HARNESS FRAME-KICK UP<7EW> (I) L=170.3	1-09987-182-0	09	1	0502-0506	●
16	02.559 CLIP; HARNESS FRAME-KICK UP<7EW> (I) L=170.3	1-09987-182-0	07	1	0507-	●
16	02.559 CLIP; HARNESS 16.065 (D) 1 SET=5 PIECE	1-09987-214-0	03	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (E) ID=10 & 16	8-94413-325-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 01.166 (F) ID=22 & 22	8-94464-837-0	01	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 02.694 (G) ID=6 & 10-13	8-97069-515-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS (H) ID=15-32	8-97174-404-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	0211-0501	●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	0502-1403	●	●
16	02.559 CLIP; HARNESS 03.162 (B) L=140	5-09707-031-1	01	1	0502-1403			●
16	02.559 CLIP; HARNESS EXC. FRAME-KICK UP<7EW> 01.240 (C) ID=14 L=47	5-09700-319-0	06	1	0211-	●
16	02.559 CLIP; HARNESS 4HF1-S ENG(RLS) 01.240 (C) ID=14 L=47	5-09700-319-0	09	1	0211-0501		●	●
16	02.559 CLIP; HARNESS 01.240 (C) ID=14 L=47	5-09700-319-0	09	1	0502-		●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> (J) L=100	8-94442-388-0	02	1	0211-			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> (K) L=60	8-94457-053-0	04	1	0211-			●
16	02.559 CLIP; HARNESS 16.065 (D) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-			●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> 01.516 (T) ID=13 L=20	9-09525-235-0	01	1	0211-0211	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) (I) ID=20	8-94169-650-0	01	1	0211-0305	●	●	●
48	02.559 CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) L=140	5-09707-031-1	02	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) L=140	5-09707-031-1	01	1	0502-	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 01.240 (H) T=5.5	5-09709-047-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> 01.240 (H) T=5.5	5-09709-047-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (H) T=5.5	5-09709-047-0	01	1	0211-0501			●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 01.240 (H) T=5.5	5-09709-047-0	01	1	0211-0501			●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 01.240 (H) T=5.5	5-09709-047-0	01	1	0502-	●		●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 01.240 (H) T=5.5	5-09709-047-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (G) ID=33 L=63	1-09700-807-0	01	1	0211-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.866 (P) ID=24 H=60 L=27	1-09701-004-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (L) ID=30 W/STUD	8-97078-642-2	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) (L) ID=30 W/STUD	8-97078-642-2	01	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	09	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	10	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> 00.855 (Q) ID=8.3 & 16.5	8-94169-027-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> 04.866 (P) ID=24 H=60 L=27	1-09701-004-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (R) ID=10 & 11	8-94438-996-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (S) ID=14-20	8-97061-603-0	02	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (S) ID=14-20	8-97061-603-0	03	1	0502-	●
48	02.559 CLIP; FRAME HARNESS (B) L=170.3	1-09987-182-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS (M) ID=31 L=30	1-09700-969-0	01	1	0211-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) (J) ID=20	5-09700-321-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) 03.162 (C) L=140	5-09707-031-1	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS (B) L=170.3	1-09987-182-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) ID=9	8-97063-874-0	01	1	0211-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (G) ID=33 L=63	1-09700-807-0	05	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) (G) ID=33 L=63	1-09700-807-0	05	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (G) ID=33 L=63	1-09700-807-0	05	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) (G) ID=33 L=63	1-09700-807-0	05	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME-KICK UP<7EW> (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0211-	●
48	02.559 CLIP; FRAME HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0211-		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME-KICK UP<7EW> (N) ID=32 L=35	1-09701-244-0	01	1	0211-	●
48	02.559 CLIP; FRAME HARNESS (N) ID=32 L=35	1-09701-244-0	01	1	0211-		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	0502-0506	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	0502-0506		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.240 (E) ID=14 L=47	5-09700-319-0	04	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) 01.240 (E) ID=14 L=47	5-09700-319-0	04	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.240 (E) ID=14 L=47	5-09700-319-0	04	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) 01.240 (E) ID=14 L=47	5-09700-319-0	04	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 02.525 (U) T=4.5 & 9	5-09709-023-0	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) 02.525 (U) T=4.5 & 9	5-09709-023-0	01	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 02.525 (U) T=4.5 & 9	5-09709-023-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) 02.525 (U) T=4.5 & 9	5-09709-023-0	01	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME-KICK UP<7EW> (L) ID=30 W/STUD	8-97078-642-2	01	1	0211-0501	●
48	02.559 CLIP; FRAME HARNESS (L) ID=30 W/STUD	8-97078-642-2	01	1	0211-0501		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME-KICK UP<7EW> (A) T=4.5 & 13	5-09709-096-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS (A) T=4.5 & 13	5-09709-096-0	01	1	0502-		●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (O) T=9.2	5-09709-013-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (O) T=9.2	5-09709-013-0	01	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (O) T=9.2	5-09709-013-0	01	1	0502-		●
116	02.559 CLIP; ROOF HARNESS CAB-LOW ROOF<6XQ> 16.065 1 SET=5 PIECE	1-09987-214-0	01	1	0211-	●
183	02.559 CLIP; CONNECTOR 4HF1-S ENG(RLS) 02.480 (A) ID=10.5 & 4.8	8-97019-966-0	01	1	0211-0301	●	●	●
183	02.559 CLIP; CONNECTOR (B) L=15	8-94315-436-1	02	1	0211-			●

8 10 527 7 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	02.559 BRACKET; CONNECTOR	8-97102-247-2	01	1	0211-	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-1210	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR 02.587 (A) M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	1211-	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR (B) M8X25 FLANGE	0-28680-825-0	03	1	0211-0512	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●	●
10	02.559 SCREW; BRKT TO BODY 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0211-0604	●	●	●
10	02.559 SCREW; BRKT TO BODY 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-0612	●	●	●
10	02.559 SCREW; BRKT TO BODY 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0701-1101	●	●	●
10	02.559 SCREW; BRKT TO BODY 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●
10	02.559 SCREW; BRKT TO BODY 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●
527	02.559 TAPE; SOFT,CONNECTOR 100X100	8-94232-622-0	01	1	0211-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
