◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51278 - NKR MIDDLE EAST ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#78852) — 251 parça
çizim 135396
347 9
BalonParca AdiParca NoAdetTipApplied Date A B C
9 02.480 HARNESS; FRAME,RR
EXC. FRAME-KICK UP<7EW> 		8-97381-162-1 01 1 0502- ●
9 02.480 HARNESS; FRAME,RR 8-97381-164-1 01 1 0502- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> 		8-97213-565-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97213-565-0 01 1 0211-0302 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> 		8-97364-150-0 01 1 0303- ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97364-150-0 01 1 0303- ● ●
347 02.480 HARNESS; CABLE,RR BODY
REAR BODY LAGER WIDTH<8EH> 		8-97213-566-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97213-566-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6> 		8-97213-566-0 01 1 0211-0302 ● ●
347 02.480 HARNESS; CABLE,RR BODY
REAR BODY LAGER WIDTH<8EH> 		8-97364-151-0 01 1 0303- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97364-151-0 01 1 0303- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6> 		8-97364-151-0 01 1 0303- ● ●

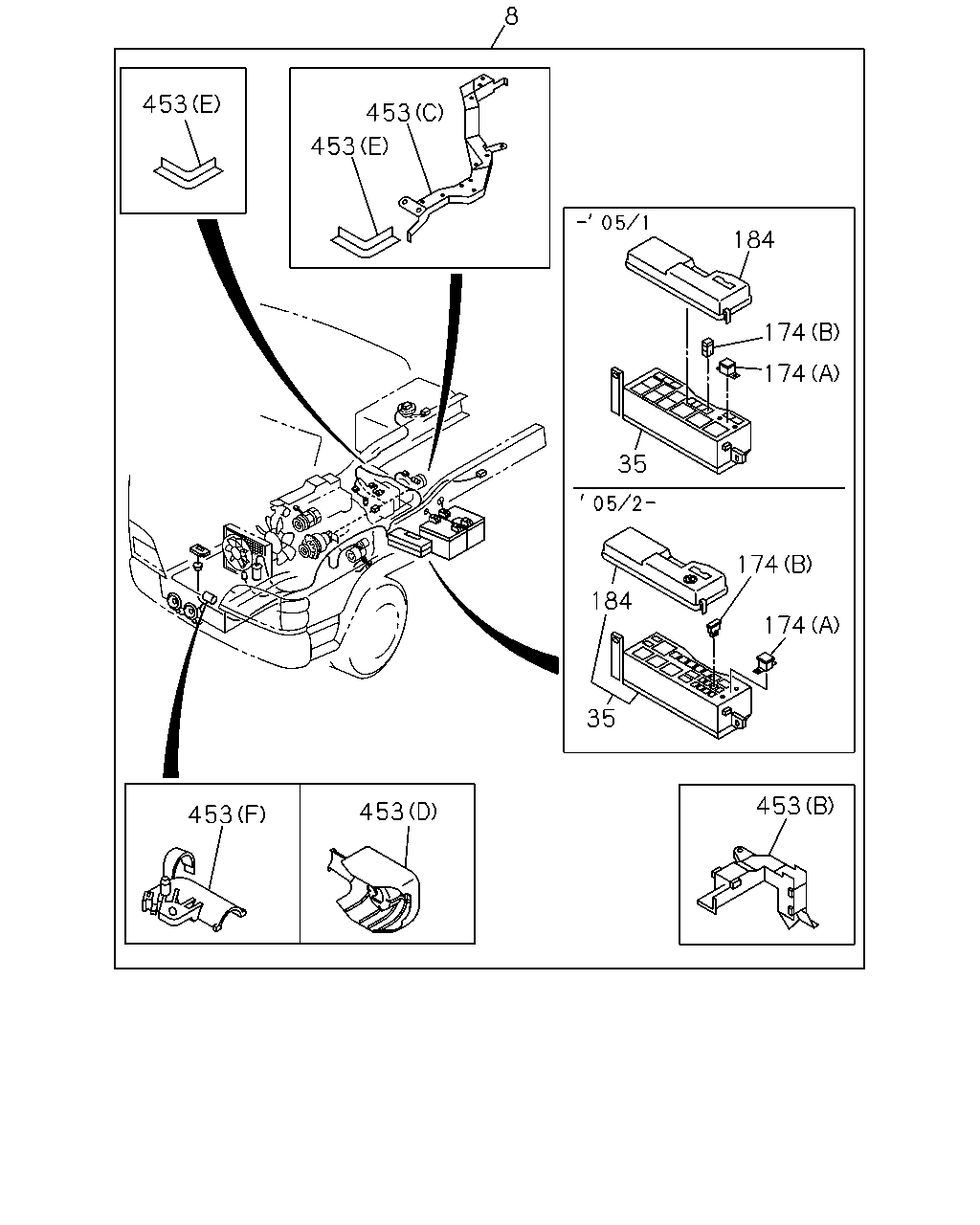

çizim 135405
8 453 453 453 184 174 174 35 174 184 174 35 453 453 453
BalonParca AdiParca NoAdetTipApplied Date A B C
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 		8-97357-070-3 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 		8-97383-596-0 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97357-069-1 01 1 0211-0211 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) 		8-97357-069-1 01 1 0211-0211 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97362-339-0 01 1 0212-0303 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) 		8-97362-339-0 01 1 0212-0303 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97364-890-2 01 1 0304-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) 		8-97364-890-2 01 1 0304-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 		8-97383-595-1 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) 		8-97383-595-1 01 1 0502- ● ●
35 02.530 BOX; RELAY & FUSE
4HF1-S ENG(RLS) 		8-97063-150-1 01 1 0211-0501 ● ● ●
35 02.530 BOX; RELAY & FUSE
4HF1-N ENG(RJZ) 		8-97377-739-0 01 1 0502- ● ● ●
174 08.965 FUSE; SLOW BLOW
4HF1-N ENG(RJZ) (B) 40A GREEN 		8-97183-644-0 01 1 0502- ● ● ●
174 08.965 FUSE; SLOW BLOW
4HF1-N ENG(RJZ) (B) 60A YELLOW 		8-97219-407-0 02 1 0502- ● ● ●
174 08.965 FUSE; SLOW BLOW
4HF1-S ENG(RLS) (A) 60A YELLOW 		8-94388-303-1 01 1 0211-0501 ● ● ●
174 08.965 FUSE; SLOW BLOW
4HF1-N ENG(RJZ) (A) 100A BLUE 		8-94388-306-1 01 1 0502- ● ● ●
174 08.965 FUSE; SLOW BLOW
4HF1-S ENG(RLS) 02.483 (B) 60A YELLOW 		8-94468-664-0 02 1 0211-0501 ● ● ●
174 08.965 FUSE; SLOW BLOW
4HF1-N ENG(RJZ) (B) 30A PINK 		8-97183-643-0 01 1 0502- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4HF1-S ENG(RLS) 		8-97063-152-1 01 1 0211-0501 ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4HF1-N ENG(RJZ) 		8-97377-741-0 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 0502- ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (F) 		8-97075-706-4 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (F) 		8-97075-706-4 01 1 0502- ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (A) 		8-97074-957-0 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (A) 		8-97074-957-0 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (E) 		8-94417-716-0 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0502- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (E) 		8-94417-716-0 01 1 0502- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (F) 		8-97093-668-1 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (F) 		8-97093-668-1 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (F) 		8-97093-668-1 01 1 0502- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (F) 		8-97093-668-1 01 1 0502- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (B) 		8-97120-589-0 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0502- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (B) 		8-97120-589-0 01 1 0502- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (D) 		8-94482-169-0 01 1 0212-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (D) 		8-94482-169-0 01 1 0212-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (D) 		8-94482-169-0 01 1 0502- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (D) 		8-94482-169-0 01 1 0502- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 0211-0405 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (E) 		8-94452-553-0 01 1 0406-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (E) 		8-94452-553-0 01 1 0502- ● ● ●

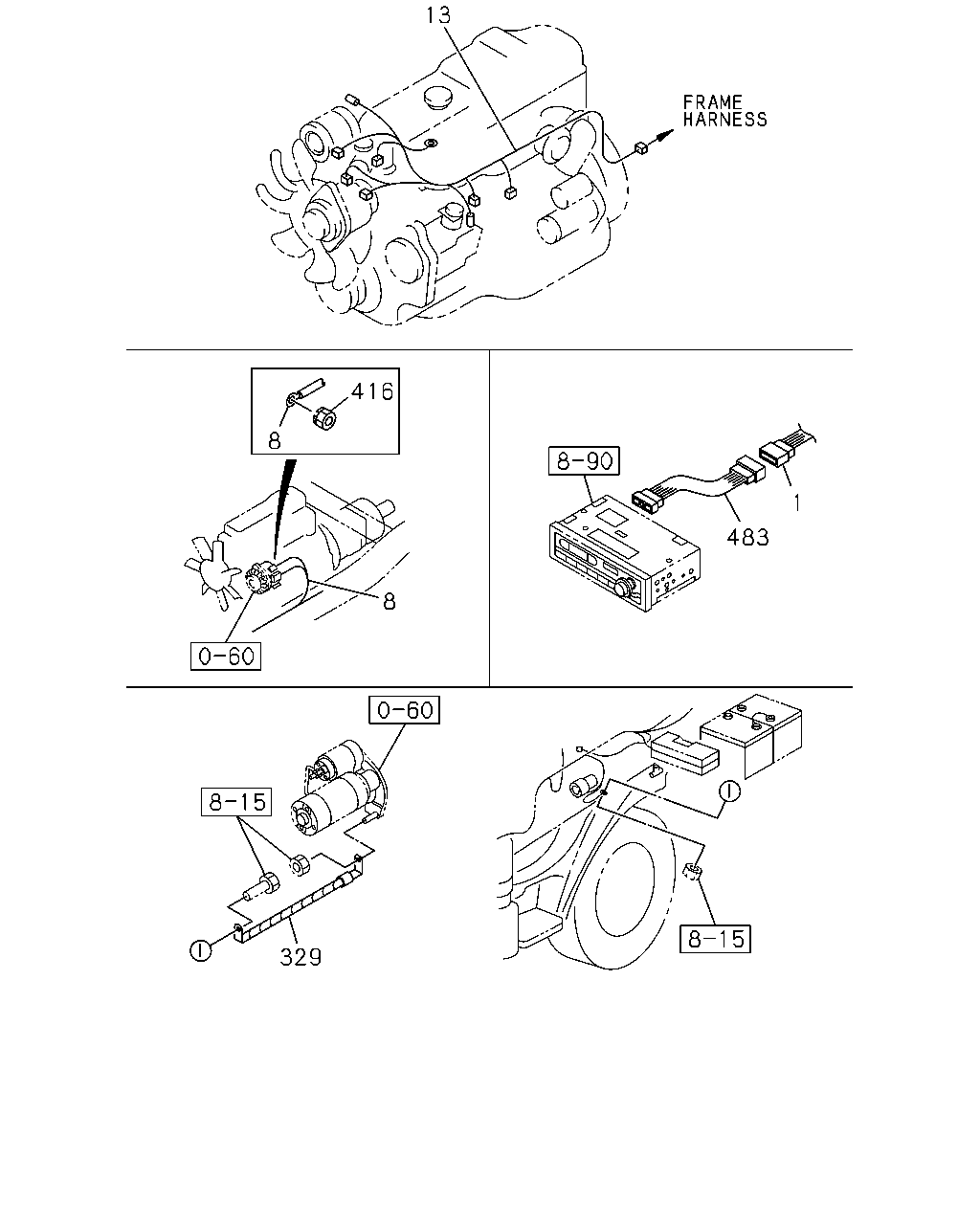

çizim 135406
13 8 416 329 483 1 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) ADJUST HEADLAMP<6RC> 		8-97352-231-1 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> 		8-97383-601-4 01 1 0502- ● ● ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) EXC. ADJUST HEADLAMP<6RC> 		8-97217-164-3 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 0502- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 		8-97357-070-3 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 		8-97383-596-0 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97357-069-1 01 1 0211-0211 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) 		8-97357-069-1 01 1 0211-0211 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97362-339-0 01 1 0212-0303 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) 		8-97362-339-0 01 1 0212-0303 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97364-890-2 01 1 0304-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) 		8-97364-890-2 01 1 0304-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 		8-97383-595-1 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) 		8-97383-595-1 01 1 0502- ● ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> 		8-97356-991-0 01 1 0211-0501 ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97356-991-0 01 1 0211-0501 ● ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. HIGH ALTITUDE COMPENSATOR(EE2), FRAME-KICK UP<7EW> 		8-97356-991-0 01 1 0502-0811 ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> 		8-97356-991-0 01 1 0502-0811 ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97356-991-0 01 1 0502-0811 ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97356-991-0 01 1 0502-0811 ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) 		8-97356-991-0 01 1 0502-0811 ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),EXHAUST BRAKE<NF8> ,FRAME-KICK UP<7EW> 		8-97356-991-0 01 1 0812- ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) EXC. EXHAUST BRAKE<NF8>,FRAME-KICK UP<7EW> 		8-97356-991-0 01 1 0812- ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMP ENSATOR(EE2),FRAME-KICK UP<7EW> 		8-97356-991-0 01 1 0812- ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. HIGH ALTITUDE COMPENSATOR(EE2), FRAME-KICK UP<7EW> 		8-97356-991-0 01 1 0812- ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) HIGH ALTITUDE COMPENSATOR(EE2) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> 		8-97356-991-0 01 1 0812- ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),EXHAUST BRAKE<NF8> 		8-97356-991-0 01 1 0812- ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) EXC. EXHAUST BRAKE<NF8> 		8-97356-991-0 01 1 0812- ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMP ENSATOR(EE2) 		8-97356-991-0 01 1 0812- ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97356-991-0 01 1 0812- ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) HIGH ALTITUDE COMPENSATOR(EE2) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97356-991-0 01 1 0812- ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) 		8-97356-991-0 01 1 0812- ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMP ENSATOR(EE2) 		8-97356-990-0 01 1 0211-0301 ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) FRAME-KICK UP<7EW> EXC. HIGH ALTITUDE COMPENSATOR(EE2), EXHAUST BRAKE<NF8> 		8-97356-990-0 01 1 0302-0302 ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMP ENSATOR(EE2) 		8-97356-990-0 01 1 0302-0302 ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97356-990-0 01 1 0303-0501 ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97356-990-0 01 1 0502- ●
329 02.480 CABLE; ENG TO FRAME
4HF1-S ENG(RLS) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97177-383-0 01 1 0211-0501 ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HF1-N ENG(RJZ) 		8-97177-383-0 01 1 0502- ● ● ●
416 02.559 NUT; TERMINAL
4HF1-S ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0211-0501 ● ● ●
416 02.559 NUT; TERMINAL
4HF1-N ENG(RJZ) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0502- ● ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 		8-97383-850-0 01 1 0502- ● ● ●

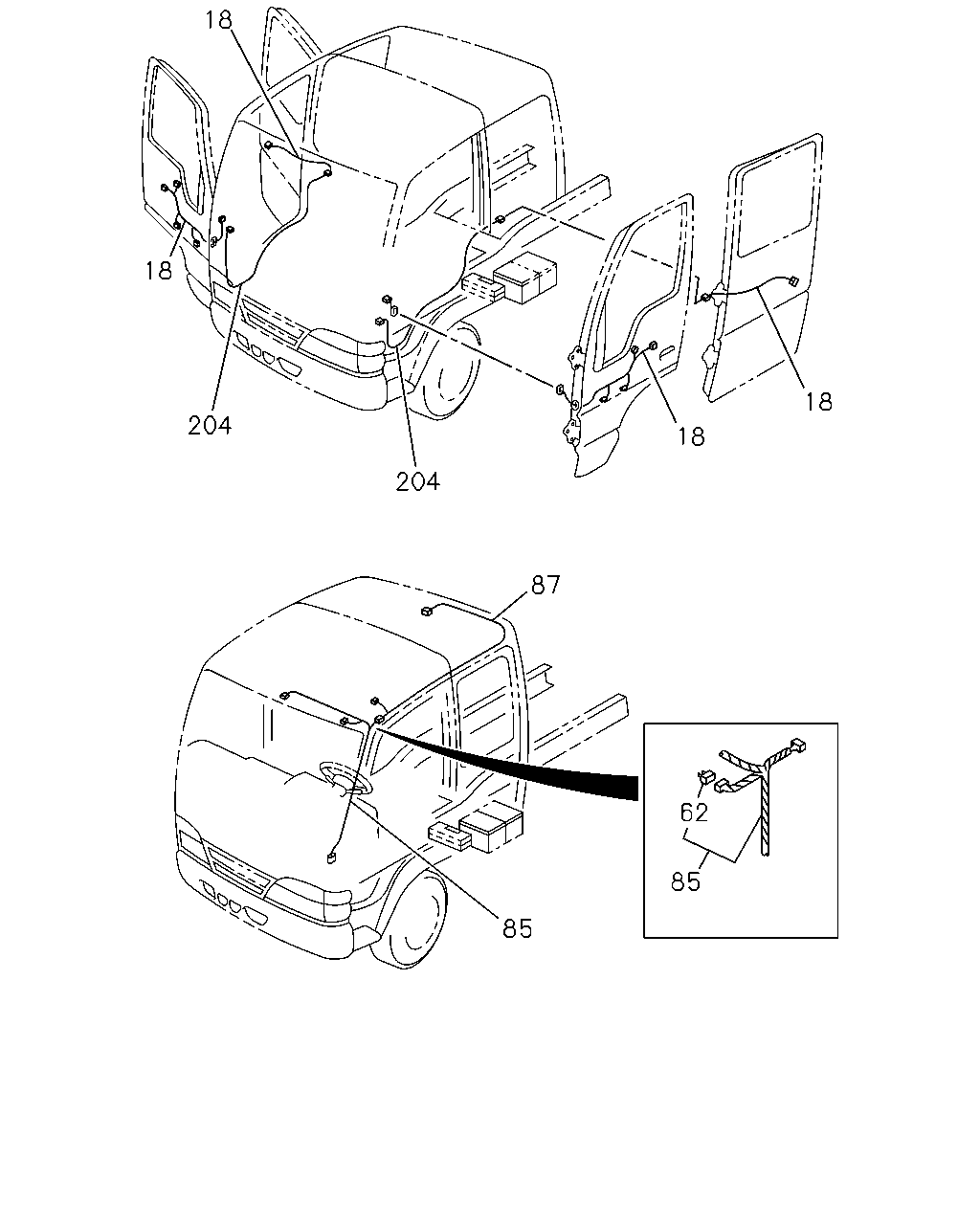

çizim 135407
18 18 18 204 18 204 87 62 85 85
BalonParca AdiParca NoAdetTipApplied Date A B C
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> FRONT DOOR 		8-97226-669-0 01 1 1011-1405 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 1406- ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1406- ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 1406- ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1406- ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0211- ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-1 01 1 0211- ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0211- ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0211-1009 ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 0211-1009 ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0211-1009 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1011-1405 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0211- ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0211-1009 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-820-0 01 1 1010-1010 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-820-0 01 1 1011-1405 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 0211- ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 0211- ●
85 06.495 HARNESS; ROOM LAMP
CAB-LOW ROOF<6XQ> 		8-97164-609-2 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP
CAB-LOW ROOF<6XQ> 		8-97364-157-0 01 1 0303- ●
85 06.495 HARNESS; ROOM LAMP
EXC. CAB-LOW ROOF<6XQ> 		8-97164-610-2 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP 8-97164-610-2 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP
EXC. CAB-LOW ROOF<6XQ> 		8-97364-158-0 01 1 0303- ●
85 06.495 HARNESS; ROOM LAMP 8-97364-158-0 01 1 0303- ●
85 06.495 HARNESS; ROOM LAMP 8-97162-624-3 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP 8-97364-155-0 01 1 0303- ●
87 02.480 HARNESS; EXT,ROOM LAMP 8-97075-747-0 01 1 0211- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0211-0302 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0303- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-626-4 01 1 0211-0302 ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-143-0 01 1 0303- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 0211-0302 ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-146-0 01 1 0303- ●

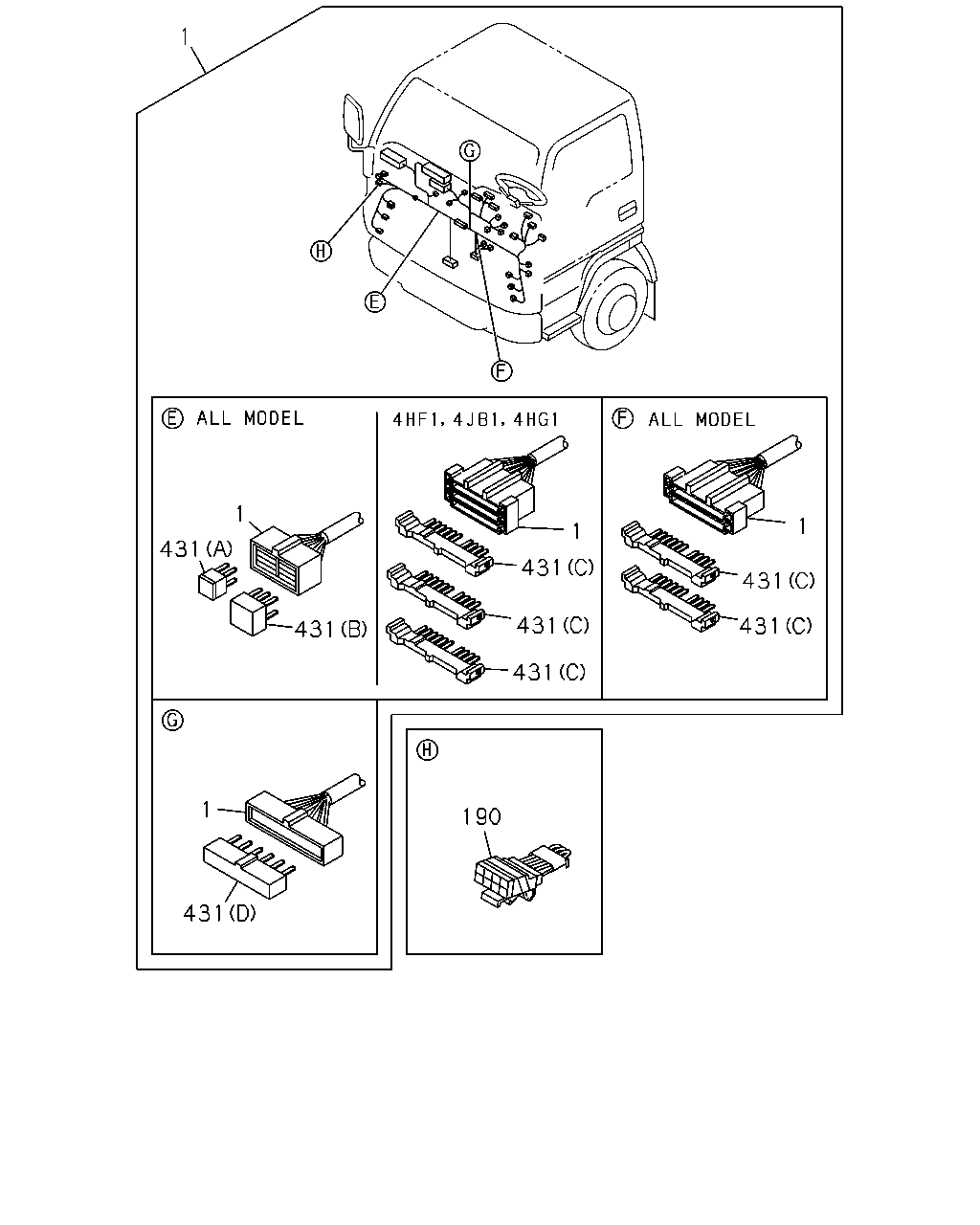

çizim 135409
1 1 1 1 1 190 431 431 431 431 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) ADJUST HEADLAMP<6RC> 		8-97352-231-1 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> 		8-97383-601-4 01 1 0502- ● ● ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) EXC. ADJUST HEADLAMP<6RC> 		8-97217-164-3 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 0502- ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> 		8-98036-238-0 01 1 0607- ● ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (D) 6P 		1-82691-206-0 01 1 0502- ● ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (C) 10P GREEN 		1-82699-599-0 05 1 0502- ● ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (A) 4P 		8-97077-939-0 01 1 0502- ● ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (B) 6P 		8-97077-941-0 01 1 0502- ● ● ●

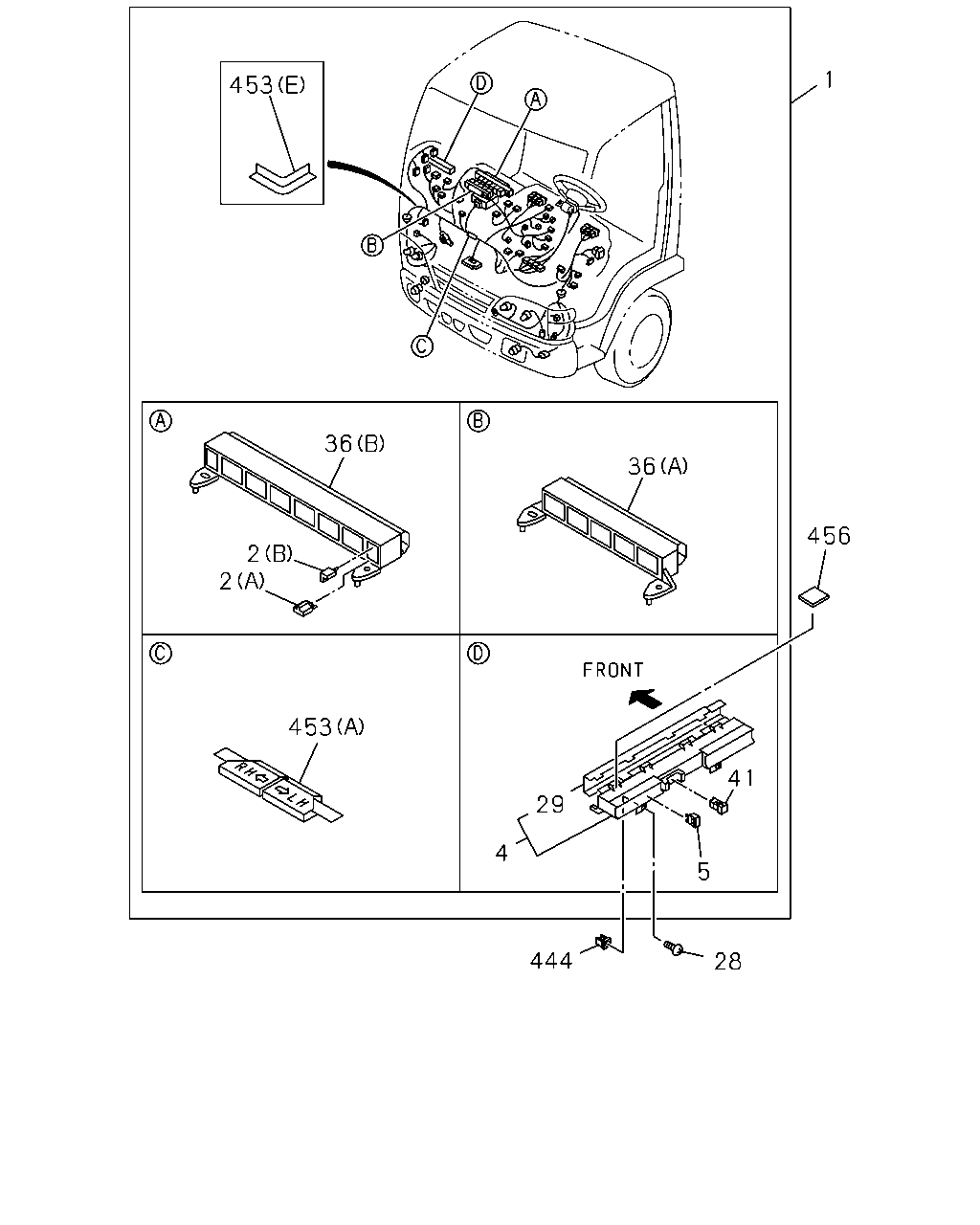

çizim 135411
456 1 36 29 5 41 4 444 28 453 2 2 36 453
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) ADJUST HEADLAMP<6RC> 		8-97352-231-1 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> 		8-97383-601-4 01 1 0502- ● ● ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) EXC. ADJUST HEADLAMP<6RC> 		8-97217-164-3 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. ADJUST HEADLAMP<6RC> 		8-97383-600-4 01 1 0502- ● ● ●
2 02.483 DIODE; CABLE HARNESS
4HF1-S ENG(RLS) (B) BLACK 2P-1.5A 		8-94422-639-1 02 1 0211-0501 ● ● ●
2 02.483 DIODE; CABLE HARNESS
4HF1-N ENG(RJZ) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0502- ● ● ●
2 02.483 DIODE; CABLE HARNESS
4HF1-S ENG(RLS) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 0211-0501 ● ● ●
2 02.483 DIODE; CABLE HARNESS
4HF1-N ENG(RJZ) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 0502- ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1-S ENG(RLS) 		8-97214-415-0 01 1 0211-0501 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1-N ENG(RJZ) 		8-97187-921-1 01 1 0502- ● ● ●
5 02.485 FUSE; FACIA HARNESS
4HF1-N ENG(RJZ) 08.965 20A MINI YELLOW 		8-97062-024-0 AR 1 0502- ● ● ●
5 02.485 FUSE; FACIA HARNESS
4HF1-S ENG(RLS) ADJUST HEADLAMP<6RC> 08.965 10A RED 		5-82516-002-0 AR 1 0211-0501 ● ● ●
5 02.485 FUSE; FACIA HARNESS
4HF1-N ENG(RJZ) ADJUST HEADLAMP<6RC> 08.965 10A MINI RED 		8-97062-022-0 AR 1 0502-0511 ● ● ●
5 02.485 FUSE; FACIA HARNESS
4HF1-N ENG(RJZ) 08.965 10A MINI RED 		8-97062-022-0 AR 1 0512- ● ● ●
5 02.485 FUSE; FACIA HARNESS
4HF1-S ENG(RLS) 08.965 15A BLUE 		5-82516-003-0 AR 1 0211-0501 ● ● ●
5 02.485 FUSE; FACIA HARNESS
4HF1-N ENG(RJZ) 08.965 15A MINI BLUE 		8-97062-023-0 AR 1 0502- ● ● ●
5 02.485 FUSE; FACIA HARNESS
4HF1-S ENG(RLS) EXC. ADJUST HEADLAMP<6RC> 08.965 10A RED 		5-82516-002-0 AR 1 0211-0501 ● ● ●
5 02.485 FUSE; FACIA HARNESS
4HF1-N ENG(RJZ) EXC. ADJUST HEADLAMP<6RC> 08.965 10A MINI RED 		8-97062-022-0 AR 1 0502-0511 ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0604 ● ● ●
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101 ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ●
29 02.483 COVER; FUSE BOX
4HF1-N ENG(RJZ) 		8-97074-955-0 01 1 0502- ● ● ●
36 02.530 BOX; RELAY
4HF1-S ENG(RLS) (B) 		8-97087-639-1 01 1 0211-0501 ● ● ●
36 02.530 BOX; RELAY
4HF1-N ENG(RJZ) (B) 		8-97187-918-1 01 1 0502- ● ● ●
36 02.530 BOX; RELAY
4HF1-S ENG(RLS) (A) 		8-97087-640-1 01 1 0211-0501 ● ● ●
41 08.821 PULLER; FUSE
4HF1-S ENG(RLS) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0211-0501 ● ● ●
41 08.821 PULLER; FUSE
4HF1-N ENG(RJZ) 		8-97103-388-0 01 1 0502- ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0211- ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 0502- ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (F) 		8-97075-706-4 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (F) 		8-97075-706-4 01 1 0502- ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (A) 		8-97074-957-0 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (A) 		8-97074-957-0 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (E) 		8-94417-716-0 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0502- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (E) 		8-94417-716-0 01 1 0502- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (F) 		8-97093-668-1 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (F) 		8-97093-668-1 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (F) 		8-97093-668-1 01 1 0502- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (F) 		8-97093-668-1 01 1 0502- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (B) 		8-97120-589-0 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0502- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (B) 		8-97120-589-0 01 1 0502- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (D) 		8-94482-169-0 01 1 0212-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (D) 		8-94482-169-0 01 1 0212-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (D) 		8-94482-169-0 01 1 0502- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (D) 		8-94482-169-0 01 1 0502- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) ADJUST HEADLAMP<6RC> (E) 		8-94452-553-0 01 1 0211-0405 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (E) 		8-94452-553-0 01 1 0406-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (E) 		8-94452-553-0 01 1 0502- ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0211- ● ● ●

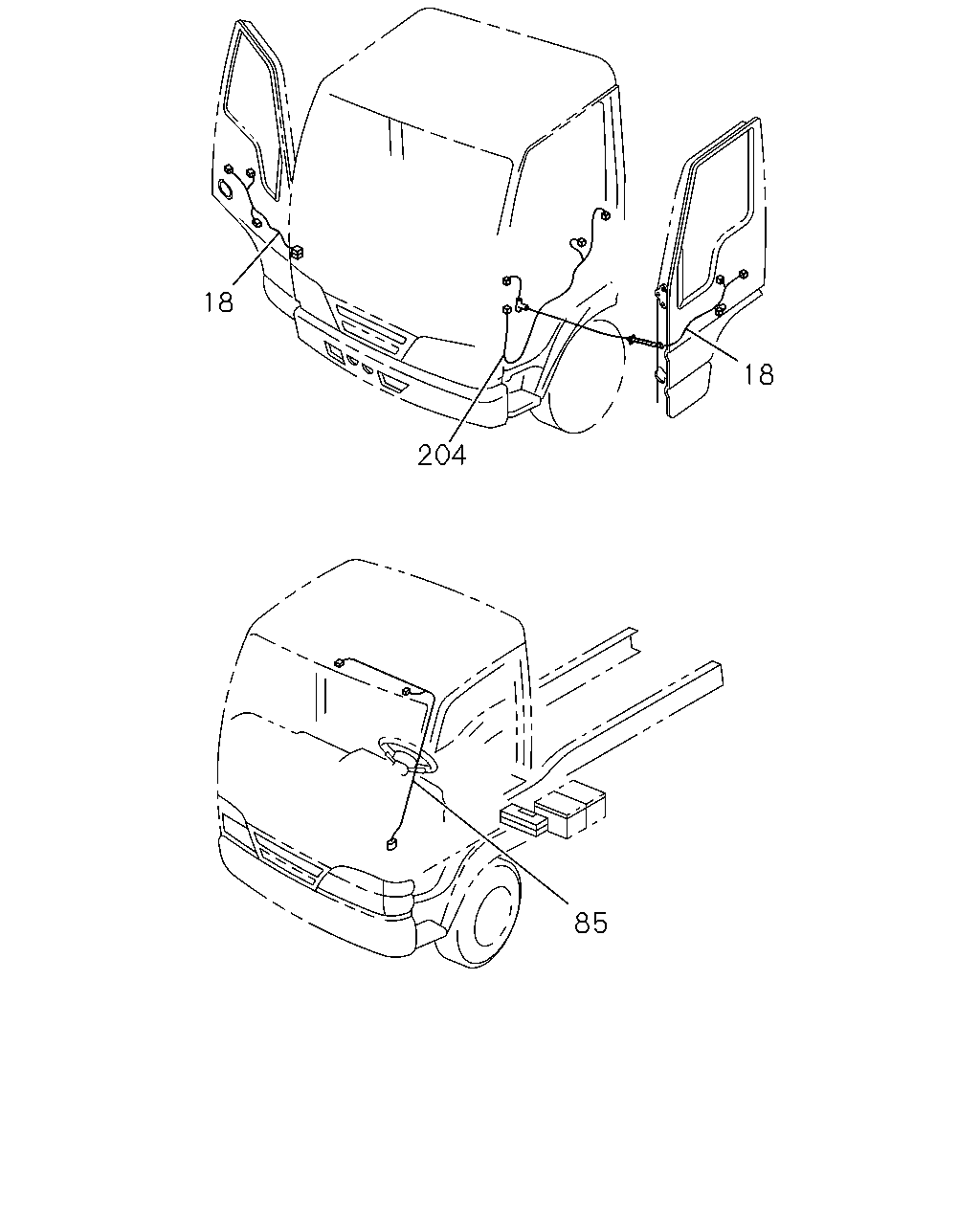

çizim 135412
18 18 204 85
BalonParca AdiParca NoAdetTipApplied Date A B C
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> FRONT DOOR 		8-97226-669-0 01 1 1011-1405 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 1406- ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1406- ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 1406- ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1406- ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0211- ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-1 01 1 0211- ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0211- ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0211-1009 ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 0211-1009 ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0211-1009 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKER S(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIOAM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1011-1405 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0211- ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0211-1009 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-820-0 01 1 1010-1010 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-820-0 01 1 1011-1405 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 0211- ●
85 06.495 HARNESS; ROOM LAMP
CAB-LOW ROOF<6XQ> 		8-97164-609-2 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP
CAB-LOW ROOF<6XQ> 		8-97364-157-0 01 1 0303- ●
85 06.495 HARNESS; ROOM LAMP
EXC. CAB-LOW ROOF<6XQ> 		8-97164-610-2 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP 8-97164-610-2 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP
EXC. CAB-LOW ROOF<6XQ> 		8-97364-158-0 01 1 0303- ●
85 06.495 HARNESS; ROOM LAMP 8-97364-158-0 01 1 0303- ●
85 06.495 HARNESS; ROOM LAMP 8-97162-624-3 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP 8-97364-155-0 01 1 0303- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0211-0302 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0303- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-626-4 01 1 0211-0302 ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-143-0 01 1 0303- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 0211-0302 ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-146-0 01 1 0303- ●
çizim 135423
339 347 9
BalonParca AdiParca NoAdetTipApplied Date A B C
9 02.480 HARNESS; FRAME,RR
EXC. FRAME-KICK UP<7EW> 		8-97381-162-1 01 1 0502- ●
9 02.480 HARNESS; FRAME,RR 8-97381-164-1 01 1 0502- ● ●
339 02.530 HARNESS; EXT,FUEL
02.480 		8-94318-759-0 01 1 0211- ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> 		8-97213-565-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97213-565-0 01 1 0211-0302 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> 		8-97364-150-0 01 1 0303- ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97364-150-0 01 1 0303- ● ●
347 02.480 HARNESS; CABLE,RR BODY
REAR BODY LAGER WIDTH<8EH> 		8-97213-566-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97213-566-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6> 		8-97213-566-0 01 1 0211-0302 ● ●
347 02.480 HARNESS; CABLE,RR BODY
REAR BODY LAGER WIDTH<8EH> 		8-97364-151-0 01 1 0303- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97364-151-0 01 1 0303- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6> 		8-97364-151-0 01 1 0303- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
