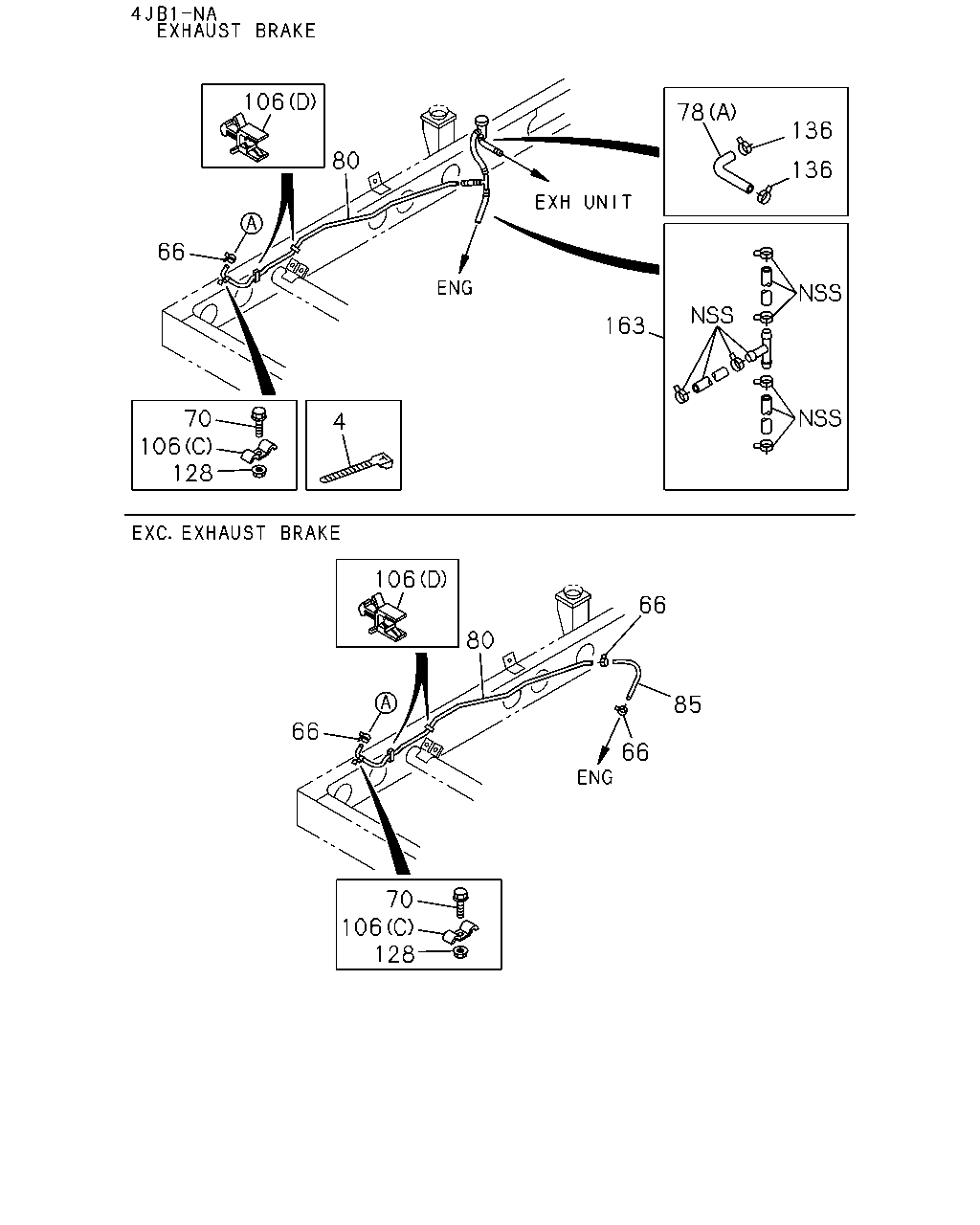

3-60 — BRAKE PIPING; VACUUM (#78846) — 84 parça

106 78 136 80 136 66 163 70 106 12 4 106 66 80 85 66 66 70 106 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	03.417 CLIP; HOSE,VAC PUMP 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	1011-	●	●
12	04.681 CLIP; HOSE 04.930 ID=14.5	8-94167-480-0	03	1	1011-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1011-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1011-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	03	1	1011-	●	●
70	04.930 BOLT; CLIP FIX 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1011-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	1011-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.630 (A) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	1011-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B)	8-97028-386-2	01	1	1011-		●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97301-513-0	01	1	1011-	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	1011-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-NA ENG(RLF)	8-97070-034-1	01	1	1011-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97171-960-1	01	1	1011-		●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) L=130	8-94438-246-0	01	1	1011-	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	1011-	●	●
106	04.930 CLIP; PIPE 04.686 (C) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	1011-	●	●
106	04.930 CLIP; PIPE 03.485 (D) ID=10 H=36	8-94249-686-1	02	1	1011-	●	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) ID=10 H=40	8-94462-219-0	02	1	1101-		●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) ID=10 H=40	8-94462-219-0	02	1	1011-1012	●	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) ID=10 H=40	8-94462-219-0	02	1	1011-1012	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) ID=10 H=40	8-94462-219-0	01	1	1101-	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A) ID=10X2 H=47.5	8-97018-605-0	01	1	1011-	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A) ID=10X2 H=37.5	8-97018-546-0	01	1	1011-		●
128	04.930 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1011-	●	●
136	04.681 CLIP; VAC HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	06	1	1011-	●	●
136	04.681 CLIP; VAC HOSE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1011-	●	●
163	04.681 JOINT; VAC HOSE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8>	8-97083-158-1	01	1	1011-	●	●

12 203 116 12 12 13 39 39 39 184 39 165 39 173 39 116 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 ID=14.5	8-94167-480-0	03	1	1011-	●	●
13	04.681 JOINT; HOSE,VAC 04.686 3WAY	8-94441-184-0	01	1	1011-	●	●
39	04.681 CLIP; HOSE,VAC 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (D) ID=16	8-98008-098-0	02	1	1011-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (C) ID=16	5-09707-023-2	02	1	1011-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	03	1	1011-	●	●
39	04.681 CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	1011-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (D) ID=16	8-98008-098-0	01	1	1011-	●	●
116	04.931 HOSE; VAC,M/VAC (A)	8-97102-369-2	01	1	1011-	●	●
116	04.931 HOSE; VAC,M/VAC (B)	8-97314-597-1	01	1	1011-	●	●
165	04.686 BOLT; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1011-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1011-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	1011-	●	●
184	04.685 BRACKET; UNION FIX	8-97035-967-3	01	1	1011-	●	●
202	04.686 SEAL 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1011-	●	●
203	04.690 VALVE; CHECK	8-94386-540-0	01	1	1011-	●	●

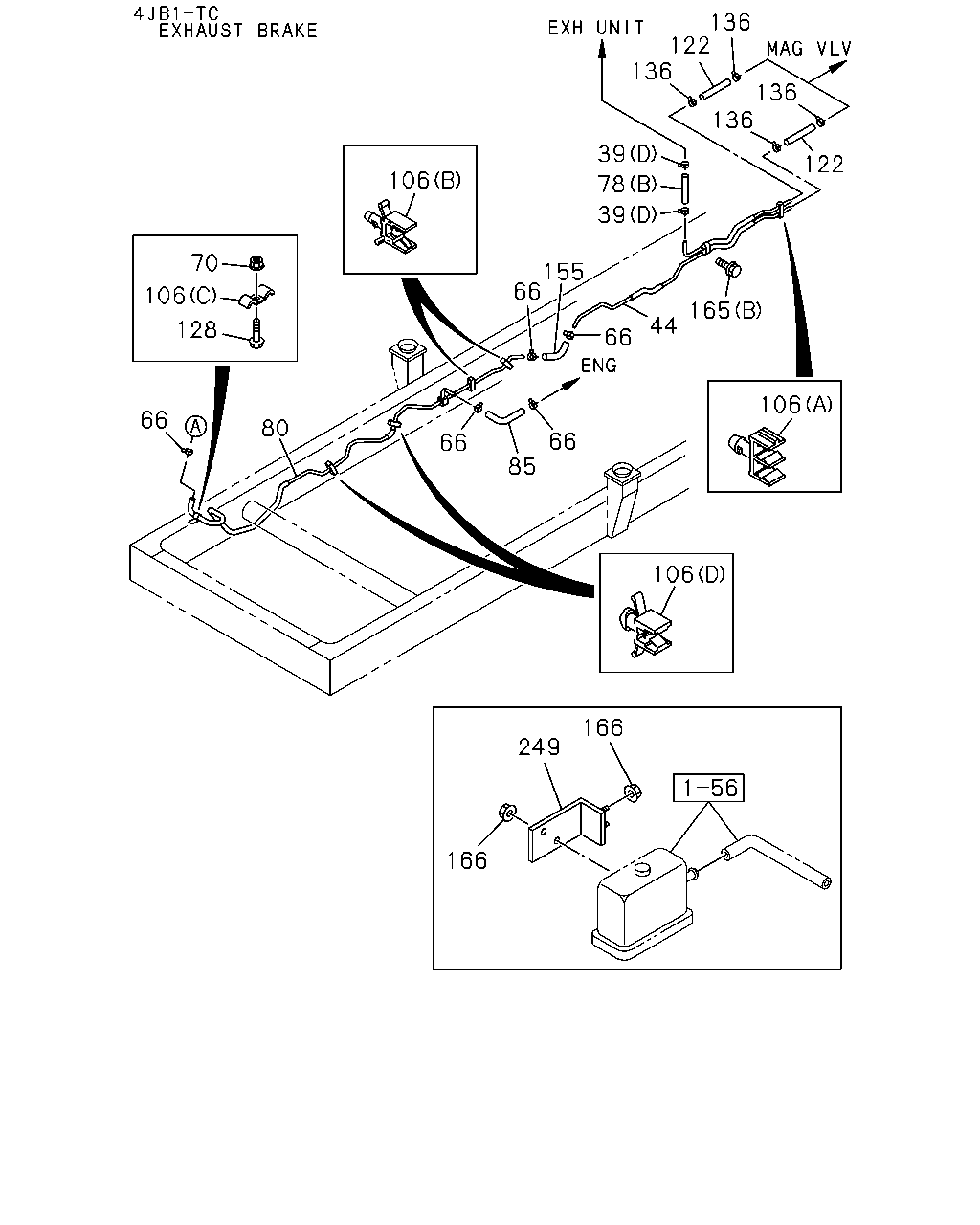

136 122 136 136 136 39 122 106 78 39 70 155 66 106 165 44 128 66 106 66 66 80 66 85 106 166 249 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (D) ID=16	8-98008-098-0	02	1	1011-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (C) ID=16	5-09707-023-2	02	1	1011-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	03	1	1011-	●	●
39	04.681 CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	1011-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (D) ID=16	8-98008-098-0	01	1	1011-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.671	8-97258-369-0	01	1	1011-	●
44	04.930 PIPE; VAC,MAG VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 04.685	8-97225-306-1	01	1	1011-		●
66	04.930 CLIP; VAC HOSE,M/VAC 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1011-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1011-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	03	1	1011-	●	●
70	04.930 BOLT; CLIP FIX 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1011-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	1011-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.630 (A) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	1011-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B)	8-97028-386-2	01	1	1011-		●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97301-513-0	01	1	1011-	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	1011-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-NA ENG(RLF)	8-97070-034-1	01	1	1011-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97171-960-1	01	1	1011-		●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) L=130	8-94438-246-0	01	1	1011-	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	1011-	●	●
106	04.930 CLIP; PIPE 04.686 (C) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	1011-	●	●
106	04.930 CLIP; PIPE 03.485 (D) ID=10 H=36	8-94249-686-1	02	1	1011-	●	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) ID=10 H=40	8-94462-219-0	02	1	1101-		●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) ID=10 H=40	8-94462-219-0	02	1	1011-1012	●	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) ID=10 H=40	8-94462-219-0	02	1	1011-1012	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) ID=10 H=40	8-94462-219-0	01	1	1101-	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A) ID=10X2 H=47.5	8-97018-605-0	01	1	1011-	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A) ID=10X2 H=37.5	8-97018-546-0	01	1	1011-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=160 SERVICED BY L=3000	0-08258-300-0	01	1	1011-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	02	1	1011-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=110 SERVICED BY L=3000	0-08258-300-0	01	1	1011-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=330 SERVICED BY L=3000	0-08258-300-0	02	1	1011-		●
128	04.930 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1011-	●	●
136	04.681 CLIP; VAC HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	06	1	1011-	●	●
136	04.681 CLIP; VAC HOSE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1011-	●	●
155	04.931 HOSE; VAC,AIR FILTER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=220 SERVICED BY L=3000	0-08258-300-0	01	1	1011-	●
155	04.931 HOSE; VAC,AIR FILTER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1011-		●
165	04.686 BOLT; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1011-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1011-	●	●
166	04.686 NUT; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	02	1	1011-1012		●
166	04.686 NUT; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	02	1	1101-	●
249	04.686 BRACKET; VAC,AIR FILTER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.634	8-97106-474-2	01	1	1011-	●
