◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51353 - QKR-RHD ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#78837) — 23 parça

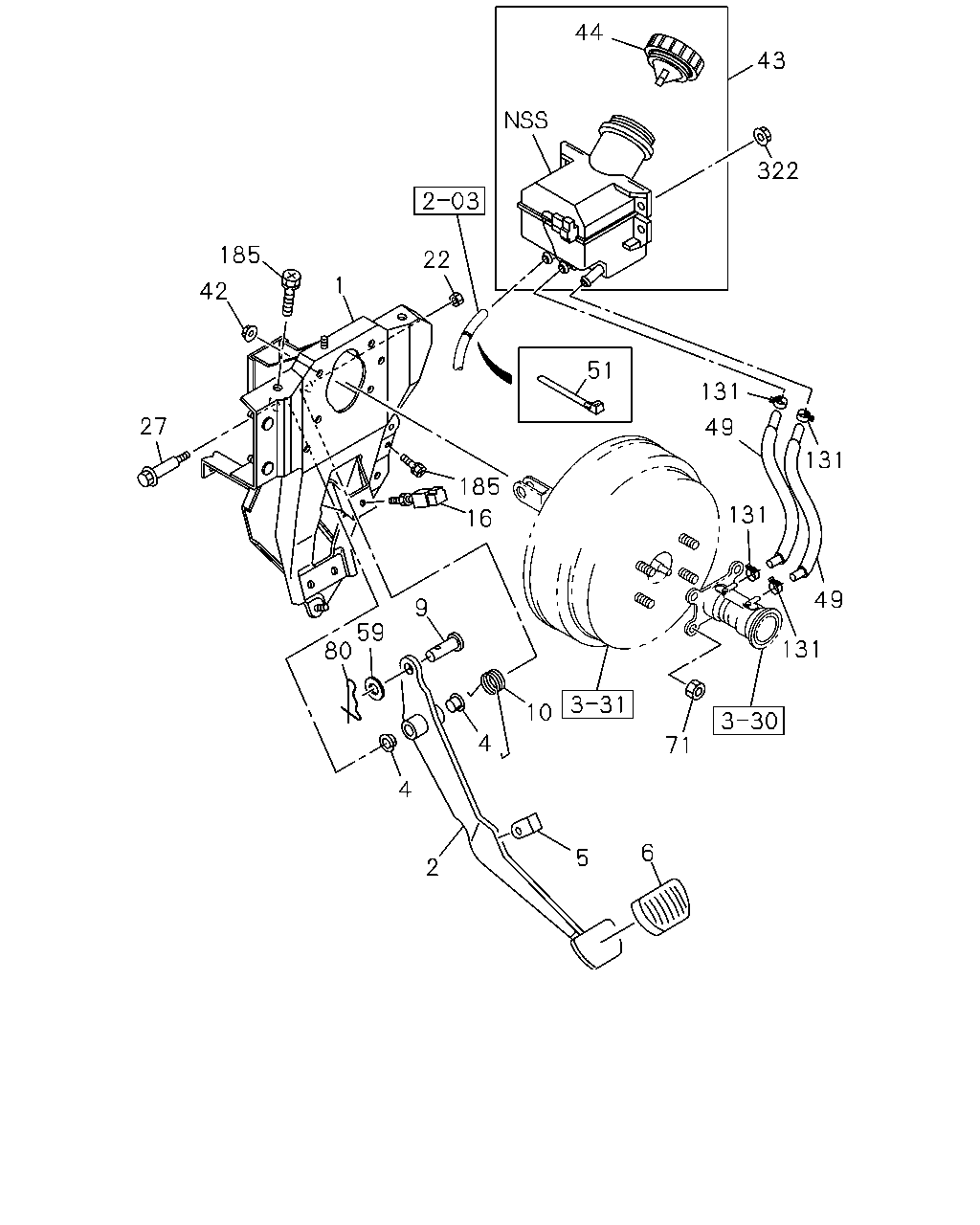

çizim 114813
44 43 322 185 22 1 42 51 131 27 49 131 185 131 16 49 9 59 80 131 10 4 71 4 6 5 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.634 BRACKET ASM; PEDAL 8-97896-968-5 01 1 1011- ● ●
2 04.625 PEDAL; BRK 8-97853-210-3 01 1 1011- ● ●
4 04.634 BUSHING; BRK PEDAL
04.792 		8-94238-596-0 02 1 1011- ● ●
5 04.634 STOPPER; BRK PEDAL 8-97853-602-1 01 1 1011- ● ●
6 04.630 COVER; BRK PEDAL
00.829 		8-97853-413-2 01 1 1011- ● ●
9 04.634 PIN; JAW JOINT 8-94410-276-0 01 1 1011-1406 ● ●
9 04.634 PIN; JAW JOINT
00.833 		8-97359-812-0 01 1 1407- ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-97853-212-1 01 1 1011- ● ●
16 02.447 SWITCH; STOP LAMP 8-97855-187-0 01 1 1011- ● ●
22 04.634 NUT; SHAFT
00.833 M10 FLANGE 		1-09440-022-0 01 1 1011- ● ●
27 04.634 SHAFT; BRK PEDAL 8-97866-667-0 01 1 1011- ● ●
42 04.898 NUT; BRK PEDAL
00.777 M8 W/LK WASHER 		8-94279-050-0 04 1 1011- ● ●
43 04.651 TANK ASM; OIL 8-97179-813-1 01 1 1011- ● ●
44 04.651 CAP; OIL TANK 8-97178-291-1 01 1 1011- ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL 8-97129-582-0 02 1 1011- ● ●
51 04.681 CLIP; HOSE,OIL TANK
03.162 L=140 		5-09707-031-1 01 1 1011- ● ●
59 04.634 WASHER; PL,JAW JOINT
ID=15 		0-91610-514-0 01 1 1011- ● ●
71 04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER 		8-94279-050-0 04 1 1011- ● ●
80 04.634 PIN; SNAP,BRK PEDAL 8-94279-912-0 01 1 1011- ● ●
131 04.681 CLIP; RUBBER HOSE,OIL TANK TO BR 8-97130-480-0 04 1 1011- ● ●
185 04.634 BOLT; BRKT
07.833 M10X25 FLANGE 		0-28661-025-0 02 1 1011- ● ●
185 04.634 BOLT; BRKT
00.833 M10X22 W/PL WASHER 		8-97313-188-0 02 1 1011- ● ●
322 04.651 NUT; OIL TANK
01.062 M6 FLANGE 		0-91180-106-0 02 1 1011- ● ●
