5-20 — BATTERY CARRIER (#7882) — 31 parça

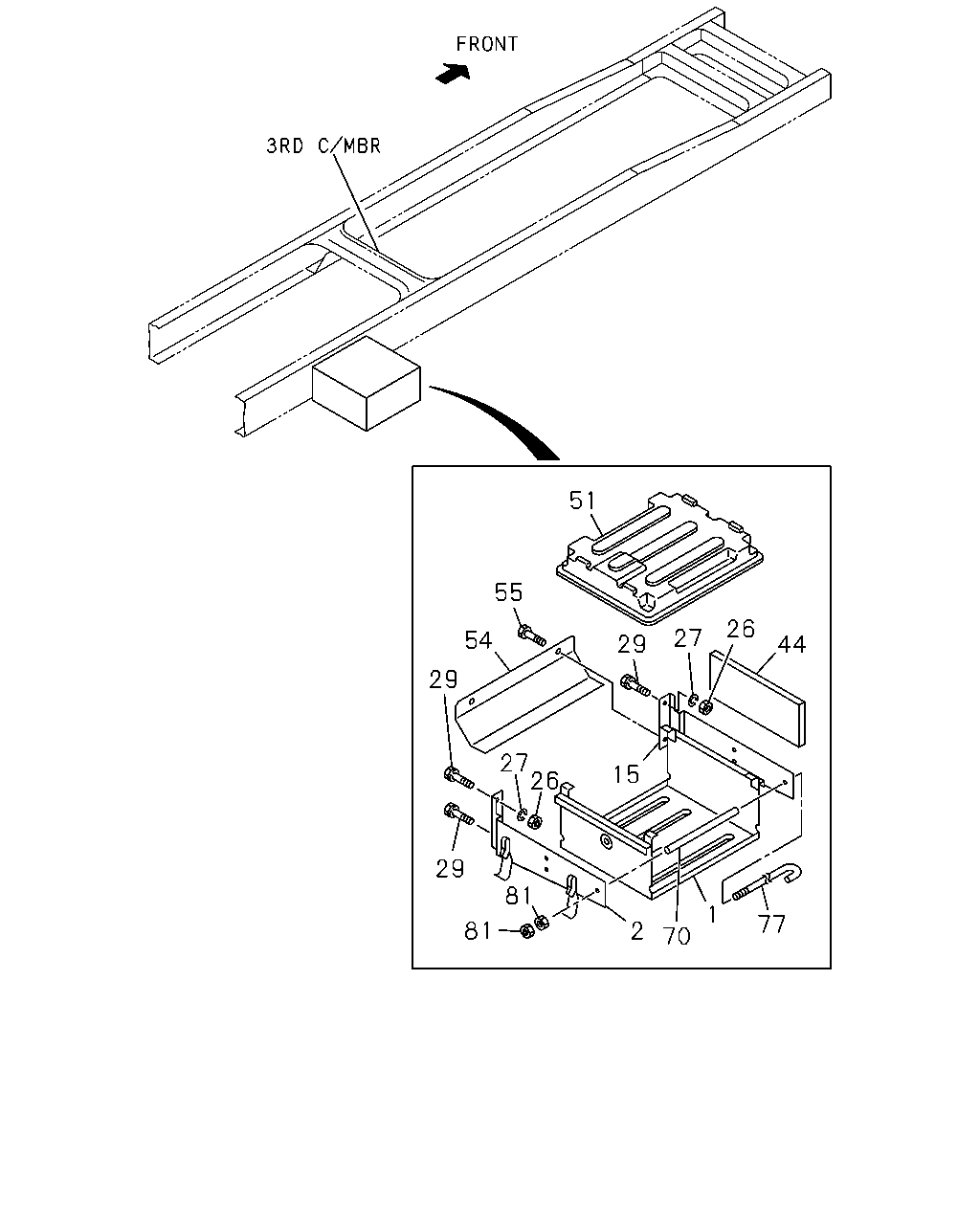

çizim 99362
51 55 26 27 54 29 44 29 27 26 15 29 81 1 77 81 2 70
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CARRIER; BATTERY 9-53613-584-3 01 1 9905-0301 ● ●
1 CARRIER; BATTERY 9-53613-584-3 01 1 0302- ● ● ●
2 BRACKET; BATTERY 1-53613-339-3 01 1 9905-0301 ● ●
2 BRACKET; BATTERY 1-53613-339-3 01 1 0302- ● ● ●
15 BRACKET; BATTERY 1-53613-340-3 01 1 9905-0301 ● ●
15 BRACKET; BATTERY 1-53613-340-3 01 1 0302- ● ● ●
26 NUT; BRKT
M14 		9-99110-414-0 04 1 9905-0301 ● ●
26 NUT; BRKT
M14 		9-99110-414-0 04 1 0302-0512 ● ● ●
26 NUT; BRKT
M14 		0-91110-514-0 04 1 0601- ● ● ●
27 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 04 1 9905-0301 ● ●
27 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 04 1 0302-0603 ● ● ●
27 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 04 1 0604- ● ● ●
29 BOLT; BRKT TO FRAME
M14X35 		0-20801-435-0 04 1 9905-0301 ● ●
29 BOLT; BRKT TO FRAME
M14X35 		0-20801-435-0 04 1 0302-0512 ● ● ●
29 BOLT; BRKT TO FRAME
M14X35 		0-20851-435-0 04 1 0601- ● ● ●
44 SPACER; BATTERY 1-53619-006-0 02 1 9905-0301 ● ●
44 SPACER; BATTERY 1-53619-006-0 02 1 0302- ● ● ●
51 COVER; BATTERY 1-53612-029-0 01 1 9905-0301 ● ●
51 COVER; BATTERY 1-53612-029-1 01 1 0302- ● ● ●
54 PROTECTOR; HEAT,BATTERY 1-53619-075-1 01 1 9905-0301 ● ●
54 PROTECTOR; HEAT,BATTERY 1-53619-075-1 01 1 0302- ● ● ●
55 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28680-820-0 02 1 9905-0301 ● ●
55 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28680-820-0 02 1 0302-0512 ● ● ●
55 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
70 SPACER; BATTERY CARRIER 1-53619-023-0 01 1 9905-0301 ● ●
70 SPACER; BATTERY CARRIER 1-53619-023-0 01 1 0302- ● ● ●
77 BOLT; BATTERY BRKT,FRT TO RR 1-53616-101-0 02 1 9905-0301 ● ●
77 BOLT; BATTERY BRKT,FRT TO RR 1-53616-101-0 02 1 0302- ● ● ●
81 NUT; BATTERY
M8 		9-09110-408-0 04 1 9905-0301 ● ●
81 NUT; BATTERY
M8 		9-09110-408-0 04 1 0302-0512 ● ● ●
81 NUT; BATTERY
M8 		0-91110-508-0 04 1 0601- ● ● ●
