Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#78819) — 301 parça

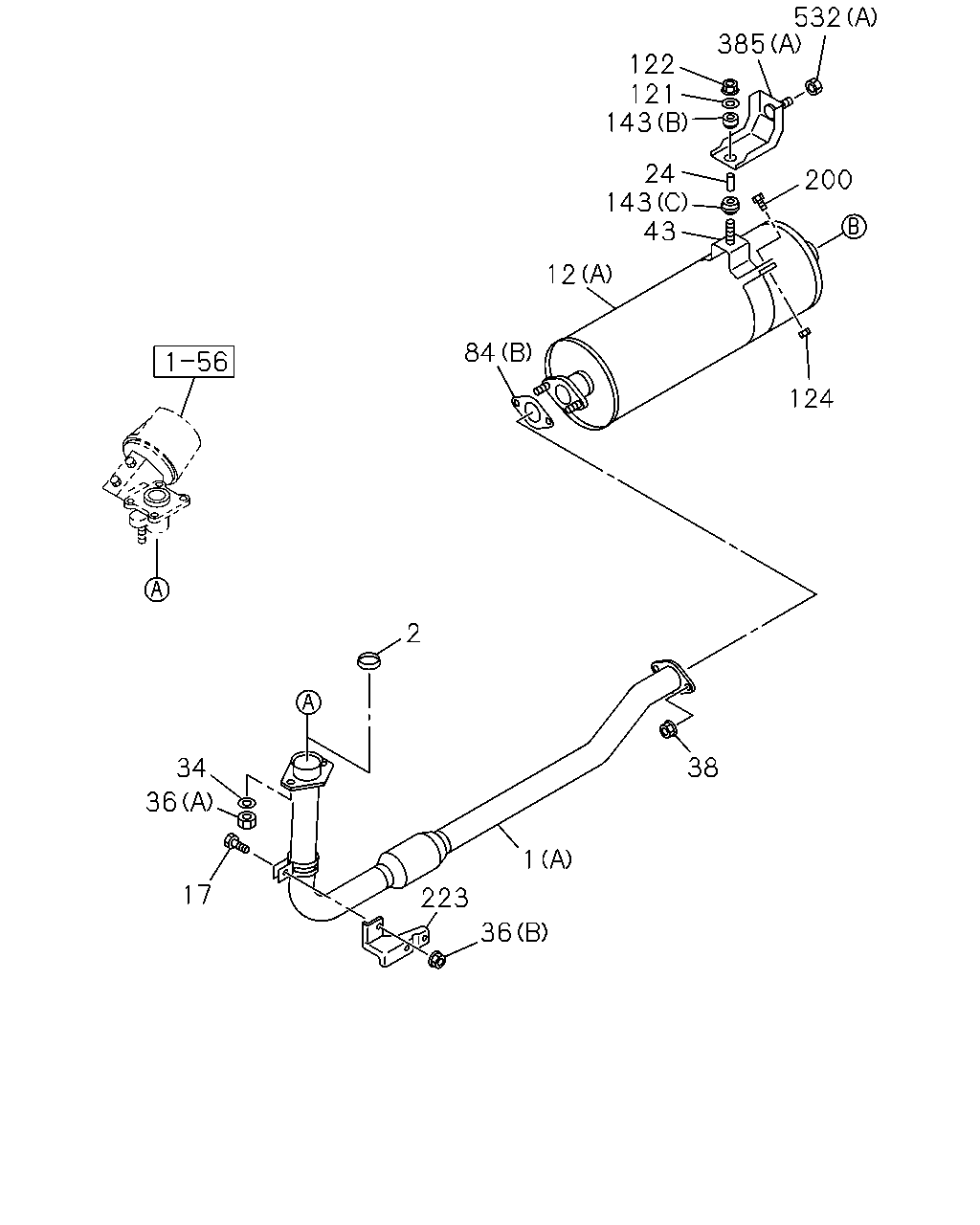

38 1 36 223 17 36 2 34 124 84 12 200 143 143 24 121 122 385 532 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (E)	8-97206-027-0	01	1	1011-	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B)	8-97212-561-2	01	1	1011-		●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (D)	8-97212-759-3	01	1	1011-		●
1	03.609 PIPE; EXH 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> (A)	8-97102-669-0	01	1	1011-	●	●
1	03.609 PIPE; EXH 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97102-668-0	01	1	1011-	●	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C)	8-97206-026-1	01	1	1011-	●
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT)	8-97381-456-0	01	1	1011-	●	●
2	03.611 GASKET; PIPE TO MANIF 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-97381-456-0	01	1	1011-	●	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>,IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98224-810-0	01	1	1303-		●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) (B)	8-97221-923-0	01	1	1011-1302		●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B)	8-97221-923-0	01	1	1303-		●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> EXC. EXHAUST BRAKE<NF8> (B)	8-97221-923-0	01	1	1303-		●
12	03.701 SILENCER ASM; EXH 4JB1-NA ENG(RLF) (A)	8-97049-721-0	01	1	1011-	●	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) (C)	8-97206-036-0	01	1	1011-	●
17	03.613 BOLT; EXH PIPE 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	1011-	●	●
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	01	1	1011-	●	●
34	03.613 WASHER; EXH PIPE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> ID=10.5	5-09500-013-0	02	1	1011-	●	●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) (A) M10 FLANGE	8-97096-192-1	02	1	1011-	●	●
36	03.613 NUT; EXH PIPE 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A) M10 FLANGE	8-97096-192-1	02	1	1011-	●	●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	1011-		●
36	03.613 NUT; EXH PIPE 4JB1-NA ENG(RLF) 02.334 (B) M8	0-91110-508-0	01	1	1011-	●	●
36	03.613 NUT; EXH PIPE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> (A) M10 H=18	9-09640-014-0	02	1	1011-	●	●
38	00.002 NUT; SILENCER 4JB1-TC ENG(RDT) 03.162 M10 FLANGE	0-91180-110-0	04	1	1011-	●	●
38	00.002 NUT; SILENCER 4JB1-NA ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	02	1	1011-	●	●
43	03.611 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) 03.706	8-97076-018-0	01	1	1011-		●
43	03.611 CLAMP; EXH PIPE 4JB1-NA ENG(RLF) 03.706	8-97081-457-0	01	1	1011-		●
43	03.611 CLAMP; EXH PIPE 03.706	8-97081-457-0	01	1	1011-	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 03.634 (A) ID=54	8-94328-354-0	01	1	1011-		●
84	03.611 GASKET; EXH PIPE 4JB1-NA ENG(RLF) 03.704 (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1011-		●
84	03.611 GASKET; EXH PIPE 03.704 (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1011-	●
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	01	1	1011-	●	●
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	1011-	●	●
124	03.704 NUT; SUPPORT RUBBER 02.334 M8	0-91110-508-0	01	1	1011-	●	●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) (A)	8-97371-655-1	01	1	1011-		●
143	03.704 RUBBER; SUPPORT (A)	8-97371-655-1	01	1	1011-	●
143	03.704 RUBBER; SUPPORT (B)	8-94457-277-1	01	1	1011-	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-278-1	01	1	1011-	●	●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	01	1	1011-	●	●
223	03.706 BRACKET; EXH PIPE 4JB1-TC ENG(RDT) 03.613	8-97084-346-2	01	1	1011-	●	●
223	03.706 BRACKET; EXH PIPE 4JB1-NA ENG(RLF) 03.613	8-94445-704-0	01	1	1011-	●	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) (B)	8-97073-758-0	01	1	1011-		●
385	03.704 BRACKET; SILENCER MTG 4JB1-NA ENG(RLF) (A)	8-94329-856-0	01	1	1011-		●
385	03.704 BRACKET; SILENCER MTG (A)	8-94329-856-0	01	1	1011-	●
532	03.704 NUT 4JB1-TC ENG(RDT) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1011-		●
532	03.704 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1011-	●	●

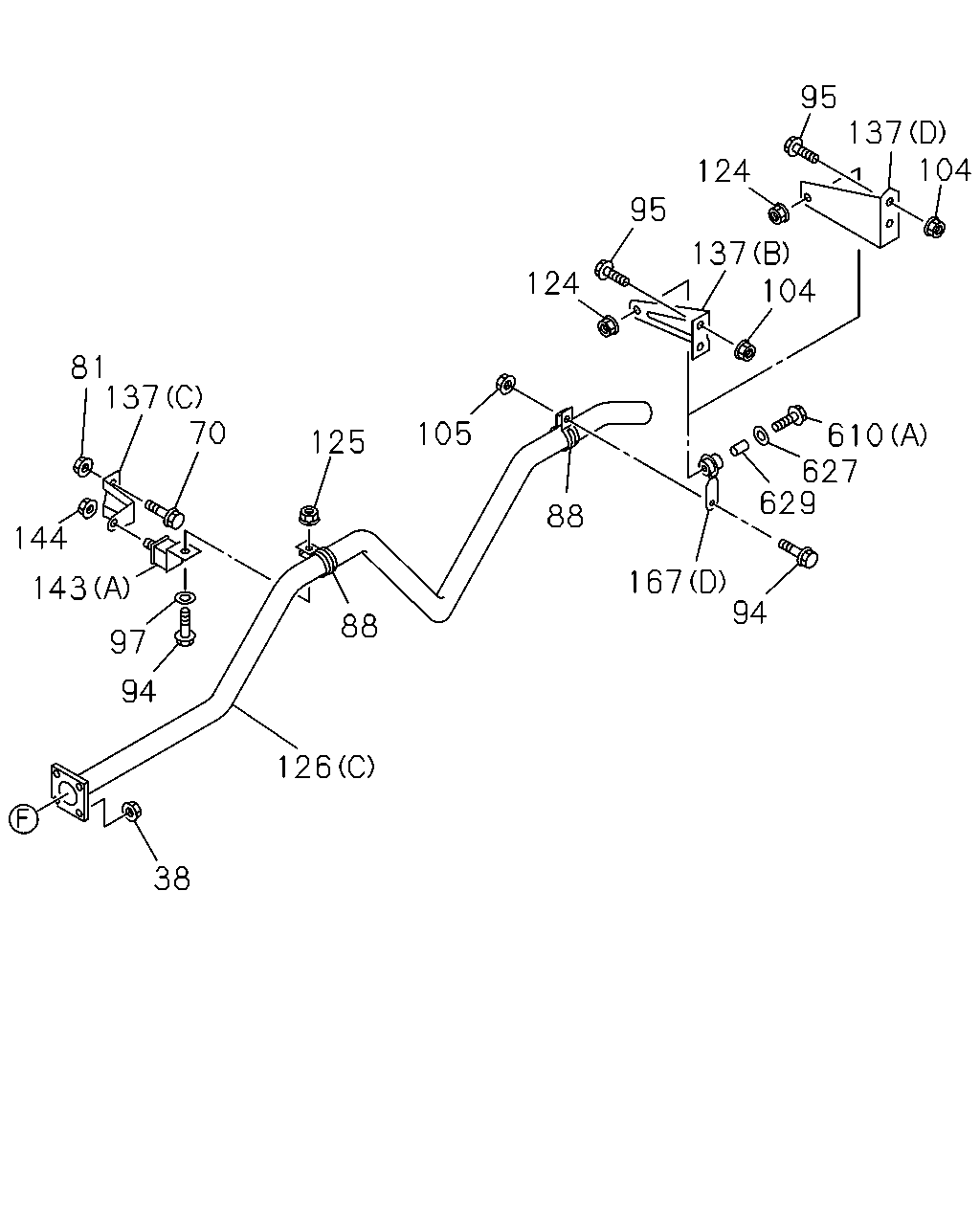

95 137 104 124 95 137 104 124 81 137 70 105 610 627 629 125 88 144 167 94 143 88 97 94 126 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	00.002 NUT; SILENCER 4JB1-TC ENG(RDT) 03.162 M10 FLANGE	0-91180-110-0	04	1	1011-	●	●
38	00.002 NUT; SILENCER 4JB1-NA ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	02	1	1011-	●	●
70	03.706 BOLT; BRKT 4JB1-TC ENG(RDT) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1011-		●
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1011-	●
81	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1011-	●
88	03.708 CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	1011-	●	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) ID=51.5	8-97325-352-0	01	1	1011-		●
88	03.708 CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	1011-	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	1011-	●	●
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) 03.708 M8X45	0-20800-845-0	01	1	1011-		●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	1011-	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1011-	●	●
97	03.708 WASHER; PL,CLAMP 4JB1-TC ENG(RDT) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1011-		●
97	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1011-	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
105	03.704 NUT; CLAMP 02.334 M8	0-91110-508-0	01	1	1011-	●	●
124	03.704 NUT; SUPPORT RUBBER 02.334 M8	0-91110-508-0	01	1	1011-	●	●
125	03.708 NUT; CLAMP 4JB1-TC ENG(RDT) 02.334 M8	0-91110-508-0	01	1	1011-		●
125	03.708 NUT; CLAMP 02.334 M8	0-91110-508-0	01	1	1011-	●
126	03.705 PIPE; EXH,RR 4JB1-NA ENG(RLF) (B)	8-98181-840-0	01	1	1011-	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) (C)	8-97258-860-0	01	1	1011-		●
126	03.705 PIPE; EXH,RR 4JB1-NA ENG(RLF) (A)	8-97081-460-0	01	1	1011-		●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) (C)	8-97144-949-0	01	1	1011-	●
137	03.706 BRACKET; TAIL PIPE 4JB1-TC ENG(RDT) 03.613 (C)	8-97210-476-0	01	1	1011-		●
137	03.706 BRACKET; TAIL PIPE (A)	9-22121-146-1	01	1	1011-		●
137	03.706 BRACKET; TAIL PIPE 03.704 (C)	8-94468-174-1	01	1	1011-	●
137	03.706 BRACKET; TAIL PIPE (B)	8-94468-175-0	01	1	1011-1104	●
137	03.706 BRACKET; TAIL PIPE (D)	8-98096-331-0	01	1	1105-	●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) (A)	8-97371-655-1	01	1	1011-		●
143	03.704 RUBBER; SUPPORT (A)	8-97371-655-1	01	1	1011-	●
143	03.704 RUBBER; SUPPORT (B)	8-94457-277-1	01	1	1011-	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-278-1	01	1	1011-	●	●
144	03.613 NUT; MTG RUBBER 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	1011-		●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1011-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) (A)	8-97144-952-0	01	1	1011-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) (B)	8-97206-510-1	01	1	1011-		●
167	03.706 HANGER; EXH PIPE (C) L=180	8-97222-646-0	01	1	1011-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) (A)	8-97144-953-0	01	1	1011-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) (B)	8-97144-955-1	01	1	1011-	●
167	03.706 HANGER; EXH PIPE (D) L=115	8-94156-256-0	01	1	1011-	●
610	03.704 BOLT; HANGER 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1011-	●	●
610	03.704 BOLT; HANGER 09.173 (A) M8X45 FLANGE	0-28050-845-0	01	1	1011-		●
610	03.704 BOLT; HANGER 03.706 (A) M10X70 FLANGE	0-28051-070-0	01	1	1011-	●
627	03.706 WASHER; HANGER ID=8.4 OD=26	0-91614-808-0	01	1	1011-		●
627	03.706 WASHER; HANGER 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1011-	●
629	03.706 SPACER; HANGER 03.616 L=23	9-22151-175-0	01	1	1011-		●
629	03.706 SPACER; HANGER L=37.5	9-22151-217-0	01	1	1011-	●

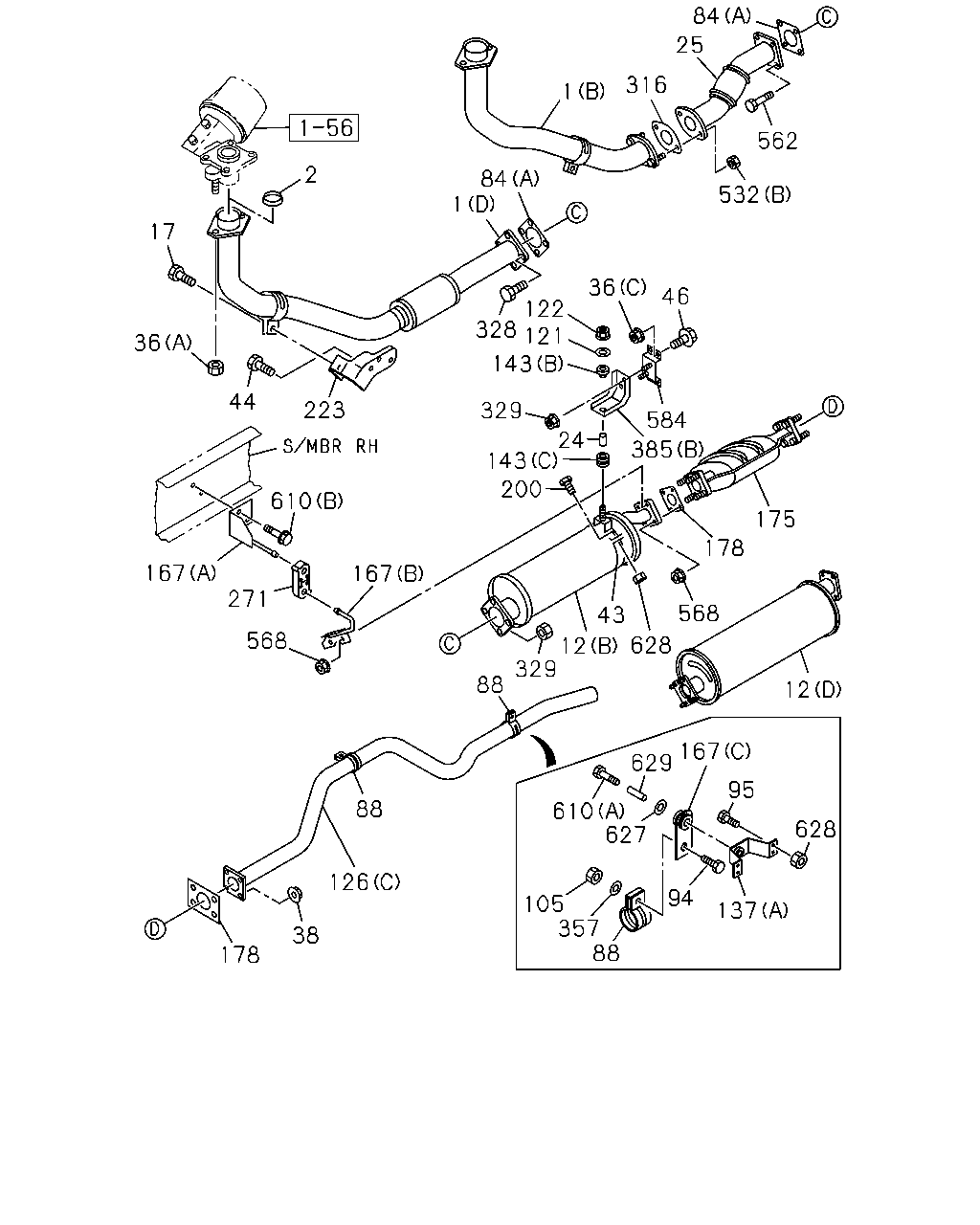

610 167 271 167 568 385 122 121 143 329 24 143 200 84 12 43 628 568 178 175 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>,IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98224-810-0	01	1	1303-		●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) (B)	8-97221-923-0	01	1	1011-1302		●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B)	8-97221-923-0	01	1	1303-		●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> EXC. EXHAUST BRAKE<NF8> (B)	8-97221-923-0	01	1	1303-		●
12	03.701 SILENCER ASM; EXH 4JB1-NA ENG(RLF) (A)	8-97049-721-0	01	1	1011-	●	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) (C)	8-97206-036-0	01	1	1011-	●
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	01	1	1011-	●	●
43	03.611 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) 03.706	8-97076-018-0	01	1	1011-		●
43	03.611 CLAMP; EXH PIPE 4JB1-NA ENG(RLF) 03.706	8-97081-457-0	01	1	1011-		●
43	03.611 CLAMP; EXH PIPE 03.706	8-97081-457-0	01	1	1011-	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 03.634 (A) ID=54	8-94328-354-0	01	1	1011-		●
84	03.611 GASKET; EXH PIPE 4JB1-NA ENG(RLF) 03.704 (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1011-		●
84	03.611 GASKET; EXH PIPE 03.704 (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1011-	●
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	01	1	1011-	●	●
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	1011-	●	●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) (A)	8-97371-655-1	01	1	1011-		●
143	03.704 RUBBER; SUPPORT (A)	8-97371-655-1	01	1	1011-	●
143	03.704 RUBBER; SUPPORT (B)	8-94457-277-1	01	1	1011-	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-278-1	01	1	1011-	●	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) (A)	8-97144-952-0	01	1	1011-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) (B)	8-97206-510-1	01	1	1011-		●
167	03.706 HANGER; EXH PIPE (C) L=180	8-97222-646-0	01	1	1011-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) (A)	8-97144-953-0	01	1	1011-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) (B)	8-97144-955-1	01	1	1011-	●
167	03.706 HANGER; EXH PIPE (D) L=115	8-94156-256-0	01	1	1011-	●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT)	8-98118-541-0	01	1	1011-1106	●	●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98118-541-0	01	1	1107-1107	●	●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT)	8-98118-541-0	01	1	1108-	●	●
178	03.611 GASKET; CONV TO MANIF 4JB1-TC ENG(RDT) ID=71	8-94324-194-1	02	1	1011-	●	●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	01	1	1011-	●	●
271	03.704 RUBBER; HANGER,RR PIPE 4JB1-TC ENG(RDT) 03.613	8-97166-498-1	01	1	1011-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	04	1	1011-		●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-NA ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	02	1	1011-		●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1011-	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) (B)	8-97073-758-0	01	1	1011-		●
385	03.704 BRACKET; SILENCER MTG 4JB1-NA ENG(RLF) (A)	8-94329-856-0	01	1	1011-		●
385	03.704 BRACKET; SILENCER MTG (A)	8-94329-856-0	01	1	1011-	●
568	03.704 NUT; DPD 4JB1-TC ENG(RDT) 03.162 M10 FLANGE	0-91180-110-0	04	1	1011-	●	●
610	03.704 BOLT; HANGER 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1011-	●	●
610	03.704 BOLT; HANGER 09.173 (A) M8X45 FLANGE	0-28050-845-0	01	1	1011-		●
610	03.704 BOLT; HANGER 03.706 (A) M10X70 FLANGE	0-28051-070-0	01	1	1011-	●
628	03.275 NUT; HANGER 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
628	03.275 NUT; HANGER 00.833 M10	0-91110-510-0	01	1	1011-	●

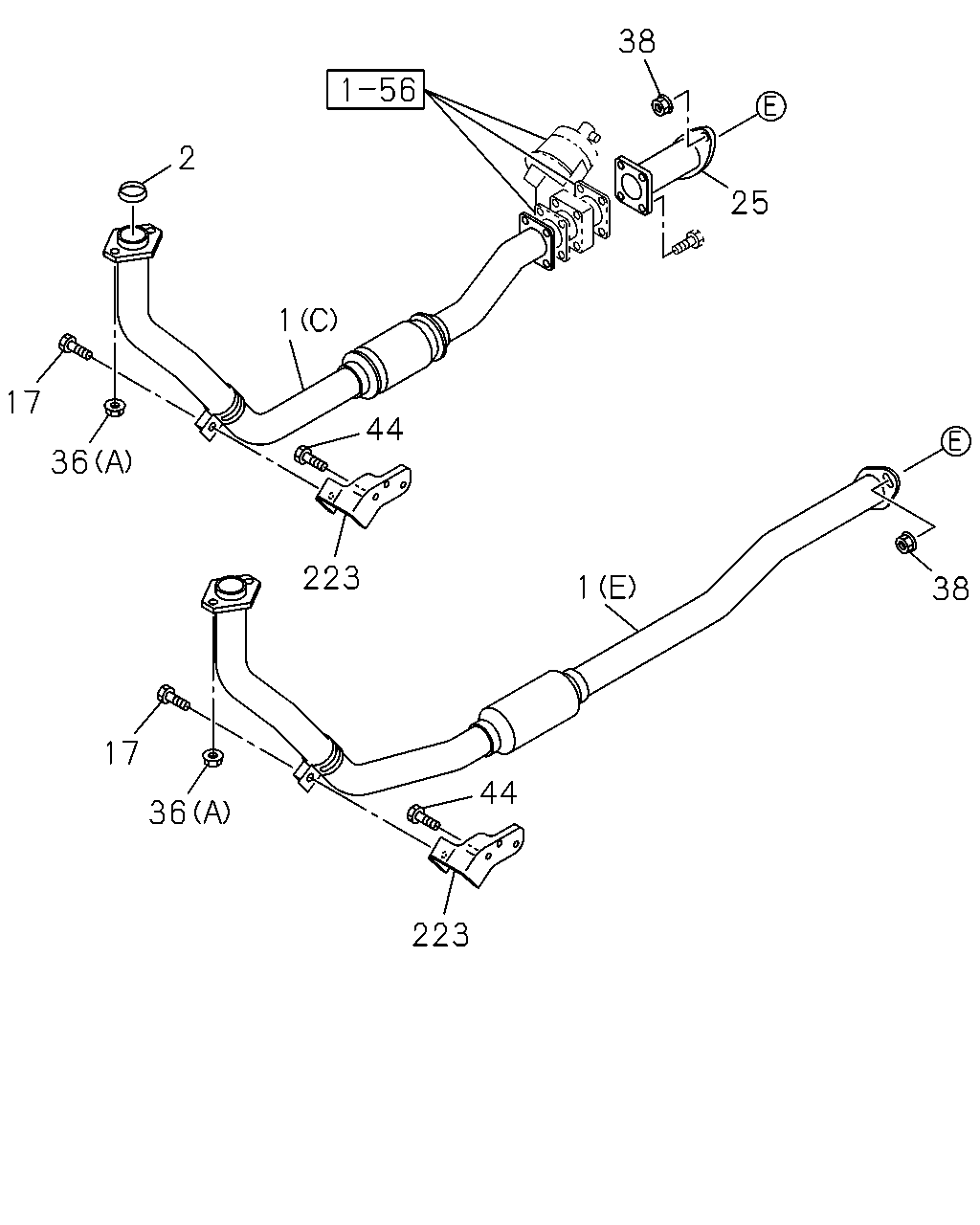

38 2 25 1 17 44 36 223 1 38 17 44 36 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (E)	8-97206-027-0	01	1	1011-	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B)	8-97212-561-2	01	1	1011-		●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (D)	8-97212-759-3	01	1	1011-		●
1	03.609 PIPE; EXH 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> (A)	8-97102-669-0	01	1	1011-	●	●
1	03.609 PIPE; EXH 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97102-668-0	01	1	1011-	●	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C)	8-97206-026-1	01	1	1011-	●
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT)	8-97381-456-0	01	1	1011-	●	●
2	03.611 GASKET; PIPE TO MANIF 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-97381-456-0	01	1	1011-	●	●
17	03.613 BOLT; EXH PIPE 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	1011-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97206-030-1	01	1	1011-		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97206-031-0	01	1	1011-	●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) (A) M10 FLANGE	8-97096-192-1	02	1	1011-	●	●
36	03.613 NUT; EXH PIPE 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A) M10 FLANGE	8-97096-192-1	02	1	1011-	●	●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	1011-		●
36	03.613 NUT; EXH PIPE 4JB1-NA ENG(RLF) 02.334 (B) M8	0-91110-508-0	01	1	1011-	●	●
36	03.613 NUT; EXH PIPE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> (A) M10 H=18	9-09640-014-0	02	1	1011-	●	●
38	00.002 NUT; SILENCER 4JB1-TC ENG(RDT) 03.162 M10 FLANGE	0-91180-110-0	04	1	1011-	●	●
38	00.002 NUT; SILENCER 4JB1-NA ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	02	1	1011-	●	●
44	03.613 BOLT; BRKT 4JB1-TC ENG(RDT) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1011-	●	●
223	03.706 BRACKET; EXH PIPE 4JB1-TC ENG(RDT) 03.613	8-97084-346-2	01	1	1011-	●	●
223	03.706 BRACKET; EXH PIPE 4JB1-NA ENG(RLF) 03.613	8-94445-704-0	01	1	1011-	●	●

629 167 95 610 627 104 126 105 88 329 94 137 357 610 137 167 627 81 125 70 88 629 144 14 628 137 104 97 143 95 94 105 94 88 357 126 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	03.704 GASKET; SILENCER TO EXH PIPE 4JB1-NA ENG(RLF) ID=64.7	8-94328-352-0	01	1	1011-	●	●

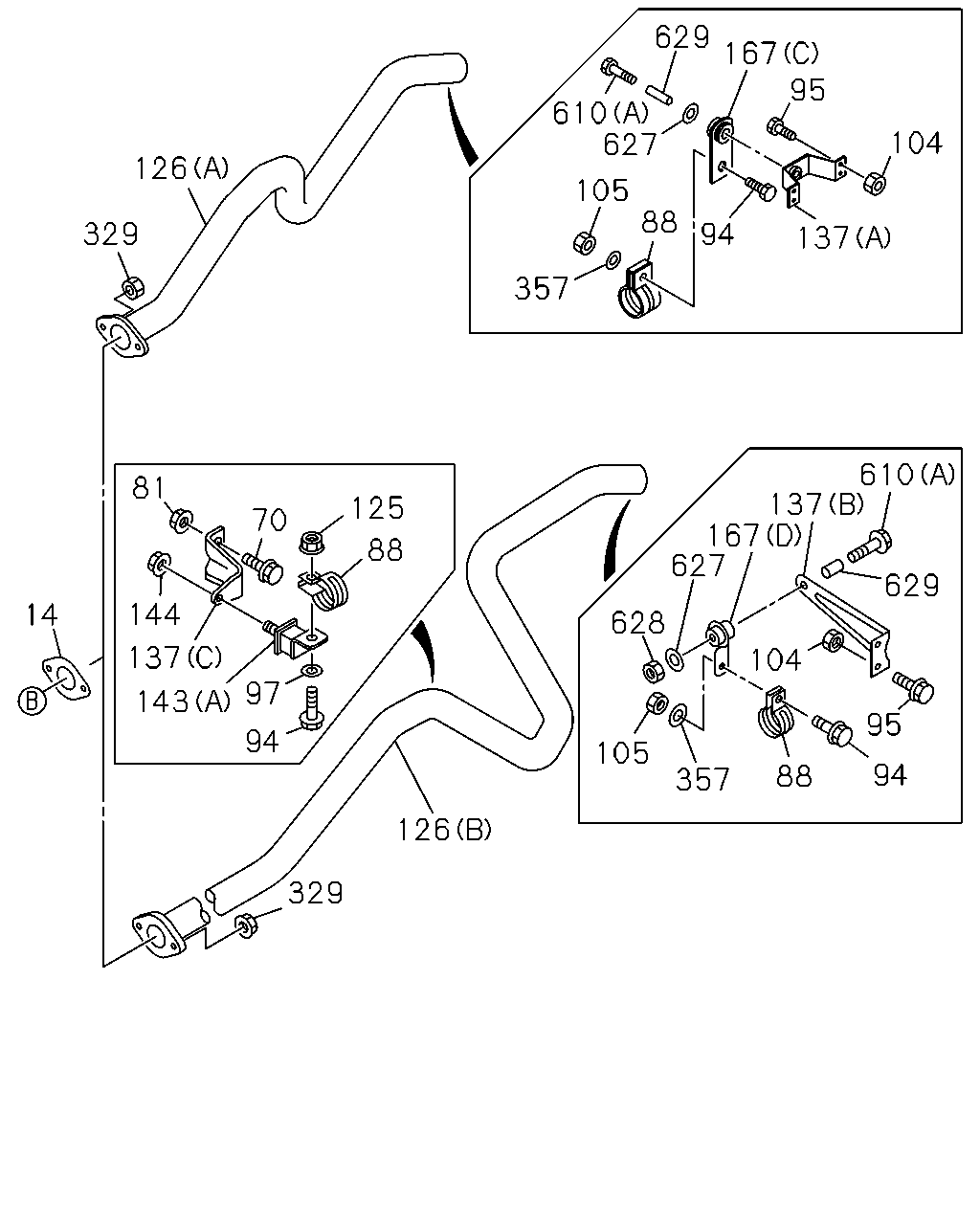

70	03.706 BOLT; BRKT 4JB1-TC ENG(RDT) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1011-		●
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1011-	●
81	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1011-	●
88	03.708 CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	1011-	●	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) ID=51.5	8-97325-352-0	01	1	1011-		●
88	03.708 CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	1011-	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	1011-	●	●
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) 03.708 M8X45	0-20800-845-0	01	1	1011-		●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	1011-	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1011-	●	●
97	03.708 WASHER; PL,CLAMP 4JB1-TC ENG(RDT) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1011-		●
97	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1011-	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
105	03.704 NUT; CLAMP 02.334 M8	0-91110-508-0	01	1	1011-	●	●
125	03.708 NUT; CLAMP 4JB1-TC ENG(RDT) 02.334 M8	0-91110-508-0	01	1	1011-		●
125	03.708 NUT; CLAMP 02.334 M8	0-91110-508-0	01	1	1011-	●
126	03.705 PIPE; EXH,RR 4JB1-NA ENG(RLF) (B)	8-98181-840-0	01	1	1011-	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) (C)	8-97258-860-0	01	1	1011-		●
126	03.705 PIPE; EXH,RR 4JB1-NA ENG(RLF) (A)	8-97081-460-0	01	1	1011-		●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) (C)	8-97144-949-0	01	1	1011-	●
137	03.706 BRACKET; TAIL PIPE 4JB1-TC ENG(RDT) 03.613 (C)	8-97210-476-0	01	1	1011-		●
137	03.706 BRACKET; TAIL PIPE (A)	9-22121-146-1	01	1	1011-		●
137	03.706 BRACKET; TAIL PIPE 03.704 (C)	8-94468-174-1	01	1	1011-	●
137	03.706 BRACKET; TAIL PIPE (B)	8-94468-175-0	01	1	1011-1104	●
137	03.706 BRACKET; TAIL PIPE (D)	8-98096-331-0	01	1	1105-	●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) (A)	8-97371-655-1	01	1	1011-		●
143	03.704 RUBBER; SUPPORT (A)	8-97371-655-1	01	1	1011-	●
143	03.704 RUBBER; SUPPORT (B)	8-94457-277-1	01	1	1011-	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-278-1	01	1	1011-	●	●
144	03.613 NUT; MTG RUBBER 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	1011-		●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1011-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) (A)	8-97144-952-0	01	1	1011-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) (B)	8-97206-510-1	01	1	1011-		●
167	03.706 HANGER; EXH PIPE (C) L=180	8-97222-646-0	01	1	1011-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) (A)	8-97144-953-0	01	1	1011-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) (B)	8-97144-955-1	01	1	1011-	●
167	03.706 HANGER; EXH PIPE (D) L=115	8-94156-256-0	01	1	1011-	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	04	1	1011-		●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-NA ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	02	1	1011-		●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1011-	●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1011-	●	●
610	03.704 BOLT; HANGER 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1011-	●	●
610	03.704 BOLT; HANGER 09.173 (A) M8X45 FLANGE	0-28050-845-0	01	1	1011-		●
610	03.704 BOLT; HANGER 03.706 (A) M10X70 FLANGE	0-28051-070-0	01	1	1011-	●
627	03.706 WASHER; HANGER ID=8.4 OD=26	0-91614-808-0	01	1	1011-		●
627	03.706 WASHER; HANGER 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1011-	●
628	03.275 NUT; HANGER 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
628	03.275 NUT; HANGER 00.833 M10	0-91110-510-0	01	1	1011-	●
629	03.706 SPACER; HANGER 03.616 L=23	9-22151-175-0	01	1	1011-		●
629	03.706 SPACER; HANGER L=37.5	9-22151-217-0	01	1	1011-	●

84 25 316 1 562 532 84 1 36 46 584 385 175 178 568 43 628 12 329 88 200 143 329 143 328 121 122 24 12 88 167 126 568 271 167 610 223 44 36 17 2 38 178 167 95 628 137 94 88 357 105 627 610 629

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (E)	8-97206-027-0	01	1	1011-	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B)	8-97212-561-2	01	1	1011-		●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (D)	8-97212-759-3	01	1	1011-		●
1	03.609 PIPE; EXH 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> (A)	8-97102-669-0	01	1	1011-	●	●
1	03.609 PIPE; EXH 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97102-668-0	01	1	1011-	●	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C)	8-97206-026-1	01	1	1011-	●
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT)	8-97381-456-0	01	1	1011-	●	●
2	03.611 GASKET; PIPE TO MANIF 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-97381-456-0	01	1	1011-	●	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>,IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98224-810-0	01	1	1303-		●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) (B)	8-97221-923-0	01	1	1011-1302		●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B)	8-97221-923-0	01	1	1303-		●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> EXC. EXHAUST BRAKE<NF8> (B)	8-97221-923-0	01	1	1303-		●
12	03.701 SILENCER ASM; EXH 4JB1-NA ENG(RLF) (A)	8-97049-721-0	01	1	1011-	●	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) (C)	8-97206-036-0	01	1	1011-	●
17	03.613 BOLT; EXH PIPE 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	1011-	●	●
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	01	1	1011-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97206-030-1	01	1	1011-		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97206-031-0	01	1	1011-	●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) (A) M10 FLANGE	8-97096-192-1	02	1	1011-	●	●
36	03.613 NUT; EXH PIPE 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A) M10 FLANGE	8-97096-192-1	02	1	1011-	●	●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	1011-		●
36	03.613 NUT; EXH PIPE 4JB1-NA ENG(RLF) 02.334 (B) M8	0-91110-508-0	01	1	1011-	●	●
36	03.613 NUT; EXH PIPE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> (A) M10 H=18	9-09640-014-0	02	1	1011-	●	●
38	00.002 NUT; SILENCER 4JB1-TC ENG(RDT) 03.162 M10 FLANGE	0-91180-110-0	04	1	1011-	●	●
38	00.002 NUT; SILENCER 4JB1-NA ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	02	1	1011-	●	●
43	03.611 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) 03.706	8-97076-018-0	01	1	1011-		●
43	03.611 CLAMP; EXH PIPE 4JB1-NA ENG(RLF) 03.706	8-97081-457-0	01	1	1011-		●
43	03.611 CLAMP; EXH PIPE 03.706	8-97081-457-0	01	1	1011-	●
44	03.613 BOLT; BRKT 4JB1-TC ENG(RDT) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1011-	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4JB1-TC ENG(RDT) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1011-		●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 03.634 (A) ID=54	8-94328-354-0	01	1	1011-		●
84	03.611 GASKET; EXH PIPE 4JB1-NA ENG(RLF) 03.704 (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1011-		●
84	03.611 GASKET; EXH PIPE 03.704 (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1011-	●
88	03.708 CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	1011-	●	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) ID=51.5	8-97325-352-0	01	1	1011-		●
88	03.708 CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	1011-	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	1011-	●	●
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) 03.708 M8X45	0-20800-845-0	01	1	1011-		●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	1011-	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1011-	●	●
105	03.704 NUT; CLAMP 02.334 M8	0-91110-508-0	01	1	1011-	●	●
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	01	1	1011-	●	●
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	1011-	●	●
126	03.705 PIPE; EXH,RR 4JB1-NA ENG(RLF) (B)	8-98181-840-0	01	1	1011-	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) (C)	8-97258-860-0	01	1	1011-		●
126	03.705 PIPE; EXH,RR 4JB1-NA ENG(RLF) (A)	8-97081-460-0	01	1	1011-		●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) (C)	8-97144-949-0	01	1	1011-	●
137	03.706 BRACKET; TAIL PIPE 4JB1-TC ENG(RDT) 03.613 (C)	8-97210-476-0	01	1	1011-		●
137	03.706 BRACKET; TAIL PIPE (A)	9-22121-146-1	01	1	1011-		●
137	03.706 BRACKET; TAIL PIPE 03.704 (C)	8-94468-174-1	01	1	1011-	●
137	03.706 BRACKET; TAIL PIPE (B)	8-94468-175-0	01	1	1011-1104	●
137	03.706 BRACKET; TAIL PIPE (D)	8-98096-331-0	01	1	1105-	●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) (A)	8-97371-655-1	01	1	1011-		●
143	03.704 RUBBER; SUPPORT (A)	8-97371-655-1	01	1	1011-	●
143	03.704 RUBBER; SUPPORT (B)	8-94457-277-1	01	1	1011-	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-278-1	01	1	1011-	●	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) (A)	8-97144-952-0	01	1	1011-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) (B)	8-97206-510-1	01	1	1011-		●
167	03.706 HANGER; EXH PIPE (C) L=180	8-97222-646-0	01	1	1011-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) (A)	8-97144-953-0	01	1	1011-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) (B)	8-97144-955-1	01	1	1011-	●
167	03.706 HANGER; EXH PIPE (D) L=115	8-94156-256-0	01	1	1011-	●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT)	8-98118-541-0	01	1	1011-1106	●	●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98118-541-0	01	1	1107-1107	●	●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT)	8-98118-541-0	01	1	1108-	●	●
178	03.611 GASKET; CONV TO MANIF 4JB1-TC ENG(RDT) ID=71	8-94324-194-1	02	1	1011-	●	●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	01	1	1011-	●	●
223	03.706 BRACKET; EXH PIPE 4JB1-TC ENG(RDT) 03.613	8-97084-346-2	01	1	1011-	●	●
223	03.706 BRACKET; EXH PIPE 4JB1-NA ENG(RLF) 03.613	8-94445-704-0	01	1	1011-	●	●
271	03.704 RUBBER; HANGER,RR PIPE 4JB1-TC ENG(RDT) 03.613	8-97166-498-1	01	1	1011-	●	●
316	03.613 GASKET; EXH PIPE,FRT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.704 ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1011-		●
328	03.613 BOLT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 01.060 M8X35 FLANGE	0-28650-835-0	04	1	1011-1302		●
328	03.613 BOLT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> EXC. EXHAUST BRAKE<NF8> 01.060 M8X35 FLANGE	0-28650-835-0	04	1	1303-		●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	04	1	1011-		●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-NA ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	02	1	1011-		●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1011-	●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1011-	●	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) (B)	8-97073-758-0	01	1	1011-		●
385	03.704 BRACKET; SILENCER MTG 4JB1-NA ENG(RLF) (A)	8-94329-856-0	01	1	1011-		●
385	03.704 BRACKET; SILENCER MTG (A)	8-94329-856-0	01	1	1011-	●
532	03.704 NUT 4JB1-TC ENG(RDT) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1011-		●
532	03.704 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
562	03.690 PLATE; STUD,BOLT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.632 M8X70	0-10855-870-0	04	1	1011-	●	●
568	03.704 NUT; DPD 4JB1-TC ENG(RDT) 03.162 M10 FLANGE	0-91180-110-0	04	1	1011-	●	●
584	03.706 SPACER; EXH SILENCER 4JB1-TC ENG(RDT) 03.704	8-94378-511-1	01	1	1011-		●
610	03.704 BOLT; HANGER 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1011-	●	●
610	03.704 BOLT; HANGER 09.173 (A) M8X45 FLANGE	0-28050-845-0	01	1	1011-		●
610	03.704 BOLT; HANGER 03.706 (A) M10X70 FLANGE	0-28051-070-0	01	1	1011-	●
627	03.706 WASHER; HANGER ID=8.4 OD=26	0-91614-808-0	01	1	1011-		●
627	03.706 WASHER; HANGER 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1011-	●
628	03.275 NUT; HANGER 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
628	03.275 NUT; HANGER 00.833 M10	0-91110-510-0	01	1	1011-	●
629	03.706 SPACER; HANGER 03.616 L=23	9-22151-175-0	01	1	1011-		●
629	03.706 SPACER; HANGER L=37.5	9-22151-217-0	01	1	1011-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
