Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#78814) — 192 parça

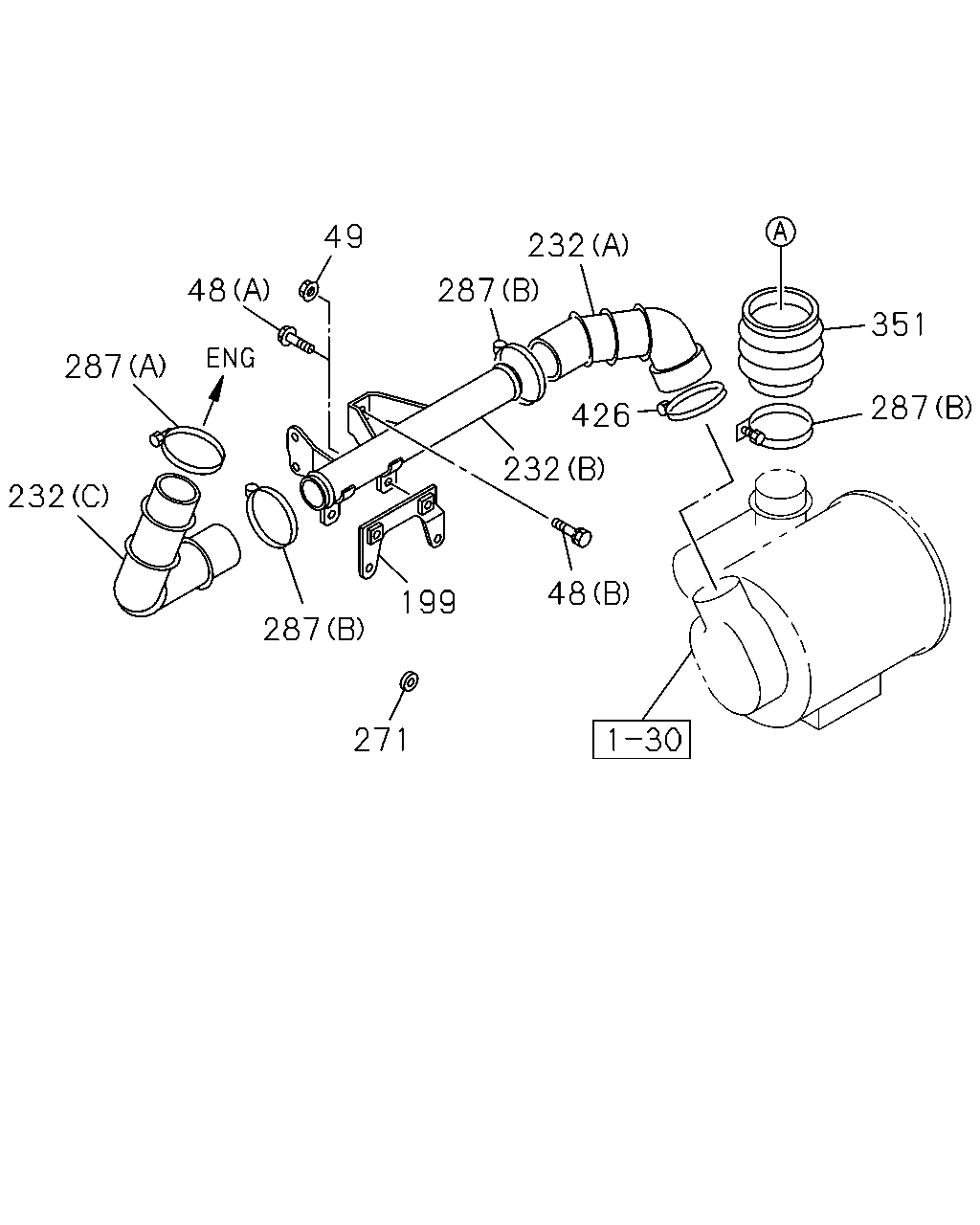

49 232 48 287 351 287 287 426 232 232 48 199 287 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	03.417 BOLT; AIR DUCT 4JB1-TC ENG(RDT) 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	1011-	●	●
48	03.417 BOLT; AIR DUCT 4JB1-NA ENG(RLF) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1011-	●	●
48	03.417 BOLT; AIR DUCT 4JB1-NA ENG(RLF) 02.483 (A) M10X16 FLANGE	0-28051-016-0	02	1	1011-1106	●	●
49	03.417 NUT; AIR DUCT 4JB1-NA ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	02	1	1107-	●	●
199	03.417 BRACKET; PIPE 4JB1-NA ENG(RLF)	8-94155-425-1	01	1	1011-1106	●	●
199	03.417 BRACKET; PIPE 4JB1-NA ENG(RLF)	8-98166-945-0	01	1	1107-	●	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) (D)	8-98069-040-2	01	1	1011-1509	●	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) (E)	8-98327-660-0	01	1	1510-	●	●
232	03.417 HOSE; CONN 4JB1-NA ENG(RLF) (A)	8-94110-075-3	01	1	1011-	●	●
232	03.417 HOSE; CONN 4JB1-NA ENG(RLF) (B)	8-94417-173-1	01	1	1011-1106	●	●
232	03.417 HOSE; CONN 4JB1-NA ENG(RLF) (B)	8-98170-481-1	01	1	1107-	●	●
232	03.417 HOSE; CONN 4JB1-NA ENG(RLF) (C)	8-97107-173-1	01	1	1011-	●	●
271	03.417 SPACER; BRKT,ACL 4JB1-NA ENG(RLF) 00.851	8-94369-173-0	01	1	1011-1106	●	●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) 03.407 (D) ID=112	9-09915-074-1	01	1	1011-	●	●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50	8-98133-347-0	01	1	1011-	●	●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60	8-94175-940-0	01	1	1011-	●	●
287	03.417 CLIP; AIR DUCT 4JB1-NA ENG(RLF) 03.407 (A) ID=92	9-09915-072-1	01	1	1011-	●	●
287	03.417 CLIP; AIR DUCT 4JB1-NA ENG(RLF) 03.407 (B) ID=79	9-09915-734-1	03	1	1011-	●	●
351	03.407 DUCT; AIR 4JB1-TC ENG(RDT)	8-98115-594-0	01	1	1011-	●	●
351	03.407 DUCT; AIR 4JB1-NA ENG(RLF) 03.417	5-14231-115-1	01	1	1011-	●	●
426	03.417 CLIP; DUCT 4JB1-TC ENG(RDT) 03.407 D=101.6	9-09915-502-1	01	1	1011-	●	●
426	03.417 CLIP; DUCT 4JB1-NA ENG(RLF) 03.407 ID=87	8-97087-432-0	01	1	1011-	●	●

248 379 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
248	03.417 CLIP; RUBBER HOSE 03.265 ID=20.4	8-94121-113-0	02	1	1011-	●	●
379	03.675 HOSE; RUBBER 4JB1-TC ENG(RDT) 03.265 (B)	8-97212-347-1	01	1	1011-1011	●	●
379	03.675 HOSE; RUBBER 4JB1-TC ENG(RDT) (B)	8-98178-711-0	01	1	1011-	●	●
379	03.675 HOSE; RUBBER 4JB1-NA ENG(RLF) 03.265 (A)	8-97253-667-0	01	1	1011-	●	●

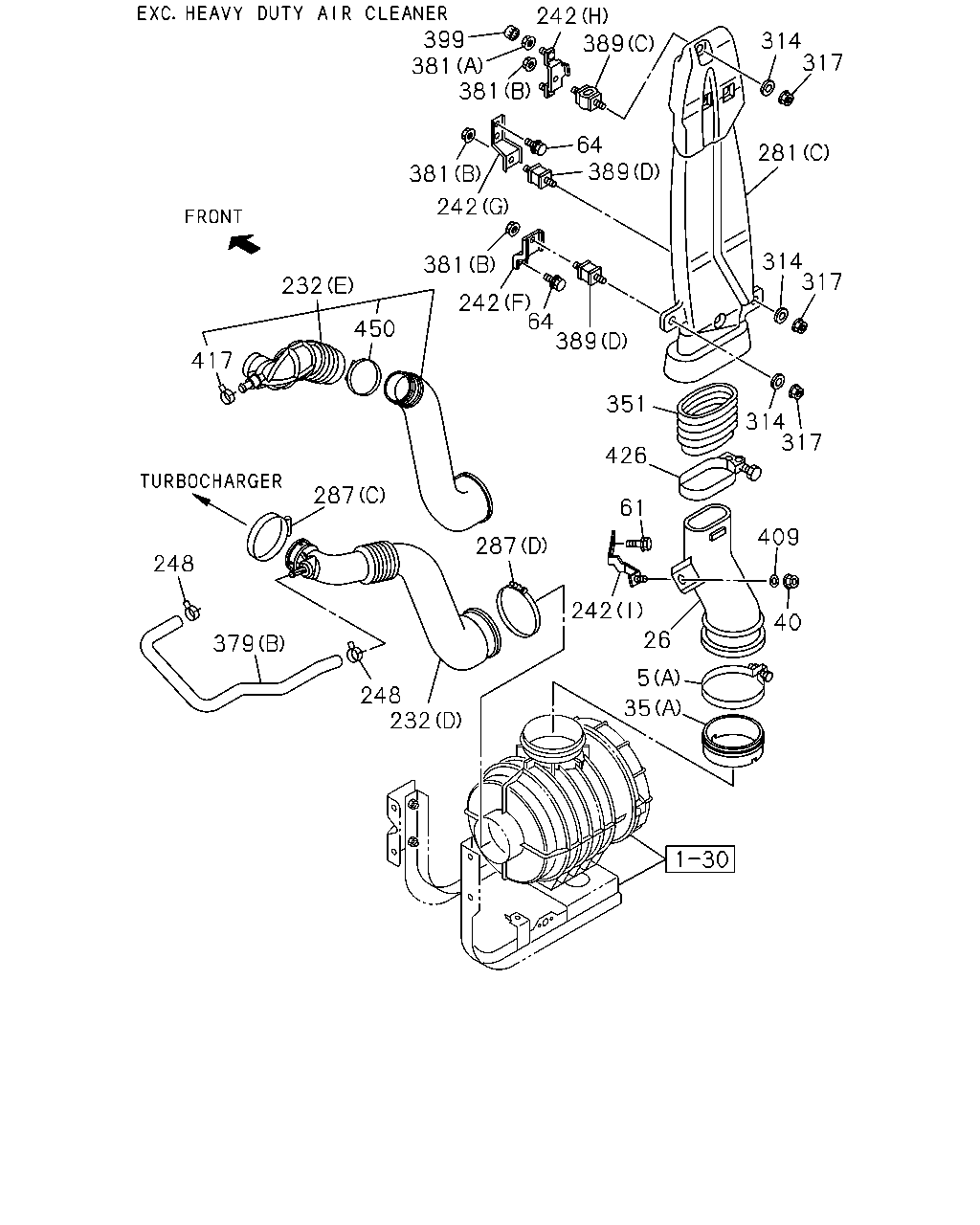

399 381 242 64 381 381 242 389 381 242 450 232 417 287 287 248 379 248 232 35 5 426 351 351 317 314 317 314 389 64 281 314 389 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (A) ID=127	1-14239-263-0	01	1	1011-	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 03.417 (B) ID=40-50	8-98133-347-0	02	1	1011-	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=55-75	8-98133-349-0	02	1	1011-	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=58-79	1-09707-136-0	02	1	1011-	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (B) ID=44-60	8-94175-940-0	02	1	1011-	●	●
35	03.406 SEAL; DUCT,INT 4JB1-TC ENG(RDT) (A)	8-98029-332-0	01	1	1011-	●	●
35	03.406 SEAL; DUCT,INT 03.403 (B)	8-97853-699-2	01	1	1011-	●	●
64	03.417 BOLT; BRKT,AIR DUCT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	1011-	●	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) (D)	8-98069-040-2	01	1	1011-1509	●	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) (E)	8-98327-660-0	01	1	1510-	●	●
232	03.417 HOSE; CONN 4JB1-NA ENG(RLF) (A)	8-94110-075-3	01	1	1011-	●	●
232	03.417 HOSE; CONN 4JB1-NA ENG(RLF) (B)	8-94417-173-1	01	1	1011-1106	●	●
232	03.417 HOSE; CONN 4JB1-NA ENG(RLF) (B)	8-98170-481-1	01	1	1107-	●	●
232	03.417 HOSE; CONN 4JB1-NA ENG(RLF) (C)	8-97107-173-1	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (I)	8-98278-681-0	01	1	1510-		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E)	8-97226-059-0	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (F)	8-97312-894-1	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (G)	8-97329-201-0	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (H)	8-97329-306-0	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (I)	8-98177-804-0	01	1	1011-1509	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (I)	8-98177-804-0	01	1	1510-	●
242	03.417 BRACKET; AIR DUCT 4JB1-NA ENG(RLF) (D)	8-97856-935-0	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-NA ENG(RLF) (A)	8-97856-956-1	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-NA ENG(RLF) (C)	8-97856-958-0	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-NA ENG(RLF) (B)	8-97856-967-1	01	1	1011-	●	●
248	03.417 CLIP; RUBBER HOSE 03.265 ID=20.4	8-94121-113-0	02	1	1011-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) HEAVY DUTY AIR CLEANER<K46> (D)	8-98101-994-2	01	1	1011-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97369-706-0	01	1	1011-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-NA ENG(RLF) HEAVY DUTY AIR CLEANER<K46> (A)	8-97089-948-2	01	1	1011-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-NA ENG(RLF) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-97076-959-2	01	1	1011-	●	●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) 03.407 (D) ID=112	9-09915-074-1	01	1	1011-	●	●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50	8-98133-347-0	01	1	1011-	●	●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60	8-94175-940-0	01	1	1011-	●	●
287	03.417 CLIP; AIR DUCT 4JB1-NA ENG(RLF) 03.407 (A) ID=92	9-09915-072-1	01	1	1011-	●	●
287	03.417 CLIP; AIR DUCT 4JB1-NA ENG(RLF) 03.407 (B) ID=79	9-09915-734-1	03	1	1011-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4JB1-TC ENG(RDT) 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1011-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1011-	●	●
351	03.407 DUCT; AIR 4JB1-TC ENG(RDT)	8-98115-594-0	01	1	1011-	●	●
351	03.407 DUCT; AIR 4JB1-NA ENG(RLF) 03.417	5-14231-115-1	01	1	1011-	●	●
379	03.675 HOSE; RUBBER 4JB1-TC ENG(RDT) 03.265 (B)	8-97212-347-1	01	1	1011-1011	●	●
379	03.675 HOSE; RUBBER 4JB1-TC ENG(RDT) (B)	8-98178-711-0	01	1	1011-	●	●
379	03.675 HOSE; RUBBER 4JB1-NA ENG(RLF) 03.265 (A)	8-97253-667-0	01	1	1011-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JB1-NA ENG(RLF) (B) M8 W/LK WASHER	8-97581-234-0	01	1	1011-	●	●
381	03.417 NUT; BRKT,AIR DUCT 16.800 (A) M6 FLANGE	1-09984-018-0	02	1	1011-	●	●
381	03.417 NUT; BRKT,AIR DUCT (B) M8 W/LK WASHER	8-97581-234-0	03	1	1011-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT) (C)	8-98036-825-0	01	1	1011-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT) 03.417 (D)	8-98036-826-0	02	1	1011-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-NA ENG(RLF) 03.417 (A)	8-97080-149-0	01	1	1011-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-NA ENG(RLF) 03.417 (B)	8-97081-886-0	02	1	1011-	●	●
399	03.417 CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	1011-	●	●
417	03.278 CLIP; WATER HOSE 4JB1-TC ENG(RDT) 08.846 ID=23	8-94382-402-0	01	1	1510-	●	●
426	03.417 CLIP; DUCT 4JB1-TC ENG(RDT) 03.407 D=101.6	9-09915-502-1	01	1	1011-	●	●
426	03.417 CLIP; DUCT 4JB1-NA ENG(RLF) 03.407 ID=87	8-97087-432-0	01	1	1011-	●	●
450	03.417 CLAMP; HOSE 4JB1-TC ENG(RDT) 03.407 ID=65-85	8-98133-350-0	01	1	1510-	●	●

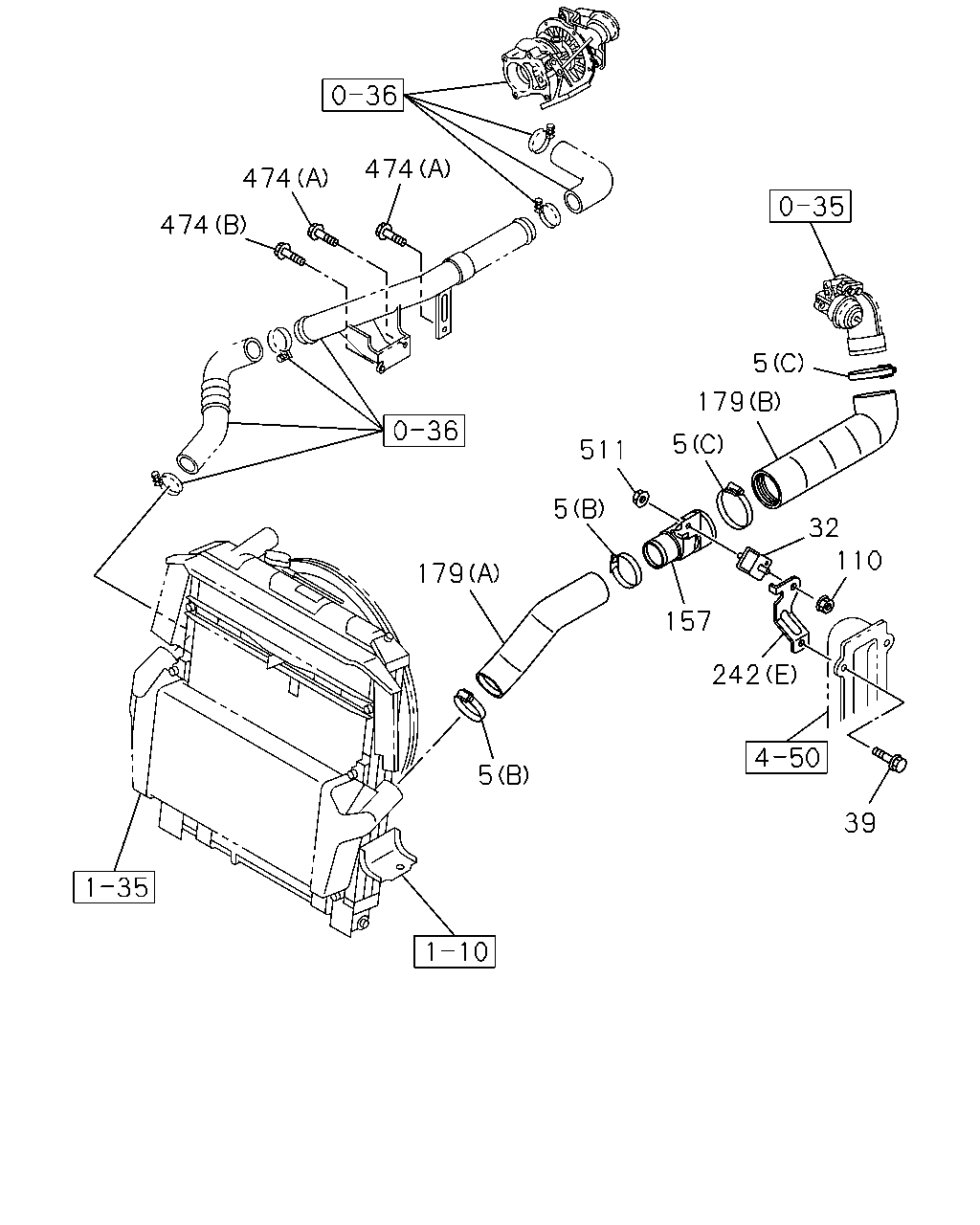

474 474 474 5 179 5 511 5 32 110 179 157 242 5 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (A) ID=127	1-14239-263-0	01	1	1011-	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 03.417 (B) ID=40-50	8-98133-347-0	02	1	1011-	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=55-75	8-98133-349-0	02	1	1011-	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=58-79	1-09707-136-0	02	1	1011-	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (B) ID=44-60	8-94175-940-0	02	1	1011-	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JB1-TC ENG(RDT) 03.405	8-94158-155-1	01	1	1011-	●	●
39	03.417 BOLT; BRKT 4JB1-TC ENG(RDT) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1011-	●	●
110	03.403 NUT; RUBBER MTG 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	1011-	●	●
157	03.417 PIPE; AIR 4JB1-TC ENG(RDT)	8-97228-660-0	01	1	1011-	●	●
179	03.417 HOSE; AIR INT 4JB1-TC ENG(RDT) (A)	8-97228-657-1	01	1	1011-	●	●
179	03.417 HOSE; AIR INT 4JB1-TC ENG(RDT) (B)	8-97228-658-2	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (I)	8-98278-681-0	01	1	1510-		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E)	8-97226-059-0	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (F)	8-97312-894-1	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (G)	8-97329-201-0	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (H)	8-97329-306-0	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (I)	8-98177-804-0	01	1	1011-1509	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (I)	8-98177-804-0	01	1	1510-	●
242	03.417 BRACKET; AIR DUCT 4JB1-NA ENG(RLF) (D)	8-97856-935-0	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-NA ENG(RLF) (A)	8-97856-956-1	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-NA ENG(RLF) (C)	8-97856-958-0	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-NA ENG(RLF) (B)	8-97856-967-1	01	1	1011-	●	●
474	03.417 BOLT; PIPE 4JB1-TC ENG(RDT) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1011-	●	●
474	03.417 BOLT; PIPE 4JB1-TC ENG(RDT) 06.225 (B) M10X12 FLANGE	0-28051-012-0	01	1	1011-	●	●
511	03.417 NUT; PIPE 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	1011-	●	●

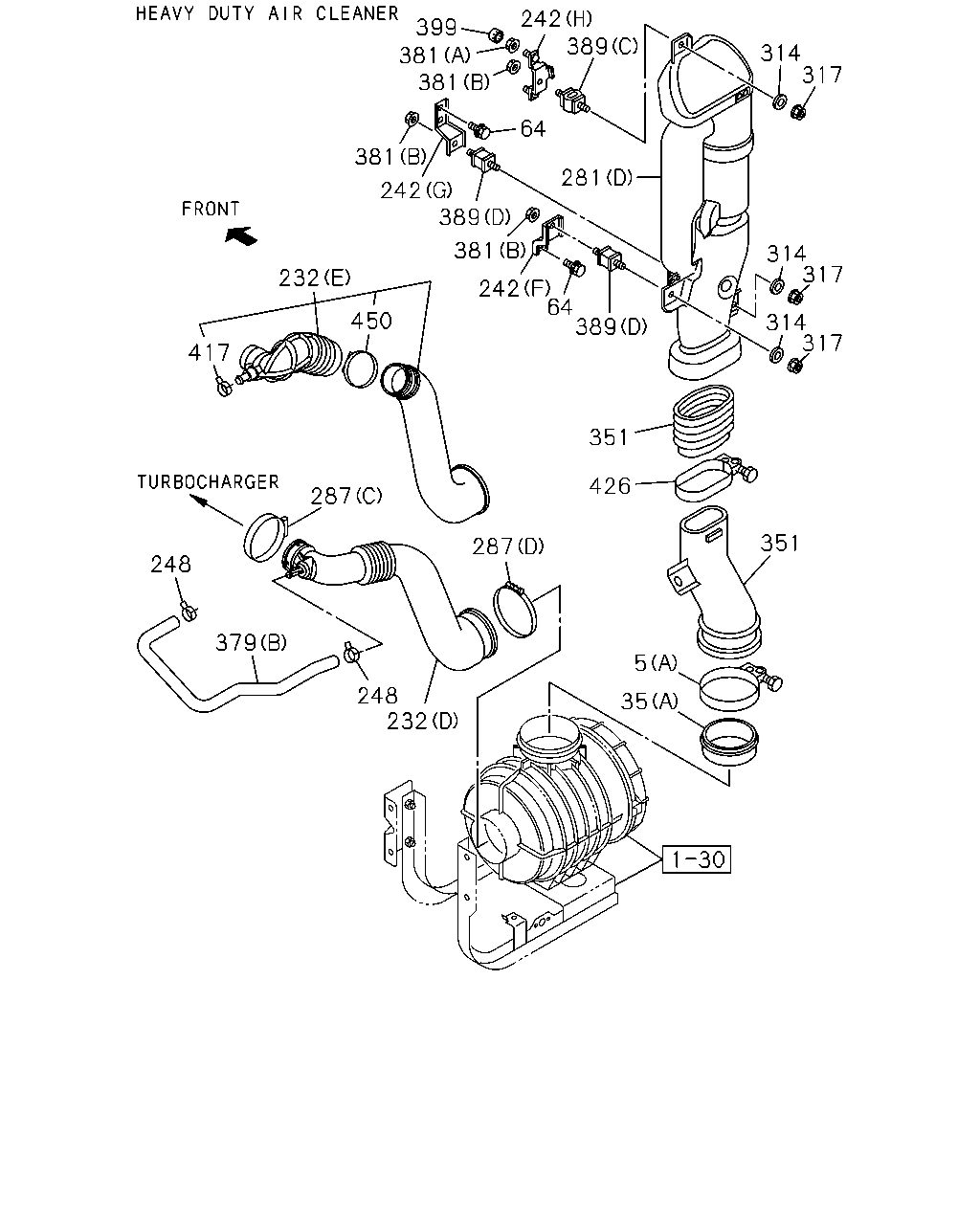

399 242 389 64 381 381 381 381 242 232 450 417 287 248 379 248 232 287 242 26 5 35 40 409 61 426 351 389 64 314 317 314 389 242 314 317 281 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (A) ID=127	1-14239-263-0	01	1	1011-	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 03.417 (B) ID=40-50	8-98133-347-0	02	1	1011-	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=55-75	8-98133-349-0	02	1	1011-	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=58-79	1-09707-136-0	02	1	1011-	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (B) ID=44-60	8-94175-940-0	02	1	1011-	●	●
26	03.417 DUCT; AIR INT 4JB1-TC ENG(RDT)	8-98278-682-0	01	1	1510-		●
26	03.417 DUCT; AIR INT 4JB1-TC ENG(RDT)	8-98177-803-0	01	1	1011-1509	●	●
26	03.417 DUCT; AIR INT 4JB1-TC ENG(RDT)	8-98177-803-0	01	1	1510-	●
35	03.406 SEAL; DUCT,INT 4JB1-TC ENG(RDT) (A)	8-98029-332-0	01	1	1011-	●	●
35	03.406 SEAL; DUCT,INT 03.403 (B)	8-97853-699-2	01	1	1011-	●	●
40	03.417 NUT; AIR INT DUCT 4JB1-TC ENG(RDT) 03.162 M10 FLANGE	0-91180-110-0	01	1	1011-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1011-	●	●
64	03.417 BOLT; BRKT,AIR DUCT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	1011-	●	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) (D)	8-98069-040-2	01	1	1011-1509	●	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) (E)	8-98327-660-0	01	1	1510-	●	●
232	03.417 HOSE; CONN 4JB1-NA ENG(RLF) (A)	8-94110-075-3	01	1	1011-	●	●
232	03.417 HOSE; CONN 4JB1-NA ENG(RLF) (B)	8-94417-173-1	01	1	1011-1106	●	●
232	03.417 HOSE; CONN 4JB1-NA ENG(RLF) (B)	8-98170-481-1	01	1	1107-	●	●
232	03.417 HOSE; CONN 4JB1-NA ENG(RLF) (C)	8-97107-173-1	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (I)	8-98278-681-0	01	1	1510-		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E)	8-97226-059-0	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (F)	8-97312-894-1	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (G)	8-97329-201-0	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (H)	8-97329-306-0	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (I)	8-98177-804-0	01	1	1011-1509	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (I)	8-98177-804-0	01	1	1510-	●
242	03.417 BRACKET; AIR DUCT 4JB1-NA ENG(RLF) (D)	8-97856-935-0	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-NA ENG(RLF) (A)	8-97856-956-1	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-NA ENG(RLF) (C)	8-97856-958-0	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-NA ENG(RLF) (B)	8-97856-967-1	01	1	1011-	●	●
248	03.417 CLIP; RUBBER HOSE 03.265 ID=20.4	8-94121-113-0	02	1	1011-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) HEAVY DUTY AIR CLEANER<K46> (D)	8-98101-994-2	01	1	1011-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97369-706-0	01	1	1011-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-NA ENG(RLF) HEAVY DUTY AIR CLEANER<K46> (A)	8-97089-948-2	01	1	1011-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-NA ENG(RLF) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-97076-959-2	01	1	1011-	●	●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) 03.407 (D) ID=112	9-09915-074-1	01	1	1011-	●	●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50	8-98133-347-0	01	1	1011-	●	●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60	8-94175-940-0	01	1	1011-	●	●
287	03.417 CLIP; AIR DUCT 4JB1-NA ENG(RLF) 03.407 (A) ID=92	9-09915-072-1	01	1	1011-	●	●
287	03.417 CLIP; AIR DUCT 4JB1-NA ENG(RLF) 03.407 (B) ID=79	9-09915-734-1	03	1	1011-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4JB1-TC ENG(RDT) 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1011-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1011-	●	●
351	03.407 DUCT; AIR 4JB1-TC ENG(RDT)	8-98115-594-0	01	1	1011-	●	●
351	03.407 DUCT; AIR 4JB1-NA ENG(RLF) 03.417	5-14231-115-1	01	1	1011-	●	●
379	03.675 HOSE; RUBBER 4JB1-TC ENG(RDT) 03.265 (B)	8-97212-347-1	01	1	1011-1011	●	●
379	03.675 HOSE; RUBBER 4JB1-TC ENG(RDT) (B)	8-98178-711-0	01	1	1011-	●	●
379	03.675 HOSE; RUBBER 4JB1-NA ENG(RLF) 03.265 (A)	8-97253-667-0	01	1	1011-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JB1-NA ENG(RLF) (B) M8 W/LK WASHER	8-97581-234-0	01	1	1011-	●	●
381	03.417 NUT; BRKT,AIR DUCT 16.800 (A) M6 FLANGE	1-09984-018-0	02	1	1011-	●	●
381	03.417 NUT; BRKT,AIR DUCT (B) M8 W/LK WASHER	8-97581-234-0	03	1	1011-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT) (C)	8-98036-825-0	01	1	1011-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT) 03.417 (D)	8-98036-826-0	02	1	1011-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-NA ENG(RLF) 03.417 (A)	8-97080-149-0	01	1	1011-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-NA ENG(RLF) 03.417 (B)	8-97081-886-0	02	1	1011-	●	●
399	03.417 CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	1011-	●	●
409	03.417 WASHER; PL,BRKT 4JB1-TC ENG(RDT) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1011-	●	●
417	03.278 CLIP; WATER HOSE 4JB1-TC ENG(RDT) 08.846 ID=23	8-94382-402-0	01	1	1510-	●	●
426	03.417 CLIP; DUCT 4JB1-TC ENG(RDT) 03.407 D=101.6	9-09915-502-1	01	1	1011-	●	●
426	03.417 CLIP; DUCT 4JB1-NA ENG(RLF) 03.407 ID=87	8-97087-432-0	01	1	1011-	●	●
450	03.417 CLAMP; HOSE 4JB1-TC ENG(RDT) 03.407 ID=65-85	8-98133-350-0	01	1	1510-	●	●

399 381 242 242 381 399 381 242 242 381 381 317 399 381 381 317 399 389 381 389 281 281 317 317 317 317 389 242 389 242 64 381 64 381 389 389 64 64 35 35 242 381 242 381

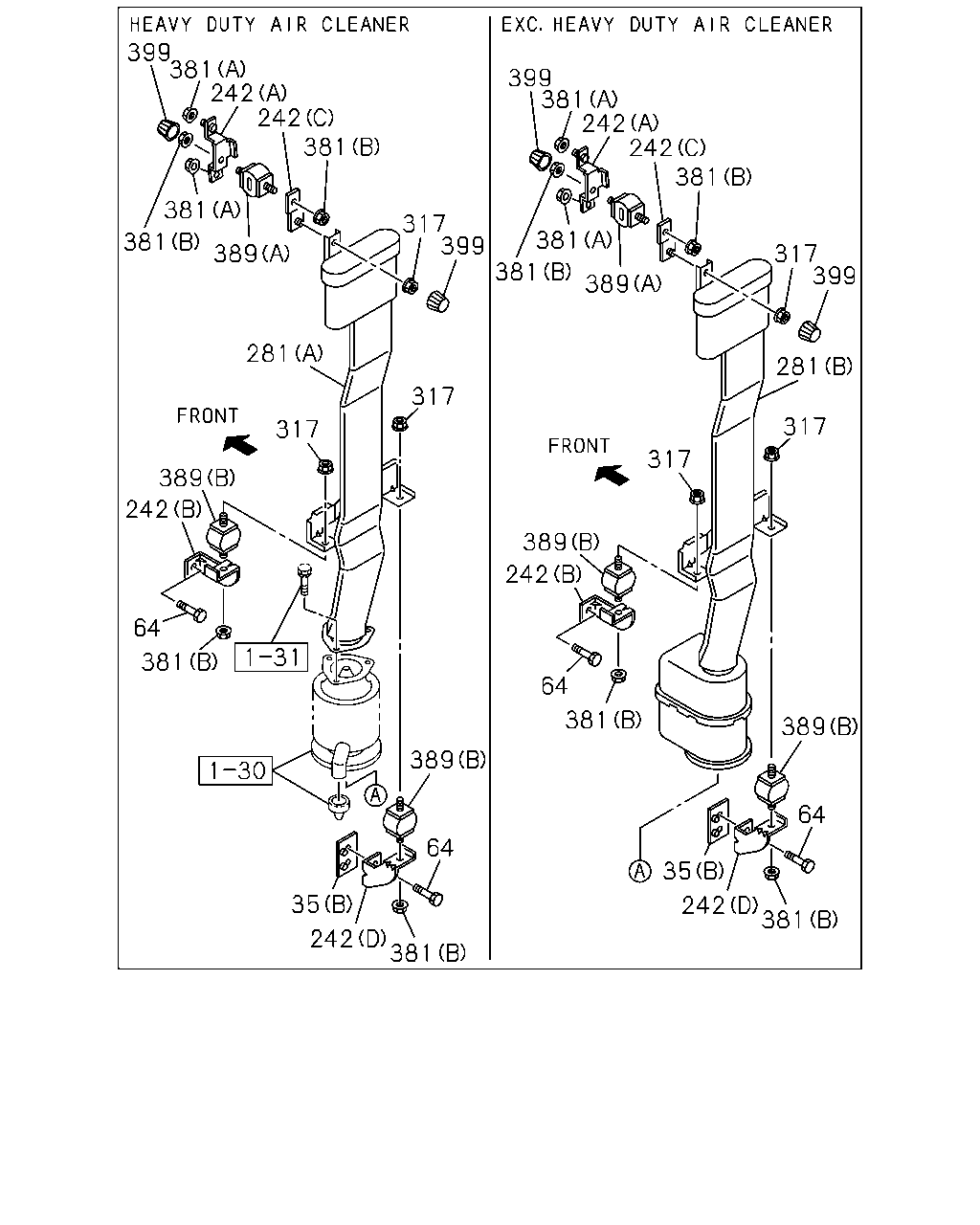

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	03.406 SEAL; DUCT,INT 4JB1-TC ENG(RDT) (A)	8-98029-332-0	01	1	1011-	●	●
35	03.406 SEAL; DUCT,INT 03.403 (B)	8-97853-699-2	01	1	1011-	●	●
64	03.417 BOLT; BRKT,AIR DUCT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (I)	8-98278-681-0	01	1	1510-		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E)	8-97226-059-0	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (F)	8-97312-894-1	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (G)	8-97329-201-0	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (H)	8-97329-306-0	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (I)	8-98177-804-0	01	1	1011-1509	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (I)	8-98177-804-0	01	1	1510-	●
242	03.417 BRACKET; AIR DUCT 4JB1-NA ENG(RLF) (D)	8-97856-935-0	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-NA ENG(RLF) (A)	8-97856-956-1	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-NA ENG(RLF) (C)	8-97856-958-0	01	1	1011-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-NA ENG(RLF) (B)	8-97856-967-1	01	1	1011-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) HEAVY DUTY AIR CLEANER<K46> (D)	8-98101-994-2	01	1	1011-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97369-706-0	01	1	1011-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-NA ENG(RLF) HEAVY DUTY AIR CLEANER<K46> (A)	8-97089-948-2	01	1	1011-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-NA ENG(RLF) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-97076-959-2	01	1	1011-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1011-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JB1-NA ENG(RLF) (B) M8 W/LK WASHER	8-97581-234-0	01	1	1011-	●	●
381	03.417 NUT; BRKT,AIR DUCT 16.800 (A) M6 FLANGE	1-09984-018-0	02	1	1011-	●	●
381	03.417 NUT; BRKT,AIR DUCT (B) M8 W/LK WASHER	8-97581-234-0	03	1	1011-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT) (C)	8-98036-825-0	01	1	1011-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT) 03.417 (D)	8-98036-826-0	02	1	1011-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-NA ENG(RLF) 03.417 (A)	8-97080-149-0	01	1	1011-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-NA ENG(RLF) 03.417 (B)	8-97081-886-0	02	1	1011-	●	●
399	03.417 CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	1011-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
