1-11 — RADIATOR HOSE AND SUB TANK (#78812) — 35 parça

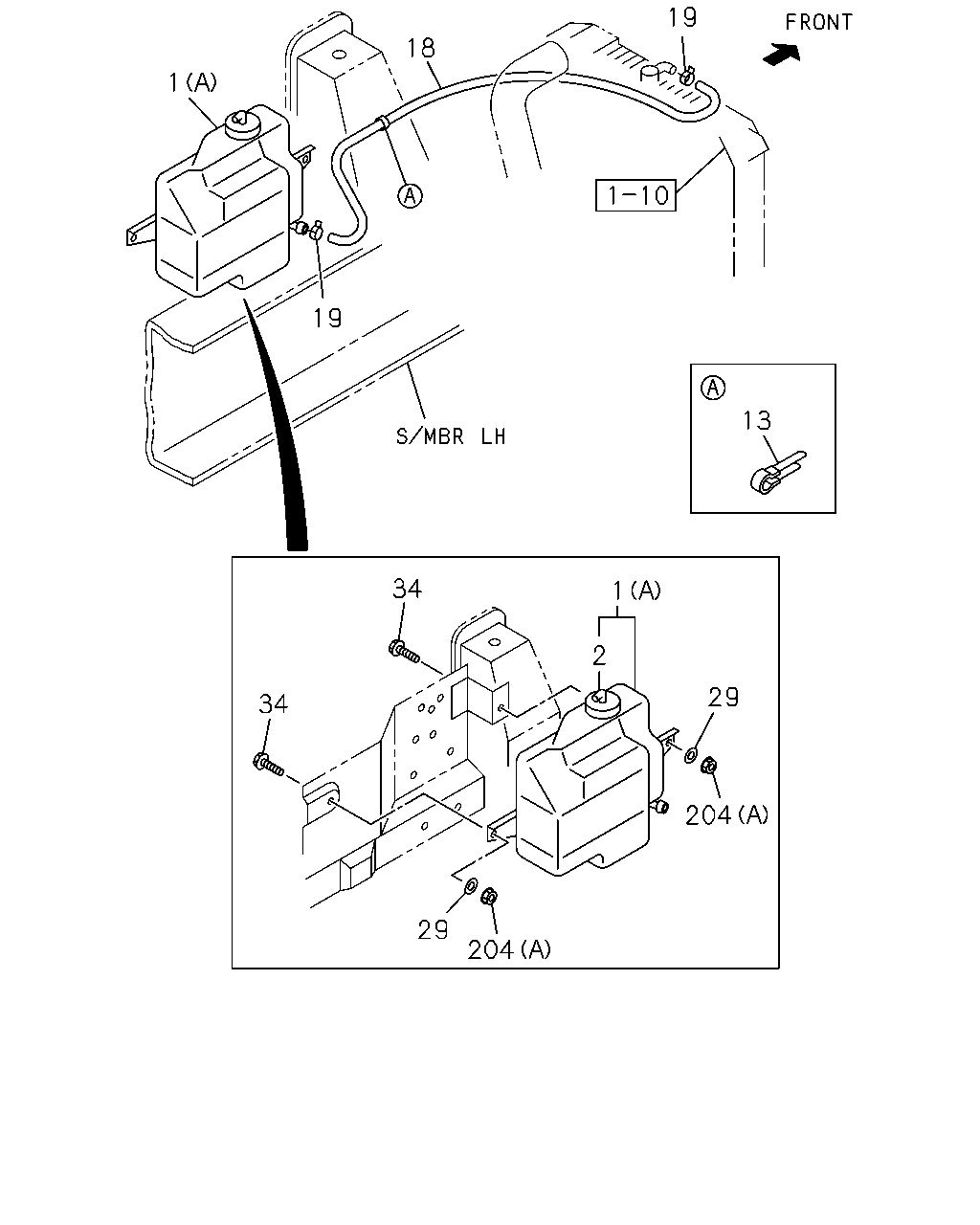

çizim 89161
19 18 1 19 13 34 1 2 29 34 204 29 204
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.219 TANK; SURGE,RAD
4JB1-TC ENG(RDT) (B) 		8-97205-136-1 01 1 1011- ● ●
1 01.219 TANK; SURGE,RAD
4JB1-NA ENG(RLF) (A) 		8-97138-509-0 01 1 1011- ● ●
2 01.203 CAP; SURGE TANK
4JB1-NA ENG(RLF) 		8-94449-363-0 01 1 1011- ● ●
13 01.240 CLIP; HOSE,SURGE TANK
4JB1-TC ENG(RDT) ID=14 L=47 		5-09700-319-0 02 1 1011- ● ●
13 01.240 CLIP; HOSE,SURGE TANK
4JB1-NA ENG(RLF) ID=14 L=47 		5-09700-319-0 01 1 1011- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1-TC ENG(RDT) L=1740 		8-97225-444-1 01 1 1011- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1-NA ENG(RLF) L=860 		8-97163-002-1 01 1 1011- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
ID=12 		8-98150-358-0 02 1 1011- ● ●
29 01.203 WASHER; PL,RESERVE TANK
4JB1-NA ENG(RLF) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 1011- ● ●
34 01.203 BOLT; RESERVE TANK
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1011- ● ●
34 01.203 BOLT; RESERVE TANK
4JB1-NA ENG(RLF) 09.242 M6X16 FLANGE 		0-28050-616-0 03 1 1011- ● ●
204 01.219 NUT; RESERVE TANK
4JB1-TC ENG(RDT) 01.062 (B) M8 FLANGE 		0-91180-108-0 04 1 1011- ● ●
204 01.219 NUT; RESERVE TANK
4JB1-NA ENG(RLF) 01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 1011- ● ●

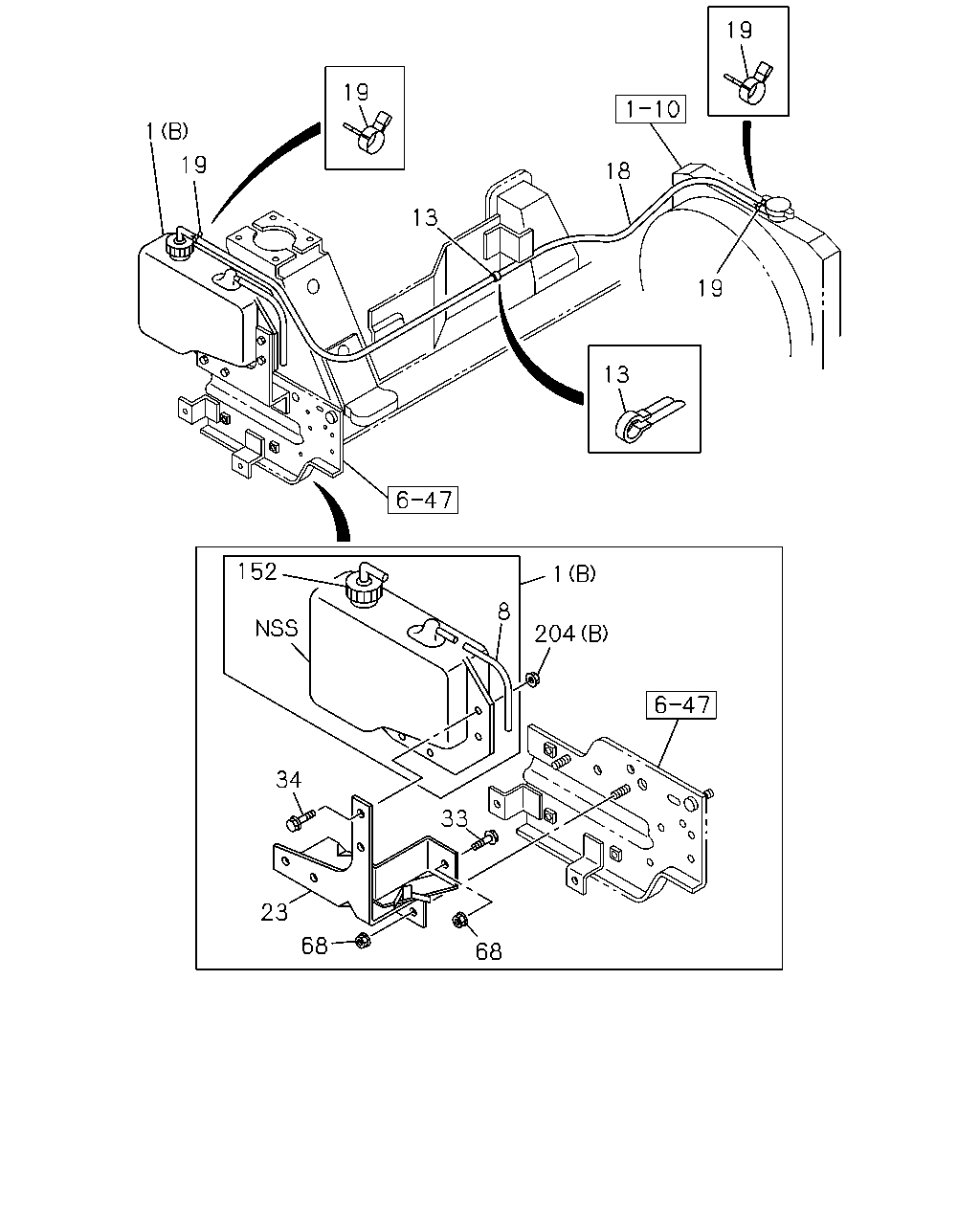

çizim 89526
19 19 1 19 18 13 19 13 152 1 8 204 34 33 23 68 68
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.219 TANK; SURGE,RAD
4JB1-TC ENG(RDT) (B) 		8-97205-136-1 01 1 1011- ● ●
1 01.219 TANK; SURGE,RAD
4JB1-NA ENG(RLF) (A) 		8-97138-509-0 01 1 1011- ● ●
8 01.166 HOSE; VINYL
4JB1-TC ENG(RDT) 01.240 L=500 		1-09366-179-0 01 1 1011- ● ●
13 01.240 CLIP; HOSE,SURGE TANK
4JB1-TC ENG(RDT) ID=14 L=47 		5-09700-319-0 02 1 1011- ● ●
13 01.240 CLIP; HOSE,SURGE TANK
4JB1-NA ENG(RLF) ID=14 L=47 		5-09700-319-0 01 1 1011- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1-TC ENG(RDT) L=1740 		8-97225-444-1 01 1 1011- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1-NA ENG(RLF) L=860 		8-97163-002-1 01 1 1011- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
ID=12 		8-98150-358-0 02 1 1011- ● ●
23 01.219 BRACKET; RESERVE TANK
4JB1-TC ENG(RDT) 		8-97225-271-1 01 1 1011- ● ●
33 01.277 BOLT; BRKT
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1011- ● ●
34 01.203 BOLT; RESERVE TANK
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1011- ● ●
34 01.203 BOLT; RESERVE TANK
4JB1-NA ENG(RLF) 09.242 M6X16 FLANGE 		0-28050-616-0 03 1 1011- ● ●
68 01.219 NUT; BRKT
4JB1-TC ENG(RDT) 01.540 M8 FLANGE 		0-91180-208-0 03 1 1011-1110 ● ●
68 01.219 NUT; BRKT
4JB1-TC ENG(RDT) 01.062 M8 FLANGE 		0-91180-108-0 03 1 1111- ● ●
152 01.203 CAP ASM; SURGE TANK
4JB1-TC ENG(RDT) 		8-97217-799-0 01 1 1011- ● ●
204 01.219 NUT; RESERVE TANK
4JB1-TC ENG(RDT) 01.062 (B) M8 FLANGE 		0-91180-108-0 04 1 1011- ● ●
204 01.219 NUT; RESERVE TANK
4JB1-NA ENG(RLF) 01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 1011- ● ●
çizim 90365
128 56 56 55 56 56
BalonParca AdiParca NoAdetTipApplied Date A B
55 01.173 HOSE; WATER,RAD OUTLET 8-97089-916-1 01 1 1011- ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=48 		8-98133-956-0 03 1 1011- ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=42 		8-98133-958-0 01 1 1011- ● ●
128 01.159 HOSE; WATER,RAD INL
4JB1-TC ENG(RDT) 		8-97177-853-0 01 1 1011- ● ●
128 01.159 HOSE; WATER,RAD INL
4JB1-NA ENG(RLF) 		8-97147-473-0 01 1 1011- ● ●
