◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#7880) — 247 parça

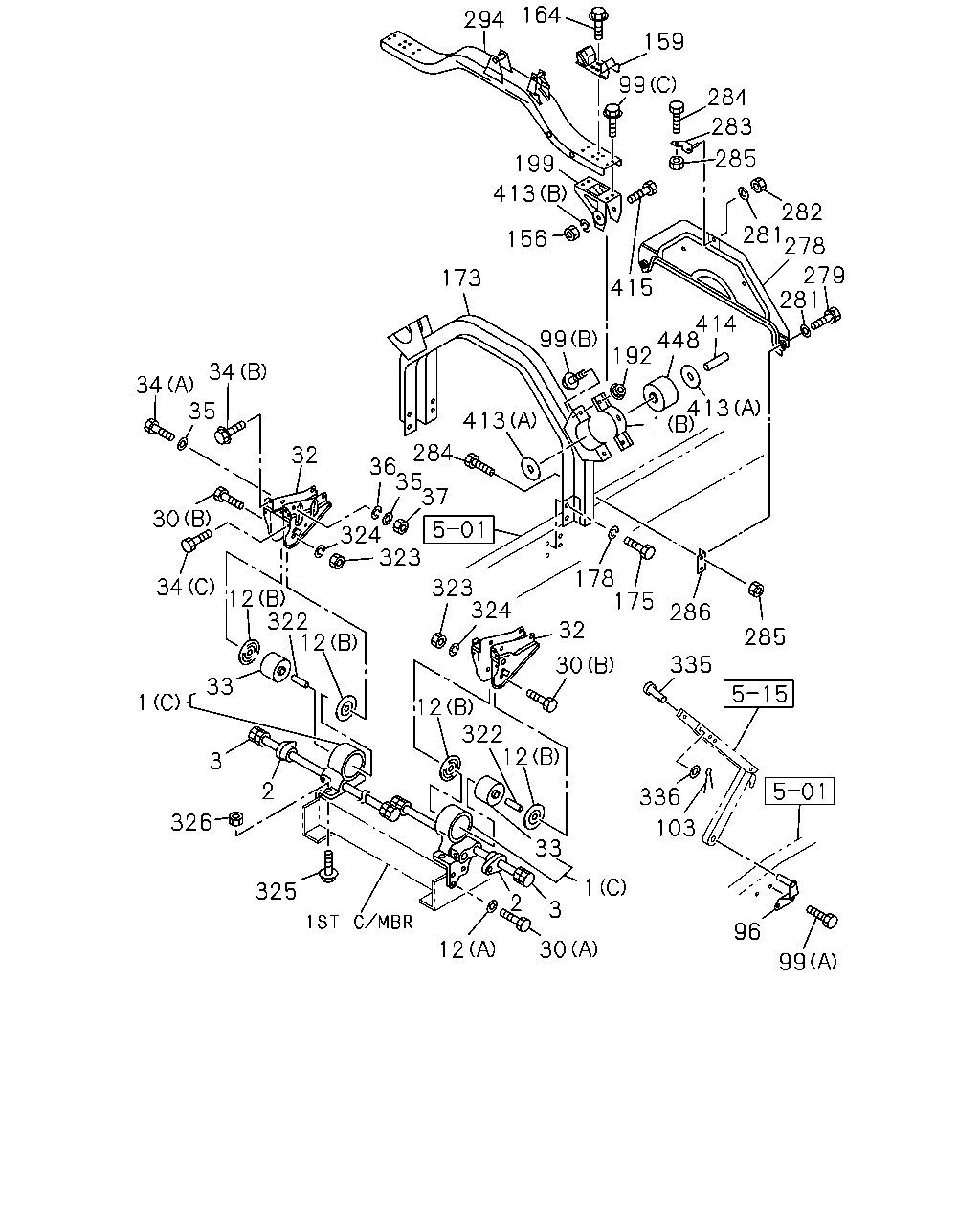

çizim 99359
164 294 159 99 284 283 285 199 413 282 281 278 156 279 281 173 415 414 448 192 99 34 34 35 413 1 413 284 32 36 35 37 30 324 323 178 175 34 323 324 12 322 12 286 32 285 335 30 33 1 12 322 12 3 2 336 326 103 33 1 325 2 3 96 12 30 99
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET; CAB MTG
(C) 		1-53453-265-0 01 1 0302- ●
1 BRACKET; CAB MTG
(C) 		1-53453-266-0 01 1 0302- ●
1 BRACKET; CAB MTG
(B) 		1-53454-648-1 02 1 0302- ●
1 BRACKET; CAB MTG
(A) 		1-53453-308-1 01 1 9905- ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-307-1 01 1 9905- ● ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 9905-0301 ● ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 0302- ● ● ●
3 TORSION BAR 1-09585-130-0 01 1 9905-0301 ● ●
3 TORSION BAR 1-09585-130-0 01 1 0302- ● ● ●
3 TORSION BAR 1-09585-129-0 01 1 9905-0301 ● ●
3 TORSION BAR 1-09585-129-0 01 1 0302- ● ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 9905-0301 ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 0302-0306 ● ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53457-076-1 04 1 0307- ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 9905-0301 ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 0302- ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X50 		9-92061-450-0 10 1 0302-0512 ●
30 BOLT; CAB FRT FOOT
(A) M14X50 		0-20951-450-0 10 1 0601- ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 9905-0301 ● ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 0302- ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		9-92061-440-0 10 1 9905-0512 ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		0-20951-440-0 10 1 0601- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 9905-0301 ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 0302- ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-230-4 01 1 9905-0301 ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-230-4 01 1 0302- ● ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53458-634-0 02 1 0302- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53459-836-3 02 1 9905- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 9905-0301 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 0302- ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9905-0301 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0302- ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 9905-0301 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 0302- ● ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9905-0301 ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0302- ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 9905-0301 ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 0302- ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 9905-0301 ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 0302- ● ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 9905-0301 ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 0302- ● ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 08 1 0302-0512 ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 08 1 0601- ●
99 BOLT; BRKT
(B) M12X30 FLANGE 		0-28681-230-0 04 1 0302-0512 ●
99 BOLT; BRKT
(B) M12X30 FLANGE 		0-28651-230-0 04 1 0601- ●
99 BOLT; BRKT
(A) M10X30 FLANGE 		0-28691-030-0 02 1 9905-0301 ● ●
99 BOLT; BRKT
(A) M10X30 FLANGE 		0-28691-030-0 02 1 0302-0512 ● ● ●
99 BOLT; BRKT
(A) M10X30 FLANGE 		0-28661-030-0 02 1 0601- ● ● ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 9905-0301 ● ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 0302- ● ● ●
156 NUT; CAB MTG RR
M16 		9-99110-516-0 02 1 0302-0512 ●
156 NUT; CAB MTG RR
M16 		0-91110-516-0 02 1 0601- ●
159 RUBBER; CUSHION,CAB MTG 1-53458-285-0 02 1 0302- ●
159 RUBBER; CUSHION,CAB MTG 1-53458-894-0 02 1 9905- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28680-820-0 04 1 0302-0512 ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X25 FLANGE 		0-28680-825-0 04 1 9905-0512 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
173 MEMBER; CAB MTG RR 1-53454-705-3 01 1 0302- ●
173 MEMBER; CAB MTG RR 1-53454-827-3 01 1 9905- ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 9905-0301 ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 0302-0512 ● ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 0601- ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 9905-0301 ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 0302-0603 ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0604- ● ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91150-212-0 04 1 0302-0602 ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 0603- ●
199 BRACKET; CAB RR MTG 1-53454-644-2 02 1 0302- ●
278 COVER
6HK1-TCN ENG(82L) FIRE FIGHTING TRUCK(RA9) ANTI NOISE EQUIPMENT ECE<SLK> 		1-53194-662-0 01 1 0603- ●
278 COVER
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> 		1-53192-932-1 01 1 0505- ●
278 COVER
6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT ECE<SLK> 		1-53194-637-0 01 1 0506-0602 ●
278 COVER
6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT ECE<SLK> EXC. FIRE FIGHTING TRUCK(RA9) 		1-53194-637-0 01 1 0603- ●
278 COVER
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> 		1-53192-931-1 01 1 0505-0505 ●
278 COVER
ANTI NOISE EQUIPMENT ECE<SLK> 		1-53192-931-1 01 1 0505-0505 ●
278 COVER
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> 		1-53192-931-1 01 1 0506- ● ●
279 BOLT
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE 		0-28680-825-0 02 1 0505-0512 ● ●
279 BOLT
ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE 		0-28680-825-0 02 1 0505-0512 ●
279 BOLT
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
279 BOLT
ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
281 WASHER; PL,BACK COVER
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=26 		9-09164-808-0 03 1 0505-0605 ● ●
281 WASHER; PL,BACK COVER
ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=26 		9-09164-808-0 03 1 0505-0605 ●
281 WASHER; PL,BACK COVER
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=26 		0-91614-808-0 03 1 0606- ● ●
281 WASHER; PL,BACK COVER
ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=26 		0-91614-808-0 03 1 0606- ●
282 NUT; BACK COVER
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE 		0-91150-108-0 01 1 0505-0602 ● ●
282 NUT; BACK COVER
ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE 		0-91150-108-0 01 1 0505-0602 ●
282 NUT; BACK COVER
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
282 NUT; BACK COVER
ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
283 BRACKET; UPR
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> 		1-53459-630-2 01 1 0505- ● ●
283 BRACKET; UPR
ANTI NOISE EQUIPMENT ECE<SLK> 		1-53459-630-2 01 1 0505- ●
284 BOLT; BRKT UPR
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8X20 FLANGE 		0-28680-820-0 06 1 0505-0512 ● ●
284 BOLT; BRKT UPR
ANTI NOISE EQUIPMENT ECE<SLK> M8X20 FLANGE 		0-28680-820-0 06 1 0505-0512 ●
284 BOLT; BRKT UPR
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8X20 FLANGE 		0-28650-820-0 06 1 0601- ● ●
284 BOLT; BRKT UPR
ANTI NOISE EQUIPMENT ECE<SLK> M8X20 FLANGE 		0-28650-820-0 06 1 0601- ●
285 NUT; BRKT UPR
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE 		0-91150-108-0 06 1 0505-0602 ● ●
285 NUT; BRKT UPR
ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE 		0-91150-108-0 06 1 0505-0602 ●
285 NUT; BRKT UPR
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
285 NUT; BRKT UPR
ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE 		0-91180-108-0 06 1 0603- ●
286 BRACKET; LOW
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> 		1-53459-631-3 01 1 0505- ● ●
286 BRACKET; LOW
ANTI NOISE EQUIPMENT ECE<SLK> 		1-53459-631-3 01 1 0505- ●
286 BRACKET; LOW
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> 		1-53459-632-3 01 1 0505- ● ●
286 BRACKET; LOW
ANTI NOISE EQUIPMENT ECE<SLK> 		1-53459-632-3 01 1 0505- ●
294 MEMBER; FLOATING 1-53454-602-0 01 1 0302-0302 ●
294 MEMBER; FLOATING 1-53454-530-1 01 1 0303- ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 9905-0301 ● ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 0302- ● ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 9905-0301 ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 0302-0512 ● ● ●
323 NUT; CAB FRT FOOT
M16 		0-91110-516-0 02 1 0601- ● ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 9905-0301 ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 0302-0603 ● ● ●
324 WASHER; LK
ID=16.2 		0-91510-816-0 02 1 0604- ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 9905-0301 ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 0302-0512 ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ● ● ●
326 NUT; GUIDE NUT
M12 		9-99110-512-0 02 1 9905-0301 ● ●
326 NUT; GUIDE NUT
M12 		9-99110-512-0 02 1 0302-0512 ● ● ●
326 NUT; GUIDE NUT
M12 		0-91110-512-0 02 1 0601- ● ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 9905-0301 ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 0302- ● ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 9905-0301 ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 0302- ● ● ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		9-09150-816-0 02 1 0302-0603 ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		0-91510-816-0 02 1 0604- ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53458-693-1 04 1 0302-0306 ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53457-076-1 04 1 0307- ●
414 COLLAR; CAB MTG RR 1-53459-941-1 02 1 0302- ●
415 PIN; CAB MTG RR
M16X115 		5-51361-002-1 02 1 0302- ●
448 BUSHING; CAB MTG 1-53458-635-0 02 1 0302- ●

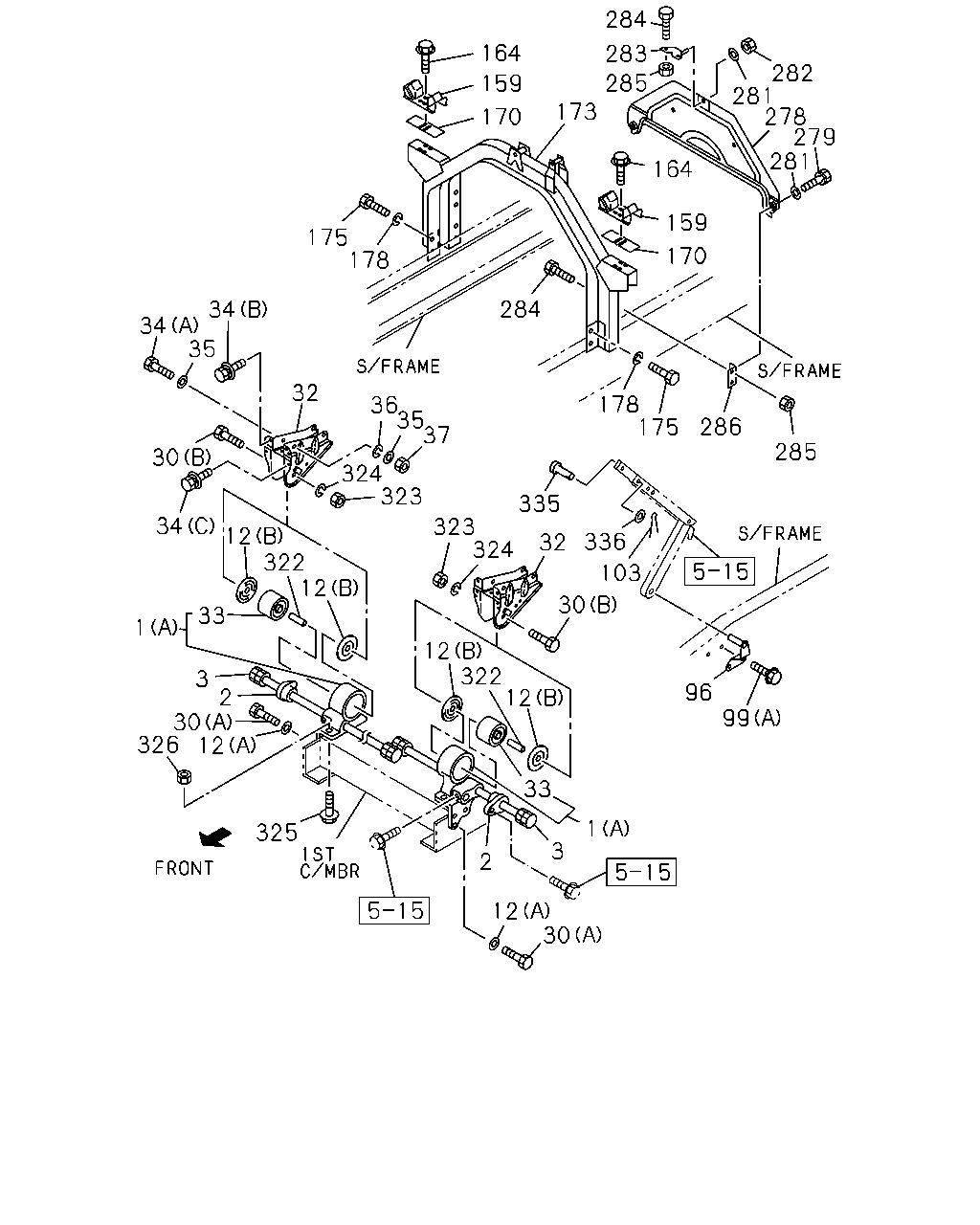

çizim 99360
284 164 283 282 281 278 279 281 285 173 159 170 164 159 175 178 170 284 34 35 34 32 178 175 36 35 37 286 285 30 324 323 335 34 323 324 12 322 2 336 32 103 30 33 1 12 322 12 3 96 2 30 99 33 1 325 3 2 12 30 12 326
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET; CAB MTG
(C) 		1-53453-265-0 01 1 0302- ●
1 BRACKET; CAB MTG
(C) 		1-53453-266-0 01 1 0302- ●
1 BRACKET; CAB MTG
(B) 		1-53454-648-1 02 1 0302- ●
1 BRACKET; CAB MTG
(A) 		1-53453-308-1 01 1 9905- ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-307-1 01 1 9905- ● ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 9905-0301 ● ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 0302- ● ● ●
3 TORSION BAR 1-09585-130-0 01 1 9905-0301 ● ●
3 TORSION BAR 1-09585-130-0 01 1 0302- ● ● ●
3 TORSION BAR 1-09585-129-0 01 1 9905-0301 ● ●
3 TORSION BAR 1-09585-129-0 01 1 0302- ● ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 9905-0301 ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 0302-0306 ● ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53457-076-1 04 1 0307- ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 9905-0301 ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 0302- ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X50 		9-92061-450-0 10 1 0302-0512 ●
30 BOLT; CAB FRT FOOT
(A) M14X50 		0-20951-450-0 10 1 0601- ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 9905-0301 ● ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 0302- ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		9-92061-440-0 10 1 9905-0512 ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		0-20951-440-0 10 1 0601- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 9905-0301 ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 0302- ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-230-4 01 1 9905-0301 ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-230-4 01 1 0302- ● ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53458-634-0 02 1 0302- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53459-836-3 02 1 9905- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 9905-0301 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 0302- ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9905-0301 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0302- ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 9905-0301 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 0302- ● ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9905-0301 ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0302- ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 9905-0301 ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 0302- ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 9905-0301 ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 0302- ● ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 9905-0301 ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 0302- ● ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 08 1 0302-0512 ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 08 1 0601- ●
99 BOLT; BRKT
(B) M12X30 FLANGE 		0-28681-230-0 04 1 0302-0512 ●
99 BOLT; BRKT
(B) M12X30 FLANGE 		0-28651-230-0 04 1 0601- ●
99 BOLT; BRKT
(A) M10X30 FLANGE 		0-28691-030-0 02 1 9905-0301 ● ●
99 BOLT; BRKT
(A) M10X30 FLANGE 		0-28691-030-0 02 1 0302-0512 ● ● ●
99 BOLT; BRKT
(A) M10X30 FLANGE 		0-28661-030-0 02 1 0601- ● ● ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 9905-0301 ● ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 0302- ● ● ●
159 RUBBER; CUSHION,CAB MTG 1-53458-285-0 02 1 0302- ●
159 RUBBER; CUSHION,CAB MTG 1-53458-894-0 02 1 9905- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28680-820-0 04 1 0302-0512 ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X25 FLANGE 		0-28680-825-0 04 1 9905-0512 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
170 SHIM; CUSHION RUBBER 1-53458-897-0 AR 1 9905- ● ●
173 MEMBER; CAB MTG RR 1-53454-705-3 01 1 0302- ●
173 MEMBER; CAB MTG RR 1-53454-827-3 01 1 9905- ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 9905-0301 ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 0302-0512 ● ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 0601- ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 9905-0301 ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 0302-0603 ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0604- ● ● ●
278 COVER
6HK1-TCN ENG(82L) FIRE FIGHTING TRUCK(RA9) ANTI NOISE EQUIPMENT ECE<SLK> 		1-53194-662-0 01 1 0603- ●
278 COVER
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> 		1-53192-932-1 01 1 0505- ●
278 COVER
6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT ECE<SLK> 		1-53194-637-0 01 1 0506-0602 ●
278 COVER
6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT ECE<SLK> EXC. FIRE FIGHTING TRUCK(RA9) 		1-53194-637-0 01 1 0603- ●
278 COVER
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> 		1-53192-931-1 01 1 0505-0505 ●
278 COVER
ANTI NOISE EQUIPMENT ECE<SLK> 		1-53192-931-1 01 1 0505-0505 ●
278 COVER
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> 		1-53192-931-1 01 1 0506- ● ●
279 BOLT
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE 		0-28680-825-0 02 1 0505-0512 ● ●
279 BOLT
ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE 		0-28680-825-0 02 1 0505-0512 ●
279 BOLT
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
279 BOLT
ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
281 WASHER; PL,BACK COVER
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=26 		9-09164-808-0 03 1 0505-0605 ● ●
281 WASHER; PL,BACK COVER
ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=26 		9-09164-808-0 03 1 0505-0605 ●
281 WASHER; PL,BACK COVER
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=26 		0-91614-808-0 03 1 0606- ● ●
281 WASHER; PL,BACK COVER
ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=26 		0-91614-808-0 03 1 0606- ●
282 NUT; BACK COVER
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE 		0-91150-108-0 01 1 0505-0602 ● ●
282 NUT; BACK COVER
ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE 		0-91150-108-0 01 1 0505-0602 ●
282 NUT; BACK COVER
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
282 NUT; BACK COVER
ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
283 BRACKET; UPR
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> 		1-53459-630-2 01 1 0505- ● ●
283 BRACKET; UPR
ANTI NOISE EQUIPMENT ECE<SLK> 		1-53459-630-2 01 1 0505- ●
284 BOLT; BRKT UPR
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8X20 FLANGE 		0-28680-820-0 06 1 0505-0512 ● ●
284 BOLT; BRKT UPR
ANTI NOISE EQUIPMENT ECE<SLK> M8X20 FLANGE 		0-28680-820-0 06 1 0505-0512 ●
284 BOLT; BRKT UPR
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8X20 FLANGE 		0-28650-820-0 06 1 0601- ● ●
284 BOLT; BRKT UPR
ANTI NOISE EQUIPMENT ECE<SLK> M8X20 FLANGE 		0-28650-820-0 06 1 0601- ●
285 NUT; BRKT UPR
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE 		0-91150-108-0 06 1 0505-0602 ● ●
285 NUT; BRKT UPR
ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE 		0-91150-108-0 06 1 0505-0602 ●
285 NUT; BRKT UPR
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
285 NUT; BRKT UPR
ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE 		0-91180-108-0 06 1 0603- ●
286 BRACKET; LOW
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> 		1-53459-631-3 01 1 0505- ● ●
286 BRACKET; LOW
ANTI NOISE EQUIPMENT ECE<SLK> 		1-53459-631-3 01 1 0505- ●
286 BRACKET; LOW
6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> 		1-53459-632-3 01 1 0505- ● ●
286 BRACKET; LOW
ANTI NOISE EQUIPMENT ECE<SLK> 		1-53459-632-3 01 1 0505- ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 9905-0301 ● ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 0302- ● ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 9905-0301 ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 0302-0512 ● ● ●
323 NUT; CAB FRT FOOT
M16 		0-91110-516-0 02 1 0601- ● ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 9905-0301 ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 0302-0603 ● ● ●
324 WASHER; LK
ID=16.2 		0-91510-816-0 02 1 0604- ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 9905-0301 ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 0302-0512 ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ● ● ●
326 NUT; GUIDE NUT
M12 		9-99110-512-0 02 1 9905-0301 ● ●
326 NUT; GUIDE NUT
M12 		9-99110-512-0 02 1 0302-0512 ● ● ●
326 NUT; GUIDE NUT
M12 		0-91110-512-0 02 1 0601- ● ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 9905-0301 ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 0302- ● ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 9905-0301 ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 0302- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
