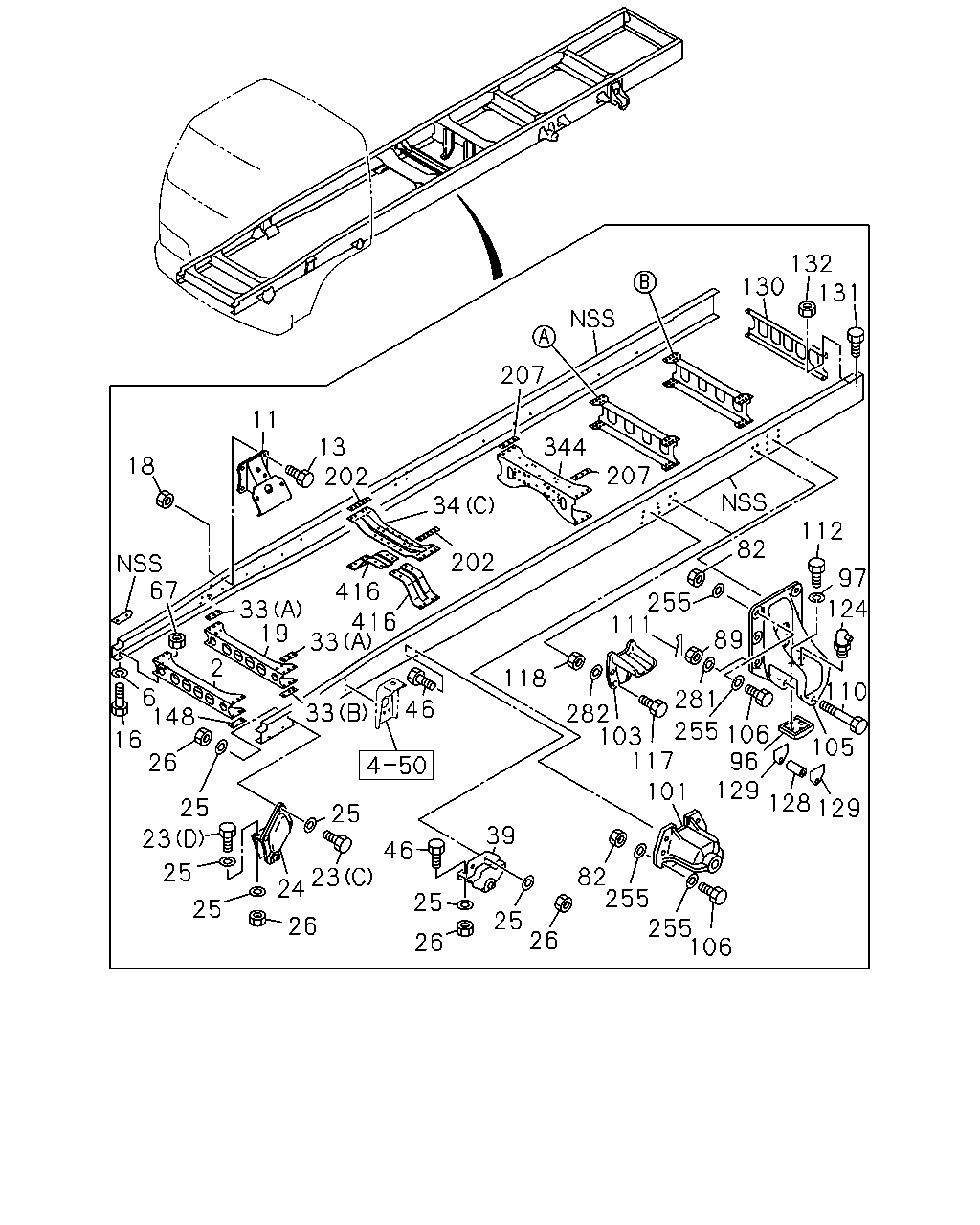

5-01 — FRAME AND OTHER PARTS (#7879) — 369 parça

69 69 57 69 69 69 69 86 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
57	MEMBER; CROSS,RR SUSP FRT FTR(FT****)	1-53181-815-1	01	1	0302-	●
69	GUSSET; RR SUSP,UPR FTR(FT****) (C) 21-HOLE	1-53167-095-5	01	1	0302-	●
69	GUSSET; RR SUSP,UPR FTR(FT****) (D) 21-HOLE	1-53167-096-4	01	1	0302-	●
69	GUSSET; RR SUSP,UPR FTR(FT****) (E) 17-HOLE	1-53167-097-5	01	1	0302-	●
69	GUSSET; RR SUSP,UPR FTR(FT****) (F) 17-HOLE	1-53167-098-5	01	1	0302-	●
69	GUSSET; RR SUSP,UPR FTR(FT****) (A)	1-53167-099-4	02	1	0302-	●
69	GUSSET; RR SUSP,UPR FTR(FT****) (B)	1-53167-100-3	02	1	0302-	●
86	MEMBER; CROSS,RR SUSP RR FTR(FT****)	1-53181-815-1	01	1	0302-	●

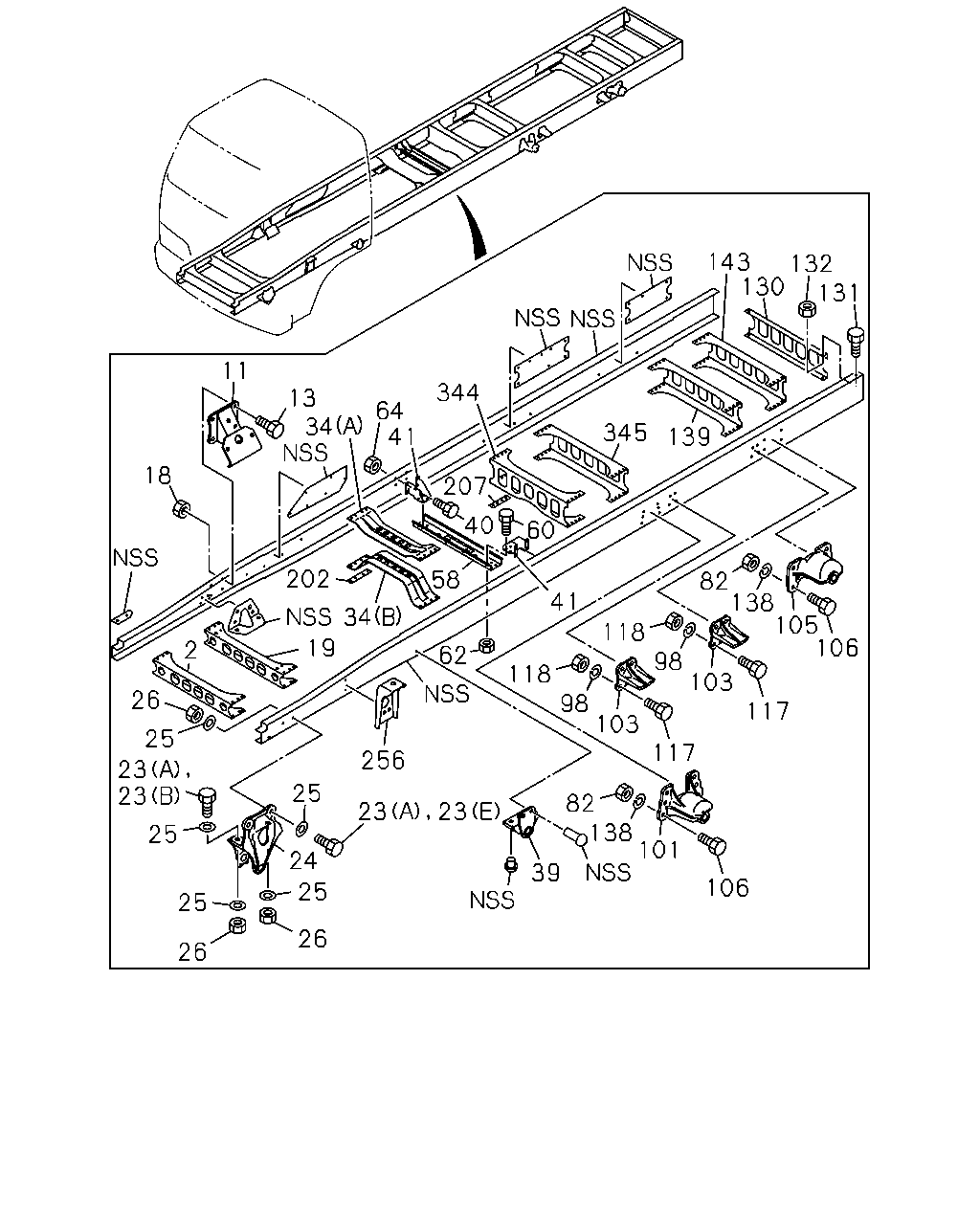

143 132 130 131 11 344 13 34 64 41 345 139 18 40 60 58 82 138 105 106 202 41 2 34 62 118 98 103 19 26 118 98 103 117 25 117 256 23 23 25 82 138 101 23 23 25 24 39 106 25 25 26 26 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST FTR(FT****)	1-53181-939-2	01	1	0302-	●
2	MEMBER; CROSS,1ST	1-53181-460-9	01	1	9905-0301	●	●	●	●
2	MEMBER; CROSS,1ST	1-53181-460-9	01	1	0302-0407		●	●	●
2	MEMBER; CROSS,1ST FSR(FS****)	1-53181-460-9	01	1	0302-0407	●
2	MEMBER; CROSS,1ST	1-53181-892-4	01	1	0408-		●	●	●
2	MEMBER; CROSS,1ST FSR(FS****)	1-53181-892-4	01	1	0408-	●
11	BRACKET; ENG MTG FTR(FT****)	1-53211-196-0	02	1	0302-	●
11	BRACKET; ENG MTG	1-53211-195-0	02	1	9905-		●
11	BRACKET; ENG MTG	1-53211-197-0	02	1	9905-0301	●		●	●
11	BRACKET; ENG MTG FSR(FS****)	1-53211-197-0	02	1	0302-	●
11	BRACKET; ENG MTG	1-53211-197-0	02	1	0302-			●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28691-235-0	08	1	9905-0301		●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28691-235-0	08	1	0302-0512		●
13	BOLT; BRKT,ENG MTG FTR(FT****) M12X35 FLANGE	0-28691-235-0	08	1	0302-0512	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0601-		●
13	BOLT; BRKT,ENG MTG FTR(FT****) M12X35 FLANGE	0-28661-235-0	08	1	0601-	●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE	0-28691-240-0	08	1	9905-0301	●		●	●
13	BOLT; BRKT,ENG MTG FSR(FS****) M12X40 FLANGE	0-28691-240-0	08	1	0302-0512	●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE	0-28691-240-0	08	1	0302-0512			●	●
13	BOLT; BRKT,ENG MTG FSR(FS****) M12X40 FLANGE	0-28661-240-0	08	1	0601-	●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE	0-28661-240-0	08	1	0601-			●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91150-212-0	08	1	9905-0602	●	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0603-	●	●	●	●
19	MEMBER; CROSS,2ND FTR(FT****)	1-53181-671-9	01	1	0302-0410	●
19	MEMBER; CROSS,2ND FTR(FT****)	8-97606-306-0	01	1	0411-	●
19	MEMBER; CROSS,2ND	1-53181-852-8	01	1	9905-		●
19	MEMBER; CROSS,2ND	1-53181-661-9	01	1	9905-0301	●		●	●
19	MEMBER; CROSS,2ND FSR(FS****)	1-53181-661-9	01	1	0302-0511	●
19	MEMBER; CROSS,2ND	1-53181-661-9	01	1	0302-0511			●	●
19	MEMBER; CROSS,2ND FSR(FS****)	8-97611-712-0	01	1	0512-	●
19	MEMBER; CROSS,2ND	8-97611-712-0	01	1	0512-			●	●
23	BOLT; BRKT,SPR FTR(FT****) (C) M14X45	9-92061-445-0	06	1	0302-	●
23	BOLT; BRKT,SPR FTR(FT****) (D) M16X50	9-92061-650-0	04	1	0302-0512	●
23	BOLT; BRKT,SPR FTR(FT****) (D) M16X50	0-20951-650-0	04	1	0601-	●
23	BOLT; BRKT,SPR (A) M14X40	9-92061-440-0	08	1	9905-0512		●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	08	1	0601-		●
23	BOLT; BRKT,SPR (E) M14X50	9-91066-450-0	08	1	9905-0301	●		●	●
23	BOLT; BRKT,SPR FSR(FS****) (E) M14X50	9-91066-450-0	08	1	0302-0512	●
23	BOLT; BRKT,SPR (E) M14X50	9-91066-450-0	08	1	0302-0512			●	●
23	BOLT; BRKT,SPR FSR(FS****) (E) M14X50	0-10956-450-0	08	1	0601-	●
23	BOLT; BRKT,SPR (E) M14X50	0-10956-450-0	08	1	0601-			●	●
23	BOLT; BRKT,SPR (B) M16X60	9-91066-660-0	04	1	9905-0301	●		●	●
23	BOLT; BRKT,SPR FSR(FS****) (B) M16X60	9-91066-660-0	04	1	0302-0512	●
23	BOLT; BRKT,SPR (B) M16X60	9-91066-660-0	04	1	0302-0512			●	●
23	BOLT; BRKT,SPR FSR(FS****) (B) M16X60	0-10956-660-0	04	1	0601-	●
23	BOLT; BRKT,SPR (B) M16X60	0-10956-660-0	04	1	0601-			●	●
24	BRACKET; FRT SPR,FRT FTR(FT****)	1-53351-148-3	01	1	0302-	●
24	BRACKET; FRT SPR,FRT FTR(FT****)	1-53351-149-3	01	1	0302-	●
24	BRACKET; FRT SPR,FRT	1-53351-234-0	01	1	9905-		●
24	BRACKET; FRT SPR,FRT	1-53351-233-0	01	1	9905-		●
24	BRACKET; FRT SPR,FRT	1-53351-115-6	02	1	9905-0301	●		●	●
24	BRACKET; FRT SPR,FRT FSR(FS****)	1-53351-115-6	02	1	0302-	●
24	BRACKET; FRT SPR,FRT	1-53351-115-6	02	1	0302-			●	●
25	WASHER; PL,BRKT FTR(FT****) ID=15	9-09651-069-0	28	1	0302-	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	16	1	9905-0301	●	●	●	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	16	1	0302-		●	●	●
25	WASHER; PL,BRKT FSR(FS****) ID=15	9-09651-069-0	16	1	0302-	●
25	WASHER; PL,BRKT ID=16.2	1-09503-223-0	08	1	9905-	●		●	●
26	NUT; BRKT,SPR FTR(FT****) M14	9-99110-514-0	14	1	0302-0512	●
26	NUT; BRKT,SPR FTR(FT****) M14	0-91110-514-0	14	1	0601-	●
26	NUT; BRKT,SPR M14	9-99110-514-0	08	1	9905-0301	●	●	●	●
26	NUT; BRKT,SPR M14	9-99110-514-0	08	1	0302-0512		●	●	●
26	NUT; BRKT,SPR FSR(FS****) M14	9-99110-514-0	08	1	0302-0512	●
26	NUT; BRKT,SPR M14	0-91110-514-0	08	1	0601-		●	●	●
26	NUT; BRKT,SPR FSR(FS****) M14	0-91110-514-0	08	1	0601-	●
26	NUT; BRKT,SPR M16	9-99110-516-0	04	1	9905-0512	●		●	●
26	NUT; BRKT,SPR M16	0-91110-516-0	04	1	0601-	●		●	●
34	MEMBER; CROSS,3RD FTR(FT****) (C)	1-53174-231-1	01	1	0302-	●
34	MEMBER; CROSS,3RD (A)	1-53175-358-1	01	1	9905-0301	●	●	●	●
34	MEMBER; CROSS,3RD (A)	1-53175-358-1	01	1	0302-		●	●	●
34	MEMBER; CROSS,3RD FSR(FS****) (A)	1-53175-358-1	01	1	0302-	●
34	MEMBER; CROSS,3RD (B)	1-53175-360-1	01	1	9905-		●		●
34	MEMBER; CROSS,3RD (B)	1-53175-359-1	01	1	9905-0301	●		●
34	MEMBER; CROSS,3RD FSR(FS****) (B)	1-53175-359-1	01	1	0302-	●
34	MEMBER; CROSS,3RD (B)	1-53175-359-1	01	1	0302-			●
39	BRACKET; FRT SPR,RR FTR(FT****)	1-53352-124-2	01	1	0302-	●
39	BRACKET; FRT SPR,RR FTR(FT****)	1-53352-125-2	01	1	0302-	●
39	BRACKET; FRT SPR,RR	1-53352-154-2	02	1	9905-		●
39	BRACKET; FRT SPR,RR	1-53352-052-1	02	1	9905-0301	●		●	●
39	BRACKET; FRT SPR,RR FSR(FS****)	1-53352-052-1	02	1	0302-	●
39	BRACKET; FRT SPR,RR	1-53352-052-1	02	1	0302-			●	●
40	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28681-030-0	08	1	9905-0512		●
40	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	0601-		●
41	BRACKET; CENTER BRG,FRAME SIDE	1-37515-086-0	02	1	9905-		●
58	MEMBER; CENTER BRG	1-37529-082-0	01	1	9905-		●
60	BOLT; MBR M10X25 FLANGE	0-28681-025-0	08	1	9905-0512		●
60	BOLT; MBR M10X25 FLANGE	0-28651-025-0	08	1	0601-		●
62	NUT; MBR M10 FLANGE	0-91150-110-0	08	1	9905-0602		●
62	NUT; MBR M10 FLANGE	0-91180-110-0	08	1	0603-		●
64	NUT; BRKT TO FRAME M10 FLANGE	0-91150-110-0	08	1	9905-0602		●
64	NUT; BRKT TO FRAME M10 FLANGE	0-91180-110-0	08	1	0603-		●
82	NUT; BRKT FTR(FT****) M14	9-99110-514-0	24	1	0302-0512	●
82	NUT; BRKT FTR(FT****) M14	0-91110-514-0	24	1	0601-	●
82	NUT; BRKT M14	9-99110-414-0	22	1	9905-0301	●	●	●	●
82	NUT; BRKT M14	9-99110-414-0	22	1	0302-0512		●	●	●
82	NUT; BRKT FSR(FS****) M14	9-99110-414-0	22	1	0302-0512	●
82	NUT; BRKT M14	0-91110-514-0	22	1	0601-		●	●	●
82	NUT; BRKT FSR(FS****) M14	0-91110-514-0	22	1	0601-	●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	9905-0301	●	●	●	●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	0302-0603		●	●	●
98	WASHER; LK,STOPPER FSR(FS****) ID=14.2	9-09150-614-0	16	1	0302-0603	●
98	WASHER; LK,STOPPER ID=14.2	0-91510-614-0	16	1	0604-		●	●	●
98	WASHER; LK,STOPPER FSR(FS****) ID=14.2	0-91510-614-0	16	1	0604-	●
101	BRACKET; RR SPR,FRT FTR(FT****)	1-53353-078-1	02	1	0302-	●
101	BRACKET; RR SPR,FRT	1-53353-090-4	02	1	9905-0301	●	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-090-4	02	1	0302-		●	●	●
101	BRACKET; RR SPR,FRT FSR(FS****)	1-53353-090-4	02	1	0302-	●
103	STOPPER; SUB SPR FTR(FT****)	1-53356-057-0	04	1	0302-	●
103	STOPPER; SUB SPR	1-53356-059-1	04	1	9905-0301	●	●	●	●
103	STOPPER; SUB SPR	1-53356-059-1	04	1	0302-		●	●	●
103	STOPPER; SUB SPR FSR(FS****)	1-53356-059-1	04	1	0302-	●
105	BRACKET; RR SPR,RR FTR(FT****)	1-53354-064-1	02	1	0302-	●
105	BRACKET; RR SPR,RR	1-53354-074-0	02	1	9905-0301	●	●	●	●
105	BRACKET; RR SPR,RR	1-53354-074-0	02	1	0302-		●	●	●
105	BRACKET; RR SPR,RR FSR(FS****)	1-53354-074-0	02	1	0302-	●
106	BOLT; BRKT FTR(FT****) M14X45	9-92061-445-0	24	1	0302-	●
106	BOLT; BRKT M14X40	0-20801-440-0	22	1	9905-0301	●	●	●	●
106	BOLT; BRKT M14X40	0-20801-440-0	22	1	0302-0512		●	●	●
106	BOLT; BRKT FSR(FS****) M14X40	0-20801-440-0	22	1	0302-0512	●
106	BOLT; BRKT M14X40	0-20851-440-0	22	1	0601-		●	●	●
106	BOLT; BRKT FSR(FS****) M14X40	0-20851-440-0	22	1	0601-	●
117	BOLT; STOPPER FTR(FT****) M14X45	9-92061-445-0	16	1	0302-	●
117	BOLT; STOPPER M14X45	0-20801-445-0	16	1	9905-0301	●	●	●	●
117	BOLT; STOPPER M14X45	0-20801-445-0	16	1	0302-		●	●	●
117	BOLT; STOPPER FSR(FS****) M14X45	0-20801-445-0	16	1	0302-	●
118	NUT; STOPPER FTR(FT****) M14	9-99110-514-0	16	1	0302-0512	●
118	NUT; STOPPER M14	9-99110-414-0	16	1	9905-0301	●	●	●	●
118	NUT; STOPPER M14	9-99110-414-0	16	1	0302-0512		●	●	●
118	NUT; STOPPER FSR(FS****) M14	9-99110-414-0	16	1	0302-0512	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0601-	●	●	●	●
130	MEMBER; CROSS,END FTR(FT****)	1-53181-151-2	01	1	0302-	●
130	MEMBER; CROSS,END	1-53181-469-2	01	1	9905-		●
130	MEMBER; CROSS,END	1-53181-516-2	01	1	9905-0301	●		●	●
130	MEMBER; CROSS,END FSR(FS****)	1-53181-516-2	01	1	0302-	●
130	MEMBER; CROSS,END	1-53181-516-2	01	1	0302-			●	●
131	BOLT; END C/MBR FTR(FT****) M12X30 FLANGE	0-28681-230-0	04	1	0302-0512	●
131	BOLT; END C/MBR FTR(FT****) M12X30 FLANGE	0-28651-230-0	04	1	0601-	●
131	BOLT; END C/MBR M10X25 FLANGE	0-28681-025-0	04	1	9905-0512		●
131	BOLT; END C/MBR M10X25 FLANGE	0-28651-025-0	04	1	0601-		●
131	BOLT; END C/MBR M10X30 FLANGE	0-28681-030-0	04	1	9905-0301	●		●	●
131	BOLT; END C/MBR FSR(FS****) M10X30 FLANGE	0-28681-030-0	04	1	0302-0512	●
131	BOLT; END C/MBR M10X30 FLANGE	0-28681-030-0	04	1	0302-0512			●	●
131	BOLT; END C/MBR FSR(FS****) M10X30 FLANGE	0-28651-030-0	04	1	0601-	●
131	BOLT; END C/MBR M10X30 FLANGE	0-28651-030-0	04	1	0601-			●	●
132	NUT; END C/MBR FTR(FT****) M12 FLANGE	0-91150-112-0	04	1	0302-0602	●
132	NUT; END C/MBR FTR(FT****) M12 FLANGE	0-91180-112-0	04	1	0603-	●
132	NUT; END C/MBR M10 FLANGE	0-91150-110-0	04	1	9905-0301	●	●	●	●
132	NUT; END C/MBR M10 FLANGE	0-91150-110-0	04	1	0302-0602		●	●	●
132	NUT; END C/MBR FSR(FS****) M10 FLANGE	0-91150-110-0	04	1	0302-0602	●
132	NUT; END C/MBR M10 FLANGE	0-91180-110-0	04	1	0603-		●	●	●
132	NUT; END C/MBR FSR(FS****) M10 FLANGE	0-91180-110-0	04	1	0603-	●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	22	1	9905-0301	●	●	●	●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	22	1	0302-0603		●	●	●
138	WASHER; LK,BRKT FSR(FS****) ID=14.2	9-09150-614-0	22	1	0302-0603	●
138	WASHER; LK,BRKT ID=14.2	0-91510-614-0	22	1	0604-		●	●	●
138	WASHER; LK,BRKT FSR(FS****) ID=14.2	0-91510-614-0	22	1	0604-	●
139	MEMBER; CROSS,6TH	1-53181-465-9	01	1	9905-0301	●		●	●
139	MEMBER; CROSS,6TH FSR(FS****)	1-53181-465-9	01	1	0302-	●
139	MEMBER; CROSS,6TH	1-53181-465-9	01	1	0302-			●	●
143	MEMBER; CROSS,7TH	1-53181-465-9	01	1	9905-				●
202	SPACER; 3RD C/MBR FTR(FT****)	1-53168-351-1	02	1	0302-	●
202	SPACER; 3RD C/MBR	1-53178-015-0	02	1	9905-		●		●
207	SPACER; 4TH C/MBR FTR(FT****)	1-53168-163-1	02	1	0302-	●
207	SPACER; 4TH C/MBR T=4.5	1-53168-357-0	02	1	9905-0301	●		●
207	SPACER; 4TH C/MBR FSR(FS****) T=4.5	1-53168-357-0	02	1	0302-	●
207	SPACER; 4TH C/MBR T=4.5	1-53168-357-0	02	1	0302-			●
207	SPACER; 4TH C/MBR T=7.0	1-53168-321-0	02	1	9905-0301	●		●	●
207	SPACER; 4TH C/MBR FSR(FS****) T=7.0	1-53168-321-0	02	1	0302-	●
207	SPACER; 4TH C/MBR T=7.0	1-53168-321-0	02	1	0302-			●	●
256	BRACKET; S/ABS	1-51681-494-0	02	1	9905-		●
344	MEMBER; CROSS,4TH FTR(FT****)	1-53171-953-2	01	1	0302-	●
344	MEMBER; CROSS,4TH	1-53181-520-8	01	1	9905-		●
344	MEMBER; CROSS,4TH	1-53181-604-3	01	1	9905-0301	●		●	●
344	MEMBER; CROSS,4TH FSR(FS****)	1-53181-604-3	01	1	0302-	●
344	MEMBER; CROSS,4TH	1-53181-604-3	01	1	0302-			●	●
345	MEMBER; CROSS,5TH	1-53181-521-3	01	1	9905-		●
345	MEMBER; CROSS,5TH	1-53181-465-9	01	1	9905-0301	●		●
345	MEMBER; CROSS,5TH FSR(FS****)	1-53181-465-9	01	1	0302-	●
345	MEMBER; CROSS,5TH	1-53181-465-9	01	1	0302-			●
345	MEMBER; CROSS,5TH	1-53181-604-3	01	1	9905-				●

132 130 131 207 11 344 13 202 18 207 34 112 82 202 67 97 255 111 416 416 33 2 6 148 124 33 19 89 281 110 282 255 103 106 117 96 129 118 33 46 16 26 128 129 101 25 25 39 25 23 46 23 24 25 82 255 255 106 25 25 26 26 2 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST FTR(FT****)	1-53181-939-2	01	1	0302-	●
2	MEMBER; CROSS,1ST	1-53181-460-9	01	1	9905-0301	●	●	●	●
2	MEMBER; CROSS,1ST	1-53181-460-9	01	1	0302-0407		●	●	●
2	MEMBER; CROSS,1ST FSR(FS****)	1-53181-460-9	01	1	0302-0407	●
2	MEMBER; CROSS,1ST	1-53181-892-4	01	1	0408-		●	●	●
2	MEMBER; CROSS,1ST FSR(FS****)	1-53181-892-4	01	1	0408-	●
6	WASHER; LK,1ST C/MBR FTR(FT****) ID=16.2	9-09150-616-0	02	1	0302-0603	●
6	WASHER; LK,1ST C/MBR FTR(FT****) ID=16.2	0-91510-616-0	02	1	0604-	●
11	BRACKET; ENG MTG FTR(FT****)	1-53211-196-0	02	1	0302-	●
11	BRACKET; ENG MTG	1-53211-195-0	02	1	9905-		●
11	BRACKET; ENG MTG	1-53211-197-0	02	1	9905-0301	●		●	●
11	BRACKET; ENG MTG FSR(FS****)	1-53211-197-0	02	1	0302-	●
11	BRACKET; ENG MTG	1-53211-197-0	02	1	0302-			●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28691-235-0	08	1	9905-0301		●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28691-235-0	08	1	0302-0512		●
13	BOLT; BRKT,ENG MTG FTR(FT****) M12X35 FLANGE	0-28691-235-0	08	1	0302-0512	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0601-		●
13	BOLT; BRKT,ENG MTG FTR(FT****) M12X35 FLANGE	0-28661-235-0	08	1	0601-	●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE	0-28691-240-0	08	1	9905-0301	●		●	●
13	BOLT; BRKT,ENG MTG FSR(FS****) M12X40 FLANGE	0-28691-240-0	08	1	0302-0512	●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE	0-28691-240-0	08	1	0302-0512			●	●
13	BOLT; BRKT,ENG MTG FSR(FS****) M12X40 FLANGE	0-28661-240-0	08	1	0601-	●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE	0-28661-240-0	08	1	0601-			●	●
16	BOLT; 1ST C/MBR TO S/MBR FTR(FT****) M16X40	0-20801-640-0	02	1	0302-0512	●
16	BOLT; 1ST C/MBR TO S/MBR FTR(FT****) M16X40	0-20851-640-0	02	1	0601-	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91150-212-0	08	1	9905-0602	●	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0603-	●	●	●	●
19	MEMBER; CROSS,2ND FTR(FT****)	1-53181-671-9	01	1	0302-0410	●
19	MEMBER; CROSS,2ND FTR(FT****)	8-97606-306-0	01	1	0411-	●
19	MEMBER; CROSS,2ND	1-53181-852-8	01	1	9905-		●
19	MEMBER; CROSS,2ND	1-53181-661-9	01	1	9905-0301	●		●	●
19	MEMBER; CROSS,2ND FSR(FS****)	1-53181-661-9	01	1	0302-0511	●
19	MEMBER; CROSS,2ND	1-53181-661-9	01	1	0302-0511			●	●
19	MEMBER; CROSS,2ND FSR(FS****)	8-97611-712-0	01	1	0512-	●
19	MEMBER; CROSS,2ND	8-97611-712-0	01	1	0512-			●	●
23	BOLT; BRKT,SPR FTR(FT****) (C) M14X45	9-92061-445-0	06	1	0302-	●
23	BOLT; BRKT,SPR FTR(FT****) (D) M16X50	9-92061-650-0	04	1	0302-0512	●
23	BOLT; BRKT,SPR FTR(FT****) (D) M16X50	0-20951-650-0	04	1	0601-	●
23	BOLT; BRKT,SPR (A) M14X40	9-92061-440-0	08	1	9905-0512		●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	08	1	0601-		●
23	BOLT; BRKT,SPR (E) M14X50	9-91066-450-0	08	1	9905-0301	●		●	●
23	BOLT; BRKT,SPR FSR(FS****) (E) M14X50	9-91066-450-0	08	1	0302-0512	●
23	BOLT; BRKT,SPR (E) M14X50	9-91066-450-0	08	1	0302-0512			●	●
23	BOLT; BRKT,SPR FSR(FS****) (E) M14X50	0-10956-450-0	08	1	0601-	●
23	BOLT; BRKT,SPR (E) M14X50	0-10956-450-0	08	1	0601-			●	●
23	BOLT; BRKT,SPR (B) M16X60	9-91066-660-0	04	1	9905-0301	●		●	●
23	BOLT; BRKT,SPR FSR(FS****) (B) M16X60	9-91066-660-0	04	1	0302-0512	●
23	BOLT; BRKT,SPR (B) M16X60	9-91066-660-0	04	1	0302-0512			●	●
23	BOLT; BRKT,SPR FSR(FS****) (B) M16X60	0-10956-660-0	04	1	0601-	●
23	BOLT; BRKT,SPR (B) M16X60	0-10956-660-0	04	1	0601-			●	●
24	BRACKET; FRT SPR,FRT FTR(FT****)	1-53351-148-3	01	1	0302-	●
24	BRACKET; FRT SPR,FRT FTR(FT****)	1-53351-149-3	01	1	0302-	●
24	BRACKET; FRT SPR,FRT	1-53351-234-0	01	1	9905-		●
24	BRACKET; FRT SPR,FRT	1-53351-233-0	01	1	9905-		●
24	BRACKET; FRT SPR,FRT	1-53351-115-6	02	1	9905-0301	●		●	●
24	BRACKET; FRT SPR,FRT FSR(FS****)	1-53351-115-6	02	1	0302-	●
24	BRACKET; FRT SPR,FRT	1-53351-115-6	02	1	0302-			●	●
25	WASHER; PL,BRKT FTR(FT****) ID=15	9-09651-069-0	28	1	0302-	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	16	1	9905-0301	●	●	●	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	16	1	0302-		●	●	●
25	WASHER; PL,BRKT FSR(FS****) ID=15	9-09651-069-0	16	1	0302-	●
25	WASHER; PL,BRKT ID=16.2	1-09503-223-0	08	1	9905-	●		●	●
26	NUT; BRKT,SPR FTR(FT****) M14	9-99110-514-0	14	1	0302-0512	●
26	NUT; BRKT,SPR FTR(FT****) M14	0-91110-514-0	14	1	0601-	●
26	NUT; BRKT,SPR M14	9-99110-514-0	08	1	9905-0301	●	●	●	●
26	NUT; BRKT,SPR M14	9-99110-514-0	08	1	0302-0512		●	●	●
26	NUT; BRKT,SPR FSR(FS****) M14	9-99110-514-0	08	1	0302-0512	●
26	NUT; BRKT,SPR M14	0-91110-514-0	08	1	0601-		●	●	●
26	NUT; BRKT,SPR FSR(FS****) M14	0-91110-514-0	08	1	0601-	●
26	NUT; BRKT,SPR M16	9-99110-516-0	04	1	9905-0512	●		●	●
26	NUT; BRKT,SPR M16	0-91110-516-0	04	1	0601-	●		●	●
33	SPACER; 2ND C/MBR,UPR FTR(FT****) (A)	1-53168-276-0	02	1	0302-	●
33	SPACER; 2ND C/MBR,UPR FTR(FT****) (B)	1-53168-287-0	02	1	0302-	●
34	MEMBER; CROSS,3RD FTR(FT****) (C)	1-53174-231-1	01	1	0302-	●
34	MEMBER; CROSS,3RD (A)	1-53175-358-1	01	1	9905-0301	●	●	●	●
34	MEMBER; CROSS,3RD (A)	1-53175-358-1	01	1	0302-		●	●	●
34	MEMBER; CROSS,3RD FSR(FS****) (A)	1-53175-358-1	01	1	0302-	●
34	MEMBER; CROSS,3RD (B)	1-53175-360-1	01	1	9905-		●		●
34	MEMBER; CROSS,3RD (B)	1-53175-359-1	01	1	9905-0301	●		●
34	MEMBER; CROSS,3RD FSR(FS****) (B)	1-53175-359-1	01	1	0302-	●
34	MEMBER; CROSS,3RD (B)	1-53175-359-1	01	1	0302-			●
39	BRACKET; FRT SPR,RR FTR(FT****)	1-53352-124-2	01	1	0302-	●
39	BRACKET; FRT SPR,RR FTR(FT****)	1-53352-125-2	01	1	0302-	●
39	BRACKET; FRT SPR,RR	1-53352-154-2	02	1	9905-		●
39	BRACKET; FRT SPR,RR	1-53352-052-1	02	1	9905-0301	●		●	●
39	BRACKET; FRT SPR,RR FSR(FS****)	1-53352-052-1	02	1	0302-	●
39	BRACKET; FRT SPR,RR	1-53352-052-1	02	1	0302-			●	●
46	BOLT; BRKT FIX FTR(FT****) M14X40	9-92061-440-0	08	1	0302-0512	●
46	BOLT; BRKT FIX FTR(FT****) M14X40	0-20951-440-0	08	1	0601-	●
67	NUT; C/MBR FTR(FT****) M16	9-99110-516-0	02	1	0302-0512	●
67	NUT; C/MBR FTR(FT****) M16	0-91110-516-0	02	1	0601-	●
82	NUT; BRKT FTR(FT****) M14	9-99110-514-0	24	1	0302-0512	●
82	NUT; BRKT FTR(FT****) M14	0-91110-514-0	24	1	0601-	●
82	NUT; BRKT M14	9-99110-414-0	22	1	9905-0301	●	●	●	●
82	NUT; BRKT M14	9-99110-414-0	22	1	0302-0512		●	●	●
82	NUT; BRKT FSR(FS****) M14	9-99110-414-0	22	1	0302-0512	●
82	NUT; BRKT M14	0-91110-514-0	22	1	0601-		●	●	●
82	NUT; BRKT FSR(FS****) M14	0-91110-514-0	22	1	0601-	●
89	NUT; LEAF SPR STOPPER FTR(FT****) M14	9-99116-414-0	02	1	0302-0604	●
89	NUT; LEAF SPR STOPPER FTR(FT****) M14 SLOTTED	0-91116-514-0	02	1	0605-	●
96	PAD; RR SPR FTR(FT****)	1-53359-047-0	02	1	0302-	●
97	WASHER; LK,PAD FTR(FT****) ID=14.2	9-09150-514-0	04	1	0302-0603	●
97	WASHER; LK,PAD FTR(FT****) ID=14.2	0-91510-514-0	04	1	0604-	●
101	BRACKET; RR SPR,FRT FTR(FT****)	1-53353-078-1	02	1	0302-	●
101	BRACKET; RR SPR,FRT	1-53353-090-4	02	1	9905-0301	●	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-090-4	02	1	0302-		●	●	●
101	BRACKET; RR SPR,FRT FSR(FS****)	1-53353-090-4	02	1	0302-	●
103	STOPPER; SUB SPR FTR(FT****)	1-53356-057-0	04	1	0302-	●
103	STOPPER; SUB SPR	1-53356-059-1	04	1	9905-0301	●	●	●	●
103	STOPPER; SUB SPR	1-53356-059-1	04	1	0302-		●	●	●
103	STOPPER; SUB SPR FSR(FS****)	1-53356-059-1	04	1	0302-	●
105	BRACKET; RR SPR,RR FTR(FT****)	1-53354-064-1	02	1	0302-	●
105	BRACKET; RR SPR,RR	1-53354-074-0	02	1	9905-0301	●	●	●	●
105	BRACKET; RR SPR,RR	1-53354-074-0	02	1	0302-		●	●	●
105	BRACKET; RR SPR,RR FSR(FS****)	1-53354-074-0	02	1	0302-	●
106	BOLT; BRKT FTR(FT****) M14X45	9-92061-445-0	24	1	0302-	●
106	BOLT; BRKT M14X40	0-20801-440-0	22	1	9905-0301	●	●	●	●
106	BOLT; BRKT M14X40	0-20801-440-0	22	1	0302-0512		●	●	●
106	BOLT; BRKT FSR(FS****) M14X40	0-20801-440-0	22	1	0302-0512	●
106	BOLT; BRKT M14X40	0-20851-440-0	22	1	0601-		●	●	●
106	BOLT; BRKT FSR(FS****) M14X40	0-20851-440-0	22	1	0601-	●
110	BOLT; LEAF SPR STOPPER FTR(FT****)	1-09000-007-0	02	1	0302-	●
111	PIN; SPLIT,LEAF SPR STOPPER FTR(FT****) OD=2.8 L=28	9-08113-028-0	02	1	0302-0606	●
111	PIN; SPLIT,LEAF SPR STOPPER FTR(FT****) OD=2.8 L=28	0-81123-028-0	02	1	0607-	●
112	BOLT; PAD FTR(FT****) M14X35	0-20801-435-0	04	1	0302-0512	●
112	BOLT; PAD FTR(FT****) M14X35	0-20851-435-0	04	1	0601-	●
117	BOLT; STOPPER FTR(FT****) M14X45	9-92061-445-0	16	1	0302-	●
117	BOLT; STOPPER M14X45	0-20801-445-0	16	1	9905-0301	●	●	●	●
117	BOLT; STOPPER M14X45	0-20801-445-0	16	1	0302-		●	●	●
117	BOLT; STOPPER FSR(FS****) M14X45	0-20801-445-0	16	1	0302-	●
118	NUT; STOPPER FTR(FT****) M14	9-99110-514-0	16	1	0302-0512	●
118	NUT; STOPPER M14	9-99110-414-0	16	1	9905-0301	●	●	●	●
118	NUT; STOPPER M14	9-99110-414-0	16	1	0302-0512		●	●	●
118	NUT; STOPPER FSR(FS****) M14	9-99110-414-0	16	1	0302-0512	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0601-	●	●	●	●
124	NIPPLE; GREASE FTR(FT****) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0302-0512	●
124	NIPPLE; GREASE FTR(FT****) PT1/8 ELBOW 67.5?	0-90301-510-0	02	1	0601-	●
128	COLLAR; RUBBER FTR(FT****)	1-53359-004-0	02	1	0302-	●
129	SHIM; SIDE FTR(FT****) T=4.5	1-53359-061-1	02	1	0302-	●
129	SHIM; SIDE FTR(FT****) T=3.2	1-53359-062-1	02	1	0302-	●
130	MEMBER; CROSS,END FTR(FT****)	1-53181-151-2	01	1	0302-	●
130	MEMBER; CROSS,END	1-53181-469-2	01	1	9905-		●
130	MEMBER; CROSS,END	1-53181-516-2	01	1	9905-0301	●		●	●
130	MEMBER; CROSS,END FSR(FS****)	1-53181-516-2	01	1	0302-	●
130	MEMBER; CROSS,END	1-53181-516-2	01	1	0302-			●	●
131	BOLT; END C/MBR FTR(FT****) M12X30 FLANGE	0-28681-230-0	04	1	0302-0512	●
131	BOLT; END C/MBR FTR(FT****) M12X30 FLANGE	0-28651-230-0	04	1	0601-	●
131	BOLT; END C/MBR M10X25 FLANGE	0-28681-025-0	04	1	9905-0512		●
131	BOLT; END C/MBR M10X25 FLANGE	0-28651-025-0	04	1	0601-		●
131	BOLT; END C/MBR M10X30 FLANGE	0-28681-030-0	04	1	9905-0301	●		●	●
131	BOLT; END C/MBR FSR(FS****) M10X30 FLANGE	0-28681-030-0	04	1	0302-0512	●
131	BOLT; END C/MBR M10X30 FLANGE	0-28681-030-0	04	1	0302-0512			●	●
131	BOLT; END C/MBR FSR(FS****) M10X30 FLANGE	0-28651-030-0	04	1	0601-	●
131	BOLT; END C/MBR M10X30 FLANGE	0-28651-030-0	04	1	0601-			●	●
132	NUT; END C/MBR FTR(FT****) M12 FLANGE	0-91150-112-0	04	1	0302-0602	●
132	NUT; END C/MBR FTR(FT****) M12 FLANGE	0-91180-112-0	04	1	0603-	●
132	NUT; END C/MBR M10 FLANGE	0-91150-110-0	04	1	9905-0301	●	●	●	●
132	NUT; END C/MBR M10 FLANGE	0-91150-110-0	04	1	0302-0602		●	●	●
132	NUT; END C/MBR FSR(FS****) M10 FLANGE	0-91150-110-0	04	1	0302-0602	●
132	NUT; END C/MBR M10 FLANGE	0-91180-110-0	04	1	0603-		●	●	●
132	NUT; END C/MBR FSR(FS****) M10 FLANGE	0-91180-110-0	04	1	0603-	●
148	SPACER; C/MBR FTR(FT****)	1-53168-341-0	02	1	0302-	●
202	SPACER; 3RD C/MBR FTR(FT****)	1-53168-351-1	02	1	0302-	●
202	SPACER; 3RD C/MBR	1-53178-015-0	02	1	9905-		●		●
207	SPACER; 4TH C/MBR FTR(FT****)	1-53168-163-1	02	1	0302-	●
207	SPACER; 4TH C/MBR T=4.5	1-53168-357-0	02	1	9905-0301	●		●
207	SPACER; 4TH C/MBR FSR(FS****) T=4.5	1-53168-357-0	02	1	0302-	●
207	SPACER; 4TH C/MBR T=4.5	1-53168-357-0	02	1	0302-			●
207	SPACER; 4TH C/MBR T=7.0	1-53168-321-0	02	1	9905-0301	●		●	●
207	SPACER; 4TH C/MBR FSR(FS****) T=7.0	1-53168-321-0	02	1	0302-	●
207	SPACER; 4TH C/MBR T=7.0	1-53168-321-0	02	1	0302-			●	●
255	WASHER; PL,BRKT FTR(FT****) ID=15	9-09651-069-0	48	1	0302-	●
281	WASHER; LEAF SPR STOPPER FTR(FT****) ID=15 OD=30	9-09160-614-0	04	1	0302-	●
282	WASHER; PL,STOPPER FTR(FT****) ID=15	9-09651-069-0	16	1	0302-	●
344	MEMBER; CROSS,4TH FTR(FT****)	1-53171-953-2	01	1	0302-	●
344	MEMBER; CROSS,4TH	1-53181-520-8	01	1	9905-		●
344	MEMBER; CROSS,4TH	1-53181-604-3	01	1	9905-0301	●		●	●
344	MEMBER; CROSS,4TH FSR(FS****)	1-53181-604-3	01	1	0302-	●
344	MEMBER; CROSS,4TH	1-53181-604-3	01	1	0302-			●	●
416	GUSSET; 3RD C/MBR FTR(FT****)	1-53164-213-0	01	1	0302-	●
416	GUSSET; 3RD C/MBR FTR(FT****)	1-53164-214-0	01	1	0302-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
