◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51353 - QKR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#78784) — 38 parça

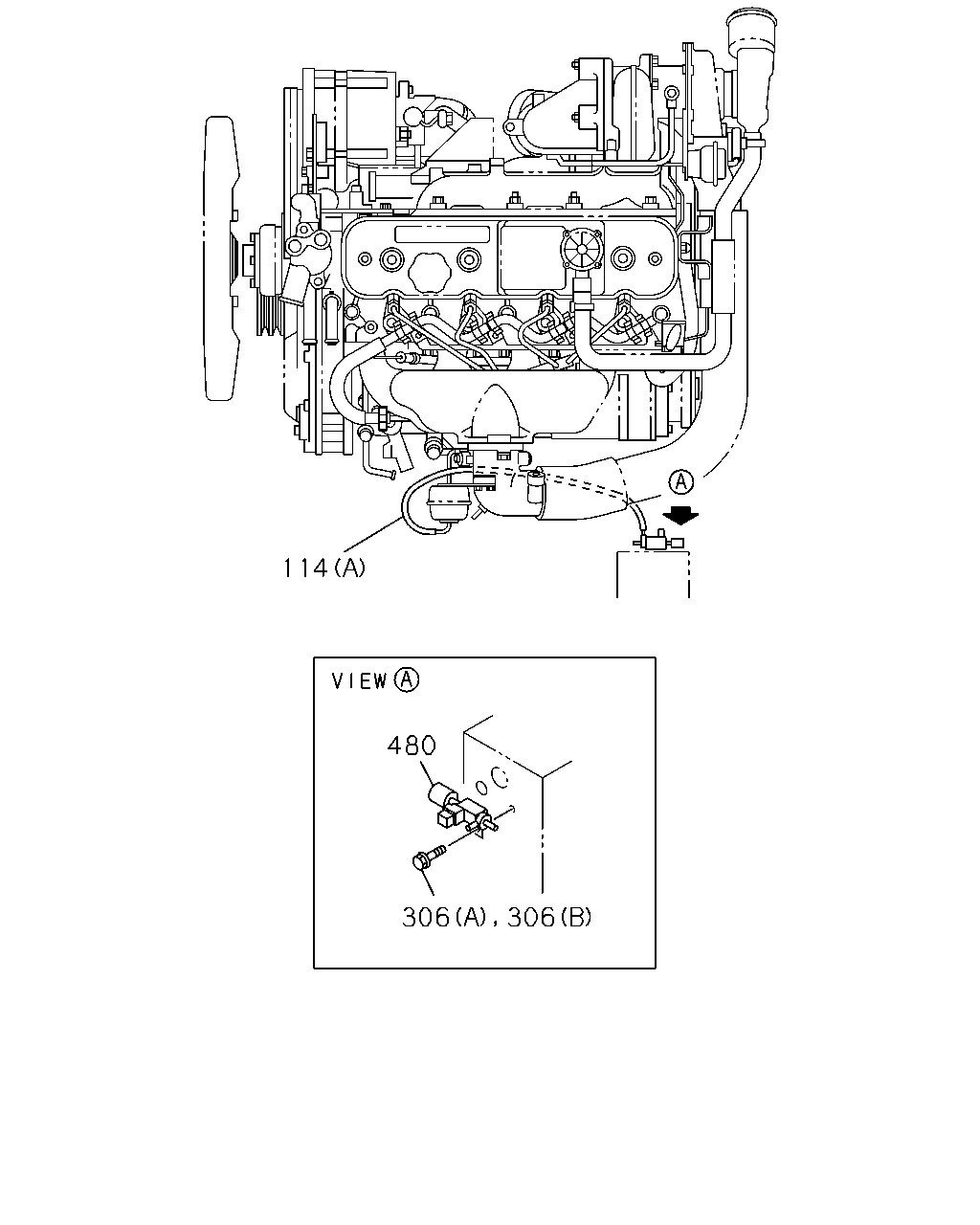

çizim 39878
114 480 306 306
BalonParca AdiParca NoAdetTipApplied Date A B
114 03.265 HOSE; VAC,INT THROTTLE
(A) L=403 		8-97228-401-0 01 1 1011-1011 ●
114 03.265 HOSE; VAC,INT THROTTLE
(A) L=433 		8-98089-751-1 01 1 1012- ●
114 03.265 HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> (B) L=1320 		8-97227-211-0 01 1 1011- ●
306 03.265 BOLT; VLV
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1011- ●
306 03.265 BOLT; VLV
03.680 (B) M5X10 W/LK+PL WASHER 		0-36230-510-0 01 1 1011- ●
480 03.314 VALVE ASM; VAC SW
03.670 		8-94144-597-1 01 1 1011- ●
çizim 39984
27 1 184 7 27 53 20 23 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.265 MANIFOLD; INL 8-98156-575-0 01 1 1011- ●
1 03.265 MANIFOLD; INL 8-97107-744-1 01 1 1011- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97301-838-1 01 1 1011- ● ●
13 03.275 BOLT; INL MANIF
09.008 M8X25 W/LK WASHER 		0-50540-825-0 05 1 1011- ●
13 03.275 BOLT; INL MANIF
09.171 M8X30 W/LK WASHER 		0-50540-830-0 01 1 1011- ●
13 03.275 BOLT; INL MANIF
09.008 M8X25 W/LK WASHER 		0-50540-825-0 06 1 1011- ●
20 03.275 NUT; INL MANIF
04.634 M8 FLANGE 		8-97581-233-0 02 1 1011- ● ●
23 03.275 WASHER; PL,INL MANIF
02.277 ID=8.4 OD=22 		0-91614-708-0 01 1 1011- ● ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> M8X25 L=37 		0-41010-825-0 01 1 1011- ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 01 1 1011- ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 M8X35 L=46 		9-09630-034-1 01 1 1011- ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 1011- ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4> M8X25 L=37 		0-41010-825-0 02 1 1011- ●
53 03.602 BOLT; INL PIPE
02.042 M10X25 FLANGE 		0-28151-025-0 02 1 1011- ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.406 		8-97035-883-1 01 1 1011- ●
çizim 191442
1 27 7 27 23 20 13 407 114
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.265 MANIFOLD; INL 8-98156-575-0 01 1 1011- ●
1 03.265 MANIFOLD; INL 8-97107-744-1 01 1 1011- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97301-838-1 01 1 1011- ● ●
13 03.275 BOLT; INL MANIF
09.008 M8X25 W/LK WASHER 		0-50540-825-0 05 1 1011- ●
13 03.275 BOLT; INL MANIF
09.171 M8X30 W/LK WASHER 		0-50540-830-0 01 1 1011- ●
13 03.275 BOLT; INL MANIF
09.008 M8X25 W/LK WASHER 		0-50540-825-0 06 1 1011- ●
20 03.275 NUT; INL MANIF
04.634 M8 FLANGE 		8-97581-233-0 02 1 1011- ● ●
23 03.275 WASHER; PL,INL MANIF
02.277 ID=8.4 OD=22 		0-91614-708-0 01 1 1011- ● ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> M8X25 L=37 		0-41010-825-0 01 1 1011- ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 01 1 1011- ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 M8X35 L=46 		9-09630-034-1 01 1 1011- ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 1011- ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4> M8X25 L=37 		0-41010-825-0 02 1 1011- ●
114 03.265 HOSE; VAC,INT THROTTLE
(A) L=403 		8-97228-401-0 01 1 1011-1011 ●
114 03.265 HOSE; VAC,INT THROTTLE
(A) L=433 		8-98089-751-1 01 1 1012- ●
114 03.265 HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> (B) L=1320 		8-97227-211-0 01 1 1011- ●
407 03.265 PIPE; INL,REAR
EXC. EXHAUST BRAKE<NF8> 		8-94152-318-0 01 1 1011- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
