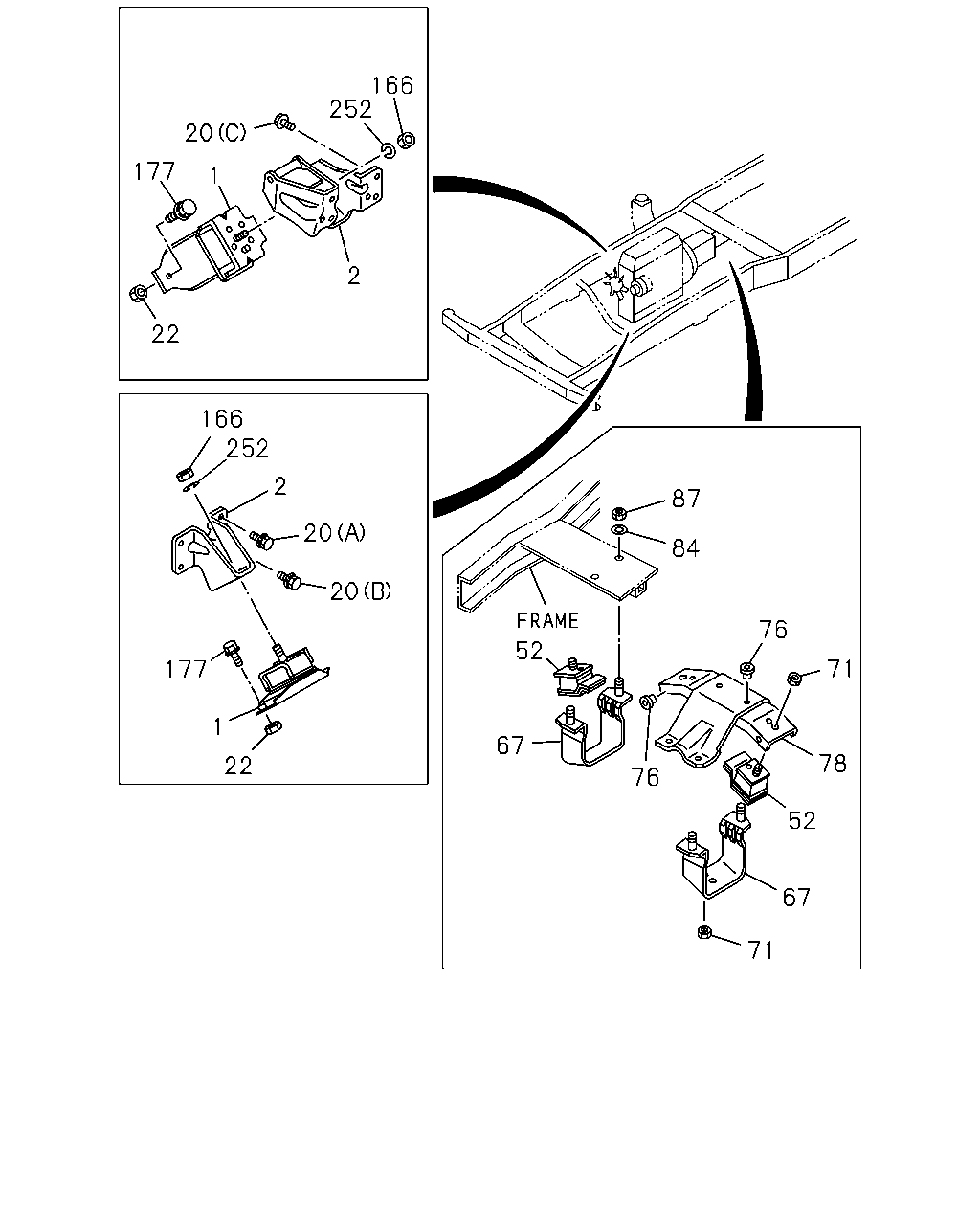

0-22 — ENGINE MOUNTING (#78783) — 27 parça

166 252 2 20 177 22 1 166 2 252 20 20 177 1 22 87 84 52 67 76 52 71 76 78 67 71 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	1011-	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	1011-	●	●
2	00.029 FOOT; ENG	8-97287-639-2	01	1	1011-	●	●
2	00.029 FOOT; ENG	8-97300-156-0	01	1	1011-	●	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	02	1	1011-		●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	1011-	●
20	00.029 BOLT; ENG FOOT (B) M14X25 W/LK WASHER	0-50541-425-0	01	1	1011-	●	●
20	00.029 BOLT; ENG FOOT (A) M10X22 W/LK WASHER	0-50541-022-0	05	1	1011-	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> (A) M10X22 W/LK WASHER	0-50541-022-0	02	1	1011-		●
20	00.029 BOLT; ENG FOOT (A) M10X22 W/LK WASHER	0-50541-022-0	03	1	1011-		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> (A) M10X22 W/LK WASHER	0-50541-022-0	03	1	1011-		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	01	1	1011-		●
22	00.002 NUT; CUSHION RUBBER TO BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	1011-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-1	02	1	1011-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	1011-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	1011-	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	1011-	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027	8-94111-904-0	02	1	1011-	●	●
78	00.029 BRACKET; ENG MTG,RR	8-94133-393-2	01	1	1011-	●	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.2	0-91510-610-0	04	1	1011-	●	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=22	0-91614-610-0	02	1	1011-	●	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	1011-	●	●
87	00.029 NUT; ENG MTG RR 00.833 M10	0-91110-510-0	04	1	1011-	●	●
87	00.029 NUT; ENG MTG RR 03.162 M10 FLANGE	0-91180-110-0	04	1	1011-	●	●
166	00.002 NUT; SUPPORT RUBBER 05.002 M12	0-91110-512-0	02	1	1011-	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	1011-	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	1011-	●	●
