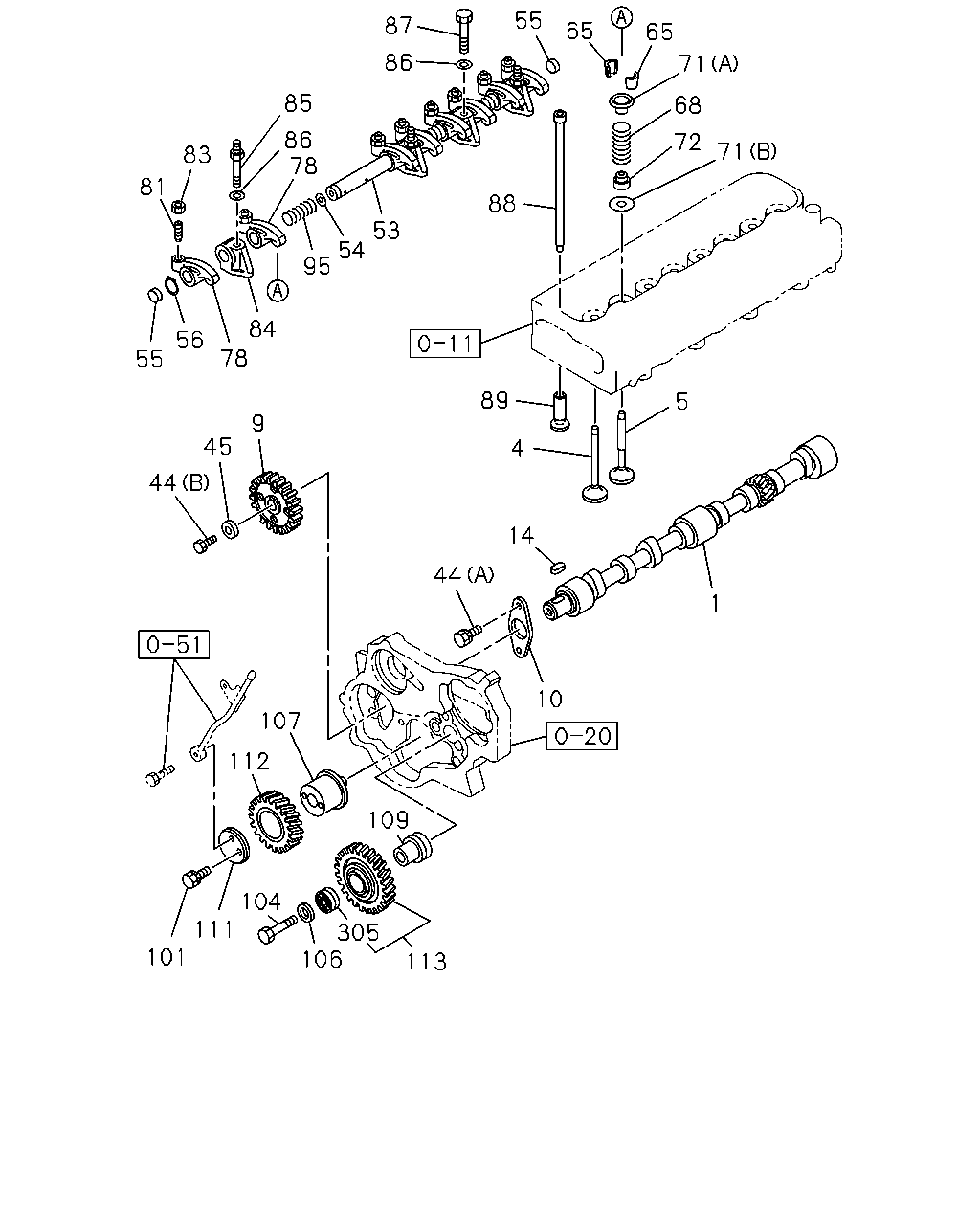

0-14 — CAMSHAFT AND VALVE (#78780) — 46 parça

87 85 83 81 86 86 55 65 65 71 68 88 5 1 14 44 4 89 10 109 107 112 104 305 113 106 44 45 9 55 56 84 95 54 53 72 71 78 78 111 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.519 CAMSHAFT	8-97287-657-1	01	1	1011-	●	●
4	00.296 VALVE; INL	8-94464-921-2	04	1	1011-	●
4	00.296 VALVE; INL	8-94133-275-2	04	1	1011-		●
5	00.297 VALVE; EXH	8-94433-245-1	04	1	1011-1405	●
5	00.297 VALVE; EXH	8-98277-383-0	04	1	1406-	●
5	00.297 VALVE; EXH	8-94247-875-2	04	1	1011-		●
9	00.736 GEAR; CM/SHF Z=42	8-97229-594-2	01	1	1011-	●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-1	01	1	1011-		●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	1011-	●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	1011-	●	●
44	00.738 BOLT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1011-	●	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	1011-	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	1011-	●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	1011-	●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	1011-	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	1011-	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	1011-	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	1011-	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	1011-	●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	1011-	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	1011-	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	1011-	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	1011-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	1011-	●	●
83	00.787 NUT; ADJ SCREW,LK 00.777 M8	0-91111-508-0	08	1	1011-	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	1011-	●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	1011-	●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	1011-	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	1011-	●	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	1011-	●	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	1011-	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	1011-	●	●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	1011-	●	●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	1011-	●	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	1011-	●	●
107	00.724 SHAFT; IDLE GEAR	8-97920-007-0	01	1	1011-	●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	1011-		●
109	00.724 SHAFT; IDLE GEAR	8-97218-780-0	01	1	1011-	●
109	00.724 SHAFT; IDLE GEAR	8-94109-913-1	01	1	1011-		●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	1011-	●	●
112	00.724 GEAR; IDLE Z=31	8-97229-601-0	01	1	1011-	●
112	00.724 GEAR; IDLE Z=31	8-97164-773-0	01	1	1011-		●
113	00.724 GEAR; IDLE Z=37	8-98140-217-0	01	1	1011-	●
113	00.724 GEAR; IDLE Z=37	8-94139-761-0	01	1	1011-		●
305	00.724 BEARING; IDLE GEAR	8-98140-110-0	01	1	1011-	●
305	00.724 BEARING; IDLE GEAR	8-94110-271-0	01	1	1011-		●
