4-80 — ROAD WHEEL (#7878) — 76 parça

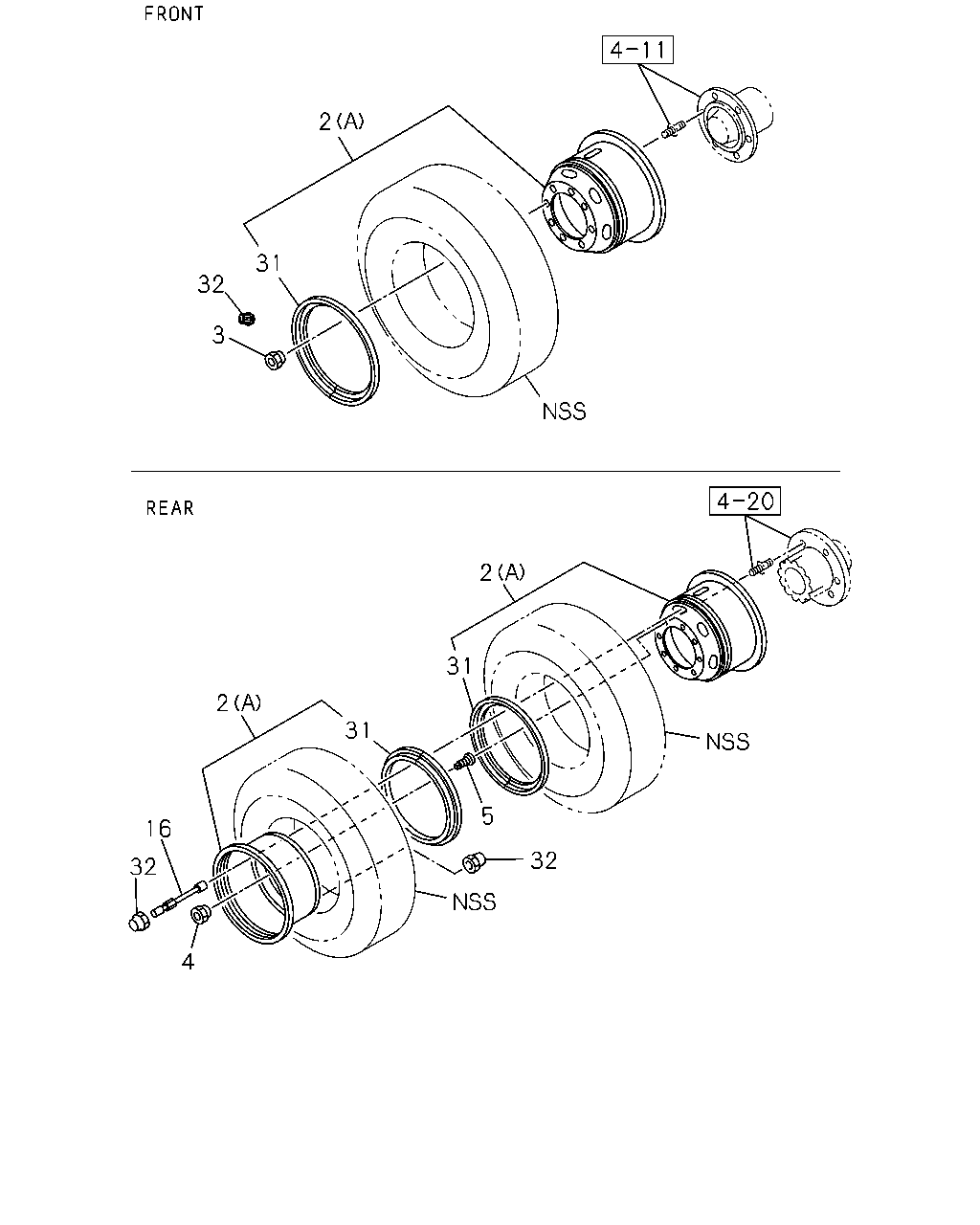

2 31 32 3 2 31 2 31 5 16 32 32 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	WHEEL; DISC DISC WHL 8STUD 22.5X7.50 162-12(QM2) (B)	1-42350-429-2	07	1	0302-	●
2	WHEEL; DISC DISC WHL 8STUD 20X7.00T 162-12(Q54) (A)	1-42350-478-0	07	1	0302-	●
2	WHEEL; DISC DISC WHL 6STUD 16X6.00GS 135-9(SG7) (A)	1-42350-417-0	07	1	9905-		●
2	WHEEL; DISC (A)	1-42350-302-2	07	1	9905-0203			●
2	WHEEL; DISC (A)	1-42350-641-0	07	1	0204-			●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	06	1	9905-		●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	06	1	9905-		●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-0	08	1	9905-0301			●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	0302-	●		●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-0	08	1	9905-0301			●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	0302-	●		●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	06	1	9905-0610		●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	0611-		●
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	06	1	9905-0610		●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	0611-		●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	08	1	9905-0301			●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	08	1	0302-0610	●		●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	0611-	●		●
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	08	1	9905-0301			●
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	08	1	0302-0610	●		●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	0611-	●		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-1	06	1	9905-0610		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	0611-		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-1	06	1	9905-0610		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	0611-		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-0	08	1	9905-0301			●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-1	08	1	0302-0610	●		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	0611-	●		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-0	08	1	9905-0301			●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-1	08	1	0302-0610	●		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	0611-	●		●
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHL 8STUD 22.5X7.50 162-12(QM2) L=170	1-42370-024-0	02	1	0302-	●
16	HOLDER; TIRE VALVE,DISC WHEEL L=115	1-42370-015-2	02	1	9905-		●	●
31	RING; SIDE,DISC WHEEL DISC WHL 8STUD 20X7.00T 162-12(Q54)	1-42355-003-1	07	1	0302-	●
31	RING; SIDE,DISC WHEEL	1-42355-012-1	07	1	9905-			●
31	RING; SIDE,DISC WHEEL DISC WHL 6STUD 16X6.00GS 135-9(SG7) 16X6.00GS STAMP, BLACK	1-42355-015-2	07	1	9905-		●
32	CAP; VALVE	1-42374-001-0	05	1	9905-0301		●	●
32	CAP; VALVE	1-42374-001-0	05	1	0302-		●	●
32	CAP; VALVE DISC WHL 8STUD 22.5X7.50 162-12(QM2)	1-42374-001-0	05	1	0302-	●

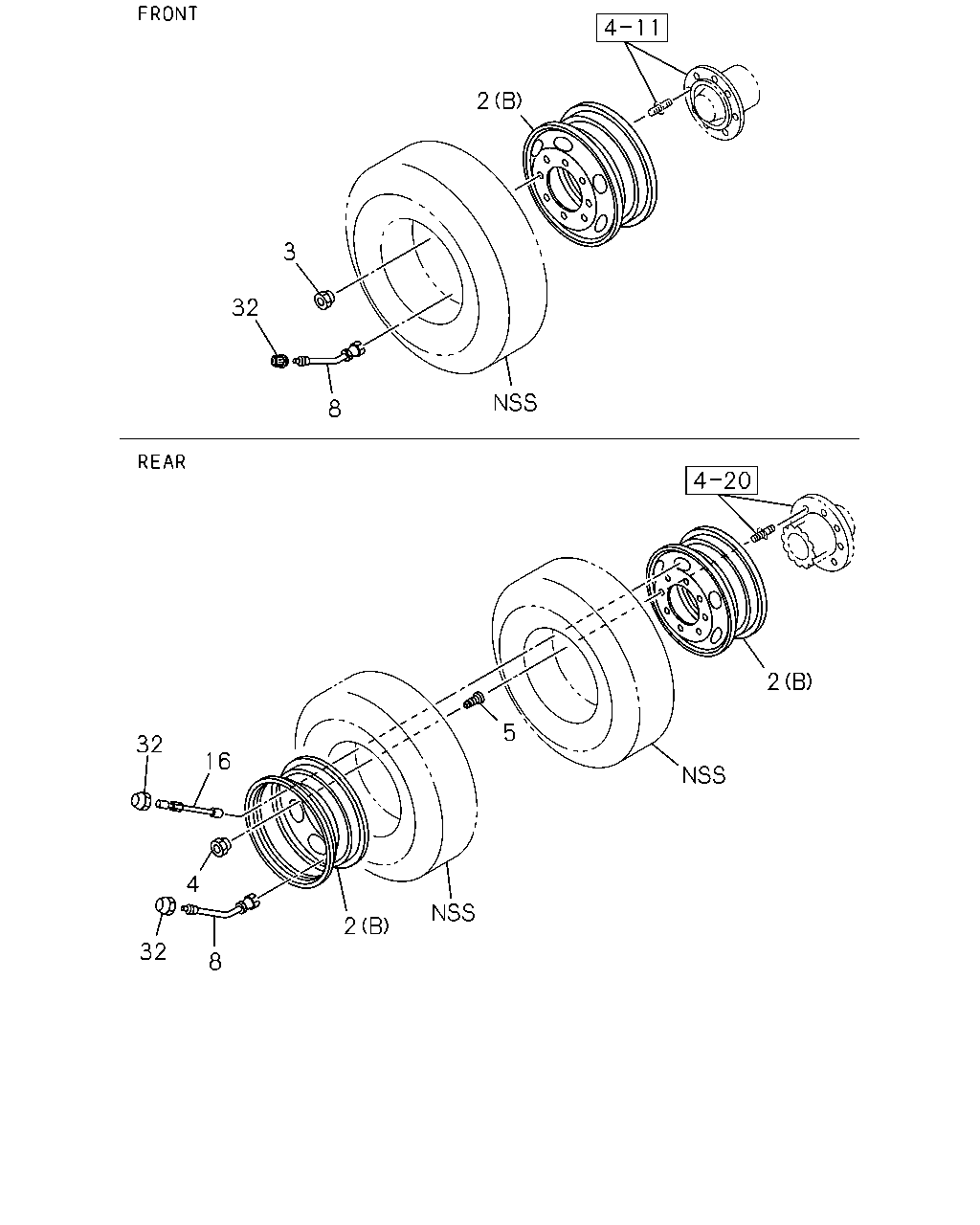

2 3 32 8 2 5 32 16 4 2 32 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	WHEEL; DISC DISC WHL 8STUD 22.5X7.50 162-12(QM2) (B)	1-42350-429-2	07	1	0302-	●
2	WHEEL; DISC DISC WHL 8STUD 20X7.00T 162-12(Q54) (A)	1-42350-478-0	07	1	0302-	●
2	WHEEL; DISC DISC WHL 6STUD 16X6.00GS 135-9(SG7) (A)	1-42350-417-0	07	1	9905-		●
2	WHEEL; DISC (A)	1-42350-302-2	07	1	9905-0203			●
2	WHEEL; DISC (A)	1-42350-641-0	07	1	0204-			●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	06	1	9905-		●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	06	1	9905-		●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-0	08	1	9905-0301			●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	0302-	●		●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-0	08	1	9905-0301			●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	0302-	●		●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	06	1	9905-0610		●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	0611-		●
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	06	1	9905-0610		●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	0611-		●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	08	1	9905-0301			●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	08	1	0302-0610	●		●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	0611-	●		●
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	08	1	9905-0301			●
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	08	1	0302-0610	●		●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	0611-	●		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-1	06	1	9905-0610		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	0611-		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-1	06	1	9905-0610		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	0611-		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-0	08	1	9905-0301			●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-1	08	1	0302-0610	●		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	0611-	●		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-0	08	1	9905-0301			●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-1	08	1	0302-0610	●		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	0611-	●		●
8	VALVE; TIRE DISC WHL 8STUD 22.5X7.50 162-12(QM2)	1-42370-020-3	07	1	0302-	●
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHL 8STUD 22.5X7.50 162-12(QM2) L=170	1-42370-024-0	02	1	0302-	●
16	HOLDER; TIRE VALVE,DISC WHEEL L=115	1-42370-015-2	02	1	9905-		●	●
32	CAP; VALVE	1-42374-001-0	05	1	9905-0301		●	●
32	CAP; VALVE	1-42374-001-0	05	1	0302-		●	●
32	CAP; VALVE DISC WHL 8STUD 22.5X7.50 162-12(QM2)	1-42374-001-0	05	1	0302-	●
