0-10 — CYLINDER HEAD COVER (#78776) — 26 parça

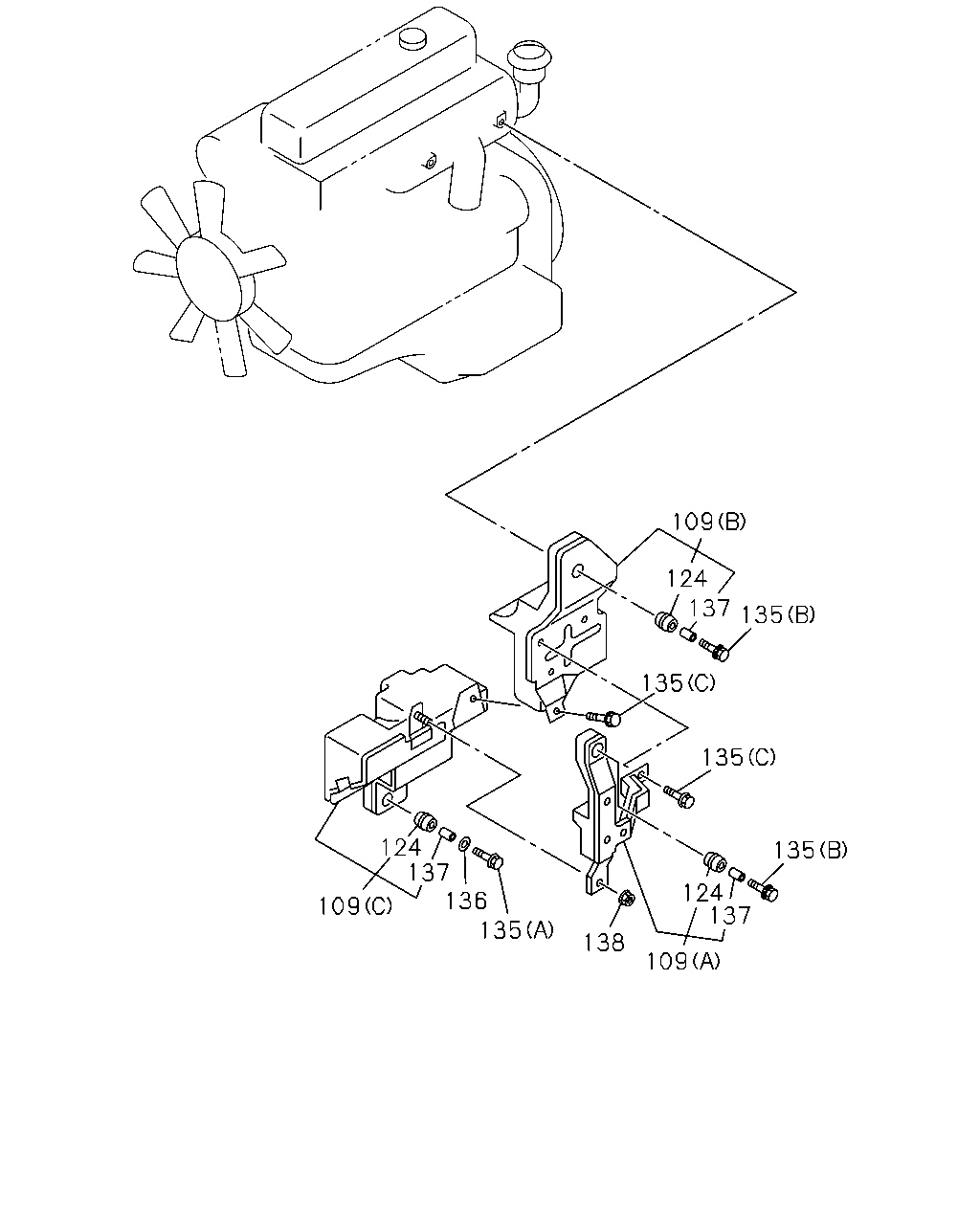

109 124 137 135 135 135 124 137 136 135 135 124 137 109 138 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
109	00.386 COVER; ENG (A)	8-97223-628-2	01	1	1011-1201	●
109	00.386 COVER; ENG INDONESIA EQUIPMENT(B00) (A)	8-97223-628-2	01	1	1202-	●
109	00.386 COVER; ENG (B)	8-97223-629-1	01	1	1011-1201	●
109	00.386 COVER; ENG INDONESIA EQUIPMENT(B00) (B)	8-97223-629-1	01	1	1202-	●
109	00.386 COVER; ENG (C)	8-97223-630-1	01	1	1011-1201	●
109	00.386 COVER; ENG INDONESIA EQUIPMENT(B00) (C)	8-97223-630-1	01	1	1202-	●
124	00.413 RUBBER; MTG,COVER OD=21.8	8-97325-051-0	03	1	1011-1201	●
124	00.413 RUBBER; MTG,COVER INDONESIA EQUIPMENT(B00) OD=21.8	8-97325-051-0	03	1	1202-	●
135	00.413 BOLT; COVER,ENG 03.407 (C) M8X10 FLANGE	0-28050-810-0	02	1	1011-1201	●
135	00.413 BOLT; COVER,ENG INDONESIA EQUIPMENT(B00) 03.407 (C) M8X10 FLANGE	0-28050-810-0	02	1	1202-	●
135	00.413 BOLT; COVER,ENG 00.029 (A) M10X20 FLANGE	0-28051-020-0	01	1	1011-1201	●
135	00.413 BOLT; COVER,ENG INDONESIA EQUIPMENT(B00) 00.029 (A) M10X20 FLANGE	0-28051-020-0	01	1	1202-	●
135	00.413 BOLT; COVER,ENG 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	1011-1201	●
135	00.413 BOLT; COVER,ENG INDONESIA EQUIPMENT(B00) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	1202-	●
136	00.413 WASHER; PL,ENG COVER 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1011-1201	●
136	00.413 WASHER; PL,ENG COVER INDONESIA EQUIPMENT(B00) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1202-	●
137	00.413 BUSHING; MTG RUBBER,COVER 00.034 OD=13 T=9.5	8-94140-427-1	03	1	1011-1201	●
137	00.413 BUSHING; MTG RUBBER,COVER INDONESIA EQUIPMENT(B00) 00.034 OD=13 T=9.5	8-94140-427-1	03	1	1202-	●
138	00.413 NUT; COVER,ENG 01.062 M8 FLANGE	0-91180-108-0	01	1	1011-1201	●
138	00.413 NUT; COVER,ENG INDONESIA EQUIPMENT(B00) 01.062 M8 FLANGE	0-91180-108-0	01	1	1202-	●

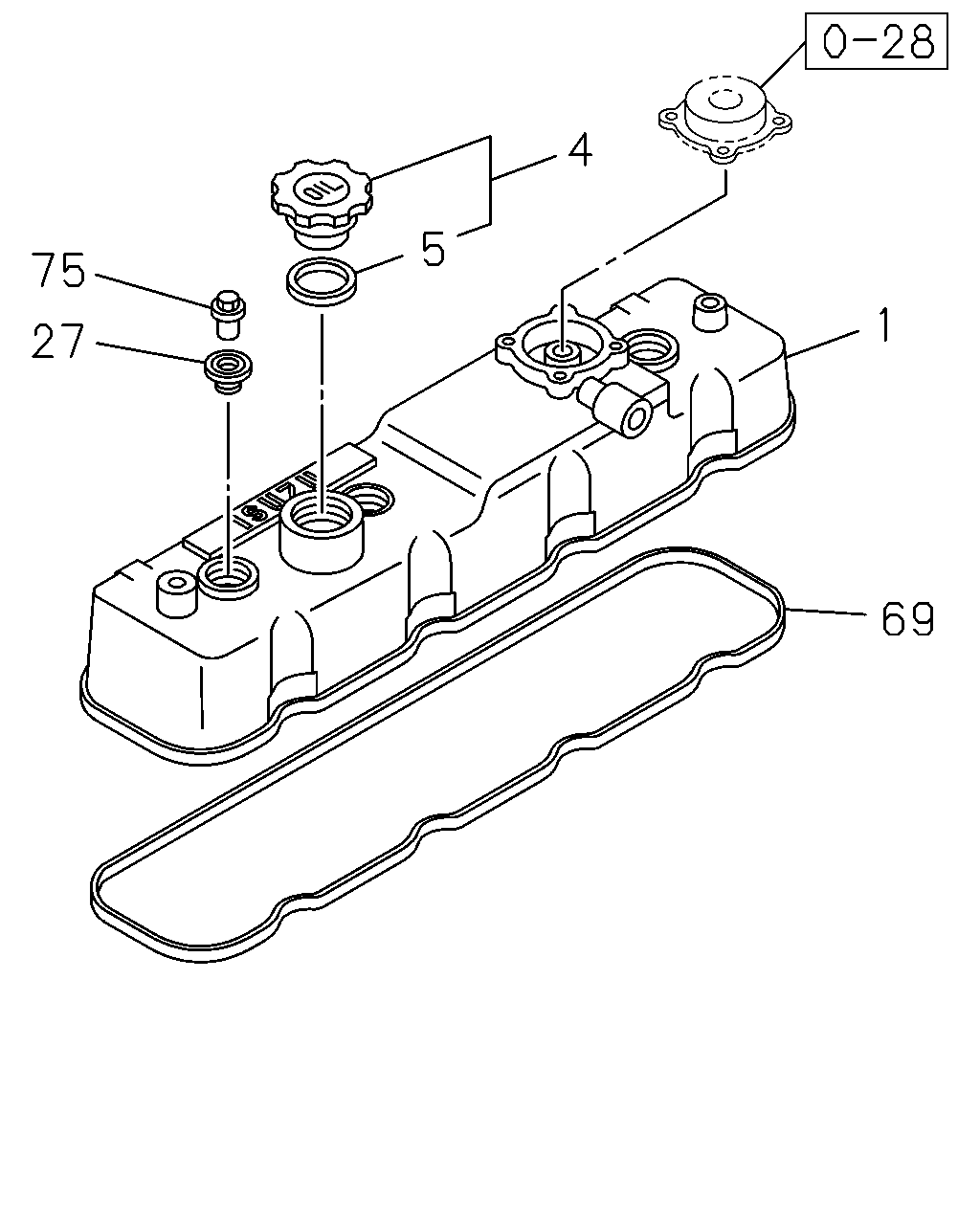

4 5 75 1 27 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	1011-	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1011-	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1011-	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	1011-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	1011-	●	●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	1011-	●	●
