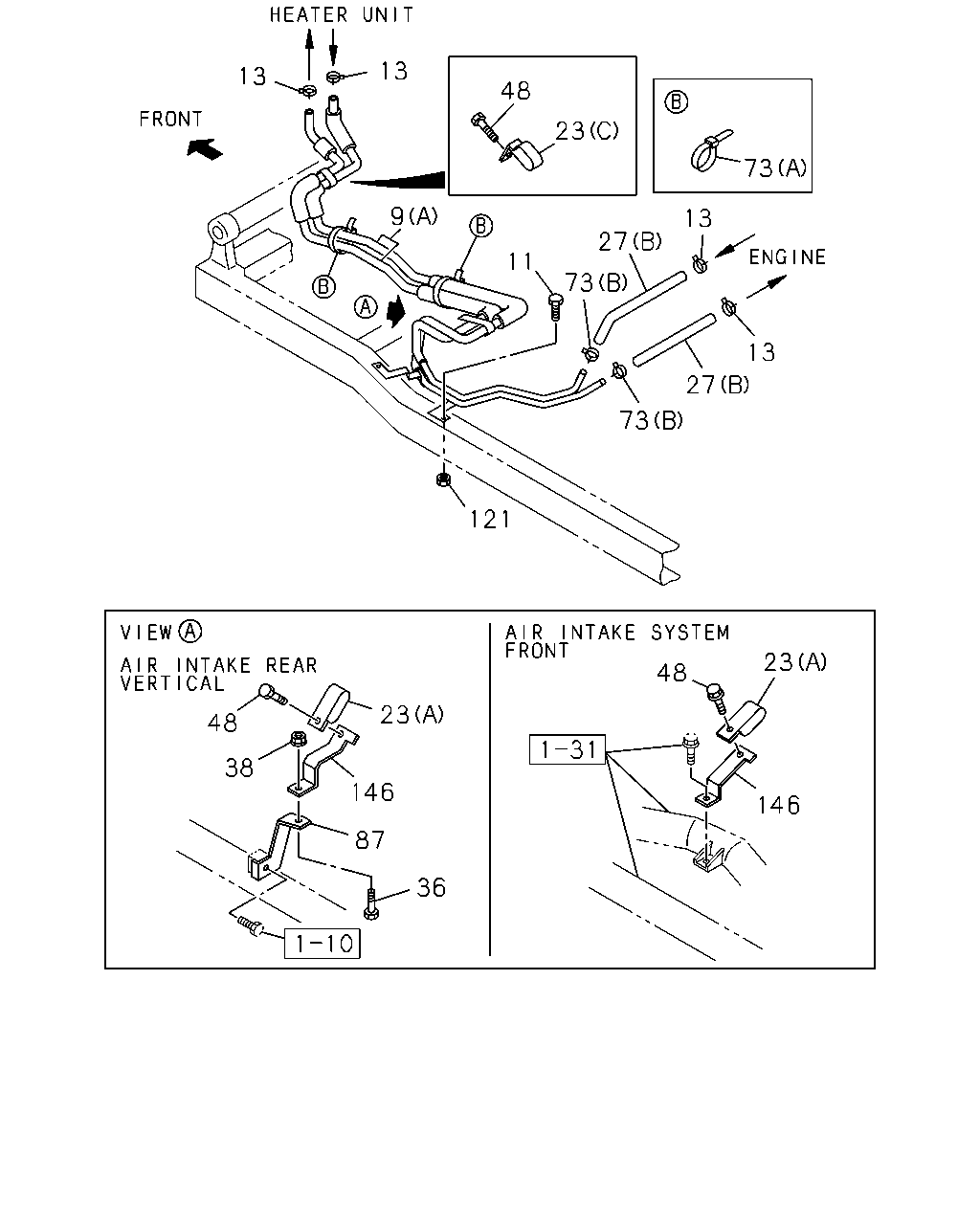

8-45 — HEATER PIPING (#78767) — 41 parça

13 13 48 23 73 9 13 27 11 73 13 27 73 121 23 48 23 48 38 146 146 87 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	08.846 PIPE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-97231-907-0	01	1	1011-	●	●
9	08.846 PIPE; HTR 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97129-185-0	01	1	1011-	●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1011-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 03.278 ID=22	8-97359-141-0	04	1	1011-	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41) 08.852 (C)	8-98032-129-0	01	1	1011-	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-98029-677-0	01	1	1011-	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) (A) B=18	8-97359-144-0	01	1	1011-1205	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) (A) B=18	8-98166-023-0	01	1	1206-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) (A)	8-97205-283-0	02	1	1011-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-97300-262-0	02	1	1011-	●	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1011-	●	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	1011-	●	●
48	09.262 BOLT; CLIP FIX 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1011-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1011-	●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	02	1	1011-	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) 03.278 (B) ID=22	8-97359-141-0	02	1	1011-	●	●
73	08.846 CLIP; HTR HOSE 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) 03.278 (B) ID=22	8-97359-141-0	02	1	1011-	●	●
73	08.846 CLIP; HTR HOSE 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	1011-	●	●
87	08.846 BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41) 03.417	8-97072-530-0	01	1	1011-	●	●
121	08.845 NUT; PIPE HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	1011-	●	●
146	08.846 BRACKET; HTR HOSE 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41)	8-97101-872-0	01	1	1011-	●	●

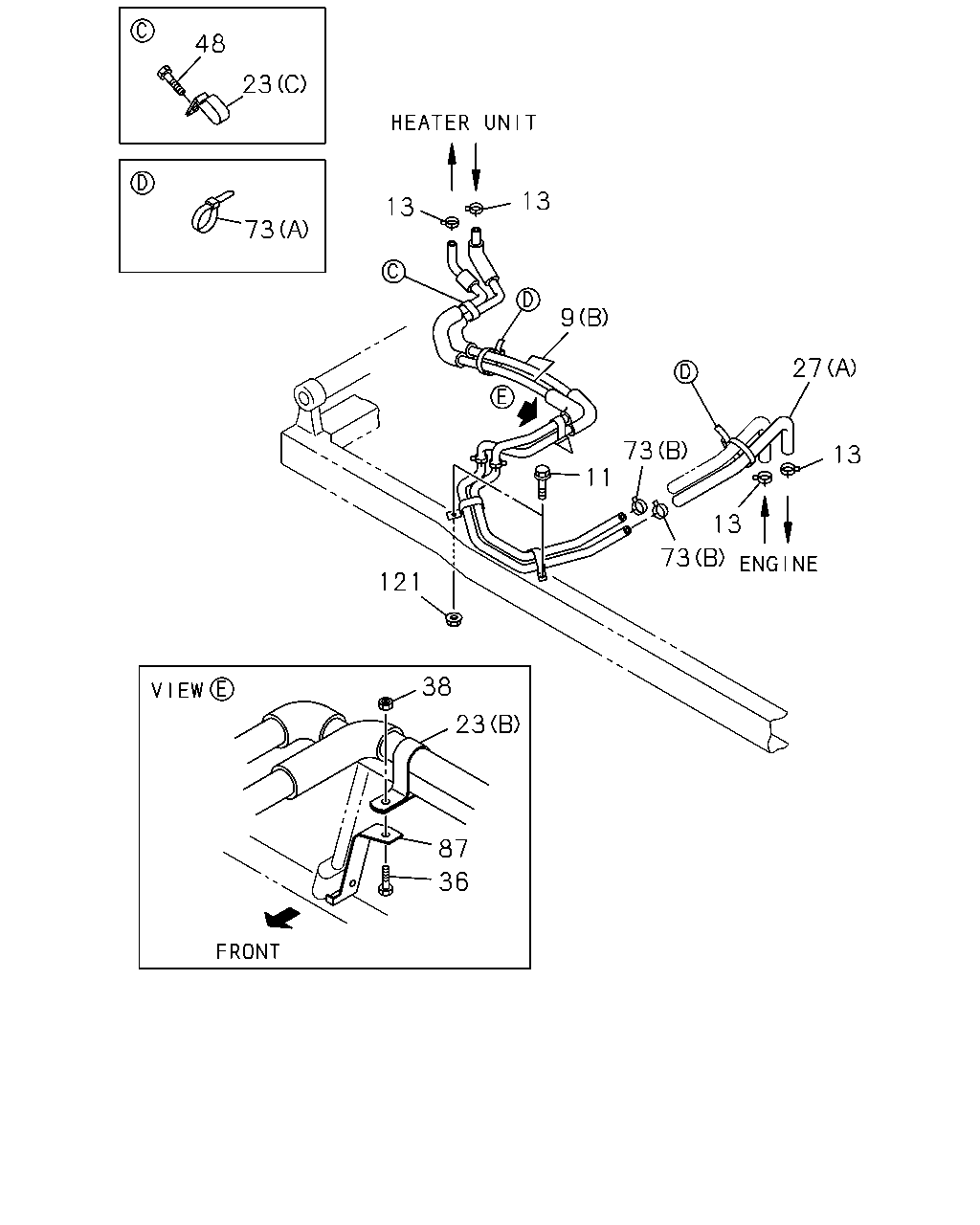

48 23 13 13 73 9 27 73 13 11 13 73 121 38 23 87 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	08.846 PIPE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-97231-907-0	01	1	1011-	●	●
9	08.846 PIPE; HTR 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97129-185-0	01	1	1011-	●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1011-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 03.278 ID=22	8-97359-141-0	04	1	1011-	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41) 08.852 (C)	8-98032-129-0	01	1	1011-	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-98029-677-0	01	1	1011-	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) (A) B=18	8-97359-144-0	01	1	1011-1205	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) (A) B=18	8-98166-023-0	01	1	1206-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) (A)	8-97205-283-0	02	1	1011-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-97300-262-0	02	1	1011-	●	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1011-	●	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	1011-	●	●
48	09.262 BOLT; CLIP FIX 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1011-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1011-	●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	02	1	1011-	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) 03.278 (B) ID=22	8-97359-141-0	02	1	1011-	●	●
73	08.846 CLIP; HTR HOSE 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) 03.278 (B) ID=22	8-97359-141-0	02	1	1011-	●	●
73	08.846 CLIP; HTR HOSE 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	1011-	●	●
87	08.846 BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41) 03.417	8-97072-530-0	01	1	1011-	●	●
121	08.845 NUT; PIPE HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	1011-	●	●
