Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#78761) — 164 parça

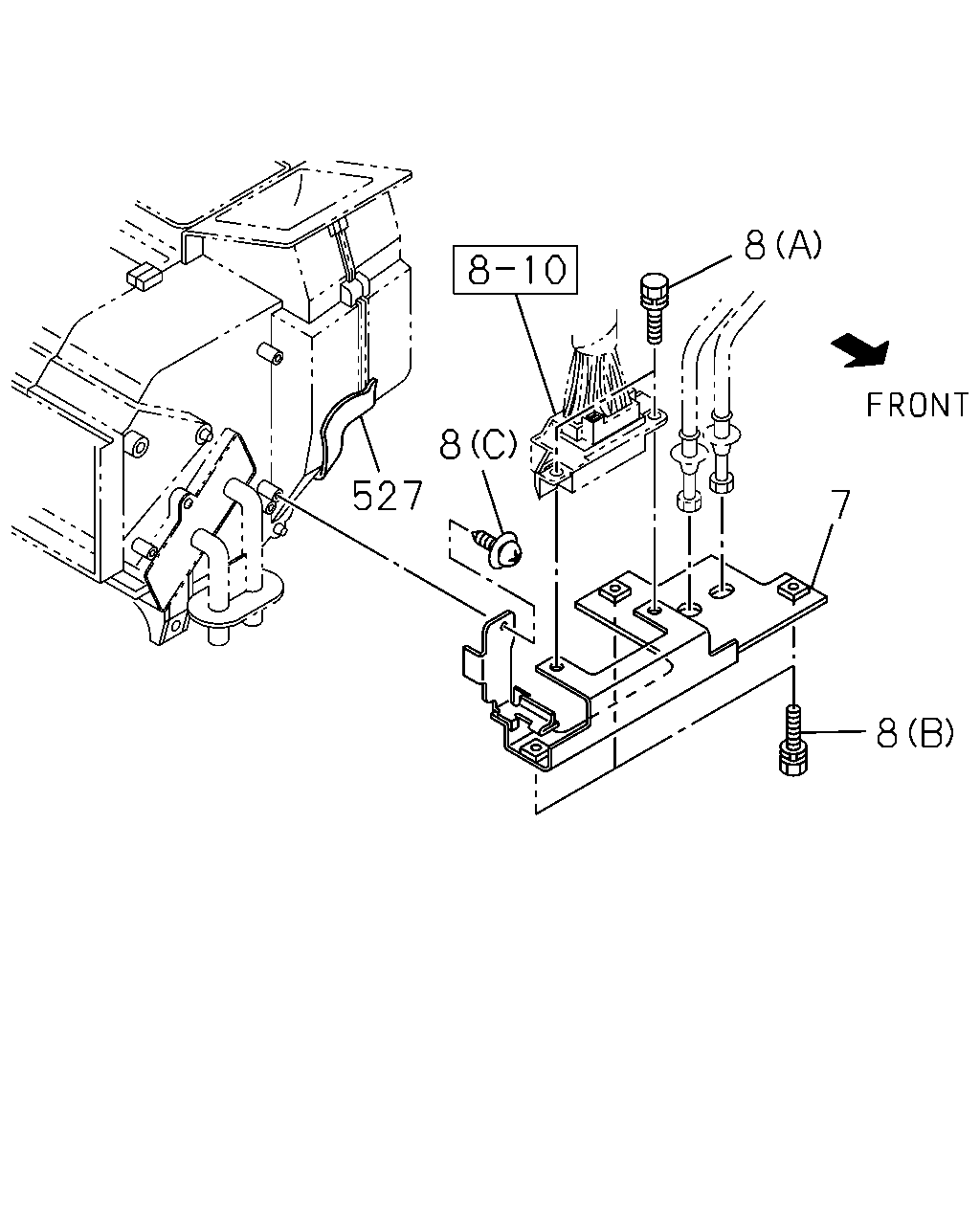

8 8 527 7 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR	8-97102-247-2	01	1	1011-	●	●
8	02.559 BOLT; BRKT,CONNECTOR 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	1011-	●	●
8	02.559 BOLT; BRKT,CONNECTOR 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1011-1101	●	●
8	02.559 BOLT; BRKT,CONNECTOR 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
8	02.559 BOLT; BRKT,CONNECTOR 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
8	02.559 BOLT; BRKT,CONNECTOR 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1011-1210	●	●
8	02.559 BOLT; BRKT,CONNECTOR 02.587 (A) M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	1211-	●	●
527	02.559 TAPE; SOFT,CONNECTOR 100X100	8-94232-622-0	01	1	1011-	●	●

16 22 48 488 16 48 16 483 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS 2-SPEAKER SYSTEM BASE<U95> (B) L=100	8-94327-067-1	04	1	1011-	●	●
16	02.559 CLIP; HARNESS 2-SPEAKER SYSTEM BASE<U95> (A) L=155	8-97173-307-0	05	1	1011-1011	●	●
16	02.559 CLIP; HARNESS 2-SPEAKER SYSTEM BASE<U95> (A) L=155	8-97173-307-0	04	1	1011-	●	●
16	02.559 CLIP; HARNESS 16.065 (D) 1 SET=5 PIECE	1-09987-214-0	03	1	1011-	●	●
16	02.559 CLIP; HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	1011-1403	●	●
16	02.559 CLIP; HARNESS 02.343 (E) ID=10 & 16	8-94413-325-0	02	1	1011-	●	●
16	02.559 CLIP; HARNESS 01.166 (F) ID=22 & 22	8-94464-837-0	01	1	1011-	●	●
16	02.559 CLIP; HARNESS 02.694 (G) ID=6 & 10-13	8-97069-515-0	02	1	1011-	●	●
16	02.559 CLIP; HARNESS (H) ID=15-32	8-97174-404-0	02	1	1011-	●	●
22	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) 03.162 L=140	5-09707-031-1	01	1	1012-	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) T=5.5	8-97371-951-0	01	1	1210-1502	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) T=5.5	8-97371-951-0	01	1	1210-1502	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) T=5.5	8-97371-951-0	01	1	1503-	●	●
48	02.559 CLIP; FRAME HARNESS EXHAUST BRAKE<NF8> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) T=5.5	8-97371-951-0	01	1	1503-	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (D) T=5.5	5-09709-047-0	01	1	1011-1209	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 01.240 (D) T=5.5	5-09709-047-0	01	1	1011-1209	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 01.240 (D) T=5.5	5-09709-047-0	01	1	1210-	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> IDENTIFICATION LABEL FOR KD<6UT> 01.240 (D) T=5.5	5-09709-047-0	01	1	1210-	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-NA ENG(RLF) 01.240 (E) ID=14 L=47	5-09700-319-0	02	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	02	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	07	1	1011-	●
48	02.559 CLIP; FRAME HARNESS (F) ID=19 H=70 L=25	1-09700-773-0	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=33 L=63	1-09700-807-0	05	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (I) ID=31 L=30	1-09700-969-0	02	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=32 L=35	1-09701-244-0	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (B) L=170.3	1-09987-182-0	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (A) T=4.5 & 13	5-09709-096-0	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (K) ID=9	8-97063-874-0	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	1011-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	09	1	1011-		●
483	02.559 CLIP; ENG HARNESS 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> (B) ID=11 L=20	0-95235-035-0	01	1	1011-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) (B) ID=11 L=20	0-95235-035-0	01	1	1011-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-NA ENG(RLF) EXC. HEATER & DEFROSTER(C41),FAN FLUID DRIVE<KA3>,POWER STEERING<N40> (B) ID=11 L=20	0-95235-035-0	01	1	1011-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-NA ENG(RLF) POWER STEERING<N40> EXC. FAN FLUID DRIVE<KA3> (B) ID=11 L=20	0-95235-035-0	01	1	1011-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. POWER STEERING<N40> (B) ID=11 L=20	0-95235-035-0	01	1	1011-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> 04.342 (A) L=197	1-83574-032-0	01	1	1011-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) 04.342 (A) L=197	1-83574-032-0	01	1	1011-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-NA ENG(RLF) EXC. HEATER & DEFROSTER(C41),FAN FLUID DRIVE<KA3>,POWER STEERING<N40> 04.342 (A) L=197	1-83574-032-0	01	1	1011-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-NA ENG(RLF) POWER STEERING<N40> EXC. FAN FLUID DRIVE<KA3> 04.342 (A) L=197	1-83574-032-0	01	1	1011-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. POWER STEERING<N40> 04.342 (A) L=197	1-83574-032-0	01	1	1011-	●	●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	1011-	●	●

38 150 319 38 8 242 8 38 529 242 377 516 159 8 511 219 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.559 BOLT; BRKT,CONNECTOR 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	1011-	●	●
8	02.559 BOLT; BRKT,CONNECTOR 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1011-1101	●	●
8	02.559 BOLT; BRKT,CONNECTOR 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
8	02.559 BOLT; BRKT,CONNECTOR 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
8	02.559 BOLT; BRKT,CONNECTOR 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1011-1210	●	●
8	02.559 BOLT; BRKT,CONNECTOR 02.587 (A) M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	1211-	●	●
38	02.559 BOLT; CLIP,HARNESS 03.162 (C) M6X20 FLANGE	0-28650-620-0	01	1	1011-	●	●
38	02.559 BOLT; CLIP,HARNESS 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1011-	●	●
38	02.559 BOLT; CLIP,HARNESS 00.685 (A) M6X25 FLANGE	0-28650-625-0	02	1	1011-	●	●
38	02.559 BOLT; CLIP,HARNESS 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1011-	●	●
150	02.343 BOLT; CLIP 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> M8X12 FLANGE	0-28050-812-0	01	1	1011-	●	●
150	02.343 BOLT; CLIP 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) M8X12 FLANGE	0-28050-812-0	01	1	1011-	●	●
150	02.343 BOLT; CLIP 4JB1-NA ENG(RLF) EXC. HEATER & DEFROSTER(C41),FAN FLUID DRIVE<KA3>,POWER STEERING<N40> M8X12 FLANGE	0-28050-812-0	01	1	1011-	●	●
150	02.343 BOLT; CLIP 4JB1-NA ENG(RLF) POWER STEERING<N40> EXC. FAN FLUID DRIVE<KA3> M8X12 FLANGE	0-28050-812-0	01	1	1011-	●	●
150	02.343 BOLT; CLIP 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. POWER STEERING<N40> M8X12 FLANGE	0-28050-812-0	01	1	1011-	●	●
159	02.559 BOLT; GRAND ENG ELEC 02.343 M8X24 W/PL WASHER	8-98141-256-1	01	1	1011-	●	●
219	02.559 NUT FUEL SEDIMENTER WITH HEATER<6HU> 09.744 M5 FLANGE	5-09440-003-0	01	1	1011-	●	●
242	02.483 BOLT; BRKT,HARNESS 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1011-	●	●
242	02.483 BOLT; BRKT,HARNESS 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	1011-	●	●
319	02.559 SCREW; CLAMP,HARNESS CONNECTOR FUEL SEDIMENTER WITH HEATER<6HU> M5X16 W/LK WASHER	0-36220-516-0	01	1	1011-	●	●
377	02.559 BOLT; CAB EARTH 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1011-	●	●
511	02.559 SCREW; HARNESS COVER 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	1011-	●	●
516	02.559 BOLT; HARNESS 16.090 M8X23 FLANGE	8-97264-766-0	04	1	1011-	●	●
519	02.559 NUT; EARTH CABLE 02.042 M12 FLANGE	0-91180-112-0	01	1	1011-	●	●
529	02.559 BOLT; RELAY BOX 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1011-	●	●

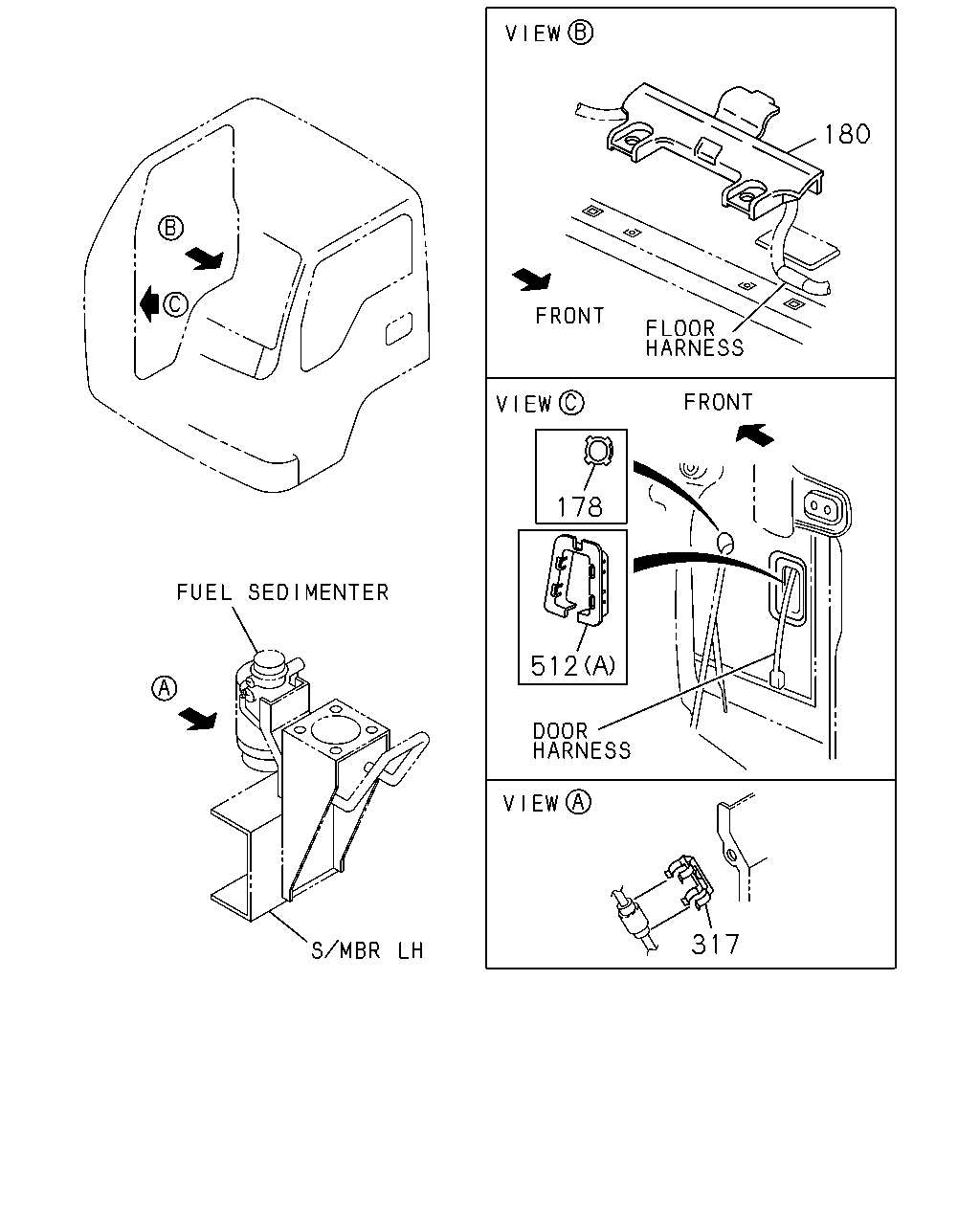

180 178 512 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	1011-	●	●
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	1011-	●	●
317	02.559 CLAMP; CONNECTOR FUEL SEDIMENTER WITH HEATER<6HU>	8-94441-365-0	01	1	1011-	●	●
512	02.559 PROTECTOR; HARNESS 2-SPEAKER SYSTEM BASE<U95> (A)	8-97072-950-0	02	1	1011-	●	●
512	02.559 PROTECTOR; HARNESS 04.785 (B) L=200	8-97096-423-0	01	1	1011-	●	●

53 53 510 507 507 507 512 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS (A)	8-98003-047-0	01	1	1011-	●
53	02.483 BRACKET; HARNESS (B)	8-98003-046-0	01	1	1011-		●
507	02.559 FINISHER (A) L=120 SERVICED BY L=500	1-79937-746-0	01	1	1011-	●	●
507	02.559 FINISHER (A) L=120 SERVICED BY L=500	1-79937-746-0	01	1	1011-	●	●
507	02.559 FINISHER (A) L=120 SERVICED BY L=500	1-79937-746-0	02	1	1011-	●	●
507	02.559 FINISHER (B) L=175 SERVICED BY L=500	1-79937-746-0	01	1	1011-	●	●
507	02.559 FINISHER 03.885 (C) L=50	8-94270-377-1	01	1	1011-	●	●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	1011-	●	●
512	02.559 PROTECTOR; HARNESS 2-SPEAKER SYSTEM BASE<U95> (A)	8-97072-950-0	02	1	1011-	●	●
512	02.559 PROTECTOR; HARNESS 04.785 (B) L=200	8-97096-423-0	01	1	1011-	●	●
514	02.559 FINISHER; HARNESS L=290 SERVICED BY L=500	1-79937-746-0	01	1	1011-	●	●

16 264 16 483 48 48 464 48 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS 2-SPEAKER SYSTEM BASE<U95> (B) L=100	8-94327-067-1	04	1	1011-	●	●
16	02.559 CLIP; HARNESS 2-SPEAKER SYSTEM BASE<U95> (A) L=155	8-97173-307-0	05	1	1011-1011	●	●
16	02.559 CLIP; HARNESS 2-SPEAKER SYSTEM BASE<U95> (A) L=155	8-97173-307-0	04	1	1011-	●	●
16	02.559 CLIP; HARNESS 16.065 (D) 1 SET=5 PIECE	1-09987-214-0	03	1	1011-	●	●
16	02.559 CLIP; HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	1011-1403	●	●
16	02.559 CLIP; HARNESS 02.343 (E) ID=10 & 16	8-94413-325-0	02	1	1011-	●	●
16	02.559 CLIP; HARNESS 01.166 (F) ID=22 & 22	8-94464-837-0	01	1	1011-	●	●
16	02.559 CLIP; HARNESS 02.694 (G) ID=6 & 10-13	8-97069-515-0	02	1	1011-	●	●
16	02.559 CLIP; HARNESS (H) ID=15-32	8-97174-404-0	02	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) T=5.5	8-97371-951-0	01	1	1210-1502	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) T=5.5	8-97371-951-0	01	1	1210-1502	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) T=5.5	8-97371-951-0	01	1	1503-	●	●
48	02.559 CLIP; FRAME HARNESS EXHAUST BRAKE<NF8> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) T=5.5	8-97371-951-0	01	1	1503-	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (D) T=5.5	5-09709-047-0	01	1	1011-1209	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 01.240 (D) T=5.5	5-09709-047-0	01	1	1011-1209	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 01.240 (D) T=5.5	5-09709-047-0	01	1	1210-	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> IDENTIFICATION LABEL FOR KD<6UT> 01.240 (D) T=5.5	5-09709-047-0	01	1	1210-	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-NA ENG(RLF) 01.240 (E) ID=14 L=47	5-09700-319-0	02	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	02	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	07	1	1011-	●
48	02.559 CLIP; FRAME HARNESS (F) ID=19 H=70 L=25	1-09700-773-0	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=33 L=63	1-09700-807-0	05	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (I) ID=31 L=30	1-09700-969-0	02	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=32 L=35	1-09701-244-0	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (B) L=170.3	1-09987-182-0	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (A) T=4.5 & 13	5-09709-096-0	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (K) ID=9	8-97063-874-0	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	1011-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	09	1	1011-		●
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 ID=6 & 10-13	8-97069-515-0	01	1	1011-	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 ID=6.5	8-94257-639-0	01	1	1011-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> (B) ID=11 L=20	0-95235-035-0	01	1	1011-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) (B) ID=11 L=20	0-95235-035-0	01	1	1011-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-NA ENG(RLF) EXC. HEATER & DEFROSTER(C41),FAN FLUID DRIVE<KA3>,POWER STEERING<N40> (B) ID=11 L=20	0-95235-035-0	01	1	1011-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-NA ENG(RLF) POWER STEERING<N40> EXC. FAN FLUID DRIVE<KA3> (B) ID=11 L=20	0-95235-035-0	01	1	1011-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. POWER STEERING<N40> (B) ID=11 L=20	0-95235-035-0	01	1	1011-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> 04.342 (A) L=197	1-83574-032-0	01	1	1011-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) 04.342 (A) L=197	1-83574-032-0	01	1	1011-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-NA ENG(RLF) EXC. HEATER & DEFROSTER(C41),FAN FLUID DRIVE<KA3>,POWER STEERING<N40> 04.342 (A) L=197	1-83574-032-0	01	1	1011-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-NA ENG(RLF) POWER STEERING<N40> EXC. FAN FLUID DRIVE<KA3> 04.342 (A) L=197	1-83574-032-0	01	1	1011-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. POWER STEERING<N40> 04.342 (A) L=197	1-83574-032-0	01	1	1011-	●	●

48 208 48 48 48 48 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) T=5.5	8-97371-951-0	01	1	1210-1502	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) T=5.5	8-97371-951-0	01	1	1210-1502	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) T=5.5	8-97371-951-0	01	1	1503-	●	●
48	02.559 CLIP; FRAME HARNESS EXHAUST BRAKE<NF8> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) T=5.5	8-97371-951-0	01	1	1503-	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (D) T=5.5	5-09709-047-0	01	1	1011-1209	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 01.240 (D) T=5.5	5-09709-047-0	01	1	1011-1209	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 01.240 (D) T=5.5	5-09709-047-0	01	1	1210-	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> IDENTIFICATION LABEL FOR KD<6UT> 01.240 (D) T=5.5	5-09709-047-0	01	1	1210-	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (E) ID=14 L=47	5-09700-319-0	03	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-NA ENG(RLF) 01.240 (E) ID=14 L=47	5-09700-319-0	02	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	02	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	07	1	1011-	●
48	02.559 CLIP; FRAME HARNESS (F) ID=19 H=70 L=25	1-09700-773-0	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=33 L=63	1-09700-807-0	05	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (I) ID=31 L=30	1-09700-969-0	02	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=32 L=35	1-09701-244-0	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (B) L=170.3	1-09987-182-0	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (A) T=4.5 & 13	5-09709-096-0	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (K) ID=9	8-97063-874-0	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	01	1	1011-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	1011-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	09	1	1011-		●
208	02.559 CLIP; HARNESS,MAG VLV 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) T=5.5	8-97371-951-0	01	1	1210-	●	●
208	02.559 CLIP; HARNESS,MAG VLV 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 02.557 (A) ID=10	5-09700-318-0	02	1	1011-	●	●
208	02.559 CLIP; HARNESS,MAG VLV 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 01.240 (B) T=5.5	5-09709-047-0	01	1	1011-1209	●	●
208	02.559 CLIP; HARNESS,MAG VLV 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> IDENTIFICATION LABEL FOR KD<6UT> 01.240 (B) T=5.5	5-09709-047-0	01	1	1210-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
