◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51352 - QKR-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#78751) — 18 parça

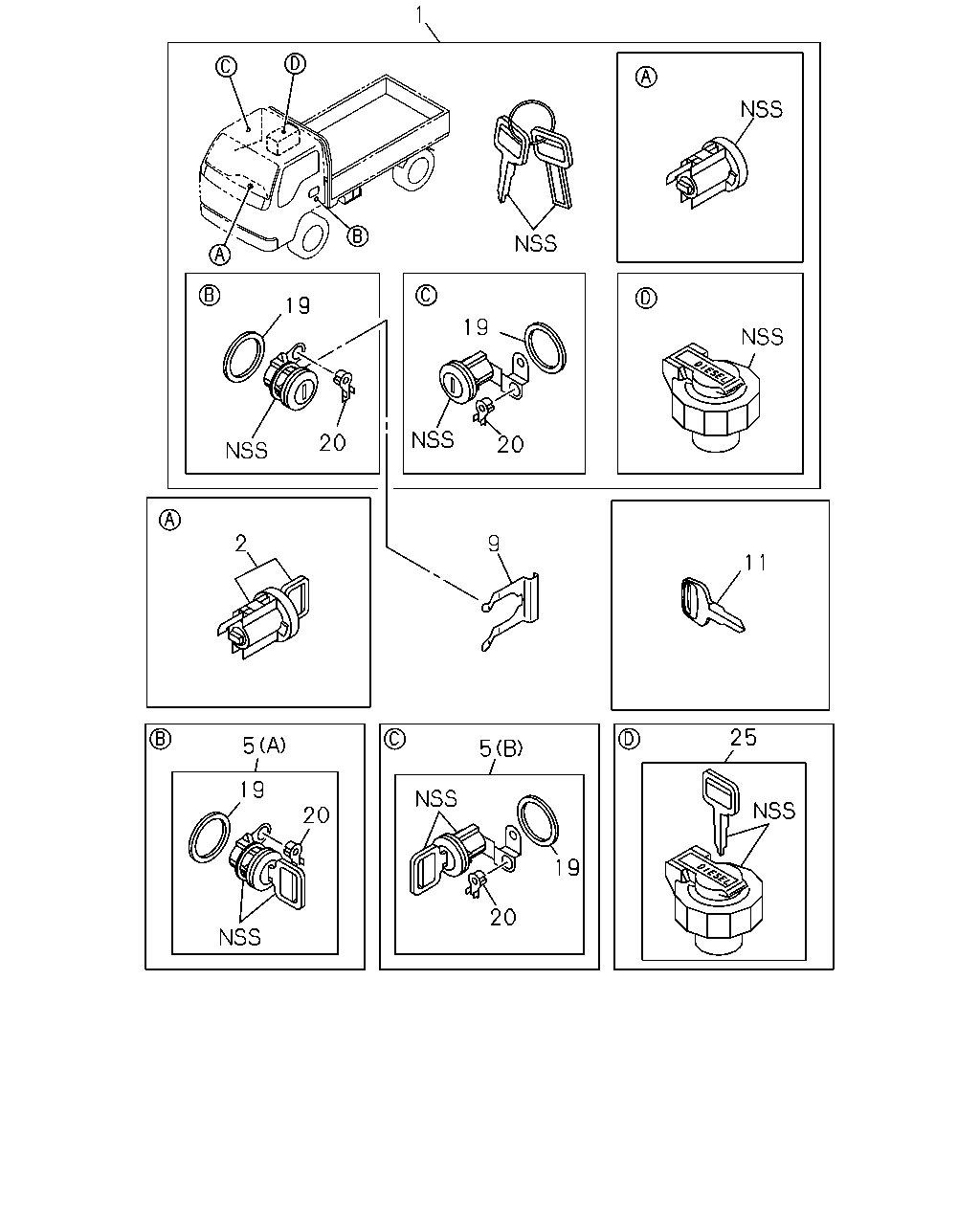

çizim 132668
1 19 19 20 20 2 9 11 25 5 5 19 20 19 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> CHEVROLET BRAND<RWE>,GM BRAND<X61> 		8-97092-406-1 01 1 1011- ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> 		8-97035-294-1 01 1 1011- ● ●
1 02.188 CYLINDER SET; CAR LOCK
CHEVROLET BRAND<RWE>,GM BRAND<X61> EXC. FUEL TANK CAP W/LOCK<N05> 		8-97092-405-1 01 1 1011- ● ●
1 02.188 CYLINDER SET; CAR LOCK
ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05> 		8-97035-293-1 01 1 1011- ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
CHEVROLET BRAND<RWE>,GM BRAND<X61> 		8-97095-869-0 01 1 1011- ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> 		8-97095-682-2 01 1 1011- ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
CHEVROLET BRAND<RWE>,GM BRAND<X61> (B) 		8-97095-870-0 01 1 1011- ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
CHEVROLET BRAND<RWE>,GM BRAND<X61> (A) 		8-97095-871-0 01 1 1011- ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> (B) 		8-97095-684-2 01 1 1011- ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> (A) 		8-97095-685-2 01 1 1011- ● ●
9 16.328 CLIP; DOOR LOCK 8-97410-786-0 02 1 1011- ● ●
11 02.187 KEY; BLANK
CHEVROLET BRAND<RWE>,GM BRAND<X61> WO/NOTCH 		8-97108-649-0 AR 1 1011- ● ●
11 02.187 KEY; BLANK
ISUZU BRAND<7WL> WO/NOTCH 		8-97076-337-0 AR 1 1011- ● ●
19 16.328 GASKET; DOOR LOCK CYL
CHEVROLET BRAND<RWE>,GM BRAND<X61>,ISUZU BRAND<7WL> 		8-94128-739-0 02 1 1011- ● ●
20 16.328 SNAP; DOOR LOCK CYL
CHEVROLET BRAND<RWE>,GM BRAND<X61>,ISUZU BRAND<7WL> 10.474 YELLOW 		8-97040-452-0 01 1 1011- ● ●
20 16.328 SNAP; DOOR LOCK CYL
CHEVROLET BRAND<RWE>,GM BRAND<X61>,ISUZU BRAND<7WL> 10.474 BROWN 		8-97040-453-0 01 1 1011- ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> CHEVROLET BRAND<RWE>,GM BRAND<X61> 		8-97095-872-0 01 1 1011- ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> 		8-97095-686-2 01 1 1011- ● ●
