◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51352 - QKR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#78741) — 40 parça

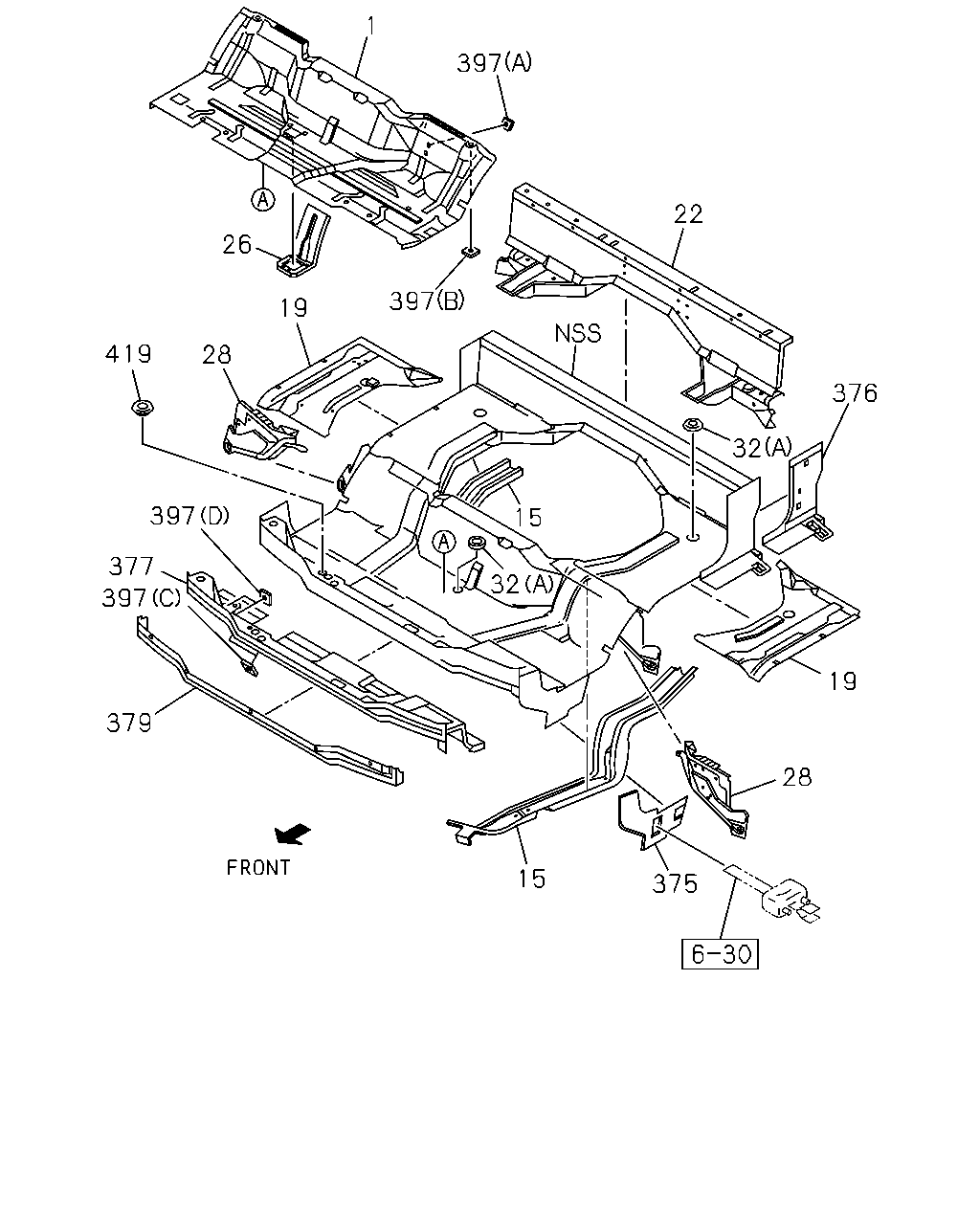

çizim 132407
1 397 22 26 397 19 419 28 376 32 397 15 377 32 397 19 379 28 15 375
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.545 PANEL; FLOOR 8-97850-332-7 01 1 1011- ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 1011- ● ●
15 16.545 FRAME; UNDER 8-98013-405-0 01 1 1011- ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-5 01 1 1011- ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-337-5 01 1 1011- ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-98082-185-4 01 1 1011- ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-98110-277-3 01 1 1011- ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-005-6 01 1 1011- ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 1011-1106 ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-98170-771-0 01 1 1107- ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 1011-1106 ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-98170-770-0 01 1 1107- ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.155 (A) OD=28.5 		8-94279-711-0 02 1 1011- ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.845 (B) H=78 B=37 		8-97036-019-0 01 1 1011- ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
EXC. HEATER & DEFROSTER(C41) 08.845 (C) H=69.5 B=29.5 		8-97036-020-0 01 1 1011- ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-5 01 1 1011- ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-4 01 1 1011- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 1011- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 1011- ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-351-9 01 1 1011- ● ●
379 16.545 PANEL 8-97581-639-0 01 1 1011- ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 1011- ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 1011- ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 1011- ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 1011- ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
16.802 OD=36 		1-09983-092-0 01 1 1011- ● ●

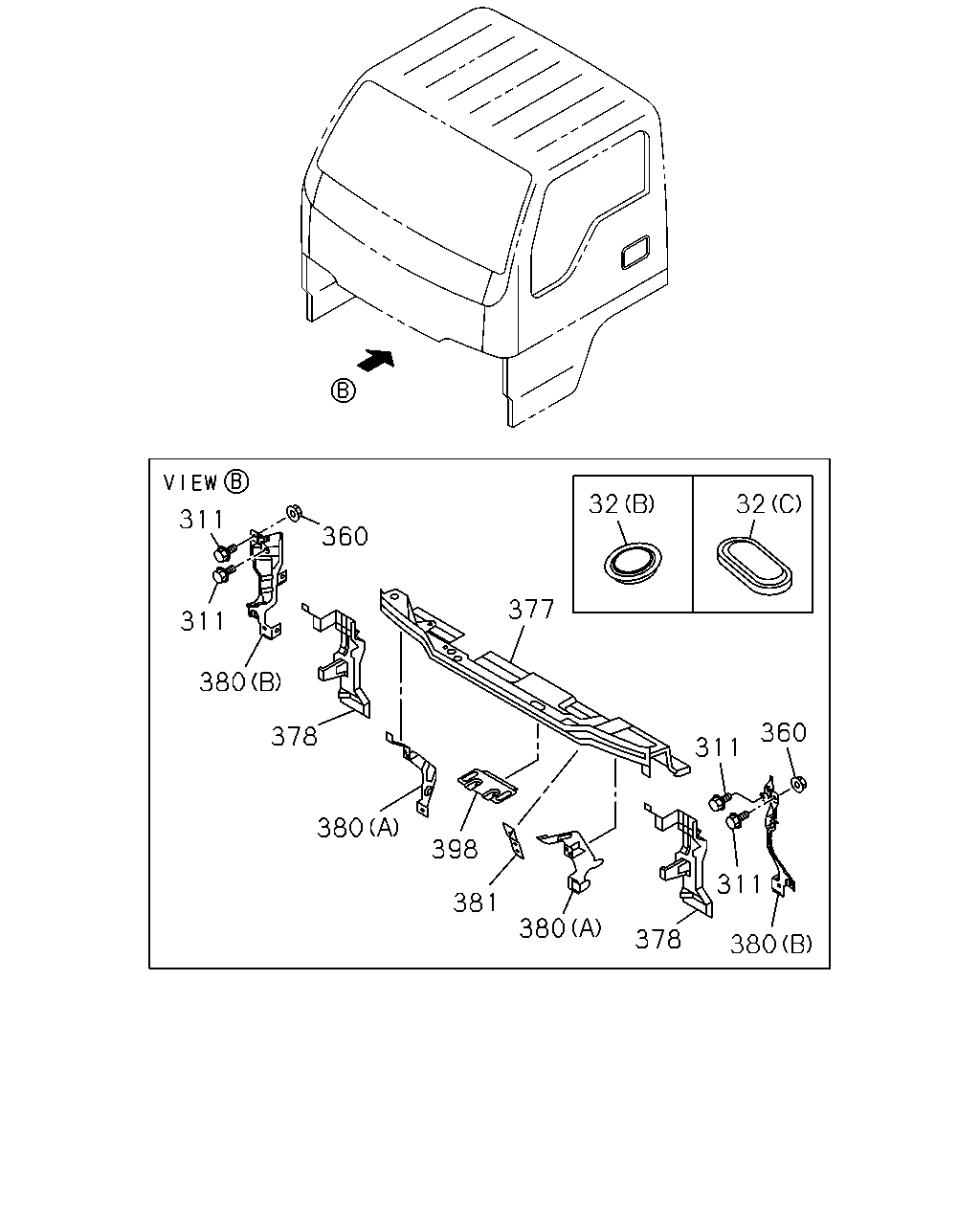

çizim 132409
32 32 311 360 377 311 380 360 378 311 380 398 311 381 380 378 380
BalonParca AdiParca NoAdetTipApplied Date A B
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.155 (A) OD=28.5 		8-94279-711-0 02 1 1011- ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.845 (B) H=78 B=37 		8-97036-019-0 01 1 1011- ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
EXC. HEATER & DEFROSTER(C41) 08.845 (C) H=69.5 B=29.5 		8-97036-020-0 01 1 1011- ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1011- ● ●
360 16.545 NUT; BRKT
09.786 M6 POP NUT 		8-98013-752-0 02 1 1011- ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-351-9 01 1 1011- ● ●
378 16.545 GASSET; LWR 8-97581-827-2 01 1 1011- ● ●
378 16.545 GASSET; LWR 8-97581-828-2 01 1 1011- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97850-359-1 01 1 1011- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97850-704-0 01 1 1011- ● ●
380 16.545 BRACKET; HEAD LAMP
02.726 (B) 		8-98006-087-0 01 1 1011- ● ●
380 16.545 BRACKET; HEAD LAMP
02.726 (B) 		8-98006-088-0 01 1 1011- ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-352-1 01 1 1011- ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 1011- ● ●
