◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#7874) — 287 parça

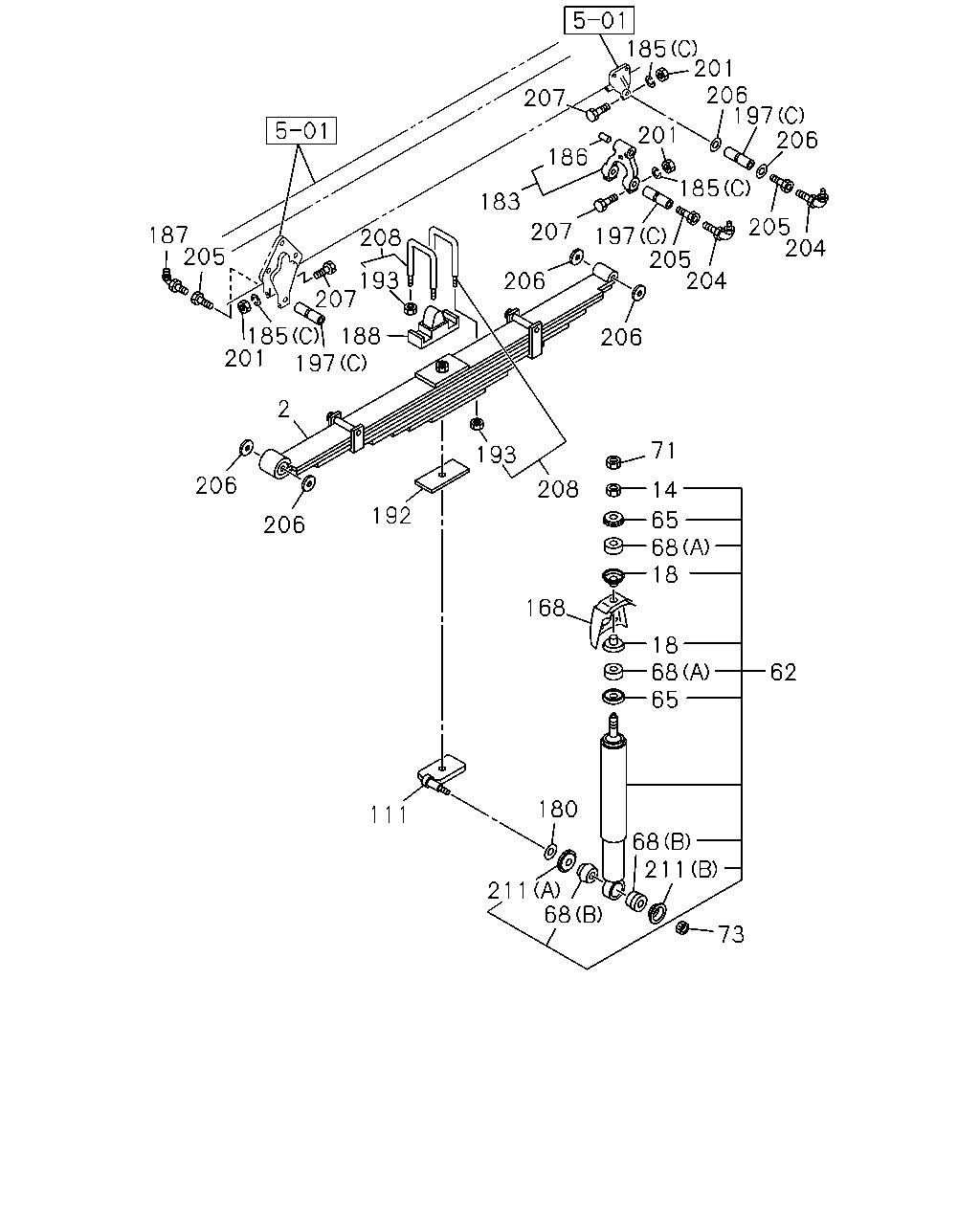

çizim 99308
185 201 206 197 206 207 201 186 185 183 205 204 207 187 205 197 205 204 208 193 207 185 188 201 197 206 206 2 71 193 206 208 14 192 65 68 18 206 168 18 68 65 62 180 111 68 211 211 68 73
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		1-51130-343-0 01 1 0302- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		1-51130-474-0 01 1 0302- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		1-51130-266-0 02 1 9905-0207 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		1-51130-110-0 02 1 0208- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		1-51130-341-0 02 1 9905- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0302- ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 0302- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-579-0 02 1 0302- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-381-0 02 1 9905-0308 ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-838-0 02 1 0309- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-3 02 1 9905- ●
65 WASHER; S/ABS
ID=16.5 		9-51631-040-0 04 1 0302- ●
65 WASHER; S/ABS
ID=17 		9-09164-516-0 02 1 9905- ●
65 WASHER; S/ABS
ID=23 		1-51631-019-0 02 1 9905- ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0302- ●
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 0302- ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 0302-0512 ●
71 NUT; LK,S/ABS,UPR
M14 		0-91111-514-0 02 1 0601- ●
71 NUT; LK,S/ABS,UPR
M10 		9-09111-410-0 02 1 9905-0512 ●
71 NUT; LK,S/ABS,UPR
M10 		0-91111-510-0 02 1 0601- ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 9905- ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 0302-0304 ●
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 02 1 0305-0512 ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 0601- ●
73 NUT; BRKT,SHOCK
M12 		9-99110-512-0 02 1 9905-0512 ●
73 NUT; BRKT,SHOCK
M12 		0-91110-512-0 02 1 0601- ●
73 NUT; BRKT,SHOCK
M16 		9-99110-516-0 02 1 9905-0206 ●
73 NUT; BRKT,SHOCK
M16 		9-99110-416-0 02 1 0207-0512 ●
73 NUT; BRKT,SHOCK
M16 		0-91110-516-0 02 1 0601- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-722-1 01 1 0302- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-723-1 01 1 0302- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-742-0 01 1 9905- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-741-0 01 1 9905- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-721-1 01 1 9905- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-720-1 01 1 9905- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0302- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 9905- ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 0302-0605 ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0606- ●
180 WASHER; PL,PIN
ID=17 		9-09160-516-0 02 1 9905-0605 ●
180 WASHER; PL,PIN
ID=17 OD=30 		0-91610-516-0 02 1 0606- ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 9905- ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9905-0301 ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0302- ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		1-09503-011-0 04 1 9905- ●
185 WASHER; LK,PIN
(B) ID=23 		1-51169-003-0 02 1 9905- ●
185 WASHER; LK,PIN
(C) ID=12.2 		9-09150-612-0 12 1 9905-0301 ●
185 WASHER; LK,PIN
(C) ID=12.2 		9-09150-612-0 12 1 0302-0603 ● ●
185 WASHER; LK,PIN
(C) ID=12.2 		0-91510-612-0 12 1 0604- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9905-0301 ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0302- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9905-0301 ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0302-0512 ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 0302- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-107-0 02 1 9905-0103 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-112-0 02 1 0104- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-085-2 02 1 9905- ●
192 PIECE; DIST
T=4.5 		1-51177-149-0 01 1 9905- ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 01 1 9905-0301 ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 01 1 0302- ● ●
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 9905-0503 ●
193 NUT; U BOLT
M16 		8-94107-767-0 08 1 0504- ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9905-0301 ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0302-0512 ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601- ● ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-004-3 02 1 9905- ●
197 PIN; FRT SPR,FRT
(B) 		1-51161-005-3 04 1 9905- ●
197 PIN; FRT SPR,FRT
(C) 		1-51161-031-0 06 1 9905-0301 ●
197 PIN; FRT SPR,FRT
(C) 		1-51161-031-0 06 1 0302- ● ●
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 9905-0512 ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0601- ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9905-0301 ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0302-0512 ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0302-0512 ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 02 1 0302-0512 ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9905-0512 ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9905-0301 ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0302- ● ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9905-0301 ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0302- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9905-0301 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0302-0512 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ● ●
208 U-BOLT SET; FRT SPRING
L=175 		1-87870-350-0 04 1 9905-0103 ●
208 U-BOLT SET; FRT SPRING
L=165 		1-87870-407-0 04 1 0104-0503 ●
208 U-BOLT SET; FRT SPRING
L=165 		1-87870-447-0 04 1 0504- ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 9905-0301 ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 0302- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0302- ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0302- ●

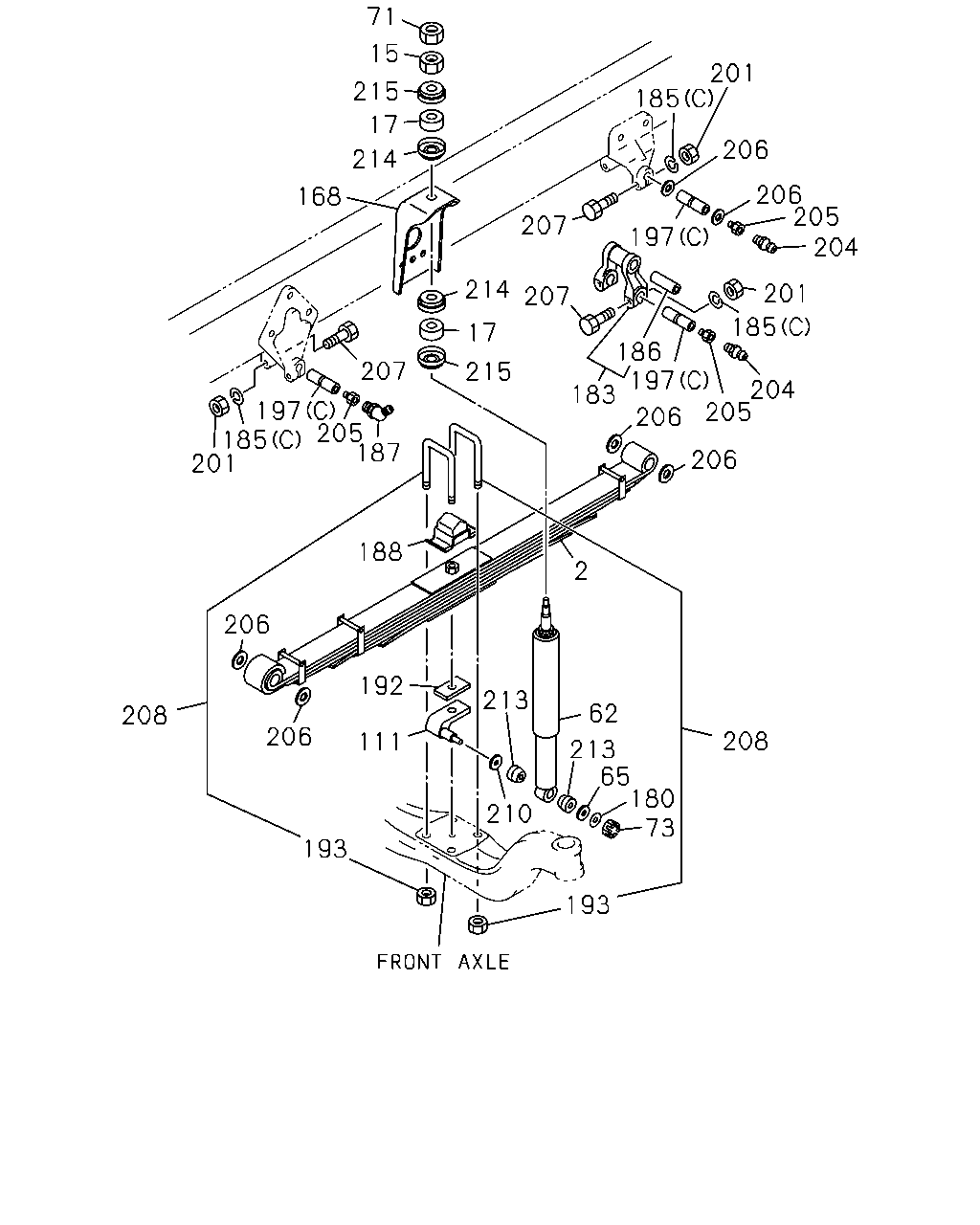

çizim 99310
71 15 201 185 215 17 206 14 206 205 204 168 207 197 214 201 207 185 17 186 197 204 205 207 215 183 197 205 185 187 201 206 206 188 2 206 192 213 62 208 206 208 111 213 65 180 73 210 193 193
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		1-51130-343-0 01 1 0302- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		1-51130-474-0 01 1 0302- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		1-51130-266-0 02 1 9905-0207 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		1-51130-110-0 02 1 0208- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		1-51130-341-0 02 1 9905- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0302- ●
15 NUT; S/ABS,UPR
M10 FLANGE 		0-91150-210-0 02 1 9905-0602 ●
15 NUT; S/ABS,UPR
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 02 1 9905- ●
17 BUSHING; RUBBER,S/ABS 1-51631-004-0 04 1 9905- ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 9905- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-579-0 02 1 0302- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-381-0 02 1 9905-0308 ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-838-0 02 1 0309- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-3 02 1 9905- ●
65 WASHER; S/ABS
ID=16.5 		9-51631-040-0 04 1 0302- ●
65 WASHER; S/ABS
ID=17 		9-09164-516-0 02 1 9905- ●
65 WASHER; S/ABS
ID=23 		1-51631-019-0 02 1 9905- ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 0302-0512 ●
71 NUT; LK,S/ABS,UPR
M14 		0-91111-514-0 02 1 0601- ●
71 NUT; LK,S/ABS,UPR
M10 		9-09111-410-0 02 1 9905-0512 ●
71 NUT; LK,S/ABS,UPR
M10 		0-91111-510-0 02 1 0601- ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 9905- ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 0302-0304 ●
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 02 1 0305-0512 ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 0601- ●
73 NUT; BRKT,SHOCK
M12 		9-99110-512-0 02 1 9905-0512 ●
73 NUT; BRKT,SHOCK
M12 		0-91110-512-0 02 1 0601- ●
73 NUT; BRKT,SHOCK
M16 		9-99110-516-0 02 1 9905-0206 ●
73 NUT; BRKT,SHOCK
M16 		9-99110-416-0 02 1 0207-0512 ●
73 NUT; BRKT,SHOCK
M16 		0-91110-516-0 02 1 0601- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-722-1 01 1 0302- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-723-1 01 1 0302- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-742-0 01 1 9905- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-741-0 01 1 9905- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-721-1 01 1 9905- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-720-1 01 1 9905- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0302- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 9905- ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 0302-0605 ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0606- ●
180 WASHER; PL,PIN
ID=17 		9-09160-516-0 02 1 9905-0605 ●
180 WASHER; PL,PIN
ID=17 OD=30 		0-91610-516-0 02 1 0606- ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 9905- ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9905-0301 ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0302- ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		1-09503-011-0 04 1 9905- ●
185 WASHER; LK,PIN
(B) ID=23 		1-51169-003-0 02 1 9905- ●
185 WASHER; LK,PIN
(C) ID=12.2 		9-09150-612-0 12 1 9905-0301 ●
185 WASHER; LK,PIN
(C) ID=12.2 		9-09150-612-0 12 1 0302-0603 ● ●
185 WASHER; LK,PIN
(C) ID=12.2 		0-91510-612-0 12 1 0604- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9905-0301 ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0302- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9905-0301 ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0302-0512 ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 0302- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-107-0 02 1 9905-0103 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-112-0 02 1 0104- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-085-2 02 1 9905- ●
192 PIECE; DIST
T=4.5 		1-51177-149-0 01 1 9905- ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 01 1 9905-0301 ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 01 1 0302- ● ●
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 9905-0503 ●
193 NUT; U BOLT
M16 		8-94107-767-0 08 1 0504- ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9905-0301 ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0302-0512 ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601- ● ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-004-3 02 1 9905- ●
197 PIN; FRT SPR,FRT
(B) 		1-51161-005-3 04 1 9905- ●
197 PIN; FRT SPR,FRT
(C) 		1-51161-031-0 06 1 9905-0301 ●
197 PIN; FRT SPR,FRT
(C) 		1-51161-031-0 06 1 0302- ● ●
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 9905-0512 ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0601- ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9905-0301 ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0302-0512 ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0302-0512 ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 02 1 0302-0512 ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9905-0512 ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9905-0301 ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0302- ● ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9905-0301 ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0302- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9905-0301 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0302-0512 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ● ●
208 U-BOLT SET; FRT SPRING
L=175 		1-87870-350-0 04 1 9905-0103 ●
208 U-BOLT SET; FRT SPRING
L=165 		1-87870-407-0 04 1 0104-0503 ●
208 U-BOLT SET; FRT SPRING
L=165 		1-87870-447-0 04 1 0504- ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 9905-0301 ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 0302- ● ●
210 WASHER; S/ABS,OUTER
ID=12.5 		1-09503-171-0 02 1 9905- ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 9905- ●
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 9905- ●
214 WASHER; S/ABS,UPR,INNER 1-51631-023-0 02 1 9905- ●
214 WASHER; S/ABS,UPR,INNER
ID=16.8 		1-51631-022-0 04 1 9905- ●
215 WASHER; S/ABS,UPR,OUTER
ID=10.5 OD=40 T=3.2 		9-09651-094-0 04 1 9905- ●
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 04 1 9905- ●

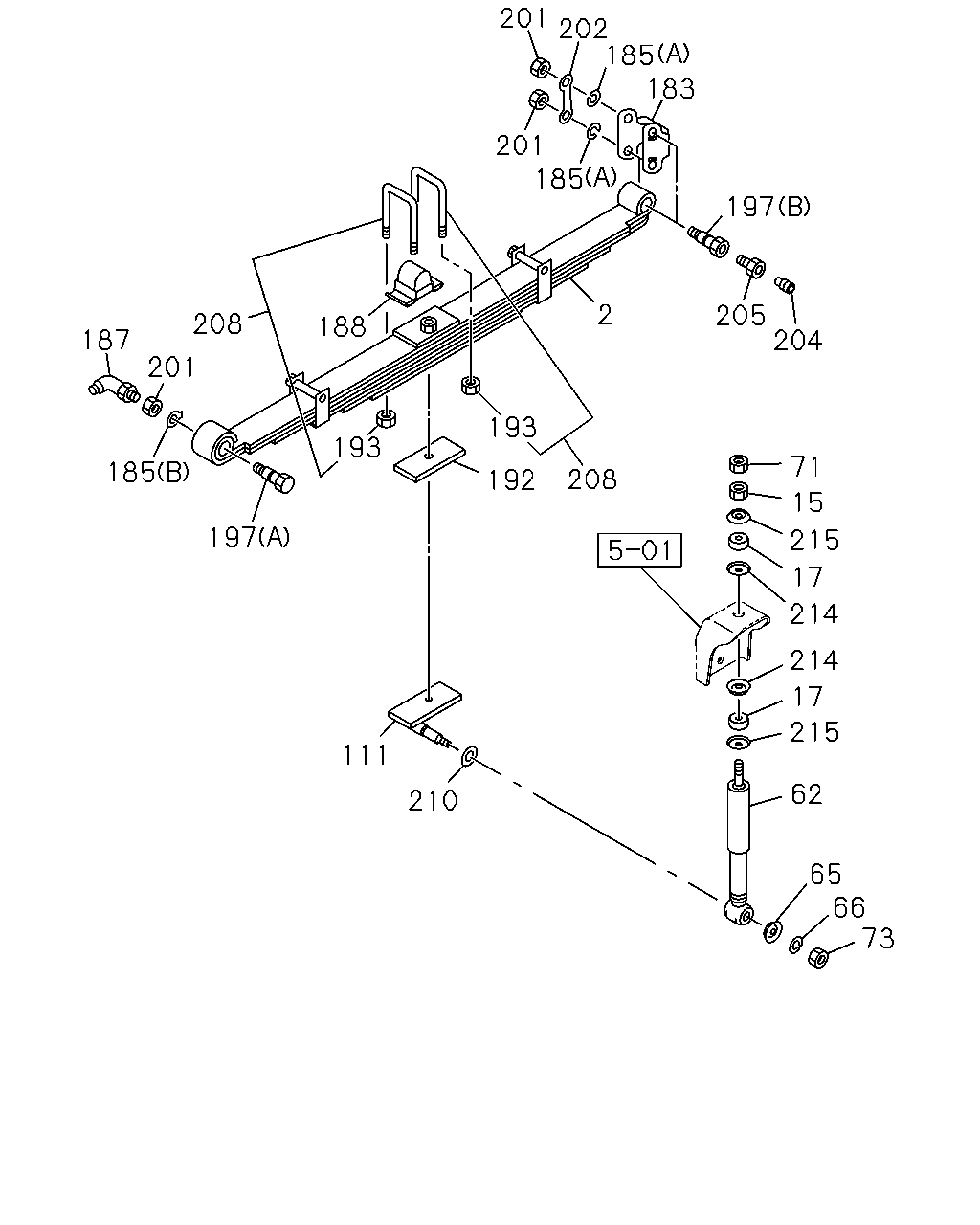

çizim 99312
201 202 183 201 197 2 205 204 208 188 187 201 193 193 71 185 208 192 15 197 215 17 214 214 17 215 111 62 210 65 66 73 185 185
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		1-51130-343-0 01 1 0302- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		1-51130-474-0 01 1 0302- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		1-51130-266-0 02 1 9905-0207 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		1-51130-110-0 02 1 0208- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		1-51130-341-0 02 1 9905- ●
15 NUT; S/ABS,UPR
M10 FLANGE 		0-91150-210-0 02 1 9905-0602 ●
15 NUT; S/ABS,UPR
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 02 1 9905- ●
17 BUSHING; RUBBER,S/ABS 1-51631-004-0 04 1 9905- ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 9905- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-579-0 02 1 0302- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-381-0 02 1 9905-0308 ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-838-0 02 1 0309- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-3 02 1 9905- ●
65 WASHER; S/ABS
ID=16.5 		9-51631-040-0 04 1 0302- ●
65 WASHER; S/ABS
ID=17 		9-09164-516-0 02 1 9905- ●
65 WASHER; S/ABS
ID=23 		1-51631-019-0 02 1 9905- ●
66 WASHER; LK,S/ABS SETTING
ID=12.2 		9-09150-512-0 02 1 9905-0603 ●
66 WASHER; LK,S/ABS SETTING
ID=12.2 		0-91510-512-0 02 1 0604- ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 0302-0512 ●
71 NUT; LK,S/ABS,UPR
M14 		0-91111-514-0 02 1 0601- ●
71 NUT; LK,S/ABS,UPR
M10 		9-09111-410-0 02 1 9905-0512 ●
71 NUT; LK,S/ABS,UPR
M10 		0-91111-510-0 02 1 0601- ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 9905- ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 0302-0304 ●
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 02 1 0305-0512 ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 0601- ●
73 NUT; BRKT,SHOCK
M12 		9-99110-512-0 02 1 9905-0512 ●
73 NUT; BRKT,SHOCK
M12 		0-91110-512-0 02 1 0601- ●
73 NUT; BRKT,SHOCK
M16 		9-99110-516-0 02 1 9905-0206 ●
73 NUT; BRKT,SHOCK
M16 		9-99110-416-0 02 1 0207-0512 ●
73 NUT; BRKT,SHOCK
M16 		0-91110-516-0 02 1 0601- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-722-1 01 1 0302- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-723-1 01 1 0302- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-742-0 01 1 9905- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-741-0 01 1 9905- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-721-1 01 1 9905- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-720-1 01 1 9905- ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 9905- ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9905-0301 ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0302- ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		1-09503-011-0 04 1 9905- ●
185 WASHER; LK,PIN
(B) ID=23 		1-51169-003-0 02 1 9905- ●
185 WASHER; LK,PIN
(C) ID=12.2 		9-09150-612-0 12 1 9905-0301 ●
185 WASHER; LK,PIN
(C) ID=12.2 		9-09150-612-0 12 1 0302-0603 ● ●
185 WASHER; LK,PIN
(C) ID=12.2 		0-91510-612-0 12 1 0604- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9905-0301 ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0302-0512 ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 0302- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-107-0 02 1 9905-0103 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-112-0 02 1 0104- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-085-2 02 1 9905- ●
192 PIECE; DIST
T=4.5 		1-51177-149-0 01 1 9905- ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 01 1 9905-0301 ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 01 1 0302- ● ●
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 9905-0503 ●
193 NUT; U BOLT
M16 		8-94107-767-0 08 1 0504- ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9905-0301 ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0302-0512 ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601- ● ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-004-3 02 1 9905- ●
197 PIN; FRT SPR,FRT
(B) 		1-51161-005-3 04 1 9905- ●
197 PIN; FRT SPR,FRT
(C) 		1-51161-031-0 06 1 9905-0301 ●
197 PIN; FRT SPR,FRT
(C) 		1-51161-031-0 06 1 0302- ● ●
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 9905-0512 ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0601- ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9905-0301 ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0302-0512 ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ● ●
202 PLATE; LK,SPR PIN 1-51169-016-0 02 1 9905- ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0302-0512 ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 02 1 0302-0512 ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9905-0512 ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9905-0301 ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0302- ● ● ●
208 U-BOLT SET; FRT SPRING
L=175 		1-87870-350-0 04 1 9905-0103 ●
208 U-BOLT SET; FRT SPRING
L=165 		1-87870-407-0 04 1 0104-0503 ●
208 U-BOLT SET; FRT SPRING
L=165 		1-87870-447-0 04 1 0504- ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 9905-0301 ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 0302- ● ●
210 WASHER; S/ABS,OUTER
ID=12.5 		1-09503-171-0 02 1 9905- ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 9905- ●
214 WASHER; S/ABS,UPR,INNER 1-51631-023-0 02 1 9905- ●
214 WASHER; S/ABS,UPR,INNER
ID=16.8 		1-51631-022-0 04 1 9905- ●
215 WASHER; S/ABS,UPR,OUTER
ID=10.5 OD=40 T=3.2 		9-09651-094-0 04 1 9905- ●
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 04 1 9905- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
