6-35 — FRONT DOOR TRIM (#78736) — 36 parça

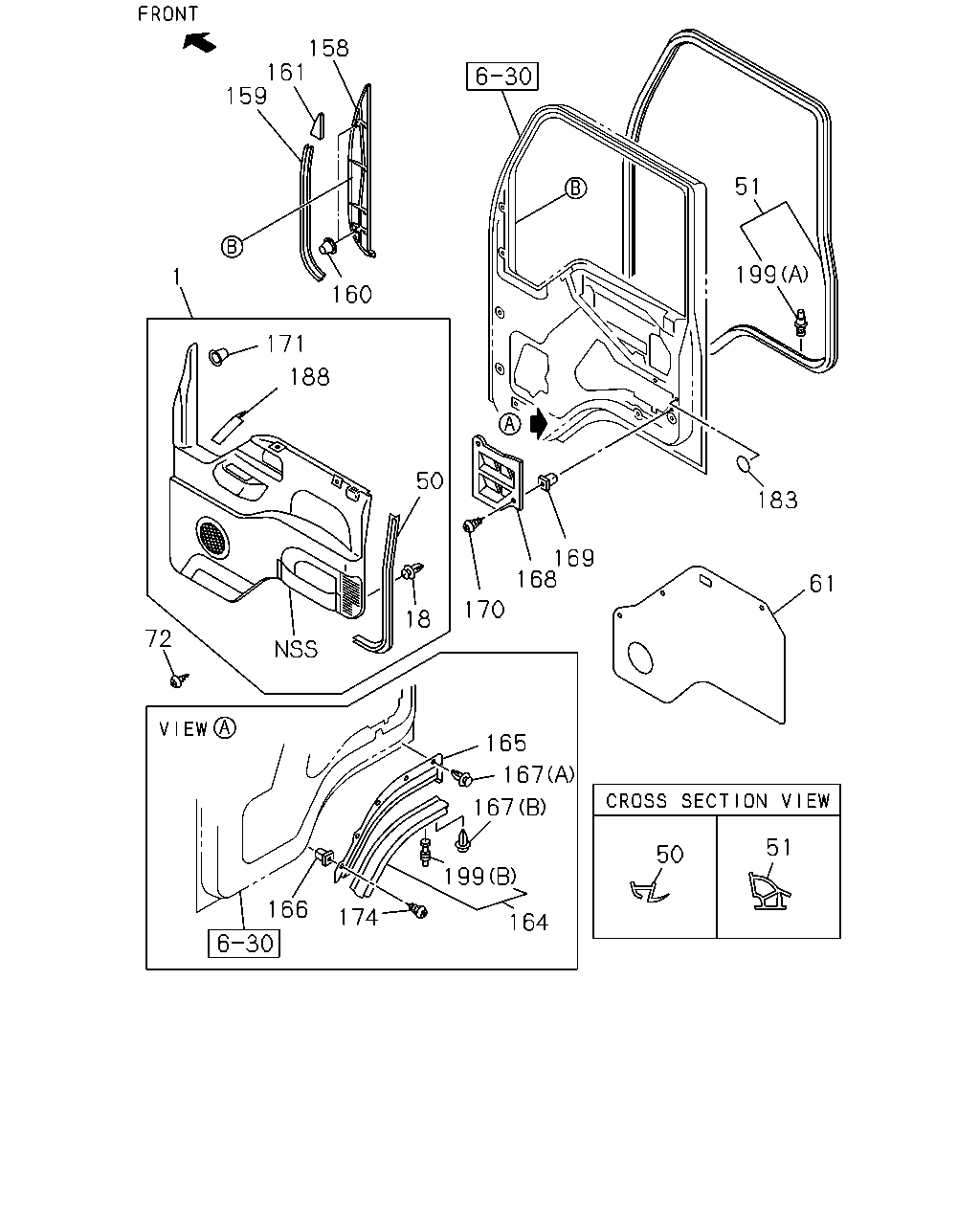

çizim 130970
158 161 159 51 199 1 160 171 188 50 183 169 168 61 170 18 72 165 167 167 51 50 199 166 174 164
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.165 PAD; TRIM,FRT DOOR
GRAY 		8-97582-280-4 01 1 1011- ● ●
1 16.165 PAD; TRIM,FRT DOOR
GRAY 		8-97582-286-4 01 1 1011- ● ●
18 16.165 CLIP; DOOR PAD
OD=7.9 BLACK 		8-94279-974-1 24 1 1011- ● ●
50 16.166 FINISHER; DOOR PAD
GRAY 		8-97582-685-0 02 1 1011- ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR 8-97892-902-3 01 1 1011- ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR 8-97892-903-3 01 1 1011- ● ●
61 16.165 SEAL; WATER,DOOR PAD
2-SPEAKER SYSTEM BASE<U95> 		8-97852-308-1 02 1 1011- ● ●
61 16.165 SEAL; WATER,DOOR PAD
EXC. 2-SPEAKER SYSTEM BASE<U95> 		8-97852-307-1 02 1 1011- ● ●
72 16.165 SCREW; DOOR TRIM
16.345 M5X12 HEX SOCKET 		0-72380-512-0 02 1 1011- ● ●
158 16.165 GARNISH; DOOR 8-97852-128-2 01 1 1011- ● ●
158 16.165 GARNISH; DOOR 8-97852-129-2 01 1 1011- ● ●
159 16.165 FINISHER; GARNISH 8-97852-257-4 02 1 1011- ● ●
160 16.165 CLIP; GARNISH 8-97852-058-0 04 1 1011- ● ●
161 16.165 FASTENER; GARNISH 8-97134-312-1 01 1 1011- ● ●
161 16.165 FASTENER; GARNISH 8-97134-313-1 01 1 1011- ● ●
164 16.165 SEAL; SUB,SILL SIDE 8-97852-319-4 01 1 1011- ● ●
164 16.165 SEAL; SUB,SILL SIDE 8-97852-320-4 01 1 1011- ● ●
165 16.165 LINER; DOOR LWR 8-97581-080-0 01 1 1011- ● ●
165 16.165 LINER; DOOR LWR 8-97581-081-0 01 1 1011- ● ●
166 16.155 PLUG; HOLE
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 1011- ● ●
167 16.165 CLIP; LINER
08.155 (A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1011- ● ●
167 16.165 CLIP; LINER
(B) D6X20 PUSH RIVET 		8-97859-673-0 02 1 1011- ● ●
168 16.175 VALVE; DOOR OUTLET 8-97855-412-0 01 1 1011- ● ●
168 16.175 VALVE; DOOR OUTLET 8-97855-413-0 01 1 1011- ● ●
169 16.175 GROMMET; SCREW,VALVE
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 1011- ● ●
170 16.175 SCREW; VALVE
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1011- ● ●
171 16.165 RETAINER; DOOR PAD
01.303 		5-09709-049-0 02 1 1011- ● ●
174 16.175 SCREW; LINER
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 1011- ● ●
183 16.165 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 1011- ● ●
188 16.165 CASE; DOOR
GRAY 		8-97582-684-3 01 1 1011- ● ●
188 16.165 CASE; DOOR
GRAY 		8-97582-693-3 01 1 1011- ● ●
199 16.165 CLIP; SEAL
(A) FRONT NATURAL 		1-09987-253-1 09 1 1011- ● ●
199 16.165 CLIP; SEAL
(A) FRONT YELLOW 		1-09987-254-1 09 1 1011- ● ●
199 16.165 CLIP; SEAL
(A) LOWER & BACK PINK 		1-09987-256-0 32 1 1011- ● ●
199 16.165 CLIP; SEAL
(B) NATURAL 		8-97852-455-0 07 1 1011- ● ●
199 16.165 CLIP; SEAL
(B) PINK 		8-97852-456-0 07 1 1011- ● ●
